Massey Ferguson

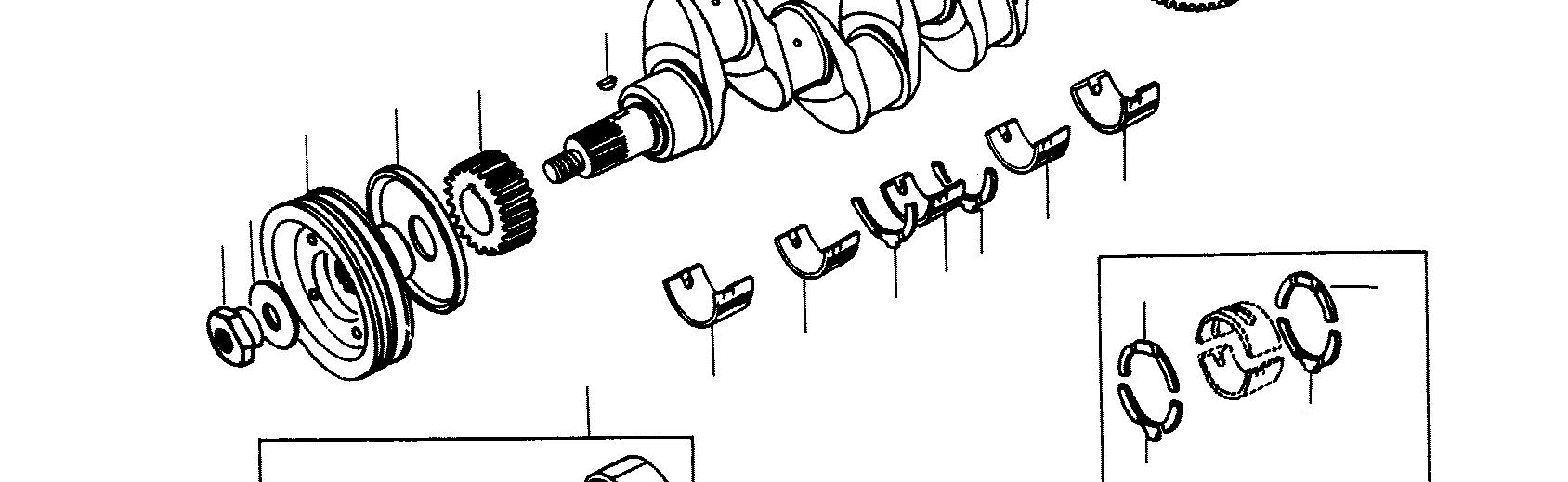

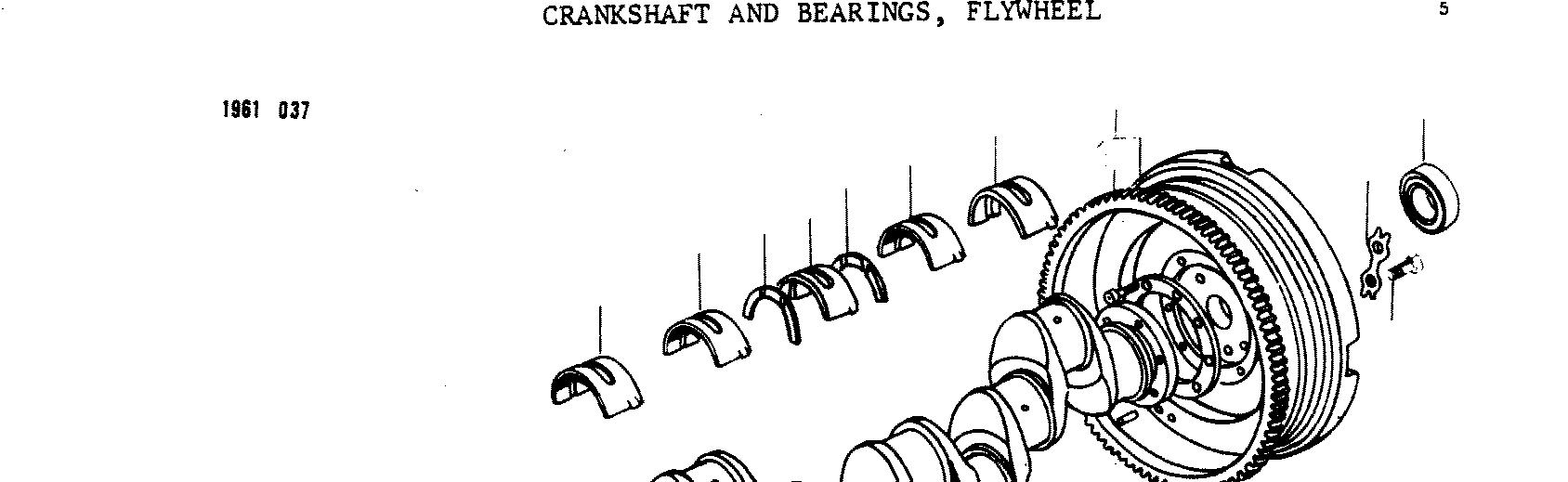

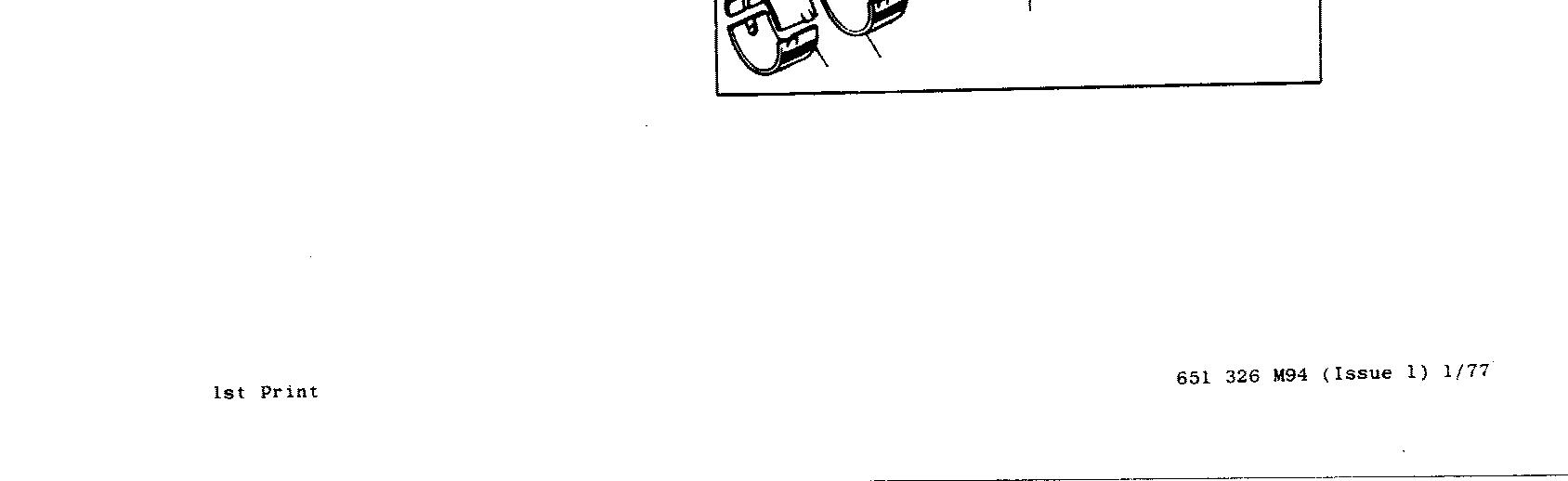

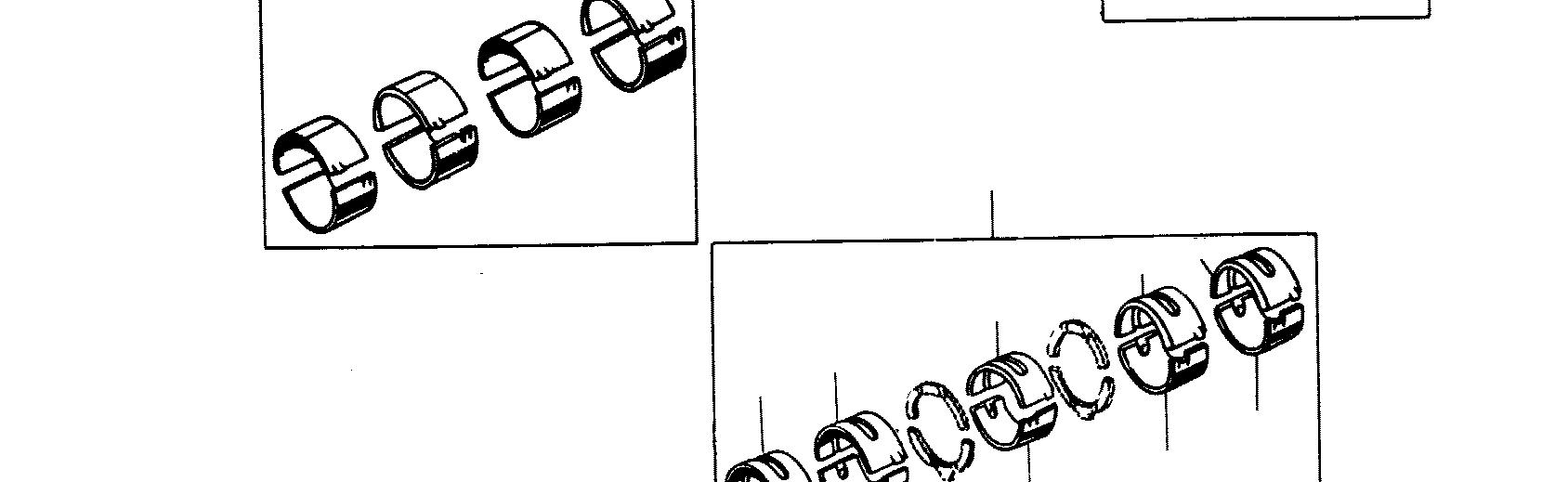

CRANKSHAFT AND BEARINGS, FLYWHEEL
742183M91 1 (A) Crankshaft Kit (Perkins No. 89090)
738720M91 1 (B) Crankshaft Kit (Perkins No. 86790)
736153M91 1 Insert Kit, Main Bearing (Standard) (Perkins No. 83392) 3 3 (C) Insert
7 736878M91 1 Insert Set, Rod Bearing (Standard) (Perkins No. 85041)
8 735337M1 2 Washer (Perkins No. 31137311)
9 735338M1 2 Washer (Perkins No. 31137321)
7
736879M91 1 Insert Set, Rod Bearing (-.010") (Perkins No. 85041A)
736880M91 1 Insert Set, Rod Bearing (-.020") (Perkins No. 85041B)
736881M91 1 Insert Set, Rod Bearing (-.030") (Perkins No. 85041C)
10 735742M1 2 Washer (+.007") (Perkins No. 31137312)
11 735743M1 2 Washer (+.007") (Perkins No. 33137322)
12
734637M1 1 Gear, Crankshaft (Perkins No. 33165392)
13 733048M1 1 Slinger, Oil (Perkins No. 33157516)
14 739474M1 1 Pulley, Crankshaft (Perkins No. 33152912)
16 2196X 1 Key (1/4 x 7/8" Woodruff) (Perkins No. 0500012)
17 376184X1 1 Bolt, Pulley Retaining (Perkins No. 32162318)
18 376177X1 1 Washer, Pulley Retaining (Perkins No. 33125124)
19 741639M91 1 (A) Flywheel (Perkins No. 41117023)
738025M91 1 (B) Flywheel (Perkins No. 41112423)
20 731988M1 1 Ring, Starter (Perkins No. 0410264)
21 353593X1 6 Bolt (1/2 x 1-1/4" NF, Hex.)
22 731192M1 3 Lock (Perkins No. 0921062)
23 832953M3 1 Bearing, Pilot
25 736223M91 1 Insert Kit, Main Bearing (-.010") (Perkins No. 83392A)
26 3 (D) Insert 27 3 (D) Insert 28 2 (D) Insert 29 2 (D) Insert 25 736224M91 1 Insert Kit, Main Bearing (-.020") (Perkins No. 83392B)
26 3 (E) Insert
27 3 (E) Insert
28 2 (E) Insert
29 2 (E) Insert
25 736225M91 1 Insert Kit, Main Bearing (-.030") (Perkins No. 83392C)
26 3 (F) Insert 27 3 (F) Insert
28 2 (F) Insert
29 2 (F) Insert
(A) - Used Engine Serial Number
318UA15654L And Up.
(B) - Used Prior To Engine Serial Number 318UA15654L.
(C) - For Repairs Order 736153M91. (D) - For Repairs Order 736223M91. (E) - For Repairs Order 736224M91. (F) - For Repairs Order 736225M91.
Massey Ferguson 1085 TRACTOR

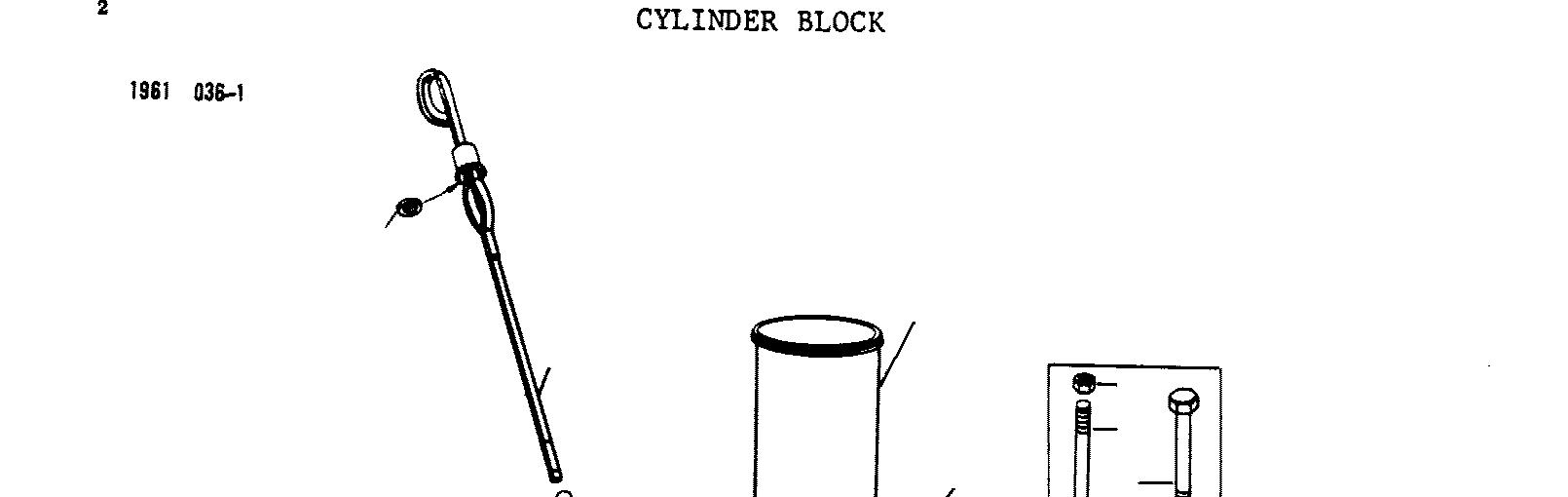

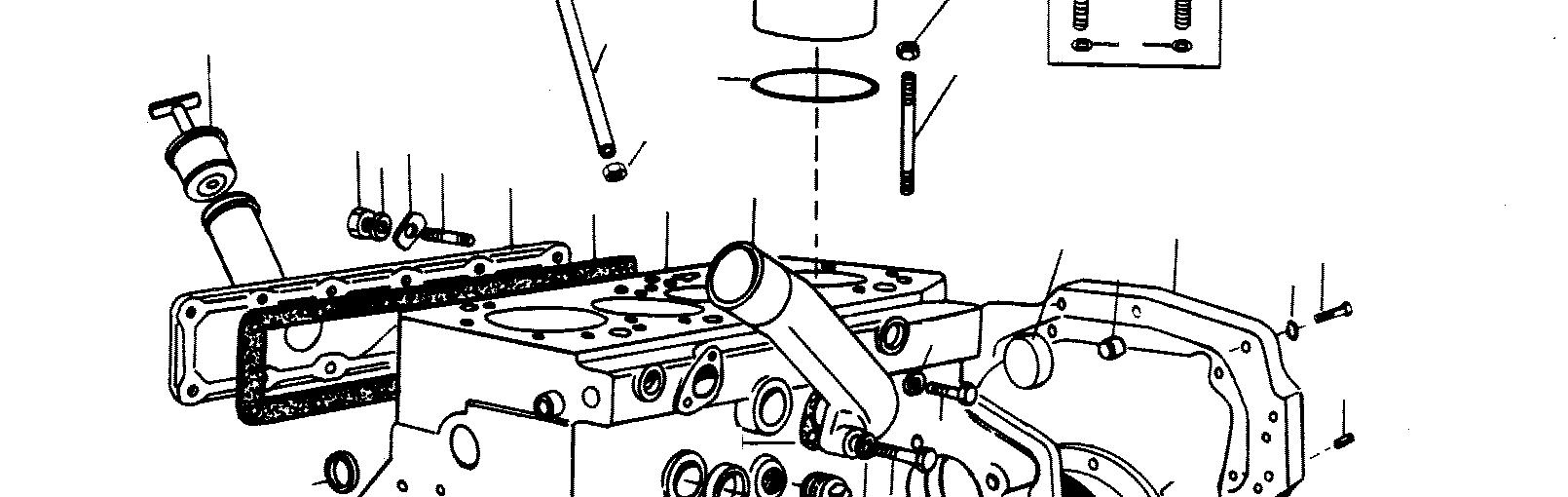

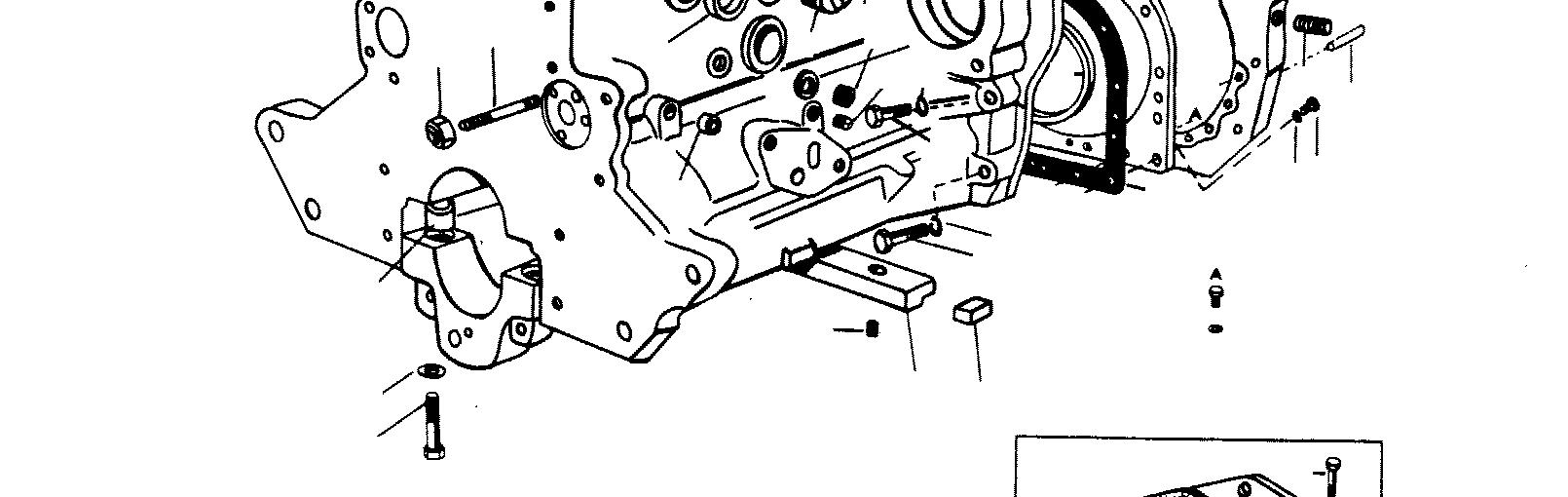

CYLINDER BLOCK
Item Part Number Qty Description
529265M91 1 Engine Assembly (Perkins No. A4-318-21725)
1896290M91 1 (A, C) Block Assembly (Short) (Perkins No. 21951)
1896268M91 1 (B, C) Block Assembly (Short) (Perkins No. 21849)
1 742184M91 1 (A) Block Assembly (Stripped) (Perkins No. 94083)
741316M91 1 (B) Block Assembly (Stripped) (Perkins No. 92303)
2 739643M1 4 Liner (Perkins No. 31358522)
3 733072M1 10 Dowel, Bearing Cap (Perkins No. 33142111)
4 740647M1 10 Bolt, Bearing Cap (Perkins No. 32181434)
5 363819X1 4 Plug
6 742268M1 AR Shim (Repairs Only) (Perkins No. 33127417)
7 735869M1 4 Plug (1-1/2" Expansion, Cup Type) (Perkins No. 0650577)
8 731354M1 5 Plug (1-1/4" Expansion, Cup Type) (Perkins No. 0650563)
9 733043M1 1 Plug (1-29/32" Expansion, Cup Type) (Perkins No. 32416106)
10 365333X1 1 Plug (1/4" - 18 Hex., Sckt. Hd.)
11
731356M1 1 Plug (11/16" Expansion, Cup Type) (Perkins 0650566)
12 355547X1 1 Plug (1/8" P.T. Sq. Hd.)
13
14
731141M1 10 Shim (41/64 x 1 x .020") (Perkins No. 0760001)
731330M1 2 Plug (13/32" Cup Type) (Perkins No. 0650507)
15 732911M1 17 Stud (1/2" NF x 4-25/32") (Perkins No. 32526307)
16 376672X1 17 Nut (1/2" NF, Hex.) (Perkins No. 33221322)
17 731868M1 3 Stud (3/8" NF x 3-5/16") (Perkins No. 0826456)
18 357558X1 3 Nut (3/8" NF, Hex.) (Perkins No. 2211224)
19 738659M1 1 Connection, Water (Perkins No. 37735051)
20 732931M1 1 Gasket, Connection To Block (Perkins No. 36861419)
21 353520X1 1 Bolt (5/16 x 1-3/8" NF, Hex.) (Perkins No. 0096201)
22 353525X1 1 Bolt (5/16 x 1-3/4" NF, Hex.) (Perkins No. 0096234)
23 732575M1 2 Washer (21/64 x 31/64 x 3/64" Aluminum)
24 741669M1 1 (A) Cover, Rear Oil Seal (Perkins No. 37513831)
25 741668M1 1 (A) Gasket, Cover (Perkins No. 36817417)
26 1447049M1 1 (A) Seal, Oil (Perkins No 2415391)
27 353668X1 4 (A) Bolt (1/4 x 7/8" NC, Hex.) (Perkins No. 0748354)
28 344107X1 4 (A) Washer (1/4" Flat) (Perkins No. 0920002)
29 353519X1 9 (A) Bolt (5/16 x 1" NF, Hex.) (Perkins No. 0746211)
30 353770X1 9 (A) Washer (5/16" Flat)
31 733995M91 1 (B) Housing, Rear Oil Seal (Perkins No. 80311)
32 735942M1 2 (B) Seal, Oil (Perkins No. 36883108)
33 353531X1 2 (B) Bolt (5/16 x 2-1/2" NF, Hex.) (Perkins No. 0096238)
34 353446X1 2 (B) Washer (5/16" Lock)
35 735127M1 1 (B) Gasket, Housing To Block (Perkins No. 36817137)
36 353519X1 12 (B) Bolt (5/16 x 1" NF, Hex.) (Perkins No. 0746211)
37 353446X1 12 (B) Washer (5/16" Lock)
38 741672M91 1 (A) Bridge (Incl. Item 39) (Perkins No. 41474019)
739170M91 1 (B) Bridge (Perkins No. 41474012)
39 Heli-Coil (5/16" - 24)
40 734658M1 2 Seal, Bridge To Block (Perkins No. 36843144)
41 740698M1 1 Plate, Block To Transmission (Perkins No. 37147291)
42 738027M1 1 Plug, Plate (Perkins No. 32114108)
43 744622M1 1 Plug, Water Jacket
45 740163M91 1 Cover, Tappet (Perkins No. 37554575)
46 732934M1 1 Gasket, Cover (Perkins No. 36846411)
47 897105M1 1 Cap, Oil Filler (Perkins No. 2481863)
48 731311M1 10 Stud (5/16 x 1" NF) (Perkins No. 0826203)
49 732044M1 10 Washer, Oblong (Perkins No. 36151505)
50 353446X1 10 Washer (5/16" Lock)
51 353916X1 10 Nut (5/16" NF, Hex.) (Perkins No. 0576002)
52 741053M91 1 Tube Assembly (Perkins No. 33435119)
53 733365M1 1 Nut, Tube Retainer (Perkins No. 33533103)
54 735072M91 1 Dipstick, Oil Gauge (Perkins No. 31787424)
55 731119M1 1 Washer, Seal (Perkins No. 33812108)
56 1260A 2 Dowel, Adapter To Transmission
57 353704X1 3 Bolt (7/16 x 1-3/4" NC, Hex.)
58 353712X1 3 Bolt (7/16 x 2-3/4" NC, Hex.)
59 353714X1 2 Bolt (7/16 x 3" NC, Hex.)
60 353432X1 8 Washer (7/16" Lock) (Perkins No. 0920055)
61 191314M1 4 Dowel, Block To Adapter
70 735244M1 2 (D) Stud (1/2 x 4-3/4" NF)
Massey Ferguson
CYLINDER BLOCK
Item Part Number Qty Description
71 741720M1 15 (D) Bolt (1/2 x 4-7/16" NF, Hex.)
72 1446988X1 17 (D) Washer (17/32 x 7/8 x 7/64")
73
376672X1 2 (D) Nut (1/2" NF, Hex.) (Perkins No. 33221322)
365873X1 14 Bolt (7/16 x 1-1/4" NC, Special) (Adapter To Transmission)
353706X1 1 Bolt (7/16" x 2" NC, Hex.) (Transmission To Adapter)
355645X1 1 Nut (7/16" NC, Hex.) (Transmission To Adapter)
(A) - Used Engine Serial Number 318UA15654L And Up.
(B) - Used Prior To Engine Serial Number 318UA15654L.
(C) - Includes Cylinder Block, Liners, Crankshaft And Bearings, Connecting Rods And Bearings, Piston And Piston Rings.
(D) - Used Engine Serial Number 318UA15149 Only.
