Ferguson
Massey Ferguson

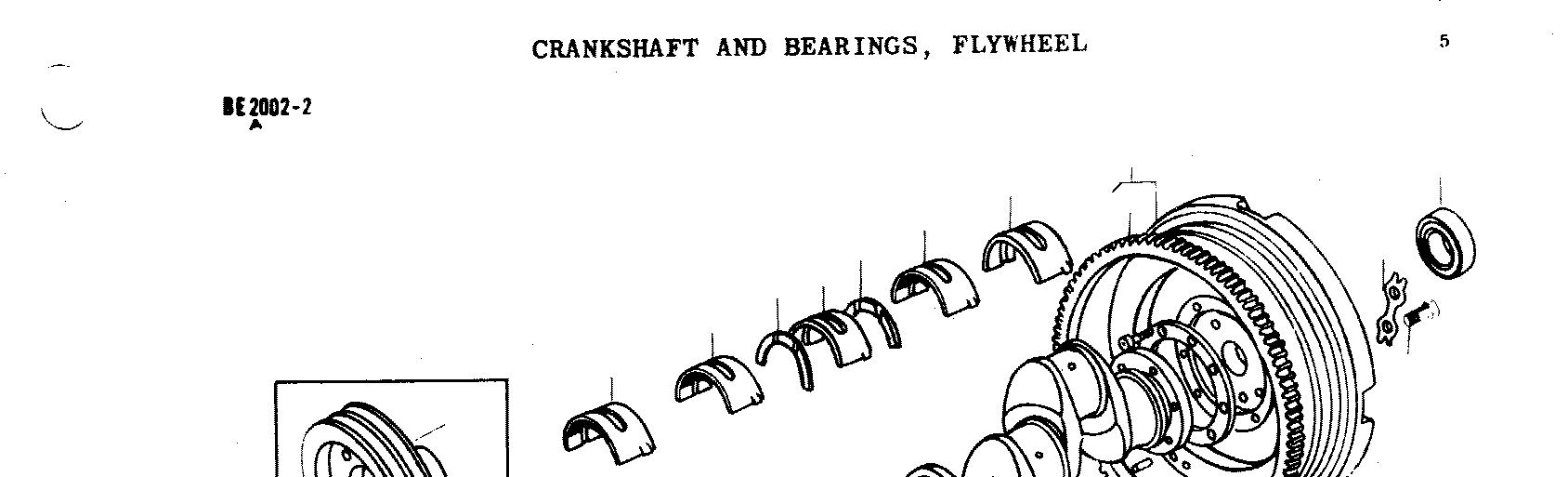

CRANKSHAFT AND BEARINGS, FLYWHEEL
738720M91 1 Crankshaft Kit (Perkins No. 86790)
736153M91 1 Insert Kit (Standard) (Perkins No. 83392) 3 3 Insert
7
8
9
10
11
736878M91 1 Insert Set (Perkins No. 85041)
735337M1 2 Washer (Perkins No. 31137311)
735338M1 2 Washer (Perkins No. 31137321)
735742M1 2 Washer, Thrust, Upper (+.007") (Perkins No. 31137312)
735743M1 2 Washer, Thrust, Lower (+.007") (Perkins No. 31137322)
12 734637M1 1 Gear, Crankshaft (Perkins No. 31165392)
13 733048M1 1 Slinger, Oil (Perkins No. 33157516)
14 739474M1 1 Pulley, Crankshaft (Perkins No. 31152912)
15 739475M1 1 Pulley, Crankshaft (Perkins No. 31148924)
16 2196X 1 Key (1/4 x 7/8" Woodruff) (Perkins No. 0500012)
17 376184X1 1 Bolt (7/8 X 1-1/2" NF, Hex. Special) (Perkins No. 32162318)
18 376177X1 1 Washer, Flat, Special (Perkins No. 33125124)
19 738025M91 1 Flywheel Assembly (Perkins No. 41112423)
20 731988M1 1 Gear, Ring (Perkins No. 0410264)
21 353593X1 6 Bolt (1/2 X 1-1/4" NF, Hex.)
22 731192M1 3 Tab Washer (Perkins No. 0921062)
23 832953M3 1 Bearing, Ball
736223M91 1 Insert Kit (-.010") (Perkins No. 83392A)
736224M91 1 Insert Kit (-.020") (Perkins No. 83392B)
736225M91 1 Insert Kit (-.030") (Perkins No. 83392C)

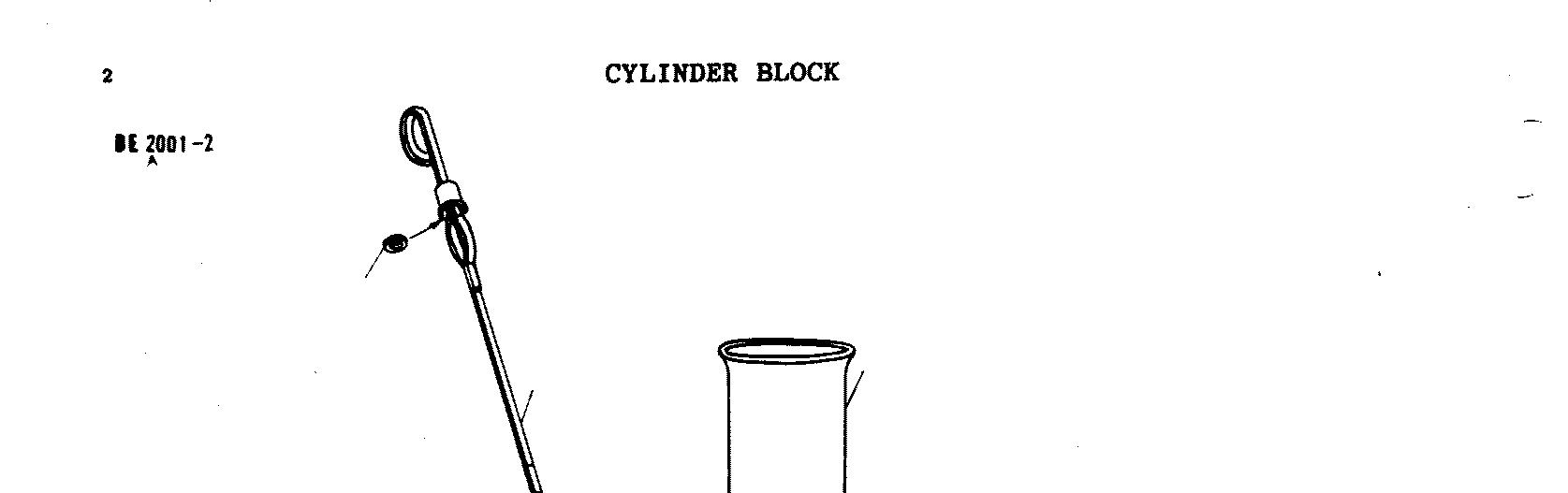

Qty Description 522166M91 1 (A) Engine Assembly (W/Air Conditioned Tractor) 516478M92 1 Engine Assembly (W/O Air Conditioned Tractor)

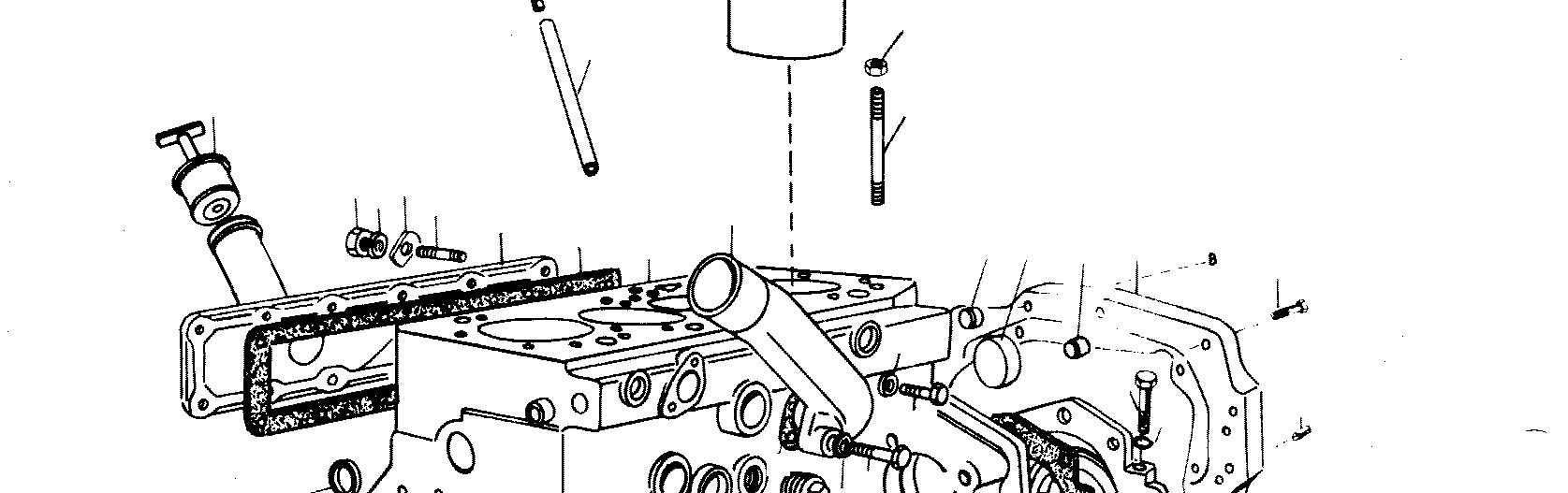

1 (B) Block Assembly (Short)
376074X1 10 Bolt (5/8 x 3-3/4" NF, Hex.)
363819X1 3 Plug (3/4" P.T. Sq. Hd.)
735870M1 2 Plug (13/16" Cup Type)
735869M1 4 Plug (1-1/2" Cup Type)
735865M1 5 Plug (1-1/4" Cup Type)
733043M1 1 Plug (1-29/32" Expansion, Cup Type)
1 Plug (1/4" P.T. Hex. Sckt. Hd.)
355547X1 1 Plug (1/8" N.P.T.)
10 Shim (43/64" I.D. x 1" O.D. x .020" Thk.)
17 Stud (1/2" NF x 4-25/32") 16 376672X1 17 Nut (1/2" NF, Special)
731868M1 3 Stud (3/8" NF x 3-5/16") 18 357558X1 3 Nut (3/8" NF, Hex., Lock)
1 Connection, Water Inlet
1 Gasket, Connection to Block
1 Bolt (5/16 x 1-1/8" NF, Hex.)
353525X1 1 Bolt (5/16 x 1-3/4" NF, Hex.) 23 732575M1 2 Washer (5/16 x 9/16 x 1/16" Aluminum)
733995M91 1 Housing
735942M1 2 Seal, Housing 29 353531X1 2 Bolt (5/16 x 2-1/2" NF, Hex.)
30 353446X1 2 Washer (5/16" Lock) 31 735127M1 1 Gasket 32 353519X1 12 Bolt (5/16 x 1" NF, Hex.) 33 353446X1 12 Washer (5/16" Lock)
37 734659M1 1 Bridge
38 734658M1 2 Seal, Bridge Piece
39 518642M1 1 Plate, Adapter, Transmission Housing
40 738027M1 1 Plug
45 740163M1 1 Cover
46 732934M1 1 Gasket, Inspection Cover
47 897105M1 1 Plug
48 731311M1 10 Stud (5/16" NF x 1-1/16")
49 732044M1 10 Washer, Elongated
50 353446X1 10 Washer (5/16" Lock)
51 353916X1 10 Nut (5/16" NF, Hex.)
52 737157M1 1 Tube
53 737171M91 1 Dipstick Assembly
54 731119M1 1 Washer, Dipstick (1/8 x 3/8 x 5/32")
55 191314M1 2 Dowel (3/8 x 25/32")
56 365873X1 14 Bolt (7/16 x 1-1/4" Special)
57 353706X1 1 Bolt (7/16" x 2" NC, Hex.)
58 355645X1 1 Nut (7/16" NC, Hex.)
59 353704X1 3 Bolt (7/16 x 1-3/4" NC, Hex.)
60 353714X1 5 Bolt (7/16 x 3" NC, Hex.)
61 738553M1 1 Plug (W/Air Conditioner)
(A) - Also Used On The Following Tractor Serial Numbers W/O Air Condition: 9B 30879, 9B 30884, And 9B 30887. (B) - Short Block Includes Stripped Block, Crankshaft And Bearings, Connecting Rods And Bearings, Pistons And Rings.
