4D88E-3C-04S/N00101-UP
ItemPartNo. Description

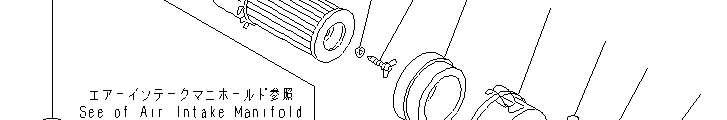

1YM119840-12210HOSE 1SN:13728-2YM129612-12670AIRCLEANERASS'Y 1SN:13728-3YM129136-12530PAN,DUST 1SN:13728-4YM121120-12541BUFFLE 1SN:13728-5YM121120-12561BOLT,WING 1SN:13728-6YM121120-12571WASHER,SEAL 1SN:13728-7YM119640-12610CAP 1SN:13728-8YM121120-18901ELEMENT 1SN:13728-YM129132-12581SUPPORTASS'Y 1SN:13728-9YM129132-12561SUPPORT 1SN:13728-10YM129132-12570SEAT 2SN:13728-11YM129132-12800BANDASS'Y 1SN:13728-12YM129132-12850CLAMP 1SN:13728-13YM129132-12810SUPPORT 1SN:13728-14YM129132-12890SEAT,RUBBER 1SN:13728-15YM129132-12900DAMPER 1SN:13728-16YM23000-060000CLAMP 2SN:13728-17YM26106-060142BOLT 2SN:13728-18YM26106-080142BOLT 4SN:13728-19YM26106-080252BOLT 2SN:13728--
ItemPartNo.

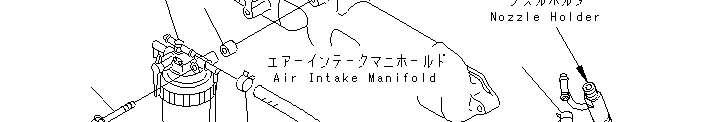

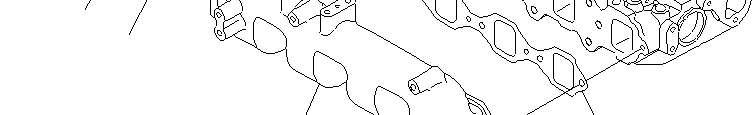

4D88E-3C-04S/N00101-UP AIRINTAKEMANIFOLDANDCONNECTION
1YM129488-12100MANIFOLD,AIRINTAKE
1SN:00101-2YM129550-12111GASKET(KIT) 1SN:00101-3YM26106-080352BOLT 5SN:00101-4YM129120-77501HEATER,AIRINTAKE 1SN:00101-5YM129150-77511GASKET(KIT) 1SN:00101-6YM26106-080352BOLT 4SN:00101--
ItemPartNo. Description
YM129612-77230ALTERNATORA.(40A)
1SN:13728-1YM129612-77700ROTORASS'Y 1SN:13728-2YM129612-77710BEARING,BALL 1SN:13728-3YM129612-77720REARBRACKETASS'Y 1SN:13728-4YM129612-77730FRONTBRACKETASS'Y 1SN:13728-5YM129612-77740PULLEY 1SN:13728-6YM129612-77750SCREWKIT 1SN:13728--
ItemPartNo.
1(YM129612-77230)ALTERNATORA.(40A),(SEEFIG.A6010-B0A6)1SN:13728-2YM129953-77201BOLT 1SN:13728-3YM119820-77340SPACER 1SN:13728-4YM26366-080002NUT 1SN:13728-5YM129612-77301PLATE,ADJUST 1SN:13728-6YM26014-080302BOLT 1SN:13728-7YM22117-050000WASHER 1SN:13728-8YM26716-050002NUT 1SN:13728-9YM26106-080502BOLT 1SN:13728-10YM106500-44810SPACER 1SN:13728--

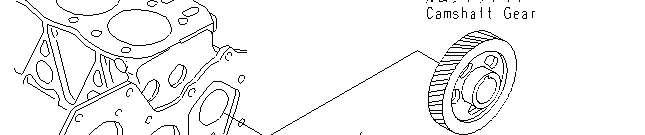

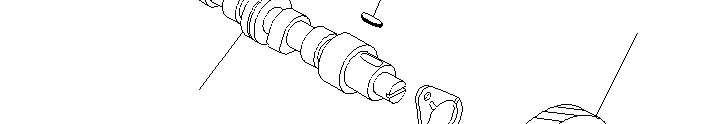

4D88E-3C-04S/N00101-UP CAMSHAFTANDTAPPET(#00145-)
ItemPartNo.
1YM26106-080162BOLT
2SN:00145-2YM129150-14200TAPPET 8SN:00145-3YM129150-14400ROD,PUSH 8SN:00145-YM729402-14580CAMSHAFTASS'Y 1SN:00145-4 CAMSHAFT 1SN:00145-5YM129150-02450METAL,THRUST 1SN:00145-6YM129150-14101GEAR 1SN:00145-7YM22512-070140KEY 1SN:00145--
ItemPartNo.

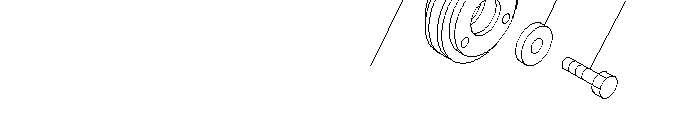

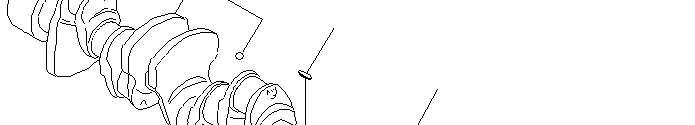

4D88E-3C-04S/N00101-UP CRANKSHAFT(#00145-)
Description QtyOptions
1YM129407-21000CRANKSHAFTASS'Y 1SN:00145-2YM129100-01580PIN,DOWEL 1SN:00145-3YM129150-21200GEAR 1SN:00145-4YM22512-070140KEY 1SN:00145-5YM22351-040010PIN,SPRING 1SN:00145-6YM171301-21650PULLEY 1SN:00145-7YM129795-21661WASHER 1SN:00145-8YM121850-21680BOLT 1SN:00145--
4D88E-3C-04S/N00101-UP CYLINDERBLOCK(#00145-)
ItemPartNo. Description
YM729407-01561CYLINDERBLOCKASS'Y 1SN:00145-1 BLOCK,CYLINDER 1SN:00145-2YM124160-01910PLUG 2SN:00145-3YM124160-01910PLUG 1SN:00145-4YM171051-01921PLUG 1SN:00145-5YM129150-02020BOLT 10SN:00145-6YM23876-010000PLUG 1SN:17626-YM23871-010000PLUG 1SN:00145--17625
7YM129001-01250PLUG 1SN:17626-YM27231-500000PLUG 1SN:00145--17625
8YM27241-120000PLUG 2SN:00145-9YM27241-300000PLUG 8SN:00145-10YM23876-030000PLUG 1SN:17626-YM23871-030000PLUG 1SN:00145--17625
11YM129001-02930MAINMETALASS'Y(STD) 5SN:17626-YM129001-02800MAINMETALASS'Y(STD) 5SN:00145--17625 YM129150-02870MAINMETALASS'Y,0.25MM(US) 5SN:00145-12YM129150-02930THRUSTMETALASS'Y(STD) 2SN:00145-YM129150-02940THRUSTMETALASS'Y,0.25MM(OS)2SN:00145-13YM129795-02411BUSHING 1SN:00145--
4D88E-3C-04S/N00101-UP
ItemPartNo. Description
1YM129436-34800GAUGE,OIL 1SN:00145-2YM119260-34810GUIDE,OILGAUGE 1SN:00145-3YM129136-34820GUIDE,OILGAUGE 1SN:00145-4YM24311-240100O-RING(KIT) 1SN:00145-5YM26106-080252BOLT 1SN:00145-6YM121252-39450SWITCH,OILPRESSURE 1SN:00145-7YM194440-51620CLAMP 1SN:00145-8YM129136-66852SUPPORT 1SN:00145-9YM26106-080122BOLT 1SN:00145-10YM26106-080122BOLT 1SN:00145-11YM171056-49120PLUG 1SN:00145--
ItemPartNo.
1YM23065-160800HOSE¤800MM,BREATHER 1SN:00145-YM129400-11350HEADCOVERASS'Y 1SN:00145-2 COVER,HEAD 1SN:00145-3YM124160-01751CAP 1SN:00145-4YM129150-03020COVER 1SN:00145-5YM129150-03070BAFFLE 1SN:00145-6YM129150-03080RETAINER 1SN:00145-7YM129550-11310PACKING(KIT) 1SN:00145-8YM24311-000320O-RING(KIT) 1SN:00145-9YM24341-000500O-RING(KIT) 1SN:00145-10YM26106-080162BOLT 2SN:00145-11YM124160-11360KNOB 3SN:00145-12YM24311-000120O-RING(KIT) 3SN:00145-13YM121750-59890BAND 1SN:00145--
ItemPartNo.
Description QtyOptions

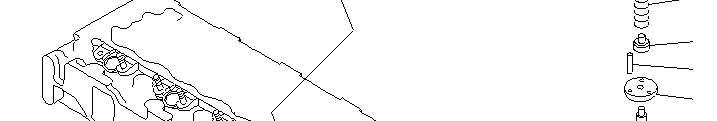

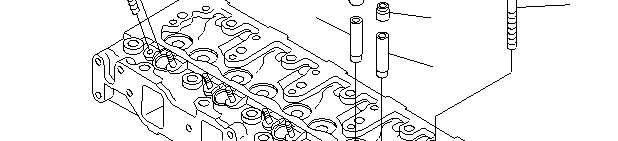

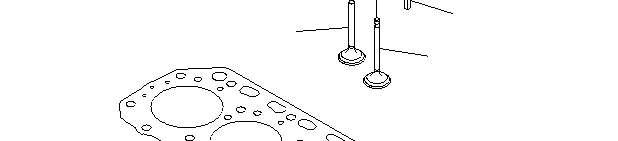

1YM129150-01200BOLT 18SN:00101-2YM129407-01340GASKET(KIT) 1SN:00101-YM129407-11700CYLINDERHEADASS'Y 1SN:00101-3 HEAD,CYLINDER 1SN:00101-4YM120130-11860GUIDE,INTAKEVALVE 4SN:00101-5YM129150-11810GUIDE,EXHAUSTVALVE 4SN:00101-6YM26216-060202STUD 8SN:00101-7YM27241-400000PLUG 2SN:00101-8YM129100-11100VALVE,INTAKE 4SN:00101-9YM129100-11110VALVE,EXHAUST 4SN:00101-10YM129795-11120SPRING 8SN:00101-11YM129795-11180SEAT 8SN:00101-12YM27310-080000COTTER 8SN:00101-13YM121400-11340SEAL,EXHAUST(KIT) 4SN:00101-14YM124460-11340SEAL,INTAKE(KIT) 4SN:00101-15YM129150-11370CAP 8SN:00101-16YM119625-11880SEAT(KIT) 4SN:00101-17YM119625-11900RETAINER 4SN:00101-18YM119625-11872PROTECTOR(KIT)
4SN:19320-YM119625-11870PROTECTOR(KIT) 4SN:17626--19319 YM119625-11871PROTECTOR(KIT) 4SN:13912--17625 YM119625-11870PROTECTOR(KIT) 4SN:00101--13911 19YM22351-060012PIN,SPRING 2SN:00101-20YM26366-060002NUT 8SN:00101--
ItemPartNo.
1YM129100-25061SHAFT,IDLER
1SN:11310-YM129150-25101IDLERGEARASS'Y
1SN:11310-2 GEAR,IDLE
1SN:11310-3YM129150-25920BUSHING
1SN:11310-4YM26106-080452BOLT
2SN:11310-5YM129150-25301BOLT
1SN:.--
4SN:.-6YM129150-25931GEAR,INJECTION
ItemPartNo.
1YM129100-25061SHAFT,IDLER
Description QtyOptions
1SN:11310--@ YM129150-25101IDLERGEARASS'Y 1SN:11310--@ 2 GEAR,IDLE 1SN:11310--@ 3YM129150-25920BUSHING 1SN:11310--@ 4YM26106-080452BOLT 2SN:11310--@ 5YM129150-25900GEAR,INJECTION 1SN:11310--. 6YM22217-120000WASHER,SPRING 1SN:11310--. 7YM26716-120002NUT 1SN:11310--.

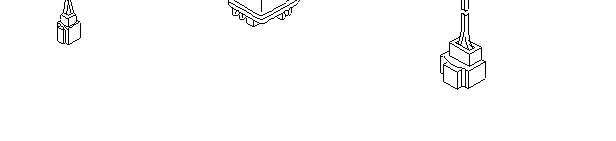

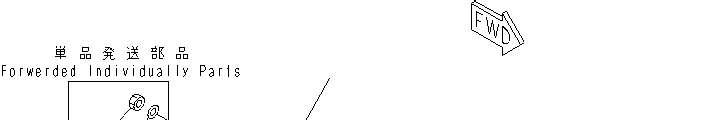

4D88E-3C-04S/N00101-UP ELECTRICALPARTS(FORWERDEDINDIVIDUALLYPARTS)(#00145-)
ItemPartNo.
1YM129136-77100RELAY,SAFETY
1SN:00145-2YM119650-77910RELAY,GLOW
1SN:00145--
1SN:00145-3YM119632-77920TIMER
4D88E-3C-04S/N00101-UP ELECTRICALPARTS(FORWERDEDINDIVIDUALLYPARTS)(#00145-)
ItemPartNo.
1YM129136-77100RELAY,SAFETY
1SN:00145-2YM119650-77910RELAY,GLOW
1SN:00145--
1SN:00145-3YM119632-77920TIMER
ItemPartNo. Description
1YM129407-13100MANIFOLD,EXHAUST 1SN:12707-2YM129407-13110GASKET(KIT) 1SN:12707-3YM194990-22050NUT 2SN:12707-4YM26106-080402BOLT 6SN:12707-5YM26216-080402STUD 2SN:12707--
ItemPartNo.
4D88E-3C-04S/N00101-UP
Description
1YM129100-01580PIN,DOWEL 2SN:12707-2YM129612-01600HOUSING,FLYWHEEL 1SN:12707-3YM119620-01750CAP 1SN:12707-4YM26206-100252BOLT 6SN:12707-5YM26206-100302BOLT 4SN:12707-6YM129100-01580PIN,DOWEL 2SN:12707-YM129100-01640CASEASS'Y 1SN:12707-7 CASE 1SN:12707-8YM129795-01780SEAL¤REAR 1SN:12707-9YM129486-01670BOLT 6SN:12707-10YM26106-080352BOLT 3SN:12707-11YM121111-21501BOLT 6SN:12707-12YM129489-21590FLYWHEELASS'Y 1SN:12707-13YM119865-21600GEAR,RING 1SN:12707-14(YM977770-01212)LIQUIDGASKET ARSN:12707--
ItemPartNo.
4D88E-3C-04S/N00101-UP
Description

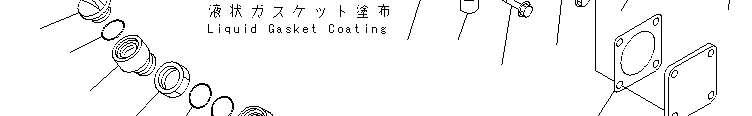

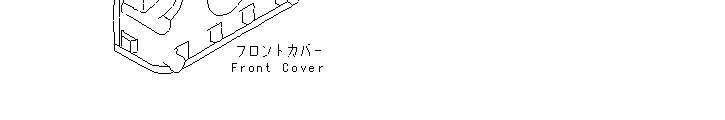

1YM129400-01520FLANGE 1SN:13728-2YM119225-11740ADAPTER 1SN:13728-YM719810-01500FRONTCOVERASS'Y 1SN:13728-3 COVER,FRONT 1SN:13728-4YM129795-01800SEAL¤FRONT 1SN:13728-5YM124160-01751CAP,OILFILLER 1SN:13728-6YM124240-01871COVER 1SN:13728-7YM121027-11742FILLER,OIL 1SN:13728-8YM129795-01950PIPE 2SN:13728-9YM129150-03100CLIP 1SN:13728-10YM22190-080002SEAL,RING(KIT) 4SN:13728-11YM119225-11750NUT 1SN:13728-12YM22190-080002SEAL,RING(KIT) 1SN:13728-13YM24311-000160O-RING(KIT) 2SN:13728-14YM24311-000320O-RING(KIT) 2SN:13728-15YM26106-080122BOLT 4SN:13728-16YM26106-080162BOLT 1SN:13728-17YM26106-080162BOLT 3SN:13728-18YM26106-080452BOLT 6SN:13728-19YM26106-080552BOLT 3SN:13728-20YM26106-080852BOLT 4SN:13728-21YM24311-000300O-RING 1SN:13728-22YM124240-01883GASKET(KIT) 1SN:13728-23YM24311-000320O-RING 1SN:13728-24YM121023-01550COVER 1SN:13728--
ItemPartNo. Description
25YM24341-000240O-RING(KIT) 1SN:13728-26YM26106-060122BOLT 2SN:13728-27YM26106-080202BOLT 2SN:13728-28YM977770-01212LIQUIDGASKET ARSN:13728--
4D88E-3C-04S/N00101-UP
1YM124736-07900HOOK,FRONT
1SN:00145-2YM26106-080142BOLT 2SN:00145--
ItemPartNo.
4D88E-3C-04S/N00101-UP FUELFILTER(#13728-)
Description QtyOptions
1YM129612-55620FUELFILTERASS'Y 1SN:13728-2YM104200-55330SPRING 1SN:13728-3YM105900-55330SPRING 1SN:13728-4YM129612-55510CUP 1SN:13728-5YM129100-55650ELEMENT 1SN:13728-6YM129100-55670LEVER 1SN:13728-7YM129100-55690RING 1SN:13728-8YM121257-55731FLOAT 1SN:13728-9YM104200-55750SCREW 1SN:13728-10YM24311-000160O-RING 1SN:13728-11YM24311-240100O-RING 1SN:13728-12YM24321-000650O-RING 1SN:13728--
ItemPartNo.
4D88E-3C-04S/N00101-UP
QtyOptions
1YM124066-59100CLAMP 2SN:13728-2YM119840-59560HOSE,FUELRETURN 1SN:13728-3YM119840-59570JOINT 1SN:13728-4YM129100-59951CHECKVALVEASS'Y 1SN:13728-5YM23414-120000GASKET(KIT) 2SN:13728-6YM124766-59050CLAMP 2SN:13728-7YM105025-59530HOSE 1SN:13728-8YM129612-52100FEEDPUMPASS'Y 1SN:13728-9(YM129612-55620)FUELFILTERASS'Y,(SEEFIG.A4110-B0A5)1SN:13728-10YM129436-55630BOLT 1SN:13728-11YM103854-39140BOLT,JOINT 1SN:13728-12YM101304-59020JOINT 1SN:13728-13YM129555-59510HOSE 1SN:13728-14YM22190-120002SEAL(KIT) 2SN:13728-15YM129052-55630FILTER 1SN:13728-16YM124766-59050CLAMP 2SN:13728-17YM124950-55900SPACER 1SN:13728--
4D88E-3C-04S/N00101-UP FUELINJECTIONPUMP(GOVERNOR)(2/2)(INNERPARTS)(#13728-)
ItemPartNo.
Description
(YM729611-51370)INJECTIONPUMPASS'Y 1SN:13728-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A7TOA4010-E0A7. 1YM129155-51280O-RING 1SN:13728-2YM129155-61120LINK¤L=30.0,(MARK0) 1SN:13728-YM129155-61130LINK¤L=31.0,(MARK1) 1SN:13728-YM129155-61140LINK¤L=30.5,(MARK05) 1SN:13728-3YM129155-61201WEIGHTASS'Y 1SN:13728-4YM129155-61341SLEEVE¤L=25.5 1SN:13728-YM129155-61350SLEEVE¤L=24.9,(FORADJUST) 1SN:13728-YM129155-61360SLEEVE¤L=25.2,(FORADJUST) 1SN:13728-5YM129155-61480SPACER 2SN:13728-6YM129052-61390SHAFT 1SN:13728-7YM129052-61500LEVERASS'Y 1SN:13728-8YM174307-51700SHIMASS'Y 2SN:13728-9YM129052-61540SPRING 1SN:13728-10YM22117-040000WASHER 1SN:13728-11YM22287-120000WASHER 1SN:13728-12YM22372-040000PIN 2SN:13728-13YM26776-120002NUT 1SN:13728-14YM171353-61550ANGLEICHASS'Y 1SN:13728-15YM129100-61650SPRING,FUELCONTROL 1SN:13728--
4D88E-3C-04S/N00101-UP FUELINJECTIONPUMP(PUMP)(1/2)(INNERPARTS)(#13728-)
ItemPartNo.
Description QtyOptions YM729611-51370INJECTIONPUMPASS'Y 1SN:13728-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A7TOA4010-E0A7. 1 PUMPASS'Y 1SN:13728-2YM129155-51020STUD 2SN:13728-3YM129612-51040CAMSHAFT 1SN:13728-4YM129155-51050BEARING 1SN:13728-5YM129155-51060RETAINER 1SN:13728-6YM122710-51090KEY 1SN:13728-7YM129155-51450GASKET 1SN:13728-8YM129555-51700COVER 1SN:13728-9YM129555-51710GASKET 1SN:13728-10YM129555-51750COVER 1SN:13728-11YM129555-51760GASKET 1SN:13728-12YM129156-51910PLATE¤CAUTION 1SN:13728-13YM129155-51930SPACER¤T=3.25 1SN:13728-14YM129155-51940SPACER¤T=1.5 1SN:13728-15YM22217-060000WASHER,SPRING 2SN:13728-16YM22351-050010PIN 2SN:13728-17YM24101-063034BEARING 1SN:13728-18YM26022-050102SCREW 11SN:13728-19YM26022-060162SCREW 4SN:13728-20YM26716-060002NUT 2SN:13728-21YM129155-52050GASKET(KIT) 1SN:13728-22YM129100-52200COVER 1SN:13728--
4D88E-3C-04S/N00101-UP
FUELINJECTIONPUMP(PUMP)(2/2)(INNERPARTS)(#13728-)
ItemPartNo.
(YM729611-51370)INJECTIONPUMPASS'Y 1SN:13728-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A7TOA4010-E0A7. 1YM129470-51101PLUNGERASS'Y 4SN:13728-2YM129155-51140PIN,STOPPER 4SN:13728-3YM174307-51170SEAT 4SN:13728-4YM129155-51180RETAINER 4SN:13728-5YM124950-51190SPRING 4SN:13728-6YM129155-51200TAPPETASS'Y 4SN:13728-7YM129155-51270STOPPER 4SN:13728-8YM129155-51280O-RING 4SN:13728-9YM129450-51300VALVE,DELIVERY 4SN:13728-10YM129155-51320SPRING 4SN:13728-11YM129155-51340HOLDER,DELIVERY 4SN:13728-12YM124550-51350GASKET 4SN:13728-13YM124550-51370O-RING 4SN:13728-14YM129155-51370STOPPER,VALVE 4SN:13728-15YM129155-51380STOPPER 2SN:13728-16YM129155-51390STOPPER 2SN:13728-17YM129555-51400DEFLECTOR 1SN:13728-18YM129155-51410BOLT 1SN:13728-19YM129155-51420PLUG 1SN:13728-20YM129555-51500RACK,CONTROL 1SN:13728-21YM129155-51521BUSHING,RACK 1SN:13728-22YM129155-51530SPACER 1SN:13728-23YM129155-51540RING,SNAP 1SN:13728--
ItemPartNo. Description
QtyOptions 24YM129155-51550PINION,CONTROL 4SN:13728-25YM122117-51560SCREW 4SN:13728-26YM174307-51560PINION 4SN:13728-27YM129155-51570PLUG 1SN:13728-28YM129155-51580O-RING 1SN:13728-29YM129155-51591SPRING,RACK 1SN:13728-30YM129155-51600SHIMASS'Y 4SN:13728-31YM129155-51790STOPPER,RACK 1SN:13728-32YM22190-160002SEAL,RING 1SN:13728-33YM22217-050000WASHER,SPRING 2SN:13728-34YM24341-000160O-RING 1SN:13728-35YM26116-050302BOLT 2SN:13728--
ItemPartNo.
4D88E-3C-04S/N00101-UP
1YM121450-01560STUD 3SN:13728-2YM121850-51960O-RING(KIT) 1SN:13728-3YM26366-080002NUT 3SN:13728-4(YM729611-51370)INJECTIONPUMPASS'Y,(SEEFIG.A4010-B0A7)1SN:13728-5YM129150-59120CLAMPASS'Y 2SN:13728-6YM129150-59131BOLT 2SN:13728-7YM129608-59910TUBE,NO.1 1SN:13728-8YM129608-59920TUBE,NO.2 1SN:13728-9YM129608-59930TUBE,NO.3 1SN:13728-10YM129608-59940TUBE,NO.4 1SN:13728--
ItemPartNo.
4D88E-3C-04S/N00101-UP
YM729503-53100FUELNOZZLEASS'Y 4SN:00145-1YM129503-53000NOZZLEASS'Y 1SN:00145-2YM114250-53080NUT 1SN:00145-3YM129100-53100NOZZLEHOLDERASS'Y 1SN:00145-4YM114250-53120SPRING 1SN:00145-5YM114250-53130SEAT 1SN:00145-6YM114250-53140PLATE 1SN:00145-7YM114250-53210PIN 2SN:00145-8YM114250-53400SHIMASS'Y 1SN:00145-9YM124066-59100CLAMP 7SN:00145-10YM121250-59550HOSE,SPILL 3SN:00145-11YM129150-59580CAP 1SN:00145--
ItemPartNo.
4D88E-3C-04S/N00101-UP GASKETKIT(#11310-)
Description Qty
1YM729407-92650GASKETKIT 1SN:11310-YM129407-01340GASKET 1SN:11310-YM124240-01883GASKET 2SN:11310-YM121850-51960O-RING 1SN:11310-YM124460-11340SEAL 4SN:11310-YM119625-11871PROTECTOR 4SN:11310-YM119625-11880SEAT 4SN:11310-YM129550-11310PACKING 1SN:11310-YM129150-77511GASKET 1SN:11310-YM129550-12111GASKET 1SN:11310-YM129407-13110GASKET 1SN:11310-YM129400-13201GASKET 1SN:11310-YM121400-11340SEAL 4SN:11310-YM129150-32020GASKET 1SN:11310-YM129150-35041GASKET 1SN:11310-YM129150-35111GASKET 1SN:11310-YM129100-42020GASKET 1SN:11310-YM129795-49551PACKING 1SN:11310-YM129150-49811GASKET 1SN:11310-YM129100-49840GASKET 1SN:11310-YM129155-52050GASKET 1SN:11310-YM22190-120002SEAL 2SN:11310-YM22190-080002SEAL 11SN:11310-YM22190-220002SEAL 1SN:11310-YM23414-100000GASKET 2SN:11310--
Options
ItemPartNo.
Description Qty Options
YM124465-44950GASKET 2SN:11310-YM23414-120000GASKET 2SN:11310-YM129150-01881GASKET 1SN:11310-YM24311-240100O-RING 1SN:11310-YM24311-000120O-RING 3SN:11310-YM24311-000160O-RING 3SN:11310-YM24311-000320O-RING 3SN:11310-YM24341-000240O-RING 1SN:11310-YM24341-000500O-RING 1SN:11310--
