3D94-2A S/N 10001-UP
@@Q77657
Ref.
161
Page
030060
3D94-2A S/N 10001-UP

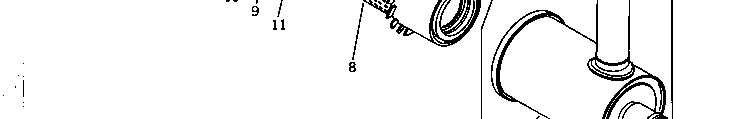

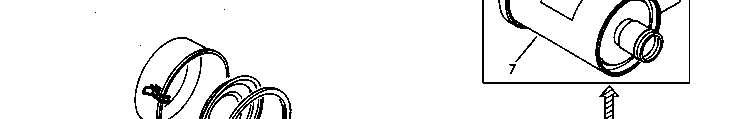

AIR CLEANER Item Part No. 1 6143-11-4210 6143-11-4220 2 6143-11-4820 3 01010-31090 4 01010-31060 5 01602-01030 6 01641-01016 6142-81-7101 6142-82-7400 7 6142-81-7110 6142-82-7410 600-181-7300 8 9 600-181-7511 10 600-181-7920 11 04064-01510 12 600-181-7480 13 600-181-7470 14 600-181-7460 15 09641-00661 09641-00660 16 600-181-7870 17 09641-81661
Part Name CONNECTOR CONNECTOR,(TBG SPEC.) GASKET (K1) BOLT BOLT WASHER,SPRING WASHER AIR CLEANER ASS'Y AIR CLEANER ASS'Y BODY BODY ELEMENT ASS'Y ELEMENT WASHER,SEAL NUT,WING RING,SNAP DIVIDER PAN GASKET PLATE, INSTRUCTION,(NOT SHOWN) PLATE, INSTRUCTION,(NOT SHOWN) CAP PLATE, INSTRUCTION,(ENGLISH-GERMAN) (TBG SPEC.)
Qty 1 1 1 2 1 3 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Serial No. 100011084110001100011000110001100011084110001-10840 1084110001-10840 10001100011000110001100011000110001100011129110001-11290 10001-10840 10841-
Reference:161
Page:030060
