3D88E-6BP-DA S/N 06564-UP
00068612 12 13
10
3
6 4 10 8 2 4
9 5 11 16
11 16
1
7 7 7 14
Ref.
15
7
A0100-0001
Page
030010
3D88E-6BP-DA S/N 06564-UP

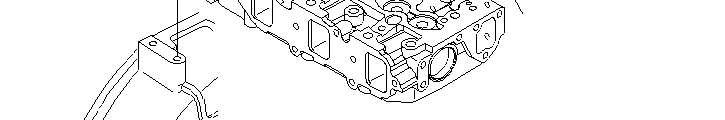

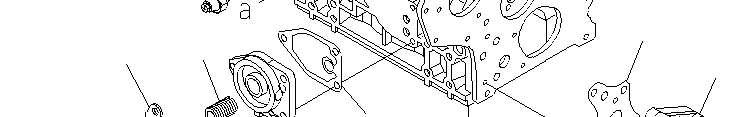

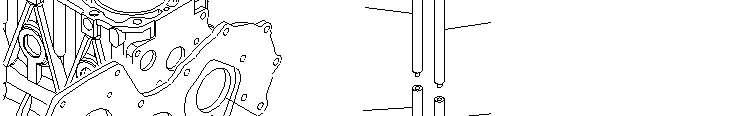

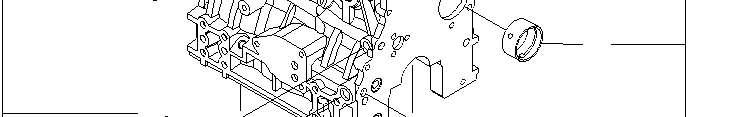

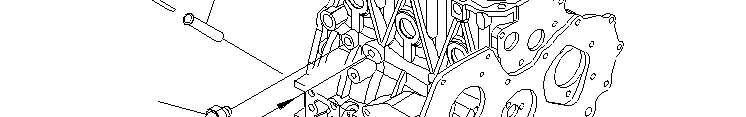

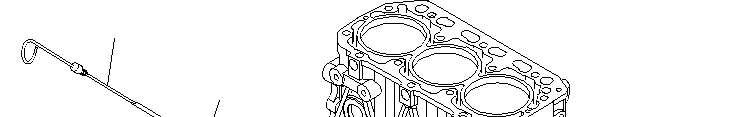

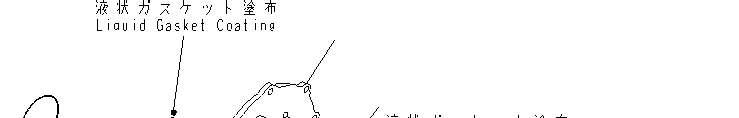

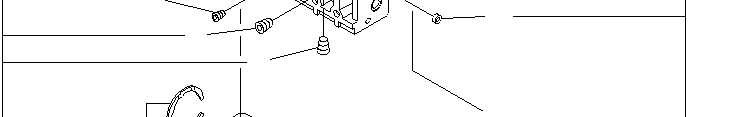

CYLINDER BLOCK Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Part No. YM729005-01560 YM124060-01050 YM129001-01250 YM124160-01910 YM124160-01910 YM171051-01921 YM129150-02020 YM129795-02412 YM27241-120000 YM27241-300000 YM129150-02931 YM129150-01200 YM129001-01340 YM129001-02931 YM129150-02871 YM129150-02941
Part Name Qty Serial No. CYLINDER BLOCK ASS'Y 1 06564PLUG,(PT 1/8) 1 06564PLUG,(50) 1 06564PLUG,(PT 1/4) 2 06564PLUG,(PT 1/4) 1 06564PLUG,(NPTF1) 1 06564BOLT 8 06564BUSHING 1 06564PLUG,(12) 2 06564PLUG,(30) 6 06564THRUST METAL ASS'Y 2 06564BOLT 14 06564GASKET 1 06564MAIN METAL ASS'Y,(STD) 4 06564MAIN METAL ASS'Y,(U.S=0.25) 4 06564THRUST METAL ASS'Y,(O.S=0.25) 1 06564-
Reference:A0100-0001
Page:030010
