SPARE PARTS CATALOGUE

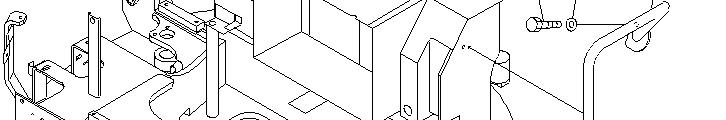

S/N 10001-UP (KUC Spec.) HAND RAIL
PC30MR-1 S/N 10001-UP (KUC Spec.)

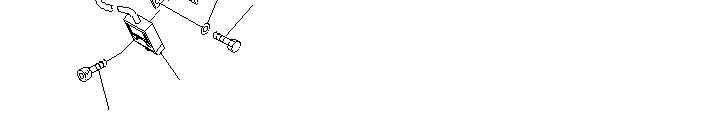

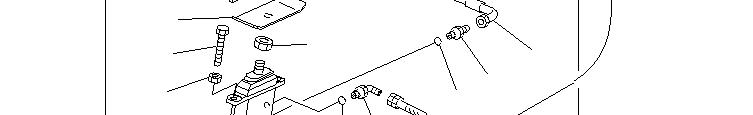

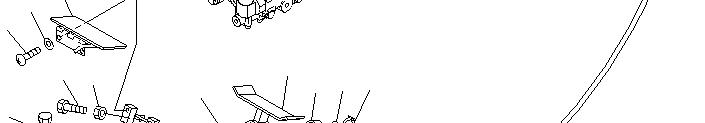

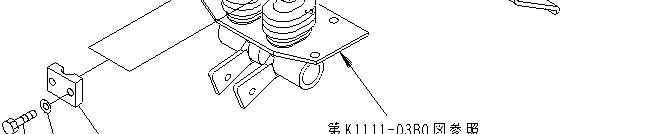

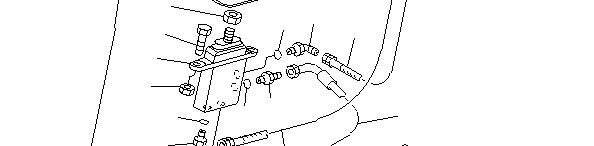

ATTACHMENT CONTROL PEDAL (2-WAY)
1 (702-16-01270) PILOT VALVE 1 100012 01016-51065 BOLT 2 100013 01580-11008 NUT 2 100014 21U-973-3130 PEDAL 1 100015 01582-11411 NUT 1 100016 20N-62-31250 NIPPLE 1 100017 21U-62-24140 ELBOW 1 100018 07000-02011 O-RING 2 100019 21A-62-11230 ELBOW 1 1000110 21U-62-24150 NIPPLE 1 1000111 07000-02011 O-RING 2 1000112 21U-62-32650 HOSE 1 1000113 22L-973-1180 HOSE 1 1000114 21U-62-24320 HOSE 1 1000120T-62-71710 MARK, 1 2 1000115 21U-62-25321 HOSE 1 1000121U-62-24460 MARK, 9 2 1000116 208-06-11220 NIPPLE 1 1000117 21U-973-3180 ELBOW 1 1000118 21U-62-24110 ELBOW 2 1000119 07002-11423 O-RING 2 1000120 22L-973-1C10 LOCK 1 1000121 01435-00820 BOLT 2 10001-

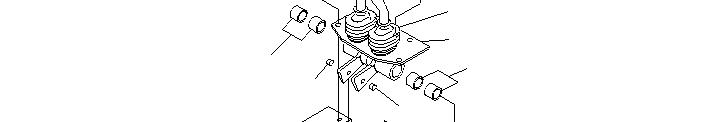

PC30MR-1 S/N 10001-UP (KUC Spec.) TRAVEL PEDAL
1 22L-43-18410 PEDAL,L.H. 1 100012 22L-43-18420 PEDAL,R.H. 1 100013 22L-43-18430 CLAMP 2 100014 01010-80825 BOLT 4 100015 01643-30823 WASHER 4 10001-

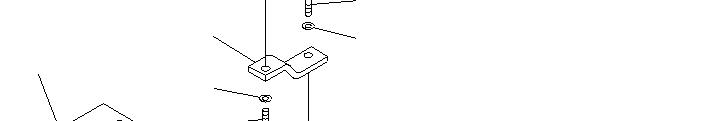

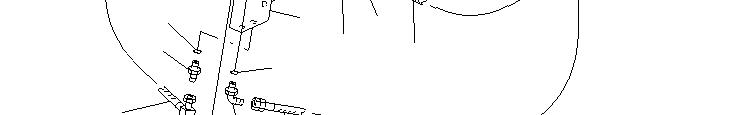

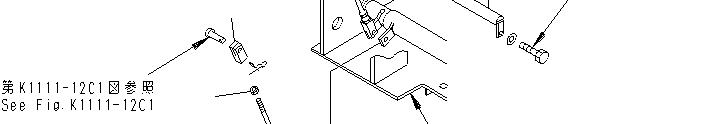

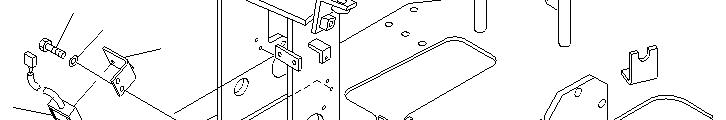

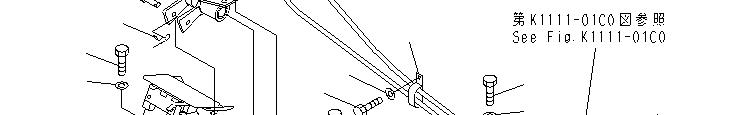

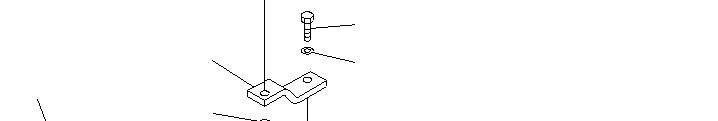

MAIN CONTROL RELATED PARTS (2-WAY)(#13815-)
01643-30823 WASHER
13815-
01010-81035 BOLT 1 13815-
01643-31032 WASHER
138159 04205-30820
2 .04205-10820 PIN 2 13815-. 10 FF3819-54880 PIN,COTTER 2 1381511 04435-50810 CLIP 1 1381512 01010-81016 BOLT 1 1381513 01643-31032 WASHER 1 1381514 04205-10820 PIN 1 1381515 04050-12015 PIN,COTTER 1 1381519 01010-80616 BOLT 1 1381520 01643-30623 WASHER 1 1381521 FF3819-54880 PIN 2 1381522 04205-30822 PIN 2 .04205-10822 PIN 2 13815-. 23 01010-80820 BOLT 4 1381524 01643-30823 WASHER 4 13815-
PC30MR-1 S/N 10001-UP (KUC Spec.)
ATTACHMENT CONTROL PEDAL (2-WAY)(#13815-)
1 22L-973-1630 NIPPLE 1 138152 07002-11823 O-RING 1 138153 22L-973-1480 NIPPLE 1 138154 07002-11823 O-RING 1 138155 (702-16-01270) PILOT VALVE 1 138156 01016-51065 BOLT 2 138157 01580-11008 NUT 2 138158 21U-973-3130 PEDAL 1 138159 01582-11411 NUT 1 1381510 20N-62-31250 NIPPLE 1 1381511 21U-62-24140 ELBOW 1 1381512 07000-02011 O-RING 2 1381513 21A-62-11230 ELBOW 1 1381514 21U-62-24150 NIPPLE 1 1381515 07000-02011 O-RING 2 1381516 21U-62-32650 HOSE 1 1381517 22L-973-1180 HOSE 1 1381518 21U-62-24320 HOSE 1 1381520T-62-71710 MARK, 1 2 1381519 21U-62-25321 HOSE 1 1381520T-62-71710 MARK, 1 2 1381520 208-06-11220 NIPPLE 1 1381521 21U-973-3180 ELBOW 1 1381522 07042-30108 PLUG 1 1381523 21U-62-24110 ELBOW 2 1381524 21A-62-12360 NIPPLE 1 1381525 07002-11423 O-RING 2 1381526 21U-973-3112 LOCK 1 1381509455-13016 HINGE 1 13815-

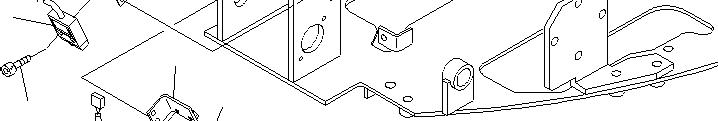

S/N 10001-UP (KUC Spec.) MAIN CONTROL RELATED PARTS

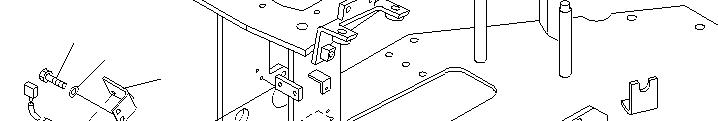

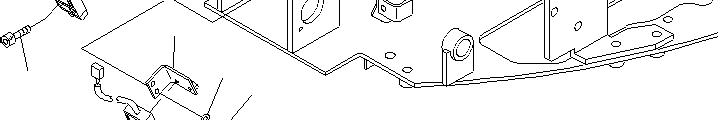

TRAVEL ALARM SWITCH
PC30MR-1 S/N 10001-UP (KUC Spec.) TRAVEL ALARM SWITCH
PC30MR-1 S/N 10001-UP (KUC Spec.)

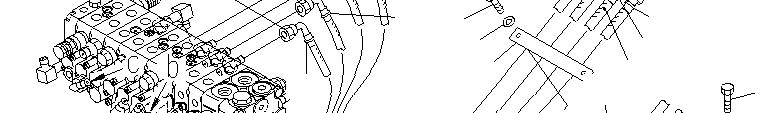

MAIN CONTROL PIPING (2-WAY)(#13815-)
PC30MR-1 S/N 10001-UP (KUC Spec.)
PC30MR-1 S/N 10001-UP (KUC Spec.)
CONTROL PIPING

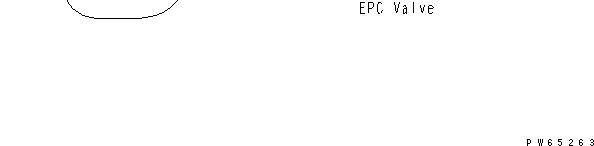

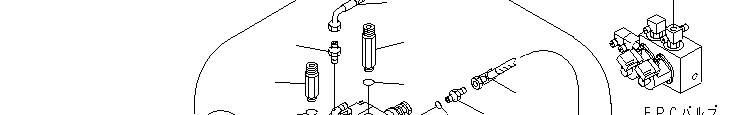

E.P.C. VALVE AND RELATED PARTS (2-WAY)(#13815-)
21N-62-17960
138158 07002-11423
138159 21N-62-17960 TEE 1 1381510 07002-11423 O-RING 1 1381511 203-62-42920 ELBOW 1 1381512 07042-30108 PLUG 1 1381513 21U-62-24110 ELBOW 1 1381514 07002-11423 O-RING 1 1381515 07235-10210 ELBOW 1 1381516 07002-11423 O-RING 1 13815-
PC30MR-1 S/N 10001-UP (KUC Spec.)
1000115 07235-10210 ELBOW 1 1000116 07002-11423 O-RING 1 10001-
PC30MR-1 S/N 10001-UP (KUC Spec.)

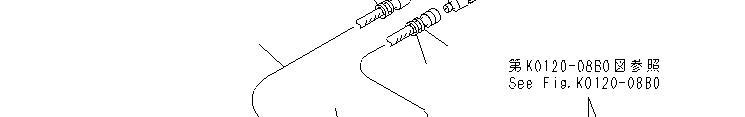

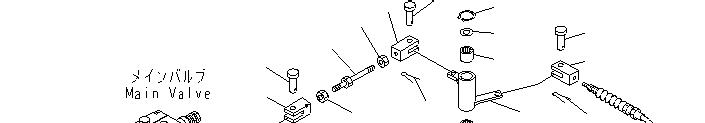

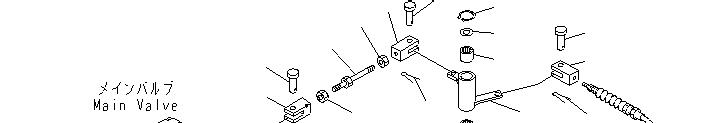

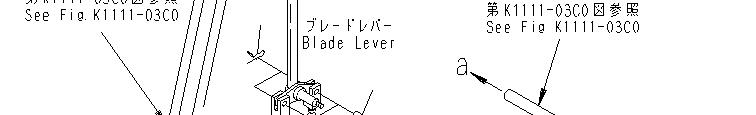

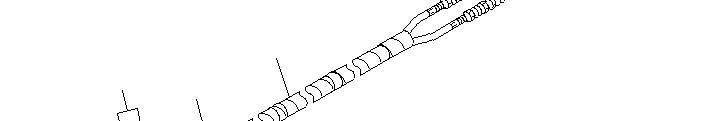

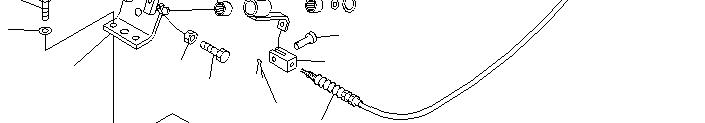

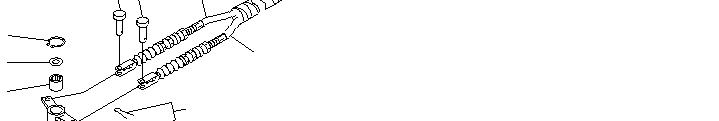

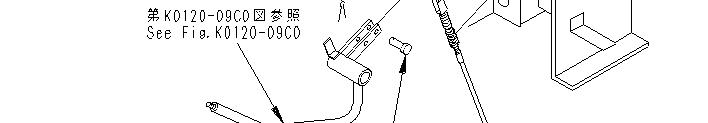

BLADE CONTROL LINKAGE AND CABLE (2-WAY)(#13815-)
1 22L-43-11433 LEVER 1 1381506600-00805 BUSHING 3 138152 06124-01616 BEARING 2 138153 01643-31645 WASHER 1 138154 20N-43-71955 COLLAR 1 138155 01643-31232 WASHER 1 138156 04064-01210 RING,SNAP 1 138157 21U-43-31280 YOKE 1 138158 04205-10518 PIN 1 138159 04050-11210 PIN,COTTER 1 1381510 04205-10820 PIN 1 1381511 04050-12015 PIN,COTTER 1 1381512 22L-43-11421 CABLE 2 1381513 08017-31907 CONDUIT 1 1381514 04205-10820 PIN 2 1381515 04050-12015 PIN,COTTER 2 13815-

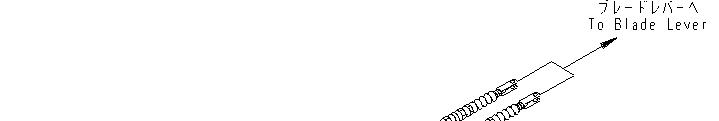

PC30MR-1 S/N 10001-UP (KUC Spec.) BLADE CONTROL LINKAGE AND CABLE
1 22L-43-11433 LEVER 1 1000106600-00805 BUSHING 3 100012 06124-01616 BEARING 2 100013 01643-31645 WASHER 1 100014 20N-43-71955 COLLAR 1 100015 01643-31232 WASHER 1 100016 04064-01210 RING,SNAP 1 100017 21U-43-31280 YOKE 1 100018 04205-10518 PIN 1 100019 04050-11210 PIN,COTTER 1 1000110 04205-10820 PIN 1 1000111 04050-12015 PIN,COTTER 1 1000112 22L-43-11421 CABLE 2 1000113 08017-31907 CONDUIT 1 1000114 04205-10820 PIN 2 1000115 04050-12015 PIN,COTTER 2 10001-
(KUC Spec.)

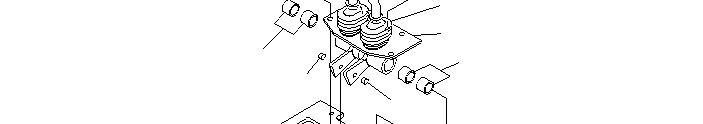

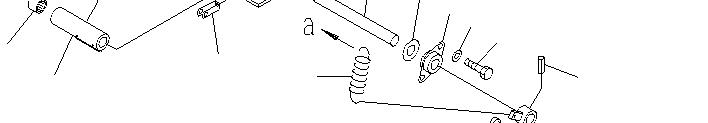

BOOM SWING PEDAL AND LINKAGE (2-WAY)(#13815-)
BOOM SWING PEDAL AND LINKAGE
PC30MR-1 S/N 10001-UP (KUC Spec.) BOOM SWING PEDAL AND LINKAGE
PC30MR-1 S/N 10001-UP (KUC Spec.)

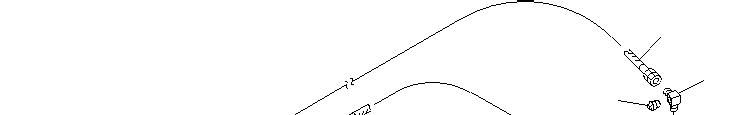

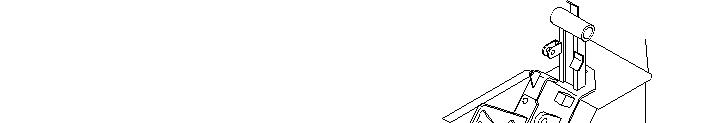

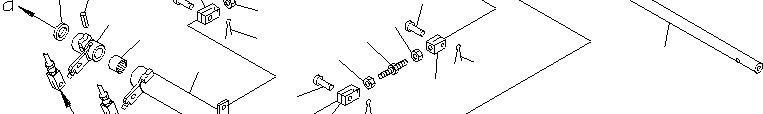

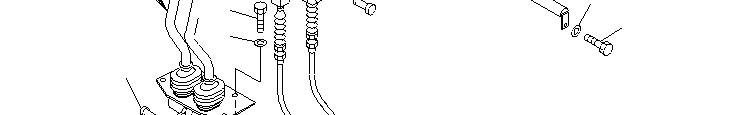

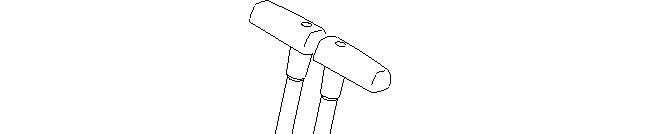

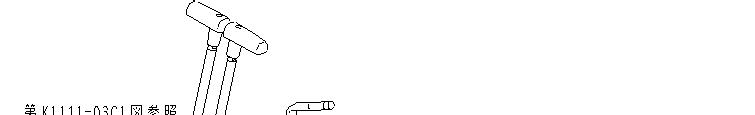

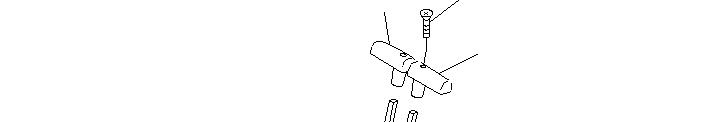

TRAVEL LEVER AND LINKAGE
(3/3) (2-WAY)(#13815-)
1
22L-43-18240 LEVER 1 1381506600-00805 BUSHING 1 138152 04025-00532 PIN,SPRING 1 138153 22L-43-18253 LEVER 1 138154 04025-00532 PIN,SPRING 1 138155 22L-43-18280 SHAFT 1 138156 01643-32060 WASHER 1 138157 20N-43-41290 BEARING 1 138158 01010-80816 BOLT 2 138159 01643-30823 WASHER 2 1381510 06124-02020 BEARING 1 1381511 20P-43-81980 SPRING 1 1381512 22K-43-11190 CABLE 1 1381513 04205-10820 PIN 1 1381514 04050-12015 PIN,COTTER 1 13815-
PC30MR-1
S/N 10001-UP (KUC Spec.) TRAVEL LEVER AND LINKAGE (3/3)
22L-43-18240 LEVER 1 1000106600-00805 BUSHING 1 100012 04025-00532 PIN,SPRING 1 100013 22L-43-18253 LEVER 1 .22L-43-18253 LEVER 1 10001-. 4 04025-00532 PIN,SPRING 1 100015 22L-43-18280 SHAFT 1 100016 01643-32060 WASHER 1 100017 20N-43-41290 BEARING 1 100018 01010-80816 BOLT 2 100019 01643-30823 WASHER 2 1000110 06124-02020 BEARING 1 1000111 20P-43-81980 SPRING 1 1000112 22K-43-11190 CABLE 1 1000113 04205-10820 PIN 1 1000114 04050-12015 PIN,COTTER 1 10001-
(KUC Spec.)
TRAVEL LEVER AND LINKAGE (2/3) (2-WAY)(#13815-)
PC30MR-1 S/N 10001-UP (KUC Spec.)
TRAVEL LEVER AND LINKAGE (2/3)
TRAVEL LEVER AND LINKAGE
S/N 10001-UP (KUC Spec.) TRAVEL LEVER AND LINKAGE (1/3)
PC30MR-1 S/N 10001-UP (KUC Spec.)

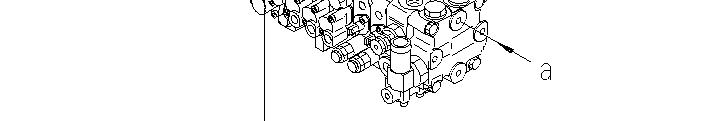

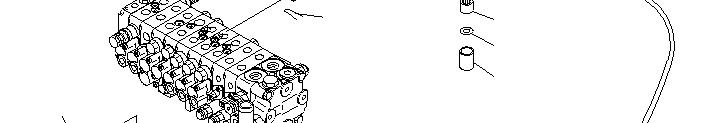

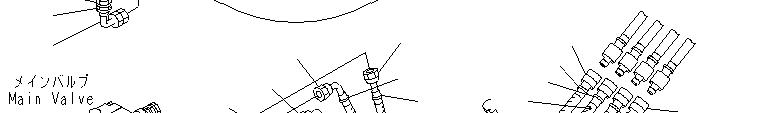

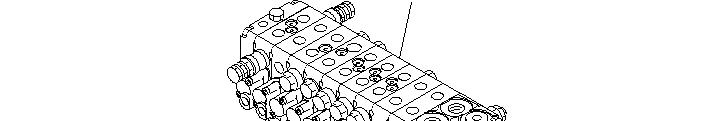

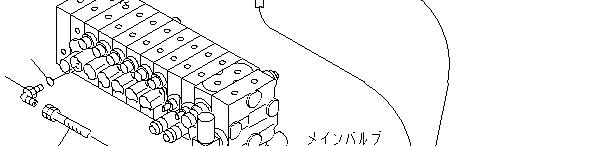

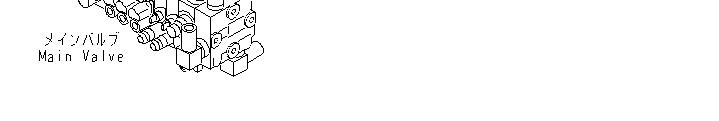

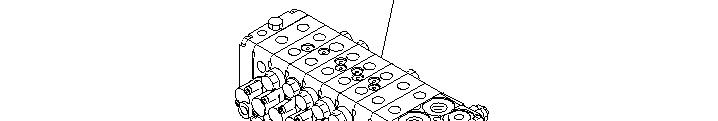

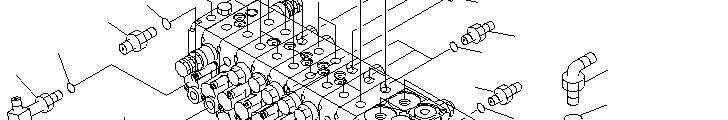

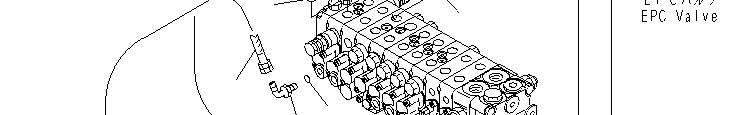

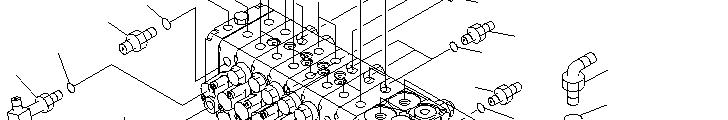

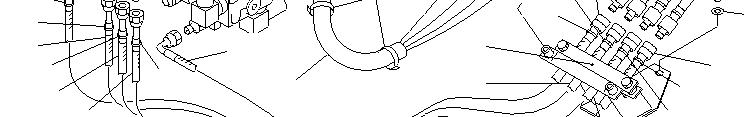

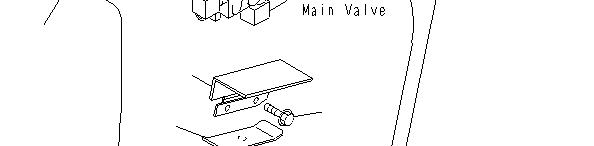

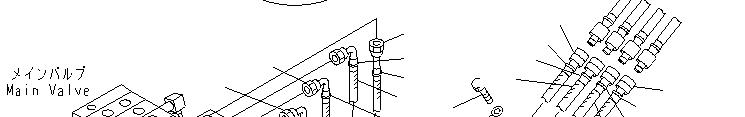

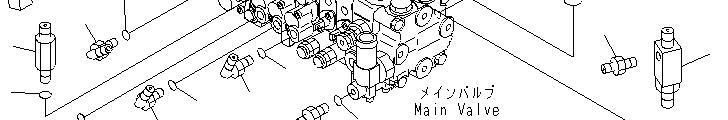

MAIN VALVE RELATED PARTS (2-WAY)(#13815-)
1 07235-10628 ELBOW 1 138152 07002-12434 O-RING 1 138153 22L-973-1390 TEE 1 138154 07238-10422 CONNECTOR 1 138155 07002-12434 O-RING 1 138156 07235-50210 ELBOW 1 138157 07042-70108 PLUG 1 138158 07002-11423 O-RING 1 138159 21U-62-32670 ELBOW 1 1381510 07002-11823 O-RING 1 1381511 07230-20210 UNION 2 1381512 21U-62-31160 ELBOW 1 1381513 07002-11423 O-RING 3 1381514 20M-62-32760 NIPPLE 2 1381515 20M-62-48410 NIPPLE 2 1381516 07002-11823 O-RING 4 1381517 20T-870-1640 UNION 2 1381518 20M-62-32730 NIPPLE 2 1381519 20T-62-71150 UNION 2 1381520 20N-62-31270 NIPPLE 5 1381521 20M-62-32730 NIPPLE 1 1381522 07002-11823 O-RING 12 1381523 21U-62-24110 ELBOW 4 1381524 21A-62-12360 NIPPLE 3 1381525 22L-62-14640 ELBOW 1 1381526 07002-11423 O-RING 8 1381527 20A-62-12260 NIPPLE 1 1381528 07002-11423 O-RING 1 13815-
PC30MR-1 S/N 10001-UP (KUC Spec.)
MAIN VALVE RELATED PARTS
1 07235-10628 ELBOW 1 100012 07002-12434 O-RING 1 100013 22L-973-1390 TEE 1 100014 07238-10422 CONNECTOR 1 100015 07002-12434 O-RING 1 100016 07235-50210 ELBOW 1 100017 07042-70108 PLUG 1 100018 07002-11423 O-RING 1 100019 21U-62-32670 ELBOW 1 1000110 07002-11823 O-RING 1 1000111 07230-20210 UNION 2 1000112 21U-62-31160

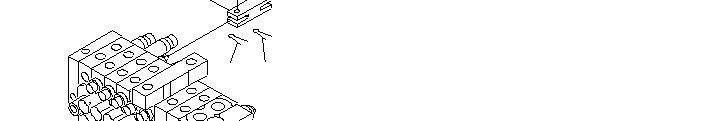

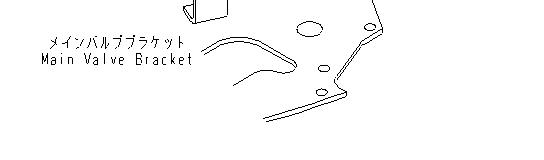

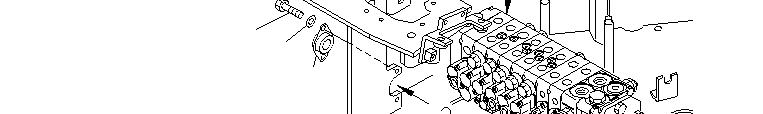

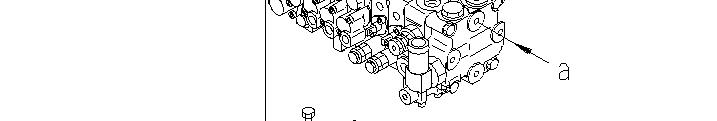

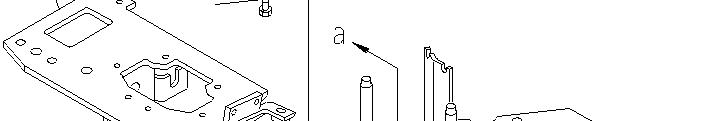

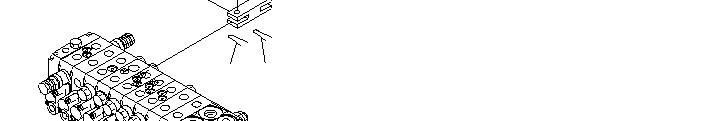

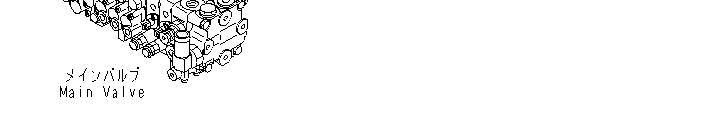

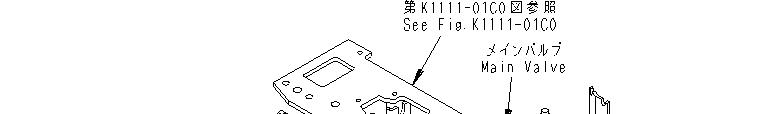

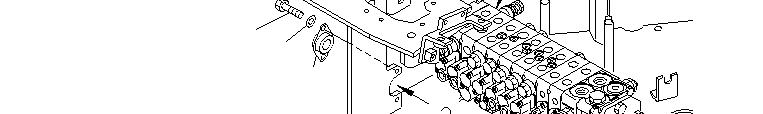

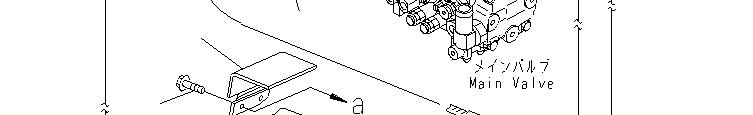

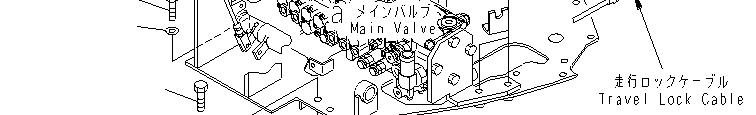

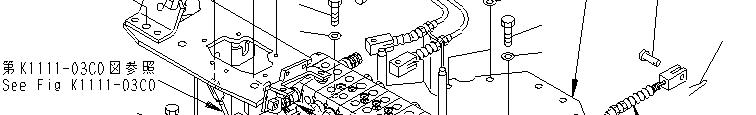

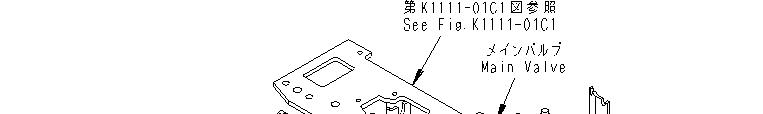

MAIN VALVE BRACKET AND MAIN VALVE (2-WAY)(#13815-)
