ItemPartNo. Description

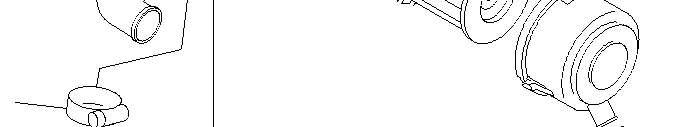

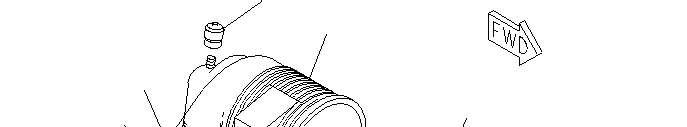

1YM119910-12210HOSE 1SN:11582-2YM119823-12561BRACKET 1SN:11582-YM129002-12610AIRCLEANERASS'Y 1SN:11582-YM129209-12500AIRCLEANERASS'Y 1SN:11582-3YM129209-12510BODY 1SN:11582-4YM119808-12520ELEMENT 1SN:11582-5YM119808-12540VALVE 1SN:11582-6YM129209-12540COVERASS'Y 1SN:11582-7YM126650-12680INDICATOR,DUST 1SN:11582-8YM129612-12560ELBOWASS'Y 1SN:11582-9YM129612-12590GASKET 1SN:11582-10YM23000-060000CLAMP 1SN:11582-11YM129259-12570RING 1SN:11582-12YM26013-080222BOLT 4SN:11582-13YM26013-080222BOLT 2SN:11582-14YM23000-060000CLAMP 2SN:11582--

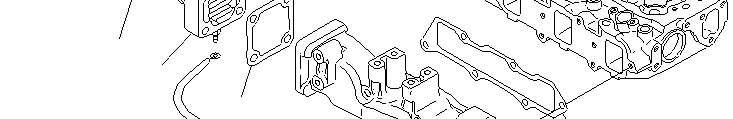

ItemPartNo. Description

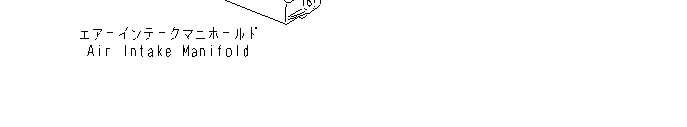

1YM119813-12100MANIFOLD,AIRINTAKE
1SN:04840-2YM119813-12110GASKET(KIT) 1SN:04840-3YM26106-080252BOLT 6SN:04840-4YM119867-77530WIRE 1SN:04840-5YM129100-77500HEATER,RIBBON 1SN:04840-6YM129100-77510GASKET 1SN:04840-7YM129150-77511GASKET(KIT) 1SN:04840-8YM171340-77520CONNECTOR 1SN:04840-9YM26106-080402BOLT 2SN:04840-10YM26106-080802BOLT 2SN:04840--
ItemPartNo. Description

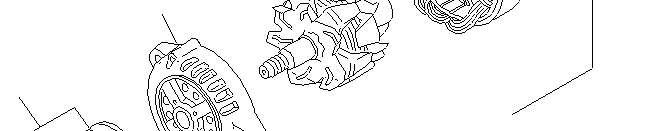

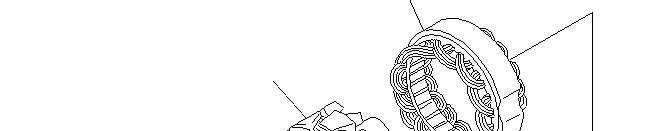

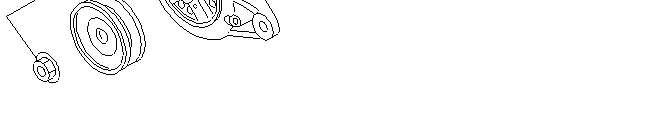

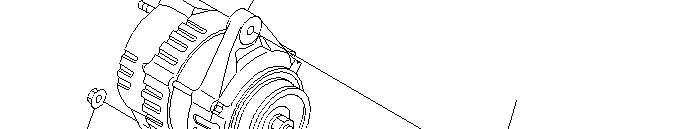

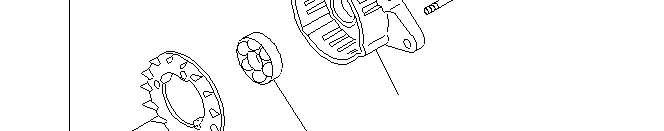

YM129612-77230ALTERNATORA.(40A)
1SN:11582-1YM129612-77700ROTORASS'Y 1SN:11582-2YM129612-77710BEARING,BALL 1SN:11582-3YM129612-77720REARBRACKETASS'Y 1SN:11582-4YM129612-77730FRONTBRACKETASS'Y 1SN:11582-5YM129612-77740PULLEY 1SN:11582-6YM129612-77750SCREWKIT 1SN:11582--

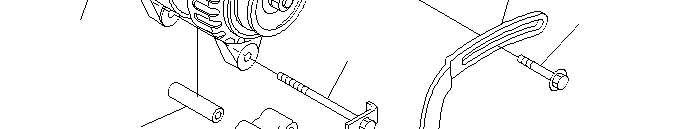

ItemPartNo.
1(YM129612-77230)ALTERNATORA.(40A),(SEEFIG.A6010-B0A3)1SN:11582-2YM129953-77201BOLT 1SN:11582-3YM119820-77340SPACER 1SN:11582-4YM129612-77260NUT 1SN:.-YM26366-080002NUT 1SN:11582--. 5YM119823-77330PLATE,ADJUST 1SN:11582-6YM119810-77340BOLT 1SN:11582--
ItemPartNo.
3D82AE-3HS/N04840-UP

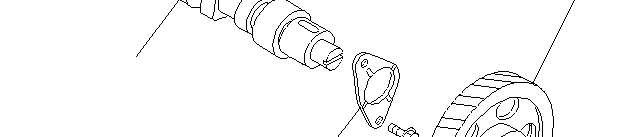

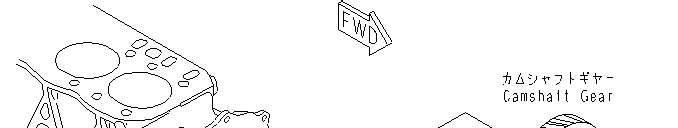

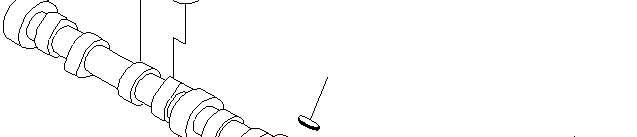

CAMSHAFTANDTAPPET(#09465-)
1YM129150-14200TAPPET
6SN:09465-2YM119810-14400ROD,PUSH 6SN:09465-YM119810-14580CAMSHAFTASS'Y 1SN:09465-3 CAMSHAFT 1SN:09465-4YM129150-02450METAL,THRUST 1SN:09465-5YM129150-14101GEAR 1SN:09465-6YM22512-070140KEY 1SN:09465-7YM26106-080142BOLT 2SN:09465--
ItemPartNo.
Description

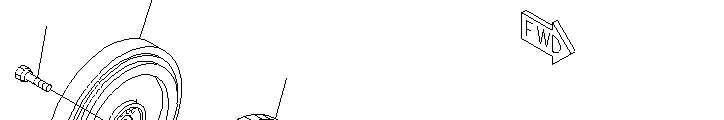

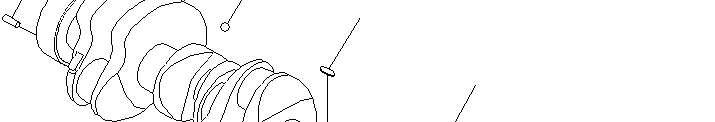

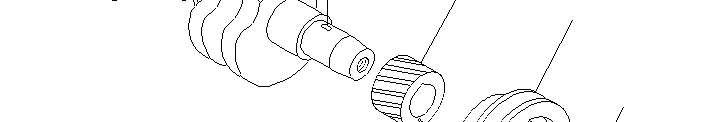

1YM119813-21000CRANKSHAFTASS'Y
1SN:11582-2YM129100-01580PIN 1SN:11582-3YM129150-21200GEAR,CRANK 1SN:11582-4YM22512-070140KEY 1SN:11582-5YM22351-040010PIN,SPRING 1SN:11582-6YM129550-21650PULLEY 1SN:11582-7YM129795-21661WASHER 1SN:11582-8YM121850-21680BOLT 1SN:11582--
ItemPartNo.

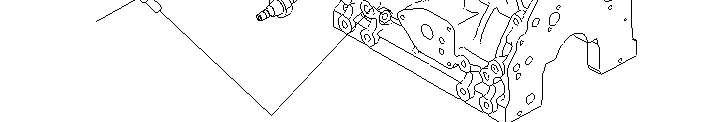

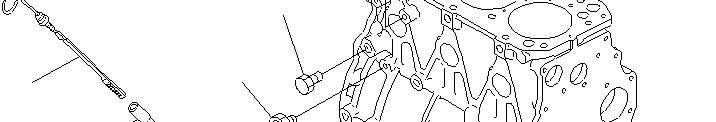

3D82AE-3HS/N04840-UP CYLINDERBLOCKACCSESSORY(#11582-)
1YM121520-34810GUIDE
Description QtyOptions
1SN:11582-2YM119836-34800GAUGE,LEVEL
1SN:11582-3YM121252-39450SWITCH,OILPRESSURE
1SN:11582-4YM129136-66852SUPPORT
1SN:.-5YM26106-080122BOLT
1SN:.-6YM171056-49120PLUG,DRAIN
1SN:11582--

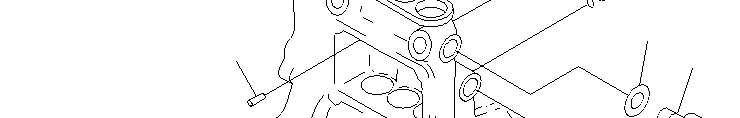

ItemPartNo.

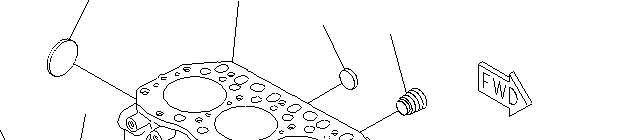

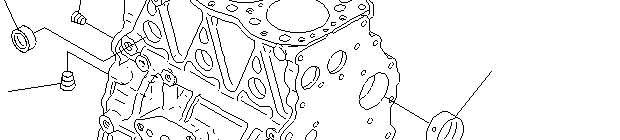

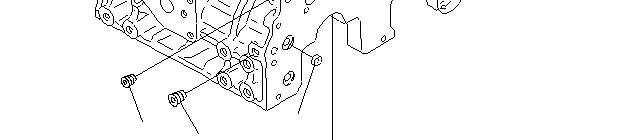

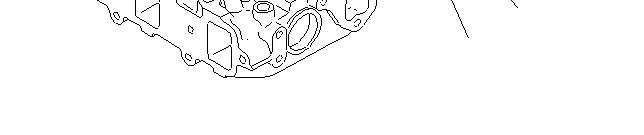

YM719813-01560CYLINDERBLOCKASS'Y
1SN:04840-1 BLOCK,CYLINDER 1SN:04840-2YM124160-01910PLUG 2SN:04840-3YM171051-01921PLUG 1SN:04840-4YM119620-02020BOLT 8SN:04840-5YM23876-010000PLUG 1SN:.-YM23871-010000PLUG 1SN:04840--. 6YM124160-01910PLUG 1SN:04840-7YM129001-01250PLUG 1SN:.-YM27231-500000PLUG 1SN:04840--. 8YM27241-120000PLUG 2SN:04840-9YM27241-300000PLUG 6SN:04840-10YM119810-02800MAINMETALASS'Y(STD) 4SN:04840-YM119810-02870MAINMETALASS'Y,0.25MM(US) 4SN:04840-11YM119810-02930THRUSTMETALASS'Y(STD) 2SN:04840-YM119810-02940THRUSTMETALASS'Y,0.25MM(OS) 2SN:04840-12YM129795-02411BUSHING 1SN:04840--
ItemPartNo.

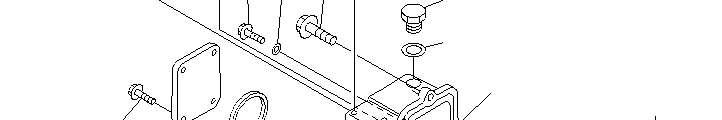

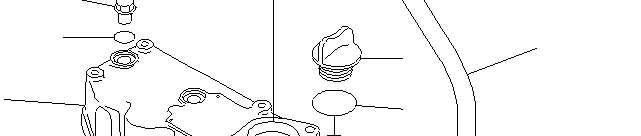

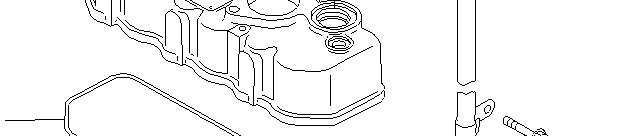

3D82AE-3HS/N04840-UP CYLINDERHEADCOVER
DescriptionQty
1YM23065-160800HOSE¤800MM
1SN:04840-YM719810-11521COVERASS'Y
1SN:13269-YM719810-11520COVERASS'Y
1SN:04840--13268 2 COVER
1SN:04840-3YM124160-01751CAP
1SN:04840-4YM129150-03020COVER
1SN:04840-5YM129150-03070BAFFLE
1SN:04840-6YM129150-03080RETAINER
1SN:04840-7YM119865-11310PACKING(KIT)
1SN:04840-8YM24311-000320O-RING(KIT)
1SN:04840-9YM24341-000500O-RING(KIT)
1SN:04840-10YM26106-080162BOLT
2SN:04840-11YM124160-11360KNOB
Options
3SN:04840-12YM24311-000120O-RING(KIT)
3SN:04840--
ItemPartNo.
1YM119810-01200BOLT

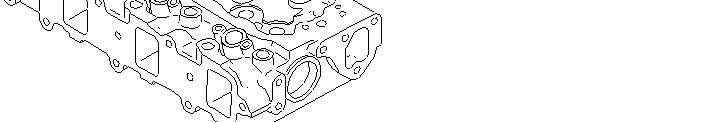

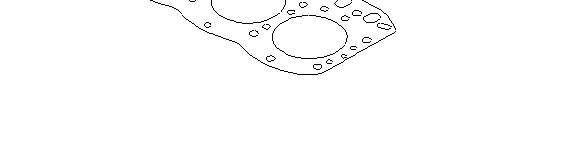

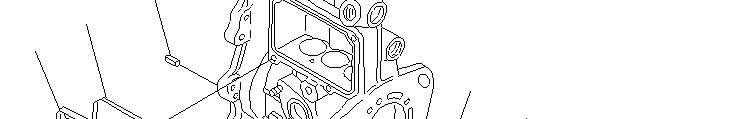

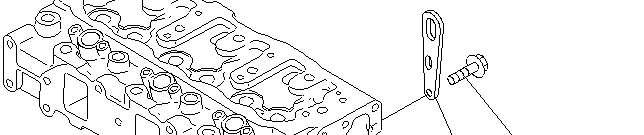

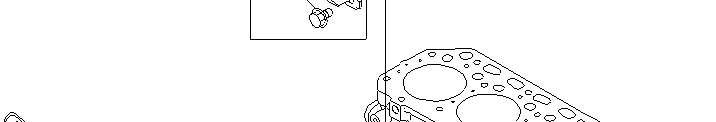

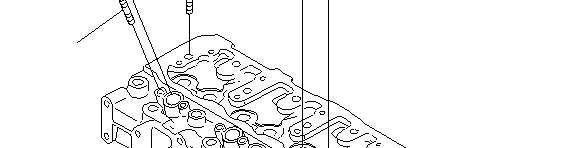

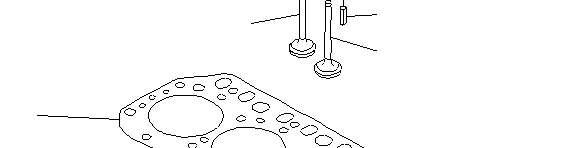

3D82AE-3HS/N04840-UP CYLINDERHEAD
Description
QtyOptions
14SN:04840-2YM119812-01330GASKET(KIT) 1SN:04840-YM119812-11700CYLINDERHEADASS'Y 1SN:04840-3 HEAD,CYLINDER 1SN:04840-4YM124060-11800GUIDE 6SN:04840-5YM26216-060302STUD 6SN:04840-6YM27241-400000PLUG 2SN:04840-7YM119810-11100VALVE,INTAKE 3SN:04840-8YM119810-11110VALVE,EXHAUST 3SN:04840-9YM119810-11120SPRING 6SN:04840-10YM104211-11180SEAT 6SN:04840-11YM27310-070001COTTER 6SN:04840-12YM124160-11340SEAT,VALVESTEM(KIT) 3SN:04840-13YM124950-11340SEAT,VALVESTEM(KIT) 3SN:04840-14YM104211-11370CAP 6SN:04840-15YM119625-11870PROTECTOR(KIT) 3SN:04840-16YM119625-11880SEAT(KIT) 3SN:04840-17YM119625-11900RETAINER 3SN:04840-18YM22351-060012PIN 2SN:04840-19YM26366-060002NUT 6SN:04840--
ItemPartNo.

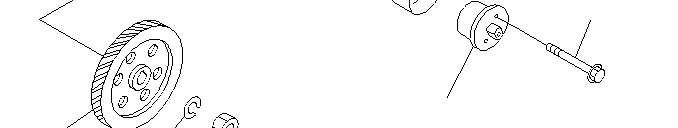

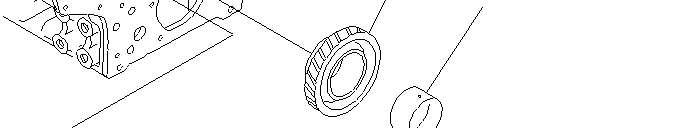

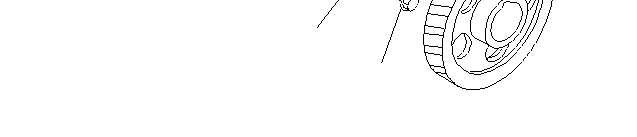

1YM129100-25061SHAFT,IDLER
Description
QtyOptions
1SN:04840-YM129150-25101IDLERGEARASS'Y,IDLER 1SN:04840-2 GEAR,IDLER 1SN:04840-3YM129150-25920BUSHING 1SN:04840-4YM26106-080452BOLT 2SN:04840-5YM129150-25900GEAR,INJECTION 1SN:04840-6YM22217-120000WASHER,SPRING 1SN:04840-7YM26716-120002NUT 1SN:04840--

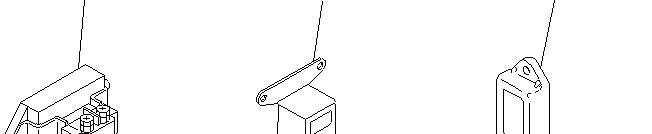

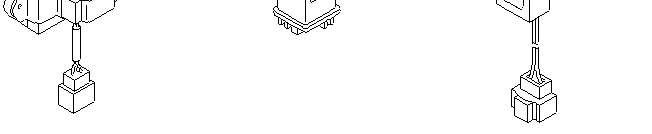

3D82AE-3HS/N04840-UP ELECTRICALPARTS(FORWERDEDINDIVIDUALLYPARTS)(#11582-)
ItemPartNo.
Description QtyOptions
1YM129136-77200RELAYASS'Y,SAFETY
1SN:11582-2YM119650-77910RELAY,GLOW 1SN:11582-3YM129211-77920TIMER 1SN:13624-YM119632-77920TIMER 1SN:11582--13623
ItemPartNo.
Description QtyOptions

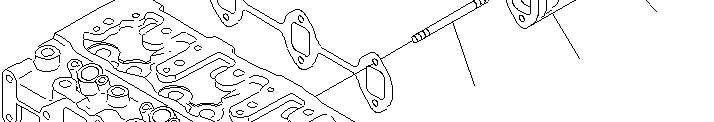

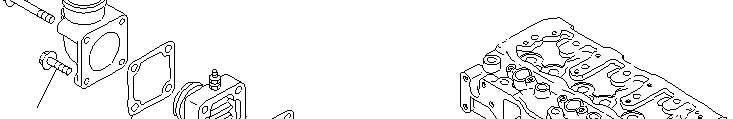

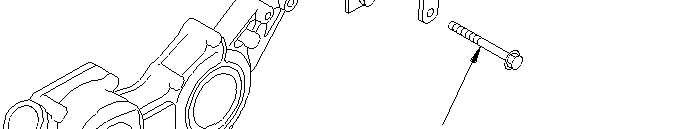

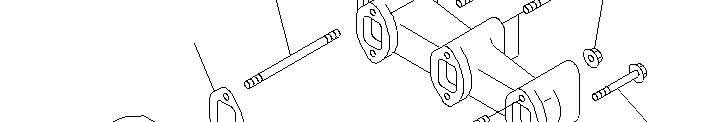

1YM119840-13100MANIFOLD,EXHAUST
1SN:11582-2YM119810-13110GASKET(KIT) 1SN:11582-3YM26306-080002NUT
2SN:.-YM26366-080002NUT 2SN:11582--. 4YM119802-13640BOLT
3SN:.-YM26106-080602BOLT 3SN:11582--. 5YM123900-13630BOLT
1SN:.-YM26106-080802BOLT 1SN:11582--. 6YM119802-13740STUD
1SN:.-YM26216-080602STUD 1SN:11582--. 7YM123900-13610STUD
1SN:.-YM26216-080802STUD 1SN:11582--.

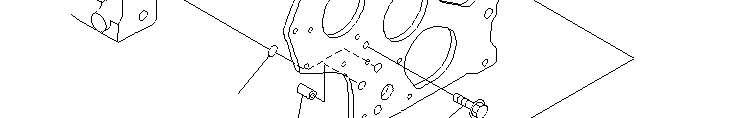

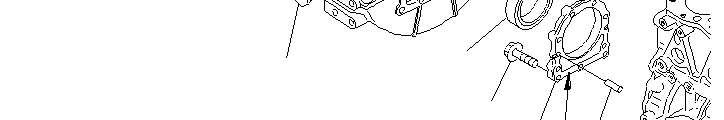

ItemPartNo.
3D82AE-3HS/N04840-UP

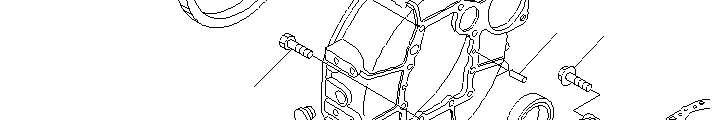

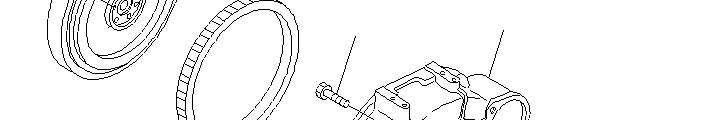

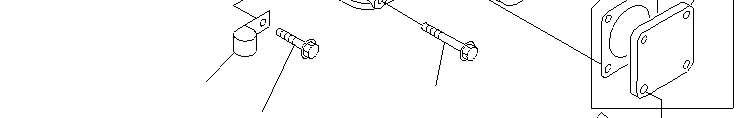

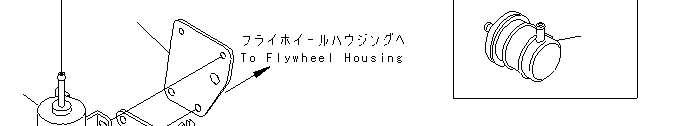

1YM129100-01580PIN 2SN:11582-2YM129612-01600HOUSING,FLYWHEEL 1SN:11582-3YM119620-01750CAP 1SN:11582-4YM26206-100252BOLT 6SN:11582-5YM26206-100302BOLT 4SN:11582-6YM129100-01580PIN 2SN:11582-YM719810-01650REARCASEASS'Y 1SN:11582-7 CASE 1SN:11582-8YM119810-01780SEAL¤REAR 1SN:11582-9YM129486-01670BOLT 6SN:11582-10YM26106-080352BOLT 3SN:11582-11YM121111-21501BOLT 6SN:11582-YM119840-21590FLYWHEELASS'Y 1SN:11582-12 FLYWHEEL 1SN:11582-13YM119865-21600GEAR,RING 1SN:11582-14(YM977770-01212)LIQUIDGASKET ARSN:11582--
ItemPartNo.
Description QtyOptions

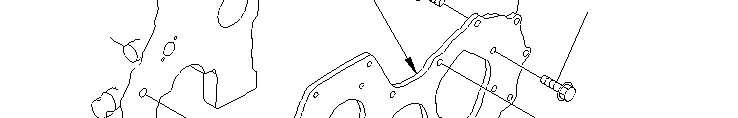

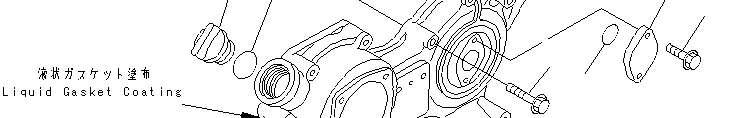

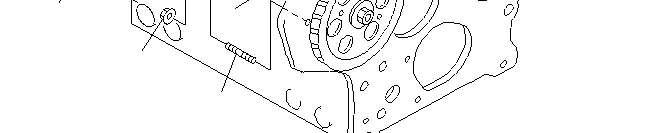

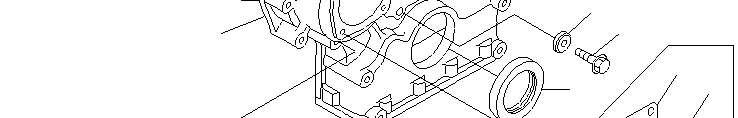

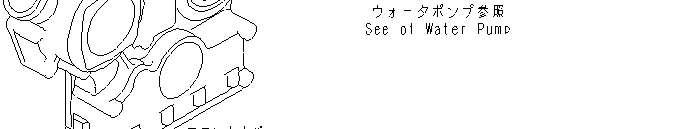

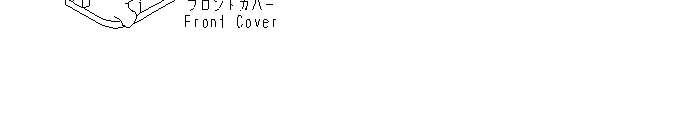

YM719810-01500FRONTCOVERASS'Y,GEAR 1SN:11582-1 COVER,GEAR 1SN:11582-2YM129795-01800SEAL¤FRONT 1SN:11582-3YM129400-01520FLANGE 1SN:11582-4YM124160-01751CAP 1SN:11582-5YM124240-01871COVER 1SN:11582--. 6YM124240-01883GASKET(KIT) 1SN:11582--. 7YM129795-01950PIPE 2SN:11582-8YM129150-03100CLIP,BREATHERHOSE 1SN:11582-9YM119609-32040O-RING(KIT) 2SN:.-YM24311-000160O-RING(KIT) 2SN:11582--. 10YM24311-000320O-RING 1SN:11582-11YM26106-080122BOLT 4SN:11582-12YM26106-080162BOLT 1SN:11582-13YM26106-080162BOLT 3SN:11582-14YM26106-080202BOLT 2SN:11582-15YM26106-080452BOLT 6SN:11582-16YM26106-080552BOLT 3SN:11582-17YM129001-91841BOLT 4SN:13770-YM129001-91840BOLT 4SN:11582--13769 18YM22190-080002SEAL,RING 4SN:11582-19YM22190-080002SEAL,RING 1SN:11582-20YM121023-01550COVER 1SN:11582-21YM24341-000240O-RING(KIT) 1SN:11582-22YM26106-060162BOLT 2SN:11582--
3D82AE-3HS/N04840-UP FRONTHANGER(#11582-)
1YM124736-07900HOOK
1SN:11582-2YM26106-080142BOLT
2SN:11582--
ItemPartNo.
Description QtyOptions

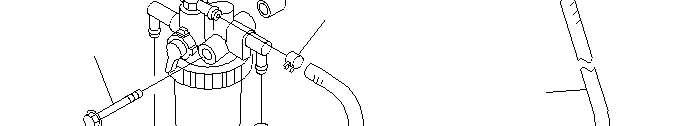

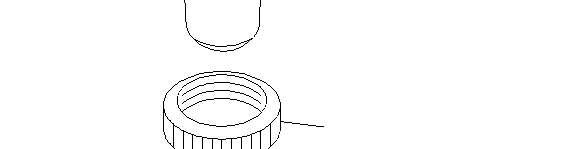

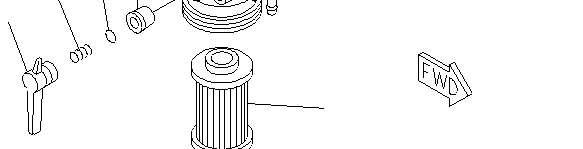

1YM129053-55620FUELFILTERASS'Y 1SN:11582-2YM119810-55340LEVER 1SN:11582-3YM104200-55330SPRING 1SN:11582-4YM24311-240100O-RING 1SN:11582-5YM104200-55750SCREW 1SN:11582-6YM129107-55510CUP 1SN:11582-7YM110250-55610RING 1SN:11582-8YM102103-55520O-RING 1SN:11582-9YM119810-55650ELEMENT 1SN:11582-10YM121250-55620SPRING 1SN:11582-11YM121257-55731FLOAT 1SN:11582--
ItemPartNo.

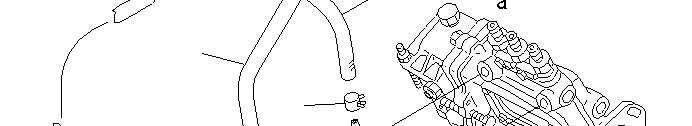

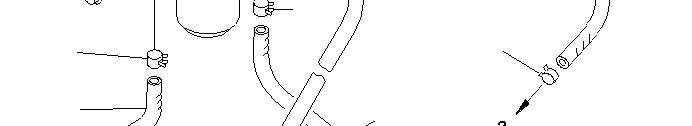

YM119840-59500HOSEASS'Y 1SN:11582-1YM124066-59100CLAMP 2SN:11582-2YM119840-59560HOSE 1SN:11582-3YM119840-59570JOINT 1SN:11582-4YM129100-59951CHECKVALVEASS'Y 1SN:11582-5YM22190-120002SEAL(KIT) 2SN:12875-YM23414-120000GASKET(KIT) 2SN:11582--12874 YM129210-59130HOSEASS'Y 1SN:11596-6YM124766-59050CLAMP 2SN:11582-7YM105025-59750HOSE 1SN:11582-8YM129612-52100FEEDPUMPASS'Y 1SN:11582-9YM129612-52110BRACKET 1SN:11582-10YM119823-66200BRACKET 1SN:11582-11YM26106-060122BOLT 2SN:11582-12YM26106-080202BOLT 2SN:11582-13YM103854-39140BOLT,JOINT 1SN:11582-14YM101304-59020JOINT 1SN:11582-YM129210-59010HOSEASS'Y 1SN:11596-15YM124766-59050CLAMP 2SN:11582-16YM129612-59510HOSE 1SN:11582-YM129210-59040HOSEASS'Y 1SN:11596-17YM124766-59050CLAMP 2SN:11582-18YM129555-59510HOSE 1SN:11582-19YM22190-120002SEAL,WASHER(KIT) 2SN:11582-20YM129052-55630FILTER 1SN:11582--
ItemPartNo. Description
21(YM129053-55620)FUELFILTERASS'Y,(SEEFIG.A4110-B0A3)1SN:11582-22YM26014-080752BOLT 1SN:11582-23YM106500-44810SPACER 1SN:11582--

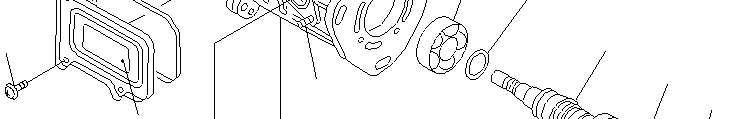

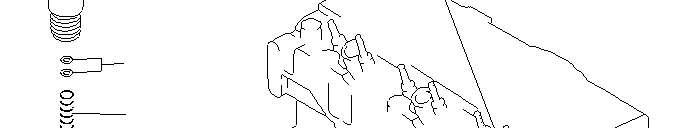

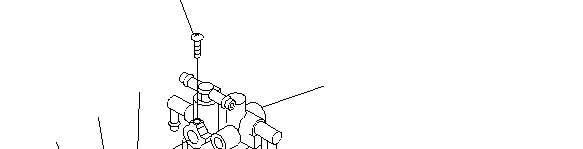

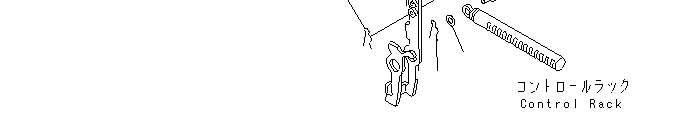

3D82AE-3HS/N04840-UP FUELINJECTIONPUMP(GOVERNOR)(2/2)(INNERPARTS)(#11582-)
ItemPartNo.
Description QtyOptions (YM719866-51390)INJECTIONPUMPASS'Y 1SN:11582-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A4TOA4010-E0A4. 1YM129155-51280O-RING 1SN:11582-2YM129155-61120LINK¤L=30.0 1SN:11582-YM129155-61130LINK¤L=31.0 1SN:11582-YM129155-61140LINK¤L=30.5 1SN:11582-3YM129155-61202WEIGHTASS'Y 1SN:13589-YM129155-61201WEIGHTASS'Y 1SN:11582--13588 4YM129155-61341SLEEVE¤L=25.5 1SN:11582-YM129155-61350SLEEVE¤L=24.9 1SN:11582-YM129155-61360SLEEVE¤L=25.2 1SN:11582-5YM129155-61480SPACER 2SN:11582-6YM129052-61390SHAFT 1SN:11582-7YM129052-61500LEVERASS'Y 1SN:11582-8YM174307-51700SHIMASS'Y 2SN:11582-9YM129052-61540SPRING 1SN:11582-10YM22117-040000WASHER 1SN:11582-11YM22287-120000WASHER 1SN:11582-12YM22372-040000PIN,SNAP 2SN:11582-13YM26776-120002NUT 1SN:11582-14YM129100-61650SPRING 1SN:11582-15YM171353-61550ANGLEICHASS'Y 1SN:11582--
ItemPartNo.
Description QtyOptions (YM719866-51390)INJECTIONPUMPASS'Y 1SN:11582-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A4TOA4010-E0A4. 1 CASE 1SN:11582-2YM129052-61050GASKET 1SN:11582-3YM129052-61060COVER 1SN:11582-4YM129052-61070GASKET 1SN:11582-5YM129100-61400SHAFTASS'Y 1SN:11582-6YM129155-61430SPACER 1SN:11582-7YM129155-61450BOLT 1SN:11582-8YM129155-61460BOLT 1SN:11582-9YM119660-61901PLATE 1SN:11582-10YM129155-61950BOLT 1SN:11582-11YM124550-66370NUT 1SN:11582-12YM22190-060003WASHER 1SN:.-YM22190-060002GASKET 1SN:11582--. 13YM22190-100002SEAL 1SN:11582-14YM22190-120002SEAL,WASHER 2SN:11582-15YM23887-100002PLUG 1SN:11582-16YM24341-000280O-RING 1SN:11582-17YM26106-060102BOLT 1SN:11582-18YM26106-060102BOLT 1SN:11582-19YM26106-060102BOLT 4SN:11582-20YM26106-060142BOLT 2SN:11582-21YM26106-060202BOLT 6SN:11582-22YM26756-060002NUT 1SN:11582--

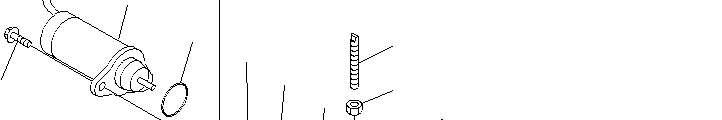

ItemPartNo. Description QtyOptions 23YM26776-120002NUT 1SN:11582-24YM26366-080002NUT 1SN:11582-25YM129100-61440LEVER,CONTROL 1SN:11582-26YM171353-61710SPRING 1SN:11582-27YM119233-77931SOLENOID 1SN:11582-28YM26687-120002NUT 1SN:11582-29YM129155-61470BOLT 1SN:11582-30YM129155-61830O-RING 1SN:11582--
3D82AE-3HS/N04840-UP FUELINJECTIONPUMP(PUMP)(1/2)(INNERPARTS)(#11582-)
ItemPartNo.
Description QtyOptions
YM719866-51390INJECTIONPUMPASS'Y 1SN:11582-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A4TOA4010-E0A4. 1 INJECTIONPUMPA. 1SN:11582-2YM129211-51040CAMSHAFT 1SN:11582-3YM129155-51050BEARING,THRUST 1SN:11582-4YM129155-51060RETAINER 1SN:11582-5YM122710-51090KEY 1SN:11582-6YM129155-51450GASKET 1SN:11582-7YM129155-51701COVER 1SN:13589-YM129155-51700COVER 1SN:11582--13588 8YM129155-51710GASKET 1SN:11582-9YM129155-51751COVER 1SN:13589-YM129155-51750COVER 1SN:11582--13588 10YM129155-51760GASKET 1SN:11582-11YM129156-51910PLATE¤CAUTION 1SN:11582-12YM129155-51930SPACER¤T=3.25 1SN:11582-13YM129155-51940SPACER¤T=1.5 1SN:11582-14YM22217-060000WASHER,SPRING 2SN:11582-15YM22351-050010PIN 2SN:11582-16YM24101-063034BEARING 1SN:11582-17YM26022-050122SCREW 8SN:13589-YM26022-050102SCREW 8SN:11582--13588 18YM26022-060162SCREW 4SN:11582-19YM26716-060002NUT 2SN:11582-20YM129155-51020STUD 2SN:11582--
21YM129155-52050GASKET(KIT) 1SN:11582-22YM129100-52200COVER 1SN:11582--
3D82AE-3HS/N04840-UP FUELINJECTIONPUMP(PUMP)(2/2)(INNERPARTS)(#11582-)
ItemPartNo.
Description QtyOptions (YM719866-51390)INJECTIONPUMPASS'Y 1SN:11582-THISASSEMBLYCONSISTSOFALLPARTSSHOWNINFIGS.A4010-B0A4TOA4010-E0A4. 1YM129108-51100PLUNGERASS'Y 3SN:11582-2YM129155-51140PIN 3SN:11582-3YM174307-51170SEAT 3SN:11582-4YM129155-51180RETAINER 3SN:11582-5YM124950-51190SPRING 3SN:11582-6YM129155-51200TAPPETASS'Y 3SN:11582-7YM129155-51270STOPPER 3SN:11582-8YM129155-51280O-RING 3SN:11582-9YM129505-51300VALVE,DELIVERY 3SN:11582-10YM129155-51320SPRING 3SN:11582-11YM129155-51340HOLDER 3SN:11582-12YM124550-51350GASKET 3SN:11582-13YM124550-51370O-RING 3SN:11582-14YM129155-51370STOPPER 3SN:11582-15YM129155-51380STOPPER 2SN:11582-16YM129155-51390STOPPER 2SN:11582-17YM129155-51400DEFLECTOR 1SN:11582-18YM129155-51410BOLT 1SN:11582-19YM129155-51420PLUG 1SN:11582-20YM129155-51500RACK 1SN:11582-21YM129155-51521BUSHING 1SN:11582-22YM129155-51530SPACER 1SN:11582-23YM129155-51540RING 1SN:11582--
ItemPartNo. Description QtyOptions 24YM129155-51550PINION 3SN:11582-25YM122117-51560SCREW 3SN:11582-26YM174307-51560PINION 3SN:11582-27YM129155-51570PLUG 1SN:11582-28YM129155-51580O-RING 1SN:11582-29YM129155-51591SPRING 1SN:11582-30YM129155-51600SHIMASS'Y 3SN:11582-31YM129155-51790STOPPER 1SN:11582-32YM22217-050000WASHER,SPRING 2SN:11582-33YM24341-000160O-RING 1SN:11582-34YM26116-050302BOLT 2SN:11582-35YM22190-160002SEAL,RING 1SN:11582--

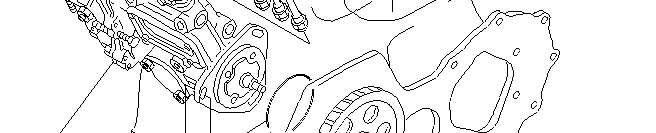

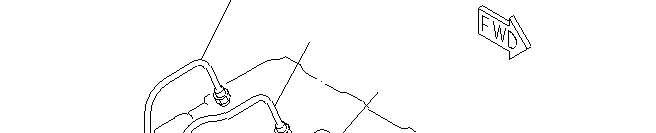

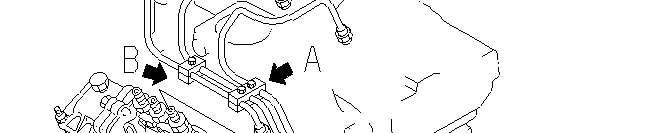

ItemPartNo. Description QtyOptions
1YM121450-01560STUD

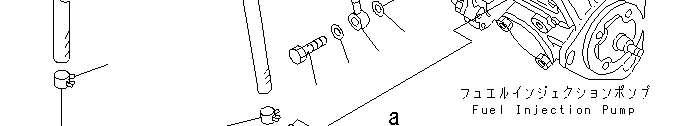

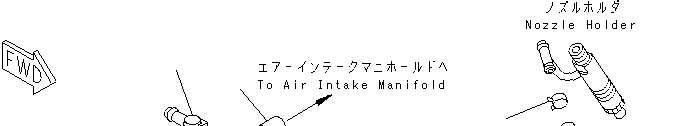

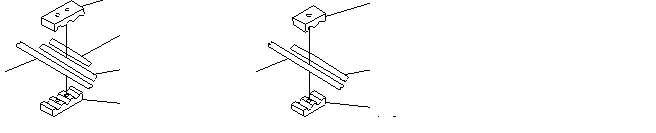

3SN:11582-2YM121850-51960O-RING(KIT) 1SN:11582-3YM26366-080002NUT 3SN:11582-4(YM719866-51390)INJECTIONPUMPASS'Y,(SEEFIG.A4010-B0A3)1SN:11582-5YM129150-59120CLAMPASS'Y 1SN:11582-6YM129150-59131BOLT 2SN:11582-7YM119813-59812PIPE 1SN:11582-8YM119813-59821PIPE 1SN:11582-9YM119813-59831PIPE 1SN:11582-10YM119305-59120CLAMPASS'Y 1SN:11582-11YM129150-59131BOLT 1SN:11582--
ItemPartNo.

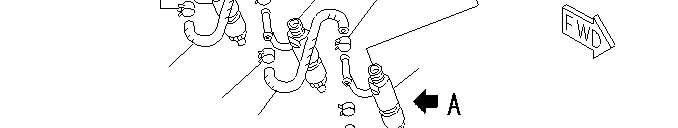

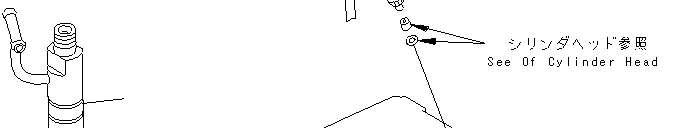

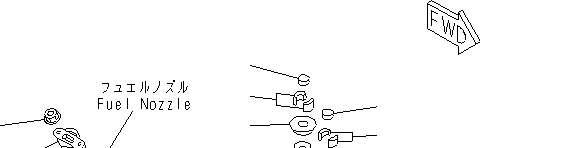

YM729609-53200FUELNOZZLEASS'Y 3SN:14448-YM729500-53200FUELNOZZLEASS'Y 3SN:04840--14447 1YM129609-53100NOZZLEASS'Y 1SN:14448-YM129500-53050NOZZLEASS'Y 1SN:04840--14447 2YM114250-53080NUT 1SN:04840-3YM129100-53100NOZZLEHOLDERASS'Y 1SN:04840-4YM114250-53120SPRING 1SN:04840-5YM114250-53130SEAT 1SN:04840-6YM114250-53140PLATE 1SN:04840-7YM114250-53210PIN 2SN:04840-8YM114250-53400SHIMASS'Y 1SN:04840-9YM124066-59100CLAMP 5SN:04840-10YM121250-59550HOSE 2SN:04840-11YM129150-59580CAP 1SN:04840--
