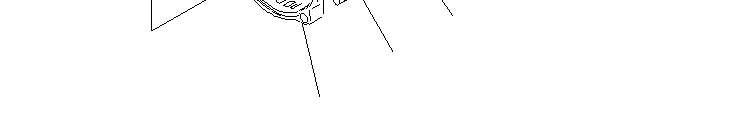

ItemPartNo.

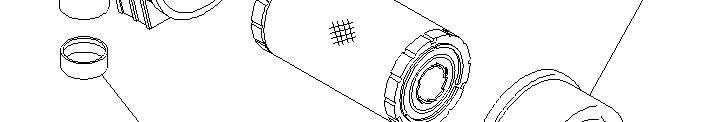

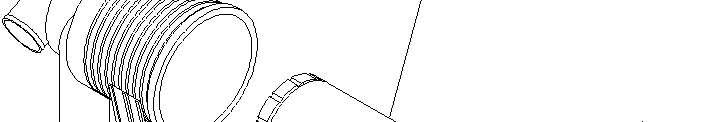

1YM119940-12500AIRCLEANERASS'Y 1SN:00271-2YM119808-12520ELEMENT 1SN:00271-3YM129051-12540COVERASS'Y 1SN:00271-4YM119808-12540VALVE 1SN:00271-5YM126650-12680INDICATOR,DUST 1SN:00271-6YM129259-12570RING 1SN:00271-7YM119626-12800ORIFICE 1SN:00271--

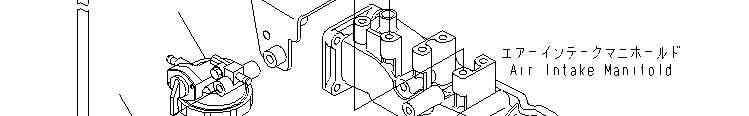

3D82AE-5M-BAS/N00246-UP

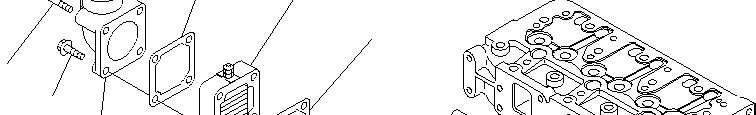

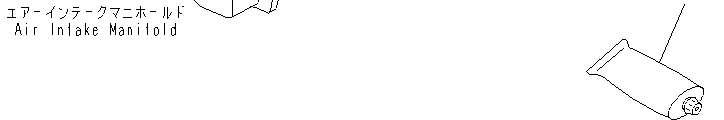

ItemPartNo. Description
1YM129100-77500HEATER,RIBBON 1SN:00246-2YM129100-77510GASKET(KIT) 1SN:00246-3YM129150-77511GASKET(KIT) 1SN:00246-4YM171340-77520CONNECTOR 1SN:00246-5YM26106-080402BOLT 2SN:00246-6YM26106-080802BOLT 2SN:00246-7YM119802-12100MANIFOLD,AIRINTAKE 1SN:00246-8YM119813-12110GASKET(KIT) 1SN:00246-9YM26106-080202BOLT 4SN:00246-10YM26106-080802BOLT 1SN:00246--
ItemPartNo.

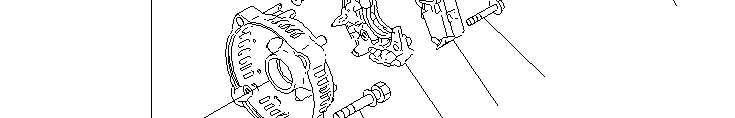

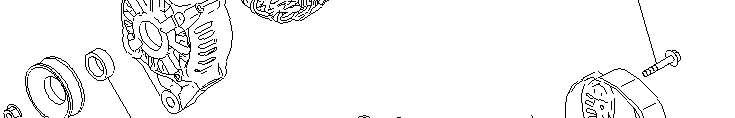

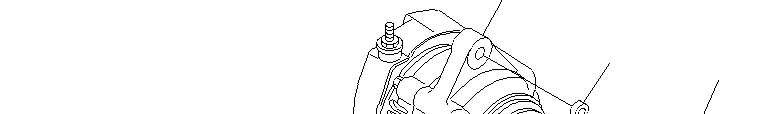

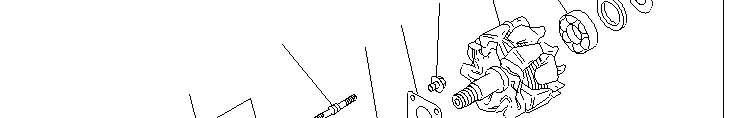

3D82AE-5M-BAS/N00246-UP ALTERNATOR(40A)(INNERPARTS)(#00271-)
Description QtyOptions YM129423-77200ALTERNATORA.(40A) 1SN:00271-1YMX9490561001.NUT 1SN:00271-2YM119620-77380.ROTORASS'Y 1SN:00271-3YM119620-79240..BEARING,BALL 1SN:00271-4YM119620-79250..COVER 1SN:00271-5YM119620-79360..WASHER 1SN:00271-6YM119620-77421.FRONTCOVERASS'Y 1SN:00271-7YM119620-79200..BEARING,BALL 1SN:00271-8YM119620-79210..PLATE 1SN:00271-9YM119620-79220..SCREW 4SN:00271-10YM119620-79230..STUD 2SN:00271-11YM119620-77440.REARCOVERASS'Y 1SN:00271-12YM129423-77450.COVER 1SN:00271-13YM119620-77461.PULLEY 1SN:00271-14YM119620-77471.NUT 1SN:00271-15YM129423-77710.REGULATORASS'Y 1SN:00271-16YM119620-79260.HOLDER 1SN:00271-17YM119620-79270.BRUSHHOLDERASS'Y 1SN:00271-18YM119620-77480...BRUSHASS'Y 2SN:00271-19YM119620-79280...SPRING 2SN:00271-20YM119620-79290.SCREW 1SN:00271-21YM119620-79300.SCREW 1SN:00271-22YM119620-79310.BOLT 3SN:00271-23YM119620-79320.SCREW 2SN:00271-24YM119620-79330.BOLT 2SN:00271-25YM119620-79340.BUSHING 1SN:00271-26YM119620-79350.NUT 2SN:00271--
ItemPartNo.
3D82AE-5M-BAS/N00246-UP ALTERNATORANDMOUNTING(40A)(#00271-)
1YM119940-77330PLATE,ADJUST 1SN:00271-2(YM129423-77200)ALTERNATORA.(40A),(SEEFIG.A6010-B0A2)1SN:00271-3YM119740-77250BOLT 1SN:00271-4YM26306-100002NUT 1SN:00271-5YM26106-080452BOLT 1SN:00271-6YM119940-77270SPACER 1SN:00271-7YM119802-77340BOLT 1SN:00271--
ItemPartNo.
3D82AE-5M-BAS/N00246-UP CAMSHAFTANDTAPPET
DescriptionQtyOptions
1YM129150-14200TAPPET 6SN:00246-2YM119810-14400ROD,PUSH 6SN:00246-3YM119802-14580CAMSHAFTASS'Y 1SN:00246-4YM129150-02450METAL,THRUST 1SN:00246-5YM129150-14101GEAR 1SN:00246-6YM22512-070140KEY 1SN:00246-7YM26106-080142BOLT 2SN:00246--
ItemPartNo.
3D82AE-5M-BAS/N00246-UP CRANKSHAFT
Description QtyOptions
1YM119802-21001CRANKSHAFTASS'Y 1SN:00246-2YM129100-01580PIN,DOWEL 1SN:00246-3YM119802-21201GEAR,CRANK 1SN:00246-4YM22512-070140KEY 1SN:00246-5YM22351-030010PIN,SPRING 1SN:00246-6YM119802-21650PULLEY,CRANK 1SN:00246-7YM129795-21661WASHER 1SN:00246-8YM121850-21680BOLT 1SN:00246--

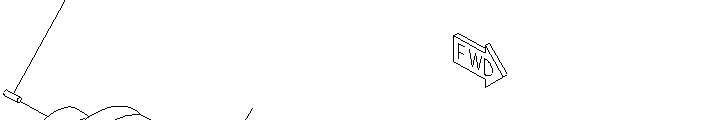

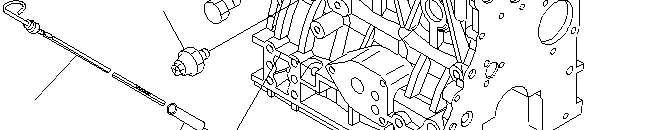

ItemPartNo. Description
1YM119940-34800GAUGE,OIL 1SN:00271-2YM121520-34810GUIDE,OILGAUGE 1SN:00271-3YM121252-39450SWITCH,OILPRESSURE 1SN:00271-4YM171056-49120PLUG,DRAIN 1SN:00271--

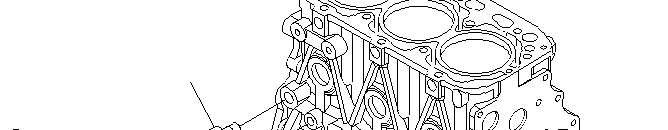

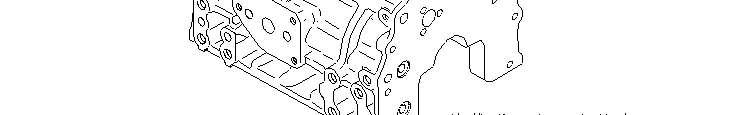

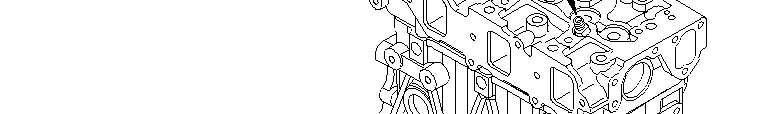

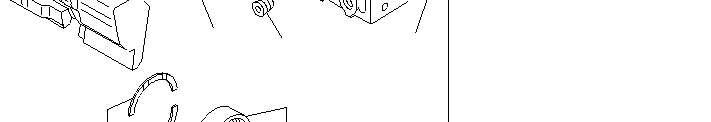

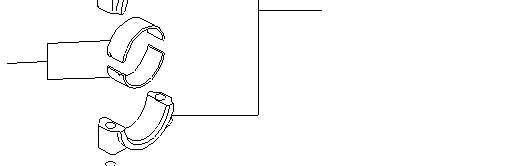

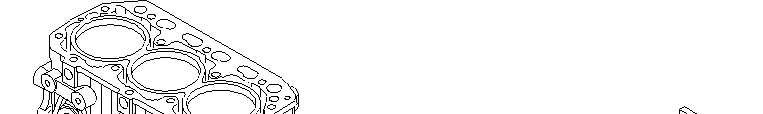

ItemPartNo.

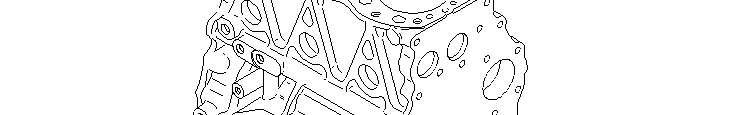

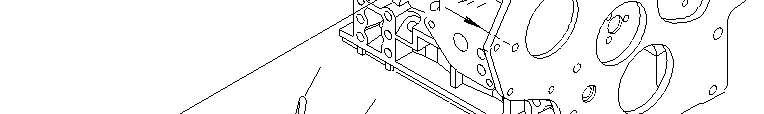

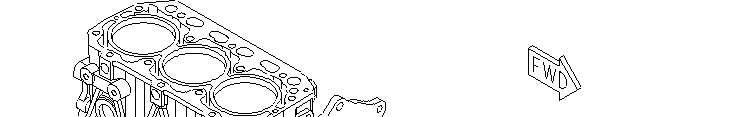

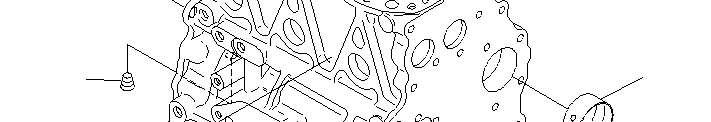

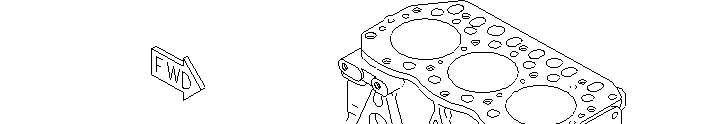

1YM719802-01560CYLINDERBLOCKASS'Y 1SN:00246-2YM124160-01910PLUG 2SN:00246-3YM171051-01921PLUG 1SN:00246-4YM124060-01050PLUG 1SN:00246-5YM129001-01250PLUG 1SN:00246-6YM27241-120000PLUG 2SN:00246-7YM27241-300000PLUG 6SN:00246-8YM119620-02020BOLT 8SN:00246-9YM129795-02411BUSHING 1SN:00246-10YM124160-01910PLUG 1SN:00246-11YM719810-02980MAINMETALASS'Y(STD) 4SN:00246-YM119810-02870MAINMETALASS'Y,0.25MM(US) 4SN:00246-12YM119810-02930THRUSTMETALASS'Y(STD) 1SN:00246-YM119810-02940THRUSTMETALASS'Y,0.25MM(OS)2SN:00246-13YM119802-01190SPACER 1SN:00246--

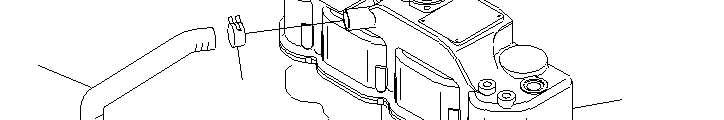

ItemPartNo.

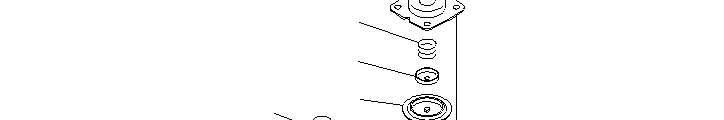

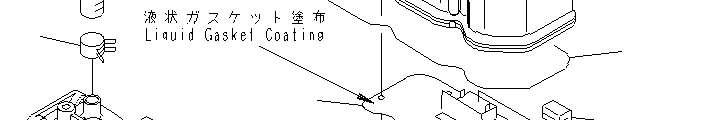

1YM119852-11350HEADCOVERASS'Y 1SN:00271-2YM119802-03010PLATE 1SN:00271-3YM129150-03070BAFFLE 1SN:00271-4YM119802-03110RETAINER 1SN:00271-5YM119802-03120COVER 1SN:00271-6YM119802-03130DIAPHRAGM 1SN:00271-7YM119802-03140SPRING 1SN:00271-8YM119802-11310PACKING(KIT) 1SN:00271-9YM22857-500100SCREW 4SN:00271-10YM22857-500100SCREW 4SN:00271-11YM124160-11360KNOB 3SN:00271-12YM24311-000120O-RING(KIT) 3SN:00271-13YM119802-03080HOSE,BREATHER 1SN:00271-14YM129410-03990CLAMP 2SN:00271-15YM977770-01212LIQUIDGASKET ARSN:00271--

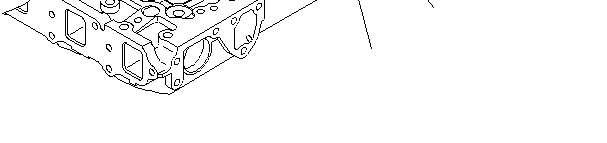

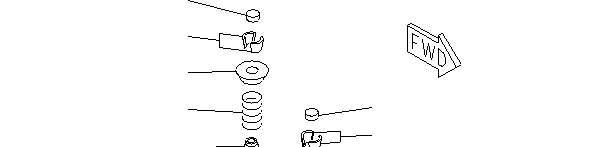

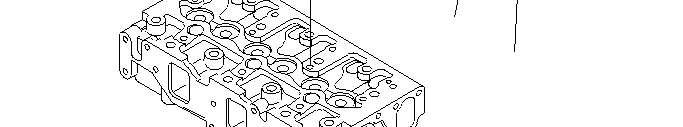

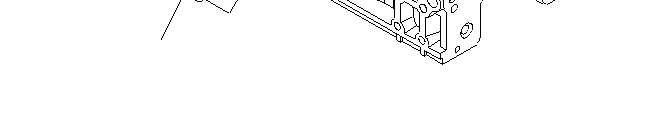

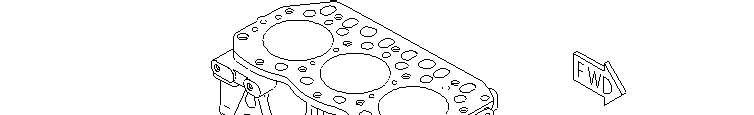

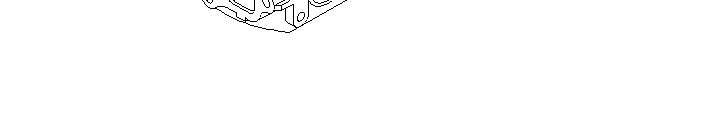

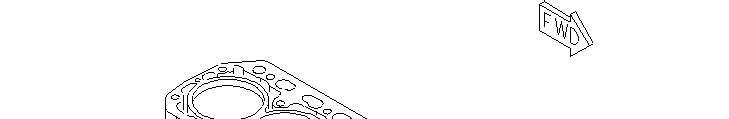

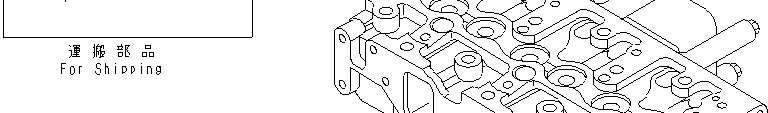

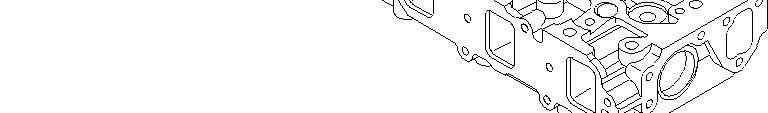

ItemPartNo. Description QtyOptions
1YM119810-01200BOLT

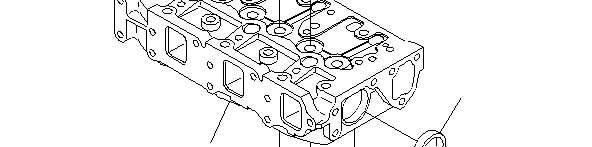

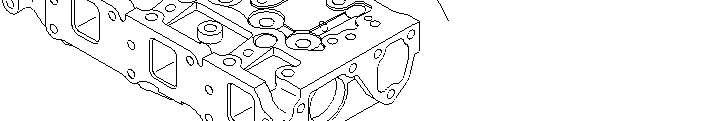

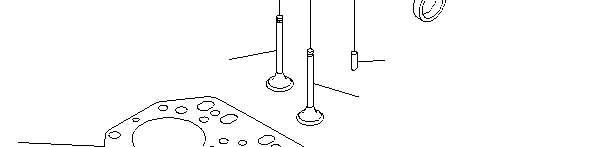

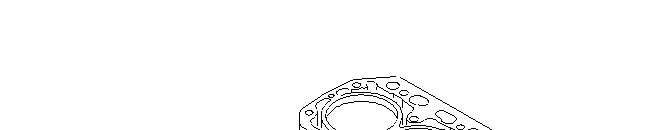

14SN:00246-2YM119812-01330GASKET(KIT) 1SN:00246-3YM104211-11370CAP 6SN:00246-4YM119802-11700CYLINDERHEADASS'Y 1SN:00246-5YM124060-11800GUIDE,INTAKEVALVE 3SN:00246-6YM119802-11810GUIDE,EXHAUSTVALVE 3SN:00246-7YM27241-400000PLUG 2SN:00246-8YM119802-11100VALVE,INTAKE 3SN:00246-9YM119802-11110VALVE,EXHAUST 3SN:00246-10YM119810-11120SPRING 6SN:00246-11YM104211-11180SEAT 6SN:00246-12YM124160-11340SEAT,VALVESTEM(KIT) 3SN:00246-13YM124950-11340SEAT,VALVESTEM(KIT) 3SN:00246-14YM27310-070001COTTER 6SN:00246-15YM119802-11870PROTECTOR(KIT) 3SN:00246-16YM119625-11880SEAT(KIT) 3SN:00246-17YM119802-11900RETAINER 3SN:00246-18YM120270-54410WASHER 3SN:00246-19YM22351-060012PIN,SPRING 2SN:00246-20YM26106-080452BOLT 3SN:00246--

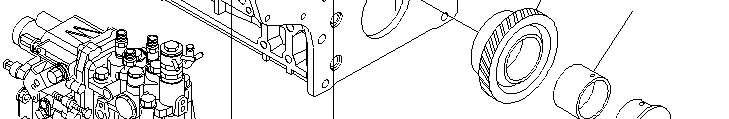

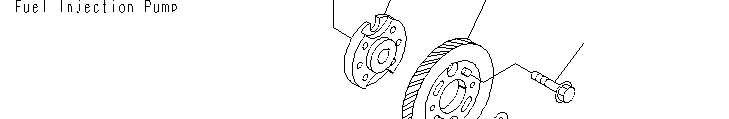

ItemPartNo.
DescriptionQtyOptions
1YM119802-25051SHAFT,IDLER 1SN:00246-2YM119802-25100IDLERGEARASS'Y 1SN:00246-3YM119802-25070BUSHING 1SN:00246-4YM26106-080402BOLT 3SN:00246-5YM129150-25301BOLT 4SN:00246-6YM119802-25901GEAR,INJECTION 1SN:00246-7YM158552-51151FLANGE 1SN:00246-8YM22217-140000WASHER,SPRING 1SN:00246-9YM26776-140002NUT 1SN:00246--
3D82AE-5M-BAS/N00246-UP
3D82AE-5M-BAS/N00246-UP

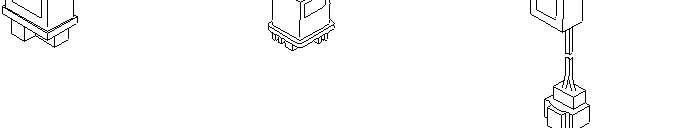

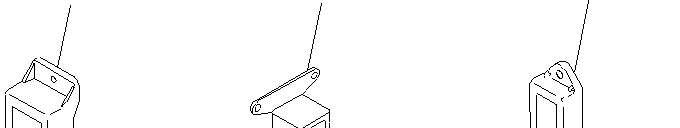

ELECTRICALPARTS(FORWERDEDINDIVIDUALLYPARTS)(#00271-)
ItemPartNo. DescriptionQtyOptions
1YM119802-77200RELAY,SAFETY
1SN:00271-2YM119650-77910RELAY,GLOW 1SN:00271-3YM129211-77920TIMER 1SN:00271--

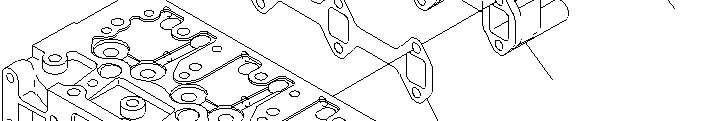

ItemPartNo. Description

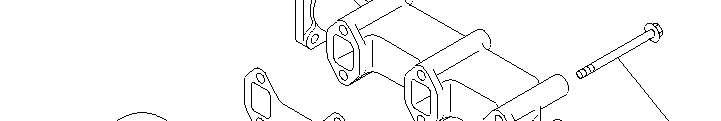

1YM119810-13110GASKET(KIT) 1SN:00246-2YM119802-13129MANIFOLD,EXHAUST 1SN:00246-3YM123900-13610STUD 2SN:00246-4YM123900-13630BOLT 4SN:00246-5YM26306-080002NUT 2SN:00246--
3D82AE-5M-BAS/N00246-UP

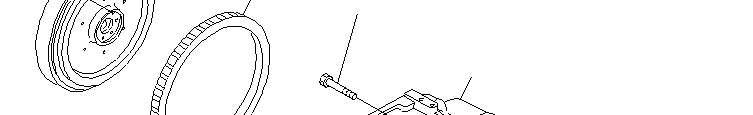

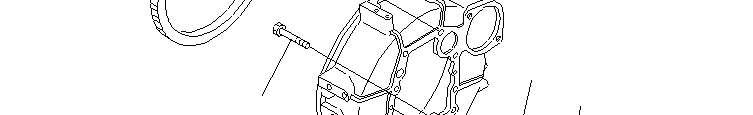

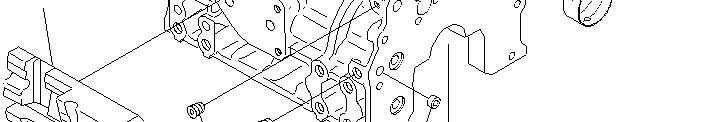

ItemPartNo. Description

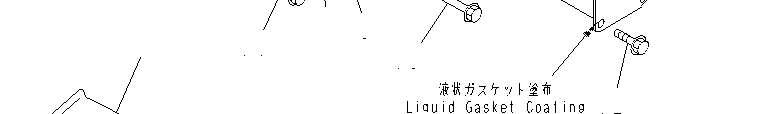

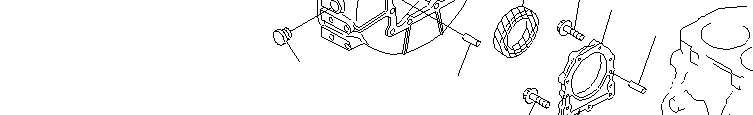

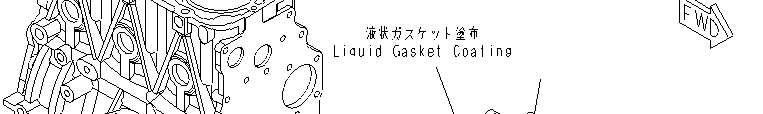

1YM129100-01580PIN,DOWEL 2SN:00246-2YM129612-01600HOUSING,FLYWHEEL 1SN:00246-3YM119620-01750CAP 1SN:00246-4YM26206-100252BOLT 6SN:00246-5YM26206-100302BOLT 4SN:00246-6YM129100-01580PIN,DOWEL 2SN:00246-7YM129100-01640CASEASS'Y 1SN:00246-8YM129795-01780SEAL¤REAR 1SN:00246-9YM129486-01670BOLT 6SN:00246-10YM26106-080352BOLT 3SN:00246-11YM121111-21501BOLT 6SN:00246-12YM119940-21590FLYWHEELASS'Y 1SN:00246-13YM119865-21600GEAR,RING 1SN:00246-14(YM977770-01212)LIQUIDGASKET ARSN:00246--

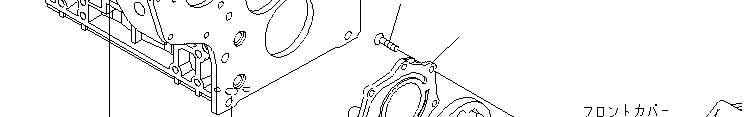

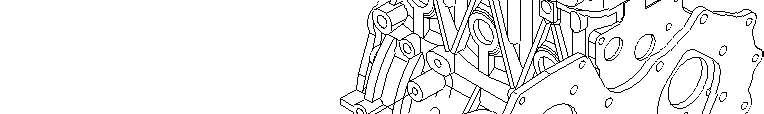

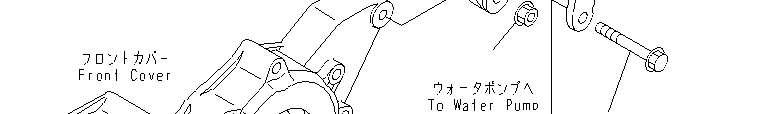

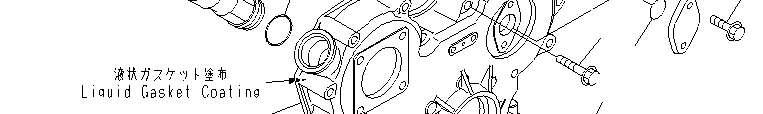

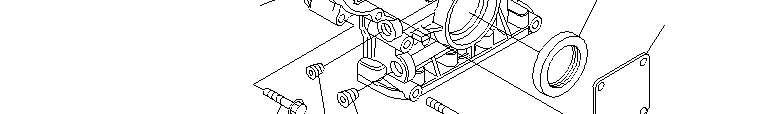

ItemPartNo. Description

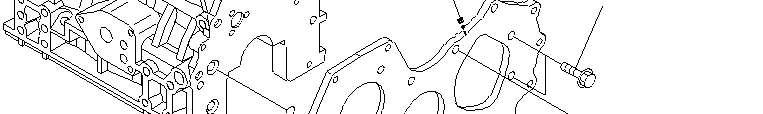

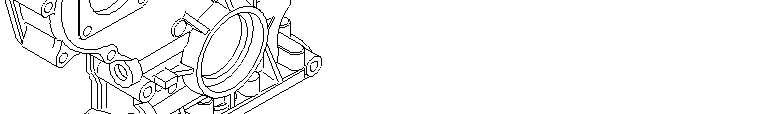

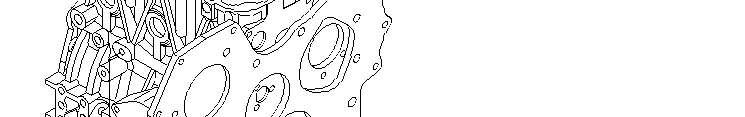

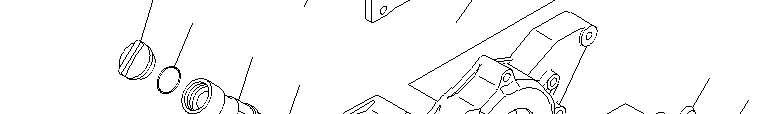

1YM729240-01500FRONTCOVERASS'Y 1SN:00271-2YM23876-030000PLUG 1SN:00271-3YM23876-040000PLUG 1SN:00271-4YM129795-01800SEAL¤FRONT 1SN:00271-5YM119802-01520FLANGE 1SN:00271-6YM124160-01751CAP,OILFILLER 1SN:00271-7YM124240-01871COVER 1SN:00271-8YM129795-01950PIPE 2SN:00271-9YM119609-32040O-RING(KIT) 4SN:00271-10YM129001-91841BOLT 3SN:00271-11YM24311-000320O-RING(KIT) 1SN:00271-12YM26106-080162BOLT 4SN:00271-13YM26106-080162BOLT 3SN:00271-14YM26106-080552BOLT 12SN:00271-15YM121023-01550COVER 1SN:00271-16YM24341-000240O-RING(KIT) 1SN:00271-17YM26106-060162BOLT 2SN:00271-18YM171031-11741FILLER,OIL 1SN:00271-19YM24311-000320O-RING(KIT) 1SN:00271-20YM977770-01212LIQUIDGASKET ARSN:00271--

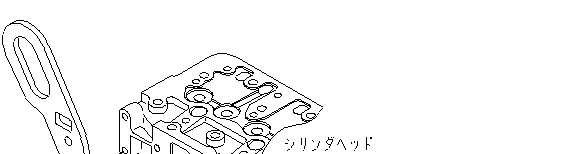

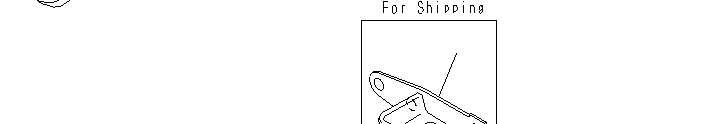

3D82AE-5M-BAS/N00246-UP FRONTHANGER(#00271-)
1YM129900-07900HOOK,FRONT 1SN:00271-2YM26106-080142BOLT 2SN:00271--
ItemPartNo.
Description QtyOptions

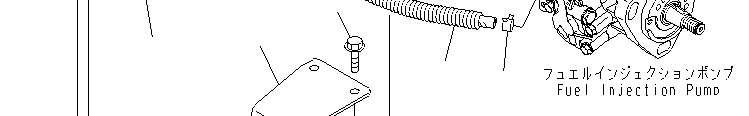

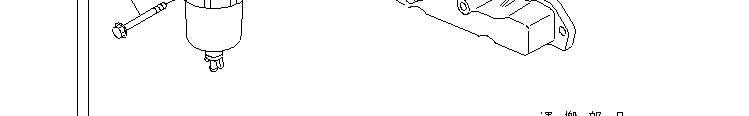

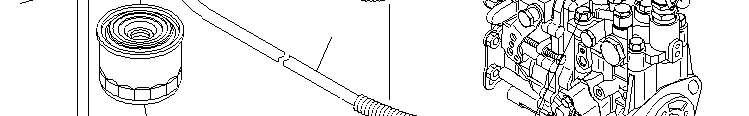

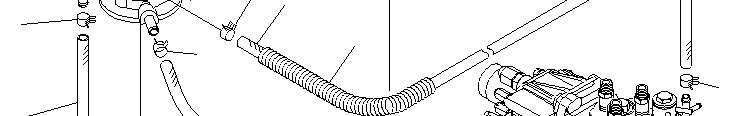

1YM129004-55610BRACKET 1SN:00271-2YM119802-55800FILTER,FUEL 1SN:00271-3YM26106-080302BOLT 2SN:00271-YM119940-59010PIPEASS'Y 1SN:00271-4YM124766-59050CLAMP 2SN:00271-5YM119940-59210HOSE 1SN:00271-6YM129612-52100FEEDPUMPASS'Y 1SN:00271-7YM129612-52110BRACKET 1SN:00271-8YM129240-66200BRACKET 1SN:00271-9YM26106-060122BOLT 2SN:00271-10YM26106-080202BOLT 2SN:00271-11YM129044-59010HOSEASS'Y 1SN:00271-12YM124766-59050CLAMP 2SN:00271-13YM129044-59100TUBE 1SN:00271-YM129950-59311PIPEASS'Y 1SN:00271-14YM124766-59050CLAMP 2SN:00271-15YM129961-59110TUBE 1SN:00271-16YM105025-59580HOSE 1SN:00271-17YM121750-59890BAND 1SN:00271-18YM119802-55700WATERSEPARATORA. 1SN:00271-19YM129240-55720BRACKET 1SN:00271-20YM26013-080222BOLT 2SN:00271-21YM26013-080652BOLT 1SN:00271-22YM23065-120230HOSE 1SN:00271-23YM23080-014000CLAMP 1SN:00271--

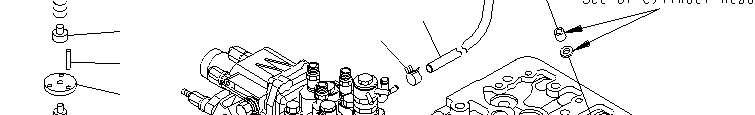

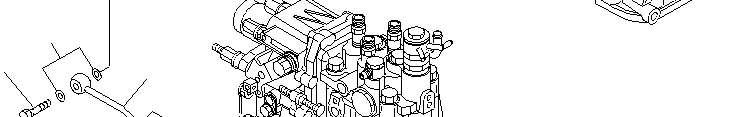

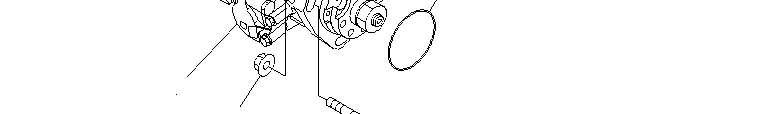

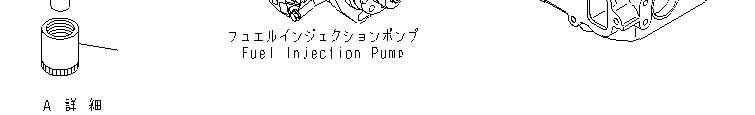

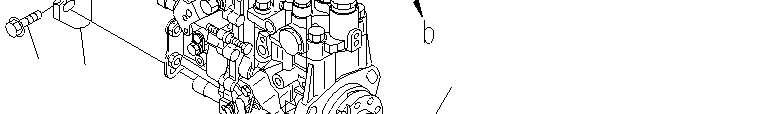

ItemPartNo.

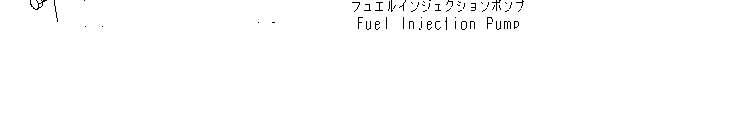

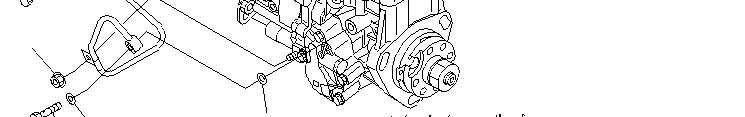

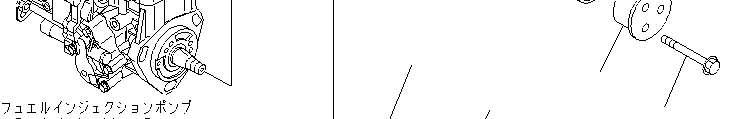

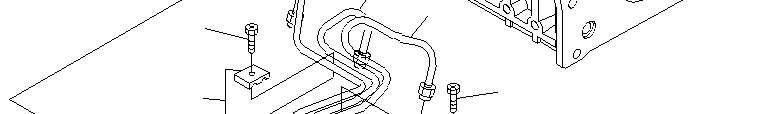

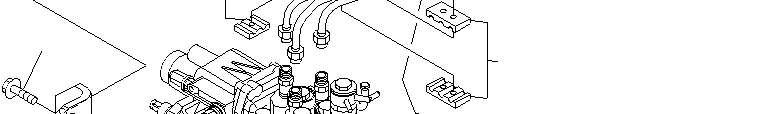

1YM119802-01560STUD 3SN:00271-2YM121850-51960O-RING(KIT) 1SN:00271-3YM129612-77260NUT 3SN:00271-4YM719940-51360INJECTIONPUMPASS'Y 1SN:00271-5YM119802-51250BRACKET 1SN:00271-6YM26106-080162BOLT 1SN:00271-7YM26106-080202BOLT 1SN:00271-8YM119305-59120CLAMPASS'Y 1SN:00271-9YM129150-59131BOLT 1SN:00271-10YM129150-59120CLAMPASS'Y 1SN:00271-11YM129150-59131BOLT 2SN:00271-12YM119802-59810PIPE,INJECTION 1SN:00271-13YM119802-59820PIPE,INJECTION 1SN:00271-14YM119802-59830PIPE,INJECTION 1SN:00271--
ItemPartNo.

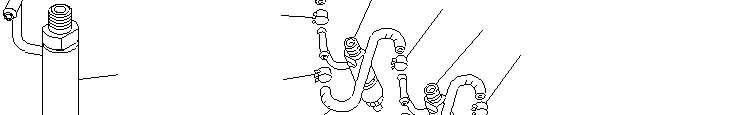

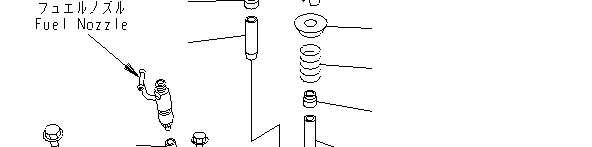

3D82AE-5M-BAS/N00246-UP FUELNOZZLEANDSPILLHOSE(#00271-)
YM729244-53100FUELNOZZLEASS'Y 3SN:00271-1YM129234-53001NOZZLEASS'Y 1SN:00271-2YM114250-53080NUT 1SN:00271-3YM119802-53100NOZZLEHOLDERASS'Y 1SN:00271-4YM114250-53120SPRING 1SN:00271-5YM114250-53130SEAT 1SN:00271-6YM114250-53140PLATE,STOPPER 1SN:00271-7YM114250-53210PIN 2SN:00271-8YM114250-53400SHIMASS'Y 1SN:00271-YM119802-59550PIPEASS'Y 1SN:00271-9YM124722-59050CLIP 2SN:00271-10YM119802-59560PIPE 1SN:00271-YM129486-59551HOSE,SPILL 2SN:00271-11YM129486-59510PIPE 1SN:00271-12YM124722-59050CLIP 2SN:00271-13YM119593-59580CAP 1SN:00271-14YM124060-77680CLAMP 1SN:00271--
ItemPartNo.

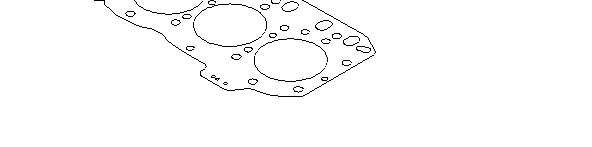

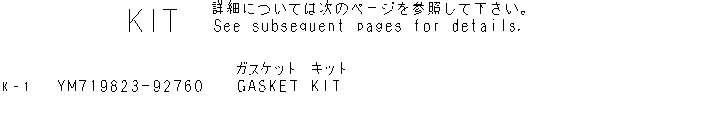

3D82AE-5M-BAS/N00246-UP GASKETKIT(#00271-)
DescriptionQtyOptions
1YM719823-92760GASKETKIT 1SN:00271-YM119812-01330GASKET 1SN:00271-YM121850-51960O-RING 1SN:00271-YM124950-11340SEAT 3SN:00271-YM119802-11870PROTECTOR 3SN:00271-YM119625-11880SEAT 3SN:00271-YM119802-11310PACKING 1SN:00271-YM129150-77511GASKET 1SN:00271-YM119810-13110GASKET 1SN:00271-YM129004-13200GASKET 1SN:00271-YM124160-11340SEAT 3SN:00271-YM129150-35041GASKET 1SN:00271-YM129486-42050GASKET 1SN:00271-YM129795-49551PACKING 1SN:00271-YM129150-49811GASKET 1SN:00271-YM129100-77510GASKET 1SN:00271-YM22190-080002SEAL 2SN:00271-YM22190-160000GASKET 2SN:00271-YM24311-000120O-RING 3SN:00271-YM24311-000320O-RING 2SN:00271-YM24341-000240O-RING 1SN:00271-YM22190-100002SEAL 2SN:00271-YM119813-12110GASKET 1SN:00271-YM129150-35111GASKET 1SN:00271-YM22190-220002SEAL 1SN:00271-YM119609-32040O-RING 4SN:00271-YM23414-080000GASKET 1SN:00271--
ItemPartNo.
DescriptionQtyOptions

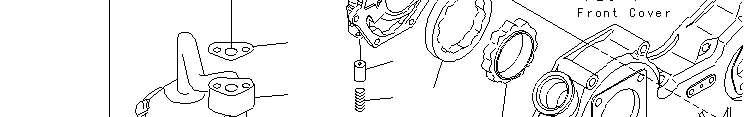

YM119802-32100COVERASS'Y 1SN:00246-1YM119802-32070COVER 1SN:00246-2YM129900-32130VALVE,RELIEF 1SN:00246-3YM129418-32320SPRING 1SN:00246-4YM129001-32330PLUG 1SN:00246-5YM119802-32111ROTOR,INNER 1SN:00246-6YM119802-32120ROTOR,OUTER 1SN:00246-7YM119802-32130SCREW 7SN:00246-8YM129150-35041GASKET(KIT) 1SN:00246-9YM119810-35300PIPE,SUCTION 1SN:00246-10YM26106-080352BOLT 2SN:00246-11YM124160-39140BOLT,JOINT 1SN:00246-12YM119802-39450PIPE 1SN:00246-YM129005-59830BOLTASS'Y 1SN:00246-13YM23857-030000BOLT,JOINT 1SN:00246-14YM22190-080002SEAL,RING(KIT) 1SN:00246-15YM22190-080002SEAL,RING(KIT) 1SN:00246-16YM22190-100002SEAL,RING(KIT) 2SN:00246-17YM26366-060002NUT 1SN:00246--

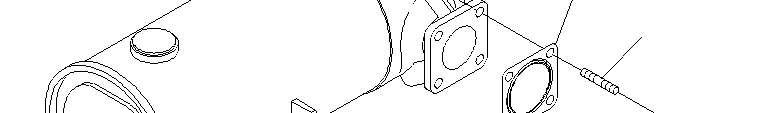

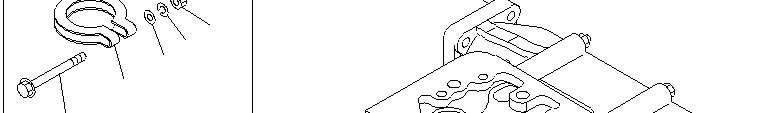

ItemPartNo.
DescriptionQtyOptions

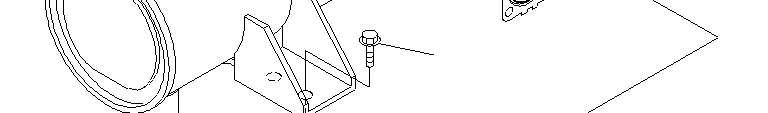

1YM119131-18320STUD 4SN:00246-2YM129004-13200GASKET(KIT) 1SN:00246-3YM129240-13550MUFFLER 1SN:00246-4YM26106-100202BOLT 2SN:00246-5YM26306-080002NUT 4SN:00246-6YM121120-13590CLAMPASS'Y 1SN:00246-7YM22117-100000WASHER 1SN:00246-8YM22217-100000WASHER,SPRING 1SN:00246-9YM26106-100652BOLT 1SN:00246-10YM26706-100002NUT 1SN:00246--

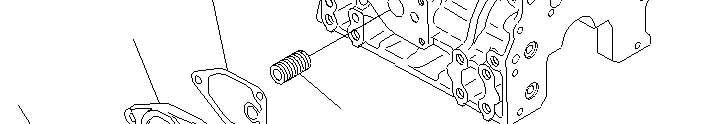

ItemPartNo.
DescriptionQtyOptions
YM119802-35100BRACKETASS'Y 1SN:00271-1YM119802-35110BRACKET 1SN:00271-2YM129100-35140STUD 1SN:00271-3YM129150-35111GASKET(KIT) 1SN:00271-4YM129150-35152CARTRIDGE 1SN:00271-5YM26106-080202BOLT 3SN:00271-6YM119940-35810BRACKET 1SN:00271--

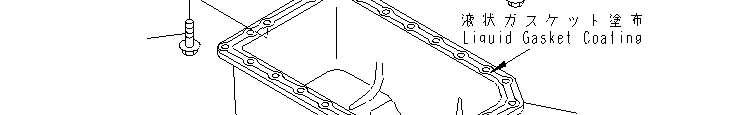

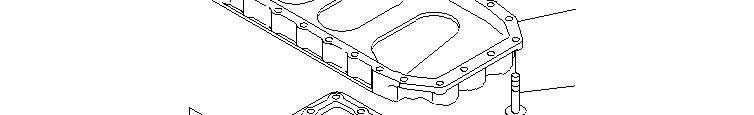

ItemPartNo.
DescriptionQtyOptions

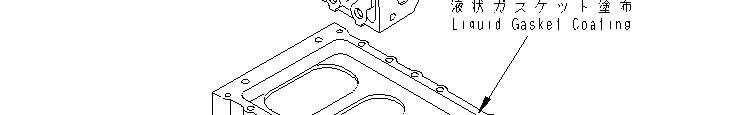

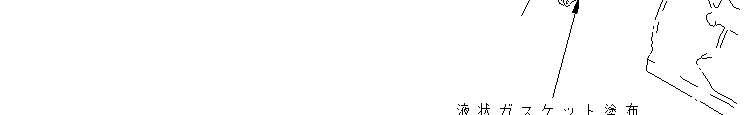

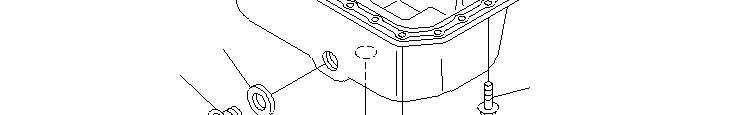

1YM119810-01730SPACER 1SN:00271-2YM119940-01750OILPANASS'Y 1SN:00271-3YM119640-01640PLUG,DRAIN 2SN:00271-4YM22190-220002SEAL(KIT) 2SN:00271-5YM26106-080162BOLT 6SN:00271-6YM26106-080452BOLT 22SN:00271-7(YM977770-01212)LIQUIDGASKET ARSN:00271--

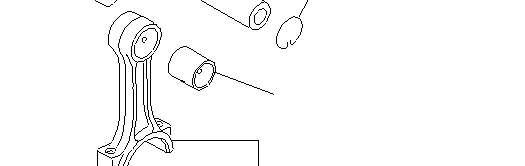

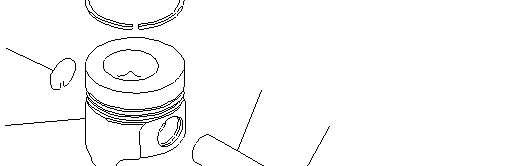

ItemPartNo.
STANDARD

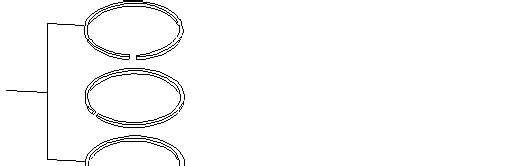

1YM119802-22080PISTONASS'Y 3SN:00246-2YM119802-22500PISTONRINGASS'Y 1SN:00246-OVERSIZE0.25MM
1YM719802-22900PISTONASS'Y 3SN:00246-2YM719802-22950PISTONRINGASS'Y 1SN:00246-3YM119813-22300PIN,PISTON 3SN:00246-4YM129792-22400RING,SNAP 6SN:00246-5YM719810-23100CONNECTINGRODA. 3SN:00246-6YM119810-23910BUSHING 1SN:00246-7YM119810-23200BOLT 2SN:00246-STANDARD
8YM119810-23600CRANKPINMETALA. 1SN:00246-UNDERSIZE0.25MM
8YM119810-23610CRANKPINMETALA. 1SN:00246--
3D82AE-5M-BAS/N00246-UP
3D82AE-5M-BAS/N00246-UP REARHANGER
ItemPartNo. DescriptionQtyOptions 1YM26106-080142BOLT 2SN:00246-2YM119260-07900HOOK,REAR 1SN:00246--

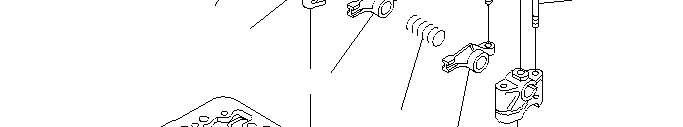

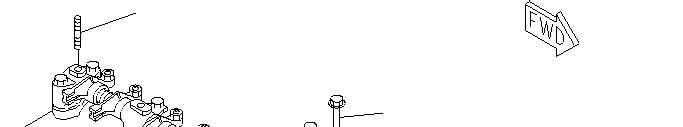

ItemPartNo. Description QtyOptions

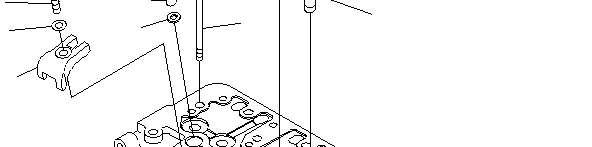

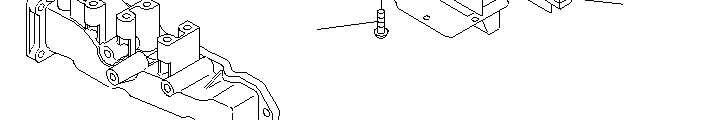

YM119802-11241ROCKERARMSHAFTA. 1SN:00246-1YM119802-11251SHAFTASS'Y 1SN:00246-2YM119802-11260SUPPORT 2SN:00246-3YM119802-11270SUPPORT 2SN:00246-4YM119802-11280STUD 3SN:00246-5YM129150-11280SPRING 3SN:00246-6YM119802-11650ROCKERARMASS'Y 6SN:00246-7YM129150-11230SCREW 1SN:00246-8YM129150-11750NUT 1SN:00246-9YM26106-080252BOLT 2SN:00246-10YM26106-080502BOLT 6SN:00246--
