ItemPartNo.

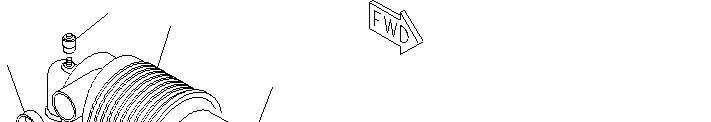

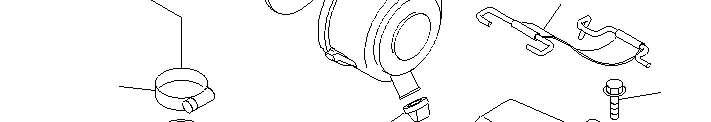

YM119624-12500AIRCLEANERASS'Y 1SN:00102-1YM119624-12670BODY 1SN:00102-2YM119655-12560ELEMENT 1SN:00102-3YM119686-12570COVER 1SN:00102-4YM119808-12540VALVE 1SN:00102-5YM105027-12580RING 1SN:00102-6YM126650-12680INDICATOR,DUST 1SN:00102-7YM119624-12550HOSE 1SN:00102-8YM119624-12560SUPPORT 1SN:00102-9YM119865-12600BAND 1SN:00102-10YM23000-054000CLAMP 2SN:00102-11YM26106-060122BOLT 1SN:00102-12YM26106-080142BOLT 2SN:00102--
3D74E-N3AS/N00102-UP
ItemPartNo. Description

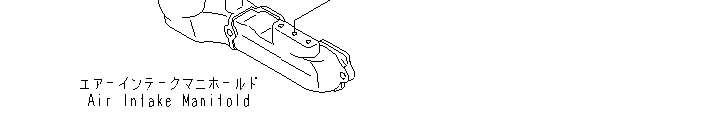

1YM119660-12101MANIFOLD,AIRINTAKE 1SN:00102-2YM119660-12111GASKET(KIT) 1SN:00102-3YM26106-060162BOLT 2SN:00102-4YM26106-060402BOLT 1SN:00102--

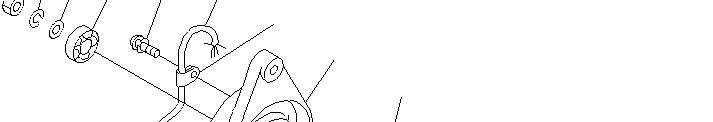

ItemPartNo.

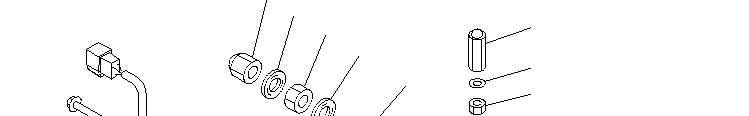

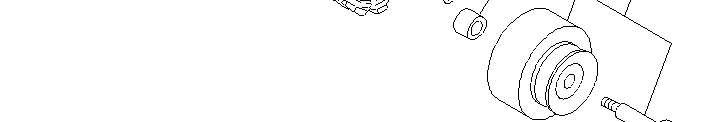

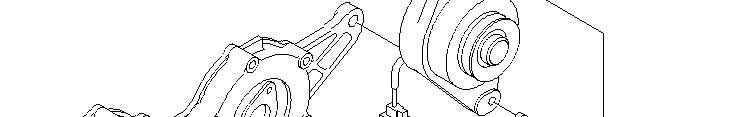

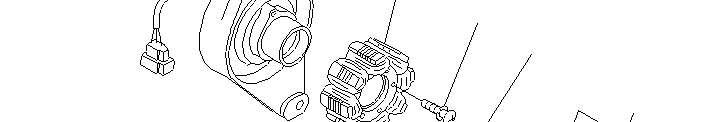

Description QtyOptions YM129150-77202ALTERNATORA.(20A) 1SN:00102-1YMXM219230000WASHER,SPRING 1SN:00102-2YMXM329830000COLLAR 1SN:00102-3YMXM860250000WASHER 1SN:00102-4YMXM863720000NUT 1SN:00102-5YM129150-77210PLATEASS'Y 1SN:00102-6YMXM069000000CLAMP 1SN:00102-7YMXM081780000STATORASS'Y 1SN:00102-8YMXM178780000COUPLER 1SN:00102-9YMXYSPS400800SCREWASS'Y 1SN:00102-10YMXYSPS402400SCREWASS'Y 2SN:00102-11YM129150-77230FLYWHEEL 1SN:00102--

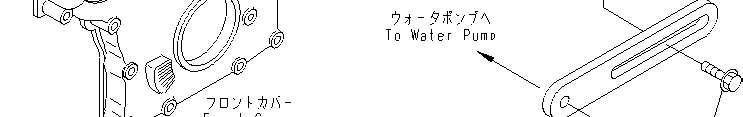

ItemPartNo.
3D74E-N3AS/N00102-UP

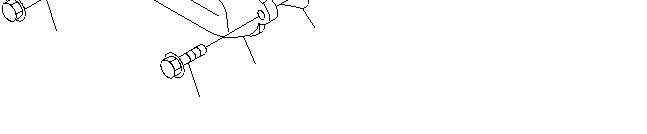

1(YM129150-77202)ALTERNATORA.(20A),(SEEFIG.A6010-B0A1)1SN:00102-2YM121450-77330PLATE,ADJUST 1SN:00102-3YM26106-100402BOLT 1SN:00102-4YM119810-77340BOLT 1SN:00102--

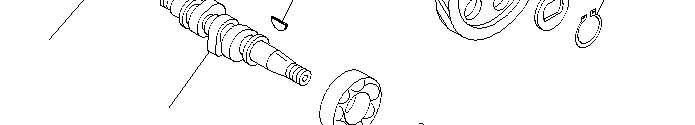

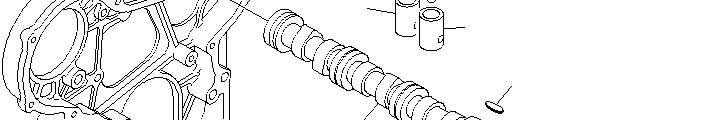

3D74E-N3AS/N00102-UP CAMSHAFTANDTAPPET
ItemPartNo. Description
1YM26106-060122BOLT 2SN:00102-2YM119620-14200TAPPET 6SN:00102-3YM119620-14401ROD,PUSH 6SN:00102-YM119629-14580CAMSHAFTASS'Y 1SN:00102-4 CAMSHAFT 1SN:00102-5YM119620-02450METAL,THRUST 1SN:00102-6YM119620-14100GEAR,CAMSHAFT 1SN:00102-7YM22512-040120KEY 1SN:00102--
ItemPartNo.
3D74E-N3AS/N00102-UP

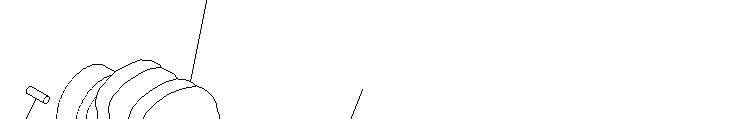

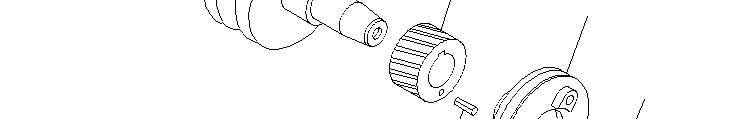

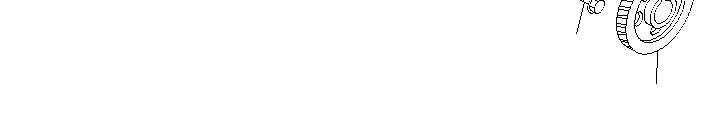

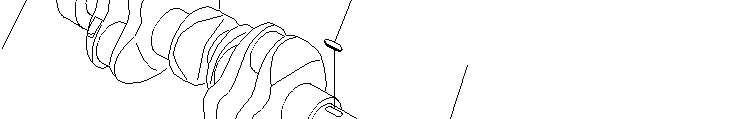

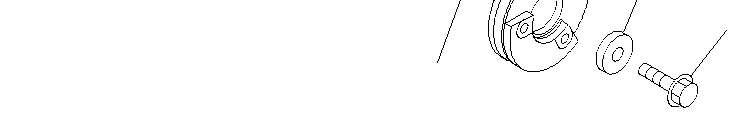

CRANKSHAFT
YM119624-21700CRANKSHAFTASS'Y 1SN:00102-1 CRANKSHAFT 1SN:00102-2YM129100-01580PIN 1SN:00102-3YM119624-21200GEAR 1SN:00102-4YM22512-040120KEY 1SN:00102-5YM22351-030010PIN,SPRING 1SN:.-YM22351-030012PIN,SPRING 1SN:00102--. 6YM119266-21661PULLEY 1SN:00102-7YM119621-21680BOLT 1SN:00102-8YM119620-21941WASHER 1SN:00102--

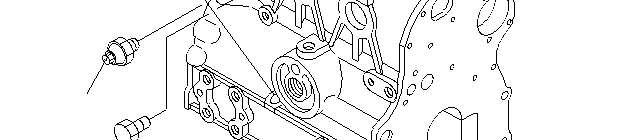

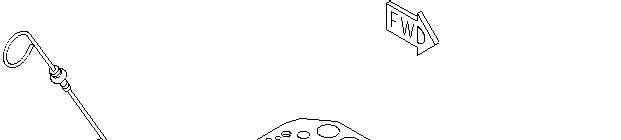

3D74E-N3AS/N00102-UP CYLINDERBLOCKACCSESSORY
1YM121520-34810GUIDE,OILGAUGE 1SN:00102-2YM119624-34810GAUGE,OIL 1SN:00102-3YM121252-39450SWITCH,OILPRESSURE 1SN:00102-4YM171056-49120PLUG,DRAIN 1SN:00102--
ItemPartNo.

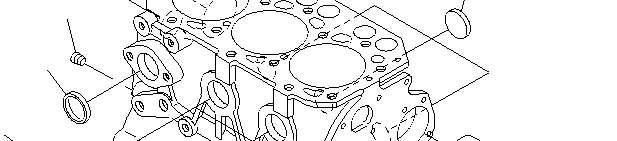

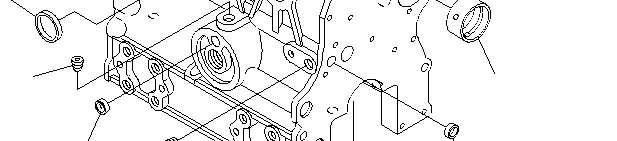

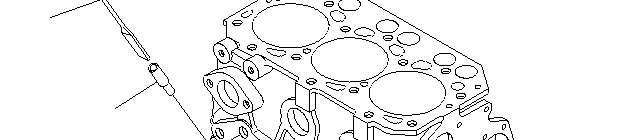

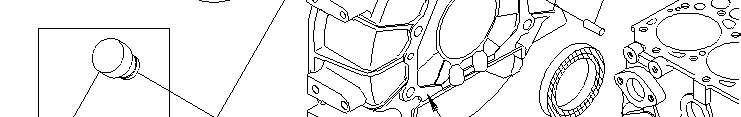

3D74E-N3AS/N00102-UP CYLINDERBLOCK

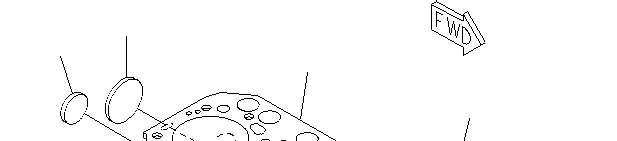

YM719624-01561CYLINDERBLOCKASS'Y 1SN:00105-YM719624-01560CYLINDERBLOCKASS'Y 1SN:00102--00104 1 BLOCK,CYLINDER 1SN:00102-2YM119600-01050PLUG 1SN:00102-3YM119620-02020BOLT 8SN:00102-4YM23876-010000PLUG 1SN:.-YM23871-010000PLUG 1SN:00102--. 5YM119623-01250PLUG 1SN:.-YM27231-450000PLUG 1SN:00102--. 6YM27241-120000PLUG 1SN:00102-7YM27241-300000PLUG 4SN:00102-8YM719620-02800MAINMETALASS'Y(STD) 4SN:00102-YM719620-02870MAINMETALASS'Y,0.25MM(US)4SN:00102-9YM719620-02930THRUSTMETALASS'Y 2SN:00102-10YM119624-02410BUSHING 1SN:00102-11YM119600-01050PLUG 1SN:00102-12YM27241-120000PLUG 1SN:00102-13YM27241-250000PLUG 3SN:00102--
ItemPartNo.
1YM23065-120500PIPE
Description QtyOptions

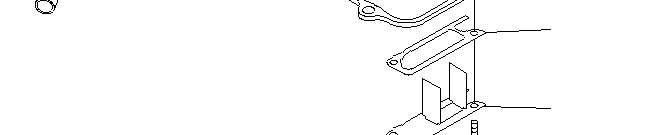

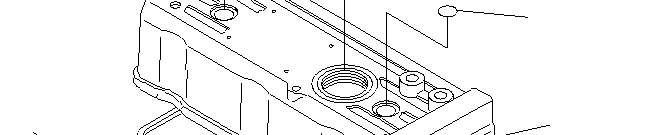

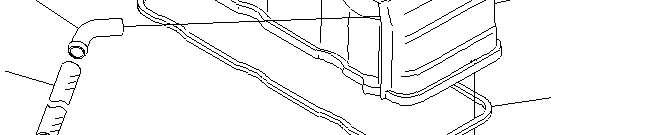

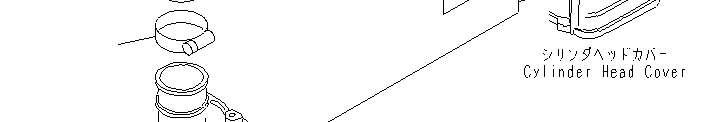

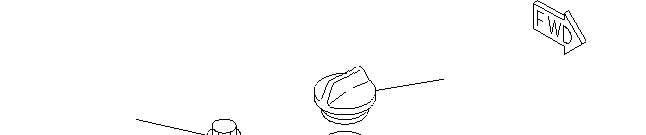

1SN:00102-2YM119624-11331HEADCOVERASS'Y 1SN:01860-YM119624-11330HEADCOVERASS'Y 1SN:00102--01859 3YM119624-11600PLATE 1SN:00102-4YM119624-11610GASKET(KIT) 1SN:00102-5YM119624-11311GASKET(KIT) 1SN:00102-6YM119266-11390JOINT 1SN:00102-7YM124160-01751CAP,OIL 1SN:00102-8YM24311-000320O-RING(KIT) 1SN:00102-9YM22857-500100SCREW 2SN:.-YM26557-050102SCREW 2SN:00102--. 10YM124160-11360KNOB 2SN:00102-11YM24311-000120O-RING(KIT) 2SN:00102--
ItemPartNo.

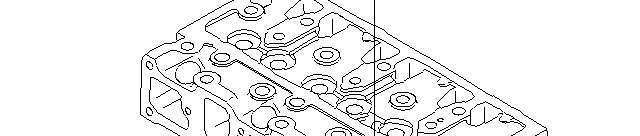

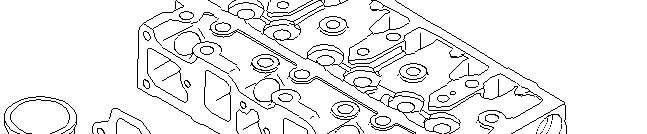

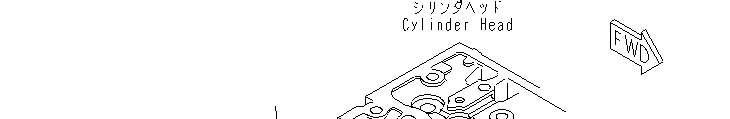

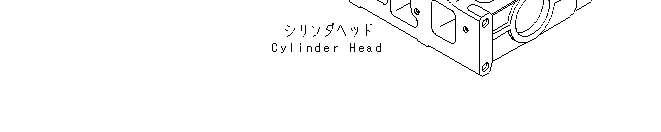

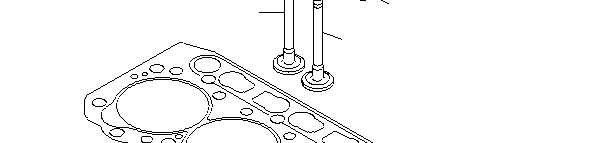

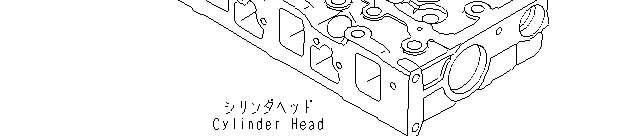

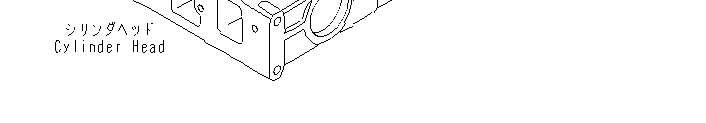

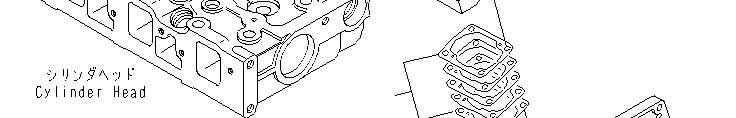

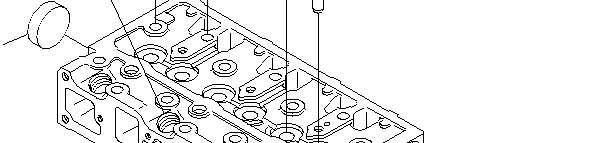

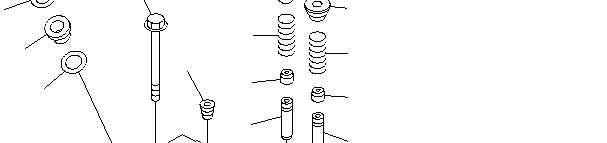

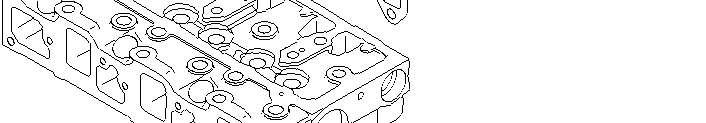

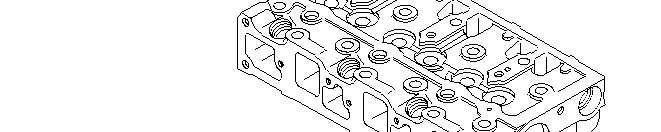

3D74E-N3AS/N00102-UP CYLINDERHEAD
Description QtyOptions
1YM119620-01200BOLT 14SN:00102-2YM119636-01330GASKET(KIT) 1SN:.-YM119624-01330GASKET(KIT) 1SN:00102--. YM119624-11741CYLINDERHEADASS'Y 1SN:00105-YM119624-11740CYLINDERHEADASS'Y 1SN:00102--00104 3 HEAD,CYLINDER 1SN:00102-4YM119620-11801GUIDE,VALVE 6SN:00102-5YM23876-005000PLUG 1SN:.-YM23871-005000PLUG 1SN:00102--. 6YM27241-400000PLUG 2SN:00102-7YM119623-11100VALVE,INTAKE 3SN:00102-8YM119620-11110VALVE,EXHAUST 3SN:00102-9YM119620-11120SPRING,VALVE 6SN:00102-10YM119620-11180SEAT 6SN:00102-11YM27310-070000COTTER 12SN:00102-12YM124160-11340SEAT,VALVESTEM(KIT) 3SN:00102-13YM124950-11340SEAT,VALVESTEM(KIT) 3SN:00102-14YM104211-11370CAP 6SN:00102-15YM119600-11460GASKET(KIT) 6SN:00102-16YM119600-11450PROTECTOR(KIT) 3SN:00102-17YM22351-060012PIN 2SN:00102--

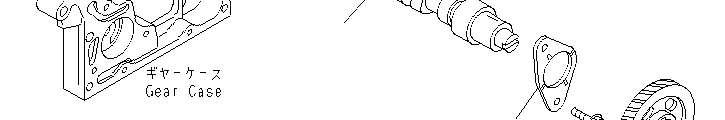

ItemPartNo. Description QtyOptions

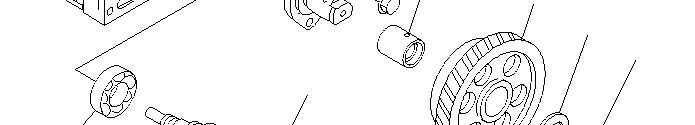

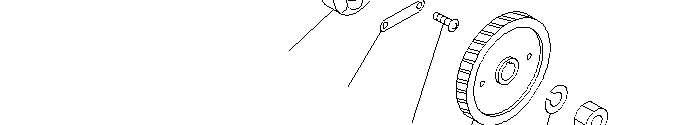

1YM119266-25050SHAFT 1SN:00102-YM119620-25102IDLERGEARASS'Y 1SN:00102-2 GEAR 1SN:00102-3YM119620-25912BUSHING 1SN:00102-4YM22242-000200RING 1SN:00102-5YM26106-060122BOLT 3SN:00102-6YM119266-01900RETAINER 1SN:00102-YM119266-14200CAMSHAFTASS'Y 1SN:00102-7 CAMSHAFT 1SN:00102-8YM122710-51090KEY 1SN:00102-9YM24101-060034BEARING,BALL 1SN:00102-10YM24102-063034BEARING,BALL 1SN:00102-11YM119624-25900GEAR,INJECTIONPUMP 1SN:00102-12YM26557-060102SCREW 2SN:00102-13YM22217-120000WASHER,SPRING 1SN:00102-14YM26716-120002NUT 1SN:00102-15YM119660-25022PLATE 1SN:00102--
3D74E-N3AS/N00102-UP
ItemPartNo.

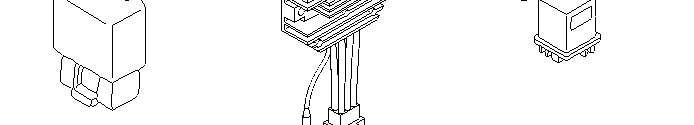

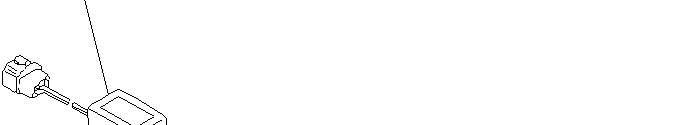

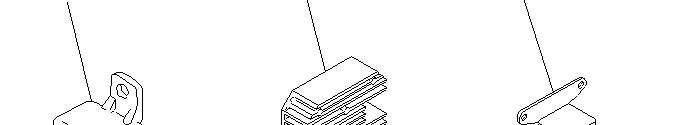

1YM119247-77100RELAY,SAFETY
2SN:00102-2YM119653-77710LIMITER,SAFETY
1SN:00102-3YM119650-77910RELAY,GLOW
1SN:00102-BODY 1SN:00102-BRACKET
1SN:00102-4YM129211-77920TIMER 1SN:02245-YM119632-77920TIMER
1SN:00102--02244

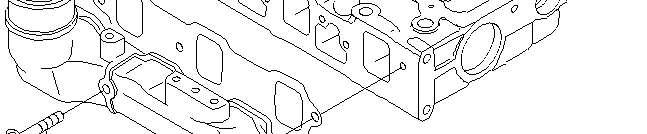

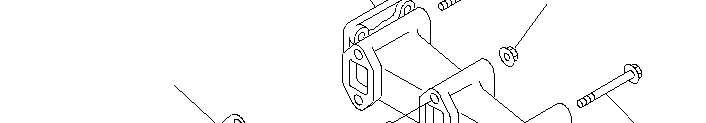

ItemPartNo. Description

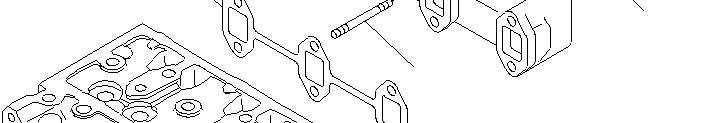

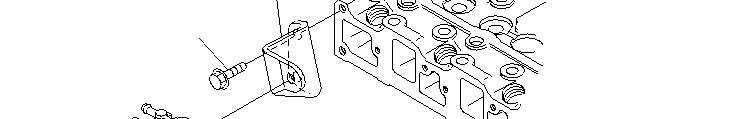

1YM119620-13101MANIFOLD,EXHAUST 1SN:00102-2YM119620-13110GASKET(KIT) 1SN:00102-3YM26366-080002NUT 2SN:00102-4YM26106-080402BOLT 2SN:00102-5YM26106-080702BOLT 2SN:00102-6YM26216-080702STUD 2SN:00102--
3D74E-N3AS/N00102-UP

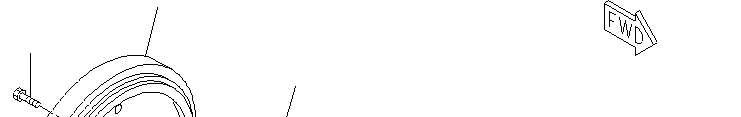

ItemPartNo.
1YM129100-01580PIN

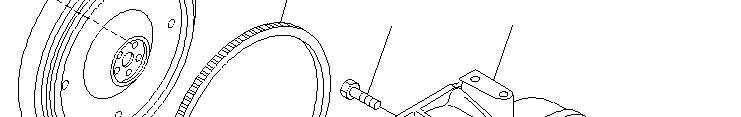

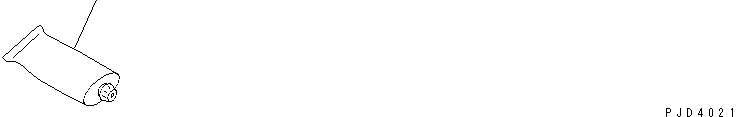

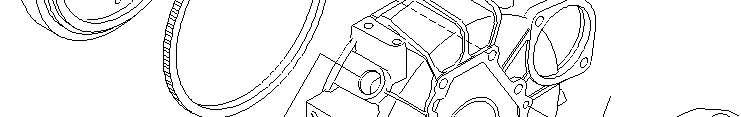

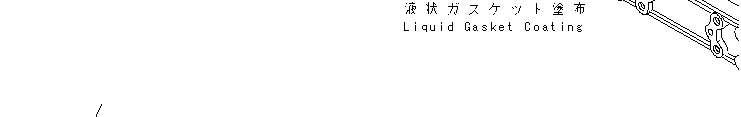

2SN:00102-2YM119624-01600HOUSING,FLYWHEEL 1SN:00102-3YM26206-100252BOLT 6SN:.-YM26206-100202BOLT 6SN:00102--. 4YM124085-02220SEAL¤REAR 1SN:00102-4AYM119620-01750CAP 1SN:.-5YM121111-21501BOLT 5SN:00102-YM119624-21570FLYWHEELASS'Y 1SN:00102-6 FLYWHEEL 1SN:00102-7YM119865-21600GEAR,RING 1SN:00102-8(YM977770-01212)LIQUIDGASKET ARSN:00102--

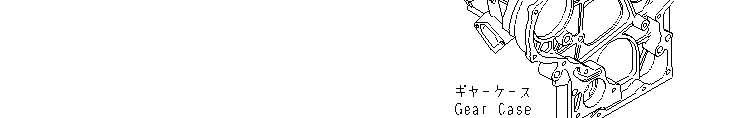

ItemPartNo.

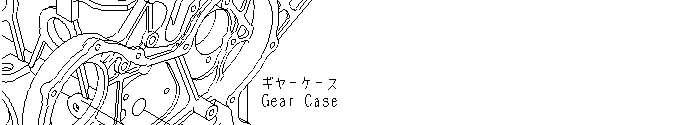

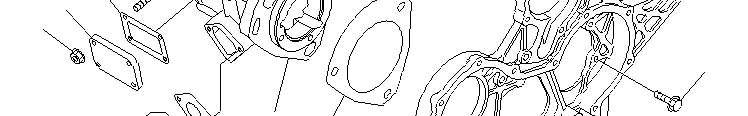

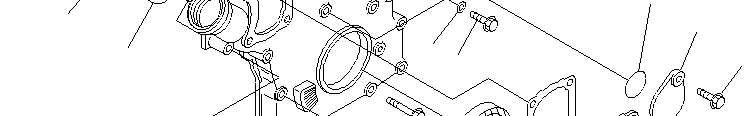

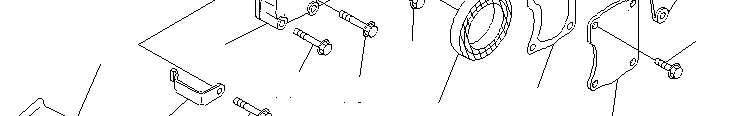

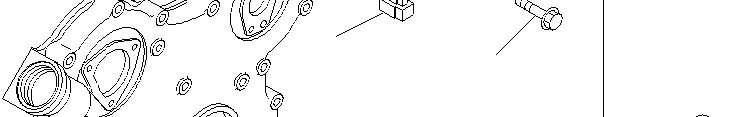

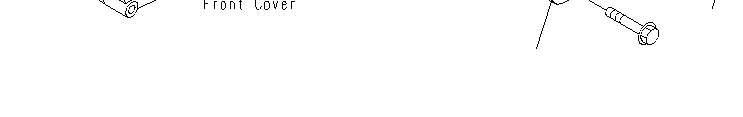

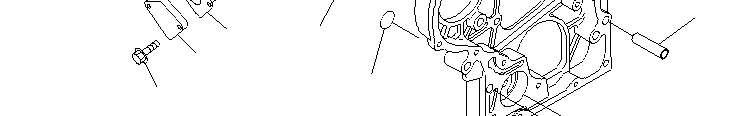

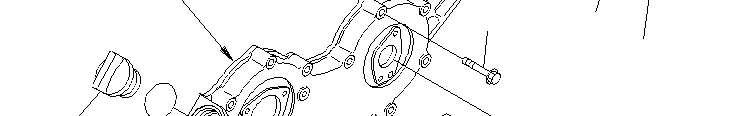

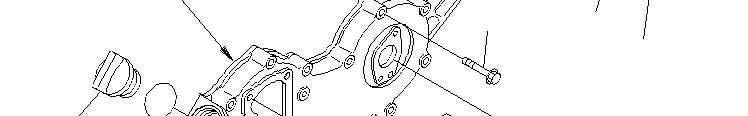

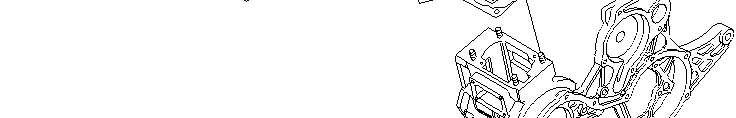

YM719624-01600FRONTCOVERASS'Y 1SN:00102--00104 1 COVER,GEAR 1SN:00102--@ 2YM119620-01800SEAL¤FRONT 1SN:00102--@ YM119624-01590CASEASS'Y 1SN:00102--00104 3 CASE,GEAR 1SN:00102--@ 4YM119624-32000OILPUMPASS'Y 1SN:00102--@ 5YM26106-060252BOLT 3SN:00102--@ 6YM26216-080202STUD 3SN:00102--@ 7YM119624-03100RETAINER 1SN:00102--@ 8YM22190-060003WASHER 1SN:00102--@ 9YM119624-01740COVER 1SN:00102--00104 10YM119624-01750PACKING 1SN:00102--00104 11YM119266-01910PIPE 2SN:00102--@ 12YM24311-000120O-RING(KIT) 2SN:00102--@ 13YM26106-060122BOLT 3SN:00102--00104 14YM26106-060162BOLT 5SN:00102--@ 15YM26106-060222BOLT 1SN:00102--@ 16YM26106-060402BOLT 9SN:00102--@ 17YM26106-060652BOLT 6SN:00102--@ 18YM26106-060702BOLT 2SN:00102--@ 19YM124160-01751CAP 1SN:00102--@ 20YM24311-000320O-RING(KIT) 1SN:00102--@ 21YM121023-01550COVER 1SN:00102--@ 22YM24341-000240O-RING(KIT) 1SN:00102--@ 23YM26106-060162BOLT 2SN:00102--@

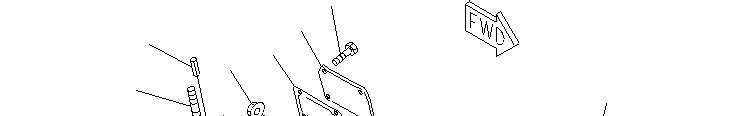

ItemPartNo.

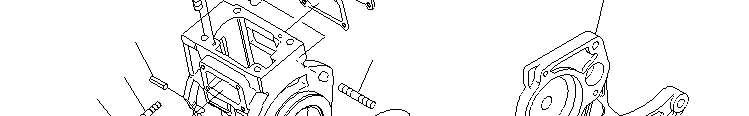

Description QtyOptions 24YM119660-01551COVER 1SN:00102--@ 25YM119660-01562GASKET(KIT) 1SN:00102--@ YM119266-01840CASE,INJECTIONPUMP 1SN:00102--@ 26 CASE 1SN:00102--@ 27YM121450-01560STUD 4SN:00102--@ 28YM119660-01570STUD 4SN:00102--@ 29YM22351-040010PIN 4SN:00102--@ 30YM26116-050082BOLT 4SN:00102--@ 31YM119266-01880COVER 1SN:00102--@ 32YM119266-01890PACKING 1SN:00102--@ 33YM26366-060002NUT 4SN:00102--@ 34YM119266-01870GASKET(KIT) 1SN:00102--@ 35YM26366-080002NUT 3SN:00102--@ 36YM121520-01851GASKET(KIT) 1SN:00102--@ 37YM121520-01860COVER 1SN:00102--@ 38YM26014-060162BOLT 2SN:00102--@ 39YM977770-01212LIQUIDGASKET ARSN:00102--@
ItemPartNo. Description

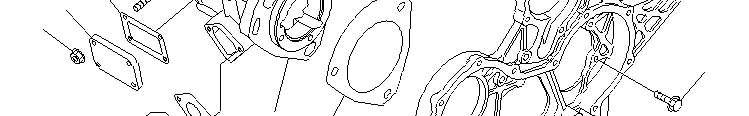

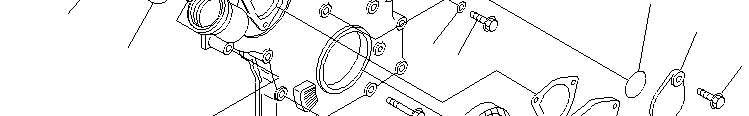

YM719624-01610FRONTCOVERASS'Y 1SN:00105-1 COVER,GEAR 1SN:00102-2YM119620-01800SEAL¤FRONT 1SN:00102-YM119624-01591CASEASS'Y 1SN:00105-3 CASE,GEAR 1SN:00102-4YM119624-32000OILPUMPASS'Y 1SN:00102-5YM26106-060252BOLT 3SN:00102-6YM26216-080202STUD 3SN:00102-7YM119624-03100RETAINER 1SN:00102-YM119623-01550BOLTASS'Y 1SN:01972-8YM22190-060003WASHER 1SN:00102-9YM26106-060202BOLT 1SN:01972-YM26106-060222BOLT 1SN:00102--01971 10YM119636-01740COVER 1SN:00105-11YM119636-01750PACKING 1SN:00105-12YM119266-01910PIPE 2SN:00102-13YM119624-32040O-RING(KIT) 2SN:00859-YM24311-000120O-RING(KIT) 2SN:00102--00858 14YM26106-060122BOLT 4SN:00105-15YM26106-060162BOLT 5SN:00102-16YM26106-060402BOLT 9SN:00102-17YM26106-060652BOLT 6SN:00102-18YM26106-060702BOLT 2SN:00102-19YM124160-01751CAP 1SN:00102-20YM24311-000320O-RING(KIT) 1SN:00102--
ItemPartNo.
Description QtyOptions
21YM121023-01550COVER 1SN:00102-22YM24341-000240O-RING(KIT) 1SN:00102-23YM26106-060162BOLT 2SN:00102-24YM119660-01551COVER 1SN:00102-25YM119660-01562GASKET(KIT) 1SN:00102-YM119266-01840CASE,INJECTIONPUMP 1SN:00102-26 CASE 1SN:00102-27YM121450-01560STUD 4SN:00102-28YM119660-01570STUD 4SN:00102-29YM22351-040010PIN 4SN:00102-30YM26116-050082BOLT 4SN:00102-31YM119266-01880COVER 1SN:00102-32YM119266-01890PACKING 1SN:00102-33YM26366-060002NUT 4SN:00102-34YM119266-01870GASKET(KIT) 1SN:00102-35YM26366-080002NUT 3SN:00102-36YM121520-01851GASKET(KIT) 1SN:00102-37YM121520-01860COVER 1SN:00102-38YM26014-060162BOLT 2SN:00102-39YM977770-01212LIQUIDGASKET ARSN:00102--

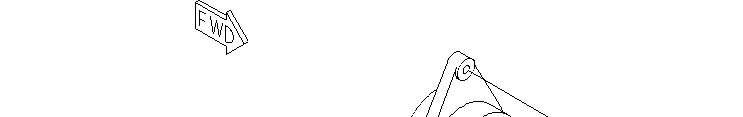

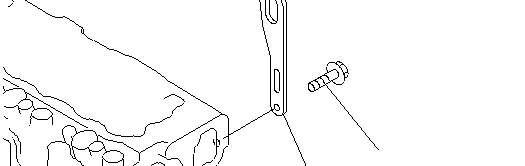

3D74E-N3AS/N00102-UP FRONTHANGER
1YM124736-07900HOOK,FRONT
1SN:00102-2YM26106-080142BOLT
2SN:00102--
ItemPartNo.

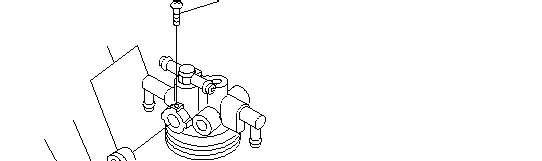

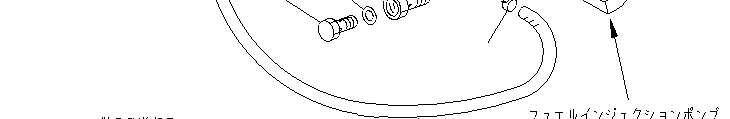

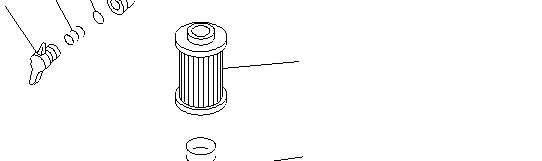

1YM129053-55620FUELFILTERASS'Y 1SN:00102-2YM104200-55330SPRING 1SN:00102-3YM119810-55340LEVER 1SN:00102-4YM129107-55510CUP 1SN:00102-5YM102103-55520O-RING 1SN:00102-6YM110250-55610RING 1SN:00102-7YM121250-55620SPRING 1SN:00102-8YM119810-55650ELEMENT 1SN:00102-9YM121257-55731FLOAT 1SN:00102-10YM104200-55750SCREW 1SN:00102-11YM24311-240100O-RING 1SN:00102--

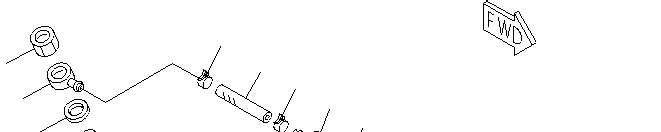

ItemPartNo.

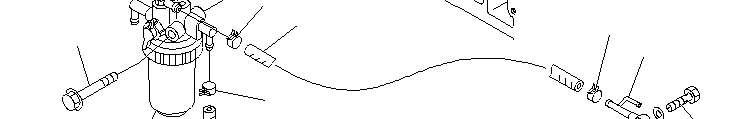

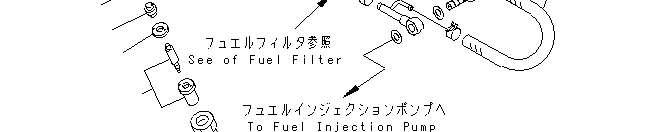

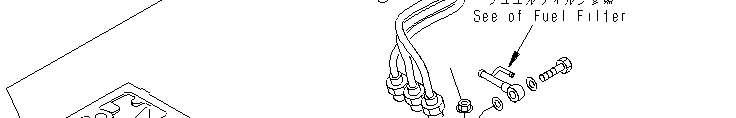

YM721250-59080PIPEASS'Y 1SN:00102-1YM124766-59050CLAMP 2SN:00102-2YM121250-59080HOSE 1SN:00102-3(YM129053-55620)FUELFILTERASS'Y,(SEEFIG.A4110-B0A1)1SN:00102-4YM26014-080702BOLT 1SN:00102-YM119325-59030HOSE 1SN:00102-5YM101304-59020JOINT 1SN:00102-6YM124766-59050CLAMP 2SN:00102-7YM119325-59080PIPE 1SN:00102-8YM22190-120002SEAL(KIT) 2SN:01148-YM104200-59170GASKET(KIT) 2SN:00102--01147 9YM119225-52102PUMP,FEED 1SN:00102-10YM119653-55910BRACKET 1SN:00102-11YM26106-080182BOLT 2SN:00102-12YM119462-59190BOLT 1SN:00102-13YM129052-55630FILTER 1SN:00102-14YM123482-01900PLUG,JOINT 1SN:00102-15YM22190-080002SEAL 1SN:00102-YM119266-59501JOINTASS'Y 1SN:00102-16YM119266-59570JOINT 1SN:00102-17YM119266-59580BOLT 1SN:00102-18YM22190-080002SEAL 2SN:01860-YM23414-080012GASKET 2SN:00102--01859
ItemPartNo.
YM719636-51100INJECTIONPUMPASS'Y 1SN:00102-1 BODY 1SN:00102-2YM119620-51101PLUNGER 3SN:00102-3YM119620-51170SEAT 3SN:00102-4YM119620-51180SEAT 3SN:00102-5YM119620-51190SPRING 3SN:00102-6YM119620-51250SHIMASS'Y 3SN:00102-7YM119620-51300VALVE 3SN:00102-8YM105546-51330SPRING 3SN:00102-9YM119620-51340HOLDER 3SN:00102-10YM119620-51350GASKET 3SN:00102-11YM119620-51370O-RING 3SN:00102-12YM119620-51450PIECE,GUIDE 3SN:00102-13YM119620-51461PIN 1SN:00102-14YM119660-51500RACK 1SN:00102-15YM119620-51510PINION 3SN:00102-16YM119660-51530RETAINER 1SN:00102-17YM119620-51650PLATE 2SN:00102-18YM119620-51660SCREW,ADJUST 2SN:00102-19YM119620-51670PIN 2SN:00102-20YM119620-51680PIN 1SN:00102-21YM119620-51700TAPPETASS'Y 3SN:00102-22YM26022-040082SCREW 4SN:00102-23YM26033-040102SCREW 2SN:00102--

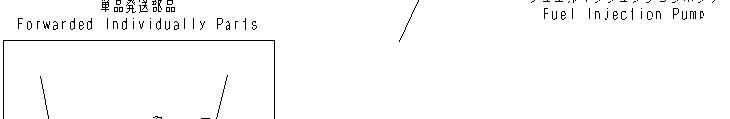

3D74E-N3AS/N00102-UP
ItemPartNo. Description

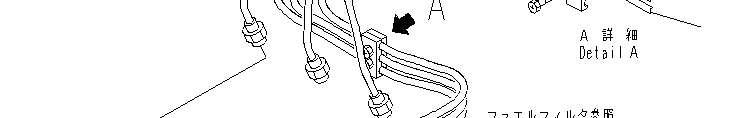

1YM119623-01950SHIMASS'Y 1SN:00102-2YM194990-22050NUT 4SN:00102-3(YM719636-51100)INJECTIONPUMPASS'Y,(SEEFIG.A4010-B0A1)1SN:00102-4YM129150-59120CLAMPASS'Y 1SN:00102-5YM129150-59131BOLT 2SN:00102-6YM119624-59811PIPE,INJECTION¤NO.1 1SN:00118-YM119624-59810PIPE,INJECTION¤NO.1 1SN:00102--00117 7YM119624-59821PIPE,INJECTION¤NO.2 1SN:00118-YM119624-59820PIPE,INJECTION¤NO.2 1SN:00102--00117 8YM119624-59831PIPE,INJECTION¤NO.3 1SN:00118-YM119624-59830PIPE,INJECTION¤NO.3 1SN:00102--00117
ItemPartNo.
Description QtyOptions
YM719255-53100FUELNOZZLEASS'Y 3SN:00102-1YM129155-61830O-RING(KIT) 1SN:00102-2YM119620-53000NOZZLEASS'Y 1SN:00102-3YM119620-53080NUT 1SN:00102-4YM119255-53100HOLDER 1SN:00102-5YM119620-53120SPRING 1SN:00102-6YM114250-53130SEAT 1SN:00102-7YM119620-53140SPACER 1SN:00102-8YM114250-53400SHIMASS'Y 1SN:00102-YM119266-59540PIPEASS'Y 1SN:00102-9YM124066-59100CLAMP 6SN:00102-10YM119260-59520JOINT 1SN:00102-11YM119260-59530JOINT 2SN:00102-12YM105025-59550HOSE,SPILL 2SN:00102-13YM119000-59560PIPE,SPILL 1SN:00102-14YM119620-59700NUT 3SN:00102-15YM22190-140002SEAL(KIT) 3SN:01148-YM23414-140000GASKET(KIT) 3SN:00102--01147

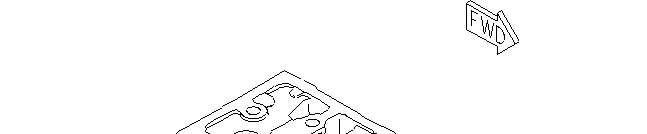

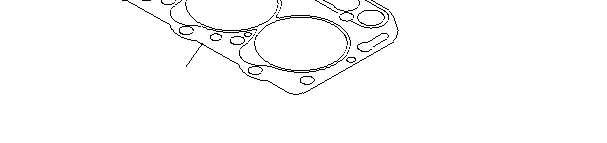

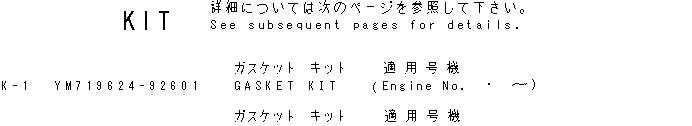

3D74E-N3AS/N00102-UP GASKETKIT
ItemPartNo.
1YM719624-92601GASKETKIT
DescriptionQty
1SN:.-YM719624-92600GASKETKIT 1SN:00102--. YM119636-01330GASKET 1SN:.-YM119624-01330GASKET 1SN:00102--. YM119660-01562GASKET 1SN:00102-YM119624-11610GASKET 1SN:00102-YM124950-11340SEAT 3SN:00102-YM124160-11340SEAT 3SN:00102-YM119600-11450PROTECTOR 3SN:00102-YM119600-11460GASKET 6SN:00102-YM24311-000320O-RING 2SN:00102-YM119624-11311GASKET 1SN:00102-YM119660-12111GASKET 1SN:00102-YM119620-13110GASKET 1SN:00102-YM124701-11911GASKET 1SN:00693-YM124701-11911GASKET 2SN:00102--00692 YM129150-49811GASKET 1SN:00102-YM119624-42021GASKET 1SN:00988-YM119624-42020GASKET 1SN:00102--00987 YM129795-49551PACKING 1SN:00102-YM121520-01851GASKET 1SN:00102-YM124465-44950GASKET 2SN:00102-YM22190-120002SEAL 2SN:01148-YM104200-59170GASKET 2SN:00102--01147 YM22190-140002SEAL 3SN:01148--
Options
ItemPartNo.
YM23414-140000GASKET
DescriptionQty Options
3SN:00102--01147 YM24311-000120O-RING
2SN:00859-YM24311-000120O-RING 4SN:00102--00858 YM129155-61830O-RING
3SN:00102-YM24341-000240O-RING 1SN:00102-YM22190-220002SEAL 1SN:00102-YM119266-01870GASKET 1SN:00102-YM119624-32040O-RING 2SN:00859-YM121000-13201GASKET 1SN:00693--

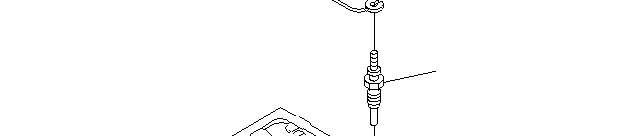

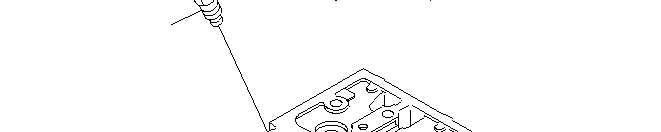

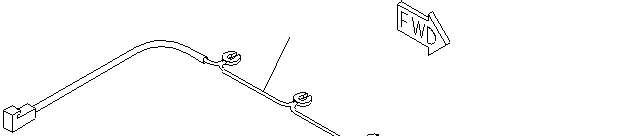

3D74E-N3AS/N00102-UP GLOWPLUG
ItemPartNo.
1YM129155-77801PLUG
3SN:05145-YM129795-77800GLOWPLUG
2YM119645-77820CONNECTOR
3SN:00102--05144
1SN:00102--
ItemPartNo.

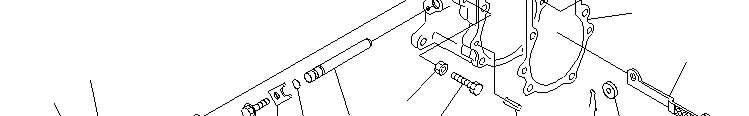

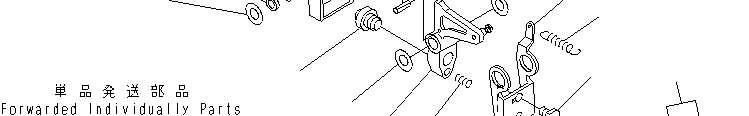

3D74E-N3AS/N00102-UP GOVERNORCONTROL

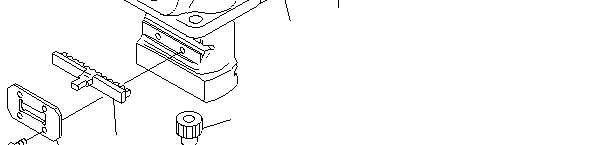

1YM119660-61060COVER 1SN:00102-2YM119660-61071GASKET 1SN:00102-3YM26106-060702BOLT 5SN:00102-YM119266-61100WEIGHTASS'Y 1SN:00102-4YM119600-61200WEIGHTASS'Y 1SN:00102-5YM119660-61300NUT 1SN:00102-6YM119660-61341SLEEVE 1SN:00102-7YM119266-61230SPACER 1SN:00102-8YM119660-61140LINK¤L=88.6 1SN:00102-YM119660-61121LINK¤L=88.8 1SN:00102-YM119660-61150LINK¤L=89.0 1SN:00102-YM119632-61200GOVERNORCASEASS'Y 1SN:00102-9 CASE 1SN:00102-10YM129155-51280O-RING 1SN:00102-11YM119660-61052GASKET 1SN:00102-12YM119660-61460SHIMASS'Y 1SN:00102-13YM129155-61480SPACER 2SN:00102-14YM119660-61590SHAFT 1SN:01860-YM119660-61491SHAFT 1SN:00102--01859 15YM119232-61510LEVERASS'Y 1SN:00102-16YM174307-51700SHIMASS'Y 2SN:00102-17YM119232-61540SPRING 1SN:00102-18YM119600-61541SHIFTER 1SN:00102-19YM119660-61651SPRING 1SN:00102-20YM22117-040000WASHER 1SN:00102--
ItemPartNo.
Description QtyOptions 21YM22272-000040RING,SNAP 1SN:00102-22YM22351-030014PIN 1SN:00102-23YM119600-61900PLATE 1SN:00102-24YM119660-61901PLATE 1SN:00102-25YM119285-66080SHAFTASS'Y 1SN:00102-26YM22351-040010PIN 2SN:00102-27YM24341-000070O-RING 1SN:00102-28YM26106-060102BOLT 2SN:00102-29YM121465-59950BOLT 1SN:00102-30YM26687-120002NUT 1SN:00102-31YM119600-66020SPRING 1SN:00102-32YM119640-66051HANDLE 1SN:00102-33YM124550-66370NUT 1SN:00102-YM119233-66511SOLENOIDASS'Y 1SN:00102-34 SOLENOID 1SN:00102-35YM24341-000280O-RING 1SN:00102-36YM26106-060952BOLT 1SN:00102-37YM119629-66510LIMITER 1SN:00102-38YM119610-66700ANGLEICHASS'Y 1SN:00102-39YM26776-120002NUT 1SN:00102-40YM121575-66830SCREW 1SN:00102-41YM119600-66840NUT 1SN:00102-42YM22190-120002SEAL,WASHER 2SN:00102-43YM22360-040000PIN,COTTER 1SN:00102-44YM22360-060000PIN,SNAP 1SN:00102-45YM26116-050102BOLT 3SN:00102-46YM26116-060304BOLT 1SN:00102-47YM26756-060002NUT 1SN:00102-48YM22190-060003WASHER 2SN:00102-49YM194990-22050NUT 1SN:00102-50YM124066-03770STOPPER 1SN:00102-51YM22272-000050RING,SNAP 1SN:00102-52YM102100-67080BOLT,ADJUST 1SN:00102--. 53YM26116-040088BOLT 1SN:00102--. 54YM26756-060002NUT 1SN:00102--.
