ItemPartNo.

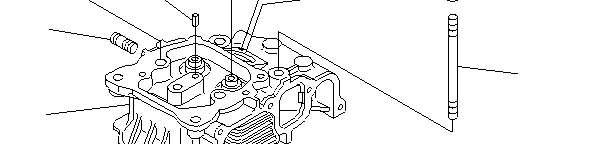

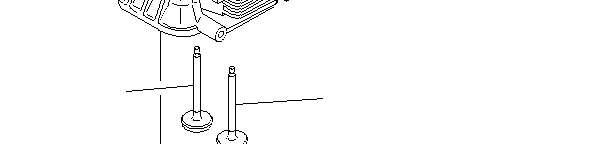

1D84-1AS/N00101-UP CYLINDERHEAD
DescriptionQtyOptions
1YM114650-11010CYLINDERHEADASS'Y 1SN:00101-2YM22351-040008PIN,SPRING 1SN:00101-3YM26226-080182STUD 2SN:00101-4YM114650-11100VALVE,INTAKE 1SN:00101-5YM114650-11110VALVE,EXHAUST 1SN:00101-6YM114650-11340SEAL,VALVESTEM(KIT) 2SN:00101-7YM114650-11121SPRING,VALVE 2SN:00101-8YM119620-11180SEAT,SPRING 2SN:00101-9YM101158-11190COTTER 4SN:00101-10YM104211-11370CAP 2SN:00101-11YM114650-11600WASHER 2SN:00101-12YM26226-060502STUD 2SN:00101-13YM26366-060002NUT 2SN:00101-14YM114650-01340GASKET(KIT) 1SN:00101-15YM114650-01380O-RING(KIT) 1SN:00101-16YM114650-01230BOLT 2SN:00101-17YM114650-01240BOLT 2SN:00101-18YM105025-01220NUT 2SN:00101-19YM114650-01250NUT 2SN:00101-20YM114650-01260WASHER 4SN:00101--

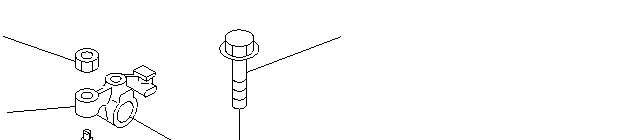

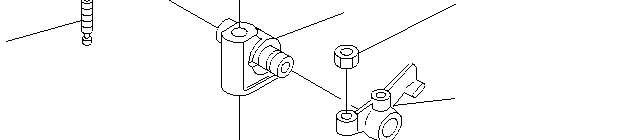

1D84-1AS/N00101-UP ROCKERARM
ItemPartNo. DescriptionQtyOptions
1YM114650-11261SUPPORT,ROCKERARM 1SN:00101-2YM114650-11652ARM 1SN:00101-3YM114250-11240ADJUSTER 1SN:00101-4YM26756-060002NUT 1SN:00101-5YM114650-11662ARM 1SN:00101-6YM114250-11240ADJUSTER 1SN:00101-7YM26756-060002NUT 1SN:00101-8YM26106-100552BOLT 1SN:00101--
ItemPartNo.

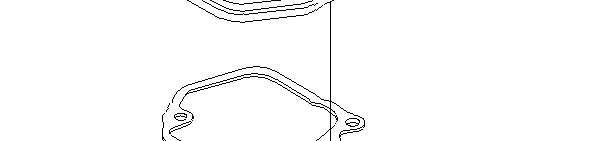

1D84-1AS/N00101-UP CYLINDERHEADCOVER
DescriptionQtyOptions
1YM183650-11950HEADCOVERASS'Y 1SN:00101-2YM183250-03601SHAFT 1SN:00101-3YM114250-03640SPRING 1SN:00101-4YM22312-030160PIN 1SN:00101-5YM129100-61850PLUG 1SN:00101-6YM114650-11310PACKING(KIT) 1SN:00101-7YM26106-060702BOLT 2SN:00101--
ItemPartNo.
1D84-1AS/N00101-UP AIRINTAKEMANIFOLDANDCONNECTION
DescriptionQtyOptions
1YM114654-12020MANIFOLD,AIRINTAKE 1SN:00101-2YM114650-12300PACKING(KIT) 1SN:00101-3YM26106-060252BOLT 5SN:00101-4YM129100-77500HEATER,AIR 1SN:00101-5YM114654-12250PIPE 1SN:00101-6YM129100-77510GASKET 2SN:00101-7YM26106-080402BOLT 2SN:00101-8YM26216-080352STUD 2SN:00101-9YM26366-080002NUT 2SN:00101-10YM114650-12210PACKING(KIT) 1SN:00101-11YM26106-060122BOLT 3SN:00101--
ItemPartNo.

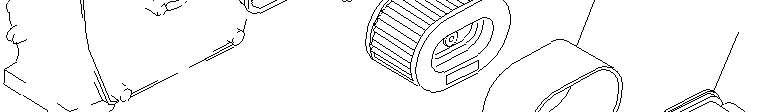

1D84-1AS/N00101-UP AIRCLEANERANDMOUNTING
DescriptionQtyOptions
YM783671-12560AIRCLEANERASS'Y 1SN:00101-1YM183671-12520COVER 1SN:00101-YM114650-12590ELEMENTASS'Y 1SN:00101-2YM114650-12540ELEMENT 1SN:00101-3YM114650-12550SPONGE 1SN:00101-4YM114252-12550NUT 1SN:00101-5YM114252-12560WASHER,SEAL 1SN:00101-6YM114650-12530CASEASS'Y 1SN:00101--
ItemPartNo.

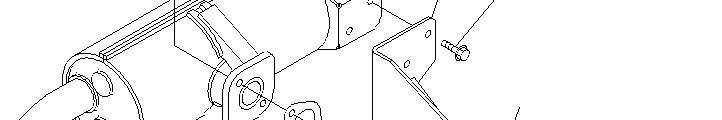

1D84-1AS/N00101-UP MUFFLERANDMOUNTING
DescriptionQtyOptions
1YM114654-13500MUFFLER
1SN:00101-2YM114650-13200GASKET(KIT)
1SN:00101-3YM26713-080002NUT 2SN:00101-4YM114654-13650STAY 1SN:00101-5YM26106-080162BOLT 6SN:00101--
ItemPartNo.

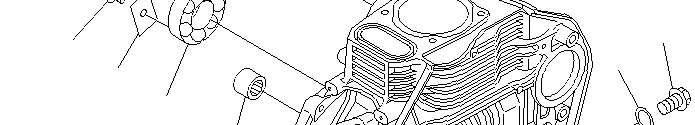

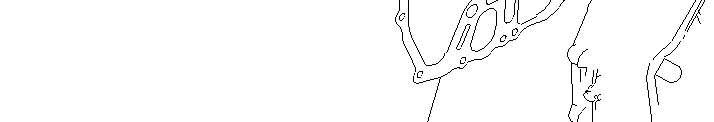

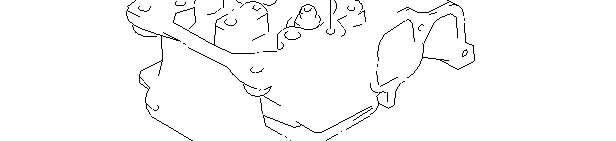

1D84-1AS/N00101-UP
DescriptionQtyOptions
1YM714651-01562CYLINDERBLOCKA. 1SN:00101-2YM160910-01740CAPASS'Y,OIL 1SN:00101-3YM24311-000180O-RING(KIT) 1SN:00101-4YM105425-01690PLUG 2SN:00101-5YM43400-500490WASHER,SEAL(KIT) 2SN:00101-6YM24423-355008SEAL,OIL 1SN:00101-7YM24162-152112BEARING,NEEDLE 1SN:00101-8YM114650-02150BEARING,BALL 1SN:00101-9YM114250-02030PLATE 1SN:00101-10YM26106-080122BOLT 1SN:00101-11YM114650-45200COVER 1SN:00101-12YM114350-45320SEAL 1SN:00101-13YM183720-55210GROMMET 1SN:00101-14YM114350-45340COLLAR 1SN:00101-15YM26476-060202BOLT 1SN:00101--

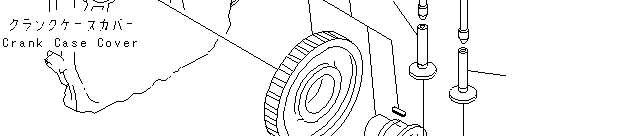

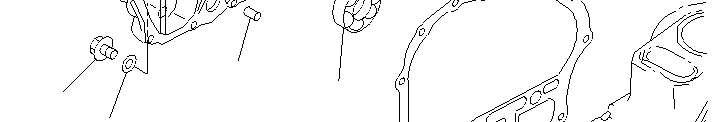

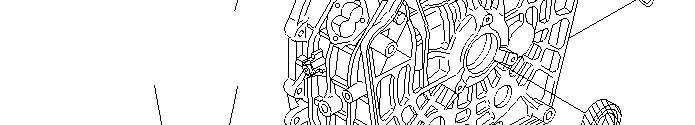

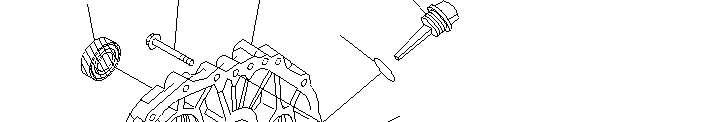

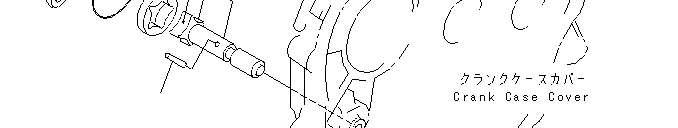

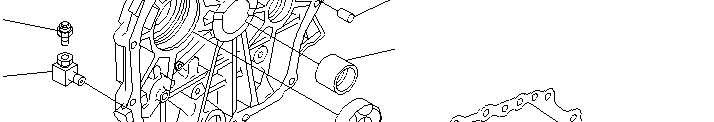

1D84-1AS/N00101-UP FRONTCOVER
ItemPartNo. DescriptionQtyOptions
1YM114654-01440COVER,CRANKCASE 1SN:00101-2YM114650-02101BEARING 1SN:00101-3YM160910-01740CAPASS'Y,OIL 1SN:00101-4YM24311-000180O-RING(KIT) 1SN:00101-5YM105425-01690PLUG 1SN:00101-6YM43400-500490WASHER,SEAL(KIT) 1SN:00101-7YM23112-010007ELBOW 1SN:00101-8YM124060-39451SENSOR,OILPRESSURE 1SN:00101-9YM22312-080120PIN 2SN:00101-10YM24423-355008SEAL,OIL 1SN:00101-11YM24101-062070BEARING,BALL 1SN:00101-12YM114650-01411PACKING(KIT) 1SN:00101-13YM26106-080352BOLT 16SN:00101--
ItemPartNo.

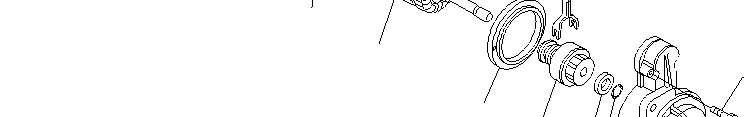

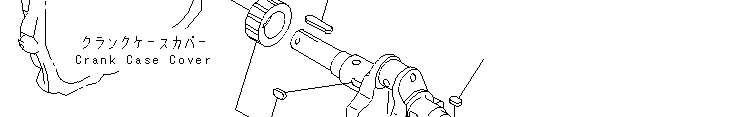

1D84-1AS/N00101-UP CRANKSHAFT(#00101-20100)
DescriptionQtyOptions
1YM714660-21700CRANKSHAFTASS'Y 1SN:00101-2YM22512-050140KEY 1SN:00101-3YM22512-070360KEY 1SN:00101-4YM122710-01220NUT 1SN:00101-5YM114650-21551WASHER 1SN:00101-6YM26106-080202BOLT 1SN:00101-7YM160310-14550WASHER 1SN:00101--

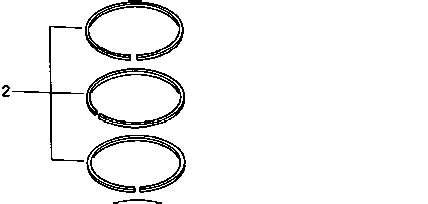

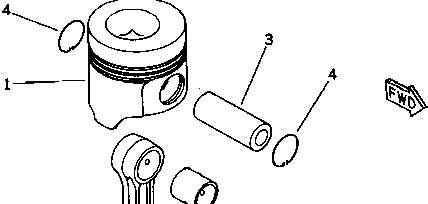

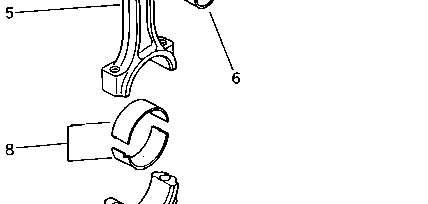

1D84-1AS/N00101-UP PISTONANDCONNECTINGROD
ItemPartNo. DescriptionQtyOptions STANDARD
1YM714660-22723PISTONASS'Y 1SN:00101-2YM714650-22502PISTONRINGASS'Y 1SN:00101-OVERSIZE0.25MM
1YM714660-22623PISTONASS'Y 1SN:00101-2YM714650-22542PISTONRINGASS'Y 1SN:00101-3YM114650-22300PIN,PISTON 1SN:00101-4YM129792-22400RING 2SN:00101-5YM714650-23700CONNECTINGRODA. 1SN:00101-6YM124060-23100METAL 1SN:00101-7YM104200-23201BOLT 2SN:00101-8YM714650-23600METAL 1SN:00101--
ItemPartNo.

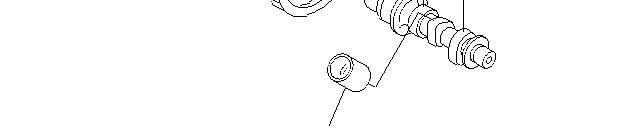

1D84-1AS/N00101-UP CAMSHAFTANDTAPPET(#00101-20100)
DescriptionQtyOptions
1YM714660-14581CAMSHAFTASS'Y 1SN:00101-2YM114250-14260TAPPET 1SN:00101-3YM114650-14200TAPPET 2SN:00101-4YM114650-14401ROD,PUSH 2SN:00101--
ItemPartNo.

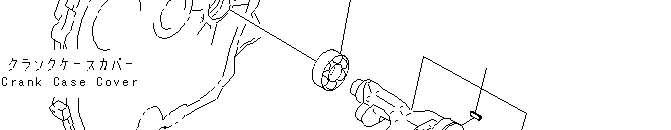

1D84-1AS/N00101-UP LUBRICATINGOILPUMP
DescriptionQtyOptions
1YM114650-32010OILPUMPASS'Y
1SN:00101-2YM22312-030160PIN 1SN:00101-3YM103338-32570O-RING(KIT) 1SN:00101-4YM114250-32070COVER 1SN:00101-5YM26476-060142BOLT 3SN:00101--

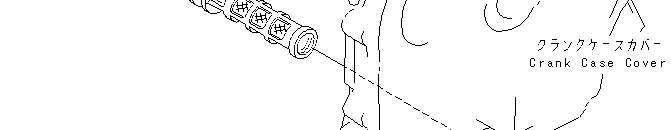

ItemPartNo.
1YM114250-35060FILTER,OIL
1D84-1AS/N00101-UP LUBRICATINGOILFILTER
DescriptionQtyOptions
1SN:00101-2YM24341-000224O-RING 1SN:00101-3YM114250-35250COVER 1SN:00101-4YM114250-35270PACKING(KIT) 1SN:00101-5YM26106-060122BOLT 2SN:00101--

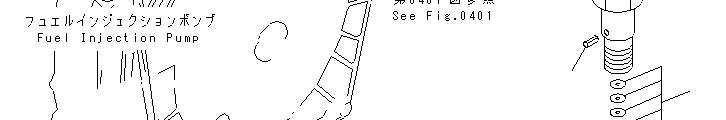

ItemPartNo.

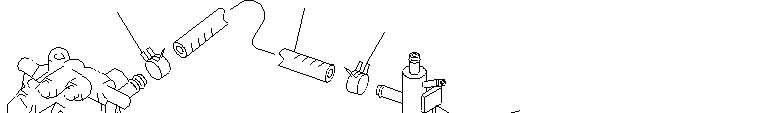

1D84-1AS/N00101-UP
Description
QtyOptions 1(YM714650-51710)INJECTIONPUMPA.,(SEEFIG.0451)1SN:00101-2YM114250-01800SHIMASS'Y 1SN:00101-3YM26226-060222STUD 2SN:00101-4YM26226-060182STUD 1SN:00101-5YM114250-01830COVER 1SN:00101-6YM114250-01840PACKING(KIT) 1SN:00101-7YM26366-060002NUT 3SN:00101-8YM114252-59050PIPE 1SN:00101-9YM114654-59570JOINT 1SN:00101-10YM26106-060142BOLT 1SN:00101-11YM183350-59370PIPE 1SN:00101-12YM106990-44660CLIP 4SN:00101--
ItemPartNo.

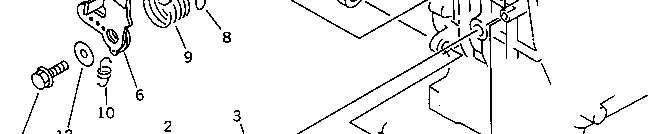

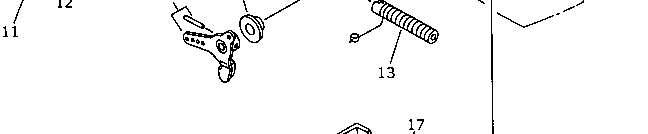

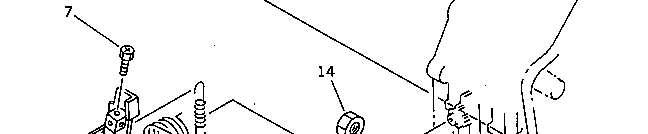

1D84-1AS/N00101-UP GOVERNORCONTROL(#00101-20100)
DescriptionQtyOptions
1YM714650-61700GOVERNORASS'Y 1SN:00101-2YM714650-61500GOVERNORLEVERA. 1SN:00101-3YM114250-61600BUSHING 1SN:00101-(YM114770-61600{YM114770-61610)} 4YM121450-61520BEARING,NEEDLE 2SN:00101-5YM22137-080000WASHER 1SN:00101-6YM114252-66060HANDLE,REGULATOR 1SN:00101-7YM105225-66990SCREW 1SN:00101-8YM114650-66011SPRING,REGULATOR 1SN:00101-9YM114252-66252SPRING,RETURN 1SN:00101-10YM114250-66200SPRING,RETURN 1SN:00101-11YM26106-060202BOLT 1SN:00101-12YM160120-76940WASHER 1SN:00101-13YM114650-66600SCREW 1SN:00101-14YM26696-100002NUT 1SN:00101-15YM114252-66120BRACKET 1SN:00101-16YM114250-66440BOLT 1SN:00101-17YM26757-060002NUT,LOCK 1SN:00101-18YM102100-67080BOLT 1SN:00101-19YM26757-060002NUT,LOCK 1SN:00101-20YM26476-060142BOLT 1SN:00101--

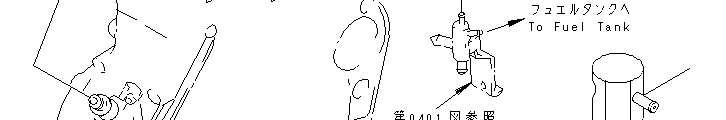

ItemPartNo.

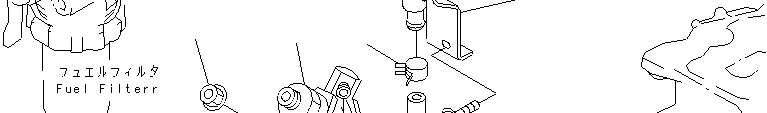

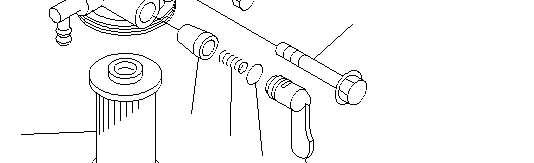

1D84-1AS/N00101-UP FUELFILTER
DescriptionQtyOptions
1YM114654-55600FUELFILTERASS'Y 1SN:00101-2YM124064-55510CASE 1SN:00101-3YM114250-55510ELEMENT 1SN:00101-4YM102103-55520O-RING 1SN:00101-5YM110250-55610RING 1SN:00101-6YM104200-55321VALVE 1SN:00101-7YM104200-55330SPRING 1SN:00101-8YM104200-55341LEVER 1SN:00101-9YM24311-240100O-RING 1SN:00101-10YM101720-55750PLUG 2SN:00101-11YM23418-060000GASKET 2SN:00101-12YM104200-55750SCREW 1SN:00101-13YM26106-080602BOLT 1SN:00101--

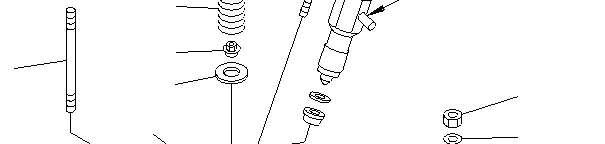

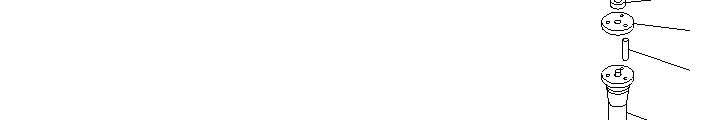

ItemPartNo.
1D84-1AS/N00101-UP
DescriptionQtyOptions
YM714650-53100FUELNOZZLEASS'Y 1SN:00101-1YM114650-53300HOLDERASS'Y 1SN:00101-2YM114250-53331PIN,SPRING 1SN:00101-3YM114650-53000NOZZLEASS'Y 1SN:00101-4YM114250-53140PLATE,STOP 1SN:00101-5YM114250-53210PIN 2SN:00101-6YM114250-53130SEAT 1SN:00101-7YM114250-53120SPRING 1SN:00101-8YM114250-53400SHIMASS'Y 1SN:00101-9YM114250-53080NUT 1SN:00101-10YM114350-11470SPACER 1SN:00101-11YM114250-11460PACKING(KIT) 1SN:00101-12YM114250-11900PLATE 1SN:00101-13YM114650-59800TUBE,INJECTION 1SN:00101-14YM114650-59850SUPPORT 1SN:00101-15YM114654-59090PIPE 1SN:00101-16YM124722-59050CLIP 2SN:00101--
ItemPartNo.
1D84-1AS/N00101-UP FUELINJECTIONPUMP
DescriptionQtyOptions
YM714650-51710INJECTIONPUMPA. 1SN:00101-1YM114650-51100PUMPASS'Y 1SN:00101-2YM114250-51180JOINT 1SN:00101-3YM114250-51190O-RING 1SN:00101-4YM114650-51300DELIVERYVALVEA. 1SN:00101-5YM105546-51330SPRING 1SN:00101-6YM114250-51340HOLDER 1SN:00101-7YM124550-51350GASKET 2SN:00101-8YM114250-51080PLATE 1SN:00101-9YM22351-020006PIN,SPRING 2SN:00101-10YM105546-51020PACKING 1SN:00101-11YM114250-51600LEVERASS'Y 1SN:00101-12YM114250-51640SEAT 1SN:00101-13YM22351-030008PIN,SPRING 1SN:00101-14YM114250-51160SPRING 1SN:00101-15YM114250-51650SEAT 1SN:00101-16YM114250-51150RING,SNAP 1SN:00101--
ItemPartNo.

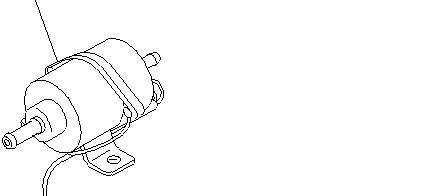

1D84-1AS/N00101-UP FUELFEEDPUMP
DescriptionQtyOptions 1YM119225-52100FEEDPUMPASS'Y 1SN:00101--

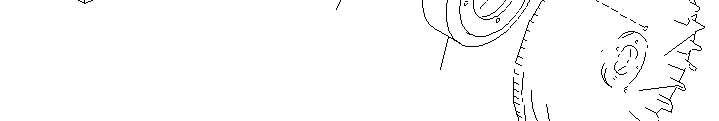

ItemPartNo.

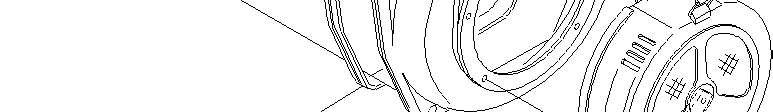

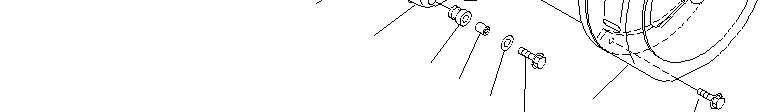

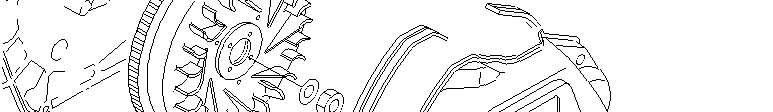

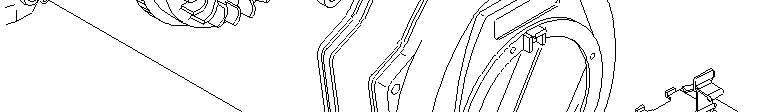

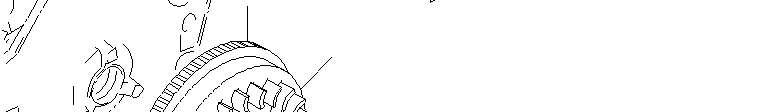

1D84-1AS/N00101-UP FLYWHEELANDCOOLINGFANCASE
DescriptionQtyOptions
1YM114662-21592FLYWHEELASS'Y 1SN:00101-2YM114662-21601GEAR,RING 1SN:00101-3YM114660-45101CASE,FAN 1SN:00101-4YM114650-45330SEAL 1SN:00101-5YM114250-45300CUSHION 4SN:00101-6YM114250-45310COLLAR 4SN:00101-7YM26476-060252BOLT 4SN:00101-8YM160120-76940WASHER 4SN:00101-9YM114651-76301COVER 1SN:00101-10YM26106-060082BOLT 2SN:00101--
ItemPartNo.

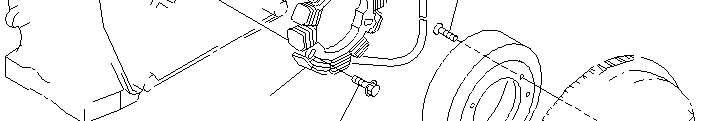

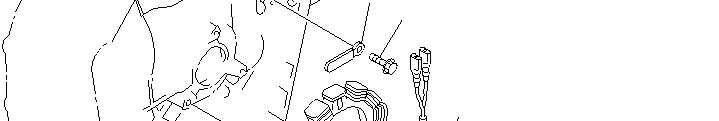

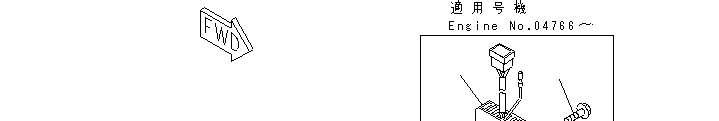

1D84-1AS/N00101-UP DYNAMOANDMOUNTING(#00101-20100)
DescriptionQtyOptions YM114351-78290DYNAMOASS'Y 1SN:00101-1YM114351-78830STATOR 1SN:00101-2YM114351-78840WHEEL 1SN:00101-3YM26476-060202BOLT 3SN:00101-4YM26577-060142SCREW 3SN:00101-5YM160710-78710CLAMP 1SN:00101-6YM26476-060142BOLT 1SN:00101-7YM114654-77410BRACKET 1SN:04766-YM114253-77410BRACKET 1SN:00101--04765 8YM26106-060252BOLT 2SN:00101-9YM171008-77710LIMITER,WITHHARNESS 1SN:04766-YM119660-77710LIMITER 1SN:00101--04765 10YM26106-060302BOLT 2SN:04766-YM26106-060202BOLT 2SN:00101--04765 11(YM119247-77100)RELAY,SAFETY(NOTSHOWN)1SN:06447-(YM121522-77101)RELAY,SAFETY(NOTSHOWN)1SN:04766--06446
ItemPartNo.

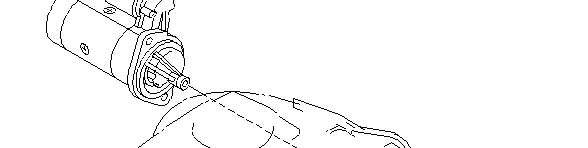

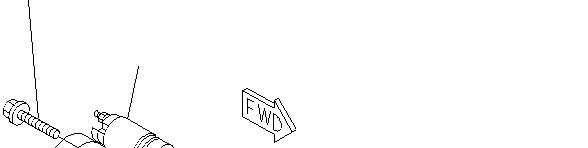

1D84-1AS/N00101-UP STARTINGMOTORANDMOUNTING
1(YM114362-77010)STARTINGMOTORASS'Y,(SEEFIG.0661)1SN:00101-2YM26106-100302BOLT 2SN:00101--

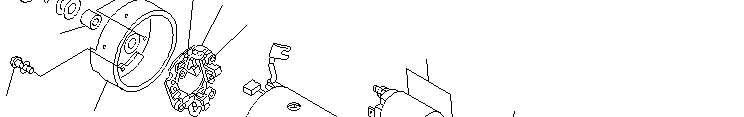

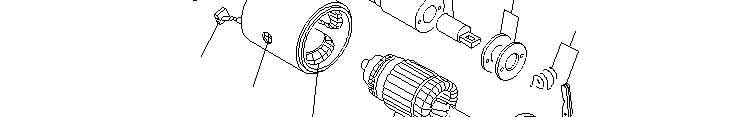

1D84-1AS/N00101-UP STARTINGMOTOR
ItemPartNo. DescriptionQtyOptions YM114362-77010STARTINGMOTORASS'Y 1SN:00101-1YMX211461104ARMATURE 1SN:00101-2YMX21148110WASHERSET 1SN:00101-3YMX21147155STOPPERSET 1SN:00101-4YMX211412105FIELDCOILASS'Y 1SN:00101-5YMX21145312BRUSH(+) 2SN:00101-6YMX21143215SCREW 4SN:00101-7YMX211473002COVER,REAR 1SN:00101-8YMX21145352METAL 1SN:00101-9YMX211489001HOLDER 1SN:00101-10YMX21148313BRUSH(-) 1SN:00101-11YMX21149314SPRING 3SN:00101-12YMX211445508PINIONASS'Y 1SN:00101-13YMX211416603GEARCASEASS'Y 1SN:00101-14YMX21145352METAL 1SN:00101-15YMX211478006DUSTCOVERKIT 1SN:00101-16YMX211456013SHIFTLEVERKIT 1SN:00101-17YMX211427501MAGNETICSWITCHA. 1SN:00101-18YMX211468005BOLT,THROUGH 2SN:00101-19YMX21145867BOLT 2SN:00101-20YMX21142835SCREWSET 1SN:00101--
ItemPartNo.

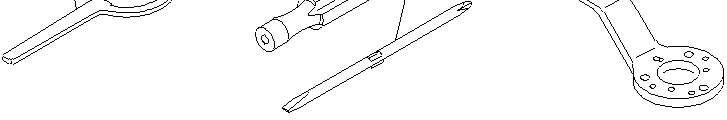

1YM171051-92760WRENCH,WATERSEPARATOR
1SN:00101-2YM104200-92350DRIVER,SCREW 1SN:00101-3YM114250-92101HANDLE,FLYWHEEL 1SN:00101-YM114250-92130PULLERASS'Y,FLYWHEEL 1SN:00101-4YM114250-92121PULLER,FLYWHEEL 1SN:00101-5YM26116-060454BOLT 4SN:00101-6YM26716-060002NUT 8SN:00101-7YM26116-080454BOLT 3SN:00101-8YM26716-080002NUT 6SN:00101-9YM114668-92300GUIDE,OILSEAL 1SN:00101-10YM114650-92310PIN 1SN:00101--
ItemPartNo.
1YM714650-92601GASKETKIT
1D84-1AS/N00101-UP GASKETKIT
DescriptionQtyOptions
1SN:00101-YM114650-11340SEAL 2SN:00101-YM114650-01340GASKET 1SN:00101-YM114650-01380O-RING 1SN:00101-YM114650-11310PACKING 1SN:00101-YM114650-12300PACKING 1SN:00101-YM114650-12210PACKING 1SN:00101-YM114650-13200GASKET 1SN:00101-YM24311-000180O-RING 2SN:00101-YM43400-500490WASHER 2SN:00101-YM114650-01411PACKING 1SN:00101-YM103338-32570O-RING 1SN:00101-YM114250-35270PACKING 1SN:00101-YM114250-01840PACKING 1SN:00101-YM114250-11460PACKING 1SN:00101--
ItemPartNo.
1D84-1BS/N00101-UP CYLINDERHEAD
DescriptionQtyOptions
1YM114650-11010CYLINDERHEADASS'Y 1SN:00101-2YM22351-040008PIN,SPRING 1SN:00101-3YM26226-080182STUD 2SN:00101-4YM114650-11100VALVE,INTAKE 1SN:00101-5YM114650-11110VALVE,EXHAUST 1SN:00101-6YM114650-11340SEAL,VALVESTEM(KIT) 2SN:00101-7YM114650-11121SPRING,VALVE 2SN:00101-8YM119620-11180SEAT,SPRING 2SN:00101-9YM101158-11190COTTER 4SN:00101-10YM104211-11370CAP 2SN:00101-11YM114650-11600WASHER 2SN:00101-12YM26226-060502STUD 2SN:00101-13YM26366-060002NUT 2SN:00101-14YM114650-01340GASKET(KIT) 1SN:00101-15YM114650-01380O-RING(KIT) 1SN:00101-16YM114650-01230BOLT 2SN:00101-17YM114650-01240BOLT 2SN:00101-18YM105025-01220NUT 2SN:00101-19YM114650-01250NUT 2SN:00101-20YM114650-01260WASHER 4SN:00101--
1D84-1BS/N00101-UP ROCKERARM
ItemPartNo. DescriptionQtyOptions
1YM114650-11261SUPPORT,ROCKERARM 1SN:00101-2YM114650-11652ARM 1SN:00101-3YM114250-11240ADJUSTER 1SN:00101-4YM26756-060002NUT 1SN:00101-5YM114650-11662ARM 1SN:00101-6YM114250-11240ADJUSTER 1SN:00101-7YM26756-060002NUT 1SN:00101-8YM26106-100552BOLT 1SN:00101--
ItemPartNo.
1D84-1BS/N00101-UP CYLINDERHEADCOVER
DescriptionQtyOptions
1YM183650-11950HEADCOVERASS'Y 1SN:00101-2YM183250-03601SHAFT 1SN:00101-3YM114250-03640SPRING 1SN:00101-4YM22312-030160PIN 1SN:00101-5YM129100-61850PLUG 1SN:00101-6YM114650-11310PACKING(KIT) 1SN:00101-7YM26106-060702BOLT 2SN:00101--
