SPARE PARTS CATALOGUE
Teil
Teile-Nr Beschreibung
(266-20-49101) ENGINE ASS'Y 1 SN:5001--
KT14952-1101-1 AIR CLEANER ASS'Y 1 SN:5001--
1 KT15241-1115-1 BODY 1 SN:5001--
2 KT15221-8745-1 LABEL 1 SN:5001-KT15221-1108-1 ELEMENT ASS'Y 1 SN:5001--
3 KT15221-1122-4 ELEMENT 1 SN:5001--
4 KT15221-8748-1 LABEL 1 SN:5001--
5 KT15221-9262-1 BOLT 1 SN:5001--
6 KT15221-9443-1 WASHER 1 SN:5001--
7 KT15221-1141-2 COVER 1 SN:5001--
8 KT15221-1117-1 GASKET 1 SN:5001-9 KT15241-1116-1 COVER 1 SN:5001-10 KT14952-1135-1
CAMSHAFT
Teil
Teile-Nr

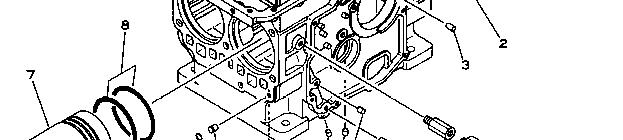

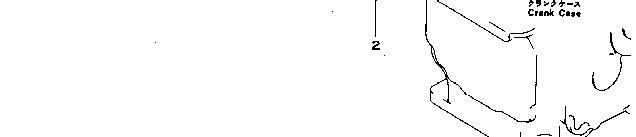

JV25-3A S/N 5001-UP CRANKCASE
Beschreibung
Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-KT14952-0101-1 CRANKCASE ASS'Y 1 SN:5001--
1 KT14952-0111-1 CASE 1 SN:5001--
2 KT14681-9685-1 PLUG 5 SN:5001--
3 KT05012-00612 PIN 1 SN:5001--
4 KT14911-9493-1 PIN 1 SN:5001--
5 KT14301-3395-1 PIN 1 SN:5001--
6 KT04811-00080 O-RING 2 SN:5001--
7 KT14901-0231-2 LINER 2 SN:5001--
8 KT14911-0235-1 O-RING 4 SN:5001--

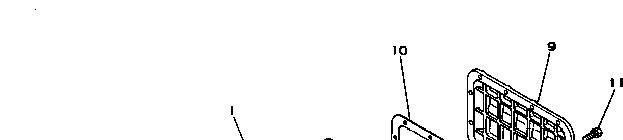

9 KT14952-0471-1 COVER 1 SN:5001--
10 KT14952-0472-1 PACKING 1 SN:5001--
11 KT01202-50618 BOLT 12 SN:5001--
12 KT15231-39013 SWITCH 1 SN:5001--
13 KT14911-3611-2 HOLDER 1 SN:5001--
