SAA6D102E-2JJ-8 S/N 26274903-UP 15 10
12 14
14
13
13
8
16
1
2
8 6 5 5 7 4 9
Ref.
17
3 11
A1009-01A2
Page
030010
SAA6D102E-2JJ-8 S/N 26274903-UP

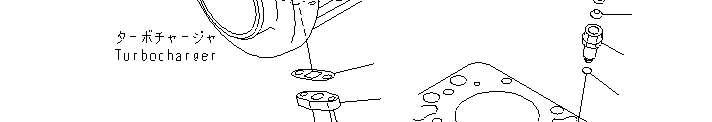

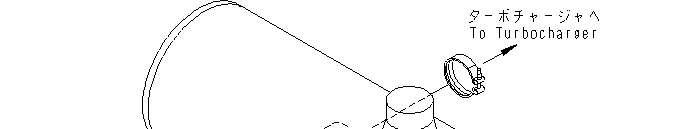

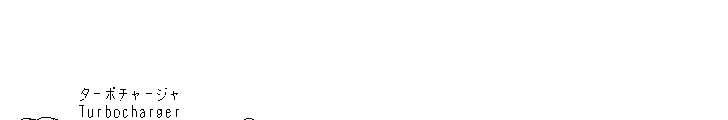

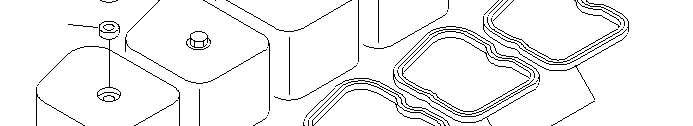

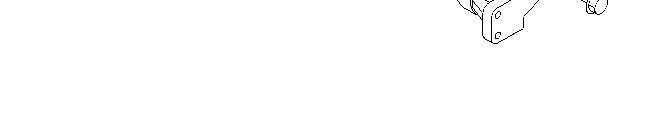

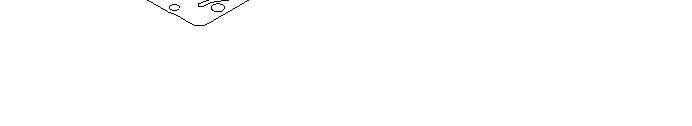

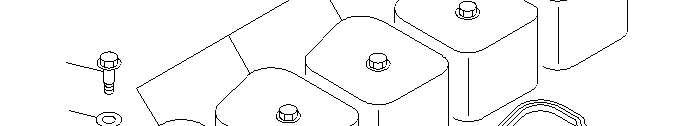

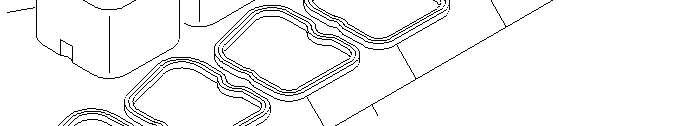

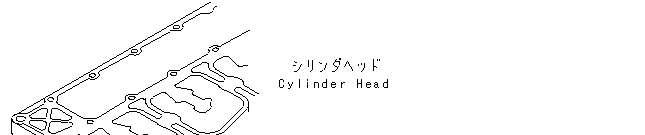

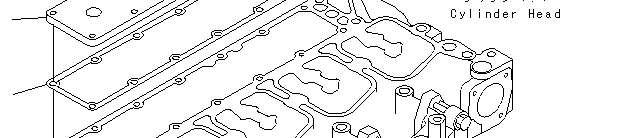

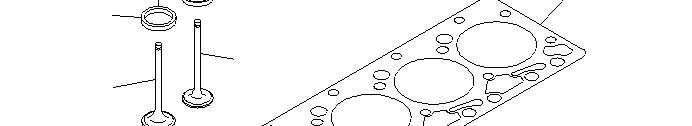

CYLINDER HEAD(#26343697-) Item
Part No.
Description
Qty
Options

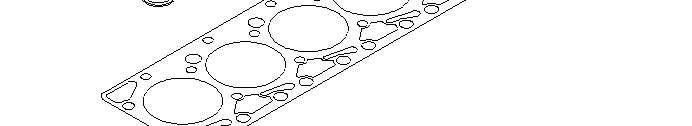

6731-11-1371 HEAD ASS'Y 1 SN:26343697-1 HEAD 1 SN:26343697-2 6736-11-1150 PLUG 5 SN:26343697-3 6732-11-1170 INSERT,EXHAUST 6 SN:26343697-4 6732-11-1180 INSERT,INTAKE 6 SN:26343697-5 6732-11-1910 PLUG 5 SN:26343697-6 6732-11-1920 PLUG 1 SN:26343697-7 6732-11-1930 PLUG 2 SN:26343697-8 6732-41-4541 SEAL (K1) 12 SN:26343697-6736-41-4110 INTAKE VALVE ASS'Y 6 SN:26343697-9 VALVE 1 SN:26343697-10 6732-41-4520 COTTER 2 SN:26343697-6736-41-4210 EXHAUST VALVE ASS'Y 6 SN:26343697-11 VALVE 1 SN:26343697-12 6732-41-4520 COTTER 2 SN:26343697-13 6732-41-4430 SPRING 12 SN:26343697-14 6731-41-4511 RETAINER 12 SN:26343697-15 6732-11-1610 BOLT 6 SN:26343697-16 6732-11-1620 BOLT 14 SN:26343697-17 6735-11-1821 GASKET (K1) 1 SN:26343697-REFER TO FIG. NOS. OF REPAIR PARTS FOR O.S.¤ U.S.¤ AND SERVICE PARTS.
Ref.
A1009-01A2
Page
