SA6D125E-3C-7A S/N 310001-UP
00005169 3 1
21 10
23
22
5
19 7
2 11
9
18
15
8
9
19
20
6 16 4
17 13 24 30 31 27 28 27 26
Ref.
12
14
25
29
32 34 30
33
A1310-B3P4
Page
030060
SA6D125E-3C-7A S/N 310001-UP

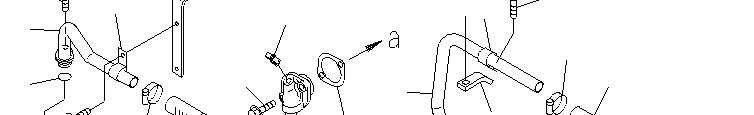

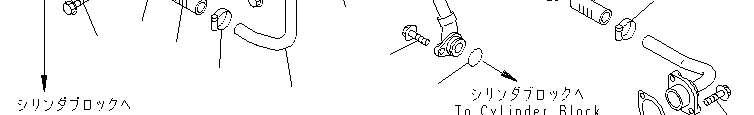

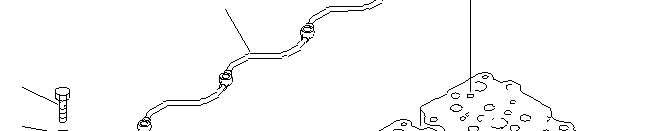

AFTER COOLER WATER PIPING(#311306-) Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
Part No. 6152-62-6410 07000-02021 01435-01020 6152-62-6420 07062-00000 6152-61-6721 01435-01035 07260-22008 07281-00359 04434-52210 01435-01016 6155-61-6520 6152-61-6721 01435-01035 6155-61-6510 01435-01025 07000-A3030 07260-22008 07281-00359 6155-21-5630 01435-01025 04434-52210 01435-01016 6217-81-9240 01435-00616 07206-30710 07005-01012
Part Name TUBE O-RING (K1) BOLT TUBE VALVE GASKET (K1) BOLT HOSE CLAMP CLIP BOLT TUBE GASKET (K1) BOLT TUBE BOLT O-RING (K1) HOSE CLAMP BRACKET BOLT CLIP BOLT SENSOR BOLT BOLT,JOINT SEAL, WASHER (K1)
Qty 1 1 1 1 1 1 2 1 2 1 1 1 1 2 1 1 1 1 2 1 1 2 2 1 2 1 2
Serial No. 311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306311306-
Reference:A1310-B3P4
Page:030060
