Operation in a Blast Site for Product Link Radios
This equipment is equipped with a Cat® Product Link communication device. When electric detonators are being used for blasting operations, radio frequency devices can cause interference with electric detonators for blasting operations which can result in serious injury or death. The Product Link communication device should be deactivated within the distance mandated under all applicable national or local regulatory requirements. In the absence of any regulatory requirements Caterpillar recommends the end user perform their own risk assessment to determine safe operating distance.
Refer to your products Operation and Maintenance Manual Supplement, "Regulatory Compliance Information" for more information.
For information regarding the methods to disable the Cat Product Link communication device, please refer to your specific Cat Product Link manual listed below:
• Operation and Maintenance Manual, SEBU8142, "Product Link121SR/321SR/420/421/522/523"
• Operation and Maintenance Manual, SEBU8832, "Product Link PLE601, PL641, PL631, PL542, PL240, PL241, PL141, PL131, PL161, and G0100 Systems"
Note: If no radio disable switch is installed and the equipment will be operating near a blast zone, a Product Link radio disable switch may be installed on the equipment. The switch will allow the Cat Product Link communication device to be shut off by the operator from the equipment control panel. For more details and installation procedures, refer to the following:
• Special Instruction, "Installation Procedure forProduct Link PLE640 Systems"REHS7339
• Special Instruction, "Installation Procedure for the Elite Product Link PLE601, PLE641, and PLE631 Systems"REHS8850
• Special Instruction, "Installation Procedure for the Product Link PL131, PL141, and PL161 Systems", SEHS0377
• Special Instruction, "Installation Procedure for the Pro Product Link PL641 and PL631 Systems", REHS9111
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Sat Mar 15 00:12:44 UTC+0530 2025
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
Product Link - 121SR/321SR/420/421/ 522/523
Media Number -SEBU8142-04
Publication Date -01/01/2013
Regulatory Compliance
SMCS - 1400; 4203; 4450; 7347; 7451; 7490; 7606
NOTICE
Date Updated -24/10/2017
i07161764
The transmission of information using a Caterpillar Product Link communication device is subject to legal requirements. The legal requirements may vary from location to location, including, but not limited to, radio frequency use authorization. The use of a Caterpillar Product Link communication device must be limited to those locations where all legal requirements for the use of the Caterpillar Product Link communication device and communication network have been satisfied.
If equipment outfitted with the Caterpillar Product Link communication device is located in or relocated to a location where (i) legal requirements are not satisfied or (ii) transmitting or processing of such information across multiple locations would not be legal, Caterpillar disclaims any liability related to such failure to comply, and Caterpillar may discontinue the transmission of information from that equipment.
Consult your Cat dealer with any questions that concern the operation of the Product Link system in a specific country.
PL121 and PL321 Radio Notices
FCC Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/tv technician for help
Changes or modifications to this device without the express approval of Caterpillar may void the users authority to use this device.
Industry Canada Notice to Users
This device complies with Industry Canadas license exempt RSSs. Operation is subject to the following two conditions:
• This device may not cause interference
• This device must accept any interference, including interference that may cause undesired operation of the device.
EU Notice to Users
The PL121 and PL321 have been so constructed that they can be operated in Belgium without infringing applicable requirements on the use of their radio spectrum.
PL522 and PL523 Radio Notices
FCC Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/tv technician for help
Changes or modifications to this device without the express approval of Caterpillar may void the users authority to use this device.
Industry Canada Notice to Users
This device complies with Industry Canadas license exempt RSSs. Operation is subject to the following two conditions:
• This device may not cause interference
• This device must accept any interference, including interference that may cause undesired operation of the device.
EU Notice to Users
The PL522 and PL523 have been so constructed that they can be operated in Belgium without infringing applicable requirements on the use of their radio spectrum.
Data Broadcast
The following Caterpillar Product Link communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:
Table 1
Radio Transmitter Specifications
PL421
PL522
PL523
1710 MHz - 1785 MHz
1850 MHz - 1910 MHz
824 MHz - 849 MHz
880 MHZ - 915 MHz
1710 MHz - 1785 MHz
1850 MHz - 1910 MHz
824 MHz - 849 MHz
880 MHZ - 915 MHz
1710 MHz - 1785 MHz
1850 MHz - 1910 MHz
824 MHz - 849 MHz
880 MHZ - 915 MHz
1710 MHz - 1785 MHz
1850 MHz - 1910 MHz
0.5W typical, 2W max
0.5W typical, 2W max
0.5W typical, 2W max
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Mar 15 00:13:35 UTC+0530 2025
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
Product Link - 121SR/321SR/420/421/ 522/523
Media Number -SEBU8142-04
Publication Date -01/01/2013
General Hazard Information
SMCS - 7606
Date Updated -24/10/2017
i05237789
Do not operate or work on this machine unless you have read and understand the instructions and warnings in the Operation and Maintenance Manuals. Failure to follow the instructions or heed the warnings could result in injury or death. Contact your Cat dealer for replacement manuals. Proper care is your responsibility.
Foreword
This document is a supplement to the Operation and Maintenance Manual for the machine. Permanently attach this document to the Operation and Maintenance Manual for the machine.
Introduction
This document provides information about the operation of the following:
• Product Link 121SR/321SR systems
• Product Link 522/523 systems
• Product Link 420/421 systems
Machine operation and maintenance must not occur unless the instructions and warnings in the Operation and Maintenance Manual have been read and understood. The contents of this document must be understood before a machine that is equipped with any of the following:
• Product Link 121SR/321SR system
• Product Link 522/523 system
• Product Link 420/421 system
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Mar 15 00:13:18 UTC+0530 2025
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
Product Link - 121SR/321SR/420/421/ 522/523
Media Number -SEBU8142-04
Publication Date -01/01/2013
Safety Signs and Labels
SMCS - 7606
Date Updated -24/10/2017
Do not operate or work on this machine unless you have read and understand the instructions and warnings in the Operation and Maintenance Manuals. Failure to follow the instructions or heed the warnings could result in injury or death. Contact your Cat dealer for replacement manuals. Proper care is your responsibility.
Safety Messages
The warning film in Illustration 1 can be found in a location such as the dash. The warning film will be clearly visible to the operator during the normal operation of the machine.
i05237749
This machine is equipped with a Caterpillar Product Link communication device. When electric detonators are used, this communication device should be deactivated within 12 m (40 ft) of a blast site, or within the distance mandated under applicable legal requirements. Failure to do so could cause interference with blasting operations and result in serious injury or death.
The blast site is defined as the area that handles explosive material during loading. Included is the perimeter that is formed by the loaded blast holes.
If the machine is required to work in or near a blasting site, the operator must disable the Product Link. That is, either the 121SR system or the 522/523 system must be disabled. One of the following methods are suggested in order to deactivate the Product Link 121SR system or the Product Link 522/523 system:
• Install a Product Link disconnect switch in the machine cab. This switch will allow the Product Link 121SR system or the Product Link 522/523 system module to be shut off. Refer to Special Instruction, REHS2365, "An Installation Guide for the Product Link PL121SR and for the PL300" or Special Instruction, REHS2368, "Installation Procedure For Product Link PL522/523 (Cellular)" for more details and installation instructions.
• While the blast site switch is in the OFF position, the Product Link 121SR system or the Product Link 522/523 system will no longer track Service Meter Unit (SMU) hours or VIMS data. A Service Meter Hours (SMH) adjustment will be required after power is restored to the Product Link system. Consult your Caterpillar dealer if there are any questions.
• Disconnect the Product Link 121SR system or the Product Link 522/523 system module from the main power source. This action is performed by disconnecting the wiring harness at the Product Link module.
Other Films
The film in Illustration 2 can be found in a clearly visible location. A clearly visible location during the normal operation of the machine is described as the dash.
Illustration 2 g01787075
The film in Illustration 2 is intended to inform the operator that the machine is equipped with a wireless transmitting device. Machine data, the condition of the machine, and the operation of the machine will be transmitted by the Product Link. The information is transmitted to Caterpillar and/or Caterpillar dealers to serve the customer better and to improve upon Caterpillar products and services. Transmission of information using Product Link is subject to legal requirements that may vary from location to location.
Refer to the Operation and Maintenance Manual, SEBU8142, "Operation" and the Operation and Maintenance Manual, SEBU8142, "Regulatory Compliance Section" for additional information.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Sat Mar 15 00:13:03 UTC+0530 2025
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
RM-250C, RR-250B and RM-350B Additive Spray System
Media Number -KEBU8004-02
Foreword
Literature Information
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
RM-250C, RR-250B and RM-350B Additive Spray System
Media Number -KEBU8004-02

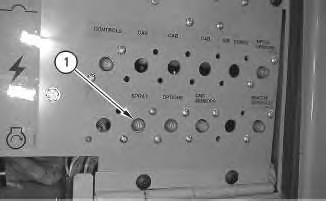

Circuit Breakers - Reset
Publication Date -01/09/2003
Date Updated -02/09/2003
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
RM-250C, RR-250B and RM-350B Additive Spray System
Media Number -KEBU8004-02
Publication Date -01/09/2003

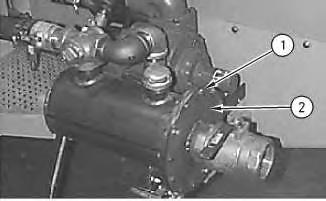

Additive Spray System Strainer - Clean
SMCS
Date Updated -02/09/2003 i01746049
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
RM-250C, RR-250B and RM-350B Additive Spray System
Media Number -KEBU8004-02
Publication Date -01/09/2003

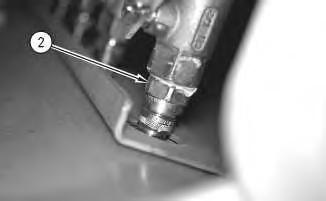

Additive Spray System Pump - Lubricate
SMCS
Note:
Date Updated -02/09/2003 i01746081
Product: ROAD RECLAIMER
Model: RM-350B ROAD RECLAIMER AXW
Configuration: RM-350B Reclaimer Mixer AXW00001-UP (MACHINE) POWERED BY 3406C Engine
Operation and Maintenance Manual
RM-250C, RR-250B and RM-350B Additive Spray System
Media Number -KEBU8004-02
Publication Date -01/09/2003

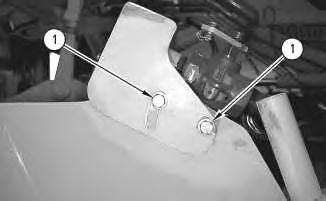

Additive Spray System Nozzles - Clean
Date Updated -02/09/2003 i01746077
