Product:MATERIALHANDLER
Model:MH3022MATERIALHANDLERFB3
Configuration:MH3022WheeledExcavatorMaterialHandlerFB300001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
M318F,M320FandM322FWheeledExcavatorsandMH3022,MH3024andMH3026 MaterialHandlers
MediaNumber-M0071982-07PublicationDate-01/08/2015DateUpdated-25/06/2018 i06795462 LiftingCapacities-MH3022-MaterialHandlerUndercarriage
andNarrowUndercarriage
SMCS-7000
S/N-FB31-2000
Failuretocomplytotheratedloadcancausepossiblepersonalinjuryor propertydamage.Thisincludestheriskofunintendedboomlowering. Reviewtheratedloadofaparticularworktoolbeforeperformingany operation.Makeadjustmentstotheratedloadasnecessaryfornonstandardconfigurations.
Theremaybelocalregulationsand/orgovernmentregulationsthatgoverntheuseofexcavators whichliftheavyobjects.Obeyalllocalandgovernmentregulations.
Liftingcapacitiesshouldbeusedasaguide.Worktools,unevengroundconditions,softground conditions,orpoorgroundconditionshaveeffectsonliftingcapacities.Theoperatorisresponsible forbeingawareoftheseeffects.
Note:Liftingcapacitiesarebaseduponastandardmachinewiththefollowingconditions:
•Completecabwitha75kg(165lb)operator
•Liftpoint:Sticknosewithoutbucket
•Lubricantsfull
•Fueltankfull
•Oscillatingaxlelocked
Note:Thedrivewheelsarealwayslocatedontherearoftheundercarriage.
Liftingcapacitieswillvarywithdifferentworktoolsandattachments.Theweightofaworktool attachmentmustbesubtractedfromtheliftcapacity.ConsultyourCatdealerregardingthelifting capacitiesforspecificworktoolsandattachments.
Thismachinemaybeequippedwithvarioussticks.Liftingcapacitiesmayvarybetweenthedifferent sticks.Measurethedistanceonthestickbetweentheboomhingepinandtheworktoolhingepin. Thisdistancewillinformyouofthesizeofthestickthatisequippedonthemachine.
Usetheliftingeyethatisprovidedonthesticknoseinordertoliftobjects.Whentheliftingeyeis used,theconnectionmustbemadewithaslingorshackle.
Theliftingcapacitiesaredefinedby"ISO105672007".Theliftingcapacitiesaredefinedasthe lowervalueof75%ofthestatictippingcapacityor87%ofthehydraulicliftcapacity.
Note:InEuropeancountries,regulationsrequirealoadsensingindicatorandaboomandstick loweringcontroldeviceifmorethan1000kg(2200lb)isliftedduringobjecthandlingapplications. Regulationsalsorequirealoadsensingindicatorandaboomloweringcontroldeviceifamoment thatisgreaterthan40000N·m(29500lbft)iscreatedduringobjecthandlingapplications.Ifthe machineisnotequippedwiththesedevices,evenifthehydraulicliftcapacityiscapable,donot exceedaloadof1000kg(2200lb).Donotexceedamomentthatisgreaterthan40000N·m (29500lbft)inEuropeanobjecthandlingapplications.
SymbolsFoundintheLiftingCapacityCharts
Belowaresymbolsthatarecommonlyfoundonliftingcapacitychartsfortrackexcavators.
Note:Dependingonthemachineconfiguration,somesymbolsmaynotbeused.
Weightmeasurementsarein kilograms
Liftingcapacityoverthefrontofthe machine
Liftingcapacityovertherearofthe machine
Liftingcapacityoverthesideofthe machine
Loadislimitedbyhydrauliclifting capacityratherthanbyatipping load
(A)-MaterialHandlingUndercarriage-Frontstabilizersraisedandrearstabilizersraised.
(B)-MaterialHandlingUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.
(C)-NarrowUndercarriage-Frontstabilizersraisedandrearstabilizersraised.(SolidTires)
(D)-NarrowUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.(SolidTires)
(E)-StandardUndercarriage-Frontstabilizersraisedandreardozerraised.
(F)-StandardUndercarriage-Frontstabilizersloweredandreardozerlowered.
(G)-StandardUndercarriage-Frontstabilizersraisedandrearstabilizersraised.
(H)-StandardUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.
(J)-StandardUndercarriage-Frontdozerraisedandrearstabilizersraised.
(K)-StandardUndercarriage-Frontdozerloweredandrearstabilizerslowered.

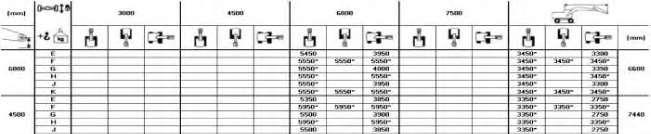

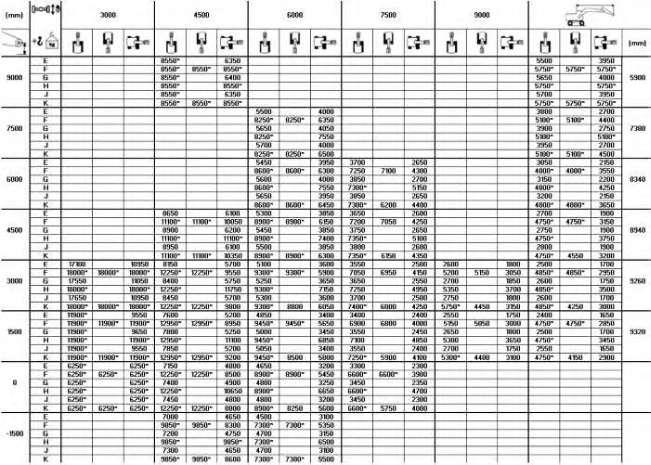

Illustration1g03716399

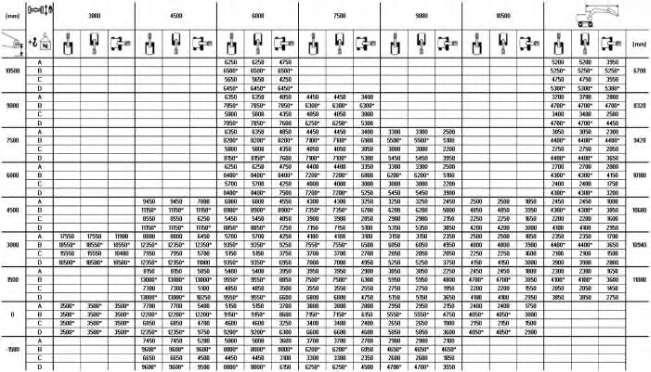

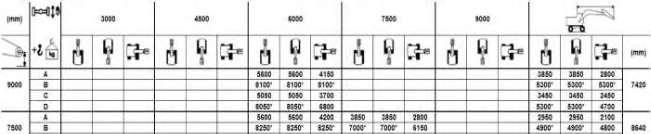

2800mm(110inch)Stick

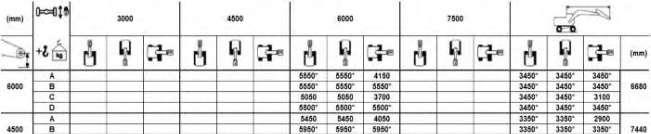

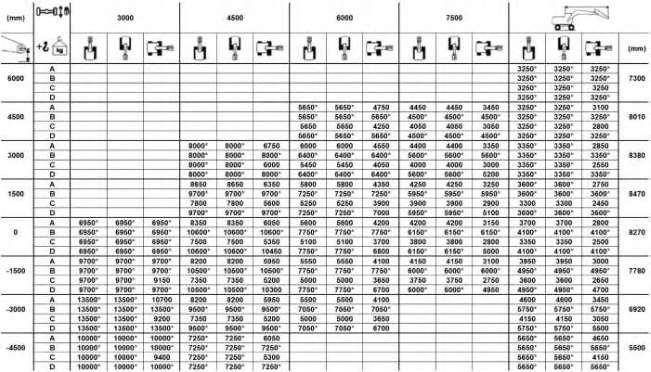

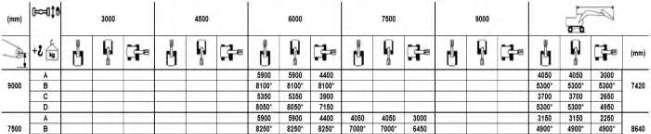

Illustration2g03716400
3300mm(130inch)IndustrialStick

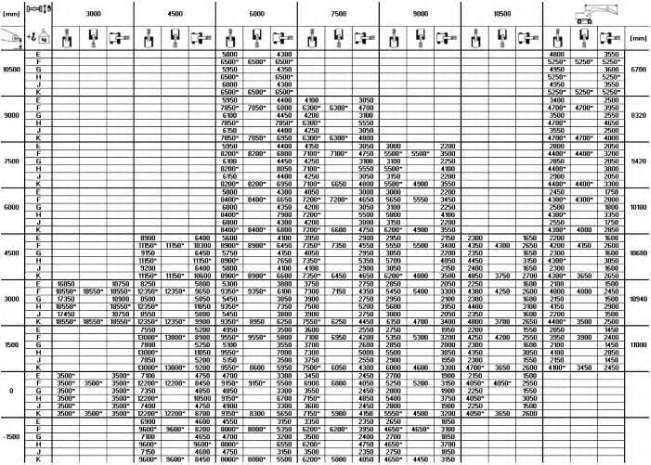

MaterialHandlerBoom-6400mm(252inch)
4900mm(193inch)MaterialHandlingStick

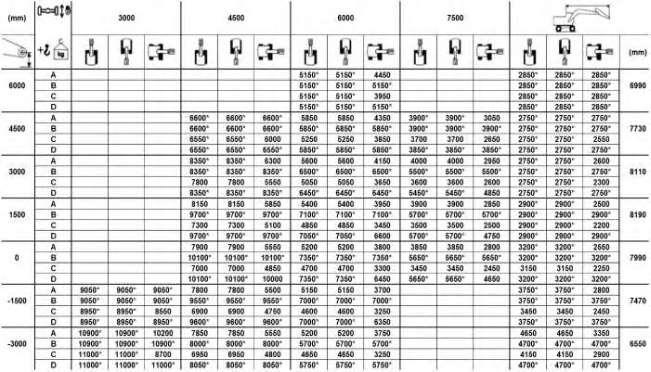

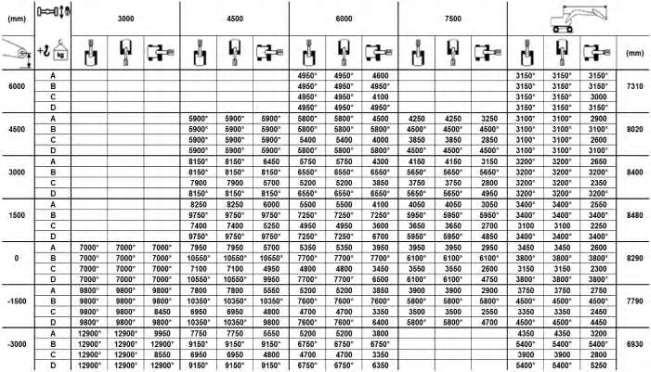

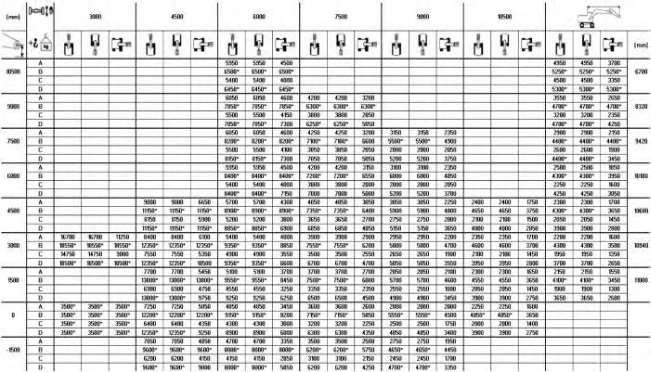

Illustration4g03716421

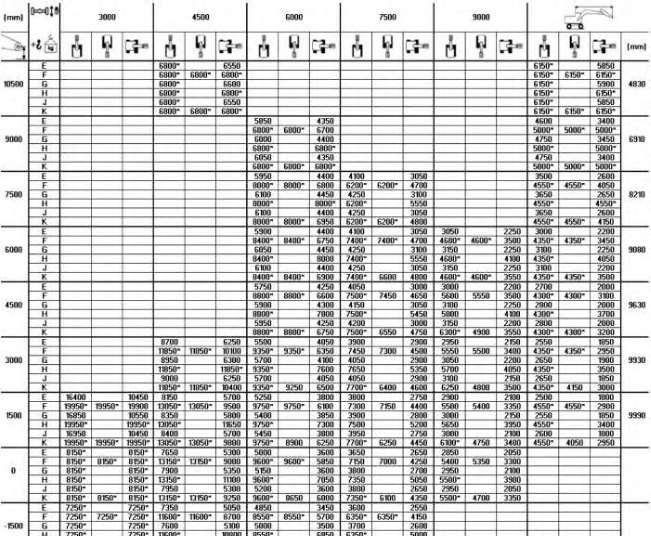

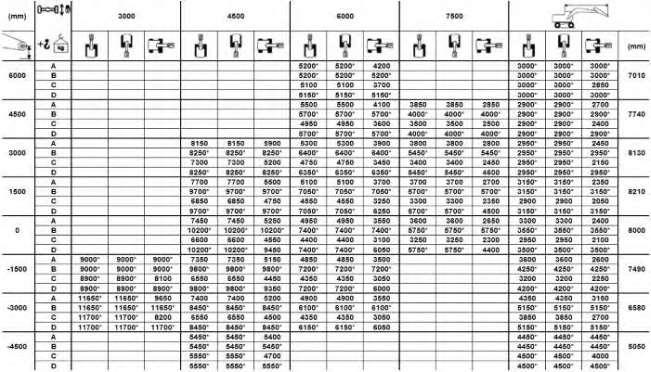

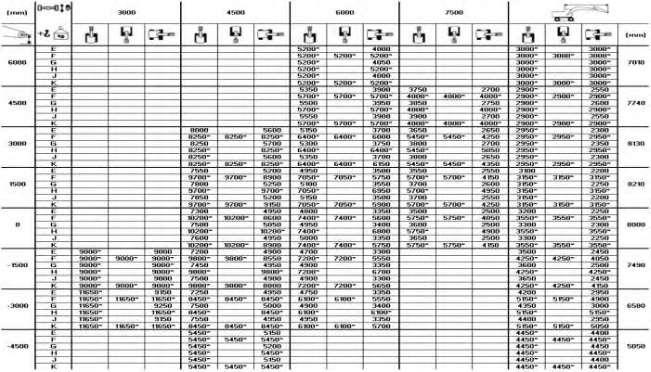

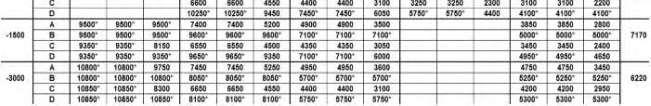

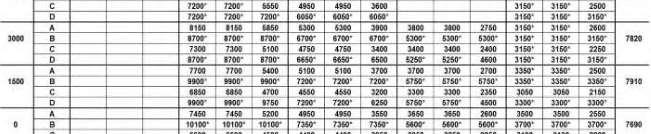

4200mm(165inch)StraightStick Illustration5g03716424
MaterialHandlerBoom-5350mm(211inch)
4900mm(193inch)MaterialHandlingStick
4200mm(165inch)StraightStick

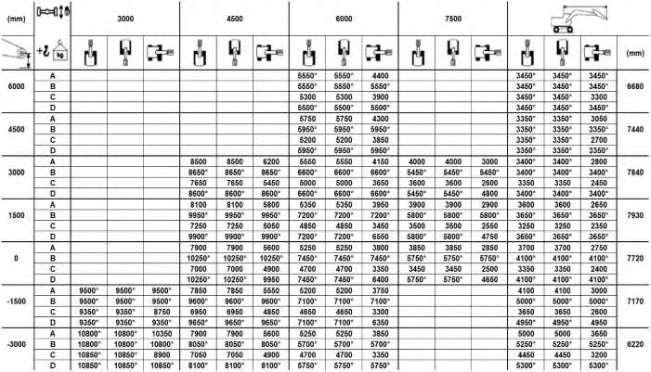

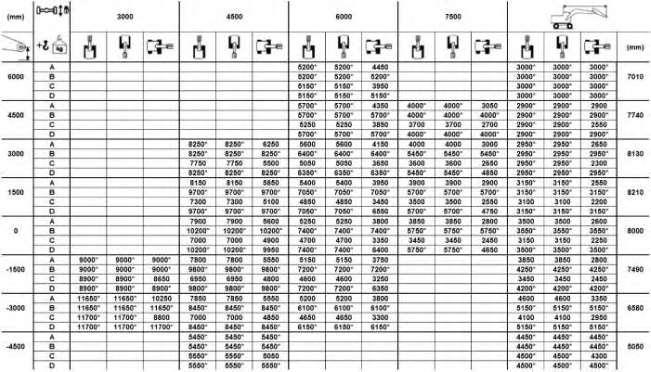

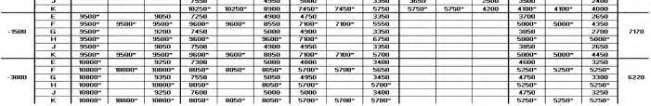

Illustration7g03716422

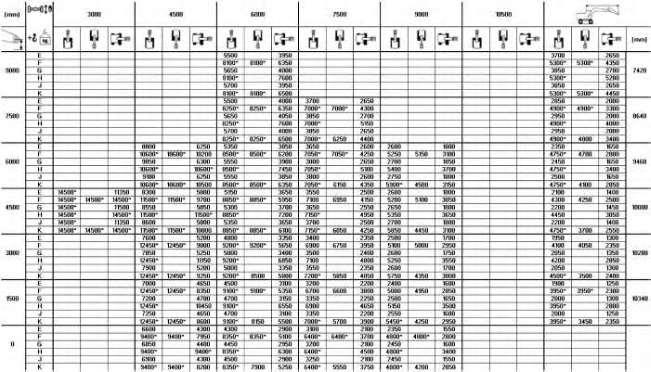

VariableAngleBoom

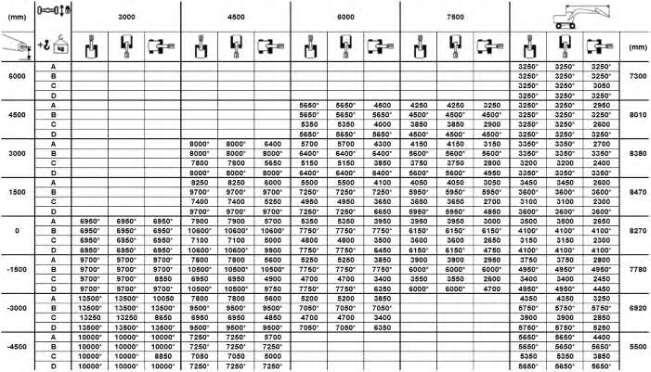

2500mm(98inch)Stick

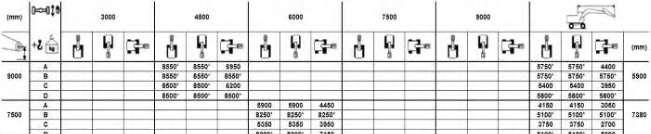

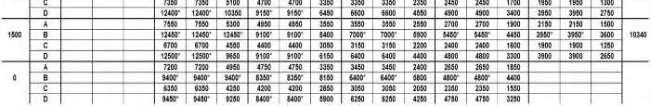

Illustration8g03716408
2800mm(110inch)Stick

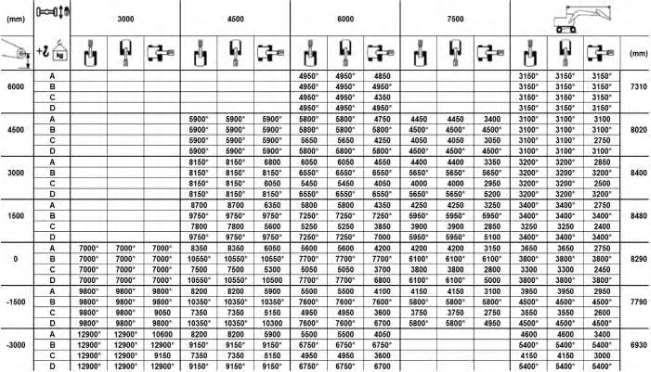

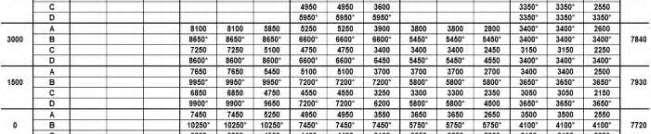

Illustration9g03716409
3300mm(130inch)IndustrialStick
4200kg(9259lb)Counterweight
One-PieceBoom
2500mm(98inch)Stick
2800mm(110inch)Stick

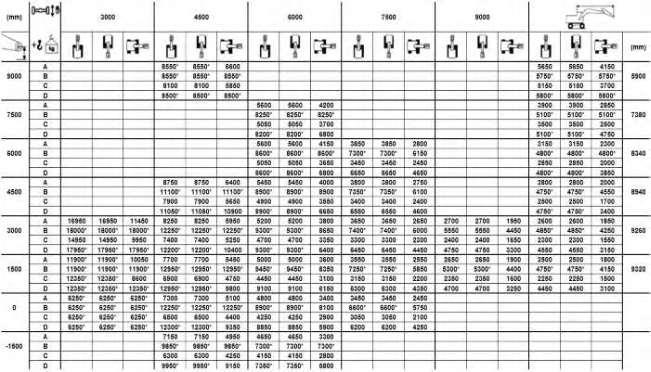

Illustration12g03716413
3300mm(130inch)IndustrialStick

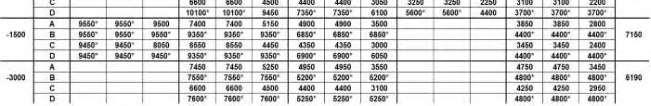

Illustration13g03716414
MaterialHandlerBoom-6400mm(252inch)
4900mm(193inch)MaterialHandlingStick

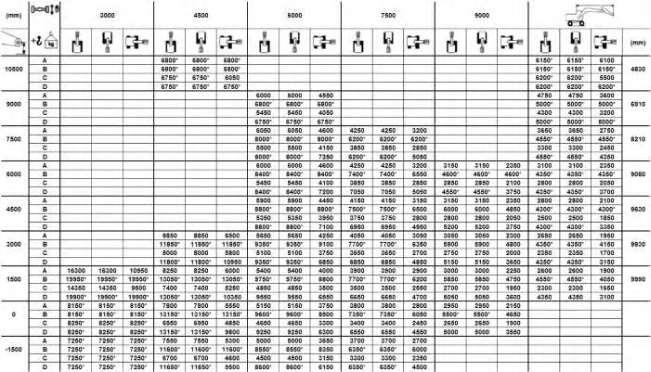

Illustration14g03716425
4200mm(165inch)StraightStick
MaterialHandlerBoom-5350mm(211inch)
4900mm(193inch)MaterialHandlingStick
Illustration16g03716426
4200mm(165inch)StraightStick
VariableAngleBoom
2500mm(98inch)Stick
Illustration18g03716416
2800mm(110inch)Stick
Illustration19g03716417
3300mm(130inch)IndustrialStick
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonNov801:06:16UTC+05302021
Product:MATERIALHANDLER
Model:MH3022MATERIALHANDLERFB3
Configuration:MH3022WheeledExcavatorMaterialHandlerFB300001-UP(MACHINE)POWEREDBYC7.1Engine
OperationandMaintenanceManual
M318F,M320FandM322FWheeledExcavatorsandMH3022,MH3024andMH3026 MaterialHandlers
MediaNumber-M0071982-07PublicationDate-01/08/2015DateUpdated-25/06/2018
LiftingCapacities-MH3022-StandardUndercarriage
SMCS-7000
S/N-FB31-2000
Failuretocomplytotheratedloadcancausepossiblepersonalinjuryor propertydamage.Thisincludestheriskofunintendedboomlowering. Reviewtheratedloadofaparticularworktoolbeforeperformingany operation.Makeadjustmentstotheratedloadasnecessaryfornonstandardconfigurations.
Theremaybelocalregulationsand/orgovernmentregulationsthatgoverntheuseofexcavators whichliftheavyobjects.Obeyalllocalandgovernmentregulations.
Liftingcapacitiesshouldbeusedasaguide.Worktools,unevengroundconditions,softground conditions,orpoorgroundconditionshaveeffectsonliftingcapacities.Theoperatorisresponsible forbeingawareoftheseeffects.
Note:Liftingcapacitiesarebaseduponastandardmachinewiththefollowingconditions:
•Completecabwitha75kg(165lb)operator
•Liftpoint:Sticknosewithoutbucket
•Lubricantsfull
•Fueltankfull
•Oscillatingaxlelocked
Note:Thedrivewheelsarealwayslocatedontherearoftheundercarriage.
Liftingcapacitieswillvarywithdifferentworktoolsandattachments.Theweightofaworktool attachmentmustbesubtractedfromtheliftcapacity.ConsultyourCatdealerregardingthelifting capacitiesforspecificworktoolsandattachments.
Thismachinemaybeequippedwithvarioussticks.Liftingcapacitiesmayvarybetweenthedifferent sticks.Measurethedistanceonthestickbetweentheboomhingepinandtheworktoolhingepin. Thisdistancewillinformyouofthesizeofthestickthatisequippedonthemachine.
Usetheliftingeyethatisprovidedonthesticknoseinordertoliftobjects.Whentheliftingeyeis used,theconnectionmustbemadewithaslingorshackle.
Theliftingcapacitiesaredefinedby"ISO105672007".Theliftingcapacitiesaredefinedasthe lowervalueof75%ofthestatictippingcapacityor87%ofthehydraulicliftcapacity.
Note:InEuropeancountries,regulationsrequirealoadsensingindicatorandaboomandstick loweringcontroldeviceifmorethan1000kg(2200lb)isliftedduringobjecthandlingapplications. Regulationsalsorequirealoadsensingindicatorandaboomloweringcontroldeviceifamoment thatisgreaterthan40000N·m(29500lbft)iscreatedduringobjecthandlingapplications.Ifthe machineisnotequippedwiththesedevices,evenifthehydraulicliftcapacityiscapable,donot exceedaloadof1000kg(2200lb).Donotexceedamomentthatisgreaterthan40000N·m (29500lbft)inEuropeanobjecthandlingapplications.
SymbolsFoundintheLiftingCapacityCharts
Belowaresymbolsthatarecommonlyfoundonliftingcapacitychartsfortrackexcavators.
Note:Dependingonthemachineconfiguration,somesymbolsmaynotbeused.
Liftingcapacityoverthefrontofthe machine
Liftingcapacityovertherearofthe machine
Liftingcapacityoverthesideofthe machine
Loadislimitedbyhydrauliclifting capacityratherthanbyatipping load
(A)-MaterialHandlingUndercarriage-Frontstabilizersraisedandrearstabilizersraised.
(B)-MaterialHandlingUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.
(C)-NarrowUndercarriage-Frontstabilizersraisedandrearstabilizersraised.(SolidTires)
(D)-NarrowUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.(SolidTires)
(E)-StandardUndercarriage-Frontstabilizersraisedandreardozerraised.
(F)-StandardUndercarriage-Frontstabilizersloweredandreardozerlowered.
(G)-StandardUndercarriage-Frontstabilizersraisedandrearstabilizersraised.
(H)-StandardUndercarriage-Frontstabilizersloweredandrearstabilizerslowered.
(J)-StandardUndercarriage-Frontdozerraisedandrearstabilizersraised.
(K)-StandardUndercarriage-Frontdozerloweredandrearstabilizerslowered. 3700kg(8157lb)Counterweight
Illustration1g03715831
2800mm(110inch)Stick
Illustration2g03715832
3300mm(130inch)IndustrialStick
Illustration3g03715858
MaterialHandlerBoom-6400mm(252inch)
4900mm(193inch)MaterialHandlingStick
Illustration4g03715861
4200mm(165inch)StraightStick
Illustration5g03715878
MaterialHandlerBoom-5350mm(211inch)
4900mm(193inch)MaterialHandlingStick
Illustration6g03715886
4200mm(165inch)StraightStick
VariableAngleBoom
2500mm(98inch)Stick
