AirCompressorOil-Change
SMCS-1803-044-OC;1803-510-OC
PressurizedSystem!
Theairsystemcontainshotoilunderpressureandcancauseserious burns,injuryordeath.Releasetheairsystempressureinorderto preventburnsfromthesuddenreleaseofhotoil.
ReadandunderstandtheinformationfoundinOperationand MaintenanceManual,"SystemPressureRelease"beforeperforming anymaintenance.
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
NOTICE
Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjusting,andrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers
This is the sample of the manual if you need complete manual Click Here to download
beforeopeninganycompartmentordisassemblinganycomponent containingfluids.
RefertoSpecialPublication,NENG2500,"DealerServiceTool Catalog"fortoolsandsuppliessuitabletocollectandcontainfluidson Cat®products.
Disposeofallfluidsaccordingtolocalregulationsandmandates.
NOTICE
Astandardoilchangeintervalisevery1000servicehourswhen preferredoilsareusedandS·O·Smonitoringoftheoilisperformed every250servicehours.Anoilchangeisstronglyrecommendedwhen theoildeteriorationorcontaminationisdetected.
Whentheserequirementsarenotmet,shortentheoilchangeinterval toevery250servicehours,oruseanS·O·SServicesoilsamplingand analysisprograminordertodetermineanacceptableoilchange interval.
Ifyouselectanintervalforoilchangethatistoolong,youmaydamage theaircompressor.
OilChangeInterval
Thestandardoilchangeintervalisevery1000servicehourswhenusingalubricantthatmeetsthe performancerequirementsofthepreferredoilsandS·O·Smonitoringoftheoilisperformedevery 250servicehours.
Anoilchangeisstronglyrecommendedwhentheoildeteriorationorcontaminationisdetected. Themaintenanceintervalfortheoilfilterisnotchanged.
Machinesthatusesecondchoiceoilsarenotincludedinthe1000servicehourmaintenance interval.Whensecondchoiceoilsareused,shortentheoilchangeintervaltoevery250service hours,oruseanS·O·SServicesoilsamplingandanalysisprogramtodetermineanacceptableoil changeinterval.
RefertothisOperationandMaintenanceManual,"LubricantViscosities"forfurtherinformation aboutoilsthatmaybeusedintheaircompressor.
ProceduretoChangetheAirCompressorOil
1.Parkthemachineonalevelsurface.Stoptheengine.
Note:Drainthecompressorwhiletheoiliswarm.Thewarmoilwillallowwasteparticles thataresuspendedintheoiltodrain.
2.Releasetheairsystempressure.SeeOperationandMaintenanceManual,"SystemPressure Release".
Illustration1g03888010

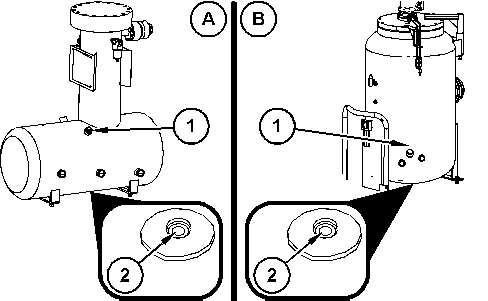

(A)HighPressureAirReceiverTank(IfEquipped) (B)LowPressureAirReceiverTank(IfEquipped) (1)FillPlug (2)DrainValve
3.Opendrainvalve(2)ontheairreceivertankanddraintheoilintoasuitablecontainer.The drainvalvecanbeaccessedfromgroundlevel.
Note:Ifequipped,youcanusetheremotedrainvalvetodrainthecompressor.
Illustration2g06217907 AirCompressorCooler
4.Openthedrainplugontheaircompressorcooleranddrainintoasuitablecontainer.The drainvalvecanbeaccessedfromgroundlevel.
Note:RefertoOperationandMaintenanceManual,"GeneralHazardInformation"for informationthatpertainstocontainingfluidspillage.
5.Closethedrainvalveontheairreceivertank.Closethedrainvalveontheaircompressor cooler.
6.Replacetheaircompressoroilfilter.SeeOperationandMaintenanceManual,"Air CompressorOilFilter-Change"
7.Removefillplug(1)onthereceivertankandfillthereceivertankwithoil.Referto OperationandMaintenanceManual,"Capacities(Refill)"and"LubricantViscosities".
8.Cleanthefillplug.Installthefillplug.
9.Starttheengineandallowtheoiltowarm.Checkforanyleaks.Stoptheengine.
10.Letthecompressorcoolthenchecktheoillevel.Ifnecessary,addoil.RefertoOperation andMaintenanceManual,"AirCompressorOilLevel-Check".
Copyright1993-2021CaterpillarInc. AllRightsReserved. FriApr1621:05:35UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirCompressorOilFilter-Change
PressurizedSystem!
Theairsystemcontainshotoilunderpressureandcancauseserious burns,injuryordeath.Releasetheairsystempressureinorderto preventburnsfromthesuddenreleaseofhotoil.
ReadandunderstandtheinformationfoundinOperationand MaintenanceManual,"SystemPressureRelease"beforeperforming anymaintenance.
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
1.Parkthemachineonalevelsurface.Stoptheengine.
Note:Drainthecompressorwhiletheoiliswarm.Thewarmoilwillallowwasteparticles thataresuspendedintheoiltodrain.
2.Releasetheairsystempressure.SeeOperationandMaintenanceManual,"SystemPressure Release".
Illustration1g06133010
Theaircompressoroilfilterismountednearthecoolerontheleftsideofthemachine (1)HeadAssembly (2)RotolockRing (3)FilterBowl (4)DrainPlug
3.Removethedrainpluganddrainthebowl.
4.Unscrewandremovethefilterbowlfromtheheadassembly.Usealeverontherotolock ringifnecessary.
5.Removethefilerelementfrominsidethefilterbowlandinspectthesurfacefor contamination.SeeOperationandMaintenanceManual,"OilFilter-Inspect".
6.Discardthefilterelementandtheassociatedo-ring.Donotattempttocleanthefilter element,degradationfollowedbycontaminationcanoccur.
Note:DONOTrunthesystemwithoutafilterelementinstalled.
7.CheckthattheO-ringintheheadassemblyisnotdamaged.ReplacetheO-ringifwearor damageisobserved.
8.Checkthatbypasscheckvalvesareclosedandundamaged.
9.LubricatetheO-ringintheheadassemblywithcleansystemfluidandpushtheopenendof thefilterelementintotheheadassembly.
10.Cleanoutthefilterbowlandlightlylubricatethethreadswithcleansystemfluid.
11.Screwthefilterbowlontotheheadassemblyuntilthebowlbottoms.Thesealingdoesnot improvewithovertightening.
Illustration2g06133030 (A)HighPressureCompressorStrainerAssembly(IfEquipped) (B)LowPressureCompressorStrainerAssembly(IfEquipped) (5)Strainer (6)Orifice
12.Cleananystrainersandorificesonthescavengerlines.
13.Starttheengineandactivatetheaircompressor.Checkforanyleaksaroundthenewfilter.
14.Checkthesightglassoneachstrainertocheckthefluidflow.
Thereshouldalwaysbeatleastasmallflow.Sluggishflowatfullloadindicatestheorifice needstobecleanedandfullflowindicatesthattheseparatorelementshouldbereplaced.
15.Stoptheengine.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1621:06:47UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirCompressorOilLevel-Check
PressurizedSystem!
Theairsystemcontainshotoilunderpressureandcancauseserious burns,injuryordeath.Releasetheairsystempressureinorderto preventburnsfromthesuddenreleaseofhotoil.
ReadandunderstandtheinformationfoundinOperationand MaintenanceManual,"SystemPressureRelease"beforeperforming anymaintenance.
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
OilLevelSightGauge (1)FillPlug (2)SightGauge

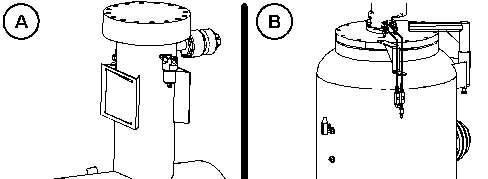

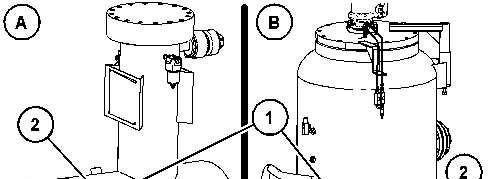

(A)High-PressureAirreceiverTank(IfEquipped) (B)Low-PressureAirreceiverTank(IfEquipped)
1.Parkthemachineonalevelsurface.Stoptheengine.
2.Maintaintheoillevelinthemiddleofsightgauge(2).
3.Ifnecessary,followtheprocedurebelowtoaddoil:
RefertoOperationandMaintenanceManual,"LubricantViscosities".
a.Releasetheairsystempressure.SeeOperationandMaintenanceManual,"System PressureRelease".
b.RemoveFillPlug(1).
c.Addoil.Installthefillplug.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1621:07:01UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirCompressorOilSample-Obtain
Illustration1g06242364
(A)HighPressureAirCompressorFillPlug
(B)LowPressureAirCompressorFillPlug
i06830193
Theaircompressoroilfiltersamplingvalvecanbefoundwithinthecompartmentboxmounted nexttothecompressor.
Illustration2g06242353

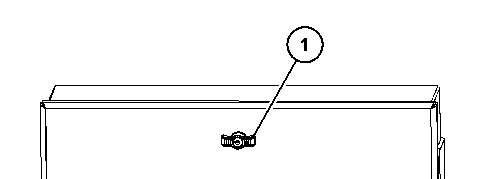

Compartmentbox (1)Knob
Loosentheretainknob.Turntheknobcounterclockwisetoremovethecoverplate.

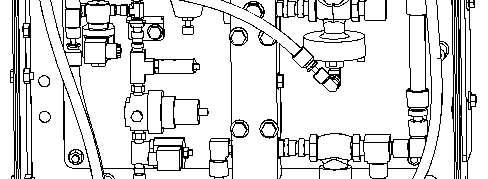

Illustration3g06242362 Compartmentboxwithoutcoverplate.
(2)AirCompressoroilsamplingvalve

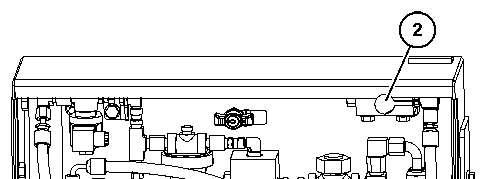

Theaircompressoroilsamplingvalve(2)fortheaircompressorislocatedwithinthe compartment.
RefertoSpecialPublication,SEBU6250,"S·O·SOilAnalysis"forinformationthatpertainsto obtainingasampleofoil.RefertoSpecialPublication,PEGJ0047,"HowToTakeAGoodOil Sample"formoreinformationaboutobtainingasampleofoil.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1621:07:16UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirCompressorOilSeparatorFilter-Replace-High Pressure-IfEquipped
SMCS-1803-FI
Note:Useanappropriateladdertoperformthefollowingprocedure.
Failuretouseanappropriateexternalladder,oranappropriate platform,fordirectaccesstothecomponentswhenperformingrequired maintenancecouldresultinslippingandfallingwhichcouldresultin personalinjuryordeath.Besuretouseanappropriateexternalladder, oranappropriateplatform,fordirectaccesstothecomponentswhen performingmaintenance.
PressurizedSystem!
Theairsystemcontainshotoilunderpressureandcancauseserious burns,injuryordeath.Releasetheairsystempressureinorderto preventburnsfromthesuddenreleaseofhotoil.
ReadandunderstandtheinformationfoundinOperationand MaintenanceManual,"SystemPressureRelease"beforeperforming anymaintenance.
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
1.Parkthemachineonalevelsurface.Stoptheengine.
2.Releasetheairsystempressure.SeeOperationandMaintenanceManual,"SystemPressure Release".
Illustration1g03865071

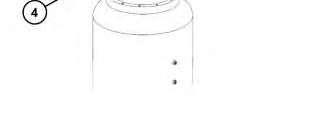

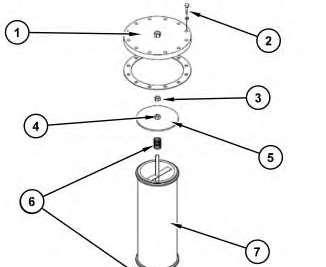

ReceiverTankSeparatorConfiguration (1)ReceiverLid (2)Capscrew (3)JamNut (4)SealingNut (5)SeparatorPlate (6)GroundingSpring (7)SeparatorElement
3.Cleanthetopofthereceivertankthoroughlyinordertokeepdirtoutofthereceivertank.
4.Removethereceivertankcoverbyremovingthe12Capscrews(2)onthelid.
5.RemovetheJamNut(3)andtheSealingNut(4).
6.Removetheseparatorcoverplatefromthetopoftheseparatorelement.
7.Removeanddiscardtheseparatorelement.Disposeoftheelementaccordingtolocal regulations.
8.Cleanthesealingsurfacesonthereceivertankandonthereceivertank.Makesurethatthe insideofthereceiverisfreeofparticles.
9.ApplyathincoatofoiltoO-ringofthenewfilterelement.Installnewfilterelementinside thereceivertank.Besurethatbothgroundingspringsarefittedateachendoftheelement.
10.Reinstalltheseparatorplate.ReinstalltheSealingNut(4)andJamNut(3).
Note:Ensurethatthemetalcontactsembeddedinthegasketareseatedcorrectlyand providepropercontactbetweenthereceivertankandreceivertankcover.
11.Reinstallthereceivertankcoveronthereceivertankandreinstallall12Capscrews.
12.Starttheengineandallowtheoiltowarm.Checkforleaks.Stoptheengine.
13.Checktheoillevel.Ifnecessary,addoil.
RefertoOperationandMaintenanceManual,"AirCompressorOilLevel-Check(High Pressure)".
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1621:07:50UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirCompressorOilSeparatorFilter-Replace-Low Pressure-IfEquipped
SMCS-1803-FI
PressurizedSystem!
Theairsystemcontainshotoilunderpressureandcancauseserious burns,injuryordeath.Releasetheairsystempressureinorderto preventburnsfromthesuddenreleaseofhotoil.
ReadandunderstandtheinformationfoundinOperationand MaintenanceManual,"SystemPressureRelease"beforeperforming anymaintenance.
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
1.Parkthemachineonalevelsurface.Stoptheengine.
2.Releasetheairsystempressureandletthesystemcoolbeforedoinganywork.See OperationandMaintenanceManual,"SystemPressureRelease".
3.Cleanthetopofthereceivertankthoroughlytokeepdirtoutofthereceivertank.
4.Loosentheflextubeconnectorthentagandremovetheprimaryandsecondaryoilreturn tubes.
5.Removethecapscrewsandlockwashersthatsecurethecover.
Illustration1g03864640
ReceiverTank
(1)Boom
(2)SecondaryOilReturn
(3)PrimaryOilReturn
(4)PrimarySeparatorElement
(5)SecondarySeparatorElement
6.Pryuponthecovertobreakthesealbetweenthecoverandtheseparatorgasket.
7.UsetheBoomtoswingthecovertooneside.Besurethattheedgeofthecoverrestsonthe flangeofthetankforsupport.
8.LiftoutthePrimaryandSecondarySeparatorElements.Disposeoftheelementsaccording tolocalregulations.
9.Cleanthesurfaceofthereceivertankflangeofanyoldgasketmaterial,beingcarefulnotto letanymaterialfallintothetank.Dothesamewiththeundersideofthecover.
10.InstallnewPrimaryandSecondarySeparatorElementswithbondedgaskets.
Note:Ensurethatthemetalcontactsembeddedinthegasketareseatedcorrectlyand providepropercontactbetweenthereceivertankandreceivertankcover.
11.Reinstallthecoverandreinstallthecapscrewsandlockwashers.
12.Tightenthecapscrewsevenlyinacriss-crosspattern.Alwaystightencapscrewsalternately atoppositesidesofthecover.
13.InstallthePrimaryandSecondaryOilReturntubes.Carefullypushthetubestothebottom oftheseparator,thenliftslightly.Retightentheflextubeconnectors.
14.Reconnectanyconnectionsremovedandmakesurethatallconnectionsaretight.
15.Starttheengineandallowtheoiltowarm.Checkforleaks.Stoptheengine.
16.Checktheoillevel.Ifnecessary,addoil.
RefertoOperationandMaintenanceManual,"AirCompressorOilLevel-Check(High Pressure)".
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr1621:07:30UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
i06830571
AirConditioner/CabHeaterFilter(Recirculation)Inspect/Replace
SMCS-1054-040-A/C;1054-510-A/C
NOTICE
Anairrecirculationfilterelementpluggedwithdustwillresultin decreasedperformanceandservicelifetotheairconditionerorcab heater.
Topreventdecreasedperformance,cleanthefilterelement,as required.

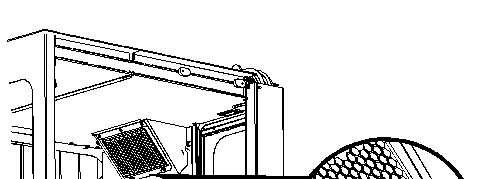

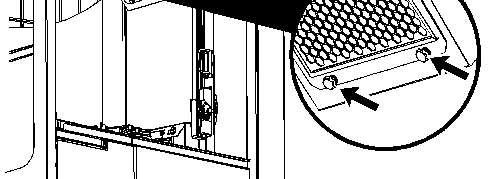

Illustration1g06212301 Theairconditionerfilterismountedatthefronttopsideofthecab.
1.Loosentworetainingknobs.Turnknobcounterclockwisetoremovethecoverplate.
2.Removethefilter.
3.Taptheairfiltertoremovethedirt.Donotusecompressedairtocleanthefilter.
4.Afteryoucleanthefilterelement,inspectthefilterelement.Ifthefilterelementisdamaged orbadlycontaminated,useanewfilterelement.Makesurethatthefilterelementisdry.
5.Installthefilterelementandcoverplate.Turnknobsclockwisetosecurethecoverplate.
NOTICE
Failuretoreinstallthefilterelementfortheairconditioningsystem willcontaminateanddamagethesystemcomponents. Copyright1993-2021CaterpillarInc.
FriApr1621:08:04UTC+05302021
PreviousScreen
Product:ROTARYDRILL
Model:MD6310ROTARYDRILLDLZ
Configuration:MD6310RotaryBlastholeDrillDLZ00001-UP(MACHINE)POWEREDBYC32Engine
OperationandMaintenanceManual
MD6310RotaryDrill
MediaNumber-M0079978-02PublicationDate-01/09/2018DateUpdated-29/05/2018
AirFilterElements-Clean/Replace

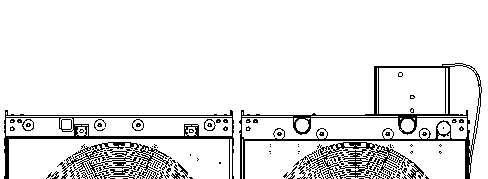

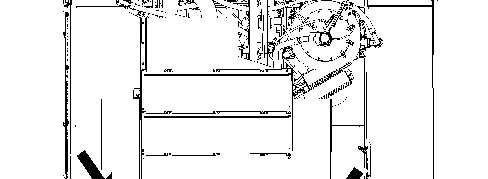

SMCS-1054-070;1054-510 Illustration1g06219528 Fourairfilterelementlocations.

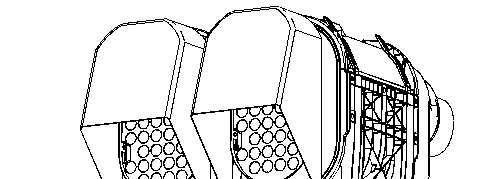

Thismachinecomesequippedwithairfilterstowardthefrontandmiddleofthemachine.
Illustration2g06128942

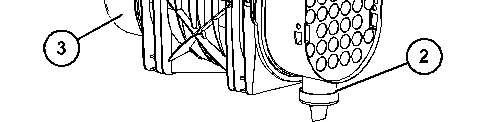

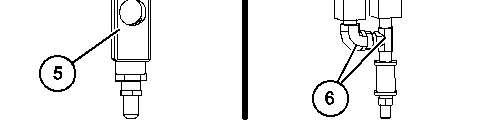

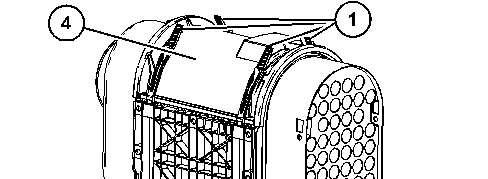

(1)HousingCoverLatches (2)Valve (3)AirFilterHousing (4)AirFilterHousingCover
Illustration3g06128949

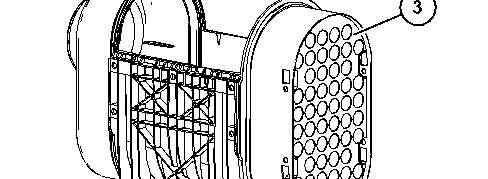

(3)AirFilterHousing
(4)AirFilterHousingCover

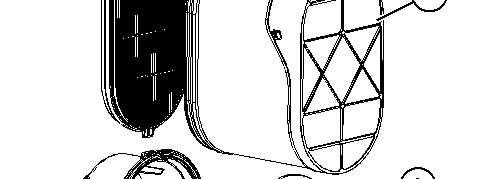

(5)PrimaryFilterElement
(6)SecondaryFilterElement
Eachairfilterhousinghasfourlatchesholdingthefiltercoverinplace.Eachfilterhousingholdsa primaryandasecondaryfilterelement.
RefertoOperationandMaintenanceManual,"AirFilterRestrictionIndicator-Check"for informationonwhentochangethefilterelements.

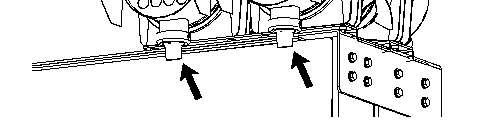

1.Ifequipped,removethevalveandsqueezetheoutlettubebeneatheachfilter.Doingsowill purgethedirtfromtheoutlettubes.
2.Releasethelatchesandremovethefiltercoverbypullingthecoverhandle.Cleanthefilter cover.
3.Removeprimaryfilterelement(5)fromthefilterhousing(3).Inspecttheprimaryfilter element.Cleanorreplaceifnecessary.
Note:Referto"Inspecting&CleaningPrimaryAirFilterElements".
NOTICE
Alwaysreplacethesecondaryfilterelement(6).Neverattempttoreuse thesecondaryfilterelementbycleaningtheelement.
Whentheprimaryfilterelementisreplaced,thesecondaryfilter elementshouldbereplaced.
Thesecondaryfilterelementshouldbereplacediftheairfilteris restrictedaftertheinstallationofacleanprimaryfilterelement.
4.Removethesecondaryfilterelement.Examinethesecondaryfilterelementforcleanliness. Replaceifnecessary.
Note:Replacethesecondaryfilterelementiftheprimaryelementisreplaced.Replacethe secondaryfilterelementiftheairfilterremainsrestrictedaftertheinstallationofaprimary filterelementthathasbeencleaned.
5.Covertheairinletopening.Cleantheinsideoftheaircleanerhousing.
This is the sample of the manual if you need complete manual Click Here to download
