M322D MH WHEELED EXCAVATOR

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07 Publication Date -01/12/2014 Date Updated -20/06/2017

Foreword

Literature Information

s00037320

This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.

This manual contains safety information, operation instructions, transportation information, lubrication information and maintenance information.

Some photographs or illustrations in this publication show details or attachments that can be different from your machine. Guards and covers might have been removed for illustrative purposes.

Continuing improvement and advancement of product design might have caused changes to your machine which are not included in this publication. Read, study and keep this manual with the machine.

Whenever a question arises regarding your machine, or this publication, please consult your Cat dealer for the latest available information.

Safety

The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning signs and labels used on the machine.

Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this machine.

Operation

The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation and towing information.

Photographs and illustrations guide the operator through correct procedures of checking, starting, operating and stopping the machine.

Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.

Maintenance

The maintenance section is a guide to equipment care. The Maintenance Interval Schedule (MIS) lists the items to be maintained at a specific service interval. Items without specific intervals are listed under the "When Required" service interval. The Maintenance Interval Schedule lists the page number for the step-by-step instructions required to accomplish the scheduled maintenance. Use the Maintenance Interval Schedule as an index or "one safe source" for all maintenance procedures.

Maintenance Intervals

Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if they provide more convenient servicing schedules and approximate the indicated service hour meter reading. Recommended service should always be performed at the interval that occurs first.

Under extremely severe, dusty or wet operating conditions, more frequent lubrication than is specified in the maintenance intervals chart might be necessary.

Perform service on items at multiples of the original requirement. For example, at every 500 service hours or 3 months, also service those items listed under every 250 service hours or monthly and every 10 service hours or daily.

California Proposition 65 Warning

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.

Certified Engine Maintenance

Proper maintenance and repair is essential to keep the engine and machine systems operating correctly. As the heavy duty off-road diesel engine owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.

It is prohibited for any person engaged in the business of repairing, servicing, selling, leasing, or trading engines or machines to remove, alter, or render inoperative any emission related device or element of design installed on or in an engine or machine that is in compliance with the regulations (40 CFR Part 89). Certain elements of the machine and engine such as the exhaust system, fuel system, electrical system, intake air system and cooling system may be emission related and should not be altered unless approved by Caterpillar.

Machine Capacity

Additional attachments or modifications may exceed machine design capacity which can adversely affect performance characteristics. Included would be stability and system certifications such as brakes, steering, and rollover protective structures (ROPS). Contact your Cat dealer for further information.

Cat Product Identification Number

Effective First Quarter 2001 the Cat Product Identification Number (PIN) has changed from 8 to 17 characters. In an effort to provide uniform equipment identification, Caterpillar and other construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all Cat machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following:

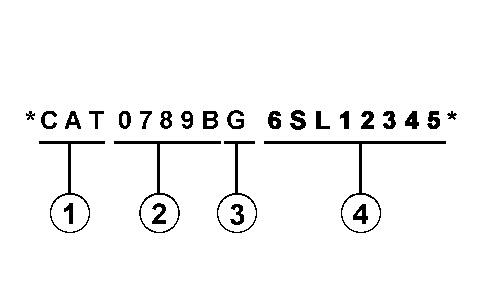

Illustration 1 g00751314

Where:

1. Caterpillar's World Manufacturing Code (characters 1-3)

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number.

Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format.

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

For some reason if link does not work download this pdf and then click

Components such as engines, transmissions, axles, etc. and work tools will continue to use an 8 character Serial Number (S/N).

Tue Feb 13 09:01:13 UTC+0530 2024





Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07

Publication Date -01/12/2014

Mirror Bracket - Lubricate

SMCS - 7319

Date Updated -20/06/2017

i04340069

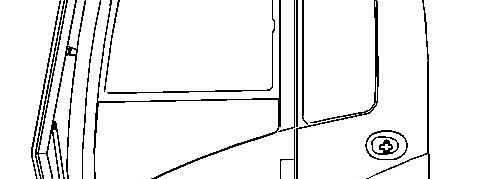

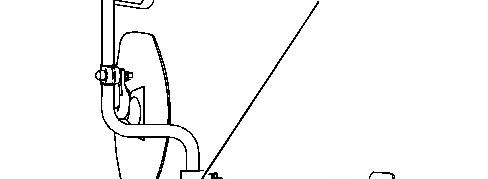

Illustration 1 g02496160 1. Clean fitting (1) before you apply lubricant.

Tue Feb 13 09:46:40 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07 Publication Date -01/12/2014 Date Updated -20/06/2017

Oil Filter - Inspect

SMCS - 1308-507; 5068-507

Inspect a Used Filter for Debris

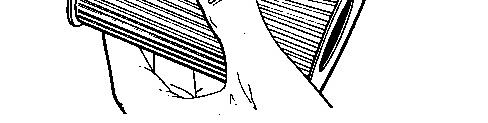

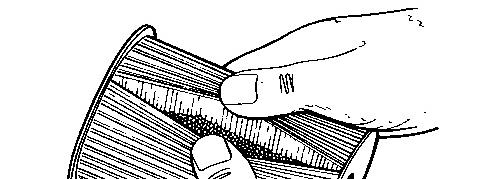

Illustration 1 g00100013

The element is shown with debris.

i02106227

Use a filter cutter to cut the filter element open. Spread apart the pleats and inspect the element for metal and for other debris. An excessive amount of debris in the filter element can indicate a possible failure.

If metals are found in the filter element, a magnet can be used to differentiate between ferrous metals and nonferrous metals.

Ferrous metals can indicate wear on steel parts and on cast iron parts.

Nonferrous metals can indicate wear on the aluminum parts of the engine such as main bearings, rod bearings, or turbocharger bearings.

Small amounts of debris may be found in the filter element. This could be caused by friction and by normal wear. Consult your Caterpillar dealer in order to arrange for further analysis if an excessive amount of debris is found.

Using an oil filter element that is not recommended by Caterpillar can result in severe engine damage to engine bearings, to the crankshaft, and to other parts. This can result in larger particles in unfiltered oil. The particles could enter the lubricating system and the particles could cause damage.

Tue Feb 13 09:45:28 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07

Publication Date -01/12/2014 Date Updated -20/06/2017

Overhead Guard - Inspect - If Equipped

SMCS - 7159-040

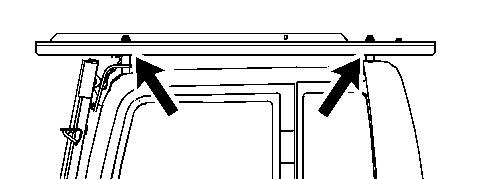

Illustration 1 g03358671

i05288310

1. Inspect the overhead guard for any bolts that are loose or damaged. Replace bolts that are damaged or missing. Use original equipment parts only. Tighten the bolts.

2. If the overhead guard rattles, or makes noise, during machine operation, replace the mounting supports for the overhead guard.

Do not repair the overhead guard by welding reinforcement plates to the overhead guard.

Consult your Caterpillar dealer for repair of cracks in the welds on the overhead guard. Consult your Caterpillar dealer for repair of cracks in any metal section of the overhead guard.

Network For SIS Licensees.

Tue Feb 13 09:44:55 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Radiator Core - Clean

SMCS - 1353-070

Personal injury can result from air pressure.

Personal injury can result without following proper procedure. When using pressure air, wear a protective face shield and protective clothing.

Maximum air pressure at the nozzle must be less than 205 kPa (30 psi) for cleaning purposes.

i07184300

Note: Adjust the frequency of cleaning according to the effects of the operating environment.

Note: Observe the following guidelines when you perform the procedure:

• Park the machine on a level surface.

• Stop the engine before you perform the procedure.

• Make sure that the radiator fan comes to a complete stop before you open the radiator access door.

• Inspect for these items: damaged fins, corrosion, dirt, grease, insects, leaves, oil, and other debris.

Radiator and Oil Cooler Core - Clean

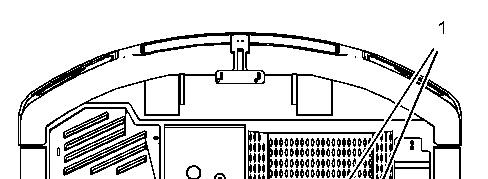

1 g02496716

1. Loosen bolts (1) to open the radiator access door.

2. Check the radiator fins for debris.

3. Remove dust and debris from all the core fins and from the screens.

Compressed air is preferred, but high-pressure water or steam can be used to remove dust and general debris from a core.

See Special Publication, SEBD0518, "Know Your Cooling System" for more detailed information about cleaning core fins.

4. Close the access door and tighten bolts (1).

Aftercooler Core - Clean

1. Open the right rear access door. Secure the access door.

Illustration

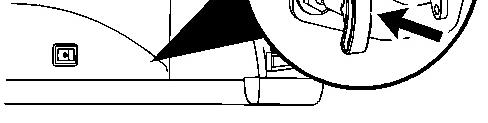

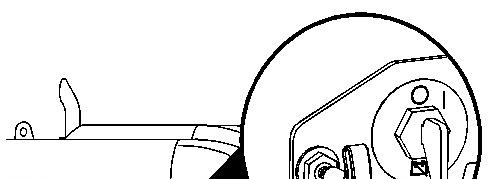

Illustration 2 g02493156

The front access door release is located in the engine compartment.

2. Pull the door release to open the right front access door.

3. Open the right front access door. Secure the access door.

Illustration 3 g06246312

4. Loosen bolts (3) to release the condenser (2).

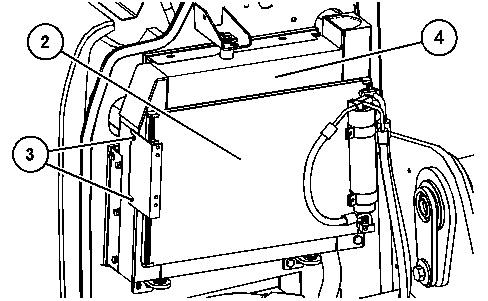

Illustration 4 g06246072

Aftercooler (4) Core behind the condenser

5. Swing the condenser open to access the aftercooler core. Inspect the fins and tubes for debris.

6. Remove dust and debris from all the core fins and from the screens.

Compressed air is preferred, but high-pressure water or steam can be used to remove dust and general debris from a core. Move the nozzle parallel with the tubes to clean the tubes effectively.

See Special Publication, SEBD0518, "Know Your Cooling System" for more detailed information about cleaning core fins.

Network For SIS Licensees. Tue Feb 13 09:44:38 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Receiver Dryer (Refrigerant) - Replace

SMCS - 7322-510; 7322-710

Personal injury can result from contact with refrigerant.

Contact with refrigerant can cause frost bite. Keep face and hands away to help prevent injury.

Protective goggles must always be worn when refrigerant lines are opened, even if the gauges indicate the system is empty of refrigerant.

Always use precaution when a fitting is removed. Slowly loosen the fitting. If the system is still under pressure, release it slowly in a well ventilated area.

Personal injury or death can result from inhaling refrigerant through a lit cigarette.

Inhaling air conditioner refrigerant gas through a lit cigarette or other smoking method or inhaling fumes released from a flame contacting air conditioner refrigerant gas, can cause bodily harm or death.

Do not smoke when servicing air conditioners or wherever refrigerant gas may be present.

Use a certified recovery and recycling cart to properly remove the refrigerant from the air conditioning system.

i05805860

NOTICE

If the refrigerant system has been open to the outside air (without being plugged) for more than 30 minutes, the receiver-dryer must be replaced. Moisture will enter an open refrigerant system and cause corrosion which will lead to component failure.

Refer to Service Manual, "Air Conditioning and Heating R-134a for All Caterpillar Machines" for the proper procedure to change the receiver-dryer assembly and for the procedure to reclaim the refrigerant gas.

Tue Feb 13 09:44:00 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07

Publication Date -01/12/2014

Refueling Pump Strainer - Clean - If Equipped

SMCS - 1295-070-STR

Date Updated -20/06/2017

i04340429

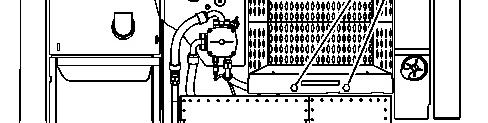

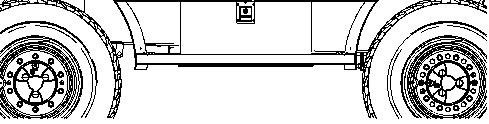

Illustration 1 g02482297 A typical example is located in the figure above.

1. Open the tool box on the left side of the machine.

Illustration 2 g01311513

(1) Screen (2) Coupling

2. Remove screen (1) from coupling (2) .

Note: Refer to Operation and Maintenance Manual, "General Hazard Information" for information in containing fluid spillage.

3. Wash screen (2) in a clean, nonflammable solvent. Dry the screen.

4. Install the screen to coupling (2) .

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Rollover Protective Structure (ROPS) - Inspect

SMCS - 7323-040; 7325-040; 7325; 7526

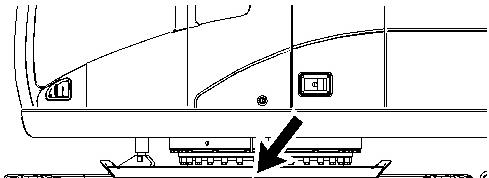

Illustration 1 g01961918

Consult your Caterpillar dealer for repair of any cracks in the ROPS.

i05252973

Inspect the ROPS for loose bolts or for damaged bolts. Replace any damaged bolts or missing bolts with original equipment parts only. Tighten the M24 bolt (1) to425 ± 50 N·m (315 ± 40 lb ft).

Consult your Cat dealer for inspection of any potential damage or repair of any damage to any operator protective structure. (Including ROPS, FOPS, TOPS, OPS, and OPG) Refer to Special Instruction, SEHS6929, "Inspection, Maintenance, and Repair of Operator Protective Structures (OPS) and Attachment Installation Guidelines for All Earthmoving Machinery"

Rights Reserved.

Network For SIS Licensees.

Tue Feb 13 09:43:22 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M322D MH WHEELED EXCAVATOR D3X

Configuration: M322D Material Handler D3X00001-UP (MACHINE) POWERED BY C6.6 Engine

Operation and Maintenance Manual

M316D, M318D and M322D Excavators and M318D MH and M322D MH Material Handlers

Media Number -SEBU8694-07 Publication Date -01/12/2014 Date Updated -20/06/2017

Seat Belt - Inspect

SMCS - 7327-040

i04423622

Always inspect the condition of the seat belt and the condition of the seat belt mounting hardware before you operate the machine. Replace any parts that are damaged or worn before you operate the machine.

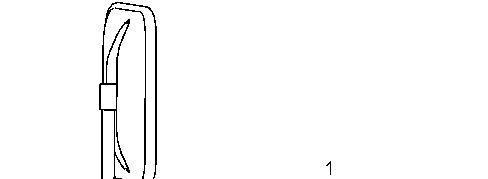

Illustration 1

Typical example

g02620101

Inspect buckle (1) for wear or for damage. If the buckle is worn or damaged, replace the seat belt.

Inspect seat belt (2) for webbing that is worn or frayed. Replace the seat belt if the webbing is worn or frayed.

Inspect all seat belt mounting hardware for wear or for damage. Replace any mounting hardware that is worn or damaged. Make sure that the mounting bolts are tight.

If your machine is equipped with a seat belt extension, also perform this inspection procedure for the seat belt extension.

Contact your Cat dealer for the replacement of the seat belt and the mounting hardware.

Note: The seat belt should be replaced within 3 years of the date of installation. A date of installation label is attached to the seat belt retractor and buckle. If the date of installation label is missing, replace belt within 3 years from the year of manufacture as indicated on belt webbing label, buckle housing, or installation tags (non-retractable belts). Copyright 1993 - 2024 Caterpillar Inc.

13 09:42:46 UTC+0530 2024

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

For some reason if link does not work download this pdf and then click
