Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-03PublicationDate-01/08/2015DateUpdated-19/06/2017
EmissionsWarrantyInformation
SMCS-1000
i06044323
Thecertifyingenginemanufacturerwarrantstotheultimatepurchaserandeachsubsequentpurchaser that:
1.Newnon-roaddieselenginesandstationarydieselengineslessthan10literspercylinder (includingTier1andTier2marineengines<37kW,butexcludinglocomotiveandother marineengines)operatedandservicedintheUnitedStatesandCanada,includingallpartsof theiremissioncontrolsystems("emissionrelatedcomponents"),are:
a.Designed,built,andequippedsoastoconform,atthetimeofsale,withapplicable emissionstandardsprescribedbytheUnitedStatesEnvironmentalProtectionAgency (EPA)bywayofregulation.
b.Freefromdefectsinmaterialsandworkmanshipinemission-relatedcomponentsthatcan causetheenginetofailtoconformtoapplicableemissionstandardsforthewarranty period.
2.Newnon-roaddieselengines(includingTier1andTier2marinepropulsionengines<37kW andTier1throughTier4marineauxiliaryengines<37kW,butexcludinglocomotiveand othermarineengines)operatedandservicedinthestateofCalifornia,includingallpartsof theiremissioncontrolsystems("emissionrelatedcomponents"),are:
a.Designed,built,andequippedsoastoconform,atthetimeofsale,toallapplicable regulationsadoptedbytheCaliforniaAirResourcesBoard(ARB).
b.Freefromdefectsinmaterialsandworkmanshipwhichcausethefailureofanemissionrelatedcomponenttobeidenticalinallmaterialrespectstothecomponentasdescribedin theenginemanufacturer'sapplicationforcertificationforthewarrantyperiod.
3.Newnon-roaddieselenginesinstalledinconstructionmachinesconformingtotheSouth KoreanregulationsforconstructionmachinesmanufacturedafterJanuary1,2015,andoperated
andservicedinSouthKorea,includingallpartsoftheiremissioncontrolsystems("emission relatedcomponents"),are:
a.Designed,built,andequippedsoastoconform,atthetimeofsale,withapplicable emissionstandardsprescribedintheEnforcementRuleoftheCleanAirConservation ActpromulgatedbySouthKoreaMOE.
b.Freefromdefectsinmaterialsandworkmanshipinemission-relatedcomponentsthatcan causetheenginetofailtoconformtoapplicableemissionstandardsforthewarranty period.
Theaftertreatmentsystemcanbeexpectedtofunctionproperlyforthelifetimeoftheengine (emissionsdurabilityperiod)subjecttoprescribedmaintenancerequirementsbeingfollowed.
AdetailedexplanationoftheEmissionControlWarrantythatisapplicabletonewnon-roadand stationarydieselengines,includingthecomponentscoveredandthewarrantyperiod,isfoundina supplementalSpecialPublication.ConsultyourauthorizedCatdealertodetermineifyourengineis subjecttoanEmissionControlWarrantyandtoobtainacopyoftheapplicableSpecialPublication.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:38:54UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-03PublicationDate-01/08/2015DateUpdated-19/06/2017
Foreword
SMCS-7008;7600-ZM
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified inthemaintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.
CertifiedEngineMaintenance
Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
This is the sample of the manual if you need complete manual Click Here to download
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
CatProductIdentificationNumber
EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:30:49UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018 i06285511

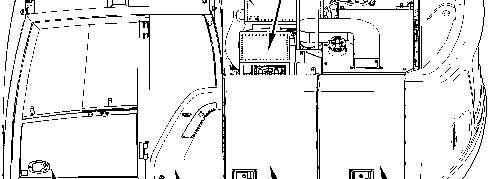

AccessDoorandCoverLocations
SMCS-726A-CH

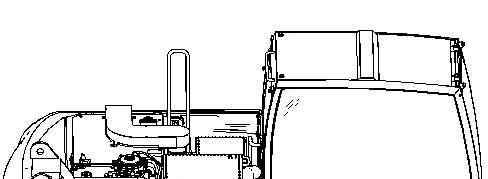

RightSide
(1)RightRearAccessDoor
(2)RightFrontAccessDoor

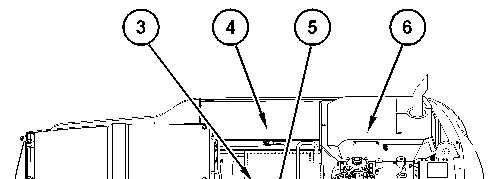

LeftSide
Illustration2g03722866
(3)HydraulicValveAccessDoor
(4)TopEngineAccessDoor
(5)AirFilterCover
(6)EmissionModuleAccessCover
(7)CabDoor
(8)CabAirFilterAccessDoor
(9)LeftFrontAccessDoor
(10)LeftRearAccessDoor
TueJun1617:38:48UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AirConditioner/CabHeaterFilter(Recirculation)Inspect/Replace
SMCS-1054-040-A/C;1054-510-A/C
NOTICE
Anairrecirculationfilterelementpluggedwithdustwillresultin decreasedperformanceandservicelifetotheairconditionerorcab heater.
Topreventdecreasedperformance,cleanthefilterelement,as required.

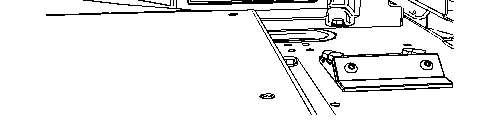

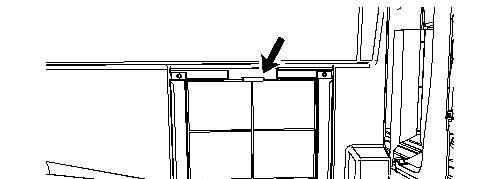

Theairconditionerfilterislocatedonthelowerleftsideofthecabbehindtheseat.
1.Slidetheoperatorseatforward.
2.Slidethefilterelementupward.
3.Taptheairfilterinordertoremovethedirt.Donotusecompressedairtocleanthefilter.
4.Afteryoucleanthefilterelement,inspectthefilterelement.Ifthefilterelementisdamaged orbadlycontaminated,useanewfilterelement.Makesurethatthefilterelementisdry.
5.Installthefilterelement.
NOTICE
Failuretoreinstallthefilterelementfortheairconditioningsystem willcontaminateanddamagethesystemcomponents.
Copyright1993-2020CaterpillarInc.
AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:41:13UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
SMCS-7540-544-TNK;7540-544
Apressurehazardispresent.Severepersonalinjuryordeathcanresult fromremovinghosesorfittingsthatareunderpressure.Relievethe pressureinthesystembeforeyouremovehosesorfittings.

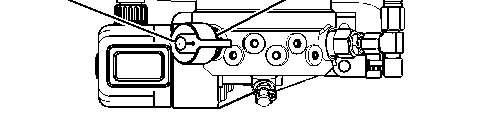

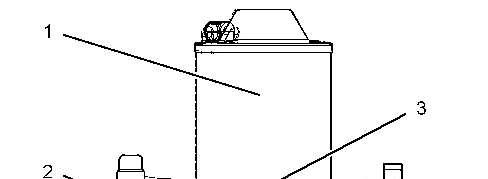

Greasereservoir(1)islocatedbehindtheleftaccessdoor.
FillingtheReservoir
1.Removethedustcap(2)fromthegreasereservoir(1).
2.Cleanthefillerassembly(3)andthecouplingonthefillerassembly.
3.Installthefillerassemblyontothefillertubeassembly(3).
4.Fillthegreasereservoir(1)withgreasetothemaximumlevelwhichisindicatedonthe greasereservoir(1).
Reference:Forthecorrecttypeofgrease,refertoOperationandMaintenanceManual, "LubricantViscosities".
5.Removethefillerassemblyandinstallthedustcap(2).
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:41:31UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleBearings(Front)-Lubricate
SMCS-3278-086
Thefrontaxleistheaxlewhichsteersthemachine.Therearaxleistheonewiththegearbox.
Wipeallgreasefittingsbeforeyouapplygrease.
Illustration1g02496780

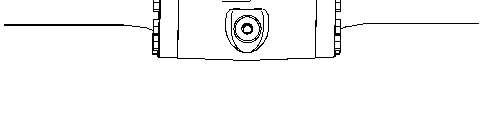

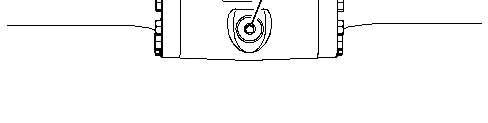

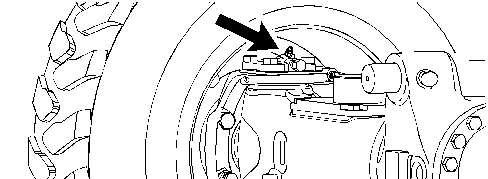

Agreasefittingispositionedonthetopandonthebottomofthesteeringaxle.Applygreaseto thesefittingsateachendofthesteeringaxle.
ForaccesstotheU-joints,fullyturnthewheelstotheleftortotheright.Themachinewheelsmay requirerotationinordertoaccessthegreasefittings.
TueJun1617:41:50UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleOil(Front)-Change
SMCS-3278-044
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
Draintheaxleoilwhiletheoiliswarm.Thewarmoilwillallowwasteparticlesthatare suspendedintheoiltodrainproperly.

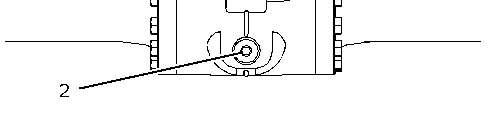

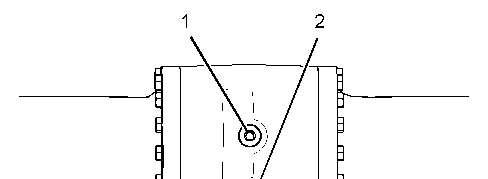

(1)Frontaxlefillplug
(2)Frontaxledrainplug
Note:Thefrontaxlesteersthemachine.
Note:RefertotheOperationandMaintenanceManual,"GeneralHazardInformation"for informationincontainingfluidspillage.
1.Removethedirtthatisaroundeachplug.
2.Removedrainplug(2)andlevelplug(1).Allowtheoiltodrainintoasuitablecontainer.
3.CleaneachplugandinspecttheO-ringseals.Ifwearordamageisevident,replacethe plugs,and/ortheO-ringseals.
4.Installdrainplug(2).
5.Filltheaxlewithoiltothebottomofthefillplugopening.SeeOperationandMaintenance Manual,"LubricantViscosities"andOperationandMaintenanceManual,"Capacities (Refill)".
6.Installfillplug(1).
7.Completelyremovetheoilthathasspilledontosurfaces.
8.Checkthedrainedoilformetalchipsorforparticles.Ifthereareanychipsorparticles, consultyourCatdealer.
9.Properlydisposeofthedrainedmaterial.Obeylocalregulationsforthedisposalofthe material.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:42:12UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleOil(Rear)-Change
SMCS-3260-044;3278-044
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
Draintheaxleoilwhiletheoiliswarm.Thewarmoilwillallowwasteparticlesthatare suspendedintheoiltodrainproperly.

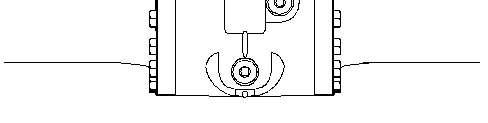

(1)Rearaxlefillplug
(2)Rearaxledrainplug
Note:RefertotheOperationandMaintenanceManual,"GeneralHazardInformation"for informationincontainingfluidspillage.
1.Removethedirtthatisaroundeachplug.
2.Removedrainplug(2)andlevelplug(1).Allowtheoiltodrainintoasuitablecontainer.
3.CleaneachplugandinspecttheO-ringseals.Ifwearordamageisevident,replacethe plugs,and/ortheO-ringseals.
4.Installdrainplug(2).
5.Filltheaxlewithoiltothebottomofthefillplugopening.SeeOperationandMaintenance Manual,"LubricantViscosities"andOperationandMaintenanceManual,"Capacities (Refill)".
6.Installfillplug(1).
7.Completelyremovetheoilthathasspilledontosurfaces.
8.Checkthedrainedoilformetalchipsorforparticles.Ifthereareanychipsorparticles, consultyourCatdealer.
9.Properlydisposeofthedrainedmaterial.Obeylocalregulationsforthedisposalofthe material.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:42:31UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleOilLevel(Front)-Check
SMCS-3278-535
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.

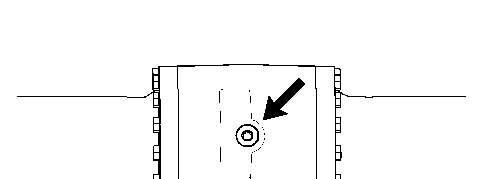

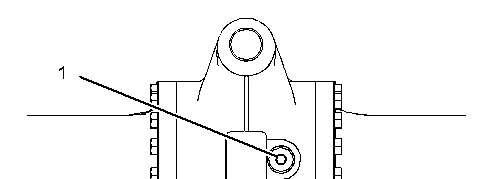

Illustration1g02383889 Frontaxlefillplug
1.Removethedirtfromaroundthefillplug.
2.Removethefillplug.
Note:RefertoOperationandMaintenanceManual,"GeneralHazardInformation"for informationonContainingFluidSpillage.
3.Checktheoillevel.Theoilshouldbenearthebottomofthefillplugopening.
4.Addoilthroughthelevelplugopening,ifnecessary.
Note:SeeOperationandMaintenanceManual,"LubricantViscosities".
5.Cleanthefillplug.
6.InspecttheO-ringseal.ReplacetheO-ringsealiftheO-ringsealiswornordamaged.
7.Installthefillplug.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:42:48UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleOilLevel(Rear)-Check
SMCS-3260-535-FLV;3278-535
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.

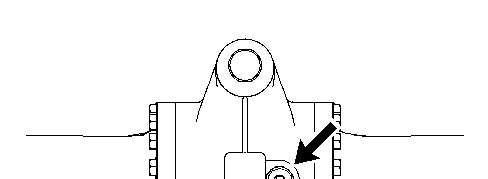

Illustration1g02383891 Rearaxlefillplug
1.Removethedirtfromaroundthefillplug.
2.Removethefillplug.
Note:RefertoOperationandMaintenanceManual,"GeneralHazardInformation"for informationonContainingFluidSpillage.
3.Checktheoillevel.Theoilshouldbenearthebottomofthefillplugopening.
4.Addoilthroughthelevelplugopening,ifnecessary.
Note:SeeOperationandMaintenanceManual,"LubricantViscosities".
Note:Therearaxlehousingandtherearfinaldrivehousingsharethesameoilcircuit.Any oilthatisaddedwillbedistributedthroughtheentirecircuit.
5.Cleanthefillplug.
6.InspecttheO-ringseal.ReplacetheO-ringsealiftheO-ringsealiswornordamaged.
7.Installthefillplug.
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:43:09UTC+05302020
Product:WHEELEDEXCAVATOR
Model:M316FWHEELEDEXCAVATORFB6
Configuration:M316FWheeledExcavatorFB600001-UP(MACHINE)POWEREDBYC4.4Engine
OperationandMaintenanceManual
M314FandM316FWheeledExcavators
MediaNumber-M0074438-04PublicationDate-01/08/2015DateUpdated-23/04/2018
AxleOilSample-Obtain
SMCS-3260-008;3278-008;7542
Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.
RefertoOperationandMaintenanceManual,"GeneralHazardInformation"forinformationon ContainingFluidSpillage.
Rearaxleoilfillplug
1.Removetheaxleoilfillplug.
2.Obtainasampleoftheaxleoilthroughtheholefortheoilfillplug.
3.Installoilfillplug.
RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations","S·O·S OilAnalysis"formoreinformationonobtainingasampleofthefinaldriveoil.Foradditional informationabouttakinganoilsample,refertoSpecialPublication,PEGJ0047,"HowToTakeA GoodOilSample".
Copyright1993-2020CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueJun1617:43:26UTC+05302020
This is the sample of the manual if you need complete manual Click Here to download
