CAT + Caterpillar M315D2 Wheeled Excavator Operation & Maintenance Manual by Heavy Equipment Manual

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual

M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

Foreword

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.

Operation

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportationandtowinginformation.

s00037320

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedinthemaintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhands afterhandling.

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformance oftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththe regulations(40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaust system,fuelsystem,electricalsystem,intakeairsystemandcoolingsystemmaybeemission relatedandshouldnotbealteredunlessapprovedbyCaterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to 17characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandother constructionequipmentmanufacturersaremovingtocomplywiththelatestversionoftheproduct identificationnumberingstandard.Non-roadmachinePINsaredefinedbyISO10261.Thenew PINformatwillapplytoallCatmachinesandgeneratorsets.ThePINplatesandframemarking willdisplaythe17characterPIN.Thenewformatwilllooklikethefollowing:

1.Caterpillar'sWorldManufacturingCode(characters1-3)

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.

This is the sample of the manual if you need complete manual Click Here to download

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

ThuNov2512:32:04UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

i05867976

Windows-Clean

SMCS-7310-070;7340-070

Cleantheoutsideofthewindowsfromtheground,unlesshandholdsareavailable.

CleaningMethods

AircraftWindowCleaner

Applythecleanerwithasoftcloth.Rubthewindowwithmoderatepressureuntilallthedirtisremoved. Allowthecleanertodry.Wipeoffthecleanerwithacleansoftcloth.

SoapandWater

Useacleanspongeorasoftcloth.Washthewindowswithamildsoaporwithamilddetergent.Alsouse plentyoflukewarmwater.Rinsethewindowsthoroughly.Drythewindowswithamoistchamoisorwitha moistcellulosesponge.

StubbornDirtandGrease

Washthewindowswithagoodgradeofnaphtha,ofisopropylalcohol,orofButylCellosolve.Then,wash thewindowswithsoapandwithwater.

PolycarbonateWindows(Ifequipped)

Specialcareisneededinordertocleanpolycarbonatewindows.

Washpolycarbonatewindowswithmildsoapandwarmwaterthatdoesnotexceed50°C(122°F).Usea softsponge,ordampcloth.Neveruseadryclothorpapertowelsonpolycarbonatewindows.Rinsethe windowswithasufficientamountofcleancoldwater.

Note:Naphthaorkerosenecanbeusedinordertoremovelabels,films,paint,ormarkingpenfrom polycarbonatewindows.

Note:Donotuseabrasive,orhighlyalkalinecleaners.Donotusesharpinstruments,suchassqueegeesor razorbladesonpolycarbonatewindows.Donotcleanpolycarbonatewindowsinthehotsunoratelevated temperatures.

ThuNov2512:54:19UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

WindowWiper-Inspect/Replace

SMCS-7305-040;7305-510

Inspecttheconditionofthewiperblades.Replacethewiperbladesifthewiperbladesarewornordamaged orifstreakingoccurs.

ThuNov2512:54:07UTC+05302021

i01258249

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

WindowWasherReservoir-Fill

SMCS-7306-544-KE

NOTICE

Whenoperatinginfreezingtemperatures,useCaterpillarorany commerciallyavailablenonfreezingwindowwashersolvent.

1.Opentheleftfrontaccessdoor.Securetheaccessdoor.

2.Openthetopaccesscoveronthereservoir.

i04554047

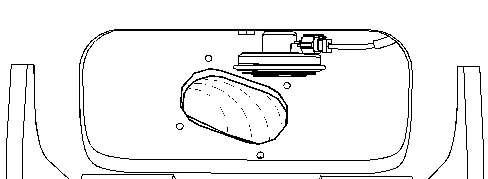

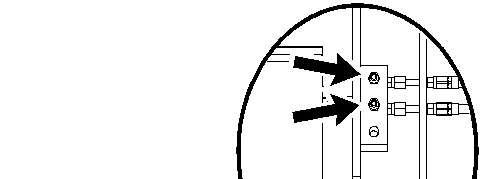

Typicallocation

3.Fillthefluidreservoirthroughthefilleropeningonthetopofthereservoir.

4.Closethetopaccesscoveronthereservoir.

5.Closeallaccessdoors.

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

WheelNutTorque-Check

SMCS-4210-535

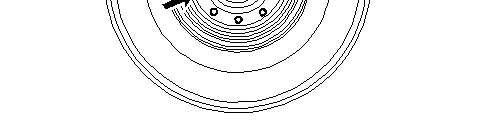

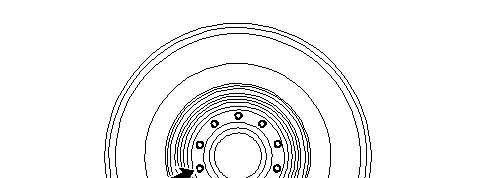

Illustration1g00102965

Checkthenutsonallfourwheels.

Thetorqueneedstobe450+50-0N·m(332+37-0lbft).

Note:Alwaysuseastarpatternwhenyoutorquethenuts.

Wheninstallingawheelnut,thenutandthestudshouldbecleananddryforreassembly.

Torquethewheelnutstothespecifiedtorqueusingastarpattern.

i04650532

Checkthewheelnuttorqueevery50servicehoursuntilthespecifiedtorqueismaintained.

ThuNov2512:53:44UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

TransmissionOilSample-Obtain

Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.

RefertoOperationandMaintenanceManual,"GeneralHazardInformation"forinformationonContaining FluidSpillage.

i04198347

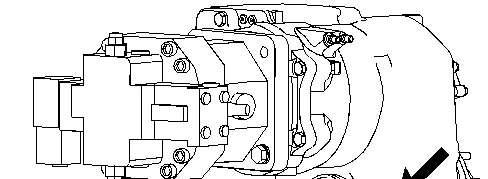

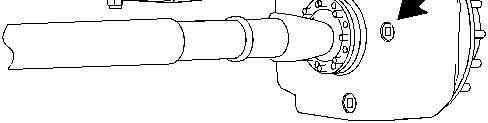

Fillplug

1.Removethetransmissionoilfillplug.

2.Obtainasamplethroughtheholefortheoilfillplug.

RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations","S·O·SOil Analysis"formoreinformationonobtainingasample.Foradditionalinformationabouttakinganoilsample, refertoSpecialPublication,PEGJ0047,"HowToTakeAGoodOilSample".

ThuNov2512:53:33UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

TransmissionOilLevel-Check

SMCS-3080-535-FLV

Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.

Fillplug

1.Removethedirtfromaroundthefillplug.

2.Removethefillplug.

Note:RefertoOperationandMaintenanceManual,"GeneralHazardInformation"forinformationon ContainingFluidSpillage.

3.Checktheoillevel.Theoilshouldbenearthebottomofthefillplugopening.

4.Addoilthroughthefillplugopening,ifnecessary.

Note:SeeOperationandMaintenanceManual,"LubricantViscosities".

5.Cleanfillerplug.InspecttheO-ringseal.ReplacetheO-ringsealiftheO-ringsealiswornor damaged.

6.Installfillerplug.

ThuNov2512:53:22UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017 i05573781

TransmissionOil-Change

SMCS-3080-044

Hotoilandhotcomponentscancausepersonalinjury.Donotallowhot oilorhotcomponentstocontactskin.

Draintheoilwhiletheoiliswarm.Thewarmoilwillallowwasteparticlesthataresuspendedintheoilto drainproperly.

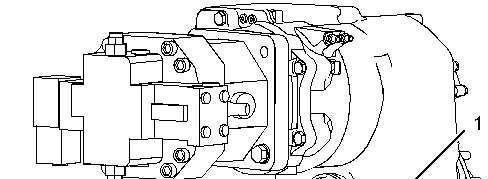

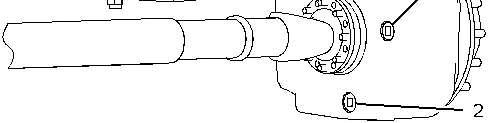

(1)Fillplug (2)Drainplug

Note:RefertotheOperationandMaintenanceManual,"GeneralHazardInformation"forinformationin containingfluidspillage.

1.Removethedirtthatisaroundeachplug.

2.Removefillplug(1)anddrainplug(2).Allowtheoiltodrainintoasuitablecontainer.

3.CleaneachplugandinspecttheO-ringseals.Ifwearordamageisevident,replacetheplugs,and/or theO-ringseals.

4.Installdrainplug(2).

5.Fillthegearboxwithoiltothebottomofthefillerplugopening.SeeOperationandMaintenance Manual,"LubricantViscosities"andOperationandMaintenanceManual,"Capacities(Refill)".

6.Installfillplug(1).

7.Completelyremovetheoilthathasspilledontosurfaces.

8.Checkthedrainedoilformetalchipsorforparticles.Ifthereareanychipsorparticles,consultyour Catdealer.

9.Properlydisposeofthedrainedmaterial.Obeylocalregulationsforthedisposalofthematerial.

Note:Donotgreasethetransmission.Thegreasefittingisusedforactivatinganddeactivatingtheparking brakemanuallyduringtowingconditions.ReferencethisOperationandMaintenanceManual,"Towing Information".

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

TireInflation-Check-Pneumatic

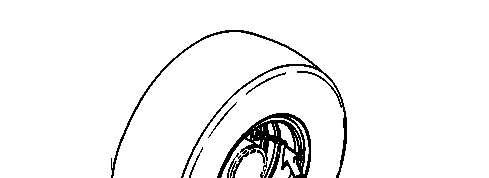

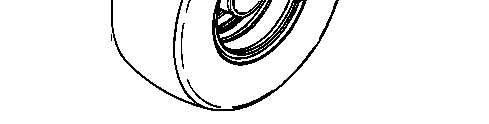

SMCS-4203-535-AI;4203-535-PX Illustration1g00102393

Measuretheairpressureoneachtire.ConsultyourCatdealerforthecorrectloadratingandforthecorrect operatingpressures.

Ifnecessary,inflatethetires.SeeOperationandMaintenanceManual,"TireInflationInformation".

ThuNov2512:52:45UTC+05302021

i05718514

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017 i07155921

SwingGear-Lubricate

SMCS-7063-086

Note:RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations"formore informationongrease.

Failuretouseanappropriateexternalaccessplatformfordirectaccess totheinspectioncoverofswinggearcouldresultinslippingandfalling whichcouldresultinpersonalinjuryordeath.

NOTICE

Improperlubricationcancausedamagetomachinecomponents.

Toavoiddamage,makesurethattheproperamountofgreaseis appliedtotheswingdrive.

Whentheamountofgreaseinthecompartmentbecomestoolarge,the agitationlossbecomeslarge,therebyacceleratinggreasedeterioration.

Greasedeteriorationcancausedamagetothepiniongearoftheswing driveandswinginternalgear.

Notenoughgreasewillresultinpoorgearlubrication.

Theswinggearshouldbecheckedifthemachinehasnotbeenusedforalongtime.

1.Useanexternalaccesssystemtoaccesstheinspectioncoverofswinggear.

2.Removetheinspectioncoverthatislocatedneartheboombase.Inspectthegrease.

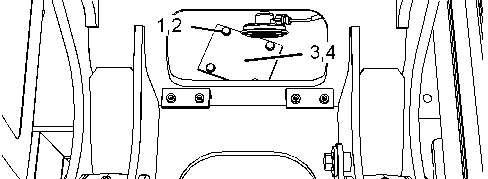

Illustration1g02723118 (1)Bolts (2)Washers (3)Cover (4)Gasket

3.Removebolts(1)andwashers(2).Removecover(3)andgasket(4).

4.Inspectgasket(4).Replacethegasketifdamageisevident.

5.Checkthelevelofgrease.Thelevelofgreaseiscorrectwhen: Wavesofgreasearepresentfromtherotatingswingdrivepinion.

Thegreaseisevenlydistributedonthefloorofthepan.

Note:Smearedorwavelessareasareevidenceforalackofgrease.

Note:Addgrease,asneeded.Removegrease,asneeded.Toomuchgreasewillresultinthe deteriorationofthegreasebecauseofexcessivemovementofthegrease.Toolittlegreasewillresultin poorlubricationoftheswinggear.

6.Checkforcontaminationandfordiscoloredgrease.

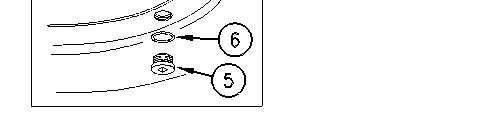

(5)Plug (6)O-ringseal

7.Ifthegreaseiscontaminatedorifthegreaseisdiscoloredwithwater,changethegrease.Removeplug (5)toallowthewatertodrain.Whenyoureinstallplug(5),inspecttheO-ringseal(6).ReplacetheOringsealifdamageisevident.

8.Descendthemachineusinganexternalaccesssystem.Keeptheexternalaccesssystemawayfromthe machine.

9.Raisetheboomandturntheupperstructureby1/4turn.Lowertheworktooltotheground.

10.UseanexternalaccesssystemtoaccesstheinspectioncoveroftheswinggearandrepeatStep5to Step9atevery1/4turninfourplaces.Addgrease,asneeded.

11.Installgasket(4),cover(3),washers(2),andbolts(1).

ThuNov2512:52:35UTC+05302021

Product:WHEELEDEXCAVATOR

Model:M315D2WHEELEDEXCAVATORCA4

Configuration:M315D2WheeledExcavatorCA400001-UP(MACHINE)POWEREDBYC4.4Engine

OperationandMaintenanceManual M315D2andM317D2WheeledExcavators

MediaNumber-SEBU9358-07PublicationDate-01/09/2015DateUpdated-14/11/2017

This is the sample of the manual if you need complete manual Click Here to download
