Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007 Date Updated -06/08/2007

Foreword

Literature Information

This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.

This manual contains safety information, operation instructions, transportation information, lubrication information and maintenance information.

Some photographs or illustrations in this publication show details or attachments that can be different from your machine. Guards and covers might have been removed for illustrative purposes.

Continuing improvement and advancement of product design might have caused changes to your machine which are not included in this publication. Read, study and keep this manual with the machine.

Whenever a question arises regarding your machine, or this publication, please consult your Cat dealer for the latest available information.

Safety

The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning signs and labels used on the machine.

Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this machine.

Operation

The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation and towing information.

s00037320

Photographs and illustrations guide the operator through correct procedures of checking, starting, operating and stopping the machine.

Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.

Maintenance

The maintenance section is a guide to equipment care. The Maintenance Interval Schedule (MIS) lists the items to be maintained at a specific service interval. Items without specific intervals are listed under the "When Required" service interval. The Maintenance Interval Schedule lists the page number for the step-by-step instructions required to accomplish the scheduled maintenance. Use the Maintenance Interval Schedule as an index or "one safe source" for all maintenance procedures.

Maintenance Intervals

Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if they provide more convenient servicing schedules and approximate the indicated service hour meter reading. Recommended service should always be performed at the interval that occurs first.

Under extremely severe, dusty or wet operating conditions, more frequent lubrication than is specified in the maintenance intervals chart might be necessary.

Perform service on items at multiples of the original requirement. For example, at every 500 service hours or 3 months, also service those items listed under every 250 service hours or monthly and every 10 service hours or daily.

California Proposition 65 Warning

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.

Certified Engine Maintenance

Proper maintenance and repair is essential to keep the engine and machine systems operating correctly. As the heavy duty off-road diesel engine owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.

It is prohibited for any person engaged in the business of repairing, servicing, selling, leasing, or trading engines or machines to remove, alter, or render inoperative any emission related device or element of design installed on or in an engine or machine that is in compliance with the regulations (40 CFR Part 89). Certain elements of the machine and engine such as the exhaust system, fuel system, electrical system, intake air system and cooling system may be emission related and should not be altered unless approved by Caterpillar.

Machine Capacity

Additional attachments or modifications may exceed machine design capacity which can adversely affect performance characteristics. Included would be stability and system certifications such as brakes, steering, and rollover protective structures (ROPS). Contact your Cat dealer for further information.

Cat Product Identification Number

Effective First Quarter 2001 the Cat Product Identification Number (PIN) has changed from 8 to 17 characters. In an effort to provide uniform equipment identification, Caterpillar and other construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all Cat machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following:

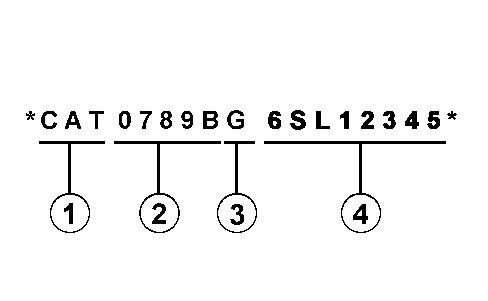

Illustration 1 g00751314

Where:

1. Caterpillar's World Manufacturing Code (characters 1-3)

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number.

Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format.

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

For some reason if link does not work download this pdf and then click

Components such as engines, transmissions, axles, etc. and work tools will continue to use an 8 character Serial Number (S/N).

Mon Jun 3 22:40:25 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05

Publication Date -01/07/2007

Access Door and Cover Locations

SMCS - 726A-CH

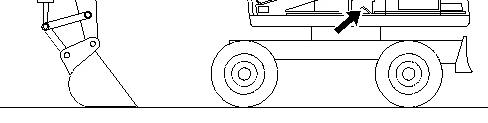

Left Front Access Door

Date Updated -06/08/2007

i01607020

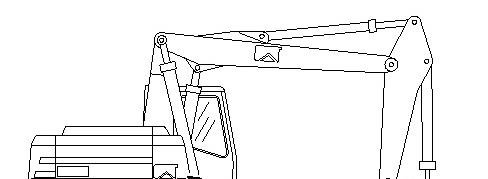

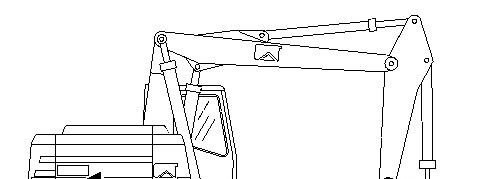

Illustration 1 g00289939

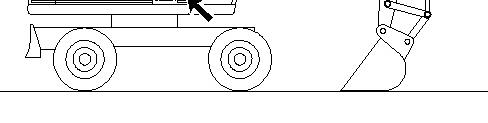

Left Rear Access Door

2 g00294897

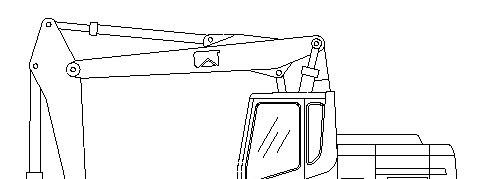

Right Front Access Door

3 g00832594

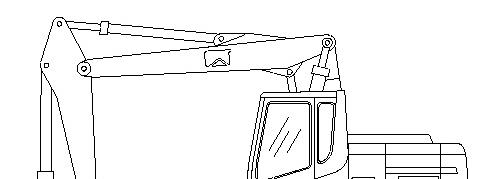

Right Rear Access Door

Illustration

Illustration 4 g00290071

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007 Date Updated -06/08/2007

Air Conditioner/Cab Heater Filter (Recirculation)

Inspect/Replace

SMCS - 1054-040-A/C; 1054-510-A/C

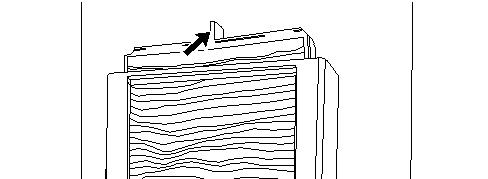

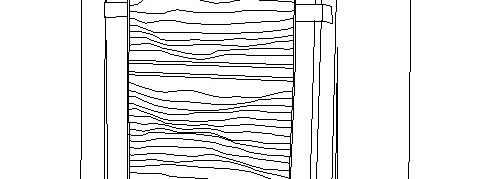

Illustration 1 g00998006

The air filter is located in the cab behind the operator's seat.

i02181297

1. Pull up on the air filter in order to remove the air filter.

2. Clean the air filter with a maximum of 200 kPa (30 psi) pressure air.

3. After you clean the filter, inspect the filter. If the air filter is damaged or badly contaminated, use a new air filter.

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007

Axle Bearings (Front) - Lubricate

SMCS - 3278-086

Date Updated -06/08/2007

The front axle is the axle which steers the machine. The rear axle is the one with the gearbox.

Wipe all grease fittings before you apply grease.

Illustration 1

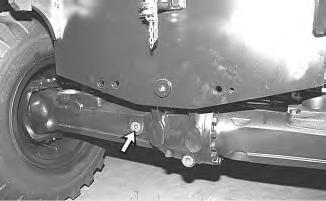

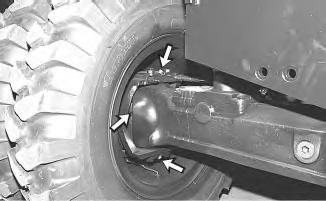

The fittings are behind the front tires.

g00102403

A grease fitting is positioned on the top of the steering axle. Another grease fitting is positioned on the bottom of the steering axle. Apply grease to these fittings at each end of the steering axle.

For access to the U-joints, fully turn the wheels to the left or to the right. The machine wheels may require rotation in order to access the grease fittings.

i00060139

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007

Axle Oil (Front) - Change

SMCS - 3278-044

Date Updated -06/08/2007

The front axle is the axle which steers the machine. The rear axle is the one with the gearbox.

Illustration 1

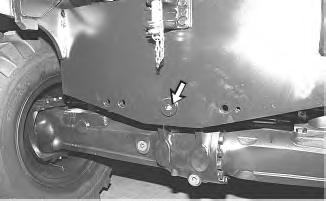

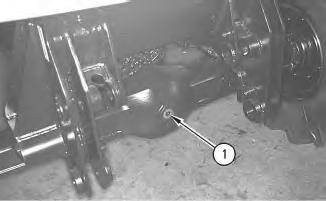

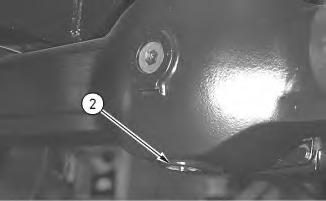

g00242127 (1) Filler Plug. (2) Drain Plug.

1. Remove the dirt that is around filler plug (1) and around drain plug (2) .

Note: Refer to Operation and Maintenance Manual, "General Hazard Information" for information in containing fluid spillage.

2. Remove filler plug (1) .

3. Remove drain plug (2). Allow the oil to drain into a suitable container.

Note: Dispose of drained fluids according to local regulations.

4. Clean drain plug (2) .

i01827690

5. Inspect the O-ring seal. If damage or wear is found, replace the O-ring seal.

6. Install drain plug (2) .

7. Add oil through the filler plug opening. Maintain the oil level to the bottom of the filler plug opening. Refer to Operation and Maintenance Manual, "Capacities (Refill)".

8. Clean filler plug (1) .

9. Inspect the O-ring seal. If damage or wear is noticed on the O-ring seal, replace the seal.

10. Install filler plug (1) .

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05

Publication Date -01/07/2007

Axle Oil (Rear) - Change

SMCS - 3260-044; 3278-044

(1) Filler plug

Date Updated -06/08/2007

i01827692

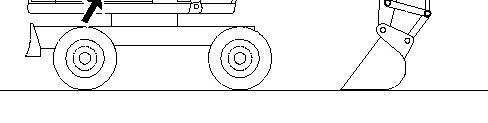

Illustration

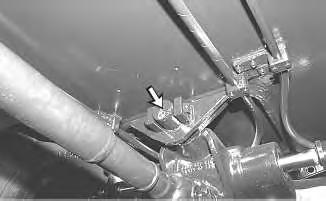

g00102672

(2) Drain plug

Operate the machine for an adequate amount of time in order to warm the oil.

Filler plug (1) and drain plug (2) are located under the machine on the rear axle.

Note: Refer to the Operation and Maintenance Manual, "General Hazard Information" for information in containing fluid spillage.

1. Remove the dirt that is around filler plug (1) and around drain plug (2) .

2. Remove filler plug (1) .

3. Remove drain plug (2). Drain the oil into a suitable container.

Note: Dispose of any used oil according to local regulations.

4. Clean drain plug (2) .

5. Inspect the O-ring seal. If damage or wear is noticed on the O-ring seal, replace the seal.

6. Install drain plug (2) .

7. Fill the axle with oil to the bottom of the filler plug opening. See Operation and Maintenance Manual, "Capacities (Refill)".

8. Clean filler plug (1) .

9. Inspect the O-ring seal. If damage or wear is noticed on the O-ring seal, replace the seal.

10. Install filler plug (1) .

1993 - 2024 Caterpillar Inc.

Mon Jun 3 23:38:14 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007 Date Updated -06/08/2007

Axle Oil Level (Front) - Check

SMCS - 3278-535

i01606739

The front axle is the axle which steers the machine. The rear axle is the one with the gearbox.

Illustration 1

g00102631

1. Remove the dirt that is around the filler plug.

2. Remove the filler plug.

3. Maintain the oil level to the bottom of the filler plug opening. Add oil through the filler plug opening, as needed.

4. Clean the filler plug.

5. Inspect the O-ring seal. If damage or wear is noticed on the O-ring seal, replace the seal.

6. Install the filler plug.

Mon Jun 3 23:38:28 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007 Date Updated -06/08/2007

Axle Oil Level (Rear) - Check

SMCS - 3260-535-FLV; 3278-535

i01606743

The front axle is the axle which steers the machine. The rear axle is the one with the gearbox.

Illustration 1

g00102672 (1) Filler plug

1. Remove the dirt that is around the filler plug (1) .

2. Remove filler plug (1) .

3. Maintain the oil level to the bottom of the filler plug opening. Add oil through the filler plug opening, as needed.

4. Clean filler plug (1) .

5. Inspect the O-ring seal. If damage or wear is noticed on the O-ring seal, replace the seal.

6. Install filler plug (1) .

Rights Reserved.

Network For SIS Licensees.

Mon Jun 3 23:38:43 UTC+0530 2024

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05

Date -01/07/2007 Date Updated -06/08/2007

Axle Oil Sample - Obtain - Front

SMCS - 3260-008; 3278-008; 7542

1 g00102631

i01871815

Obtain an oil sample from the front axle by removing the filler plug and taking the sample directly from the axle housing. Refer to Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations", "S·O·S Oil Analysis" for information that pertains to obtaining an oil sample from the front axle housing. Refer to Special Publication, PEHP6001, "How To Take A Good Oil Sample" for more information about obtaining an oil sample from the front axle housing.

Private Network For SIS Licensees. Mon Jun 3 23:39:14 UTC+0530 2024

Illustration

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05

Date -01/07/2007 Date Updated -06/08/2007

Axle Oil Sample - Obtain - Rear

SMCS - 3260-008; 3278-008; 7542

Illustration 1

i01871822

Obtain an oil sample from the rear axle by removing the filler plug and taking the sample directly from the axle housing. Refer to Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations", "S·O·S Oil Analysis" for information that pertains to obtaining an oil sample from the rear axle housing. Refer to Special Publication, PEHP6001, "How To Take A Good Oil Sample" for more information about obtaining an oil sample from the rear axle housing.

Private Network For SIS Licensees. Mon Jun 3 23:38:59 UTC+0530 2024

g00946193

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05

Publication Date -01/07/2007

Axle Oscillation Bearings - Lubricate

SMCS - 3268-086-BD; 3278; 3282

Wipe all the grease fittings before you apply grease.

Illustration 1

Date Updated -06/08/2007

i02086003

g00102404

A steer axle pin is positioned at the front of the machine. A grease fitting is positioned on the front of the steer axle pin. Apply grease to this grease fitting.

Illustration 2

g00102405

A grease fitting is also positioned on the rear of the steer axle pin. Apply grease to this grease fitting.

Remote Grease Fittings (If Equipped)

Wipe remote grease fittings before you apply grease.

Illustration 3

g01066117

The remote grease fittings for the steer axle pin are located next to the right oscillating axle cylinder. Apply grease to the remote grease fittings until grease is visible around the steer axle pin.

Product: WHEELED EXCAVATOR

Model: M313C WHEELED EXCAVATOR BDR

Configuration: M313C Excavator BDR00001-02000 (MACHINE) POWERED BY 3054 Engine

Operation and Maintenance Manual

M313C and M315C Excavators

Media Number -SEBU7868-05 Publication Date -01/07/2007 Date Updated -06/08/2007

Battery - Recycle

SMCS - 1401-561

Always recycle a battery. Never discard a battery.

Always return used batteries to one of the following locations:

• A battery supplier

• An authorized battery collection facility

i07746330

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

For some reason if link does not work download this pdf and then click
