LiteratureInformation
Thismanualcontainssafety,operationinstructions,lubrication,andmaintenanceinformation.This manualshouldbestoredinorneartheengineareainaliteratureholderorliteraturestoragearea. Read,study,andkeepitwiththeliteratureandengineinformation.
EnglishistheprimarylanguageforallCatpublications.TheEnglishusedfacilitatestranslationand consistencyinelectronicmediadelivery.
Somephotographsorillustrationsinthismanualshowdetailorattachmentsthatmaybedifferent fromyourengine.Guardsandcoversmayhavebeenremovedforillustrativepurposes.Continuing improvementandadvancementofproductdesignmayhavecausedchangestoyourenginewhichare notincludedinthismanual.Wheneveraquestionarisesregardingyourengine,orthismanual, consultwithyourCatdealerforthelatestavailableinformation.
Safety
Thissafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifieshazardous, warningsituations.Readandunderstandthebasicprecautionslistedinthesafetysectionbefore operatingorperforminglubrication,maintenance,andrepaironthisproduct.
Operation
Operatingtechniquesoutlinedinthismanualarebasic.Theyassistwithdevelopingtheskillsand techniquesrequiredtooperatetheenginemoreefficientlyandeconomically.Skillandtechniques developastheoperatorgainsknowledgeoftheengineanditscapabilities.
Theoperationsectionisareferenceforoperators.Photographsandillustrationsguidetheoperator throughproceduresofinspecting,starting,operating,andstoppingtheengine.Thissectionalso includesadiscussionofelectronicdiagnosticinformation.
Maintenance
Themaintenancesectionisaguidetoenginecare.Theillustrated,step-by-stepinstructionsare groupedbyservicehoursand/orcalendartimemaintenanceintervals.Itemsinthemaintenance schedulearereferencedtodetailedinstructionsthatfollow.
Useservicehourstodetermineintervals.Calendarintervalsshown(daily,annually,etc)maybeused insteadofservicemeterintervalsiftheyprovidemoreconvenientschedulesandapproximatethe indicatedservicemeterreading.
Performedtherecommendedserviceattheservicehourinterval.Theactualoperatingenvironmentof theenginealsogovernsthemaintenanceschedule.Therefore,undersevere,dusty,wet,orfreezing coldoperatingconditions,morefrequentlubrication,andmaintenancethanisspecifiedinthe maintenanceschedulemaybenecessary.
Themaintenancescheduleitemsareorganizedforapreventivemaintenancemanagementprogram.If thepreventivemaintenanceprogramisfollowed,aperiodictune-upisnotrequired.The implementationofapreventivemaintenancemanagementprogramshouldminimizeoperatingcosts throughcostavoidancesresultingfromreductionsinunscheduleddowntimeandfailures.
MaintenanceIntervals
Performmaintenanceonitemsatmultiplesoftheoriginalrequirement.Eachleveland/orindividual itemsineachlevelshouldbeshiftedaheadorbackdependinguponyourspecificmaintenance practices,operation,andapplication.Werecommendthatthemaintenanceschedulesbereproduced anddisplayedneartheengineasaconvenientreminder.Wealsorecommendthatamaintenance recordbemaintainedaspartoftheengine'spermanentrecord.
SeethesectionintheOperationandMaintenanceManual,"MaintenanceRecords"forinformation regardingdocumentsthatareacceptedasproofofmaintenanceorrepair.YourauthorizedCatdealer canassistyouinadjustingyourmaintenancescheduletomeettheneedsofyouroperating environment.
Overhaul
MajorengineoverhauldetailsarenotcoveredintheOperationandMaintenanceManualexceptfor theintervalandthemaintenanceitemsinthatinterval.Majorrepairsarebestlefttotrainedpersonnel oranauthorizedCatdealer.YourCatdealeroffersvariousoptionsregardingoverhaulprograms.If youexperienceamajorenginefailure,therearealsonumerousafterfailureoverhauloptionsavailable fromyourCatdealer.Consultwithyourdealerforinformationregardingtheseoptions.
Copyright1993-2023CaterpillarInc.
AllRightsReserved.
PrivateNetworkForSISLicensees.
ThuNov923:17:48UTC+05302023
This is the sample of the manual if you need complete manual Click Here to download
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019 i02040045
AdditionalMessages
SMCS-1000;7405

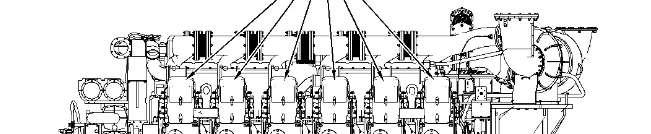

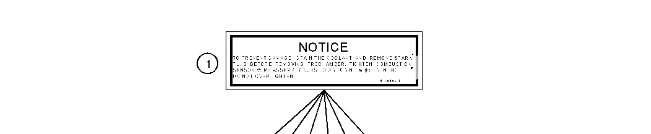

Illustration1g01049170
Rightsideview

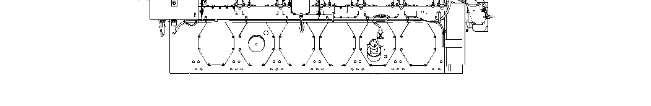

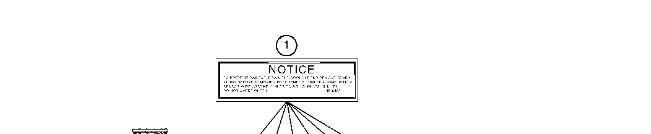

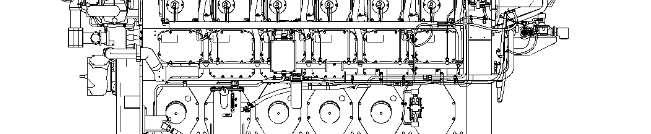

Illustration2g01049171 Leftsideview
Theremaybeseveralspecificmessagesontheengine.Theexactlocationofthemessagesandthe descriptionofthemessagesarereviewedinthissection.Pleasebecomefamiliarwithallmessages.
Ensurethatallofthemessagesarelegible.Cleanthemessagesorreplacethemessagesifthewords cannotbereadorifthepicturesarenotvisible.Whenthemessagesarecleaned,useacloth,water, andsoap.Donotusesolvent,gasoline,orotherharshchemicalstocleanthemessages.Solvents, gasoline,orharshchemicalscouldloosentheadhesivethatsecuresthemessages.Themessagesthat areloosenedcoulddropoffoftheengine.
Replaceanydamagedmessagesormissingmessages.Ifamessageisattachedtoapartofthepackage thatisreplaced,installanewmessageonthereplacementpart.AnyCaterpillardealercanprovide newmessages.
(1)RemovalofthePrechamberAssembly
Thenoticesfortheremovaloftheprechamberassembliesarelocatedoneachvalvecover.
Illustration3g00902999
Beforetheprechamberassemblyisremoved,drainthecoolantandremovethesparkplugsinorderto preventdamage.Tightenthenutsthatarelocatedonthewireassemblyforthecombustionsensorto 9.5±.5N·m(85±5lbin).Donotovertightenthenuts.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:18:56UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual
G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
BeforeStartingEngine
SMCS-1000
Inspecttheengineforpotentialhazards.
i08173080
Beforestartingtheengine,ensurethatnooneison,underneath,orclosetotheengine.Ensurethatthe areaisfreeofpersonnel.
Ensurethattheengineisequippedwithalightingsystemthatissuitablefortheconditions.Ensure thatalllightsworkproperly.
Allprotectiveguardsandallprotectivecoversmustbeinstallediftheenginemustbestartedto performserviceprocedures.Tohelppreventanaccidentthatiscausedbypartsinrotation,work aroundthepartscarefully.
Donotbypasstheautomaticshutoffcircuits.Donotdisabletheautomaticshutoffcircuits.The circuitsareprovidedtohelppreventpersonalinjury.Thecircuitsarealsoprovidedtohelpprevent enginedamage.
Ontheinitialstart-upofanewengineoranenginethathasbeenserviced,bepreparedtostopthe engineifanoverspeedconditionoccurs.Thisproceduremaybeaccomplishedbyshuttingoffthefuel supplytotheengine,orshuttingofftheignitionsystem.
SeetheServiceManualforrepairsandforadjustments.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:21:42UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual
G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
BurnPrevention
SMCS-1000;4450;7405
i08162288
Donottouchanypartofanoperatingengine.Allowtheenginetocoolbeforeanymaintenanceis performedontheengine.Relieveallpressureintheairsystem,hydraulicsystem,lubricationsystem, fuelsystem,andcoolingsystembeforeanylines,fittings,orrelateditemsaredisconnected.
Coolant
Whentheengineisatoperatingtemperature,theenginecoolantishot.Thecoolantisalsounder pressure.Theradiatorandalllinestotheheatersortotheenginecontainhotcoolant.
Anycontactwithhotcoolantorwithsteamcancausesevereburns.Allowcoolingsystem componentstocoolbeforethecoolingsystemisdrained.
Checkthatthecoolantlevelaftertheenginehasstoppedandtheenginehasbeenallowedtocool.
Ensurethatthefillercapiscoolbeforeremovingthefillercap.Thefillercapmustbecoolenoughto touchwithabarehand.Removethefillercapslowlytorelievepressure.
Coolingsystemconditionercontainsalkali.Alkalicancausepersonalinjury.Donotallowalkalito contacttheskin,theeyes,orthemouth.
Oils
Hotoilandhotlubricatingcomponentscancausepersonalinjury.Donotallowhotoiltocontactthe skin.Also,donotallowhotcomponentstocontacttheskin.
Batteries
Electrolyteisanacid.Electrolytecancausepersonalinjury.Donotallowelectrolytetocontactthe skinortheeyes.Alwayswearprotectiveglassesforservicingbatteries.Washhandsaftertouchingthe batteriesandconnectors.Useofglovesisrecommended.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:20:38UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual
G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
CrushingPreventionandCuttingPrevention
SMCS-1000;4450;7405
Supportthecomponentproperlywhenworkbeneaththecomponentisperformed.
i08162291
Unlessothermaintenanceinstructionsareprovided,neverattemptadjustmentswhiletheengineis running.
Stayclearofallrotatingpartsandofallmovingparts.Leavetheguardsinplaceuntilmaintenanceis performed.Afterthemaintenanceisperformed,reinstalltheguards.
Keepobjectsawayfrommovingfanblades.Thefanbladeswillthrowobjectsorcutobjects.
Whenobjectsarestruck,wearprotectiveglassestoavoidinjurytotheeyes.
Chipsorotherdebrismayflyoffobjectswhenobjectsarestruck.Beforeobjectsarestruck,ensure thatnoonewillbeinjuredbyflyingdebris. Copyright1993-2023CaterpillarInc.
ThuNov923:21:07UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019 i01032810
ElectricalSystem
SMCS-1000;1400
Neverdisconnectanychargingunitcircuitorbatterycircuitcablefromthebatterywhenthecharging unitisoperating.Asparkcancausethecombustiblegasesthatareproducedbysomebatteriesto ignite.
Checktheelectricalwiresdailyforwiresthatarelooseorfrayed.Tightenalllooseelectricalwires beforetheengineisoperated.Repairallfrayedelectricalwiresbeforetheengineisstarted.
GroundingPractices
Propergroundingisnecessaryforoptimumengineperformanceandreliability.Impropergrounding willresultinuncontrolledelectricalcircuitpathsandinunreliableelectricalcircuitpaths.
Uncontrolledelectricalcircuitpathscanresultindamagetomainbearings,tocrankshaftbearing journalsurfaces,andtoaluminumcomponents.Uncontrolledelectricalcircuitpathscanalsocause electricalactivitythatmaydegradetheengineelectronicsandcommunications.
Ensurethatallgroundsaresecureandfreeofcorrosion.
Theenginealternatormustbegroundedtothenegative"-"batteryterminalwithawirethatis adequatetocarrythefullchargingcurrentofthealternator.
Forthestartingmotor,donotattachthebatterynegativeterminaltotheengineblock.
Groundtheengineblockwithagroundstrapthatisfurnishedbythecustomer.Connectthisground straptothegroundplane.
Useaseparategroundstraptogroundthebatterynegativeterminalforthecontrolsystemtothe groundplane.
Ifrubbercouplingsconnectthesteelpipingofthecoolingsystemandtheradiator,thepipingandthe radiatorcanbeelectricallyisolated.Ensurethatthepipingandtheradiatorarecontinuouslygrounded totheengine.Usegroundstrapsthatbypasstherubbercouplings.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:22:16UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual
G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
EngineStarting
SMCS-1000
i08162293
Ifawarningtagisattachedtotheenginestartswitchortothecontrols,DONOTstarttheengineor movethecontrols.Consultwiththepersonthatattachedthewarningtagbeforetheengineisstarted.
Allprotectiveguardsandallprotectivecoversmustbeinstallediftheenginemustbestartedto performserviceprocedures.Tohelppreventanaccidentthatiscausedbypartsinrotation,work aroundthepartscarefully.
Ifthereisapossibilitythatunburnedgasremainsintheexhaustsystem,refertothepurgeprocedure inthisOperationandMaintenanceManual,"EngineStarting"topicintheOperationSection.
Starttheenginefromtheoperator'compartmentorfromtheenginestartswitch.
AlwaysstarttheengineaccordingtotheprocedurethatisdescribedintheOperationandMaintenance Manual,"EngineStarting"topicintheOperationSection.Knowingthecorrectprocedurewillhelpto preventmajordamagetotheenginecomponents.Knowingtheprocedurewillalsohelptoprevent personalinjury.
Toensurethatthejacketwaterheater(ifequipped)isworkingproperly,checkthewatertemperature duringoperation.Toensurethatthelubeoilheater(ifequipped)isworkingproperly,checktheoil temperatureduringheateroperation.

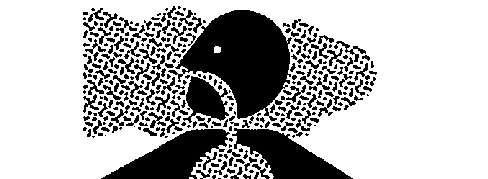

Engineexhaustcontainsproductsofcombustionwhichcanbeharmfultoyourhealth.Alwaysstart theengineandoperatetheengineinawell-ventilatedarea.Iftheengineisstartedinanenclosedarea, venttheengineexhausttotheoutside.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:21:54UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
EngineStopping
SMCS-1000
i08173082
Toavoidoverheatingoftheengineandacceleratedwearoftheenginecomponents,stoptheengine accordingtotheinstructionsinthisOperationandMaintenanceManual,"EngineStopping".
UsetheEmergencyStopButton(ifequipped)ONLYinanemergencysituation.Donotusethe EmergencyStopButtonfornormalenginestopping.Afteranemergencystop,DONOTstartthe engineuntiltheproblemthatcausedtheemergencystophasbeencorrected.
Ontheinitialstart-upofanewengineoranenginethathasbeenserviced,makeprovisionstostopthe engineifanoverspeedoccurs.Thisproceduremaybeaccomplishedbyshuttingoffthefuelsupplyto theengine,orshuttingofftheignitionsystem.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:22:06UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019
FirePreventionandExplosionPrevention
SMCS-1000;4450;7405

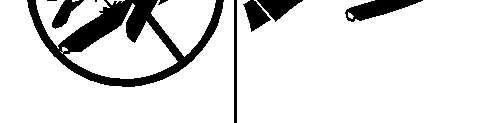

Illustration1g00704000
i08203814
Allfuels,mostlubricants,andsomecoolantmixturesareflammable. Flammablefluidsthatareleakingorspilledontohotsurfacesorontoelectricalcomponentscancause afire.Firemaycausepersonalinjuryandpropertydamage. Flashfiresmayresultifthecoversfortheenginecrankcaseareremovedwithin15minutesafteran emergencyshutdown.
Determinewhethertheenginewillbeoperatedinanenvironmentthatallowscombustiblegasestobe drawnintotheairinletsystem.Thesegasescouldcausetheenginetooverspeed.Personalinjury, propertydamage,orenginedamagecouldresult.
Iftheapplicationinvolvesthepresenceofcombustiblegases,consultyourCatdealerforadditional informationaboutsuitableprotectiondevices.
Removeallflammablematerialssuchasfuel,oil,anddebrisfromtheengine.Donotallowany flammablematerialstoaccumulateontheengine.
Storefuelsandlubricantsinproperlymarkedcontainersawayfromunauthorizedpersons.Storeoily ragsandanyflammablematerialsinprotectivecontainers.Donotsmokeinareasthatareusedfor storingflammablematerials.
Donotexposetheenginetoanyflame.
Exhaustshields(ifequipped)protecthotexhaustcomponentsfromoilorfuelsprayinaline,ahose, orasealfailure.Exhaustshieldsmustbeinstalledcorrectly.
Donotweldonlinesortanksthatcontainflammablefluids.Donotflamecutlinesthatcontain flammablefluid.Cleananysuchlinesthoroughlywithanonflammablesolventpriortoweldingor flamecutting.
Wiringmustbekeptingoodcondition.Ensurethatallelectricalwiresareproperlyroutedand securelyattached.Checkallelectricalwiresdaily.Repairanywiresthatarelooseorfrayedbefore youoperatetheengine.Cleanallelectricalconnectionsandtightenallelectricalconnections.
Eliminateallwiringthatisunattachedorunnecessary.Donotuseanywiresorcablesthataresmaller thantherecommendedgauge.Donotbypassanyfusesand/orcircuitbreakers.
Arcingorsparkingcouldcauseafire.Secureconnections,recommendedwiring,andproperly maintainedbatterycableswillhelptopreventarcingorsparking.
Inspectalllinesandhosesforwearorfordeterioration.Properlyrouteallhoses.Thelinesandhoses musthaveadequatesupportandsecureclamps.Tightenallconnectionstotherecommendedtorque. Leakscancausefires.
Properlyinstallalloilfiltersandfuelfilters.Thefilterhousingsmustbetightenedtotheproper torque.

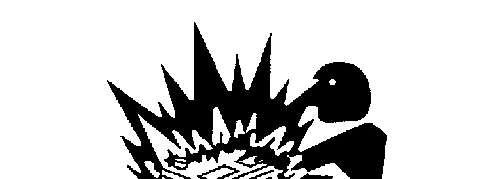

Illustration2g02298225
Gasesfromabatterycanexplode.Keepanyopenflamesorsparksawayfromthetopofabattery.Do notsmokeinbatterychargingareas.
Nevercheckthebatterychargebyplacingametalobjectacrosstheterminalposts.Useavoltmeteror ahydrometer.
Improperjumpercableconnectionscancauseanexplosionthatcanresultininjury.Refertothe OperationSectionofthismanualforspecificinstructions.
Donotchargeafrozenbattery.Chargingafrozenbatterymaycauseanexplosion.
Thebatteriesmustbekeptclean.Thecovers(ifequipped)mustbekeptonthecells.Usethe recommendedcables,connections,andbatteryboxcoverswhentheengineisoperated.
FireExtinguisher
Makesurethatafireextinguisherisavailable.Befamiliarwiththeoperationofthefireextinguisher. Inspectthefireextinguisherandservicethefireextinguisherregularly.Obeytherecommendationson theinstructionplate.
Lines,Tubes,andHoses
Donotbendhigh-pressurelines.Donotstrikehigh-pressurelines.Donotinstallanylinesthatare bentordamaged.
Repairanylinesthatarelooseordamaged.Leakscancausefires.ConsultyourCatdealerforrepair orforreplacementparts.
Checklines,tubes,andhosescarefully.Donotuseyourbarehandtocheckforleaks.Useaboardor cardboardtocheckforleaks.Tightenallconnectionstotherecommendedtorque.
Replacethepartsifanyofthefollowingconditionsarepresent:
•Endfittingsaredamagedorleaking.
•Outercoveringsarechafedorcut.
•Wiresareexposed.
•Outercoveringsareballooning.
•Flexiblepartsofthehosesarekinked.
•Outercovershaveembeddedarmoring.
•Endfittingsaredisplaced.
Makesurethatallclamps,guards,andheatshieldsareinstalledcorrectlytopreventvibration,rubbing againstotherparts,andexcessiveheat.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuNov923:20:52UTC+05302023
Product:GASENGINE
Model:G3616GASENGINEBLB
Configuration:G3616GENERATORANDINDUSTRIALBLB00001-UP
OperationandMaintenanceManual G3600Engines
MediaNumber-SEBU7563-14PublicationDate-01/04/2010DateUpdated-12/07/2019 i07572244
GeneralHazardInformation
SMCS-1000;4450;7405

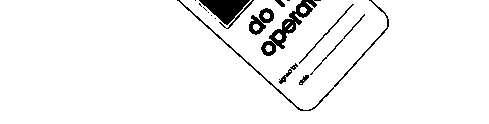

Illustration1g00104545
.Attacha"DoNotOperate"warningtagtothestartswitchorcontrolsbeforetheengineisservicedor repaired.Thesewarningtags(SpecialInstruction,SEHS7332)areavailablefromyourCaterpillar dealer.Attachthewarningtagstotheengineandtoeachoperatorcontrolstation.Whenappropriate, disconnectthestartingcontrols.
Donotallowunauthorizedpersonnelontheengine,oraroundtheenginewhentheengineisbeing serviced.
Engineexhaustcontainsproductsofcombustionwhichmaybeharmfultoyourhealth.Alwaysstart theengineandoperatetheengineinawellventilatedarea.Iftheengineisinanenclosedarea,vent theengineexhausttotheoutside.
Cautiouslyremovethefollowingparts.Tohelppreventsprayingorsplashingofpressurizedfluids, holdaragoverthepartthatisbeingremoved.
•Fillercaps
•Greasefittings
•Pressuretaps
•Breathers
•Drainplugs
Usecautionwhencoverplatesareremoved.Graduallyloosen,butdonotremovethelasttwoboltsor nutsthatarelocatedatoppositeendsofthecoverplateorthedevice.Beforeremovingthelasttwo boltsornuts,prythecoverlooseinordertorelieveanyspringpressureorotherpressure.

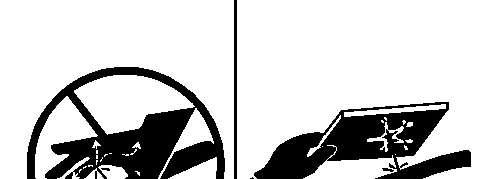

Illustration2g00702020
•Wearahardhat,protectiveglasses,andotherprotectiveequipment,asrequired.
•Whenworkisperformedaroundanenginethatisoperating,wearprotectivedevicesforearsin ordertohelppreventdamagetohearing.
•Donotwearlooseclothingorjewelrythatcansnagoncontrolsoronotherpartsoftheengine.
•Ensurethatallprotectiveguardsandallcoversaresecuredinplaceontheengine.
•Neverputmaintenancefluidsintoglasscontainers.Glasscontainerscanbreak.
•Useallcleaningsolutionswithcare.
•Reportallnecessaryrepairs.
Unlessotherinstructionsareprovided,performthemaintenanceunderthefollowing conditions:
•Theengineisstopped.Ensurethattheenginecannotbestarted.
•Theprotectivelocksorthecontrolsareintheappliedposition.
•Disconnectthebatterieswhenmaintenanceisperformedorwhentheelectricalsystemis serviced.Disconnectthebatterygroundleads.Tapetheleadsinordertohelppreventsparks.
•Whenstartinganewengineoranenginewhichhasnotbeenstartedsinceservicehasbeen performed,makeprovisionstostoptheengineifanoverspeedoccurs.Shuttingdownthe enginemaybeaccomplishedbyshuttingoffthefuelsupplyand/ortheairsupplytotheengine.
•Donotattemptanyrepairsthatarenotunderstood.Usethepropertools.Replaceany equipmentthatisdamagedorrepairtheequipment.
•Starttheenginewiththeoperatorcontrols.Nevershortacrossthestartingmotorterminalsor thebatteries.Thismethodofstartingtheenginecouldbypasstheengineneutralstartsystem and/ortheelectricalsystemcouldbedamaged.
CaliforniaProposition65Warning
SomeengineexhaustconstituentsareknowntotheStateofCaliforniatocausecancer,birthdefects, andotherreproductiveharm.
PressurizedAirandWater
Pressurizedairand/orwatercancausedebrisand/orhotwatertobeblownoutwhichcouldresultin personalinjury.
Whenpressurizedairand/orpressurizedwaterisusedforcleaning,wearprotectiveclothing, protectiveshoes,andeyeprotection.Eyeprotectionincludesgogglesoraprotectivefaceshield.
Themaximumairpressureforcleaningpurposesmustbereducedto205kPa(30psi)whentheair nozzleisdeadheadedandusedwitheffectivechipguarding(ifapplicable)andpersonalprotective equipment.Themaximumwaterpressureforcleaningpurposesmustbebelow275kPa(40psi). Alwaysweareyeprotectionforcleaningthecoolingsystem.
FluidPenetration
Alwaysuseaboardorcardboardwhenyoucheckforaleak.Leakingfluidthatisunderpressurecan penetratebodytissue.Fluidpenetrationcancauseseriousinjuryandpossibledeath.Apinholeleak cancausesevereinjury.Iffluidisinjectedintoyourskin,youmustgettreatmentimmediately.Seek treatmentfromadoctorthatisfamiliarwiththistypeofinjury.
ContainingFluidSpillage
NOTICE
Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjusting,andrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers beforeopeninganycompartmentordisassemblinganycomponent containingfluids.
RefertoSpecialPublication,NENG2500,"CatDealerServiceTool Catalog"orrefertoSpecialPublication,PECJ0003,"CatShop SuppliesandToolsCatalog"fortoolsandsuppliessuitabletocollect andcontainfluidsonCatproducts.
Disposeofallfluidsaccordingtolocalregulationsandmandates.
Lines,Tubes,andHoses
Donotbendorstrikehigh-pressurelines.Donotinstalllines,tubes,orhosesthataredamaged. Repairanyfuellines,oillines,tubes,orhosesthatarelooseordamaged.Leakscancausefires.
Inspectalllines,tubes,andhosescarefully.Donotusebarehandstocheckforleaks.Alwaysusea boardorcardboardforcheckingenginecomponentsforleaks.Tightenallconnectionstothe recommendedtorque.
Checkforthefollowingconditions:
•Endfittingsthataredamagedorleaking
•Outercoveringthatischafedorcut
•Wirethatisexposedinreinforcedhose
•Outercoveringthatisballooninglocally
•Flexiblepartofthehosethatiskinkedorcrushed
•Armoringthatisembeddedintheoutercovering
Ensurethatalloftheclamps,theguards,andtheheatshieldsareinstalledcorrectly.Correct installationofthesecomponentswillhelptopreventtheseeffects:vibration,rubbingagainstother partsandexcessiveheatduringoperation.
Inhalation
Exhaust
Usecaution.Exhaustfumescanbehazardoustoyourhealth.Ifyouoperatetheequipmentinan enclosedarea,adequateventilationisnecessary.
AsbestosInformation
CaterpillarequipmentandreplacementpartsthatareshippedfromCaterpillarareasbestosfree. CaterpillarrecommendstheuseofonlygenuineCatreplacementparts.Usethefollowingguidelines whenyouhandleanyreplacementpartsthatcontainasbestosorwhenyouhandleasbestosdebris.
Usecaution.Avoidinhalingdustthatmightbegeneratedwhenyouhandlecomponentsthatcontain asbestosfibers.Inhalingthisdustcanbehazardoustoyourhealth.Thecomponentsthatmaycontain asbestosfibersarebrakepads,brakebands,liningmaterial,clutchplates,andsomegaskets.The asbestosthatisusedinthesecomponentsisusuallyboundinaresinorsealedinsomeway.Normal handlingisnothazardousunlessairbornedustthatcontainsasbestosisgenerated.
Ifdustthatmaycontainasbestosispresent,thereareseveralguidelinesthatshouldbefollowed:
•Neverusecompressedairforcleaning.
•Avoidbrushingmaterialsthatcontainasbestos.
•Avoidgrindingmaterialsthatcontainasbestos.
•Useawetmethodinordertocleanupasbestosmaterials.
•Avacuumcleanerthatisequippedwithahighefficiencyparticulateairfilter(HEPA)canalso beused.
•Useexhaustventilationonpermanentmachiningjobs.
•Wearanapprovedrespiratorifthereisnootherwaytocontrolthedust.
•Complywithapplicablerulesandregulationsfortheworkplace.IntheUnitedStates,use OccupationalSafetyandHealthAdministration(OSHA)requirements.TheseOSHA requirementscanbefoundin"29CFR1910.1001".
•Obeyenvironmentalregulationsforthedisposalofasbestos.
•Stayawayfromareasthatmighthaveasbestosparticlesintheair.
Softwrap
Keeptheengineroomventilationoperatingatfullcapacity.WearaNationalInstituteofOccupational SafetyandHealth(NIOSH)approvedparticulaterespirator.Wearappropriateprotectiveclothingin ordertominimizedirectcontact.Usegoodhygienepracticesandwashhandsthoroughlyafter handlingSoftwrap.DonotsmokeuntilwashinghandsthoroughlyafterhandlingSoftwrap.Cleanup debriswithavacuumorbywetsweeping.Donotusepressurizedairtocleanupdebris.
Reference:Theapplicablematerialsafetydatasheetscanbefoundatthefollowingwebsiteby searchingbythepartnumberorthenameoftheproduct:
http://www.catmsds.com
