D9R TRACK-TYPE TRACTOR ABK00001-UP
Note: Use Bookmarks panel to navigate
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Brake Control Valve - Install
SMCS - 4265-012
Installation Procedure
Illustration 1 g00629352
Date Updated -08/09/2020
Note: Thoroughly clean the back of the brake control valve. Put a light coat of clean hydraulic oil on the back of the brake control valve.
1. Install the brake control valve. Install six bolts (3) in brake control valve (2).
2. Tighten six bolts (3) to the torque of 30 ± 4 N·m (24 ± 3 lb ft).
i01028341
3. Install two brake cables (1) into brake control valve (2).
4. Install the floorplate.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Sep 5 23:11:38 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Brake Control Valve - Assemble
SMCS - 4265-016
Assembly Procedure
Illustration 1 g00629353
Date Updated -08/09/2020

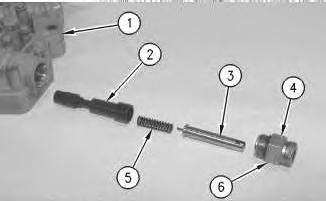

1. Install plunger (2), spring (5), and spool (3) into brake control valve (1).
2. Install plug (4) and seal (6) into brake control valve (1).
Note: Repeat Steps 1 and 2 in order to install the other brake control valve spool.
3. Be sure that all of the internal parts of the brake control valve are thoroughly cleaned prior to the assembly. Put clean hydraulic oil on the components during the assembly.
4. Check the condition of the O-ring seal. If the O-ring seal is damaged, use a new O-ring seal for the replacement.
End By:
i01028340
a. Install the brake control valve. See Disassembly and Assembly, "Brake Control ValveInstall".
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Sep 5 23:11:19 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Brake Control Valve - Disassemble
SMCS - 4265-015
Disassembly Procedure
Start By:
Date Updated -08/09/2020
a. Remove the brake control valve. See Disassembly and Assembly, "Brake Control ValveRemove".
Illustration 1
g00629353
1. Remove plug (4) and seal (6) from brake control valve (1).
2. Remove plunger (2), spring (5), and spool (3) from brake control valve (1).
Note: Repeat Steps 1 and 2 in order to remove the other brake control valve spool.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Sep 5 23:11:04 UTC+0530 2024
i01028337
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Brake Control Valve - Remove
SMCS - 4265-011
Removal Procedure
1. Remove the floorplate.
Illustration 1
g00629351

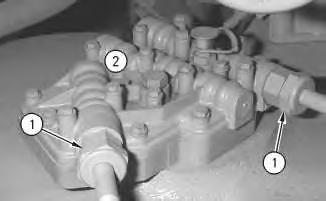

2. Remove two brake cables (1) from brake control valve (2).
Date Updated -08/09/2020
i01028336

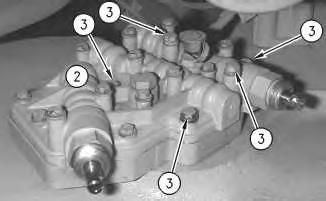

3. Remove six bolts (3) from brake control valve (2). Remove the brake control valve.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Sep 5 23:10:49 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Steering Oil Cooler - Install
SMCS - 4346-012
Installation Procedure
Illustration 1 g00752383
Date Updated -08/09/2020
i01028273
1. Tilt the bottom of the steering oil cooler inward. Install the oil cooler. Install two bolts (15). Connect hose assembly (14) and connect the elbow.
Illustration 2
2. Connect hose assembly (10) and elbow (11).
3
3.
4
4.
g00629347
Illustration
g00629345
Remove three bolts (8) and shield (9).
Illustration
g00629344
Tighten hoses (7). Connect hose assembly (6).
5. Install two bolts (3) at the bottom of cooler core (2).
6. Install crossbar (1). Install two bolts (5) on each side.
7. Install two nuts, two bolts (4), and the clamps.
8. Install the bolts and close the radiator grill. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved.
SIS
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Steering Oil Cooler - Remove
SMCS - 4346-011
Removal Procedure
Date Updated -08/09/2020
1. Use the following procedure to release the pressure in the hydraulic system:
a. Shut off the engine.
b. Move the control lever through the full travel. This will relieve any pressure that may be present in the pilot system.
c. Slowly loosen the breather cap on the hydraulic tank in order to release the pressure.
d. Tighten the breather cap on the hydraulic oil tank.
e. The pressure in the hydraulic system has now been released. Lines and components can now be removed.
Note: Cap all the lines and plug all the lines after disassembly. Identify each line for assembly purposes.
2. Remove the bolts and open the radiator grill. Use the stops in order to keep the grill open.
i01028271
Illustration 1 g00629340
3. Remove two nuts, bolts (4), and the clamps.

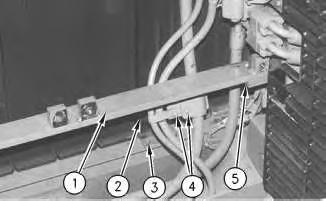

4. Remove two bolts (5) on each side. Remove crossbar (1).
5. Remove two bolts (3) at the bottom of cooler core (2).
2

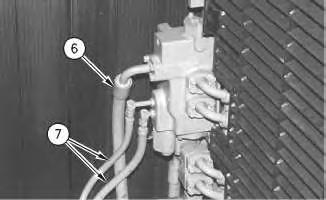

6. Disconnect hose assembly (6). Loosen hoses (7) and position the hoses out of the way.
3

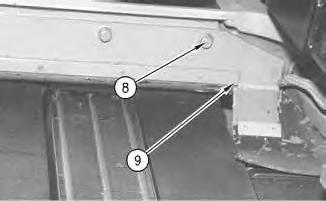

7. Remove three bolts (8) and shield (9).
Illustration
g00629344
Illustration
g00629345
Illustration 4

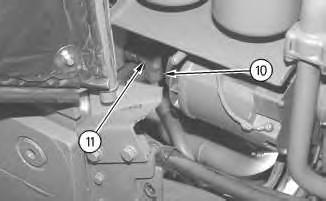

8. Disconnect hose assembly (10) and elbow (11).
Illustration 5
9. Remove three screws (12). Leave the screw in place under the hose. Pivot cover (13) open for access.
Illustration 6

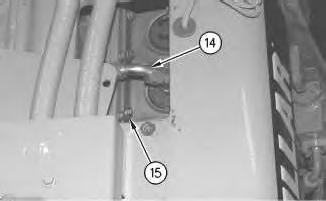

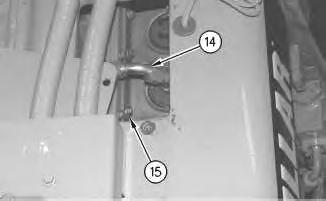

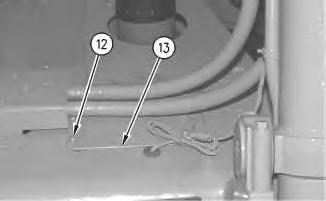

10. Disconnect hose assembly (14) and remove the elbow. Remove two bolts (15). Tilt the bottom of the steering oil cooler. Remove the steering oil cooler.
g00629347
g00629348
g00629350
11. Fill the hydraulic system with hydraulic fluid. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Sep 5 23:10:17 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Torque Converter Scavenge Pump - Install
SMCS - 3115-012
Installation Procedure

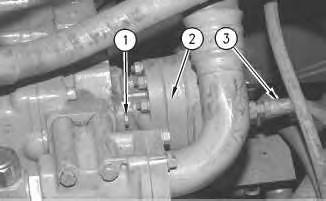

Illustration 1 g00629325
Date Updated -08/09/2020
i01033780
1. Install torque converter scavenge pump (2). Install two bolts and washers (1). Connect two lines (3).
2. Install the floorplate and the floormat.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Thu Sep 5 23:10:00 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Torque Converter Scavenge Pump - Assemble
SMCS - 3115-016
Assembly Procedure
Illustration 1 g00629339
1. Install bushings (18) if the bushings were removed.
Date Updated -08/09/2020
i01033786

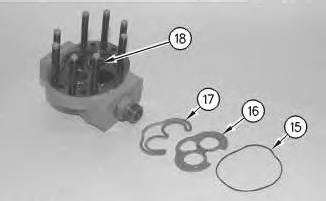

Illustration 2 g00629338
2. Install O-ring seal (15), plate (16), and seal assembly (17) behind the plate. Install the brass side of plate toward the gears.
3. Install studs (14) if the studs were removed. Tighten the studs to a torque of 40 ± 7 N·m (30 ± 5 lb ft).
Illustration 3
g00629337
4. Install locating pins (13) on both sides of body assembly (10), if the assembly was removed.
Illustration 4

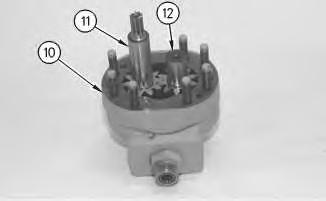

5. Install body assembly (10), (11), and (12).
g00629335
Illustration 5
6. Install seal (7), ring (8), and seal (9).
g00629334
Illustration 6
g00629332
7. Install O-ring seal (3), plate (4), and seal assembly (5). Install the brass side of plate (4) toward the gears.
8. Install bushings (6) if the bushings were removed.
Illustration 7
g00629330
9. Install O-ring seal (3), plate (4), and seal assembly (5) behind the plate.
8
10. Install eight nuts and washers (1) and end plate (2). Tighten nuts (1) to the torque of 80 ± 7 N·m (59 ± 5 lb ft).
End By:
a. Install the scavenge pump. See Disassembly and Assembly, "Torque Converter Scavenge Pump - Install".
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Sep 5 23:09:41 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Date Updated -08/09/2020
Torque Converter Scavenge Pump - Disassemble
SMCS - 3115-015
Disassembly Procedure
Start By:
a. Remove the scavenge pump. See Disassembly and Assembly, "Torque Converter Scavenge Pump - Remove".
Illustration 1
g00629328
1. Remove eight nuts and washers (1) and end plate (2).
i01033782
Illustration 2
g00629330

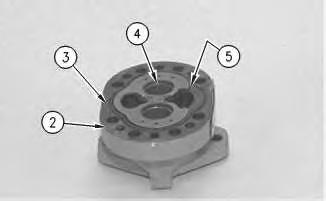

2. Remove O-ring seal (3), plate (4), and seal assembly (5) behind the plate.
Illustration 3
g00629332
3. Remove O-ring seal (3), plate (4), and seal assembly (5).
4. Remove bushings (6), if necessary.
Illustration 4
5. Remove seal (7), ring (8), and seal (9).
g00629334
Illustration 5
g00629335

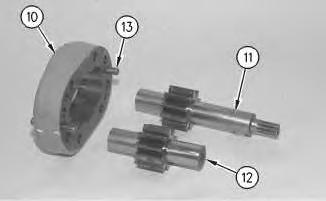

6. Remove body assembly (10) and gears (11) and (12).
Illustration 6
g00629337
7. Remove locating pins (13) from both sides of body assembly (10), if necessary.
Illustration 7
g00629338

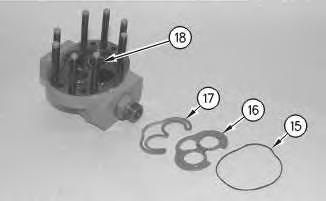

8. Remove O-ring seal (15), plate (16), and seal assembly (17) behind the plate.
9. Remove studs (14), if necessary.
10. Remove bushings (18), if necessary.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Thu Sep 5 23:09:26 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D9R TRACK-TYPE TRACTOR ABK
Configuration: D9R Track-Type Tractor Differential Steering ABK00001-UP (MACHINE) POWERED BY 3408 Engine
Disassembly and Assembly
D9R Track-Type Tractor Power Train
Media Number -M0097695-01
Publication Date -01/09/2020
Torque Converter Scavenge Pump - Remove
SMCS - 3115-011
Removal Procedure
1. Remove the floormat and the floorplate.

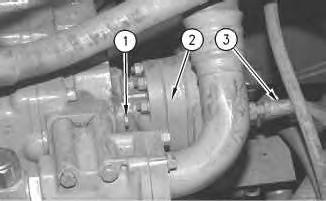

Illustration 1
Date Updated -08/09/2020
i01033779
2. Disconnect two lines (3). Remove two bolts and washers (1). Remove torque converter scavenge pump (2).
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Sep 5 23:09:08 UTC+0530 2024
g00629325
