General Information

SMCS - 4490; 7000; 7008; 7490; 7602; 7606; 7620; 7631

Date Updated -06/02/2018

i07231523

This Regulatory Information Supplement contains additional regulatory information for certain markets, and/or specific components, that should be used in conjunction with the product specific Operation and Maintenance Manual that was supplied with the product.

This Regulatory Information Supplement is applicable to the family of products listed on the cover.

Your specific product may not be equipped with all of the components that are described in this Regulatory Information Supplement.

For questions regarding your specific product, or this publication, please consult your Cat dealer for the latest available information.

This is the sample of the manual click on the download link for complete manual

DOWNLOAD LINK

For some reason if link does not work download this pdf and then click

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

Entertainment Radio - DEA500 - If Equipped

SMCS - 7338

Table 1

Model Cat Part Number

DEA500 462-9618

DEA500 462-9619

DEA500 462-9620

DEA500 462-9621

DEA500 439-1562

DEA500 439-1563

DEA500 439-1564

FCC Notice to Users

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

• Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.

i07107683

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment receives radio frequencies and can radiate radio frequency energy. Improper installation of the radio and improper use in accordance with the instructions the radio may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, interference can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

The following notices are provided.

Modification Statement

Caterpillar has not approved any changes or modifications to this device by the user. Any changes or modifications could void the users authority to operate the equipment.

Radiation Exposure

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Radio Frequency Range

The following communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:

Table 2

Radio Transmitter Specifications

Table 3

CATERPILLAR®

EU Declaration of Conformity

This Declaration of Conformity is issued under the sole responsibility of the manufacturer. The undersigned, representing the manufacturer:

CATERPILLAR INC

100 N.E. Adams Street Peoria, IL 61629

USA hereby declares that the product, the object of this description:

Caterpillar DEA500 model entertainment radios

Brand: Caterpillar Model: DEA500

Part Number: 462-9618, 462-9619, 462-9620, 462-9621, 439-1562, 439-1563, 439-1564

Is in conformity with the relevant Union harmonization legislation: Directive 2014/53/EU

Conformity is shown by compliance with applicable requirement of the following documents:

Assessment Procedure: ______ Annex II, ___X____ Annex III, _______Annex IV

2014/53/EU: LVD (Sec 3.1a):

EN60950-1:2006 + A11:2009 + A12:2011 + AC:2011 + A2:2013

EN 62479:2010

EMC (Sec 3.1b): EN 301 489-1 V2.2.0

EN 301 489-17 V3.2.0

EN 55020:2007 + A11:2011

EN 55032:2015

EN 61000-3-2:2006 + A1:2009 + A2:2009

EN 6100-3-3:2008

RF (Sec 3.2)

EN 300 328 V2.1.1

Notified Body Name: DEKRA Testing and Certification, S.A.U.

Notified Body Number: 1909

Examination Certificate Number: 53627RNB.001

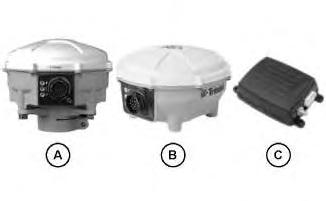

Illustration 1 g06235044

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

Global Positioning System (GPS) - Zephyr III Antenna - If Equipped

SMCS - 7490; 7602

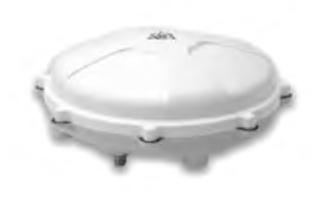

Illustration 1

Zephyr III Rugged

g06275705

Declaration of Conformity - European Union

Table 1

TRIMBLE®

CE Declaration of Conformity

Trimble Inc. declares, under sole responsibility, that the following product(s) conforms to the particular standards listed below in order to comply with European Union regulations.

Product Names: Zephyr III Rugged

i07290541

Fulfills the basic requirements for the following European Directives:

Directive Name Directive Name

Machinery 2006/42/EC

RoHS 2011/65/EU

RED 2014/53/EU

The Following Standards have been applied:

Test Criteria Standard

Machinery

ISO13766:2006 RED

ETSI EN 301 489–1 V2.2.0

ETSI EN 301 489–19 V2.1.0

ETSI EN 303 413 V1.1.1

EN 60950–1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

RoHS EN 50581:2012

Declaration Approval:

Date: 1/11/2018

Name: John Erhard

Title: Regulatory Compliance Manager

Trimble Inc. LLC

5475 Kellenburger Road, Dayton , OH 45424, USA

Telephone: (937) 233–8921

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

i07290445

Global Positioning System (GPS) - Zephyr Model 2 Antenna - If Equipped

SMCS - 7490; 7602

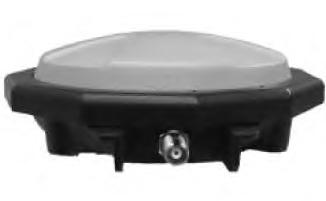

Illustration 1

Zephyr Model 2 Rugged

g06275684

Declaration of Conformity - European Union

Table 1

TRIMBLE®

CE Declaration of Conformity

Trimble Inc. declares, under sole responsibility, that the following product(s) conforms to the particular standards listed below in order to comply with European Union regulations.

Product Names: Zephyr Model 2 Rugged

Fulfills the basic requirements for the following European Directives:

Directive Name Directive Name

Machinery 2006/42/EC

RoHS 2011/65/EU

RED 2014/53/EU

The Following Standards have been applied:

Test Criteria Standard

Machinery

ISO13766:2006

ETSI EN 301 489–1 V2.2.0

ETSI EN 301 489–19 V2.1.0

ETSI EN 303 413 V1.1.1

RED

EN 60950–1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 in conjunction with the following sections of EN 60945:2008 (9.3, 10.3, 10.5, 10.9)

CISPR25

RoHS EN 50581:2012

Declaration Approval:

Date: 1/11/2018

Name: John Erhard

Title: Regulatory Compliance Manager

Trimble Inc. LLC

5475 Kellenburger Road, Dayton , OH 45424, USA

Telephone: (937) 233–8921

Rights Reserved. Private Network For SIS Licensees. Sat Jun 29 16:53:25 UTC+0530 2024

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

Product Link - PL631 - If Equipped

SMCS - 7490; 7606

i07103305

NOTICE

The transmission of information using a Cat Product Link communication device is subject to legal requirements. The legal requirements may vary from location to location, including, but not limited to, radio frequency use authorization. The use of a Cat Product Link communication device must be limited to those locations where all legal requirements for the use of the Cat Product Link communication device and communication network have been satisfied.

If equipment outfitted with the Cat Product Link communication device is located in or relocated to a location where (i) legal requirements are not satisfied or (ii) transmitting or processing of such information across multiple locations would not be legal, Caterpillar disclaims any liability related to such failure to comply, and Caterpillar may discontinue the transmission of information from that equipment.

Consult your Cat dealer with any questions that concern the operation of the Product Link system in a specific country.

Reference: Refer to the Operation and Maintenance Manual of your product for additional information.

FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/tv technician for help

Changes or modifications to this device without the express approval of Caterpillar may void the users authority to use this device.

Industry Canada Notice to Users

This device complies with Industry Canada license exempt RSSs. Operation is subject to the following two conditions:

• This device may not cause interference

• This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency Range

This equipment is equipped with a Cat® Product Link communication device. When electric detonators are being used for blasting operations, radio frequency devices can cause interference with electric detonators for blasting operations which can result in serious injury or death. The

Product Link communication device should be deactivated within the distance mandated under all applicable national or local regulatory requirements. In the absence of any regulatory requirements Caterpillar recommends the end user perform their own risk assessment to determine safe operating distance.

The following Cat Product Link communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:

Table 1

Radio Transmitter Specifications

Note: The PL631 operates at a different frequency range in Russia.

Table 2

Radio Transmitter Specifications — Russia Specific

PL631 467-4162, 463-1177, 455-5564, 442-7199 1621.35 MHz - 1626.5 MHz 2.16

Declaration of Conformity - European Union

Table 3

CATERPILLAR®

EU Declaration of Conformity

This Declaration of Conformity is issued under the sole responsibility of the manufacturer.

The undersigned, representing the manufacturer:

CATERPILLAR, Inc.

100 N.E. Adams Street

Peoria, IL 61629

hereby declares that the product, object of this description:

Product Link, PL631, Cellular Radio Telematics Device

Brand: Caterpillar Model: PL631

Part #: 442-7199

Antenna Part #: 443-8463, 443-8462

Is in conformity with the relevant Union harmonization legislation:

Directive 2014/53/EU

Directive 2011/65/EU

Conformity is shown by compliance with the applicable requirements of the following documents:

Conformity Assessment Procedure: ___X___ Annex II, _______ Annex III, _______Annex IV

2014/53/EU: LVD (Sec 3.1a):

EN609501:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN 62311:2008

EMC (Sec 3.1b): EN 301 489-1 V2.1.1

EN 301 489-19 V2.1.0 EN 301 489-20 V2.1.0

RF (Sec 3.2) EN 301 441 V1.1.0 EN 303 413 V1.1.0

2011/65/EU: RoHS EN 50581:2012

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

Product Link - PL641 - If Equipped

SMCS - 7490; 7606

i07103580

NOTICE

The transmission of information using a Cat Product Link communication device is subject to legal requirements. The legal requirements may vary from location to location, including, but not limited to, radio frequency use authorization. The use of a Cat Product Link communication device must be limited to those locations where all legal requirements for the use of the Cat Product Link communication device and communication network have been satisfied.

If equipment outfitted with the Cat Product Link communication device is located in or relocated to a location where (i) legal requirements are not satisfied or (ii) transmitting or processing of such information across multiple locations would not be legal, Caterpillar disclaims any liability related to such failure to comply, and Caterpillar may discontinue the transmission of information from that equipment.

Consult your Cat dealer with any questions that concern the operation of the Product Link system in a specific country.

Reference: Refer to the Operation and Maintenance Manual of your product for additional information.

FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/tv technician for help

Changes or modifications to this device without the express approval of Caterpillar may void the users authority to use this device.

Industry Canada Notice to Users

This device complies with Industry Canada license exempt RSSs. Operation is subject to the following two conditions:

• This device may not cause interference

• This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency Range

This equipment is equipped with a Cat® Product Link communication device. When electric detonators are being used for blasting operations, radio frequency devices can cause interference with electric detonators for blasting operations which can result in serious injury or death. The

Product Link communication device should be deactivated within the distance mandated under all applicable national or local regulatory requirements. In the absence of any regulatory requirements Caterpillar recommends the end user perform their own risk assessment to determine safe operating distance.

The following Cat Product Link communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:

Table 1

Radio Transmitter Specifications

Radio Model (Maximum) Transmitter Frequency Range Transmitter Power PL641

880 MHZ - 915 MHz

1710 MHz - 1755 MHz

824 MHz - 849 MHz 0.5W typical, 2W max

1850 MHz - 1910 MHz

1920 MHz - 1980 MHz

2110 MHz - 2170 MHz

Declaration of Conformity - European Union

Table 2

CATERPILLAR®

EU Declaration of Conformity

This Declaration of Conformity is issued under the sole responsibility of the manufacturer.

The undersigned, representing the manufacturer: CATERPILLAR INC

100 N.E. Adams Street

Peoria, IL 61629

USA

hereby declares that the product, object of this description:

Product Link, PL641, Cellular Radio Telematics Device,

Brand: Caterpillar Model: PL641

Part #: 440-2104, 440-2105

Antenna Part #: 443-8463, 443-8462, 443-8460

Is in conformity with the relevant Union harmonization legislation:

Directive 2014/53/EU

Directive 2011/65/EU

Conformity is shown by compliance with the applicable requirements of the following documents:

Conformity Assessment Procedure: ___X___ Annex II, _______ Annex III, _______Annex IV

2014/53/EU: LVD (Sec 3.1a):

EMC (Sec 3.1b):

RF (Sec 3.2)

EN60950-1:2006 + A11:2009+ A1:2010 + A12:2011 + A2:2013

EN 62311:2008

EN 301 489-1 V2.1.1

EN 301 489-19 V2.1.0

EN 301 489-52 V1.1.0

EN 301 511 V12.1.10

EN 301 908–1 V11.1.1

EN 301 908–2 V11.1.1

EN 303 413 V1.1.0

2011/65/EU: RoHs EN 50581:2012

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

Wireless Device - MS352 Receiver - If Equipped

SMCS - 7008; 7600-ZM

Declaration of Conformity - European Union

Table 1

CATERPILLAR® EU Declaration of Conformity

This Declaration of Conformity is issued under the sole responsibility of the manufacturer.

The undersigned, representing the manufacturer:

CATERPILLAR INC

100 N.E. Adams Street

Peoria, IL 61629

USA

hereby declares that the product, the object of this description: Satellite Receiver MS352

Brand: Caterpillar

Part Number: 371-7044, 3925485

Model: MS352

Antenna: 3724806

Is in conformity with the relevant Union harmonization legislation:

Directive 2014/30/EU

Directive 2014/53/EU

i07297502

Directive 2011/65/EU

Conformity is shown by compliance with applicable requirement of the following documents:

Assessment Procedure: ___X___ Annex II, _______ Annex III, _______Annex IV

2014/30/EU EMCD EN 13309:2010

2014/53/EU: RED LVD (Sec 3.1a): EN 60950-1:2006 + A11:2009 + A1:2010 A12:2011 + A2:2013

EMC (Sec 3.1b): EN 301 489-1 V2.2.0 EN 301 489-19 V2.1.0

RF (Sec 3.2) EN 303 413 V1.1.1

2011/65/EU RoHS EN50581:2012

Illustration 1

g06277172

Product: TRACK-TYPE TRACTOR

Model: D6N LGP TRACK-TYPE TRACTOR MG5

Configuration: D6N TRACK-TYPE TRACTOR XL, LGP MG500001-UP (MACHINE) POWERED BY C7.1 Engine

Operation and Maintenance Manual

Regulatory Compliance Information

Media Number -M0085547-03 Publication Date -01/02/2018 Date Updated -06/02/2018

i07290447

Wireless Device - MS995, MS975, MS955 Receiver - If Equipped

SMCS - 7008; 7600-ZM

Illustration 1

(A) MS995

(B) MS975

(C) MS955

g06275658

Declaration of Conformity - European Union

Table 1

TRIMBLE®

CE Declaration of Conformity

Trimble Inc. declares, under sole responsibility, that the following product(s) conforms to the particular standards listed below in order to comply with European Union regulations.
