Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
AfterStarting
1.Keepenginespeedlowuntiloilpressureregisters.Ifoilpressuredoesnotregister,stopengine andinvestigate.
2.Checkaircleanerserviceindicator.IfREDpistonislockedinthevisiblepositionhaveair cleanerserviced.
3.Operateengineunderlightloadfor5minutes.
4.Checkgaugesfrequentlyduringoperation.AllgaugesmustindicateintheNORMALoperating range.Theammeterisnormalwhentheindicatorisatoronthe+sideofzero.
5.Iftractorisequippedwithwaterpressureandwatertemperaturegauges,bothgaugesshould registerinthesamecolorranges.Donotoperatewhentemperaturegaugeindicatorisbeyond colorrangeindicatedbypressuregauge.Thetractormaybeoperatedifpressuregaugeindicatoris beyondcolorrangeindicatedbytemperaturegauge.
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
BeforeStarting

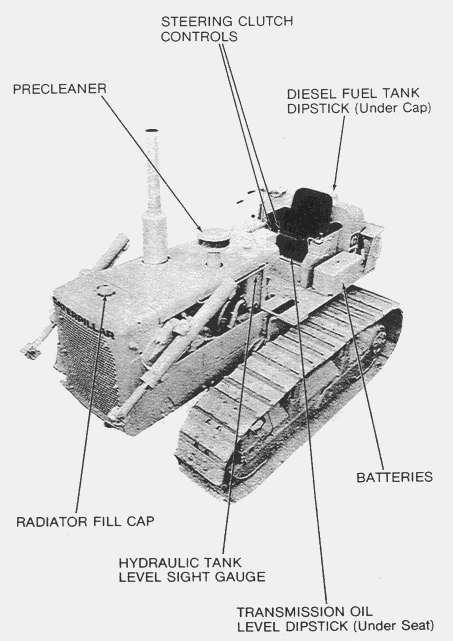

Walk-AroundChecks

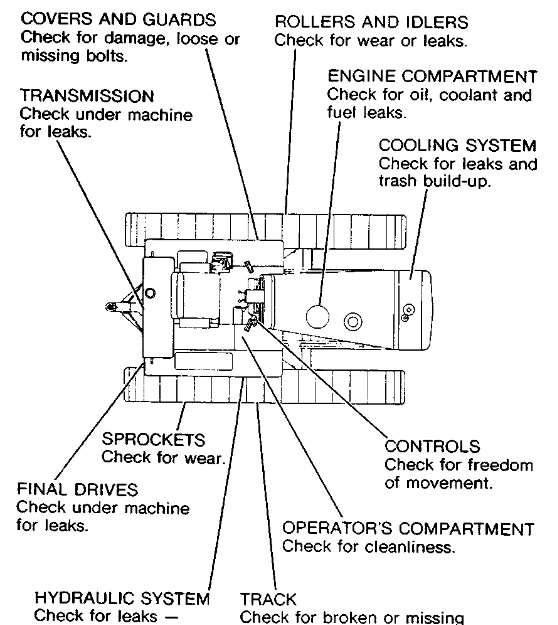

Foryourownsafety,andmaximumservicelifeofthetractor,athoroughwalk-aroundinspection shouldbemadebeforemountingthemachinetostarttheengine.Checkaroundandunder machineforsuchitemsasloosebolts,trashbuild-up,lubricant,fuelorcoolantleaks,and conditionoftrackandimplements.
This is the sample of the manual if you need complete manual Click Here to download
2.Maintaincoolantlevelwithin1/2inch(1cm)ofbottomoffillpipe.
3.Checkdieselfuellevel.
4.Checkaircleanerserviceindicator.ServicefilterelementsifREDindicatorislockedinvisible position.
5.Checkhydraulicsystemoillevel.
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
Controls
Decelerator
Setdesiredenginespeedwithgovernorcontrol.Pushdeceleratortoreduceenginespeed.Release deceleratortoincreaseenginespeedtogovernorcontrolsetting.

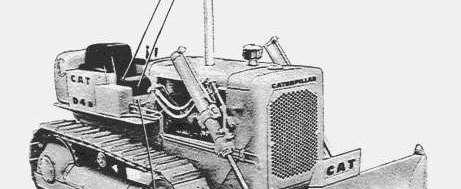

HydraulicBladeLift
(1)RAISE
(2)HOLD
(3)LOWER
(1)REELIN
(2)BRAKEON(NEUTRAL)
(3)BRAKEOFF
(4)REELOUT
2ndCableControlLever
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatNov1801:59:54UTC+05302023
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
Foreword
Thisguideisareferenceforthenewoperatorandarefresherfortheexperiencedone.Readstudy-andkeepithandy.
Illustrationsguidetheoperatorthroughthecorrectproceduresofchecking,starting,operatingand stoppingthevehicleandattachments.
Operatingtechniquesoutlinedintheguidearebasic.Skillandtechniquesdevelopastheoperator gainsknowledgeofthevehicleanditscapabilities.
Yoursafetyandthesafetyofothersdependsuponcareandjudgmentintheoperationofthis vehicle.Acarefuloperatorisgoodinsuranceagainstanaccident.
Mostaccidents,nomatterwheretheyoccur,arecausedbysomeone'sfailuretoobserveand followsimpleandfundamentalrulesorprecautions.Forthisreasonmostaccidentscanbeavoided byrecognizinghazardsandtakingstepstoavoidthembeforeanaccidentoccurs.
Regardlessofthecareusedinthedesignandconstructionofanytypeofequipment,thereare conditionsthatcannotbecompletelysafeguardedagainstwithoutinterferingwithreasonable accessibilityandefficientoperation.
Somephotographsinthispublicationmayshowdetailsorattachmentsthatmaybedifferentfrom yourunit.Also,theROPS,forsomephotographs,hasbeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmaycausechangestoyourmachine whichmaynotbeincludedinthispublication.Eachpublicationisreviewedandrevised,as required,toupdateandincludethesechangesinlatereditions.
WhenaquestionarisesregardingyourCaterpillarproduct,orthispublication,pleaseconsultyour Caterpillardealerforthelatestavailableinformation.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatNov1801:58:19UTC+05302023
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001

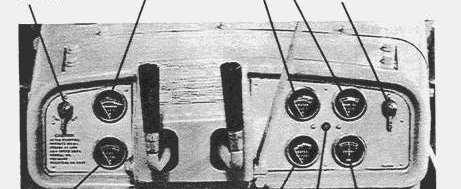

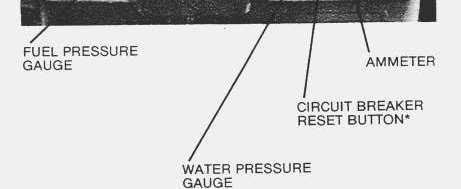

InstrumentPanel
*Pushdownonbuttontoresetopencircuitbreaker.Stopandcheckforelectricalproblemifcircuit breakeropensagain.
SatNov1801:59:43UTC+05302023
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
ModelViews

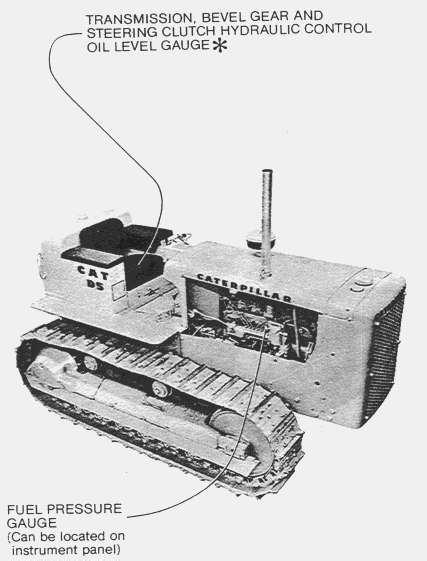

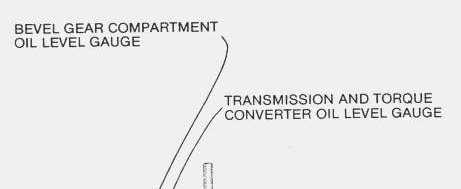

*Onmachinesequippedwithoil-typesteeringclutches(D6),thisgaugeindicatesoillevelinthe TRANSMISSION,BEVELGEARANDSTEERINGCLUTCHCOMPARTMENTS.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatNov1801:59:18UTC+05302023
Product:TRACK-TYPETRACTOR
Model:D6CTRACK-TYPETRACTOR10K
Configuration:D6CTRACTOR/POWERSHIFT/10K00001-07952(MACHINE)
OperationandMaintenanceManual
D4,D5,ANDD6TRACTORSPOWERSHIFTREPLACESFE045080-06
MediaNumber-SEBU6654-00PublicationDate-01/06/1974DateUpdated-11/10/2001
MovingTheTractor
4.Movetransmissioncontrollevertodesireddirectionandgear.
5.Movegovernorcontrolleverfordesiredenginespeed.
ToChangeDirection
NOTICE
Gearanddirectionalshiftsatfullenginespeedarepermissible. However,forsafety,operatorcomfortandmaximumservicelifeof powertraincomponents,deceleratingand/orbrakingisrecommended.
1.Decreaseenginespeedbypushinggovernorcontrolorpushingdecelerator.
2.Pushbothbrakepedals.
3.Movetransmissioncontrollevertodesiredtraveldirectiongear.
4.Releasebrakepedals.
5.Increaseenginespeedbypullinggovernorcontrolorreleasingdecelerator.
NOTE:Donotusebrakepedalsasfootrests.
NormalSteering
GradualLEFTturn-releaseleftsteeringclutch.
SharpLEFTturn-releaseleftsteeringclutchandapplyleftbrake.
Keeptractorundercontrolatalltimes.DONOTNEUTRALIZE TRANSMISSION.
Selectgearrangenecessarybeforestartingdowngrade.DONOT changegearswhilegoingdownhill.
DONOTALLOWTRACTORTOCOASTDOWNHILL.
Whentractorispullingaloaddownhill,steerinnormalmanner.
SteeringonSteepDowngrade
GradualRIGHTturn-releaseleftsteeringclutch.
This is the sample of the manual if you need complete manual Click Here to download
