Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
After Starting
SMCS - 7606
Publication Date -01/06/1974
Date Updated -11/10/2001
1. Keep engine speed low until oil pressure registers. If oil pressure does not register, stop engine and investigate.
2. Check air cleaner service indicator. If RED piston is locked in the visible position have air cleaner serviced.
3. Operate engine under light load for 5 minutes.
4. Check gauges frequently during operation. All gauges must indicate in the NORMAL operating range. The ammeter is normal when the indicator is at or on the + side of zero.
5. If tractor is equipped with water pressure and water temperature gauges, both gauges should register in the same color ranges. Do not operate when temperature gauge indicator is beyond color range indicated by pressure gauge. The tractor may be operated if pressure gauge indicator is beyond color range indicated by temperature gauge.
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
Before Starting
SMCS - 7606

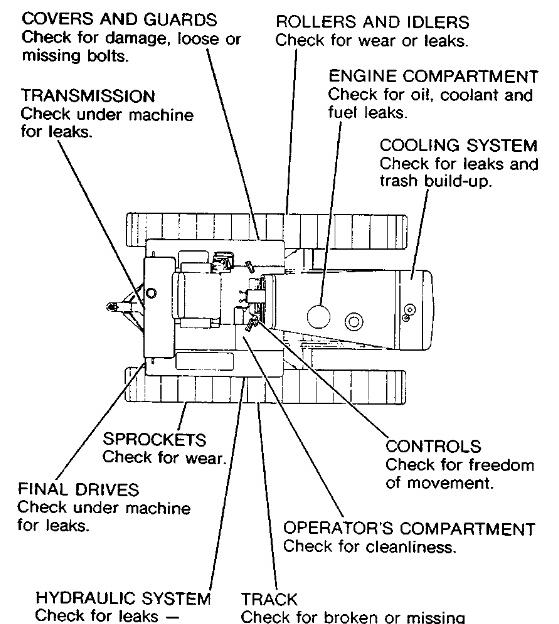

Walk-Around Checks
Publication Date -01/06/1974
Date Updated -11/10/2001
For your own safety, and maximum service life of the tractor, a thorough walk-around inspection should be made before mounting the machine to start the engine. Check around and under machine for such items as loose bolts, trash build-up, lubricant, fuel or coolant leaks, and condition of track and implements.
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
level must be in SAFE STARTING RANGE on ENGINE STOPPED side of dipstick.
2. Maintain coolant level within 1/2 inch (1 cm) of bottom of fill pipe.
3. Check diesel fuel level.
4. Check air cleaner service indicator. Service filter elements if RED indicator is locked in visible position.
5. Check hydraulic system oil level.
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
Controls
SMCS - 7606
Decelerator
Publication Date -01/06/1974
Date Updated -11/10/2001
Set desired engine speed with governor control. Push decelerator to reduce engine speed. Release decelerator to increase engine speed to governor control setting.
Hydraulic Blade Lift
(1) RAISE
(2) HOLD
(3) LOWER
(4) FLOAT
(1) LOWER LEFT SIDE
(2) LOWER RIGHT SIDE
(3) Release pedal to HOLD.
(1) RAISE
(2) HOLD
(3) LOWER
(1) REEL IN
(2) BRAKE ON (NEUTRAL)
(3) BRAKE OFF
(4) REEL OUT
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation
and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
Foreword
SMCS - 7606
Publication Date -01/06/1974
Date Updated -11/10/2001
This guide is a reference for the new operator and a refresher for the experienced one. Readstudy - and keep it handy.
Illustrations guide the operator through the correct procedures of checking, starting, operating and stopping the vehicle and attachments.
Operating techniques outlined in the guide are basic. Skill and techniques develop as the operator gains knowledge of the vehicle and its capabilities.
Your safety and the safety of others depends upon care and judgment in the operation of this vehicle. A careful operator is good insurance against an accident.
Most accidents, no matter where they occur, are caused by someone's failure to observe and follow simple and fundamental rules or precautions. For this reason most accidents can be avoided by recognizing hazards and taking steps to avoid them before an accident occurs.
Regardless of the care used in the design and construction of any type of equipment, there are conditions that cannot be completely safeguarded against without interfering with reasonable accessibility and efficient operation.
Some photographs in this publication may show details or attachments that may be different from your unit. Also, the ROPS, for some photographs, has been removed for illustrative purposes.
Continuing improvement and advancement of product design may cause changes to your machine which may not be included in this publication. Each publication is reviewed and revised, as required, to update and include these changes in later editions.
When a question arises regarding your Caterpillar product, or this publication, please consult your Caterpillar dealer for the latest available information.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Mon Mar 4 22:35:14 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00

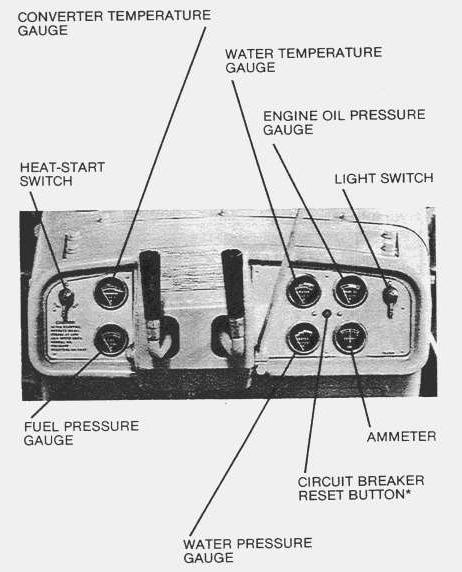

Instrument Panel
SMCS - 7606
Publication Date -01/06/1974
Date Updated -11/10/2001
*Push down on button to reset open circuit breaker. Stop and check for electrical problem if circuit breaker opens again.
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00

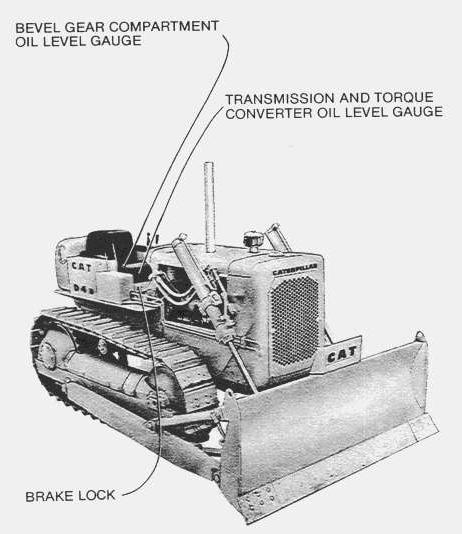

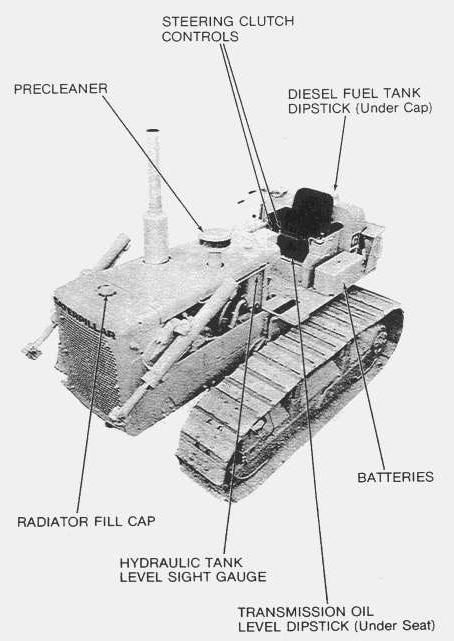

Model Views
SMCS - 7606
Publication Date -01/06/1974
Date Updated -11/10/2001

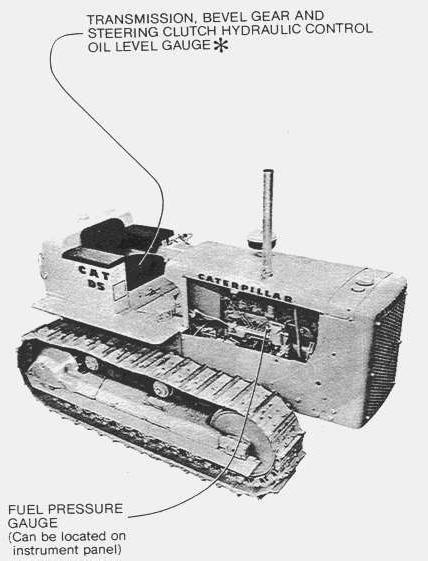

*On machines equipped with oil-type steering clutches (D6), this gauge indicates oil level in the TRANSMISSION, BEVEL GEAR AND STEERING CLUTCH COMPARTMENTS.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Mon Mar 4 22:35:44 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
Moving The Tractor
SMCS - 7606
Publication Date -01/06/1974
Date Updated -11/10/2001
1. Raise lowered equipment approximately 15 inches (1/2 m).
2. Depress both brake pedals to release brake lock.
3. Release transmission safety lock.
4. Move transmission control lever to desired direction and gear.
5. Move governor control lever for desired engine speed.
To Change Direction
NOTICE
Gear and directional shifts at full engine speed are permissible. However, for safety, operator comfort and maximum service life of power train components, decelerating and/or braking is recommended.
1. Decrease engine speed by pushing governor control or pushing decelerator.
2. Push both brake pedals.
3. Move transmission control lever to desired travel direction gear.
4. Release brake pedals.
5. Increase engine speed by pulling governor control or releasing decelerator.
NOTE: Do not use brake pedals as foot rests.
Normal Steering
Gradual RIGHT turn - release right steering clutch.
Sharp RIGHT turn - release right steering clutch and apply right brake.
Gradual LEFT turn - release left steering clutch.
Keep tractor under control at all times. DO NOT NEUTRALIZE TRANSMISSION.
Select gear range necessary before starting downgrade. DO NOT change gears while going downhill.
DO NOT ALLOW TRACTOR TO COAST DOWNHILL.
When tractor is pulling a load downhill, steer in normal manner.
Steering on Steep Downgrade
Sharp RIGHT turn - release right steering clutch and apply right brake.
Gradual LEFT turn - release right steering clutch.
Sharp LEFT turn - release left steering clutch and apply left brake.
When load is pushing tractor, put gear selector in FIRST speed before starting downhill.
DO NOT RELEASE CLUTCH OR SHIFT TRANSMISSION WHILE MOVING.
If engine starts to overspeed, depress both brake pedals.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Mon Mar 4 22:37:04 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D6C TRACK-TYPE TRACTOR 10K
Configuration: D6C TRACTOR / POWERSHIFT / 10K11940-UP (MACHINE) POWERED BY 3306 ENGINE
Operation and Maintenance Manual
D4, D5, AND D6 TRACTORS POWER SHIFT REPLACES FE045080-06
Media Number -SEBU6654-00
Publication Date -01/06/1974

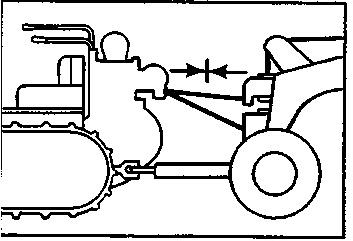

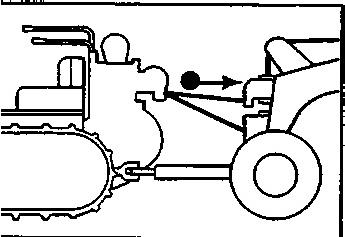

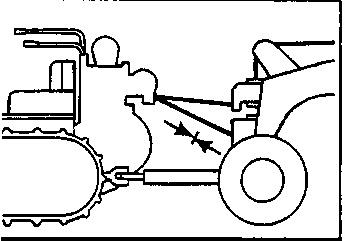

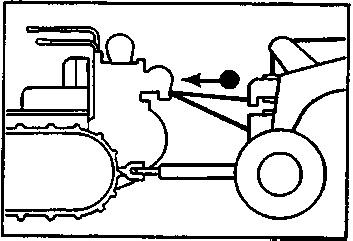

Operating Adjustments
SMCS - 7606

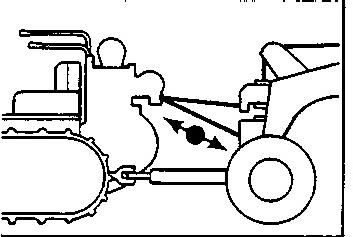

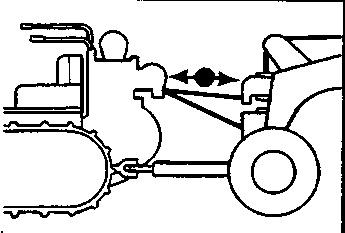

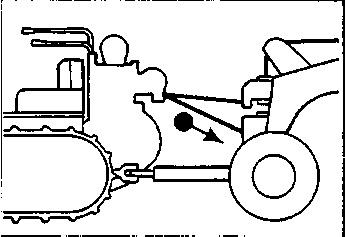

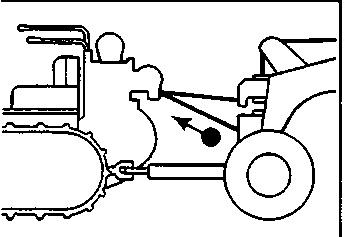

Installing Tool Bar Beam Assembly
Put 18 inch (45 cm) blocks under beam assembly
Back tractor up to beam
Align brackets with draft members
Date Updated -11/10/2001
