Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE OperationandMaintenanceManual

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012

Foreword

SMCS-1280;1348;3080;5095;7581

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatbackliterature storagearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation,lubrication informationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferentfrom yourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyourmachine whicharenotincludedinthispublication.Read,studyandkeepthismanualwiththemachine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCatdealerfor thelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextandlocationsof warningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.

Operation

s00037320

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator.This sectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols,transportationand towinginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting,operating andstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopastheoperatorgains knowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)liststhe itemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelistedunderthe "WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepagenumberforthestep-bystepinstructionsrequiredtoaccomplishthescheduledmaintenance.UsetheMaintenanceIntervalSchedule asanindexor"onesafesource"forallmaintenanceprocedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenientservicing schedulesandapproximatetheindicatedservicehourmeterreading.Recommendedserviceshouldalwaysbe performedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500servicehoursor 3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery10service hoursordaily.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocausecancer,birth defects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperatingcorrectly.As theheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceoftherequired maintenancelistedintheOwnerManual,OperationandMaintenanceManual,andServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,ortrading enginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceorelementofdesign

installedonorinanengineormachinethatisincompliancewiththeregulations(40CFRPart89).Certain elementsofthemachineandenginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeair systemandcoolingsystemmaybeemissionrelatedandshouldnotbealteredunlessapprovedbyCaterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadverselyaffect performancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchasbrakes,steering, androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurtherinformation.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwillapplyto allCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN. Thenewformatwilllooklikethefollowing: Illustration1g00751314

Where:

1.Caterpillar'sWorldManufacturingCode(characters1-3)

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewerepreviously referredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPINformat.

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8character SerialNumber(S/N).

WedJul2210:38:39UTC+05302020

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012

GeneralInformation

SMCS-1000;7000

RefertotheinformationwithinthismanualforinformationregardingthelocationofProductIdentification Numbers.Thisinformationislistedunderspecifictypesofmodels.

WedJul2210:38:55UTC+05302020

This is the sample of the manual if you need complete manual Click Here to download

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

OperationandMaintenanceManual

ProductIdentificationNumbers(PIN)LocationGuide

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012 i04748521

GeneralInformation

SMCS-1000;7000

Thispublicationcontainsinformationthatcanbeusedtoaidlawenforcementofficials,insurance investigators,andotheragentsthatareinvolvedwiththerecoveryofstolen/missingCaterpillarproducts.

TheactualProductIdentificationNumbers(PIN),orSerialNumbers(SN)platesandorFilmsmaynotbe shown.However,thegenerallocationwillbepointedoutand/orabriefdescriptionwillbegivenfordifferent products.Examplesofvariousidentificationandinformationplateswillbegiven.

Caterpillarmaintainsadatabaseofallstolen/missingproductsthathavebeenreportedtoCaterpillarGlobal Security.Lawenforcementpersonnelcanreceiveinformationonmachinesthatareinthissystem.Contact CaterpillarGlobalSecurityatthefollowingaddress.Usingtheinformationprovidedbelow.

ReportingStolen/MissingEquipment

Allinquiriescanbedirectedto: CaterpillarInc. GlobalSecurity-HeavyEquipmentTheftAwarenessProgram HEINV@CAT.COM (309)675-1233

Attention:GlobalSecurity 100N.E.AdamsSt. Peoria,Illinois 61629-0380

WedJul2210:39:25UTC+05302020

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

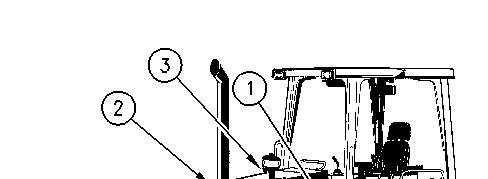

TheCEplateislocatedonthePINPlate(1)whenrequired.

PINPlate(1)islocatedontheleftfrontofthemainframeneartheoperatorcompartment.

Theserialnumberplate(2)fortheengineislocatedonthetopofthevalvecoverfortheengineblock.

Theserviceinformationnumberplate(3)islocatedontherightfrontofthemainframeneartheoperator compartment.

WedJul2210:41:14UTC+05302020

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

OperationandMaintenanceManual

ProductIdentificationNumbers(PIN)LocationGuide

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012

SMCS-7000

TheCEplateislocatedonPINPlate(1)whenrequired.

PINplate(1)islocatedontheleftsideoftheframeorontherearofthemachinedependingonthe year/model.

EngineSerialNumberplate(2)islocatedontheleftsideoftheengine.Orontopofthevalvecoverforthe engine.

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

OperationandMaintenanceManual

ProductIdentificationNumbers(PIN)LocationGuide

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012

TypesofIdentificationNumbers

SMCS-1000;7000

ProductIdentificationNumbers(PIN)

ManufacturersofearthmovingequipmentuseaProductIdentificationNumber(PIN)inordertoidentifythe products.ProductIdentificationNumberorPINisacommontermthatisusedthroughouttheindustry.

CaterpillarwillusethePIN,insteadofaserialnumber,onallpoweredmachinesaswellasElectricalPower GenerationEquipment(EPG).ThePINwillhavethesameprefixandwillcontinueinthesamesequenceas thepreviousserialnumbers.Serialnumbers(SN)willcontinuetobeusedinordertoidentifyCatlifttrucks andattachments.

ModelNumbers

AllCatmachinesdisplaythecorporatesymbolandhavemodelnumbers,whichconsistofaseriesof numbers.Thesenumbersareoftenprecededand/orfollowedbyaletterorletters.

SerialNumbers

CaterpillarproductsthatarenotdesignedforanoperatortorideandElectricalPowerGenerationEquipment (EPG)areidentifiedbyserialnumbers.Someoftheseproductsareengines,worktools,andtransmissions. Additionally,CatlifttrucksandallCatattachmentsareidentifiedbyserialnumbers.Allserialnumbersare crossreferencedtothePIN,whichcanbeidentifiedbytheserialnumber.

TheOperationandMaintenanceManualforthemachinewillshowapictureofthePINlocation.The OperationandMaintenanceManualisshippedfromthefactorywitheachmachine.TheOperationand MaintenanceManualwillnormallybelocatedintheoperator'scompartmentandwillbeattachedtothe machinewithasteellanyard.

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

MediaNumber-SEBU5596-06PublicationDate-01/02/2018DateUpdated-29/02/2012

TypesofLabelsandPlates

SMCS-1000;7000

EveryCatmachinehassomelabelsand/orfilmsand/orIdentificationplates.Thenumbersthatareonthe labels,filmsand/orontheplatesarenecessarywhenyouaretracingequipment.

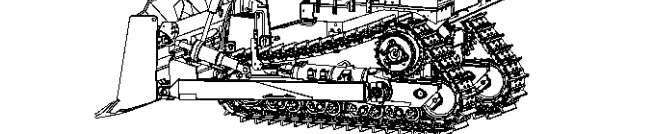

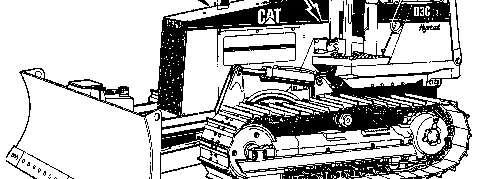

ModelNumber

Typicalexamples

Themodelnumberisclearlydisplayedonthemachine.Somelabelsmayincludethecorporatelabel.Some labelsareprintedinablackstripewithwhiteletters. OldPlatefortheProductIdentificationNumber

PINPlate

TheplateforthePINhasablackbackgroundwithwhiteletters.

Illustration2g02848881

Illustration3g02850218

SomemachinesareequippedwithaplatethatincludesthePIN,theEngineSerialNumber,andtheTransmissionSerialNumber.

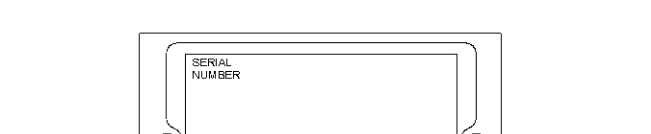

SerialNumberPlatethatisfoundonoldermachines

NewPlatefortheProductIdentificationNumber

Illustration4g02850278

Illustration5g02845017

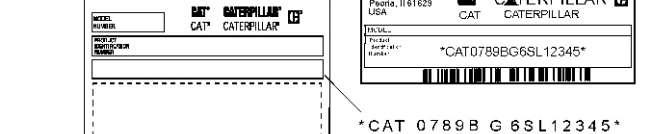

AnewProductIdentificationNumber(PIN)isusedonnewermachines.Thatincludesanewsystemfor identificationthatuses17characters.

(A)ThissectionincludestheWorldManuafacturingCode.

(B)ThissectionincludestheMachineDescriptor.

(C)ThissectionincludestheCheckCharacter.

(D)ThissectionincludesthePreviousSequenceNumber.

CEPlate

Thisplateispositionedonthebottomleftsideofplate(1)forthePIN.

Note:TheCEplateisonmachinesthatarecertifiedtotheEuropeanUnionrequirementsthatwereeffective atthattime.

Formachinescompliantto2006/42/EC,thefollowinginformationisstampedontotheCEplate.

ServiceInformationNumberPlate

Illustration6g02848884

TypicalServiceInformationNumberplate

ThisplatehasthePINandtheserialnumbersoftheengineandthetransmission.Thisisanoptionalplate. Thisplateislocatedintheoperatorcompartment,ifequipped.

TypicalplatefortheServiceInformationNumber

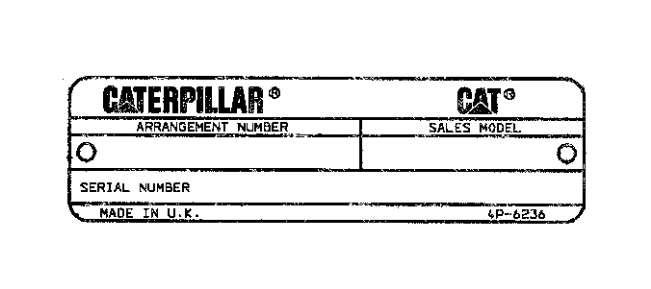

SerialNumberPlate

ThisplateisusedonCatequipmentthatisnotdesignedforanoperatortoride.Someexamplesareengines andtransmissions.ThisplateisalsousedonCatlifttrucksandallCatattachments.

Illustration9g02848886

Typicalengineserialnumberplate

Illustration10g02850376

Typicalserialnumberplatethatisusedonattachments

WedJul2210:39:53UTC+05302020

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE OperationandMaintenanceManual

MediaNumber-SEBU6250-26PublicationDate-01/02/2018DateUpdated-05/10/2017

Foreword SMCS-

Fluids/FiltersRecommendation

LiteratureInformation

Thismanualshouldbestoredintheliteratureholderorintheliteraturestorageareaonthemachine. Immediatelyreplacethismanualiflost,damaged,orunreadable.

Theinformationcontainedinthisdocumentisthemostcurrentinformationavailableforfluidmaintenance andserviceproducts.Specialmaintenanceandserviceproductsmayberequiredforsomemachine compartments.RefertotheOperationandMaintenanceManualforyourmachineforthemaintenanceand servicerequirements.Read,study,andkeepthismanualwiththeproduct.Thismanualshouldberead carefullybeforeusingthisproductforthefirsttimeandbeforeperformingmaintenance.

Wheneveraquestionarisesregardingyourproduct,orthispublication,consultyourdealerforthelatest availableinformation.

Safety

RefertotheOperationandMaintenanceManualforyourmachineforallsafetyinformation.Readand understandthebasicsafetyprecautionslistedintheSafetySection.Inadditiontosafetyprecautions,this sectionidentifiesthetextandlocationsofwarningsignsusedonthemachine.

ReadandunderstandtheapplicableprecautionslistedintheMaintenanceandOperationSectionsbefore operatingorperforminglubrication,maintenance,andrepaironthismachine.

Maintenance

RefertotheOperationandMaintenanceManualforyourmachinetodetermineallmaintenance requirements.

Propermaintenanceandrepairareessentialtokeeptheequipmentandsystemsoperatingcorrectly.Asthe owner,youareresponsiblefortheperformanceoftherequiredmaintenancelistedintheOwnerManual, OperationandMaintenanceManual,andServiceManual.

MaintenanceIntervalSchedule

UsetheMaintenanceIntervalScheduleintheOperationandMaintenanceManualforyourmachineto determineservicingintervals.Usetheservicehourmetertodetermineservicingintervals.Calendarintervals shown(daily,weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifcalendarintervals providemoreconvenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dusty,orwetoperatingconditions,morefrequentlubricationand/orfilterchanges thanisspecifiedinthemaintenanceintervalschartmightbenecessary.

Followingtherecommendedmaintenanceintervalsreducestheriskofexcessivewearandpotentialfailures ofcomponents.

NOTICE

Whenauxiliarydevices,accessoriesorconsumables(filters,oil, additives,catalysts,fuel,etc.)madebyothermanufacturersareused onCatproducts,theCaterpillarwarrantyisnotaffectedsimply becauseofsuchuse.Failuresthatresultfromtheinstallationorusage ofothermanufacturersauxiliarydevices,accessoriesorconsumables, however,arenotCaterpillarfactorydefectsandthereforeareNOT coveredbyCaterpillar'swarranty.

Caterpillarisnotinapositiontoevaluatethemanyauxiliarydevices, accessoriesorconsumablespromotedbyothermanufacturersand theireffectonCatproducts.Installationoruseofsuchitemsisatthe discretionofthecustomerwhoassumesALLrisksfortheeffectsthat resultfromthisusage.

Furthermore,Caterpillardoesnotauthorizetheuseofitstradename, trademark,orlogoinamannerwhichimpliesourendorsementof theseaftermarketproducts.

AftermarketProductsandWarranty

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

OperationandMaintenanceManual

MediaNumber-SEBU6250-26PublicationDate-01/02/2018DateUpdated-05/10/2017

AftermarketOilAdditives

SMCS-1300;1348;7581

Caterpillardoesnotrecommendtheuseofaftermarketadditivesinoil.Itisnotnecessarytouseaftermarket additivesinordertoachievethemachine'smaximumservicelifeorratedperformance.Fullyformulated, finishedoilsconsistofbaseoilsandofcommercialadditivepackages.Theseadditivepackagesareblended intothebaseoilsatprecisepercentagesinordertohelpprovidefinishedoilswithperformance characteristicsthatmeetindustrystandards.

Therearenoindustrystandardteststhatevaluatetheperformanceorthecompatibilityofaftermarket additivesinfinishedoil.Aftermarketadditivesmaynotbecompatiblewiththefinishedoil'sadditive package,whichcouldlowertheperformanceofthefinishedoil.Theaftermarketadditivecouldfailtomix withthefinishedoil.Thiscouldproducesludge.Caterpillardiscouragestheuseofaftermarketadditivesin finishedoils.

ToachievethebestperformancefromCaterpillarmachines,conformtothefollowingguidelines:

•SelecttheproperCaterpillaroilorselectcommercialoilthatmeetsthespecificationsdesignatedby Caterpillarforthecompartment.

•Seetheappropriate“LubricantViscositiesforAmbientTemperatures”tableinthispublicationinorder tofindthecorrectoilviscositygradeforthemachinecompartment.

•Atthespecifiedinterval,servicetheengineorservicetheothermachinecompartments.Use appropriatenewoilandinstallanappropriatenewoilfilter.

•PerformmaintenanceattheintervalsthatarespecifiedintheOperationandMaintenanceManual, "MaintenanceIntervalSchedule".

PreviousScreen

Product:TRACK-TYPETRACTOR

Model:D4HTRACK-TYPETRACTOR8PB

Configuration:D4H&D4HLGPSERIESIITRACTORS/POWERSHIFT/8PB04000-UP(MACHINE)POWEREDBY3204ENGINE

OperationandMaintenanceManual

MediaNumber-SEBU6250-26PublicationDate-01/02/2018DateUpdated-05/10/2017

Theserecommendationsaresubjecttochangewithoutnotice.Consult yourlocalCatdealerforthemostuptodaterecommendations.

Biodieselisarenewablefuelthatcanbemadefromvegetableoils,animalfat,andwastecookingoil. Soybeanoilandrapeseedoilaretypicallytheprimaryvegetableoilsources.Therawoilsoranimalfatsare chemicallyprocessed(esterified)toformafattyacidmethylester(referredtoasFAME).Theesterified product(FAME)isbiodieselfuelthatcanbeusedincompressionignitionengines.Withoutthechemical processingreferredtoasesterification,theoilsorfatsarenotsuitableforuseasfuelincompressionignition engines.Theoilorfatmustbeesterifiedandthewaterandcontaminantsremoved.

Fuelmadeof100percentFAMEisreferredtoasB100biodieselorneatbiodiesel.

Biodieselcanbeblendedwithdistillatedieselfuel.Theblendscanbeusedasfuel.Themostcommonly availablebiodieselblendsareB5,whichis5percentbiodieseland95percentdistillatedieselfuel,andB20, whichis20percentbiodieseland80percentdistillatedieselfuel.Thepercentagesarevolume-based.

U.S.distillatedieselfuelspecification"ASTMD975"includesuptoB5(5percent)biodiesel.Anydiesel fuelintheU.S.maycontainuptoB5biodieselfuelwithoutlabelingthatindicatesbiodieselcontent.

Europeandistillatedieselfuelspecification"EN590"includesuptoB5(5percent)biodieselandinsome regionsuptoB7(7percent)biodiesel.AnydieselfuelinEuropemaycontainuptoB5orinsomeregionsup toB7biodieselfuelwithoutlabelingthatindicatesbiodieselcontent.

BiodieselfuelthatisperCaterpillarandIndustryrecommendedspecifications(RefertoTable2inthis Chapter)offersthefollowingadvantages:

•Renewablefuel,nontoxic,andbiodegradable

•Reducestailpipeparticulatematter(PM),hydrocarbon(HC),andcarbonmonoxide(CO)emissions frommostmoderndieselengines

•Highlubricity,hencereducesfriction

•Highcetanenumber

BiodieselatB5blendlevelhasthesameattributesasdieselfuel.AtblendlevelsoverB5,biodieselhasthe followingattributesthatrequiremanagement:

•Energydensity.AtB100,biodieselhasabout8%lowerenergydensitythandieselfuel.AtB20or lowerblendlevels,theenergydensitydifferencefromdieselfuelisnotsignificant.

•Oxidationstability,storagestability,coldtemperatureproperties,andmaterialscompatibility.Someof theseattributesarecontrolledbythespecifications.

•Tendencytodissolveandabsorbwater,whichishigherthanthatofdieselfuel.

•Metalcontent.Biodieselcancontaincertainmaterialsnaturallyorduetoprocessing(phosphorus, sodium,calcium,potassium,andmagnesium).Themaximumlevelsofthesematerialsarecontrolled bytheappropriatespecifications.

•Contaminantscontentduetoincompleteesterificationorpurifyingprocess.Thesecontaminantsmay includeglycerides,monoanddiesters,sterolglucosides,andothers.

MeetingspecificationsasdetailedinthisChapterisparamountforbiodieselfuelusedinengines,toavoid performanceissuesandenginedowntime.

RefertoguidelinesgiveninthisChapterandtoTables2and4forthebiodieselfuelrequirementsand specifications.

Note:Theuseroftheenginehastheresponsibilityofusingthecorrectfuelthatisrecommendedbythe manufacturer.ThefuelmustbeallowedbytheU.S.EPAandotherappropriateregulatoryagencies.

NOTICE

InNorthAmerica,theuseofbiodieselfrom"BQ-9000"accredited producersand"BQ-9000"certifiedmarketersisrequired.Refertothe “Recommendations”sectionfordetails.

NOTICE

FailuresthatresultfromtheuseofanyfuelarenotCaterpillarfactory defects.Therefore,thecostofrepairwouldNOTbecoveredbythe Caterpillarwarrantyformaterialsand/orthewarrantyfor workmanship.

RecommendationsfortheUseofBiodieselinCaterpillarNonroad Engines

Tobeacceptableforblending,thebiodieselconstituentmustmeettherequirementsthatarelistedinTable4, “CaterpillarSpecificationforBiodieselFuel”,thelatesteditionof"ASTMD6751",and/orthelatestedition of"EN14214".

BiodieselblendsofuptoB5mustmeettherequirementsforthedistillatedieselfuelthatarelistedinTable 51,“CaterpillarSpecificationforDistillateDieselFuelforNonroadDieselEngines”,thelatesteditionof "ASTMD975",and/orthelatesteditionof"EN590".

Note:CaterpillarrecommendationsformostengineshavebeenchangedtoB20fromhistoricallyhigher blendlevel.Thischangewasduetothedevelopmentof"ASTMD7467"or"EN16709"specificationforB6B20,whichdefinesqualityrequirementsforB6-B20blendsofbiodiesel.Thisspecificationhelpscustomers todefinethefuelquality.RefertothedetailedrequirementsgiveninthisSection.

BiodieselblendsofB6toB20mustmeettherequirementslistedinthelatesteditionof"ASTMD7467""EN 16709"(B6toB20)andmustbeofanAPIgravityof30-45.

Thedistillatedieselfuelacceptableforblendingwithbiodieselshouldbethe“CaterpillarSpecificationfor DistillateDieselFuelforNonroadDieselEngines”tableinthe"DistillateDieselFuel"sectionofthisSpecial Publication,thelatesteditionof"ASTMD975",and/orthelatesteditionof"EN590".No.1-DandNo.2-D areexamplesoffuelsthatareacceptableforcreatingbiodieselfuel.Referto“FuelSpecifications”Chapterin thisSpecialPublicationfordetails.

ForTier4applicationsintheU.S.,thedieselfuelportionofthefinalblendmustmeettherequirementsof S15fuels(15ppmsulfur)designationsinthelatesteditionof"ASTMD975"specification.ForStageIIIB andlaterapplicationsinEU,thedieselfuelportionofthefinalblendmustmeettherequirementsforsulfur free(10ppmsulfur)designationinthelatesteditionof"EN590".Thefinalblendmusthavemaximumof15 ppmsulfur.

InNorthAmerica,obtainbiodieselfromBQ-9000accreditedproducersandBQ-9000certifiedmarketers. LookfortheBQ-9000biodieselqualityaccreditationprogramcertificationlogothatisavailableto distributorsthatmeettherequirementsofBQ-9000.Inotherareasoftheworld,theuseofbiodieselthatis BQ-9000accreditedandcertified,orthatisaccreditedandcertifiedbyacomparablebiodieselqualitybody tomeetsimilarbiodieselqualitycontrolstandards,isrequired.FormoreinformationontheBQ-9000 program,goto:

http://www.BQ-9000.org Table1

RecommendationsforBiodieselFuelApplicationinCaterpillarNonroadEngines(1)

Productionyear/Tier/StageEnginemodel

Tier2/StageIIorearlier EmissionsRegulations,

Engineswithout aftertreatmentdevices

Engineswithaftertreatment devices

3003-3034,3044,3046,3054,3056,3064,and 3066,3054C(mechanical),3054E(electronic) and3056E(electronic).

C0.5,C0.7,C1.1,C1.5,C1.6,C2.2,C3.4, CertainC4.4(S/N44400001-04303),Certain C6.6(S/NCE600001-14623(Machines),and S/N66600001-09015(Industrial))

Biodieselacceptable blendlevels

Engineswithout aftertreatmentdevicesC1.3,C1.7,C1.8,C2.4,C2.6,C3.3B,C3.4UptoB20

Engineswithaftertreatment devices

ACERTengines:C3.4B,C4.4,C6.6,C7.1, C9.3,C13,C15,C18,C27,andC32 UptoB20

C0.5throughC2.2(1)

Allyears,exceptforthe enginemodelslistedabove

Allyears

CertainC4.4ACERT(S/NC4E05524-Up (Machines)and44404304-Up(Industrial)), C4.4(Mechanical),C6.4,andcertainC6.6 ACERT(S/NCE614624-Up(Machines)and 66609016-Up(Industrial))

3114,3116,3126,3176,3196,3208,3306 3406,3408,3412,3456,3406E,3408E,3412E, 3500Series,and3600Series C-9,C10,C-12,C-15,C-16,C-18,C280Series, CM20,CM25,andCM32

ACERTengines(1)

C7,C9,C9.3,C11,C13,C15,C18,C27,C32, andC175

UptoB20(Foruseof higherblendlevelsup toB100,consultyour Catdealer)

(1)EURegulationsrequirethebiodieselblendsusedinStageVenginesoperatedwithintheEuropeanUnion(EU)tocontainno morethan7%v/vFAMEunlessspecifiedotherwiseintheengine-specificOperationandMaintenanceManual.

(2)UptoB7canbeusedintheseengines.B7hastobepertherecommendationsgiveninthisBiodieselFuelChapter.

Table2

FuelRecommendationsforCaterpillarNonroadEngines

BiodieselBlendStock FinalBlend

Catbiodieselspecification,(1) "ASTMD6751"or "EN14214"

B5andB7;Catdistillatedieselfuel specification,(2)"ASTMD975"or "EN590"

DistillateDieselFuelusedfor blending

Catdistillatedieselfuel specification,"ASTMD975"or "EN590"

UptoB5(2)

B20:"ASTMD7467"or"EN16709" and"API"gravity30-45

(1)RefertoTable+=&OverBar;&OverBar;&OverBar;&Breve;intheBiodieselsectionofthisSpecialPublication.

(2)Referto“CatSpecificationforDistillateDieselFuelforOn-HighwayEngines”intheFuelsectionofthisSpecialPublication.

Note:Donotchangeanyenginesettingswhenusingbiodieselfuel.Whentheuseofbiodieselfuelis planned,simplyconverttothisfuel.Followtheguidelines,recommendations,andqualityspecifications giveninthisChaptertoavoidanyperformanceissuesordowntime.

Twomethodscanbeusedfordeterminingthevolumepercentbiodieselinabiodieselblend:

•"ASTMD7371"-"TestMethodforDeterminationofBiodiesel(FattyAcidMethylEsters)Contentin DieselFuelOilUsingMidInfraredSpectroscopy(FTIR-ATR-PLSMethod)"

•"EN14078"-"LiquidPetroleumProducts-Determinationoffattyacidmethylesters(FAME)in middledistillates-Infraredspectroscopymethod"

Forapplicationsrunningbiodieselorbiodieselblends,iffueltreatmentsareneeded,consultwithyourfuel supplierorwithareputableprovider.:

ImpactofBiodieselonEngineOil

Biodieselfuelhashigherdensityandlowervolatilitythandieselfuels.Asaresult,duringengineoperation, biodieselfuelthatdilutesthecrankcaseoilmaynotevaporateaseffectivelyasdieselfuels.Forthisreason, fueldilutionofcrankcaseoilsmaybehigherwhenbiodiesel,inparticularwhenhigherblendsofbiodiesel areused.

Also,biodieselcontainsoxygenmolecules.Theseoxygenmoleculescannotbedifferentiatedfromoil oxidationwhenusingcurrentoilanalysistechniques.Asaresult,biodieselfueldilutionofthecrankcaseoil canappeartobehigheroxidationoftheoil.

Whenusingbiodieselfuelandhigherfueldilutionand/orapparentoiloxidationaredetectedinthecrankcase engineoil,consideralltheothercharacteristicsoftheusedoilIfthesecharacteristics,suchaswearmetals, soot,viscosityorothers,areperCaterpillarguidelinesandhavenotreachedcondemnationlimits,thentheoil drainintervalsshouldnotbeimpacted.

Toreduceanypotentialimpactofbiodieselfueldilutiononcrankcaseoil,theuseofCatS·O·SServicesoil analysisisstronglyrecommendedwhenuptoB20(20percent)andlowerbiodieselblendsareused, andrequiredwhenusingbiodiesel/biodieselblendsthatareB20orabove.Whenrequestingoilanalysis, besuretonotethelevelofbiodieselbeingused(B5,B20,andsoon).

UseofBiodieselfuelinEngineswithAftertreatmentEmissions ControlSystems

BiodieselfuelsasdefinedinthecurrentASTMspecifications,maycontainphosphorous,alkaliandalkaline metals(sodium,potassium,calcium,andmagnesium)duetoprocessingtechniquesorduetothenatural contentsofthebiodieselfeedstock.Whenpresentinbiodiesel,thesemetalsformashuponcombustioninthe

This is the sample of the manual if you need complete manual Click Here to download
