Operation and Maintenance Manual
Caterpillar Corporate Radio
Media Number -M0085473-03
Date -01/02/2018
Radio - Entertainment If Equipped
SMCS - 7338
Updated -14/02/2018
i07316460
When driving, always keep your eyes on the road and hands on the steering wheel, paying careful attention to normal driving tasks. As always, the driver is responsible for safe vehicle operation. Not keeping your eyes on the road and hands on the wheel while driving could result in injury to you or others.
Introduction
Information included in this owners manual was accurate at the time of publication. Caterpillar, however, reserves the right to and performance without prior notice. Check with your dealer for details regarding changes that may have occurred since time of printing.
The Radio system is controlled by using the buttons, RSA, or steering wheel controls.
Stereo Receivers

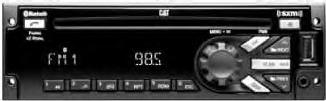

Illustration 1
MP3/USB/iPod/Aux/Bluetooth Receiver
g03566500

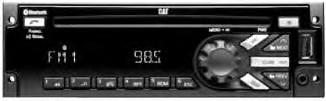

Illustration 2 g03566527
MP3/USB/iPod/Aux/Bluetooth/CD Receiver

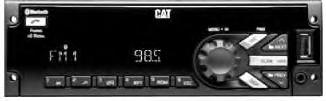

Illustration 3
g03566571
MP3/USB/iPod/Aux/Bluetooth/CD/SAT Receiver
Radio Pin out

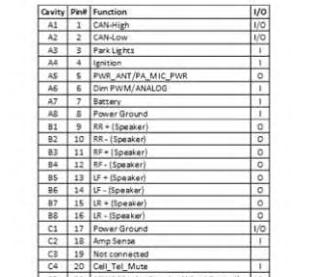

Radio pinout is shown below

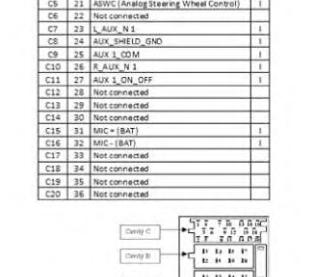

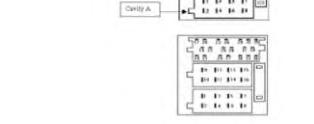

Illustration 4 g03566584
General Radio Receiver Functions

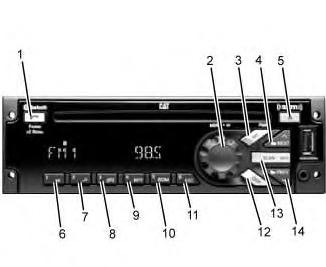

Illustration 5 g03566592
(1) Phone
(2) Knob
(3) SRC/PWR (Source/Power) (4) Next (5) Eject (6) Play/Pause (7) Browse (8) Clock/Alarm (9) RPT (Repeat)
(10) RDM (Random) (11) ESC (Escape) (12) DISP (Display) (13) SCAN/ASCN (Scan/Autoscan) (14) PREV (Previous)
Options
• An AM band with 6 AM presets
• Three FM bands with a total of 18 FM presets
• One weather band with six WX presets
SRC/PWR (Source/Power)
Press to switch to FM -> AM -> WX -> SXM -> CD -> USB/iPod ->AUX -> Bluetooth Audio (if equipped) and to turn Radio ON. Press and hold to turn radio OFF.
One Hour Timer
With the ignition off, pressing the SRC/PWR button will turn on the receiver and activate the receivers one-hour timer. The receiver will turn off after 1 hour or by pressing and hold the SRC/PWR button.
VOLUME KNOB/OK
Press for less than 3 seconds to display Audio Control Menu. Press for more than 3 seconds to show the user menu. Rotate to increase/decrease volume or during a menu for navigation. Press while in a menu to confirm the selected action.
PREV (Previous/Reverse)
Press to select previous track or station. Press and hold for FR or Tune Down
NEXT (Next/Forward)
Press to select next track or station. Press and hold for FF or Tune Up
EJECT
Press to eject the CD
Phone (if equipped)
Press the Phone button for more than 3 seconds to show the Bluetooth Menu. When Bluetooth is enabled, press the button to display the Dial Menu or to accept an Incoming Call (if a Phone is paired). During a call press the button for more than 3 seconds to transfer the call from the radio to the Phone.
CLOCK/ALARM
Press during Alarm activation to cancel the Alarm.
SCAN/ASCAN
Scans stations/CD tracks/MP3/WMA files and folder and in tuner, stores stations to presets
PLAY/PAUSE
Press to pause / un pause current Media.
RPT (Repeat)
Press to repeat current track. Press again to stop repeat. Look for the RPT icon in the radio display to turn this feature ON or OFF.
BROWSE
Press to navigate on the device and select a specific song or play context (Applicable to USB sticks, CD MP3 discs and iPod).
RDM (Random)
Press to play the tracks randomly. Press again to stop random mode. Look for the RDM icon to turn on in the radio display.
ESC (ESCAPE)
Press to exit one Menu Level.
If the system is equipped with Bluetooth, press the ESC button during Bluetooth call operation to reject or cancel a call.
DISP (DISPLAY)
If vehicle ignition is ON: Press to change source display
Press for more than 3 seconds to show the Clock for a short time.
Radio (Audio source)
To access AM, FM, WX, SXM (if equipped), iPod, USB, Rear Aux, Front Aux, CD, or BT Audio do one of the following:
1. Press the SRC radio button to scroll through the options and select desired option.
2. Press the SRC radio button and then scroll the source menu by knob rotation or NEXT/PREV short presses and then select by short-pressing the knob.
The CD/MP3, USB/iPod, Front AUX, and BT Audio shall be accessed only if the radio model supports those options and a device is connected/inserted for that specific source.
Note, if a device is connected through different sources at the same time, the functionality cannot be guaranteed (Device Dependent). Example: Device connected through Front Aux and Bluetooth or USB and Bluetooth at the same time.
AM-FM-WX Radio
Tuning: Set the desired "Tuner Configuration" following the steps in the Menu section.
If the radio is set to manual, the radio will allow for execution of the following functions:
• Execute manual tuning when the NEXT or PREV buttons are short pressed.
• Execute Seek when the NEXT or PREV buttons are long pressed.
If the radio is set to Auto, the radio will allow for execution of the following functions:
• Execute Seek when the NEXT or PREV buttons are short pressed.
• Execute manual tuning when the NEXT or PREV buttons are long pressed.
Manual tuning
The current frequency will be increased/ decreased by 1 step of 0.2MHz (USA FM mode), 10 kHz (USA AM mode) and one channel (25 kHz) in WX mode.
Seeking a Station
When the Seek function is activated, the radio increments/decrements the frequency until a tunable station is found.
If a tunable station is not found, the radio will display "NO STATION FOUND".
Presets
Storing Radio Station Presets:
1. Tune the desired frequency, and then long press any of the Preset(1-6) buttons until the radio produces a beep.
Tuning Radio Station Presets
1. Short press any of the Preset(1-6) buttons. The frequency stored at the preset location is tuned when the button is released.
Scan
To initiate the Scan function, short press the SCAN/ASCN button. When SCAN is initiated, the radio seeks up in frequency and stops on the next strong frequency for 8 seconds before continuing to seek for the next strong station.
If no station is found in two passes through the band, the radio will display “NO STATION FOUND” and then tune to the starting frequency.
Autoscan
This function temporally stores the strongest 6 stations of the current band in the presets until the radio is powered off or the source is changed.
AUTOSCAN does not store the frequencies on the presets on numerical order. Frequencies are stored based on the order they were found and on the quality of the frequency.
To initiate the AUTOSCAN function, long press the SCAN/ASCAN button until the radio performs a beep. Then the "AUTO SCAN" icon will blink while the radio is storing the temporary presets.
When the Autoscan process finishes, the radio will tune to the station stored in Preset 1 and the "AUTO SCAN" icon shall be illuminated while the mode is active.
To tune any of the 6 frequencies or to store new presets, follow the steps defined in the Presets section.
To exit this mode and return to the original presets execute any of the following actions:
1. Press and hold the SCAN/ASCAN button
2. Press the SCR/PWR button.
3. Turn off the radio.
4. Perform an ignition cycle
5. Disconnect the battery.
WX
The WX band is for the Governmental weather radio services frequencies. The radio can tune to the seven weather channels following the steps in Tuning, Presets, and SCAN sections.
SXM (If Equipped)
Vehicles with a valid SiriusXM® satellite radio subscription can receive SiriusXM programming. SiriusXM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound.
SiriusXM®
SXM Display
When SiriusXM is active, the channel number, channel name, artist name/content info, song title, or category name could be displayed on the screen. SiriusXM may update the information at any time.
To change the current display view, short press the DISP button.
When a new channel is selected, a song change occurs, SXM source is selected (from power-up or source change) or the information is updated, all the elements will be displayed using paging. The paging can be stopped by short pressing the DISP button.
Display labels
To recognize the displayed text, the radio uses the following convention :
• Channel Number: CH
• Channel Name: CH
• Artist Name: ART
• Content Info: INFO
• Song Title: SONG
• Category name: CAT
SXM Categories
SiriusXM stations are organized in categories.
The category list for SXM is in the following webpage: "http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf"
To change the current category, long press the NEXT/PREV button and the radio will tune the first channel on next or previous category.
Category mode Enable/Disabled
Category Search Mode Enabled means that only channels in the current Category are searched. When enabled, the CATEGORY icon is turned on.
Category Search Mode Disabled means that all channels are searched. When disabled, the CATEGORY icon is turned off.
To enable/disable the category browse mode, follow the steps in the User Menu section
The default after a power-up is Category Disabled.
SXM Channel Selection
Presets and SCAN functions work the same as defined in the SCAN subsection of AM-FM-WX Radio.
NEXT button
While in SXM the radio will scroll to the next channel available in numerical order.
PREV button
While in SXM the radio will scroll to the previous channel available in numerical order
Note: If the SXM service is not activated, only the free-to-air channels will be present.
SXM Radio ID
If tuned to channel 0, "RADIO ID" label alternates with the SXM radio eight-digit code. This code is needed to activate the service.
DISP button does not work in channel 0. Channel 0 is not available in category mode enabled.
SXM Messages
SXM BUSY - The audio system is acquiring and/or processing audio and/or text data. No action is needed.
ART UNAVAIL - There is not Artist Name related with the current song.
SONG UNAVAIL - There is not Song Title related with the current song.
CHAN UNAVAIL - There is no Channel Name related with the current channel.
CHECK ANTENNA - SXM antenna or antenna cable is not connected to the radio or the antenna is shorted.
NO SIGNAL - SXM tuner module reports the No Signal condition. Under this condition only Channel 0 will work as stated in this manual.
CHAN UNSUB - Active channel has become unsubscribed or the requested channel is not unsubscribed.
SUBSCRIPTION UPDATED - PRESS OK TO CONTINUE - The subscription of the radio was updated. To remove the message and return to the previous state pres "OK" (Knob).
CH UNAVAIL - Requested channel is reported unavailable for a newly selected channel or the currently selected channel. Unavailable channels are in the legal channel range but are not currently available for display or subscription as a broadcast service. After 3 seconds the previous channel (if available) or channel 1 will be tuned.
iPod
This radio supports the following iPod models:
• iPod classic (sixth generation)
• iPod nano (6G)
• iPod touch (4G)
• iPhone (3G, 3GS, 4, and 4S)
Other iPods may be played, but functionality is not guaranteed.
Radio provides up to 1A of charge, so any device connected to the USB that requires less than 1 A will be charged.
There may be problems with the operation and function in the following situations:
