CAT + Caterpillar D400E II Articulated Truck Operation & Maintenance Manual by Heavy Equipment Manual

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001 s00357545

Foreword

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,andmaintenancerecommendations.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Operation

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols,and programminginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwner'sManual,OperationandMaintenanceManual,and ServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)willchangefrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:

Where:

1.Caterpillar'sWorldManufacturingCode(characters1-3)

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

SunAug1023:51:56UTC+05302025

This is the sample of the manual if you need complete manual Click Here to download

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

AirConditioner-Test

SMCS-7320-081

Inhalingairconditionerrefrigerantgasthroughalitcigaretteorother smokingmethodorinhalingfumesreleasedfromaflamecontactingair conditionerrefrigerantgascancausebodilyharmordeath.Donot smokewhenservicingairconditionersorwhereverrefrigerantgasmay bepresent.

1.Starttheengine.Operatetheengineathighidle.

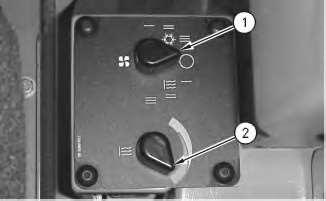

Illustration1g00632981

Theheatingandairconditionercontrolislocatedontherightsideoftheoperatorcompartment.

2.Turnfanspeedswitch(1)counterclockwisefromtheOFFpositioninordertoactivatethe airconditioner.SetthefanspeedswitchtotheIIIposition.

3.Turntemperaturecontrol(2)counterclockwiseformaximumcooling.

4.Allowtheairconditioningsystemtorunforseveralminutes.

5.Raisethehood.

Illustration2g00632995

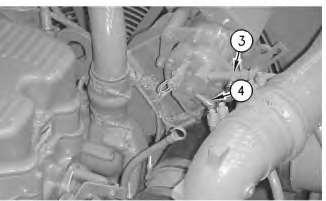

Theairconditionercompressorislocatedontherightsideoftheengine.

6.Checkthesystemforrefrigerant.Checksuctionline(3)andcheckdischargeline(4). Suctionline(3)shouldbecoldanddischargeline(4)shouldbehot.Ifthesystemcontains refrigerant,thedischargelinewillbehotandthesuctionlinewillbecold.

Note:Thesuctionlinehasalargerdiameterthanthedischargeline.

Ifpoorcoolingisexperienced,turnofftheairconditioner.Stoptheengine.Poorcooling indicatesalowrefrigerantlevel.Serviceoftheairconditionershouldbedonebyyour Caterpillardealer.Forpropercooling,chargetheairconditioningsystemwithR-134a refrigerant.RefertoServiceManual,SENR5664,"AirConditioningandHeatingfor R134a".

7.Lowerthehood.

Note:Operatetheairconditionermonthlyinordertolubricatethecompressorseals.Setthe controlsonthemaximumsetting.Operatethesystemfor5minutes.

SunAug1023:22:49UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

AxleBreathers-Clean/Replace

SMCS-3278-070-BRE;3278-510-BRE

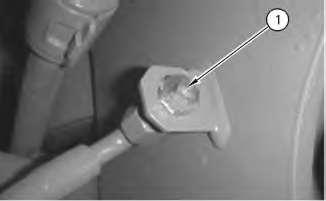

Frontaxlebreather(1)islocatedonthefrontframe.

i01338749

Illustration2g00633489

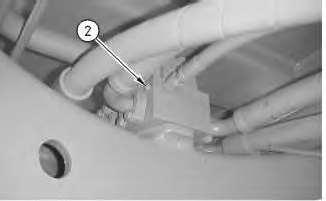

Centeraxlebreather(2)islocatedontherearframeabovethecenteraxle.

Illustration3g00633490

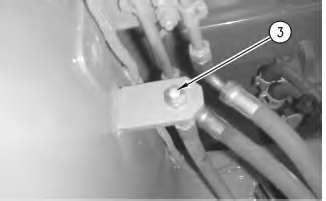

Rearaxlebreather(3)islocatedontherightsideoftherearframeabovetherearaxle.

Usethefollowingproceduretocleanthebreathers.

1.Removethebreather.

2.Washthebreatherinclean,nonflammablesolvent.

3.Allowthebreathertodry.

4.Installthebreather.

SunAug1023:23:28UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

BackupAlarm-Test

SMCS-7406-081

Thebackupalarmisontherearofthemachine.

TurntheenginestartswitchtotheONpositioninordertoperformthetest. Engagetheservicebrakes.MovethetransmissioncontrollevertotheRposition.

Thebackupalarmshouldstarttosoundimmediately.Thebackupalarmwillcontinuetosound untilthetransmissioncontrolleverismovedfromtheRposition.

Toadjustthevolume,turnthethree-positionswitchonthebackofthebackupalarm.Thevolume issetatthehighestlevelbeforethemachineisshippedfromthefactory.Reducethevolumeofthe backupalarmifaparticularjobsiterequiresalowersoundlevel.

SunAug1023:23:47UTC+05302025

i01349536

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

Battery-Recycle

SMCS-1401-561

Alwaysrecycleabattery.Neverdiscardabattery.

Alwaysreturnusedbatteriestooneofthefollowinglocations:

•Abatterysupplier

•Anauthorizedbatterycollectionfacility

•Recyclingfacility

PrivateNetworkForSISLicensees.

i07746330

SunAug1023:24:30UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

BatteryElectrolyteLevel-Check

SMCS-1401-535-FLV

Table1

BatteryElectrolyteLevel

BatteryInterval

Conventional100Hours

LowMaintenance250Hours

PremiumHighOutput1000Hours

MaintenanceFreeNoInterval

Note:Donotattempttoaddwatertomaintenancefreebatteries.ManyCaterpillarmachinesare nowsoldwithmaintenancefreebatteries.

Abatteryshouldnotrequiremorethan30cc(1oz)ofwaterpercellperweek.

Maintaintheelectrolyteleveltothebottomofthefilleropenings.Usedistilledwatertobringup theleveloftheelectrolyte.Theelectrolyteshouldalwaysbeabovetheplatesofthebattery.If distilledwaterisnotavailable,usecleandrinkingwater.Duringhotweather,checkthelevelof theelectrolyteweekly.

Allbatteriesmusthavethefollowingmaintenanceatevery1000hours:

1.Openthebatteryaccesscover.

2.Checkthebatteryretainers.Tightenthebatteryretainers.

3.Cleanthetopofthebatterieswithacleantowel.Donotallowdirttobuilduponthebattery. Conductivepathsmaydevelop.Underdustyconditions,cleanthetopsofthebatteriesoften.

Buildupofdirtmayleadtothefollowingelectricalproblems:

i00758975

Electricalchargemaybedrainedfromthebatteries.

TheEngineMonitoringSystemmayfunctionwiththedisconnectswitchintheOFF position.

Afilmofacidmaybeonthebattery.Toneutralizetheacid,oneofthefollowingsolutions maybeused:

Bakingsodasolutionmaybemadebymixing100grams(4.0oz)with1liter(1quart) ofcleanwater.

Ammoniasolutionmaybemadebymixing100grams(4.0oz)with1liter(1quart) ofcleanwater.

Thecapsofthebatterycellsmustbeinplacebeforeusingoneoftheabovesolutions.Rinse thebatterieswithcleanwaterafterusingoneoftheabovesolutions.

4.Liftthepostcoversinordertoremovethecablefromthebatteryterminal.

5.Cleanthebatteryterminals.Afinegradeofsandpapermaybeusedforcleaning.

Petroleumjellymaybeusedasprotectionagainstcorrosion.Applycorrosioninhibitors afteryouconnectthecablestothebatterypost.Abatterysaverandcleanerisavailablefrom yourCaterpillardealer.Usetheseproductstoimprovebatteryperformance.

6.Installthecables.

7.Positionthepostcovers.

8.Closethebatteryaccesscover.

SunAug1023:24:53UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

Battery,BatteryCableorBatteryDisconnectSwitchReplace

SMCS-1401-510;1402-510;1411-510

Inspecttheconditionofthecablestothebatteryandinspecttheconditionofthebattery disconnectswitch.

Checkthelevelofthebatteryelectrolyte.RefertoOperationandMaintenanceManual,"Battery ElectrolyteLevel-Check".

Note:Whenyoureplacethebatteries,alwaysusethesametypeofbattery.

Usethefollowingprocedureinordertoisolatethebatteryifanyrepairsarenecessary.

1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.

2.TurnthebatterydisconnectswitchtotheOFFposition.Removethekey.

3.Atthebatterydisconnectswitch,disconnectthenegativebatterycablethatisconnectedto theframe.

Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.

4.Disconnectthenegativebatterycablefromtheterminalsofthebattery.

5.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.

6.Connectthenegativebatterycabletotheterminalsofthebattery.

7.Connectthenegativebatterycableatthebatterydisconnectswitch.

8.Installthekeyforthebatterydisconnectswitch.TurnthekeytotheONposition.

SunAug1023:25:28UTC+05302025

i01683302

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

BodyPivotBearings-Lubricate

SMCS-7258-086;7424-086

1.Wipecleangreasefittings(1)beforeyouapplythelubricanttoleftsideofthemachineand totherightsideofthemachine.

2.Lubricatethebodypivotbearingsthroughthefittingsontheleftsideofthemachineandon therightsideofthemachine.

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

BrakeSystemAir-Purge

SMCS-4250-ABL;4251

NOTICE

Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjustingandrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers beforeopeninganycompartmentordisassemblinganycomponent containingfluids.

RefertoSpecialPublication,NENG2500,"CaterpillarToolsandShop ProductsGuide"fortoolsandsuppliessuitabletocollectandcontain fluidsonCaterpillarproducts.

Disposeofallfluidsaccordingtolocalregulationsandmandates.

Routinepurgingoftheservicebrakelinesensuresthatthesystemisfreeofair.Startthesequence forpurgingairfromthebrakingsystemwithadjusters(1)onthecenterandfrontaxles.Purgethe brakegroupsforthecenteraxleandpurgethebrakegroupsforthefrontaxle.

SlackAdjusters

i01338752

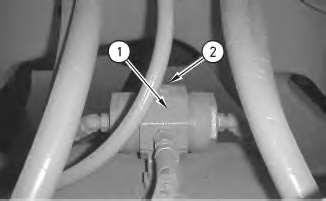

SlackAdjus4ers(1)arelocatedontopofthefrontaxleandonthetopofthecenteraxle.

1.EnsurethattheparkingandsecondarybrakecontrolisintheENGAGEDpositionandthat thetransmissionisintheNEUTRALposition.

2.Clampaclearplastictubetopurgescrew(2)onslackadjuster(1)onthecenteraxle.Fixthe freeendoftheplastictubeintoasuitablecontainer.

3.Starttheengineandoperateatlowidle.

4.Openpurgescrew(2).Withassistancefromanotherperson,presstheservicebrakepedal lightlyuntiloildischargesfromthetube.Thisactionwillconnectthelinesfromthe accumulatortothebrakelines.

5.Closepurgescrew(2)andreleasetheservicebrakepedal.

6.Repeattheprocedurefortheslackadjusterforthefrontaxle.

1.EnsurethattheparkingandsecondarybrakecontrolisintheENGAGEDpositionandthat thetransmissionisintheNEUTRALposition.

2.Removethreeboltsonthebrakelineguardandremovethebrakelineguard.

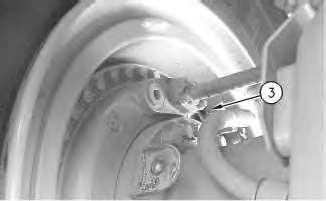

3.Clampaclearplastictubetopurgescrew(3)oneitherbrakegroup.Fixthefreeendofthe plastictubeintoasuitablecontainer.

4.Starttheengineandoperateatlowidle.

5.Openpurgescrew(3).Withassistancefromanotherperson,presstheservicebrakepedal lightlyuntiloildischargesfromthetube.

6.Closepurgescrew(3)andreleasetheservicebrakepedal.

7.Reinstallthebrakelineguard.

8.Repeattheprocedurefortheotherthreebrakegroups.

9.Checkthebrakeoillevel.Ifnecessary,addoil.RefertotheOperationandMaintenance Manual,"Hoist,Steering,andBrakeSystemOilLevel-Check"foradditionalinformation.

SunAug1023:26:34UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

Brakes,IndicatorsandGauges-Test

SMCS-4251-081;4267-081;7000;7450-081;7490-081

Beforeyouoperatethemachine,performthefollowingchecksandmakeanynecessaryrepairs.

•Lookforbrokenlensesonthegauges,brokenindicatorlights,brokenswitches,andother brokencomponentsinthecab.

•Starttheengine.

•Lookforinoperativegauges.

•Turnonallmachinelights.Checkforproperoperation.

•Soundthehorn.

•Movethemachineforwardslowlyandtesttheservicebrakes.Iftheservicebrakes malfunction,consultyourCaterpillarDealerforrepairs.

•Movethemachineforwardslowly.Movetheparkingandsecondarybrakecontroltothe ENGAGEDpositioninordertotestthesecondarybrake.Ifthesecondarybrakefailsto bringthemachinetoastop,consultyourCaterpillarDealerforrepairs.

•Stoptheengine.

Note:RefertoOperationandMaintenanceManual,"BrakingSystem-Test".

SunAug1023:27:27UTC+05302025

i01349551

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

BrakingSystem-Test

SMCS-3077-081;4251-081;4267-081

Personalinjurycanresultifthemachinemoveswhiletesting.

Ifthemachinebeginstomoveduringtest,reducetheenginespeed immediatelyandmovetheparkingandsecondarybrakecontroltothe ENGAGEDposition.

Makesurethattheareaaroundthemachineisclearofpersonnelandofobstacles.

Testtheservicebrakeonadry,levelsurface.

Fastenyourseatbeltbeforeyoutesttheservicebrake.

Theservicebrakeholdingabilitytestdetermineswhethertheservicebrakeisfunctional.Thistest isnotintendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatis requiredtoholdamachineataspecificenginerpmwillbedifferentforvariousmachines.

1.Beforeyoutesttheservicebrake,movetheparkingandsecondarybrakecontroltothe ENGAGEDposition.MovethetransmissioncontroltotheNEUTRALposition.Startthe engine.Allowtheenginetofullychargethebrakesystem.TheEMSindicatorwillno longerbeilluminatedwhenthebrakesystemisfullycharged.

2.Engagetheservicebrake.MovethetransmissioncontroltotheFIRSTSPEEDFORWARD position.MovetheparkingandsecondarybrakecontroltotheDISENGAGEDposition.

3.Graduallyincreasetheenginerpm.Theservicebrakeshouldpreventmachinemovement whentheengineisrunningat1550rpm.

i01616575

4.Ifthemachinemovesreducetheenginespeedimmediatelyandmovetheparkingand secondarybrakecontroltotheENGAGEDposition.Movethetransmissioncontroltothe NEUTRALposition.Machinemovementindicatesthattheservicebrakesystemrequires service.

NOTICE

Ifthemachinemovedwhiletestingtheservicebrakes,contactyour Caterpillardealer.

Havethedealerinspectand,ifnecessary,repairtheservicebrakes beforereturningthemachinetooperation.

SecondaryBrakeCheck

Testthesecondarybrakeonadry,levelsurface.

Fastenyourseatbeltbeforeyoutestthesecondarybrake.

Thesecondarybrakeholdingabilitytestdetermineswhetherthesecondarybrakeisfunctional. Thistestisnotintendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffort thatisrequiredtoholdamachineataspecificenginerpmwillbedifferentforvariousmachines.

Note:Thesecondarybrakeisfunctionalonthefrontaxleonly.

1.Beforeyoutestthesecondarybrake,movetheparkingandsecondarybrakecontroltothe ENGAGEDposition.MovethetransmissioncontroltotheNEUTRALposition.Startthe engine.Allowtheenginetofullychargethebrakesystem.TheEMSindicatorwillno longerbeilluminatedwhenthebrakesystemisfullycharged.

2.MovethetransmissioncontroltotheFIRSTSPEEDFORWARDposition.

3.Graduallyincreasetheenginerpm.Thesecondarybrakeshouldpreventmachinemovement whentheengineisrunningat1200rpm.

4.Ifthemachinemovesreducetheenginespeedimmediatelyandapplytheservicebrakes. MovethetransmissioncontroltotheNEUTRALposition.Machinemovementindicates thatthesecondarybrakesystemrequiresservice.

ParkingBrakeCheck

Thetestfortheparkingbrakemustbecarriedoutwiththeratedloadinthebody.

Testtheservicebrakesandthesecondarysteeringsystemonlevelgroundbeforeyoucarryout thisprocedure.

1.Drivethemachineontoaninclineof15%.Themachinemustbepointingdowntheincline.

2.Engagetheservicebrakesinordertostopthemachineontheincline.Theareaaroundthe machinemustbeclearofpersonnelandobstacles.

3.MovetheparkingbrakecontroltotheENGAGEDposition.Movethetransmissioncontrol totheNposition.

4.Shutofftheengine.

5.Graduallydisengagetheservicebrakes.

6.Ifthemachinemovesforward,engagetheservicebrakesimmediately.Starttheengine. Disengagetheparkingbrakeanddrivethemachineontolevelground.Shutofftheengine.

Ifthemachinemovedduringthetest,theparkingbrakerequiresservice.

NOTICE

Ifthemachinemovedwhiletestingtheparkingbrake,inspectthe parkingbrakecomponentsforwearordamage.Repairorreplacethe wornordamagedparkingbrakecomponentsasrequiredbefore returningthemachinetoservice.

SunAug1023:28:04UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

CabAirFilter-Clean/Replace

SMCS-7342-510;7342-070

NOTICE

Anairfilterelementpluggedwithdustwillresultindecreased performanceandservicelifetotheairconditionerorcabheater(if equipped).

Topreventdecreasedperformance,cleantheairfilterelement,as required.

Thecabairfilterislocatedunderthewindshieldontheleftsideofthemachine.

1.Removefourthumbscrews(1).Removecover(2).

i01338793

2.Removethefilterelement.Cleanthefilterelementwithpressureairorwashthefilter elementinwarmwater.Useanonsudsinghouseholddetergent.Rinsethefilterelementin cleanwaterandairdrythefilterelementthoroughly.

3.Afteryoucleanthefilterelement,inspectthefilterelement.Donotuseafilterelementwith damagedpleatsoradamagedseal.Ifthefilterelementisdamaged,replacethefilter element.

4.Reinstallthefilterelement.

5.Replacecover(2)andreinstallthumbscrews(1).

Note:Operatingconditionswillinfluencetheserviceintervalforthecabairfilterelement.Inspect thecabairfilterelementmoreofteninverydustyconditions.

SunAug1023:28:42UTC+05302025

Product:ARTICULATEDTRUCK

Model:D400EIIARTICULATEDTRUCK8PS

Configuration:D400ESeriesIIArticulatedTruck8PS00001-UP(MACHINE)POWEREDBY3406EEngine

OperationandMaintenanceManual

D350ESeriesIIandD400ESeriesIIArticulatedTrucks

MediaNumber-SEBU7064-06PublicationDate-01/11/2001DateUpdated-08/11/2001

CircuitBreakers-Reset

SMCS-1420-529

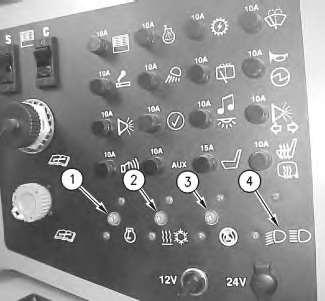

Illustration1g00634210

Thecircuitbreakerpanelislocatedontherightsideoftheoperatorcompartment.

Thecircuitbreakerpanelalsocontainsfuses.

Thecircuitbreakersprotecttheelectricalsystemfromdamage.Damagecanbecausedby electricaloverload.

Resetthecircuitbreakerifthecircuitbreakertrips.Pushinthebuttoninordertoresetthecircuit breaker.Iftheelectricalsystemisworkingproperly,thebuttonwillremaindepressed.Ifthe buttondoesnotremaindepressedandthecircuitbreakertripssoonafterbeingreset,checkthe appropriateelectricalcircuit.Repairtheelectricalcircuit,ifnecessary.

i01338801

This is the sample of the manual if you need complete manual Click Here to download
