Suspensionsystemmaydropmachinesuddenlyleavingno clearancebetweentheaxlehousing,mainframe,tires,andmud guards.
Workingintheseareascanresultinpersonalinjuryordeathby crushing.
Stayclearuntiltheengineisstoppedandthesuspensionhas beenfullylowered.
This is the sample of the manual if you need complete manual Click Here to download
Noclearanceforpersoninthisareawhenmachineturns. Severeinjuryordeathfromcrushingcouldoccur.
Connectsteeringframelocklinkbetweenfrontandrearframes beforelifting,transporting,orservicingmachineinarticulation area.
Disconnectlockandsecurebeforeresumingoperation.
Donotoperateorworkonthismachineunlessyouhaveread andunderstandtheinstructionsandwarningsintheoperation andmaintenancemanuals.
Failuretofollowtheinstructionsorheedthewarningscould resultininjuryordeath.
ContactanyCaterpillardealerforreplacementmanuals.Proper careisyourresponsibility.

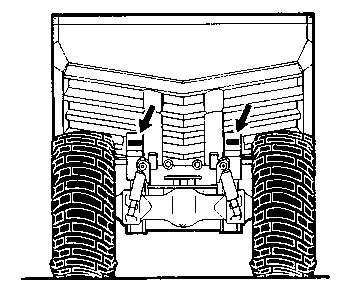

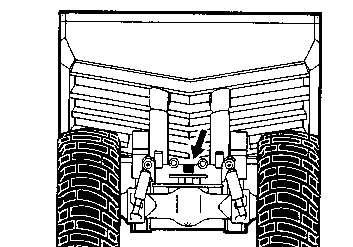

RearSuspensionlinescontainfluidathighpressure. Personalinjurycanresultfromimproperservicing. Lowersuspensionfullybeforeworkingonhydrauliclines.
Installdumpbodypropbeforeworkingunderraiseddumpbody topreventitfromfallingwhichcouldresultinpersonalinjuryor death.
Structuraldamage,anoverturn,modification,alteration,or improperrepaircanimpairthisstructure'sprotectioncapability therebyvoidingthiscertification.ConsultaCaterpillardealerto determinethisstructure'slimitationswithoutvoidingits certification.
Installcabliftcylinderpinbeforeworkingunderraisedcabto preventitfromfallingwhichcouldresultinpersonalinjuryor death.
Improperjumpercableconnectionscancauseexplosion resultinginpersonalinjury.
Batteriesmaybelocatedinseparatecompartments.Whenusing jumpercablesalwaysconnectpositive(+)cabletopositive(+) terminalofbatteryconnectedtostartersolenoidandnegative(-) cablefromexternalsourcetostarternegative(-)terminal.(If machinenotequippedwithstarternegativeterminal,connectto engineblock.)FollowprocedureintheOperationManual.
HighPressureCylinder.Donotremoveanyvalve,hydraulic fitting,orvalvecore,nordisassembleanypartsuntilpressure hasbeenrelievedorpersonalinjurymayoccur.Torelieve pressure:
1.Shutoffengineandlowersuspension.Holdin"lower" positionforfiveminutesforhydraulicsystempressureto dissipate.
2.Relievegaspressureintheaccumulatorcylinderby depressingcoreofchargingvalve.Chargecylinderwithdry nitrogengas.
SeeyourCaterpillardealerfortoolsanddetailedinformation requiredforchargingcylinders.
