D3K2XLTRACK-TYPETRACTOR
S/NKF200001UP

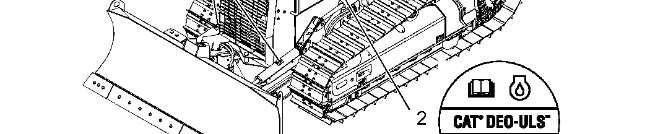

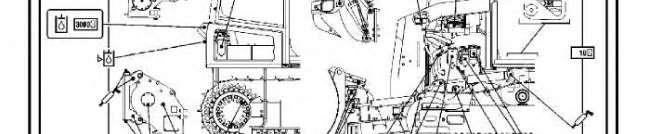

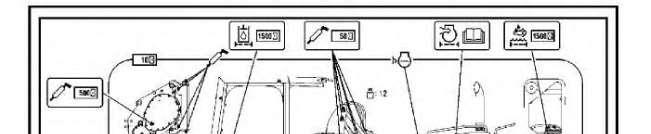

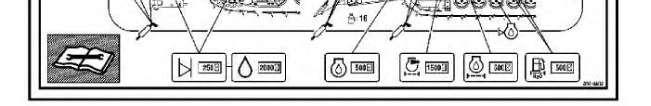

LubricationChart(1)
This is the sample of the manual if you need complete manual Click Here to download
NOTICE

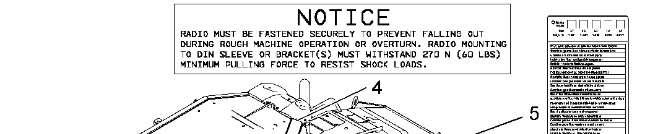

Radiomustbefastenedsecurelytopreventfallingoutduring roughmachineoperationoroverturn.RadiomountingtoDIN sleeveorbracket(s)mustwithstand270N(60lb)minimum pullingforcetoresistshockloads.

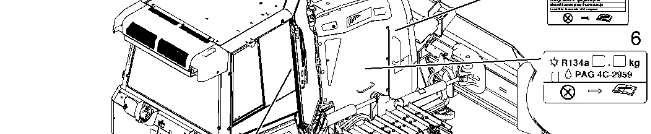

AirConditionRefrigerant(5)(IfEquipped)
AirConditioner(6)(Ifequipped)
NOTICE
Whenstartingfromanothermachine,makesurethatthe machinesdonottouch.Thiscouldpreventdamagetoengine bearingsandelectricalcircuits.
Turnon(close)thebatterydisconnectswitchpriortotheboost connectiontopreventdamagetoelectricalcomponentsonthe stalledmachine.
Severelydischargedmaintenancefreebatteriesdonotfully rechargefromthealternatorafterjumpstarting.Thebatteries mustbechargedtopropervoltagewithabatterycharger.Many batteriesthoughttobeunusablearestillrechargeable.
Thismachinehasa12voltstartingsystem.Useonlythesame voltageforjumpstarting.Useofahighervoltagedamagesthe electricalsystem.

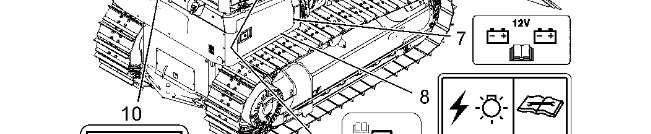

BatteriesinParallelConfiguration(7)
NOTICE
Useonly12voltstostarttheengine.Damagetotheenginemay occurifmorethan12voltsareusedtostarttheengine.
WaittoDisconnectLamp(8)
NOTICE
Donotturnoffthebatterydisconnectswitchuntiltheindicator lamphasturnedoff.Iftheswitchisturnedoffwhenthe indicatorlampisilluminatedtheDieselExhaustFluid(DEF) systemwillnotpurgetheDEF.IftheDEFdoesnotpurge,DEF couldfreezeanddamagethepumpandlines.
Note:
Product:TRACK-TYPETRACTOR
Model:D3K2XLTRACK-TYPETRACTORKF2
Configuration:D3K2XL&D3K2LGPSmallTrackTypeTractorKF200001-UP(MACHINE)POWEREDBYC4.4Engine
MonMar2823:16:15UTC+05302022
Product:TRACK-TYPETRACTOR
Model:D3K2XLTRACK-TYPETRACTORKF2
Configuration:D3K2XL&D3K2LGPSmallTrackTypeTractorKF200001-UP(MACHINE)POWEREDBYC4.4Engine
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. MonMar2823:15:47UTC+05302022
Product:TRACK-TYPETRACTOR
Model:D3K2XLTRACK-TYPETRACTORKF2
Configuration:D3K2XL&D3K2LGPSmallTrackTypeTractorKF200001-UP(MACHINE)POWEREDBYC4.4Engine
InductionSystem
SulfuricAcidBurnHazardmaycauseseriouspersonalinjuryor death.
Theexhaustgascoolermaycontainasmallamountofsulfuric acid.Theuseoffuelwithsulfurlevelsgreaterthan15ppmmay increasetheamountofsulfuricacidformed.Thesulfuricacid mayspillfromthecoolerduringserviceoftheengine.The sulfuricacidwillburntheeyes,skinandclothingoncontact. Alwaysweartheappropriatepersonalprotectiveequipment (PPE)thatisnotedonamaterialsafetydatasheet(MSDS)for sulfuricacid.Alwaysfollowthedirectionsforfirstaidthatare notedonamaterialsafetydatasheet(MSDS)forsulfuricacid.
