PARTS MANUAL
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c111932
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

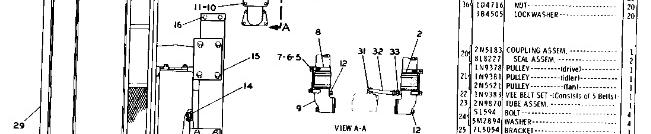

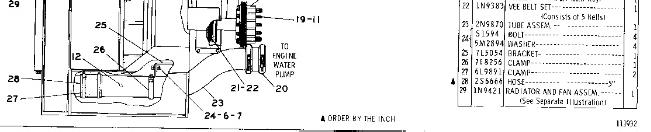

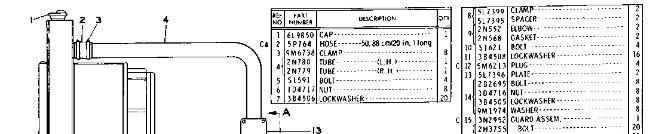

2N5523 RADIATOR AND FAN DRIVE GROUP--Suction--125 degrees F. Ambient Air--Type 1
1N9421 Radiator and Fan parts are shown on Pages 80 & 80A
ENTIRE GROUP
INDIVIDUAL PARTS
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 9 01:22:09 UTC+0530 2024
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c153845
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

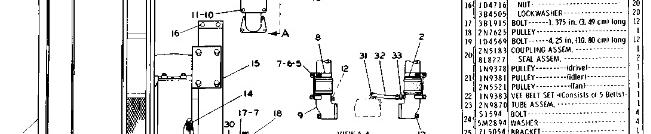

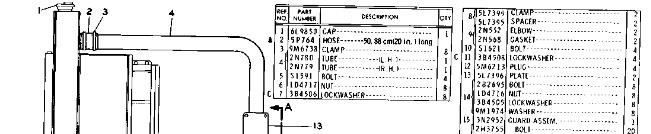

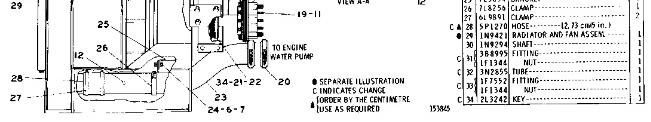

2N5523 RADIATOR AND FAN DRIVE GROUP Suction 125 degrees F. Ambient
Air--Type 2
1N9421 Radiator and Fan parts are shown on Pages 80 & 80A
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp
INDIVIDUAL PARTS
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c153848
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

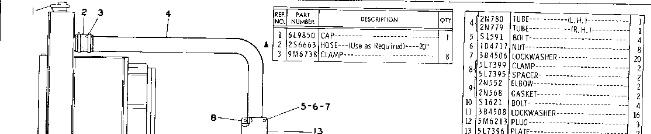

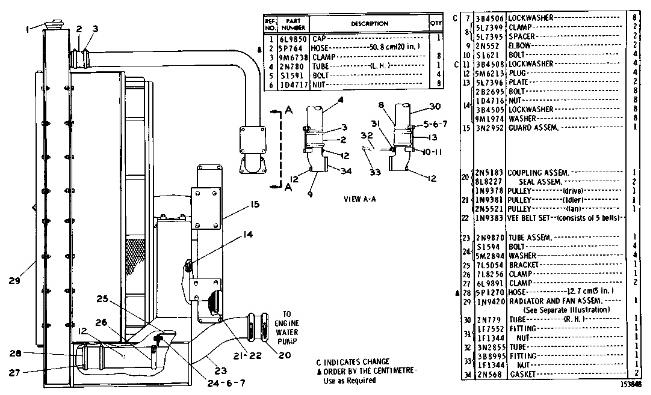

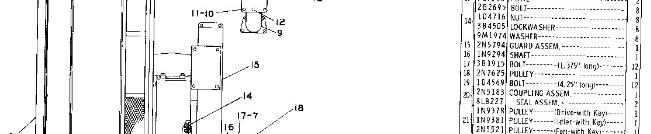

2N5524 RADIATOR AND FAN DRIVE GROUP--Blower--125 degrees F. Ambient Air--Type 3 FOR USE WITH STUB SHAFT 1N9420 Radiator and Blower Fan parts are shown on Pages 78A & 79
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 2N-5524 RADIATOR AND FAN DRIVE GROUP
INDIVIDUAL PARTS
Ref.
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c153847
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 |
Updated - 08/10/2001

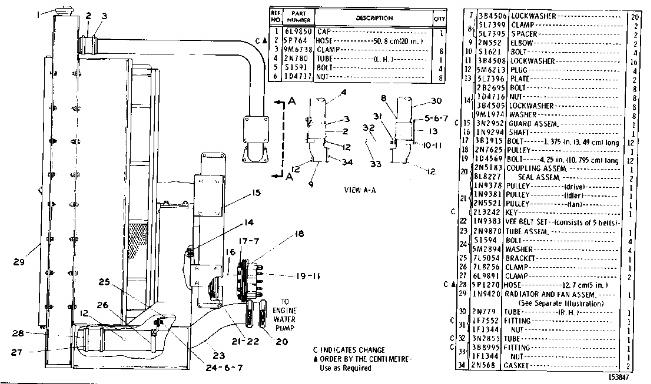

2N5524 RADIATOR AND FAN DRIVE GROUP--Blower--125 degrees F. Ambient Air--Type 2
1N9420 Radiator & Blower Fan parts are shown on Page 79 ENTIRE GROUP
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c111930
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

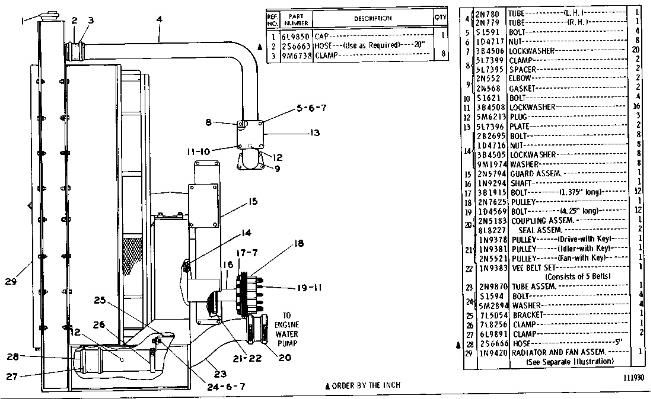

2N5524 RADIATOR AND FAN DRIVE GROUP--Blower--125 degrees F. Ambient Air--Type 1
1N9420 Radiator & Blower Fan parts are shown on Page 79
ENTIRE GROUP Ref.
INDIVIDUAL PARTS
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP

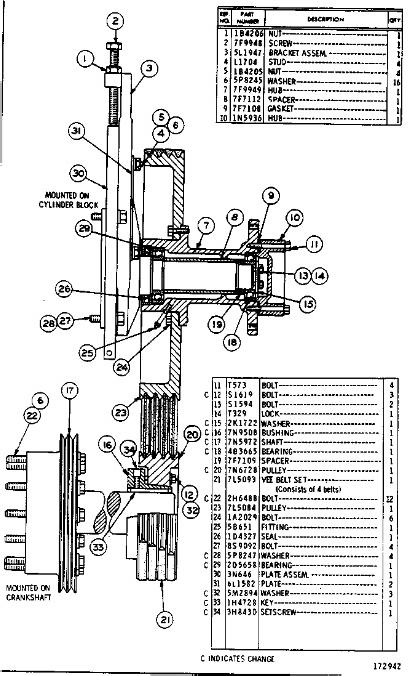

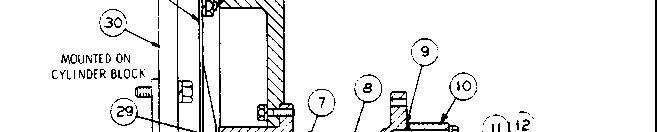

GRAPHIC #1 c172942
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

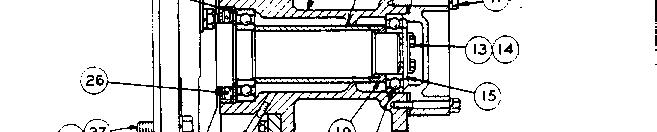

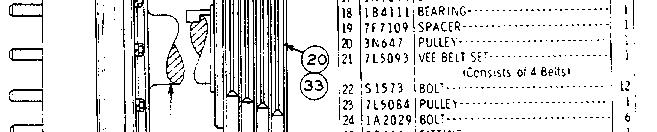

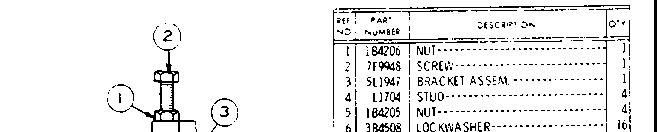

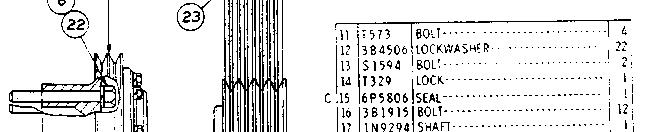

3N648 FAN DRIVE GROUP--Type 2
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Tue Apr 09 2024 01:18:41 GMT+0530 (India Standard Time)
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c153846
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

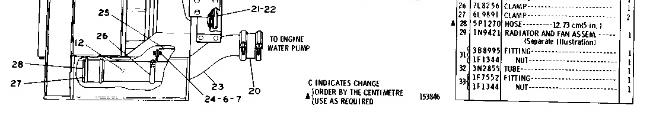

2N5523 RADIATOR AND FAN DRIVE GROUP--Suction--125 degrees F. Ambient
Air--Type 3 FOR USE WITH STUB SHAFT 1N9421 Radiator and Fan parts are shown on Pages 80 & 80A
ENTIRE GROUP Ref.
INDIVIDUAL PARTS
C - INDICATES CHANGE
Y - SEPARATE ILLUSTRATION
H - ORDER BY THE CENTIMETRE USE AS
Codes
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 9 01:18:36 UTC+0530 2024
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c206942
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

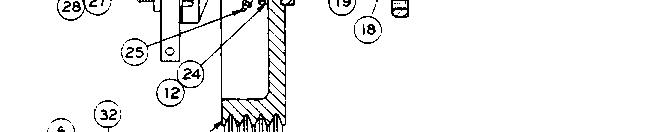

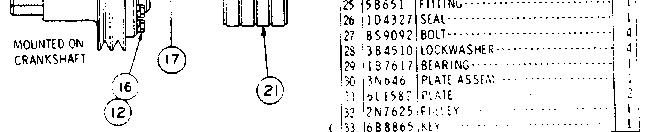

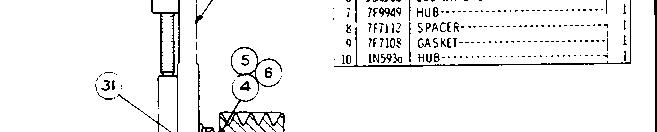

3N648 FAN DRIVE GROUP--Type 1
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

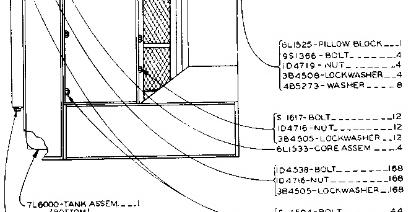

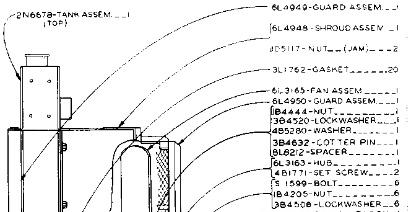

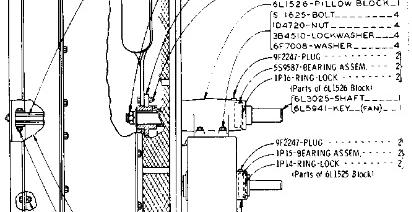

1N9420 RADIATOR & BLOWER FAN ASSEMBLY--125 degrees F. Ambient Air-Type 1
Part of 2N5524 Radiator & Fan Drive Group shown on Pages 77 & 77A
ENTIRE GROUP
Ref. Qty.
Grp
NPR Note Part No. Part Name
NPR 1N-9420 FAN AS-RADIATOR & BLOWER
INDIVIDUAL PARTS
Ref. Qty.
NPR Note Part No. Req. Qty. Part Name
NPR 2N-6678 1 TANK ASSEM. (TOP)
NPR 7L-6000 1 TANK ASSEM. (BOTTOM)
NPR 0S-1618 184 BOLT
NPR 1D-4716 176 NUT
NPR 3B-4505 184 LOCKWASHER
NPR 6L-4949 1 GUARD ASSEM.
NPR 6L-4948 1 SHROUD ASSEM.
NPR 1D-5117 2 NUT (JAM)
NPR 3L-1762 20 GASKET
NPR 6L-3165 1 FAN ASSEM.
NPR 6L-4950 1 GUARD ASSEM.
NPR 1B-4444 1 NUT
NPR 3B-4520 1 LOCKWASHER
NPR 4B-5280 1 WASHER
NPR 3B-4632 1 COTTER PIN
NPR 8L-8212 1 SPACER
NPR 6L-3163 1 HUB
NPR 4B-1771 2 SET SCREW
NPR 0S-1599 6 BOLT
NPR 1B-4205 6 NUT
NPR 3B-4508 6 LOCKWASHER
NPR 6L-1526 1 PILLOW BLOCK
NPR 0S-1625 4 BOLT
NPR 1D-4720 4 NUT
NPR 3B-4510 4 LOCKWASHER
NPR 6F-7008 4 WASHER
NPR 9F-2247 2 PLUG
NPR 5S-9587 2 BEARING ASSEM.
NPR 1P-0016 2 RING LOCK (Parts of 6L1526 Block)
NPR 6L-3025 1 SHAFT
NPR 6L-5941 1 KEY (FAN)
NPR 9F-2247 2 PLUG
NPR 1P-0015 2 BEARING ASSEM.
NPR 1P-0014 2 RING LOCK (Parts of 6L1525 Block)
NPR 6L-1525 1 PILLOW BLOCK
NPR 9S-1366 4 BOLT
NPR 1D-4719 4 NUT
NPR 3B-4508 4 LOCKWASHER
NPR 4B-5273 8 WASHER
NPR 0S-1617 12 BOLT
NPR 1D-4716 12 NUT
NPR 3B-4505 12 LOCKWASHER
NPR 6L-1533 4 CORE ASSEM.
NPR 1D-4538 168 BOLT
NPR 1D-4716 168 NUT
NPR 3B-4505 168 LOCKWASHER
NPR 0S-1594 44 BOLT
NPR 1D-4717 44 NUT
NPR 3B-4506 44 LOCKWASHER
SMCS Codes 1356
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 9 01:17:30 UTC+0530 2024
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c212451
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

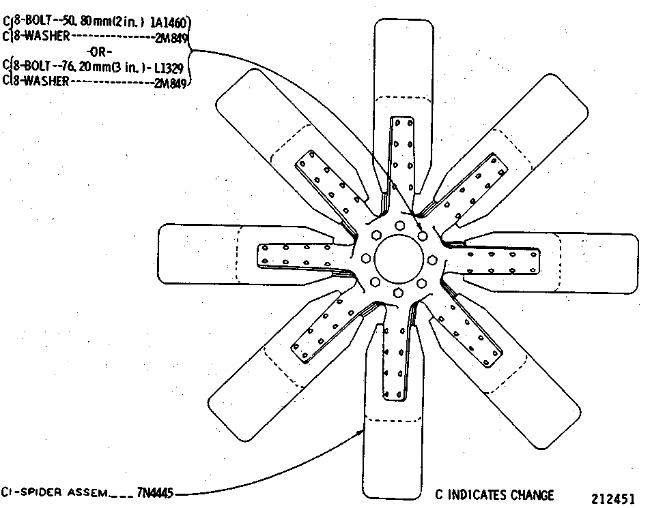

3L6834 FAN GROUP--54 Inch
Provides a suction fan for clockwise engine rotation and a blower fan group for counter clockwise engine rotation
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 3L-6834 FAN GP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
NPR C 1A-1460 8 BOLT 50.80 mm(2in.)
NPR C 2M-0849 8 WASHER -OR-
NPR C 0L-1329 8 BOLT 76.20 mm(3 in.)
NPR C 2M-0849 8 WASHER
NPR C 7N-4445 1 SPIDER ASSEM.
Key: C - INDICATES CHANGE
SMCS Codes 1356
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 09 2024 01:17:21 GMT+0530 (India Standard Time)
Previous Screen
Product: INDUSTRIAL ENGINE
Model: D349 INDUSTRIAL ENGINE 61P
Configuration: D349 ENGINE 61P00001-UP
GRAPHIC #1 c235640
D349 ENGINE
Media Number - UEG0343S-00 | Publication Date - 01/10/1983 | Date Updated - 08/10/2001

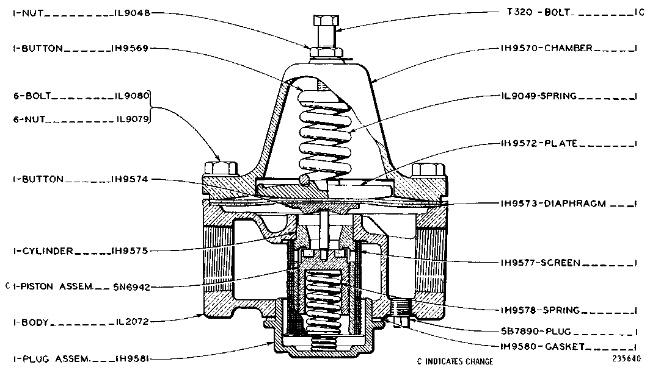

1L2073 PRESSURE REDUCING REGULATING VALVE
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1L-2073 VALVE GP-PRESSURE REDUCING
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
NPR 1L-9048 1 NUT
NPR 1H-9569 1 BUTTON
NPR 1L-9080 6 BOLT
NPR 1L-9079 6 NUT
NPR 1H-9574 1 BUTTON
NPR 1H-9575 1 CYLINDER
NPR C 5N-6942 1 PISTON ASSEM.
NPR 1L-2072 1 BODY
NPR 1H-9581 1 PLUG ASSEM.
NPR C 0T-0320 1 BOLT 1H-9570 1 CHAMBER
NPR 1L-9049 1 SPRING
NPR 1H-9572 1 PLATE
NPR 1H-9573 1 DIAPHRAGM
NPR 1H-9577 1 SCREEN
NPR 1H-9578 1 SPRING
NPR 5B-7890 1 PLUG
NPR 1H-9580 1 GASKET
Key:
C - INDICATES CHANGE
SMCS Codes 1462
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Tue Apr 09 2024 01:17:04 GMT+0530 (India Standard Time)
