Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
WedJan2623:34:36UTC+05302022
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED OperationandMaintenanceManual
NOTICE
Neveroperateanenginewithoutathermostatinthecooling system.Thethermostatmaintainstheenginecoolantatthe properoperatingtemperature.
Neveraddcoolantorwatertoanoverheatedengine,engine damagecanresult.Allowtheenginetocoolfirst.Fillingatover 5U.S.gallon(20L)perminutecancauseairpocketsinthe coolingsystem.
DONOTuseDowtherm209Full-Fillcoolant.
Caterpillardoesnotrecommendtheuseofcoolingsystem solutionsthatareintendedtostopleaks.Useoftheseproducts mayresultinenginedamage.
Caterpillarrecommendsthatthecoolantmixturecontaina minimumof30%CaterpillarAntifreeze,orequivalent.
Thecoolingsystemshouldbeprotectedwithaminimumof3% concentrationofliquidsupplementalcoolingadditiveatall times,regardlessoftheconcentrationofantifreeze.
Iftheengineistobestoredin,orshippedto,anareawith freezingtemperatures,thecoolingsystemmustbeprotectedto thelowestexpectedoutside(ambient)temperature.
NOTICE

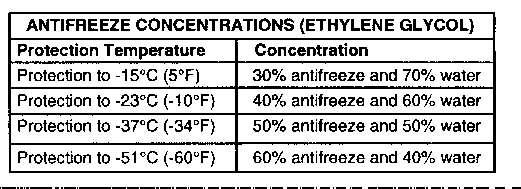

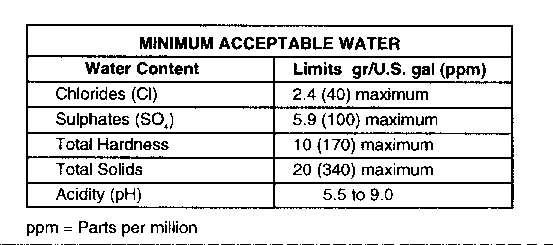

Caterpillarrecommendsacoolantmixcomprisingaminimum of30%CaterpillarAntifreezewithdistilledordeionizedwater. Antifreezeconcentrationshouldprovideprotectiontothe lowestexpectedoutside(ambient)temperature.
Checkthespecificgravityoftheantifreezesolutionfrequently incoldweathertoensureadequatefreezeprotection.Premix coolantsolutiontoprovideprotectiontothelowestexpected outside(ambient)temperature.Pureundilutedantifreezewill freezeat-23°C(-10°F).
Donotexceedacoolantmixtureof60%antifreezetowater sinceaconcentrationabove60%antifreezewillreducethe engine'sfreezeprotection,andincreasethepossibilityof depositformationinthecoolingsystemduetofailuretoabsorb thehigherconcentrationofsupplementaladditive.
NOTICE
Neveruseanantifreeze/watercoolantonly,inCaterpillar engines.Supplementaladditivesmustbeusedregardlessof theantifreezeconcentration.

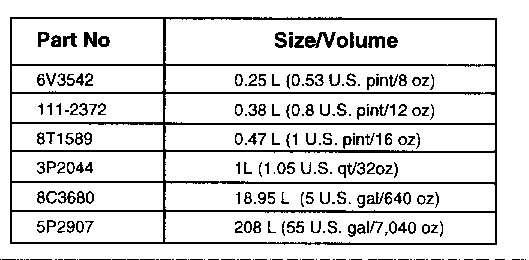

Caterpillarorothermanufacturesproductscanbeusedasthe supplementaladditive.DonotmixCaterpillarSupplemental Additive(conditioner)liquidorelementswiththeother commercialproductsavailable;selectacoolingsystem treatmentanduseitexclusively.
Excessiveconcentrationofsupplementalcoolantadditivecan formdepositswhichmaycauseenginedamage,reducethe enginesheattransfercharacteristicsandcouldalsoaccelerate waterpumpsealwear.

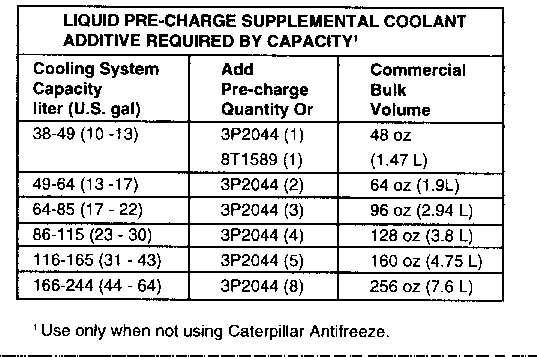

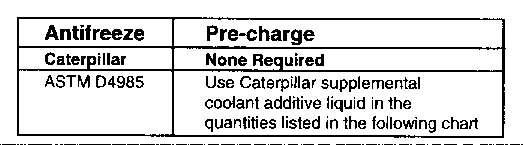

Pre-Charge
WedJan2623:37:21UTC+05302022
Checkthatlinesattachedtoremotegreasefittingsare undamaged.Ifthelinesaresplitgreasewillnotreachthe bearingsorpins.Machinedamagewillresult.
Thehitchbearingsmustbelubricatedregularly.Rapidwearwill resultfrominadequatelubrication.
Donotfillthefueltanktothetop.Fuelexpandsasitgetswarm andmayoverflow.
Fillthefueltankattheendofeachshifttodriveoutmoistair andpreventcondensation.
WedJan2623:41:22UTC+05302022
Product:NOEQUIPMENTSELECTED
Model:NOEQUIPMENTSELECTED
Configuration:NOEQUIPMENTSELECTED
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionofthis manualbeforeperforminganyoperationormaintenanceprocedures.
DumpBody,HoistandSteeringCylinders
NOTICE
Checkthatthelinesattachedtoallremotegreasefittingsare undamaged.Ifthelinesaresplitgreasewillnotreachthepins. Machinedamagewillresult.
