Product:ARTICULATEDTRUCK
Model:D250DARTICULATEDTRUCK6NG
Configuration:D20D&D250DARTICULATEDTRUCK6NG00001-UP(MACHINE)POWEREDBY3116ENGINE
OperationandMaintenanceManual
MediaNumber-SEBU6516-02PublicationDate-21/03/1995DateUpdated-11/10/2001
Specifications
D20D
D250D
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
ThuJun120:48:01UTC+05302023
Product:ARTICULATEDTRUCK
Model:D250DARTICULATEDTRUCK6NG
Configuration:D20D&D250DARTICULATEDTRUCK6NG00001-UP(MACHINE)POWEREDBY3116ENGINE
ThuJun120:46:47UTC+05302023
MachineDecommissioningandDisposal
Product:ARTICULATEDTRUCK
Model:D250DARTICULATEDTRUCK6NG
Configuration:D20D&D250DARTICULATEDTRUCK6NG00001-UP(MACHINE)POWEREDBY3116ENGINE
OperationandMaintenanceManual
NOTICE
Neveroperateanenginewithoutathermostatinthecooling system.Thethermostatmaintainstheenginecoolantatthe properoperatingtemperature.
Neveraddcoolantorwatertoanoverheatedengine,engine damagecanresult.Allowtheenginetocoolfirst.Fillingatover 5U.S.gallon(20L)perminutecancauseairpocketsinthe coolingsystem.
DONOTuseDowtherm209Full-Fillcoolant.
Caterpillardoesnotrecommendtheuseofcoolingsystem solutionsthatareintendedtostopleaks.Useoftheseproducts mayresultinenginedamage.

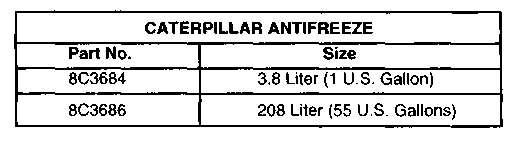

Caterpillarrecommendsthatthecoolantmixturecontaina minimumof30%CaterpillarAntifreeze,orequivalent.
Thecoolingsystemshouldbeprotectedwithaminimumof3% concentrationofliquidsupplementalcoolingadditiveatall times,regardlessoftheconcentrationofantifreeze.
Iftheengineistobestoredin,orshippedto,anareawith freezingtemperatures,thecoolingsystemmustbeprotectedto thelowestexpectedoutside(ambient)temperature.
NOTICE

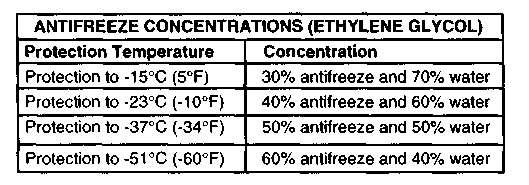

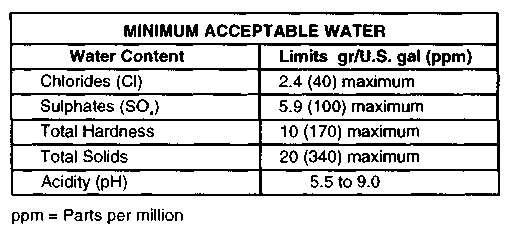

Caterpillarrecommendsacoolantmixcomprisingaminimum of30%CaterpillarAntifreezewithdistilledordeionizedwater. Antifreezeconcentrationshouldprovideprotectiontothe lowestexpectedoutside(ambient)temperature.
Checkthespecificgravityoftheantifreezesolutionfrequently incoldweathertoensureadequatefreezeprotection.Premix coolantsolutiontoprovideprotectiontothelowestexpected outside(ambient)temperature.Pureundilutedantifreezewill freezeat-23°C(-10°F).
Donotexceedacoolantmixtureof60%antifreezetowater sinceaconcentrationabove60%antifreezewillreducethe engine'sfreezeprotection,andincreasethepossibilityof depositformationinthecoolingsystemduetofailuretoabsorb thehigherconcentrationofsupplementaladditive.
NOTICE
Neveruseanantifreeze/watercoolantonly,inCaterpillar engines.Supplementaladditivesmustbeusedregardlessof theantifreezeconcentration.

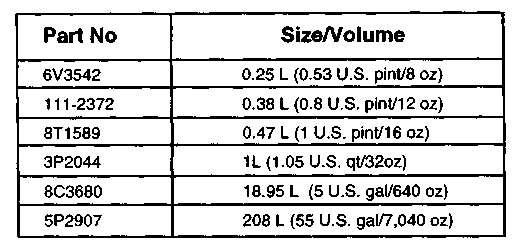

Caterpillarorothermanufacturesproductscanbeusedasthe supplementaladditive.DonotmixCaterpillarSupplemental Additive(conditioner)liquidorelementswiththeother commercialproductsavailable;selectacoolingsystem treatmentanduseitexclusively.
Excessiveconcentrationofsupplementalcoolantadditivecan formdepositswhichmaycauseenginedamage,reducethe enginesheattransfercharacteristicsandcouldalsoaccelerate waterpumpsealwear.

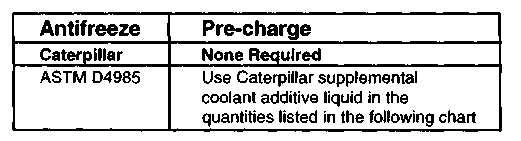

Pre-Charge
ThuJun120:49:42UTC+05302023

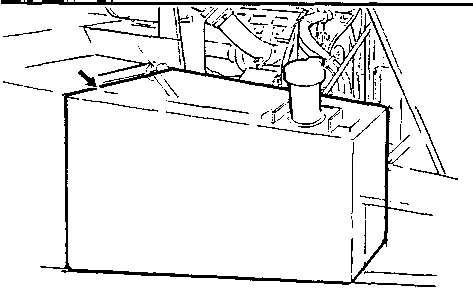

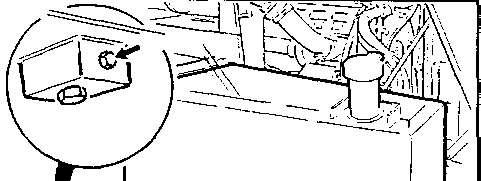

Donotfillthefueltanktothetop.Fuelexpandsasitgetswarm andmayoverflow.
Fillthefueltankattheendofeachshifttodriveoutmoistair andpreventcondensation.
NOTICE

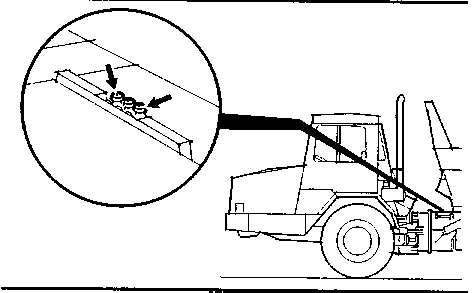

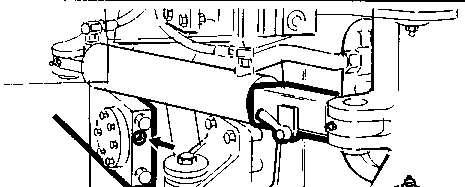

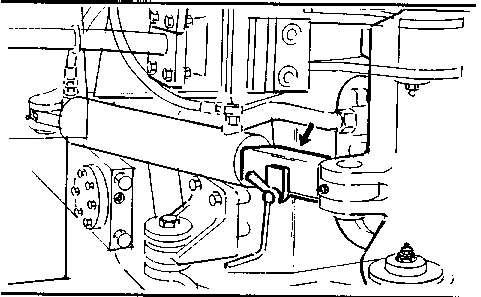

Theoscillatinghitchbearingsmustbelubricatedregularly. Rapidwearwillresultfrominadequatelubrication.
