Product: ARTICULATED TRUCK
Model: D20D ARTICULATED TRUCK 9MG
Configuration: D20D & D250D ARTICULATED TRUCK 9MG00001-UP (MACHINE) POWERED BY 3116 ENGINE
Operation
and Maintenance Manual
D20D AND D250D ARTICULATED TRUCK
Media Number -SEBU6516-02
Publication Date -21/03/1995 Date Updated -11/10/2001
Product Identification, Serial Number and CE Plate Locations

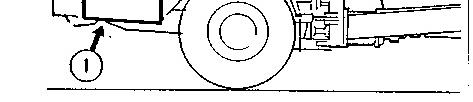

The Product Identification Number (PIN) plate (1) is located at the bottom rear of the front frame.
Product Identification Number (PIN) is used to identify a powered machine that is designed for an operator to ride.
Caterpillar products which are not designed for an operator to ride (engines, transmissions, etc.) are identified by Serial Numbers. Also, most major Caterpillar attachments are identified by Serial Numbers.
The PIN plate gives the following information:
* Machine Model Number
* Product Identification Number

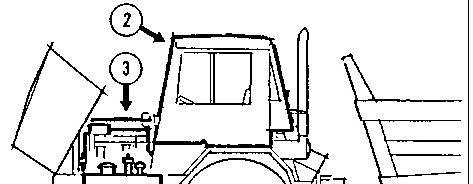

The Service Information Number (SIN) plate (2) is located in the cab. The plate gives the following information:
* Machine Model Number
* Machine PIN
* Machine Arrangement Number
* Engine Model
* Engine Serial Number
* Engine Arrangement Number
* Transmission Serial Number
* Transmission Arrangement Number
The CE plate is installed on machines for EEC countries only. It is located on the muffler guard and contains the following information:
Machine PIN ____________________
Model ____________________
Engine Power ____________________
Machine Weight ____________________
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 26 22:07:51 UTC+0530 2024
Product: ARTICULATED TRUCK
Model: D20D ARTICULATED TRUCK 9MG
Configuration: D20D & D250D ARTICULATED TRUCK 9MG00001-UP (MACHINE) POWERED BY 3116 ENGINE
Operation and Maintenance Manual
D20D AND D250D ARTICULATED TRUCK
Media Number -SEBU6516-02
Specifications
Publication Date -21/03/1995 Date Updated -11/10/2001
Basic machine shipping specifications are listed below.
D20D
Approximate Weight ... 15000 kg (33100 lbs)
Overall Height ... 3280 mm (129 in)
Overall Width ... 2750 mm (108 in)
Overall Length ... 8435 mm (332 in)
D250D
Approximate Weight ... 17000 kg (37500 lbs)
Overall Height ... 3215 mm (127 in)
Overall Width ... 2485 mm (98 in)
Overall Length ... 9620 mm (379 in)
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Tue Nov 26 22:07:35 UTC+0530 2024
Product: ARTICULATED TRUCK
Model: D20D ARTICULATED TRUCK 9MG
Configuration: D20D & D250D ARTICULATED TRUCK 9MG00001-UP (MACHINE) POWERED BY 3116 ENGINE
Operation
and Maintenance Manual
D20D AND D250D ARTICULATED TRUCK
Media Number -SEBU6516-02
Model Views
Publication Date -21/03/1995 Date Updated -11/10/2001

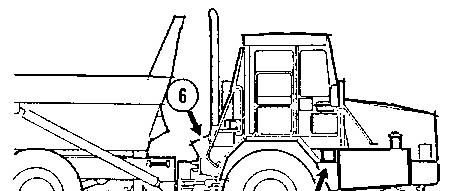

Batteries (4), Fuel Tank (5), Transmission (6), Oscillating Hitch (7).
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Tue Nov 26 22:07:19 UTC+0530 2024
Product: ARTICULATED TRUCK
Model: D20D ARTICULATED TRUCK 9MG
Configuration: D20D & D250D ARTICULATED TRUCK 9MG00001-UP (MACHINE) POWERED BY 3116 ENGINE
Operation and Maintenance Manual
D20D AND D250D ARTICULATED TRUCK
Media Number -SEBU6516-02 Publication Date -21/03/1995 Date Updated -11/10/2001
Foreword
Literature Information
This manual should be stored in the operators compartment in the literature holder or seat back storage area.
This manual contains safety, operation, transportation, lubrication and maintenance information.
Some photographs or illustrations in this publication show details or attachments that may be different from your machine. Guards and covers may have been removed for illustrative purposes.
Continuing improvement and advancement of product design may have caused changes to your machine which are not included in this publication. Read - study - and keep this manual with the machine.
Whenever a question arises regarding your machine, or this publication, please consult your Caterpillar dealer for the latest available information.
Safety
The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning labels used on the machine.
Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this product.
Operation
The operation section is a reference for the new operator and a refresher for the experienced one. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation and towing information.
Illustrations guide the operator through correct procedures for checking, starting, operating and stopping the machine.
Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.
Maintenance
The maintenance section is a guide to equipment care. The illustrated, step-by-step instructions are grouped by servicing interval. Items without specific intervals are listed under "When Required" topics. Items in the "Maintenance Intervals" chart are referenced to detailed instructions that follow.
Maintenance Intervals
Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) may be used instead of service hour meter intervals if they provide more convenient servicing schedules and approximate the indicated service hour meter reading. Recommended service should always be performed at the interval that occurs first.
Under extremely severe, dusty or wet operating conditions, more frequent servicing than is specified in the "Maintenance Interval" chart may be necessary.
Perform service on items at multiples of the original requirement. For example, at "Every 500 Service Hours or 3 Months", also service those items listed under "Every 250 Service Hours or Monthly", "Every 50 Service Hours or Weekly" and "Every 10 Service Hours or Daily".
Machine Description
This machine is powered by a 3116 direct injection diesel engine. It has a full power shift planetary transmission with five forward and two reverse gears. All wheels are driven and the machine has a lockable, inter-axle differential. The machine has disc brakes on all axles and hydraulic power amplifier steering.
The machine is designed primarily for hauling materials in a wide variety of applications.
Machine Storage
For complete storage information refer to Special Instruction SEHS9031, "Storage Procedure for Caterpillar Products".
