Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Media Number -RENR9217-38
Electric Starting Motor - Remove and Install
SMCS - 1453-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
1. Turn the battery disconnect switch to the OFF position.
i02298688
Illustration 1 g01099238

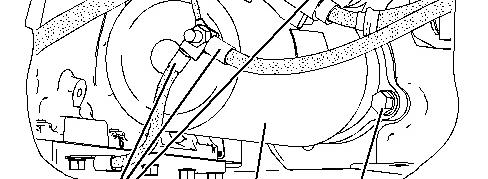

2. Disconnect harness assemblies (1) and cable assemblies (2). Attach a suitable lifting device to electric starting motor (4). The weight of electric starting motor (4) is approximately 36 kg (80 lb). Remove bolts (3). Remove electric starting motor (4) from the right side of the engine.

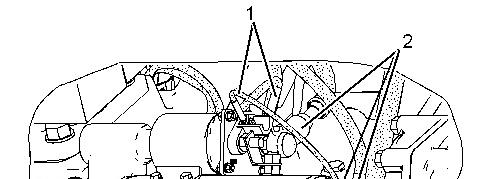

Illustration 2 g01099237

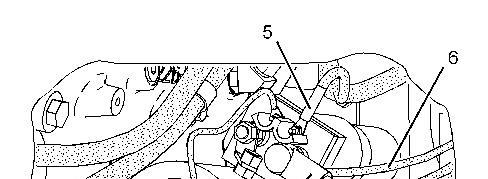

3. Disconnect harness assembly (5) and harness assembly (6). Disconnect cable assemblies (7). Attach a suitable lifting device to electric starting motor (8). The weight of electric starting motor (8) is approximately 36 kg (80 lb). Remove bolts (9). Remove electric starting motor (8) from the left side of the engine.
Installation Procedure
Illustration 3 g01099237
1. Attach a suitable lifting device to electric starting motor (8). The weight of electric starting motor (8) is approximately 36 kg (80 lb). Position electric starting motor (8) on the left side of the engine. Install bolts (9). Connect harness assembly (6) and harness assembly (5). Connect cable assemblies (7).
Illustration 4 g01099238

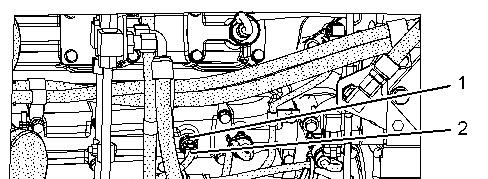

2. Attach a suitable lifting device to electric starting motor (4). The weight of electric starting motor (4) is approximately 36 kg (80 lb). Position electric starting motor (4) on the right side of the engine. Install bolts (3). Connect cable assemblies (2) and harness assemblies (1).
3. Turn the battery disconnect switch to the ON position. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Aug 13 10:01:44 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Media Number -RENR9217-38 Publication Date -01/07/2015 Date Updated -01/02/2018
Alternator - Remove and Install
SMCS - 1405-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
1. Turn the battery disconnect switch to the OFF position.
i02298677
2. Remove the V-belt from the engine.

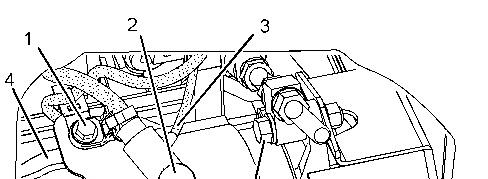

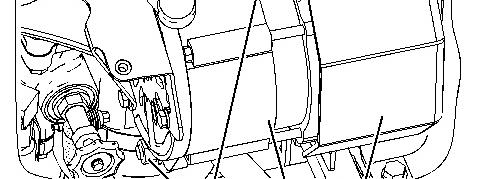

Illustration 1 g01098691

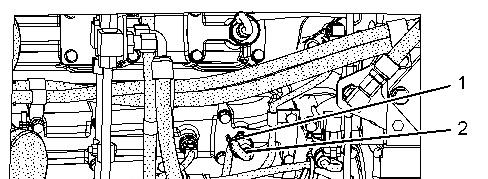

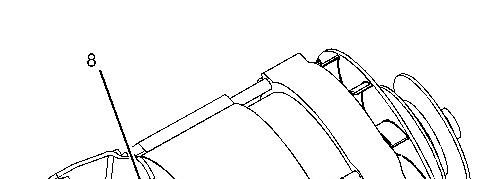

3. Disconnect cable assembly (2). Remove bolt (1). Disconnect ground strap (4). Disconnect harness assembly (3). Remove bolts (5). Remove guard (7). Remove alternator (6).

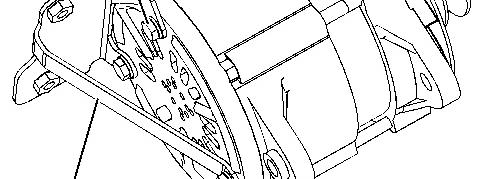

Illustration 2 g01098693
4. Remove bolts (8) and bracket (9).
Installation Procedure
Illustration 3 g01098693
1. Position bracket (9) and install bolts (8).
4 g01098691
2. Position alternator (6). Position guard (7) and install bolts (5). Connect harness assembly (3). Connect ground strap (4). Install bolt (1). Connect cable assembly (2).
3. Install the V-belt on the engine.
4. Turn the battery disconnect switch to the ON position. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Aug 13 10:01:23 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Media Number -RENR9217-38 Publication Date -01/07/2015 Date Updated -01/02/2018
Electronic Control Module - Remove and Install
SMCS - 1901-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
1. Disconnect the negative battery terminal at the battery.
i02298562

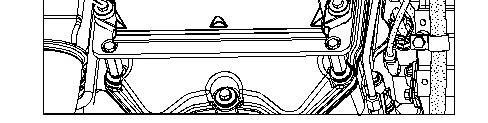

1

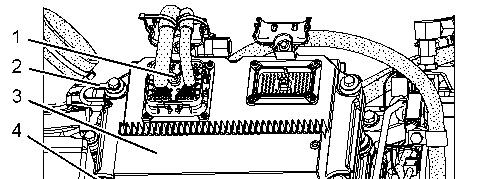

2. Loosen allen head screw (1). Disconnect the harness assembly from electronic control module (3).
3. Remove bolts (4). Remove electronic control module (3) and ground strap (2).
4. Remove the washers and the isolation mounts from electronic control module (3).
Installation Procedure
Illustration
Illustration 2
1. Position the isolation mounts on electronic control module (3). Position the spacers, the washers, ground strap (2) and electronic control module (3) on the support assemblies. Install bolts (4).
2. Connect the harness assembly to electronic control module (3). Tighten allen head screw (1) to a torque of 6 ± 1 N·m (53 ± 9 lb in).
3. Connect the negative battery terminal at the battery.
Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Engine Trunnion - Remove and Install
SMCS - 1153-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
Table 1
i02531004
Required Tools
Start By:
a. Remove the vibration damper. Refer to Disassembly and Assembly, "Vibration Damper and Pulley - Remove and Install".

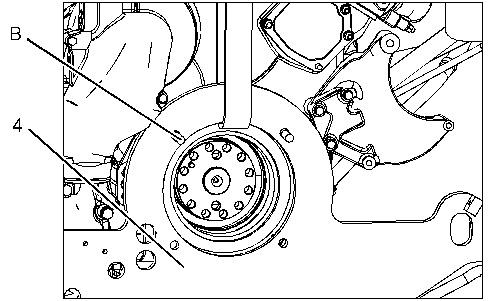

Illustration 1 g01148134
Illustration 2

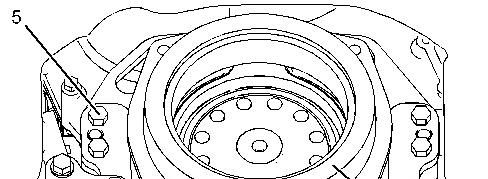

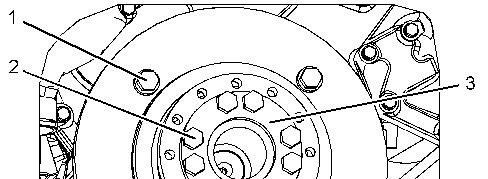

1. Remove bolts (2) and adapter (3).
2. Use Tooling (A) and suitable cribbing in order to support the engine. Support the engine on the front edge of the oil pan.
3. Remove two bolts (1). Install Tooling (B). Remove remaining bolts (1).
4. Attach a suitable lifting device to support assembly (4). The weight of support assembly (4) is approximately 50 kg (110 lb). Remove support assembly (4) from Tooling (B).

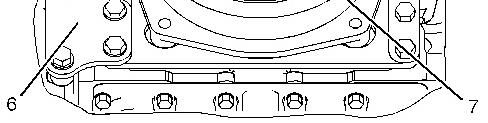

Illustration 3 g01148140

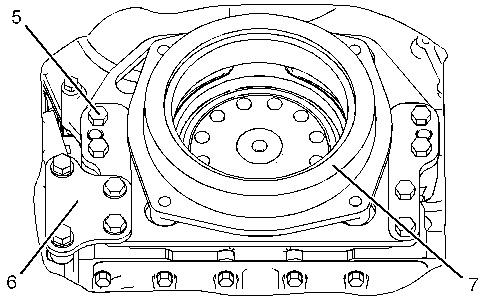

5. Remove bracket (6), bolts (5), and engine trunnion (7).
Installation Procedure
Table 2
Required Tools
Tool Part Number Part Description Qty
A 8T-5255 Hydraulic Jack 1
BGuide Stud 1/2 - 13 by 4 inch 2
1. Use Tooling (A) and suitable cribbing in order to support the engine. Support the engine on the front edge of the oil pan.

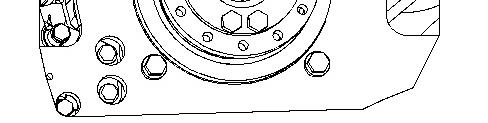

Illustration 4 g01148140
2. Position engine trunnion (7) on the engine. Install bolts (5) and bracket (6).

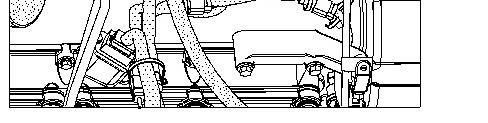

Illustration 5 g01148136
Illustration 6
3. Install Tooling (B) on the engine.
4. Attach a suitable lifting device to support assembly (4). The weight of support assembly (4) is approximately 50 kg (110 lb). Position support assembly (4) on Tooling (B).
5. Install bolts (1). Remove Tooling (B). Install remaining bolts (1).
6. Remove Tooling (A) and the suitable cribbing.
7. Position adapter (3) and install bolts (2).
End By:
a. Install the vibration damper. Refer to Disassembly and Assembly, "Vibration Damper and Pulley - Remove and Install".
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Aug 13 10:00:48 UTC+0530 2024
Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Media Number -RENR9217-38 Publication Date -01/07/2015 Date Updated -01/02/2018
Inlet Air Temperature Sensor - Remove and Install
SMCS - 1921-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
i02531227
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Illustration 1 g01151116
1. Disconnect harness assembly (2).
2. Remove inlet air temperature sensor (1) from the inlet manifold.
3. Remove the O-ring seal from inlet air temperature sensor (1).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Illustration 2 g01151116
1. Install a new O-ring seal on inlet air temperature sensor (1).
2. Install inlet air temperature sensor (1) into the inlet manifold and tighten to a torque of 20 ± 5 N·m (15± 4 lb ft).
3. Connect harness assembly (2).
1993 - 2024 Caterpillar Inc.
Product: TRACK-TYPE TRACTOR
Model: D11R TRACK-TYPE TRACTOR AAF
Configuration: D11R Carrydozer Track-Type Tractor AAF00001-UP (MACHINE) POWERED BY 3508B Engine
Disassembly and Assembly
C27 and C32 Engines for Caterpillar Built Machines
Media Number -RENR9217-38 Publication Date -01/07/2015 Date Updated -01/02/2018
i02531239
Turbocharger Outlet Pressure Sensor - Remove and Install
SMCS - 1917-010
S/N - DLT1-UP
S/N - EHX1-UP
S/N - FZS1-UP
S/N - JA41-UP
S/N - LJW1-UP
S/N - LJX1-UP
S/N - MJX1-UP
S/N - MZM1-UP
S/N - NZG1-UP
S/N - NZK1-UP
S/N - PZB1-UP
S/N - TC91-UP
S/N - TZB1-UP
S/N - WZH1-UP
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Illustration 1 g01151057
1. Disconnect harness assembly (2).
2. Remove turbocharger outlet pressure sensor (1) from the inlet manifold.
3. Remove the O-ring seal from turbocharger outlet pressure sensor (1).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
