AfterStartingtheEngine
1.AllowtheenginetowarmupatLOWIDLEforfiveminutes.Engageanddisengageallimplement controlstohelpspeedwarm-upofhydrauliccomponents.
2.MovetheEMStestswitchup.Thefaultalarmshouldsound.Thefaultlightsshouldcomeon.The masterfaultlightshouldflash.
3.ReleasetheEMStestswitch.Allfaultlightsandthefaultalarm,shouldgooff.Ifthelightsdonot gooff,stoptheengine.Haveanynecessaryrepairsmadebeforestartingagain.
4.Lookatthefaultlightsandgauges(ifequipped)frequentlyduringoperation.
5.Lookatthehydraulicoiltankandpowertrainoillevels.MaintaintheoillevelstotheFULLmarks.
Product:TRACK-TYPETRACTOR
Model:D10NTRACK-TYPETRACTOR2YD
Configuration:D10NTRACK-TYPETRACTOR2YD00001-UP(MACHINE)POWEREDBY3412ENGINE
OperationandMaintenanceManual
D10NTRACK-TYPETRACTOR
MediaNumber-SEBU6018-03PublicationDate-01/05/1991DateUpdated-12/12/2012
BeforeStartingtheEngine
Walk-AroundInspection
Hotoilandcomponentscancausepersonalinjury.Donotallowhotoil orcomponentstocontactskin.
Atoperatingtemperature,theenginecoolantishotandunderpressure.
Steamcancausepersonalinjury.
Checkthecoolantlevelonlyaftertheenginehasbeenstoppedandthe fillcapiscoolenoughtotouchwithyourbarehand.
Removethefillcapslowlytorelievepressure.
Coolingsystemconditionercontainsalkalai.Avoidcontactwiththeskin andeyestopreventpersonalinjury.
Foryourownsafetyandmaximumservicelifeofthemachine,makeathoroughwalk-around inspectionbeforemountingthemachinetostarttheengine.
Lookaroundandunderthemachineforsuchitemsasloosebolts,trashbuild-up,oilorcoolantleaks, brokenorwornparts.Inspecttheconditionoftheimplementsandthehydrauliccomponents.
This is the sample of the manual if you need complete manual Click Here to download
1.Inspecttheimplementsfordamageorexcessivewear.Repairifdamaged.
2.Inspectimplementcylindersandlinkagefordamageorexcessivewear.Repairifdamaged.
3.Inspectandreplacelights,brokenbulbsandlenses.
4.Removetrashbuild-upinandaroundtheengineandunderthefloorplate.Alsoremoveanydirt build-upontopofthecrankcaseguard.
5.Inspectandrepairanycoolingsystemleaks.Checkthehoses,radiatorfins,radiatorcapandthe drainarea.
6.Inspecttheengineprecleanerscreensfordirtbuild-up.Removeanydirtordebris.
7.Inspectandrepairanyenginecompartmentleaks.Checkaroundallsealsandcovers.
8.Inspectstepsandhandholdsforconditionandcleanliness.Repairorcleanifnecessary.Inspectthe RolloverProtectiveStructure(ROPS)fordamage.SeeyourCaterpillardealerforrepairsifnecessary.
9.Inspectandrepairanyhydraulicsystemleaks.Inspecthoses,sealsandaroundflanges.
10.Inspectandrepairanyfinaldriveleaks.
11.Besurecoversandguardsarefirmlyinplace.Inspectfordamageorforlooseandmissingbolts.
12.Inspectandrepairanytransmissionleaks.Checkaroundthesealsandcovers.Also,checkthe hosesaroundthetransmission.
13.Inspectandrepairdamagedandexcessivelyworntracks.Tightenanylooseboltsandreplaceany thataremissing.
Lookforleaksbetweenthemajorandminorbogies,bogieshaftsandtherollerframes.
IfleakageexistsconsultyourCaterpillardealerforinspection,lubricationand,ifnecessary,repair instructions.
14.Inspectoperator'scompartmentforcleanlinessandremovealltrashanddirtbuild-up.
15.Inspectandrepairtheinstrumentpanelwhenbrokengaugesandlightsarefound.
16.Inspecttheseatbeltandmountingforexcessivewearanddamage.Replaceifdamaged.
17.Makesurethehorn,back-upalarm,lights,guards,shield,etc.,areinproperworkingorder.
18.Brakepedalcanbeadjustedcloserorfartherfromopertor'sseatforcomfort.SeeyourCaterpillar dealerforadjustmentprocedure.
Pre-StartChecks
1.MaintaintheengineoillevelbetweentheADDandtheFULLmarkonthedipstick.
2.Opentheleftsideaccesscover.
3.MaintainthepowertrainsystemoillevelbetweentheADDandtheFULLmarksonthedipstick.
MaintainthepivotshaftoillevelbetweentheADDandFULLmarksinthereservoir.Donotaddoil aboveFULLmarktoavoidoiloverflowasoilwarms.Checkforleaksiffrequentlylow.Closethe cover.
4.MaintainthehydraulicimplementoillevelbetweentheADDandtheFULLmarkinthesight gauge.
5.Removethecoolantfillcap.
6.Maintaintheenginecoolantabovethelowlevelplate.
7.Removethefuelfillcap.
8.MaintainthefuelleveltotheFULLmarkonthedipstick.
9.Openthefueldrainvalves.Drainmoistureandsediment,asrequired,fromthefueltank.
10.Servicetheairfilterelementswhentheyellowpistonenterstheredareaintheindicators.
11.Adjusttheseattoallowfullbrakepedaltravelwiththeoperator'sbackagainstseatback.
12.Adjustthemirrortoallowproperviewingfromtheseattoseeclosebehindthemachine.
13.Adjusttheseatbelttofitsnug.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJul611:59:07UTC+05302024
Product:TRACK-TYPETRACTOR
Model:D10NTRACK-TYPETRACTOR2YD
Configuration:D10NTRACK-TYPETRACTOR2YD00001-UP(MACHINE)POWEREDBY3412ENGINE
MediaNumber-SEBU6018-03PublicationDate-01/05/1991DateUpdated-12/12/2012
Maintaintheoilbetweenthemarksondipstick.Addoilifnecessary. PowerTrainOilSystem
Hotoilandcomponentscancausepersonalinjury.Donotallowhotoil orcomponentstocontactskin.
Thepowertrainoildipstickislocatedontheleftsideofthemachinebehindtheaccesscover.
Maintaintheoilbetweenthemarksondipstick(1)atLOWIDLE.Addoilifnecessarythroughoilfill tube(2).Removeoilfillcapforaccess.
EngineCoolingSystem
LookattheCoolantLevel
Atoperatingtemperature,theenginecoolantishotandunderpressure. Steamcancausepersonalinjury.
Checkthecoolantlevelonlyaftertheenginehasbeenstoppedandthe fillcapiscoolenoughtotouchwithyourbarehand.
Removethefillcapslowlytorelievepressure.
Coolingsystemconditionercontainsalkali.Avoidcontactwiththeskin andeyestopreventpersonalinjury.
1.Removethecoolantfillcapslowlytorelieveanypressure.
2.Inspecttheconditionofthecapgasket.Replacethecapgasketifnecessary.
3.Maintainthecoolantabovethelowlevelplate.
4.Installtheradiatorcap.
Pressureaircancausepersonalinjury.
Whenusingpressureairforcleaning,wearaprotectivefaceshield, protectiveclothingandprotectiveshoes.
Themaximumairpressuremustbebelow205kPa(30psi)forcleaning purposes.
Compressedair,highpressurewaterorsteamcanbeusedtoremovedust,leavesandgeneraldebris fromafoldedcoreradiator.Cleanasrequiredbyconditionofradiator.
Theuseofcompressedairispreferred.
Referto"KnowYourCoolingSystem,"FormSEBD0518,forthecompleteprocedureand instructions.
HydraulicSystemOil
LookAtTheOilLevel
Atoperatingtemperature,thehydraulictankishotandunderpressure. Hotoilcancauseburns.
Removethefillcaponlywhentheengineisstopped,andthecapiscool enoughtotouchwithyourbarehand.Removethefillcapslowlyto relievepressure.
Neverremovethecapfromtheimplementhydraulictankifoilishot. Aircanentersystemandcausepumpdamage.
Thehydraulicoiltankislocatedontherightrearsideofthemachine.
AddoiltomaintaintheoilleveltotheFULLmarkinthesightgauge.
Tracks
InspectForProperAdjustment
Visuallyinspectthetracks.Checkforwearandexcessivedirtbuildupontrackcomponents.
Iftrackappearstobetootightortooloose,see"Tracks"under"Every250ServiceHoursor Monthly."
PivotShaft
Hotoilandcomponentscancausepersonalinjury.Donotallowhotoil orcomponentstocontactskin.
Maintaintheoilwithinthelimitsofthesightgauge.Overfillingcancausehotoiltooverflowthe reservoir.
Fuelleakedorspilledontohotsurfacesorelectricalcomponentscan causeafire.
Drainvalveislocatedunderthefueltank.
1.Openthedrainvalveandallowthemoistureandsedimenttodrainintoasuitablecontainer.
2.Closethedrainvalve.
Walk-AroundInspection
InspectMachine
See"Walk-AroundInspection"inthe"BeforeStartingtheEngine"section.
CleaningWindows
Usecommerciallyavailablewindowcleaningsolutionstocleanthewindows.
Therearwindowcanbecleanedfromtheinsideofthecab.Todothisthesectionofthewindowthat slidesmustberemoved.Usetheprocedurethatfollowstoremovethatsectionoftherearwindow.

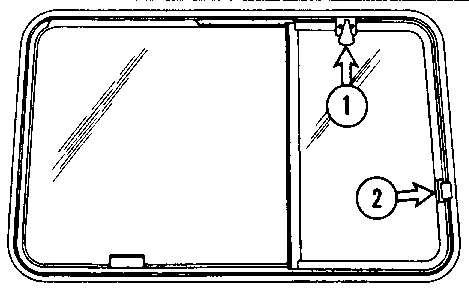

1.MovethehandlestoptotheUPpositionbyliftingathandle(1)androtatingcounterclockwiseuntil itisvertical.
