Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

OperationandMaintenanceManual

Operator'sGuideForD10TrackTypeTractor

MediaNumber-SEBU5566-00PublicationDate-01/05/1978DateUpdated-11/10/2001

ShippingHints

SeeyourCaterpillardealerforinstructionsforshippingD-10Tractor.

Obeyregulationscoveringtransportationofcylinderscontainingcompressedgas(Fire SuppressionSystem).

SatJun809:34:06UTC+05302024

Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

OperationandMaintenanceManual Operator'sGuideForD10TrackTypeTractor MediaNumber-SEBU5566-00PublicationDate-01/05/1978DateUpdated-11/10/2001

OperatingTechniques

Dozing

StraightDozing:Ifthebladedigsinandtherearofthetractorrises,raisebladetocontinueeven cut.Whenmovingaheavyloadcausestravelspeedtodrop,shifttoalowergearand/orraisethe bladeupslightly.

NOTE:Whendoingfinishingorlevelingwork,afullbladehandleseasierthanapartiallyloaded blade.

SlotDozing:Thisallowslargerloadstobecarriedinfrontoftheblade.Itisusedinstockpiling andhighproductionbulldozing.

TiltDozerDitching:Tiltbladeandworkwithlowsideinditchcenter.Levelbladewhenrequired depthandslopearereached.

This is the sample of the manual if you need complete manual Click Here to download

StraightDozerBackfilling:Pushata90°angletoditch.

StraightDozerDitching:Tiltbladetocutshallow"V"ditches.Forlargerditches,dozeatright anglestocenterlineofditch.Whendesireddepthisreached,dozelengthofditchtosmoothsides andbottom.

PushLoading

1.Positionbulldozercuttingedgeslightlyabovegroundlevel.

2.Tractorshouldmatchtravelspeedofscraperjustascontactismade.

3.Contactpushblocksquarely.Don'tallowbladeorpushplatetocontactscrapertires. PutbladecontrolleverinFLOATpositiontoallowbladetofollowscraperpushblock.

4.Donotliftrearofscraperofftheground.

5.Upshifttractorwhencutiscompletetohelpscrapergetmoving.

NOTICE

Bladeinfloatmaydrop.Putbladecontrolleverinaslightraise positionbeforeleavingscraper.

FollowadviceoftheCaterpillardealer'ssalesdepartmentonuseof tandempushing.

Inthewrongsoilconditions,thetremendousavailablepowercouldcauseveryextensivedamage tothebowlorshankofthevehiclebeingpushed.

Equipthetractorsproperlyfortandempushing.

AdjustableRipper

Theangleoftheshankcanbevaried,whileripping,toachievemaximumperformancethroughout eachrippingpass.

Toinserttheripperintothematerialtoberipped,adjusttheangleoftheshankbeyondvertical positiontogivethecorrecttipangleforeasyentryintothematerial.Anglewilldifferdepending uponmaterialbeingripped.

Lowerripperintothematerialwhilemovingforward.Whendesiredrippingdepthisreached, movethetipforwardtoobtainthecorrectangleforbestperformance.Thisisusuallybetween verticalandforwardpositionsofshank.

Shallowrippingisrecommendedwhenmaterialistoberemovedbyascraperorloader.

Deeprippingisrecommendedwhenmaterialistoberemovedbyanexcavator.

Usethepropershankholetoproviderequiredclearancebetweenthegroundandthebeam.The shankmaybepositionedforshallowrippingaswellasdeepripping.

Ripping

UseFIRSTspeedformostrippingoperations.Itisbettertouseadditionalshanks,wherepractical, ratherthantoincreasespeed.

Usepartthrottletocontroltrackslippageinrock.

Alwaysusecentershankwhenrippingwithoneshank.Ifmaterialbreaksupsatisfactorily,more shanksmaybeused.

Crossriponlywhennecessarytogetsatisfactoryfracture.

Whenrippingforscraperloading,ripinsamedirectionthatscraperswillload.

NOTE:Ripdownhillwheneverpossible.

NOTICE

Donotturnorbacktractorwhileshanksareintheground.Twisting strainontheshanksandtipsmaycausefailure. Inspectrippertipsandshankprotectorsfrequently,forexcessivewear. Ripasdeeplyaspossiblein1stgear.Donotraiseripperandripin2ndgear.

Keepseveralinchesofmaterialontopoftheunrippedformationtocushionthemachineand providetraction.

Whenfinalmaterialsizemustberelativelysmall,closespacedpassesarerecommended.

PackedSoil,HardPan,Clay,ShaleorCementedGravel

Threeshanksworkwellinthesematerials.Useasmanyshanksaspossibletobreakmaterialto desiredsize,withoutstallingorhangingupthemachine.

RockwithFractures,FaultsandPlanesofWeakness

Usetwoshankswhererockbreaksoutinsmallpieces,andthemachinecanhandlethejobeasily. Whenmachinebeginstostallortracksstarttospin,useonlythecentershank.

Useoneshankintough-to-ripmaterial,orinmaterialthattendstobreakoutinlargeslabsor pieces.

Alwaysusecentershankwhenone-shankripping.

SatJun809:33:25UTC+05302024

Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

OperationandMaintenanceManual

Operator'sGuideForD10TrackTypeTractor

MediaNumber-SEBU5566-00PublicationDate-01/05/1978DateUpdated-11/10/2001

OperatingAdjustments

BulldozerBladeTiltandTip

Totiltblade:

1.TolowerLEFTside-Pulltiltlevertowardoperator.

2.TolowerRIGHTside-Pushtiltleverawayfromoperator.

3.Ifadditionaltiltisrequiredtheleftbracemaybeadjusted.Shortenbracetomakeleftsideof bladelower.Lengthenbracetomakeleftsideofbladehigher.

NOTE:LeverwillreturntoHOLDwhenreleased.

Totipblade:

1.Lengthenbraceandextendhydrauliccylindertotipbladeforward.

2.Shortenbraceandhydrauliccylindertotipbladeback.

NOTE:Iftiltbracelengthneedsalteration,counterclockwiserotationofthehandlewilllengthen brace,andclockwiserotationwillshortenbrace.

Track NOTICE

Iftrackistootight,wearoftrackcomponentsisaccelerated.Iftrack appearstootight,havetrackadjusted.SeetheD10TRACKTYPE TRACTORLUBRICATIONandMAINTENANCEGUIDEfor adjustmentprocedure.

RipperTipsandShankProtector

Haverippertipsandshankprotectorreplacedbeforewearontherippershankoccurs.

NOTICE

Tracksshouldbeadjustedunderthesameconditionsthatthemachine willbeused.Thatis,ifpackingconditionsprevailonthejob,thetracks shouldbeadjustedwiththepackingpresent.

CuttingEdgesandEndBits

Havecuttingedgesandendbitsreplaced,orreversed,beforewearonthedozerbladebaseoccurs.

SatJun809:33:05UTC+05302024

Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

OperationandMaintenanceManual

Operator'sGuideForD10TrackTypeTractor

MediaNumber-SEBU5566-00PublicationDate-01/05/1978DateUpdated-11/10/2001 ParkingTheMachine

StoppingtheTractor

1.Stoptractoronlevelground.Pushgovernorcontrolforwardslightlytoreduceenginespeed.

NOTE:Donotmovegovernorcontrollevertolowidle.Engineandpowertraincomponentswill coolbestwithengineathighidle,withnoload.

2.MovetransmissioncontrollevertoNEUTRAL.

3.PushTRANSMISSIONCONTROLLOCK/PARKINGBRAKELOCKLEVERDOWNto locktransmissionleverinNEUTRALandapplyparkingbrake.

4.Lowerallraisedequipmenttoground.Applyslightdownpressure.

StoppingtheEngine

1.Operateatreducedloadfor5minutes.

NOTICE

Damagetoturbochargermayresultifengineisstoppedwithout allowingittocool.

2.Stoptractorandpushgovernorcontrollevertolowidle(detentposition)for30seconds.

3.Pushgovernorcontrolpastdetent,tostopengine.

NOTE:Theaudiblealarmshouldsoundmomentarily.Theindicatormayflash(comeonandoff) momentarily.

ThefuelpressureindicatorlightwillcomeonuntildisconnectswitchisturnedOFF.

4.Afterenginestops,turndisconnectswitchtoOFFandremovekey.

SatJun809:32:46UTC+05302024

Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

1.Raiseloweredequipmentjustenoughtoclearobstacles.

2.Depressbrakepedal.

3.PulluponlevertounlocktransmissioninNEUTRALandtodisengageparkingbrake. 4.Movetransmissioncontrollevertodesireddirectionandspeed.

5.Releasebrakepedal.

6.Movegovernorcontrollevertodesiredenginespeed.

NOTE:Ifmachineisinoperable,andmustbemoved,contactyourCaterpillardealertoassistin movingthemachine.

Specialtoolingisrequiredtoreleasethebrakesonthemachine.Themachinecannotbemoved withthebrakesapplied.BrakesareintheONpositionwhenengineisOFF.

ToChangeForward/ReverseDirection

NOTE:Gearanddirectionalshiftsatfullenginespeedarepermissible.However,foroperator comfortandmaximumservicelifeofpowertraincomponents,deceleratingand/orbrakingis recommended.

1.Decreaseenginespeedbypushinggovernorcontrolin,orpushingdecelerator.

MovetransmissionlevertoNEUTRAL.

4.Shifttransmissiontodesireddirectionandspeed.

5.Releasebrakepedal.

6.Increaseenginespeedbyreleasingdeceleratorpedal,orpullingbackongovernorlever. NormalSteering

GradualRIGHTturn-Releaserightsteeringclutchbypullinglevertowarddetent.

3.Pushbrakepedal.

GradualLEFTturn-Releaseleftsteeringclutchbypullinglevertowarddetent.

SharpRIGHTturn-Releaserightsteeringclutchandapplyrightbrakebypullingleverpast detent,backto"stop".

SharpLEFTturn-Releaseleftsteeringclutchandapplyleftbrakebypullingleverpastdetent, backto"stop".

Keeptractorundercontrolatalltimes.DONOTNEUTRALIZE TRANSMISSIONtoallowmachinetocoast.

Selectgearrangenecessarybeforestartingdowngrade.DONOT changegearswhilegoingdownhill.

DONOTALLOWENGINETOOVERSPEEDDOWNHILL.Usefoot pedalbrakestoreduceengineoverspeedondownhill.

SteeringonSteepDowngrade

NOTE:Reversesteeringisthetermusedtodescribeturninggraduallyonasteepdowngrade,by declutchingwithoutbraking.

GradualRIGHTturn-Releaseleftsteeringclutchbypullinglevertowarddetent(Reverse Steering).

GradualLEFTturn-Releaserightsteeringclutchbypullinglevertowarddetent(Reverse Steering).

SharpRIGHTturn-Releaserightsteeringclutchandapplyrightbrakebypullingleverpast detentandbackto"stop"(NormalSteering).

SharpLEFTturn-Releaseleftsteeringclutchandapplyleftbrakebypullingleverpastdetentand backto"stop"(NormalSteering).

Whenloadispushingtractor,putgearselectorinFIRSTspeed BEFOREstartingdownhill.

DONOTSHIFTTRANSMISSIONWHILEMOVINGDOWNHILL.

Ifenginestartstooverspeed,depressbrakepedal.

SatJun809:32:21UTC+05302024

Product:TRACK-TYPETRACTOR

Model:D10TRACK-TYPETRACTOR84W

Configuration:D10TRACTOR84W00001-00645(MACHINE)POWEREDBYD348ENGINE

OperationandMaintenanceManual

Operator'sGuideForD10TrackTypeTractor

MediaNumber-SEBU5566-00PublicationDate-01/05/1978DateUpdated-11/10/2001

AfterStarting

NOTICE

Oilpressureshouldregisterimmediately.Theneedleshouldbeinthe whiterangeduringlowidlespeed,andbeinGREENrangeathighidle speed.Ifitdoesnot,shutengineOFFanddeterminecause.

Observeaircleanerserviceindicators.Pushreleasebutton.IfREDpistonremainsin,orreturnsto, thevisibleposition,haveaircleanerserviced.

Operateengineunderlightloadfor5minutes.

Observegaugesfrequentlyduringoperation.AllgaugesmustindicateintheNORMALoperating range.Theammeterisnormalwhentheindicatorisatzero.

Allindicatorlightsshouldbeoff.

SatJun809:32:05UTC+05302024

4.MovetestswitchestoON.WarninglightsshouldcomeON.Releaseswitches.

NOTE:LOWFUELPRESSURELIGHTwillcomeON.

5.Movegovernorcontrolleverback,justpastdetent.

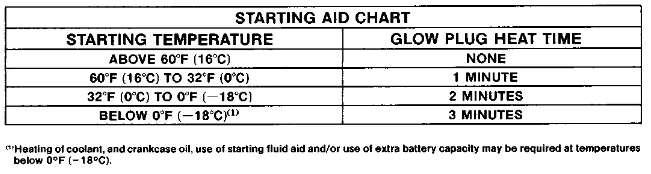

6.PushinandturnHEAT-STARTswitchtoHEATforindicatedtime.SeeSTARTINGAID CHARTbelow,oronthemachine.

7.PushinandturnHEAT-STARTswitchtoSTART.

NOTE:AudiblealarmandSTOPENGINEredlightwillcomeonuntilenginestarts.

8.ReleaseHEAT-STARTswitchwhenenginestarts.

NOTE:Ifenginedoesnotstartafter10seconds,turntheHEAT-STARTswitchtoHEATfor30 seconds,thentoSTART.

WhenenginestartsitmaybenecessarytoreturntheHEAT-STARTswitchtoHEATuntilengine runssmoothlyatlowidle.Thenreleaseswitch.

NOTICE

Ifengineagaindoesnotstart,letstartercoolfor2minutes,thenrepeat startingprocedure.

DonotturnHEAT-STARTswitchtoHEATwhenengineiswarmand running.

DonotturnDisconnectSwitchtoOFFwhileengineisrunning. Damagetoelectricalsystemmayresult.

Below60°F(16°C)

Usestartingfluidsparingly.Followmanufacturer'sinstructions carefully.

Donotstorestartingfluidcontainersinoperator'scompartment.

1.Performsteps1through5forSTARTINGTHEENGINE.

2.TurnHEAT-STARTswitchtoSTART.

NOTICE

Ifengineagaindoesnotstart,letstartercool2minutes,thenrepeat startingprocedure.

DonotturnswitchtoHEATwhenengineishotandrunning.

3.Spraystartingfluidfor1second,intopre-cleaner,whilecrankingengine.Waitatleast2seconds beforesprayingstartingfluidagain.

NOTE:WhenenginestartsitmaybenecessarytoreturnHEAT-STARTswitchtoHEATuntil enginerunssmoothly.

StartingWithExternalElectricalSource-PrimaryMethod

NOTICE

Useajumpercablewithaplugthatwillmatewiththeemergencystart receptacle.

BesuredisconnectswitchisintheOFFpositionandkeyremoved beforeinsertingplugintostartingreceptacle.

Jumpercableshouldbeattachedtoexternalstartingsourcebefore insertingplugintostartingreceptacleofmachinetobestarted.

The8S2632PlugAssemblyis10feetlongandhasmalereceptacleconnectionsononeendand spadeterminalsforbatterycartontheother.

The9S3664PlugAssemblyis15feetlongandhasmalereceptacleconnectionsonbothends.This assemblypermitsstartingonetractorwithanothertractor,whenbothhavestartingreceptacles.
