Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015
Access Doors and Covers
SMCS - 7251; 7263; 7273-572; 7273-573
Date Updated -28/09/2020
i05029412

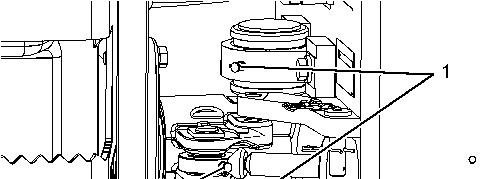

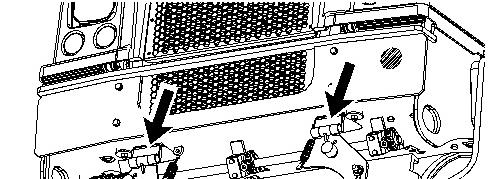

Illustration 1 g03201416
In order to open the hood, pull latch (2) away from the locking eye and lift on handle (1). Opening the hood will allow access to the engine and major compartments.
Copyright 1993 - 2024 Caterpillar Inc.
All Rights Reserved.
Private Network For SIS Licensees.
Thu Mar 21 01:27:44 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015
Date Updated -28/09/2020
Articulating and Oscillating Bearings - Lubricate
SMCS - 7051-086-BD; 7057-086-BD; 7113-086-BD

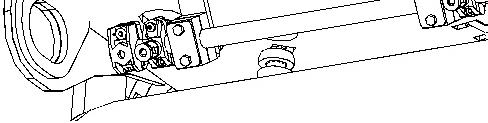

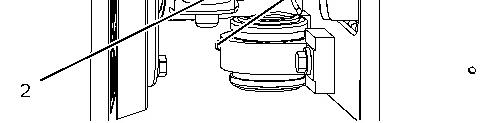

Illustration 1 g03168023

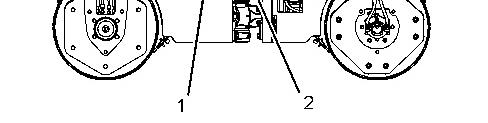

(1) Articulating Bearings
(2) Oscillation Bearing
The hitch is located in the center pivot area.
Lubricate the Articulation Bearings
1. Clean all caps before servicing.
2. Clean all fittings before servicing.
i04988529
3. Lubricate the fittings for the articulation bearings (1) with ten strokes from a hand grease pump (16 to 20 cubic centimeters per fitting).
Note: Excess grease can cause seal damage.
4. Install all caps after servicing.
Lubricate the Oscillating Bearing
1. Clean the cap before servicing.
2. Clean the fitting before servicing.
3. Lubricate the fitting for the oscillation bearing (2) until grease comes out of the casting.
4. Install the cap after servicing.
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015
Backup Alarm - Test
SMCS - 7406-081
Date Updated -28/09/2020

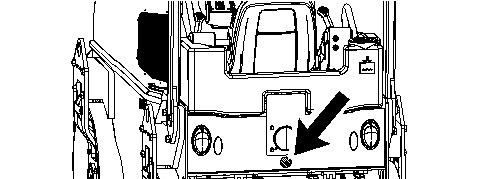

Illustration 1
The backup alarm is located at the rear of the machine.
1. Engage the parking brake.
2. Start the engine.
g03200203
3. Move the propel control lever to the REVERSE position. The backup alarm should sound immediately. The backup alarm will continue to sound until the propel control lever is moved to the NEUTRAL position or to the FORWARD position.
4. If the backup alarm does not sound, make the necessary repairs before operating the machine. Consult your Caterpillar dealer.
i05029875
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Battery - Clean/Check
Publication Date -01/08/2015
SMCS - 1401-535; 1401-070; 1402-070; 1402-535
Date Updated -28/09/2020

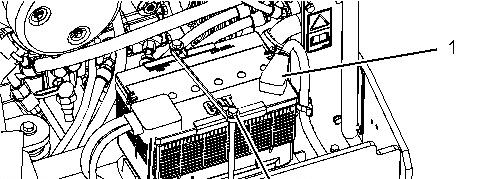

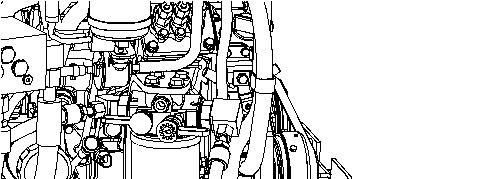

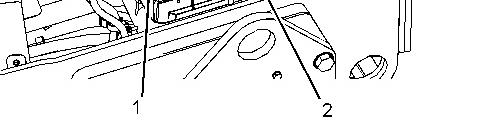

Illustration 1
g03411123
Note: The batteries that are supplied with the machines are maintenance free batteries. You do not need to check the level of the electrolyte in the maintenance free batteries.
Tighten the battery retainer (2) on the battery. Tighten the battery retainer at every 1000 hours.
Check the following items at every 1000 hours. If necessary, check the following items more often.
• Clean the top of the batteries with a clean cloth.
• Clean the battery terminals (1). As needed, coat the battery terminals with petroleum jelly.
• Check the battery cables. Tighten any loose connections.
i05397290
Copyright 1993 - 2024 Caterpillar Inc.
Rights Reserved.
Network For SIS Licensees. Thu Mar 21 01:33:32 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015 Date Updated -28/09/2020
Battery - Recycle
SMCS - 1401-561
Always recycle a battery. Never discard a battery.
Always return used batteries to one of the following locations:
• A battery supplier
• An authorized battery collection facility
• Recycling facility
i07746330
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 21 01:33:50 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11 Publication Date -01/08/2015 Date Updated -28/09/2020
Battery or Battery Cable - Inspect/Replace
SMCS - 1401-510; 1401-040; 1402-040; 1402-510
i02870183
1. Turn the engine start switch to the OFF position. Turn all switches to the OFF position.
2. Open the engine compartment. Refer to Operation and Maintenance Manual, "Access Doors and Covers". The battery is located on the front right side of the engine compartment.
3. Disconnect the negative battery cable at the battery.
4. Disconnect the positive battery cable from the battery.
5. Remove the cable from the engine starter.
6. Perform the necessary repairs. Replace the cables or the battery, as needed.
7. Reverse the above steps in order to reconnect the battery.
8. Close the engine compartment.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 21 01:34:02 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11 Publication Date -01/08/2015 Date Updated -28/09/2020
Belts - Inspect/Adjust/Replace
SMCS - 1357-040; 1357-510; 1357-025
S/N - 3241-UP
S/N - 4231-UP
S/N - 4251-UP
S/N - CC31-UP
S/N - M361-UP
S/N - XB41-UP
i04988873
Your engine is equipped with one belt that operates the alternator and the water pump, and another belt that operates the air pump. For maximum engine performance and maximum utilization of your engine, inspect the belts for wear and for cracking. Check the tension of the belts. Adjust the tension of the belts in order to minimize belt slippage. Belt slippage will decrease the belt life. Belt slippage will also cause poor performance.
Alternator Belt and Water Pump Belt
1. Park the machine and stop the engine.
2. Open the engine compartment.
3. Remove the fan guard in order to gain access to the belt.

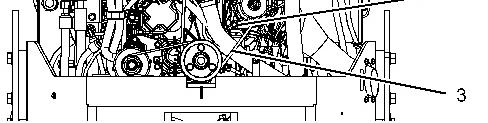

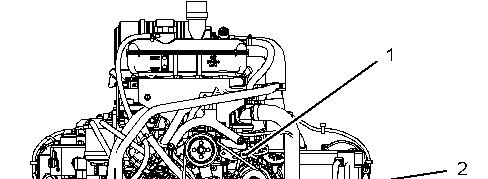

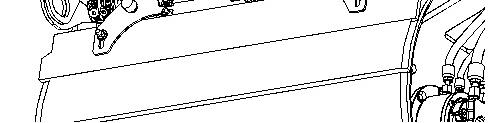

Illustration 1 g03170619
4. To check the belt tension, apply 110 N (25 lb) of force midway between the pulleys. Correctly adjusted belts will deflect 13 to 19 mm (1/2 to 3/4 inch).
5. In order to adjust belt (3), loosen mounting bolts (1) and (2).
6. To achieve the correct adjustment, move the alternator inward or move the alternator outward, as required.
7. Tighten mounting bolts (1) and (2).
Note: The alternator shaft nut must be tightened to a torque of 50 ± 5 N·m (37 ± 4 lb ft).
8. If a new belt is installed, check the belt adjustment again after 30 minutes of engine operation at the rated speed. Adjust the belt tension again if the tension has changed.
9. Install the fan guard.
10. Close the engine compartment.
Air Pump Belt
1. Park the machine and stop the engine.
2. Open the engine compartment.
3. Remove the fan guard in order to gain access to the belt.

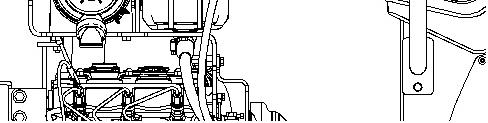

2
3
4. To check the belt tension, apply 110 N (25 lb) of force midway between the pulleys. Correctly adjusted belts will deflect 13 to 19 mm (1/2 to 3/4 inch).
5. In order to adjust belt (4), loosen mounting bolts (5) and (6).
6. To achieve the correct adjustment, move the air pump inward or move the air pump outward, as required.
7. Tighten mounting bolts (5) and (6).
8. If a new belt is installed, check the belt adjustment again after 30 minutes of engine operation at the rated speed. Adjust the belt tension again if the tension has changed.

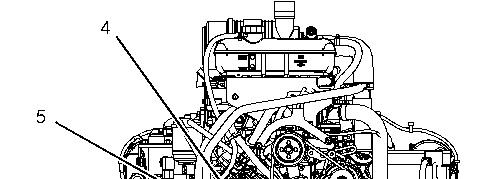

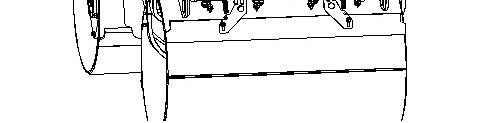

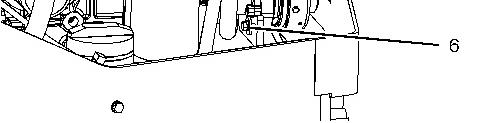

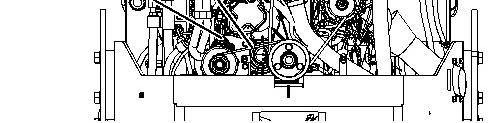

Illustration
g03170656
Illustration
g03170660
9. Install the fan guard.
10. Close the engine compartment. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 21 01:34:14 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015 Date Updated -28/09/2020
Braking System - Test
SMCS - 4250-081; 4267-081
Note: If the machine configuration changes, the parking brakes must be tested.
i05029888
Check the area around the machine. Make sure that the machine is clear of personnel and clear of obstacles.
Put the steering frame lock in the UNLOCKED position.
Fasten the seat belt before checking the parking brake.
The following tests are used to determine if the parking brake is functional on a specified grade or a specified slope. These tests are not intended to measure the maximum brake holding effort. Read all of the steps before you perform the following procedure.

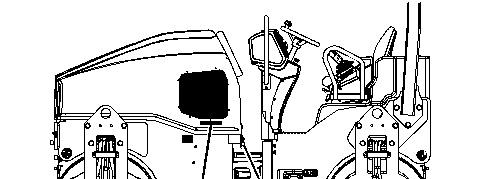

Illustration 1

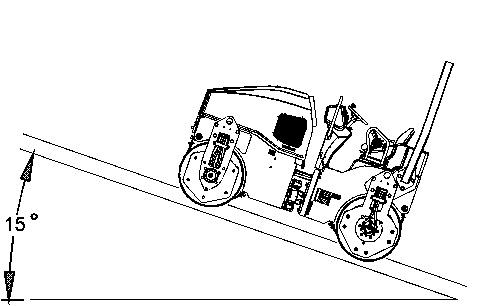

Position the machine on the incline of the slope, but near the base of the slope in order to check the parking brake. The test position should be 26 percent or a 15 degree slope.
1. Start the engine. Refer to the Operation and Maintenance Manual, "Engine Starting" for information on starting the engine.
2. Move the machine into the test position.
3. Place the throttle control into the LOW IDLE position.
4. Engage the parking brake.
The machine should not move under the following conditions.
The engine is at low idle.
The parking brake is applied.
The machine is positioned on the specified slope.
Personal injury can result if the machine moves while testing.
If the machine begins to move, release the parking brake and use the propel lever in order to move the machine to a level surface.
5. Park the machine on a level surface.
6. Stop the engine.
NOTICE
If the machine moved during the brake test, consult your Caterpillar dealer.
The dealer must inspect the brake system and make any necessary repairs before the machine is returned to operation.
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Capacities (Refill)
SMCS - 1000; 6320; 7000; 7560
Table 1
Approximate
-28/09/2020
i07945615
Thu Mar 21 01:31:02 UTC+0530 2024
Product: COMPACTOR
Model: CB-34B COMPACTOR XB4
Configuration: CB34B Compactor XB400001-UP (MACHINE) POWERED BY C2.2 Engine
Operation and Maintenance Manual
CB34B, CB34B XW, CB36B and CC34B Utility Compactors
Media Number -KEBU7570-11
Publication Date -01/08/2015
Cooling System Coolant (ELC) - Change
SMCS - 1395-044-NL
Date Updated -28/09/2020
Personal injury can result from hot coolant, steam and alkali.
At operating temperature, engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot coolant or steam. Any contact can cause severe burns.
Remove cooling system pressure cap slowly to relieve pressure only when engine is stopped and cooling system pressure cap is cool enough to touch with your bare hand.
Do not attempt to tighten hose connections when the coolant is hot, the hose can come off causing burns.
Cooling System Coolant Additive contains alkali. Avoid contact with skin and eyes.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
i06249609
Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations and mandates.
NOTICE
Do not change the coolant until you read and understand the material in the Cooling System Specifications section.
NOTICE
Mixing Extended Life Coolant (ELC) with other products reduces the effectiveness of the coolant and shortens coolant life. Use only Caterpillar products or commercial products that have passed the Caterpillar EC-1 specifications for premixed or concentrate coolants. Use only Caterpillar Extender with Caterpillar ELC. Failure to follow these recommendations could result in the damage to cooling systems components.
If ELC cooling system contamination occurs, refer to Operation and Maintenance, "Extended Life Coolant (ELC)" under the topic ELC Cooling System Contamination.
Drain the coolant whenever the coolant is dirty. Drain the coolant when foam is observed.
1. Stop the engine. Allow the cooling system to cool completely.
2. Open the engine compartment. Refer to the Operation and Maintenance Manual, "Access Doors and Covers".

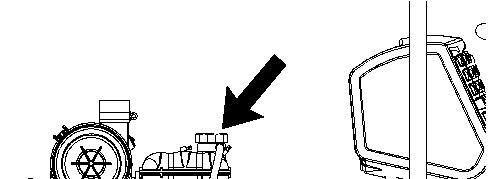

Illustration 1 g03170797
3. Slowly loosen the cooling system pressure cap in order to relieve system pressure. Remove the cooling system pressure cap.

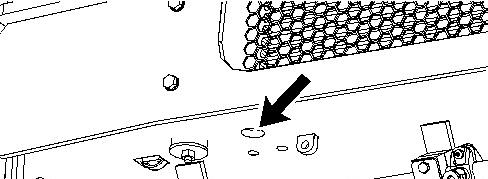

Illustration 2 g03871287
4. Remove the four bolts that hold the scraper brackets to the frame. Remove the scraper assembly.
5. The radiator drain plug can be accessed through the hole located under the scraper bracket. Remove the radiator drain plug. Allow the coolant to drain into a suitable container.
6. Install the radiator drain plug.
7. Install the scraper assembly.
8. Fill the cooling system with clean water and with a 6 to 10% concentration of cooling system cleaner.
9. Install the cooling system pressure cap.
10. Close the engine compartment.
11. Start the engine. Run the engine for 90 minutes.
12. Stop the engine. Allow the cooling system to completely cool.
13. Open the engine compartment.
14. Remove the cooling system pressure cap.
15. Open the radiator drain valve. Drain the cleaning solution.
16. Flush the cooling system with water until the draining water is transparent.
17. Close the radiator drain valve.
18. Add the recommended amount of extender to the coolant system. Refer to Operation and Maintenance Manual, "Capacities (Refill)" for the proper amount.
Note: If you are using Caterpillar Long Life Coolant that contains some additive, do not add any supplemental coolant additive at this time. Also, do not change the coolant conditioner element if you are using Caterpillar Long Life Coolant that contains some additive.
19. Start the engine and run the engine. Leave the cap off until the thermostat opens and the coolant level stabilizes.
20. Maintain the coolant level between the indicated lines on the shunt tank.
21. Inspect the gasket on the cooling system pressure cap. Replace the cooling system pressure cap if the gasket is damaged.
22. Install the cooling system pressure cap.
23. Close the engine compartment.
1993 - 2024 Caterpillar Inc.
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
