Product:VIBRATORYCOMPACTOR
Model:CB-314VIBRATORYCOMPACTOR6HD
Configuration:CB-314VIBRATORYCOMPACTOR6HD00009-UP(MACHINE)
OperationandMaintenanceManual
CB-314VIBRATORYCOMPACTOR
MediaNumber-KEBU2825-02PublicationDate-01/04/1988DateUpdated-10/10/2001
Foreword
Thisguidecontainsoperationinstructionsandlubricationandmaintenanceinformation.
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedone.Readstudy-andkeepithandy.
Illustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting,operatingandstoppingthe machine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopastheoperatorgains knowledgeofthemachineanditscapabilities.
Themaintenancesectionisaguidetoequipmentcare.Theillustrated,step-by-stepinstructionsaregrouped byservicingintervals.Itemswithoutspecificintervalsarelistedunder"WhenRequired."Itemsinthe "LubricationandMaintenanceChart"arereferencedtodetailedinstructionsthatfollow.

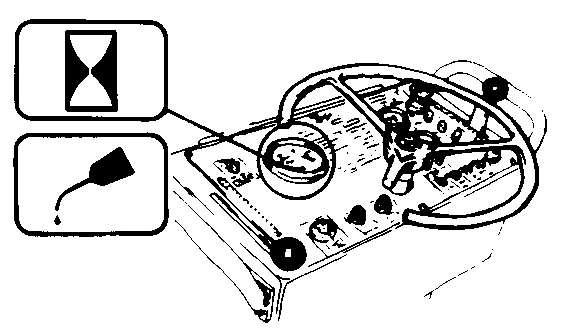

Usetheservicemetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly,monthly, etc.)maybeusedinsteadofservicemeterintervalsiftheyprovidemoreconvenientservicingschedulesand approximatetheindicatedservicemeterreading.Recommendedserviceshouldalwaysbeperformedatthe intervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe "LubricationandMaintenanceChart"maybenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atEvery500ServiceHours or3Months,alsoservicethoseitemslistedunderEvery250ServiceHoursorMonthly,Every50Service HoursorWeeklyandEvery10ServiceHoursorDaily.
Someillustrationsinthispublicationshowdetailsorattachmentsthatmaybedifferentfromyourmachine. Also,guardsandcoversmayhavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmayhavecausedchangestoyourmachine whicharenotincludedinthispublication.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCaterpillar dealerforthelatestavailableinformation. Copyright1993-2021CaterpillarInc. AllRightsReserved.
SunAug1522:43:50UTC+05302021
This is the sample of the manual if you need complete manual Click Here to download
Product:VIBRATORYCOMPACTOR
Model:CB-314VIBRATORYCOMPACTOR6HD
Configuration:CB-314VIBRATORYCOMPACTOR6HD00009-UP(MACHINE)
OperationandMaintenanceManual
CB-314VIBRATORYCOMPACTOR
MediaNumber-KEBU2825-02PublicationDate-01/04/1988DateUpdated-10/10/2001
50HourLubrication
Drumsupportbearinglubrication.
1.Thereisagreasefittingmountedtothetopofeachvibratoryhub(eachdrumhasavibratoryhub).
2.Thesefittingsreceiveeightshotsofgreaseeach.
Engineairfiltercleaning.
1.Removeaircleanercoverassembly.

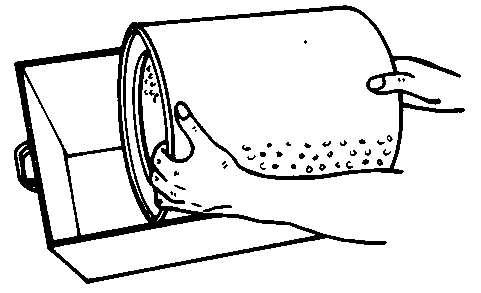

2.Removeelementassembly.
3.Inspectelementassemblyandreplaceasnecessary.
4.Replaceaircleanercoverassembly.
CleaningPrimaryFilterElements
NOTICE
Donotcleanthefilterelementsbybumpingortappingthem.
Inspectthefilterelementsaftercleaning.Donotuseafilterelement withdamagedpleats,gasketsorseals.
Whencleaningwithpressureair,use205kPa(30psi)maximum pressuretopreventfilterelementdamage.
TypicalExamplesShown:
Whencleaningwithpressurewater,use280kPa(40psi)maximumpressuretopreventfilterelement damage.
Filterelementscanbecleanedwithpressureair,pressurewaterordetergent.
PressureAir-205kPa(30psi)maximum

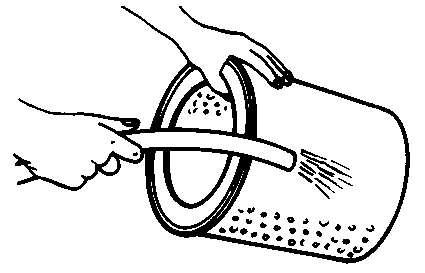

1.Directairalongpleatsinsideandoutsideoffilterelement.Directairalongpleatsinsideoffilterelement.
2.Inspectthefilterelementaftercleaning.
PressureWater-280kPa(40psi)Maximum
1.Directthewateralongtheinsideandoutsideofthepleats.
2.Airdryandinspecttheelement. Detergent

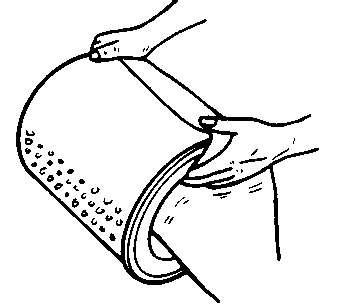

1.Washthefilterelementinwarmwaterandnonsudsinghouseholddetergent.
2.Rinsethoroughlywithcleanwater,airdryandinspectthefilterelement.
InspectTheFilterElement

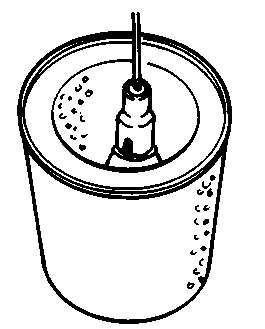

1.Insertalightinsideadryandcleanedfilterelement.Discardanyfilterelementwithripsortears.
2.Wrapandstorethecleanfilterelementsinaclean,dryspace.
Drivebeltconditionandtension
Rotatingequipment-keephandsaway.Donotrunenginewithfan guardremoved.Contactwithrotatingequipmentwillresultin mutilatinginjuriestohand.
1.Checkbeltsforcracksorveryworncondition.
2.Adjustthedrivebeltsothatafirmpush,atapointmidwaybetweenthetwopullies,willdeflectthebelt12 mmto19mm(1/4"to3/4").

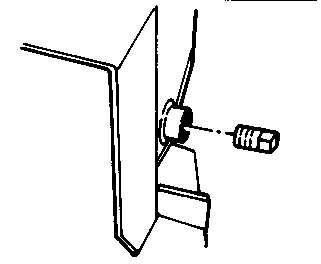

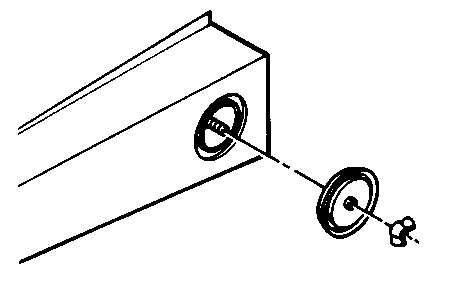

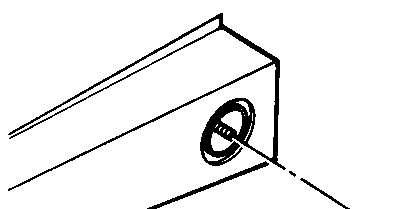

1.Removethedrainpluglocatedonthelowerrightcornerofthewatertank.
2.Afterthewaterhasdrained,flushtheinteriorofthewatertankwithcleanwater.
3.Replacedrainplug.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunAug1522:45:23UTC+05302021
Product:VIBRATORYCOMPACTOR
Model:CB-314VIBRATORYCOMPACTOR6HD
Configuration:CB-314VIBRATORYCOMPACTOR6HD00009-UP(MACHINE)
OperationandMaintenanceManual
CB-314VIBRATORYCOMPACTOR
MediaNumber-KEBU2825-02PublicationDate-01/04/1988DateUpdated-10/10/2001
3.Lubricatethegasketonthenewoilfilterandscrewinplace.
Frontandreardrivereducergearlubelevelcheck.

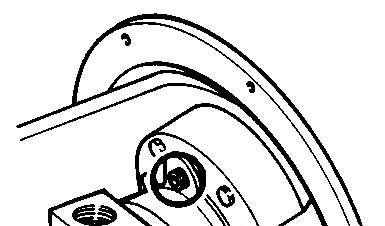

1.Removetheplugmountedonthesideoftheplanetarymount.
2.Gearlubeshouldbeatthislevel.
3.Ifnotremovethepluglocatedonthetopofthefrontfaceofthetorquehubandaddgearlubeuntillevel reacheslevelofthecheckplug.
4.Replaceplugs.

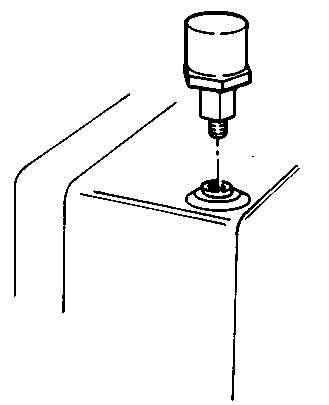

1.Removethebreatherassembly.
2.Usinganairlineblowairintothebreather.Airshouldblowthroughthebreather.
3.Ifthebreatherisrestricted,itmustbereplaced.
4.Replacethebreatherassembly. Batteryelectrolytelevelcheck.
1.Checklevelbyremovingbatteryfillcapsandobservingelectrolytelevel.
2.Electrolytelevelshouldreachbottomofthefillopening.Iflevelislowadddistilledwatertoraise electrolytelevel.
3.Replacebatteryfillcaps.

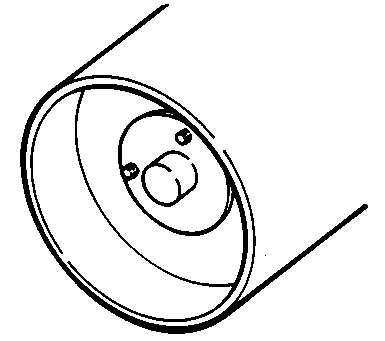

Vibratorybearinglubereservoircheck.
1.Movethemachineuntiloneofthecheckplugsonthebearingholderandstubshaftisinthe12:00 position.
2.Removethelowerplug.
3.Gearlubeshouldbeatthatlevel.
4.Addgearlubeifnecessarythenreplacedrainplug.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunAug1522:45:42UTC+05302021
Product:VIBRATORYCOMPACTOR
Model:CB-314VIBRATORYCOMPACTOR6HD
Configuration:CB-314VIBRATORYCOMPACTOR6HD00009-UP(MACHINE)
OperationandMaintenanceManual
CB-314VIBRATORYCOMPACTOR
MediaNumber-KEBU2825-02PublicationDate-01/04/1988DateUpdated-10/10/2001
250HourLubrication

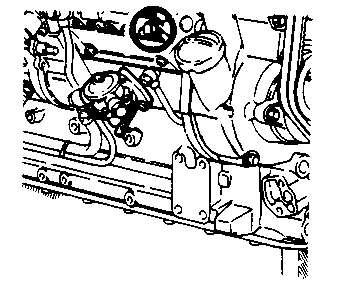

Changeenginecrankcaseoil.
NOTICE
Forbestresults,theengineshouldbewarmedupbeforetheoilis changed.

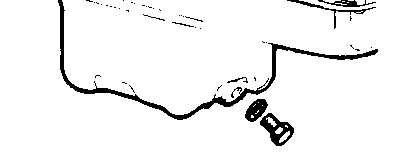

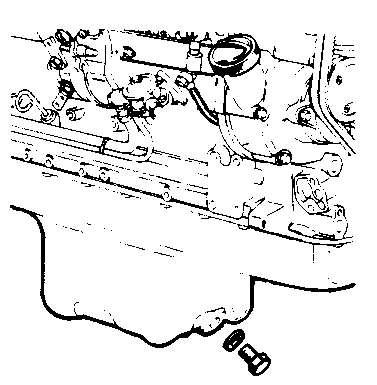

1.Shutofftheengineanddrainengineoilbyremovingtheoildrainplug.
Ifthegasketontheoildrainplugisnotmadeofbrassorothermetal thegasketshouldbereplacedbeforereplacingtheoildrainplug.
2.Aftercrankcaseoilhasdrained,replaceandtightentheoildrainplug.

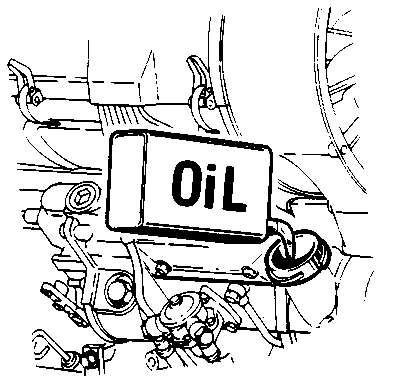

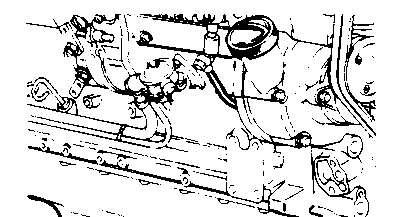

3.Removeoilfillercapandrefillenginecrankcasewithnewoil.Seelubricationchartforoiltypeand quantity.
Copyright1993-2021CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SunAug1522:45:59UTC+05302021
Product:VIBRATORYCOMPACTOR
Model:CB-314VIBRATORYCOMPACTOR6HD
Configuration:CB-314VIBRATORYCOMPACTOR6HD00009-UP(MACHINE)
OperationandMaintenanceManual
CB-314VIBRATORYCOMPACTOR
MediaNumber-KEBU2825-02PublicationDate-01/04/1988DateUpdated-10/10/2001
NOTICE
Thehydraulicoiltankcontainsapproximately64.4L(17gal.)of hydraulicoil.

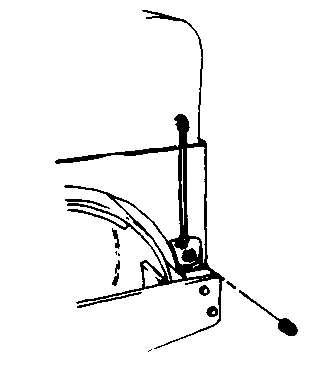

1.Drainhydraulicoiltankbyremovingthedrainpluginbottomcornerofhydraulicoiltank.
2.Afterhydraulicoilhasdrainedreplacedrainplug. NOTICE
Makecertaintheinteriorofthehydraulicoiltankisfreeofany contaminates.

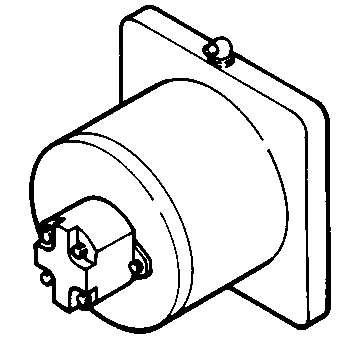

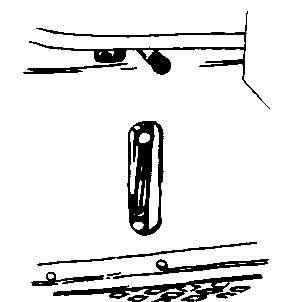

3.Refilluntilhydraulicoilisvisibleinsightgauge. Torquehubgearlubechange.

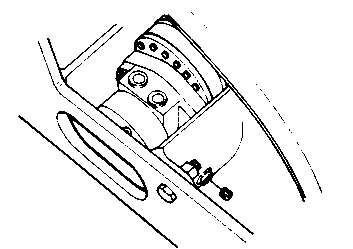

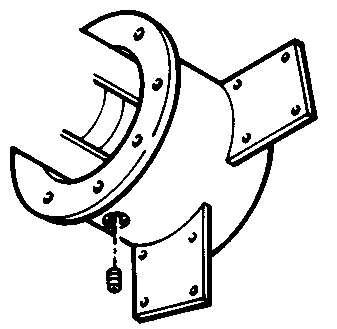

1.Movemachineuntiltheholeinthedrumspideralignswiththedrainpluginthetorquehub.
2.Removedrainplugfrombottomoftorquehub.
3.Afterallowinggearlubetodrain,replacedrainplug.

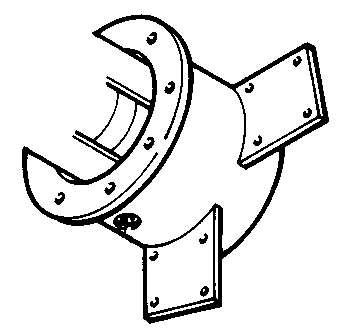

4.Removefillpluglocatedatthetopofthefrontfaceofthetorquehub.
5.Removegearlubelevelcheckpluglocatedontheplanetarymount.
6.Addgearlubeuntilgearlubereachesthelevelofthecheckplug.
7.Replaceplugs.

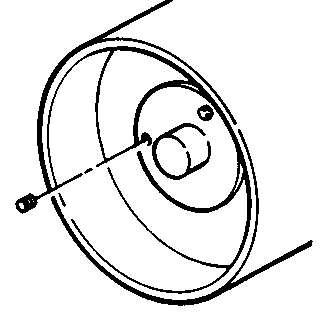

Vibratorybearinglubereservoirchange.

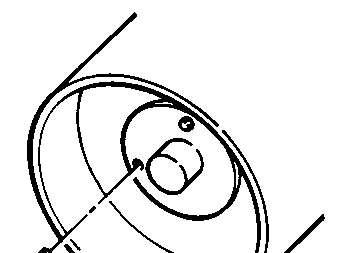

1.Movethemachineuntiloneofthecheckplugsonthebearingholderandstubshaftisinthe6:00position.
2.Removethelowerplug.
3.Aftergearlubehasdrained,replacethedrainplug.
4.Refillthedrumbyfollowingtheprocedureusedtocheckthelubelevelinthe100hourmaintenance section.

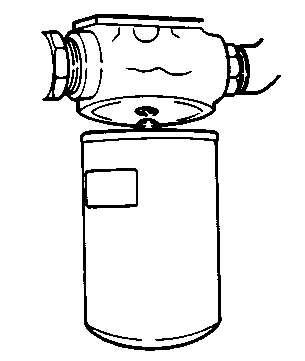

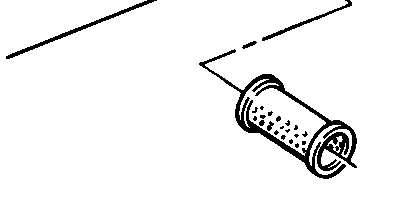

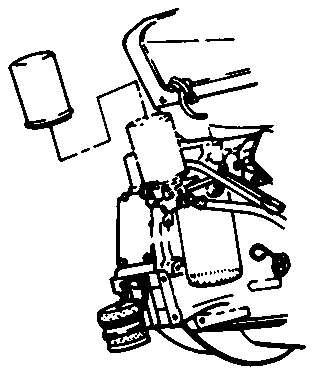

Fuelfilterelementreplacement.
1.Removeoldfuelfilterelementanddiscard.
2.Threadnewfuelfilterinplaceandhandtighten.
NOTICE
Wheneverthefueltankhasbeenrundryorthefuelfilterhasbeen changedthefuelsystemmustbeventedofallair.

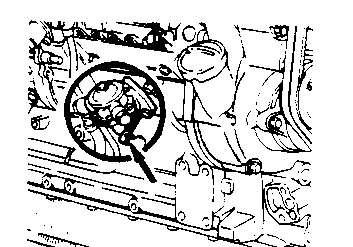

Ventingthefuelsystem.
1.Unscrewtheoverflowvalvetwotothreeturns.
2.Pumptheprimingleveronthefuelfeedpumpuntilfuel,freeofairbubbles,emergesfromtheoverflow valve.
3.Whilestillpumpingpriminglever,tightenoverflowvalve.
