Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines
Air Compressor - Remove and Install
SMCS - 1803-010
Removal Procedure Table 1
Do not disconnect the air lines until the air pressure in the system is at zero. If hose is disconnected under pressure it can cause personal injury.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations and mandates.
1. Remove the air pressure from the air tank and drain the coolant from the cooling system into a suitable container for storage or disposal. Refer to the Operation and Maintenance Manual.

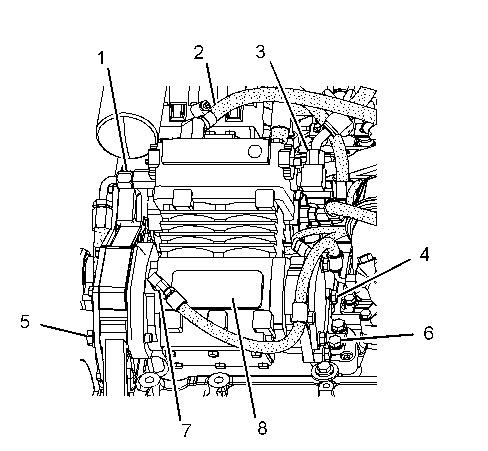

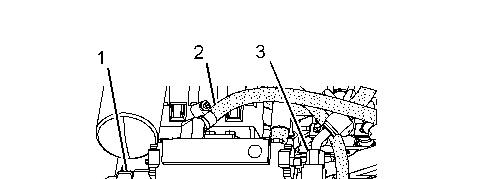

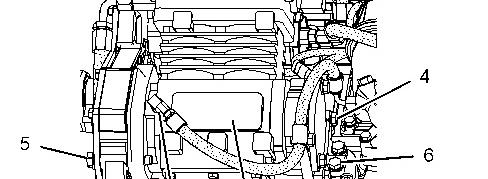

Illustration 1 g01261508
2. Disconnect hose assemblies (1) and (3) from air compressor (8).
3. Disconnect hose (2) and hose assembly (7) from air compressor (8). Remove the clip and the bolt for hose assembly (7).
4. Install Tooling (A) and a suitable lifting device to air compressor (8). The weight of air compressor (8) is approximately 28 kg (61 lb).
5. Remove the mounting bracket for the air compressor by using the following procedure:
a. Remove bolts (4) that fasten the mounting bracket to air compressor (8).
b. Remove bolts (6) that fasten the mounting bracket to the cylinder block. Remove the mounting bracket for air compressor (8).
6. Remove bolts (5), air compressor (8), and the gasket from the front housing.

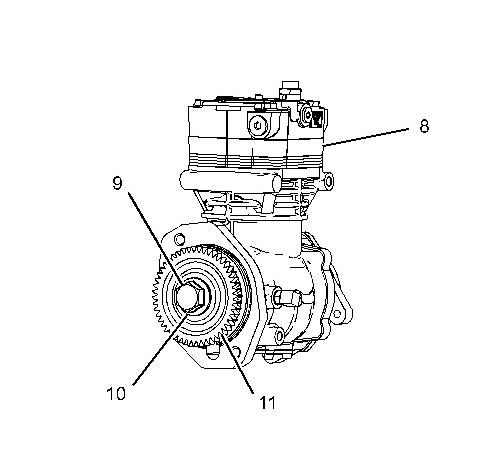

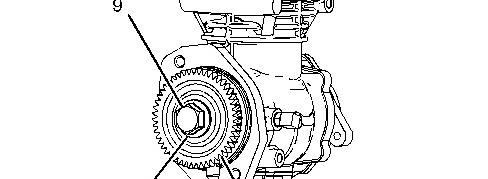

Illustration 2
7. Position air compressor (8) in Tooling (B) and remove bolt (9) and washer (10). Remove gear (11).
Installation Procedure Table 2
B 132-5451 Holding Fixture 1
C 9S-3263 Thread Lock Compound 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.

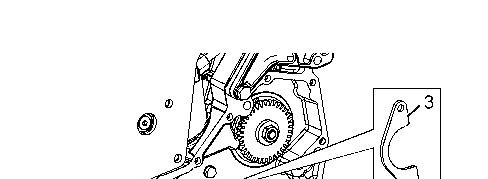

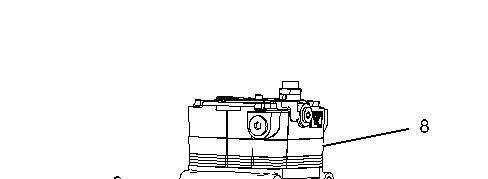

3 g01263084
2. Install Tooling (A) and a suitable lifting device to air compressor (8). The weight of air compressor (8) is approximately 28 kg (61 lb).
3. Inspect the condition of the gasket. Replace the gasket, if necessary. Install the gasket between air compressor (8) and the front housing.
4. Position air compressor (8) in the front housing. Ensure that the drive gear engages correctly with the gear in the front housing.
5. Apply Tooling (C) to the threads of bolts (5). Install bolts (5). Tighten bolts (5) to a torque of 100 ± 20 N·m (75 ± 15 lb ft).
6. Install the mounting bracket for the air compressor by using the following procedure:
a. Position the bracket for air compressor (8) and install bolts (4) and bolts (6) finger tight.
NOTICE
A loose compressor bracket can lead to a broken front cover and can cause damage to the front gear train of the engine.
b. Tighten bolts (4) to a torque of 60 ± 12 N·m (44 ± 9 lb ft). Tighten bolts (6) to a torque of 60 ± 12 N·m (44 ± 9 lb ft). Remove the suitable lifting device and Tooling (A).
7. Connect hose assembly (7) to air compressor (8). Connect the clip that holds hose assembly (7) to air compressor (8). Tighten the bolt that holds the clip for hose assembly (7) to a torque of 28 ± 7 N·m (21 ± 5 lb ft).
8. Connect hose assemblies (1) and (3) to air compressor (8).
9. Connect hose (2) to air compressor (8).
10. Fill the cooling system with coolant to the correct level. Refer to the Operation and Maintenance Manual for the correct filling procedure.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved.
Network For SIS Licensees. Sat Jun 29 13:39:28 UTC+0530 2024
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines
Air Inlet Heater - Remove and Install
SMCS - 1090-010
Removal Procedure
1. Disconnect the battery. Refer to Operation and Maintenance Manual, "Battery or Battery Cable - Disconnect".

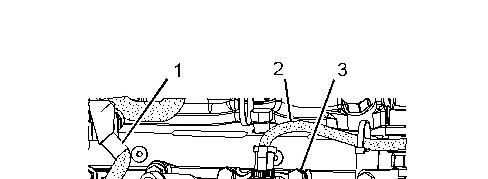

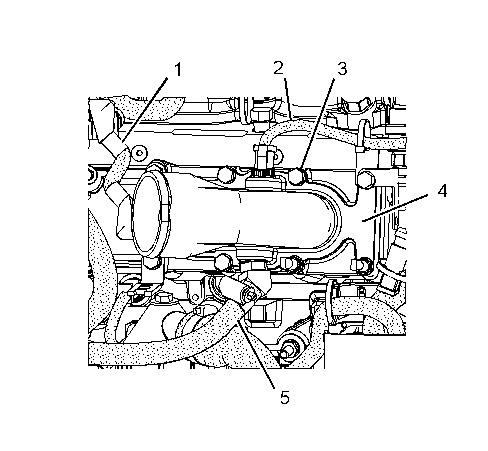

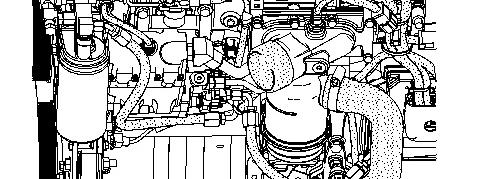

Illustration 1 g01261993
Typical example
2. Disconnect cable assembly (1).
3. Disconnect harness assembly (2).
4. Disconnect hose (5).
5. Remove bolts (3) and the washers.
6. Remove air inlet elbow (4).
7. Remove the air inlet heater.
Installation Procedure
Table 1 Required Tools
4C-9500 Quick Cure Primer 1 B 1U-8846 Gasket Sealant 1

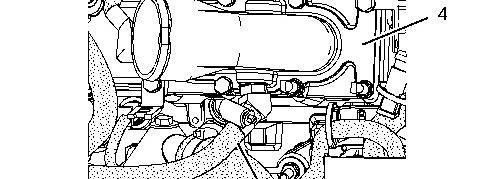

Illustration 2 g01261993
Typical example
1. Clean the joint face on air inlet elbow (4) and the air inlet heater with solvent. Apply Tooling (A) on the joint face. Allow the primer to air dry for a minimum of three to five minutes.
2. Apply Tooling (B) to the joint face of air inlet elbow (4). Air inlet elbow (4) must be installed within ten minutes of application of the sealant.
3. Position the air inlet heater on air inlet elbow (4). Position air inlet elbow (4) on the engine.
4. Install bolts (3) and the washers.
5. Connect hose (5).
6. Connect harness assembly (2).
7. Connect cable assembly (1) to the solenoid of the air inlet heater. Tighten the nut to a torque of 6.0 ± 0.5 N·m (53 ± 4 lb in).
8. Connect the battery. Refer to Operation and Maintenance Manual, "Battery or Battery Cable - Disconnect".
1993 - 2024 Caterpillar Inc.
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Personal injury can result from failure to disconnect the battery.
First, disconnect the negative battery cable. Then, disconnect the positive battery cable.
A positive power lead can cause sparks if the battery is not disconnected. Sparks can possibly result in battery explosion or fire.
1. Disconnect the batteries.
2. Place identification marks on all of the harness assemblies and disconnect the harness assemblies.
3. Remove the belt. Refer to Operation and Maintenance Manual, "Belts - Inspect/Replace".

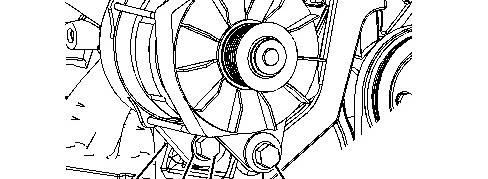

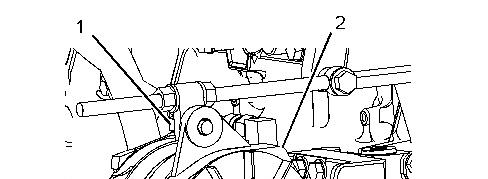

Illustration 1 g01261334
4. Remove bolt (1), the washer, and the spacer.
5. Remove bolts (5) and (7), washers (4) and (6), and nut (3).
6. Remove alternator (2).
Installation Procedure
Illustration 2 g01261334
1. If necessary, install the pulley on alternator (2). Install the nut and tighten the nut to a torque of 127 ± 10 N·m (94 ± 7 lb ft).
2. Position alternator (2) on the alternator mounting bracket. Install bolt (1), the washer, and the spacer.
3. Install bolts (5) and (7), washers (4) and (6), and nut (3).
4. Tightened bolts (1), (5), and (7) to a torque of 105 ± 20 N·m (77 ± 15 lb ft)
5. Install the belt. Refer to Operation and Maintenance Manual, "Belts - Inspect/Replace".
6. Connect the harness assembly to alternator (2) and install the bolt. Tighten the bolt to a torque of 4.4 ± 1.0 N·m (39 ± 9 lb in).
7. Connect the harness assembly to alternator (2 ) and install the nut. Tighten the nut to a torque of 18 ± 2 N·m (13 ± 2 lb ft).
8. Connect the batteries.
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines Media
Atmospheric Pressure Sensor - Remove and Install
SMCS - 1923-010
Removal Procedure NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.

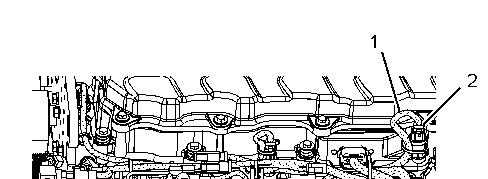

Illustration 1 g01175386
1. Disconnect harness assembly (1) from atmospheric pressure sensor (2).
2. Remove atmospheric pressure sensor (2) and the O-ring seal.
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Illustration 2 g01175386
Note: Check the O-ring seal for wear or for damage. If necessary, replace the O-ring seal.
1. Install the O-ring seal onto atmospheric pressure sensor (2).
2. Install atmospheric pressure sensor (2) and the O-ring seal. Tighten atmospheric pressure sensor (2) to a torque of 10 ± 2 N·m (88 ± 18 lb in).
3. Connect harness assembly (1) to atmospheric pressure sensor (2).
1993 - 2024 Caterpillar Inc. All Rights Reserved.
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines
Bearing Clearance - Check
SMCS - 1203-535; 1219-535
Measurement Procedure
Table 1
Required Tools Tool
Plastic Gauge (Green)
198-9142
to 0.076 mm (0.001 to 0.003 inch)
Plastic Gauge (Red)
to
Plastic Gauge (Blue)
to 0.229 mm
to 0.009 inch)
Plastic Gauge (Yellow)
to 0.510 mm (0.009 to 0.020 inch)
Note: Plastic gauge may not be necessary when the engine is in the chassis.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Note: Cat does not recommend the checking of the actual bearing clearances particularly on small engines. This is because of the possibility of obtaining inaccurate results and the possibility of damaging the bearing or the journal surfaces. Each Cat engine bearing is quality checked for specific wall thickness.
Note: The measurements should be within specifications and the correct bearings should be used. If the crankshaft journals and the bores for the block and the rods were measured during disassembly, no further checks are necessary. However, if the technician still wants to measure the bearing clearances, Tooling (A) is an acceptable method. Tooling (A) is less accurate on journals with small diameters if clearances are less than 0.10 mm (0.004 inch).
NOTICE
Lead wire, shim stock or a dial bore gauge can damage the bearing surfaces.
The technician must be very careful to use Tooling (A) correctly. The following points must be remembered:
• Ensure that the backs of the bearings and the bores are clean and dry.
• Ensure that the bearing locking tabs are properly seated in the tab grooves.
• The crankshaft must be free of oil at the contact points of Tooling (A).
1. Put a piece of Tooling (A) on the crown of the bearing that is in the cap.
Note: Do not allow Tooling (A) to extend over the edge of the bearing.
2. Use the correct torque-turn specifications in order to install the bearing cap. Do not use an impact wrench. Be careful not to dislodge the bearing when the cap is installed.
Note: Do not turn the crankshaft when Tooling (A) is installed.
3. Carefully remove the cap, but do not remove Tooling (A). Measure the width of Tooling (A) while Tooling (A) is in the bearing cap or on the crankshaft journal. Refer to Illustration 1.
Illustration 1 g01152855
Typical Example
4. Remove all of Tooling (A) before you install the bearing cap.
Note: When Tooling (A) is used, the readings can sometimes be unclear. For example, all parts of Tooling (A) are not the same width. Measure the major width in order to ensure that the parts are within the specification range. Refer to Specifications Manual, "Connecting Rod Bearing Journal" and Specifications Manual, "Main Bearing Journal" for the correct clearances. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jun 29 13:43:06 UTC+0530 2024
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines Media
Camshaft - Install
SMCS - 1210-012
Installation Procedure
Table 1
Required Tools Tool Part Number Part Description Qty A 1U-7638 Magnetic Holding Tool 12 NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.

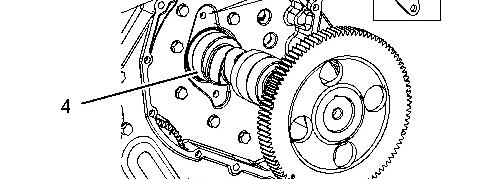

Illustration 1 g01259669
Illustration 2 g01259668
NOTICE
When installing the camshaft, make sure the number one cylinder is at top center of the compression stroke with the timing bolt installed in the flywheel. The camshaft timing is very important. The timing mark on the camshaft drive gear must line up with the timing mark on the idler gear. Refer to the Specifications Manual for more information.
1. Carefully install camshaft (4) in the cylinder block.

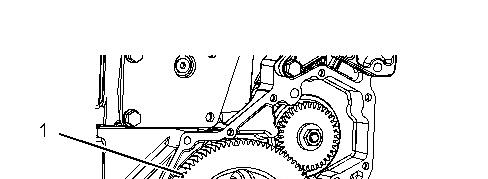

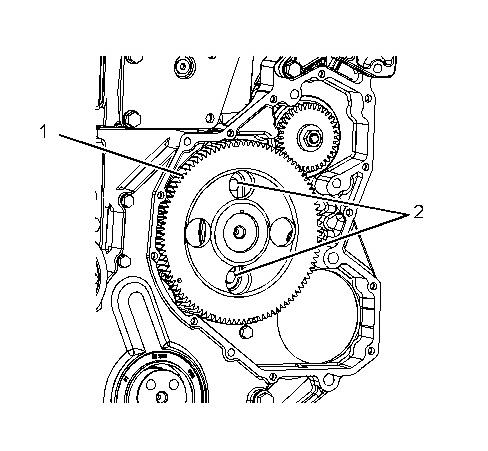

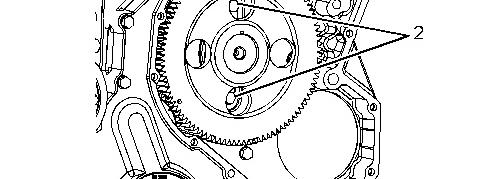

2. Ensure that the timing marks on camshaft drive gear (1), the idler gear, and the crankshaft gear are aligned.
3. Lower the valve lifters onto the camshaft. Remove Tooling (A).
4. Install thrust plate (3) and bolts (2) on camshaft drive gear (1).
5. Install the pushrods in the engine.
End By:
a. Install the front cover. Refer to Disassembly and Assembly, "Front Cover - Remove and Install".
b. Install the rocker arms and the shaft. Refer to Disassembly and Assembly, "Rocker Arm and Shaft - Install".
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jun 29 13:46:52 UTC+0530 2024
Product: INDUSTRIAL ENGINE
Model: C7 INDUSTRIAL ENGINE JRA
Configuration: C7 Industrial Engine JRA00001-UP
Disassembly and Assembly
C7 Industrial Engines Media
Camshaft - Remove
SMCS - 1210-011
Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty A 1U-7638 Magnetic Holding Tool 12
Start By:
a. Remove the rocker arms and the shaft. Refer to Disassembly and Assembly, "Rocker Arm and Shaft - Remove".
b. Remove the front cover. Refer to Disassembly and Assembly, "Front Cover - Remove and Install".
NOTICE
Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair
of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations and mandates.
1. Remove the pushrods from the engine.
2. Turn the crankshaft to top center compression stroke for the No. 1 piston. Refer to Testing and Adjusting, "Finding Top Center Position for No. 1 Piston".
