Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
Foreword
LiteratureInformation
Thismanualcontainssafety,operationinstructions,lubricationandmaintenanceinformation.This manualshouldbestoredinorneartheengineareainaliteratureholderorliteraturestoragearea. Read,studyandkeepitwiththeliteratureandengineinformation.
EnglishistheprimarylanguageforallCatpublications.TheEnglishusedfacilitatestranslation andconsistencyinelectronicmediadelivery.
Somephotographsorillustrationsinthismanualshowdetailsorattachmentsthatmaybedifferent fromyourengine.Guardsandcoversmayhavebeenremovedforillustrativepurposes. Continuingimprovementandadvancementofproductdesignmayhavecausedchangestoyour enginewhicharenotincludedinthismanual.Wheneveraquestionarisesregardingyourengine, orthismanual,pleaseconsultwithyourCatdealerforthelatestavailableinformation.
Safety
Thissafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifieshazardous, warningsituations.Readandunderstandthebasicprecautionslistedinthesafetysectionbefore operatingorperforminglubrication,maintenanceandrepaironthisproduct.
Operation
Operatingtechniquesoutlinedinthismanualarebasic.Theyassistwithdevelopingtheskillsand techniquesrequiredtooperatetheenginemoreefficientlyandeconomically.Skillandtechniques developastheoperatorgainsknowledgeoftheengineanditscapabilities.
Theoperationsectionisareferenceforoperators.Photographsandillustrationsguidetheoperator throughproceduresofinspecting,starting,operatingandstoppingtheengine.Thissectionalso includesadiscussionofelectronicdiagnosticinformation.
Maintenance
Themaintenancesectionisaguidetoenginecare.Theillustrated,step-by-stepinstructionsare groupedbyfuelconsumption,servicehoursand/orcalendartimemaintenanceintervals.Itemsin themaintenanceschedulearereferencedtodetailedinstructionsthatfollow.
Usefuelconsumptionorservicehourstodetermineintervals.Calendarintervalsshown(daily, annually,etc.)maybeusedinsteadofservicemeterintervalsiftheyprovidemoreconvenient schedulesandapproximatetheindicatedservicemeterreading.
Recommendedserviceshouldbeperformedattheappropriateintervalsasindicatedinthe MaintenanceIntervalSchedule.Theactualoperatingenvironmentoftheenginealsogovernsthe MaintenanceIntervalSchedule.Therefore,underextremelysevere,dusty,wetorfreezingcold operatingconditions,morefrequentlubricationandmaintenancethanisspecifiedinthe MaintenanceIntervalSchedulemaybenecessary.
Themaintenancescheduleitemsareorganizedforapreventivemaintenancemanagement program.Ifthepreventivemaintenanceprogramisfollowed,aperiodictune-upisnotrequired. Theimplementationofapreventivemaintenancemanagementprogramshouldminimize operatingcoststhroughcostavoidancesresultingfromreductionsinunscheduleddowntimeand failures.
MaintenanceIntervals
Performmaintenanceonitemsatmultiplesoftheoriginalrequirement.Eachleveland/or individualitemsineachlevelshouldbeshiftedaheadorbackdependinguponyourspecific maintenancepractices,operationandapplication.Werecommendthatthemaintenanceschedules bereproducedanddisplayedneartheengineasaconvenientreminder.Wealsorecommendthata maintenancerecordbemaintainedaspartoftheengine'spermanentrecord.
SeethesectionintheOperationandMaintenanceManual,"MaintenanceRecords"forinformation regardingdocumentsthataregenerallyacceptedasproofofmaintenanceorrepair.Your authorizedCatdealercanassistyouinadjustingyourmaintenancescheduletomeettheneedsof youroperatingenvironment.
Overhaul
MajorengineoverhauldetailsarenotcoveredintheOperationandMaintenanceManualexcept fortheintervalandthemaintenanceitemsinthatinterval.Majorrepairsarebestlefttotrained personneloranauthorizedCatdealer.YourCatdealeroffersavarietyofoptionsregarding overhaulprograms.Ifyouexperienceamajorenginefailure,therearealsonumerousafterfailure overhauloptionsavailablefromyourCatdealer.Consultwithyourdealerforinformation regardingtheseoptions.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhands afterhandling.
WedJan803:44:01UTC+05302025
This is the sample of the manual if you need complete manual Click Here to download
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
AftercoolerCore-Clean/Test-Air-To-AirAftercooler
SMCS-1064-070;1064-081
Note:Adjustthefrequencyofcleaningaccordingtotheeffectsoftheoperatingenvironment. Inspecttheaftercoolerfortheseitems:damagedfins,corrosion,dirt,grease,insects,leaves,oil andotherdebris.Cleantheaftercooler,ifnecessary.
Forair-to-airaftercoolers,usethesamemethodsthatareusedforcleaningradiators.
Personalinjurycanresultfromairpressure.
Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.
Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.
Pressurizedairisthepreferredmethodforremovingloosedebris.Directtheairintheopposite directionofthefan'sairflow.Holdthenozzleapproximately6mm(0.25inch)awayfromthe fins.Themaximumairpressureforcleaningpurposesmustbebelow205kPa(30psi)whenthe airnozzleisdeadheaded.Slowlymovetheairnozzleinadirectionthatisparallelwiththetubes. Thiswillremovedebristhatisbetweenthetubes.
Pressurizedwatermayalsobeusedforcleaning.Themaximumwaterpressureforcleaning purposesmustbelessthan275kPa(40psi).Usepressurizedwaterinordertosoftenmud.Clean thecorefrombothsides.
Useadegreaserandsteamforremovalofoilandgrease.Cleanbothsidesofthecore.Washthe corewithdetergentandhotwater.Thoroughlyrinsethecorewithcleanwater.
Aftercleaning,starttheengineandacceleratetheenginetohighidlerpm.Thiswillhelpinthe removalofdebrisanddryingofthecore.Stoptheengine.Usealightbulbbehindthecoreinorder toinspectthecoreforcleanliness.Repeatthecleaning,ifnecessary.
Inspectthefinsfordamage.Bentfinsmaybeopenedwitha"comb".
Note:Ifpartsoftheaftercoolersystemarerepairedorreplaced,aleaktestishighly recommended.
Inspecttheseitemsforgoodcondition:welds,mountingbrackets,airlines,connections,clamps andseals.Makerepairs,ifnecessary.
Formoredetailedinformationoncleaningandinspection,seeSpecialPublication,SEBD0518, "KnowYourCoolingSystem".
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:08:01UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001 i01546702
AftercoolerCore-Clean/Test
SMCS-1064-070;1064-081
1.Removethecore.RefertotheServiceManualfortheprocedure.
2.Turntheaftercoolercoreupside-downinordertoremovedebris.
NOTICE
Donotuseahighconcentrationofcausticcleanertocleanthecore.A highconcentrationofcausticcleanercanattacktheinternalmetalsof thecoreandcauseleakage.Onlyusetherecommendedconcentration ofcleaner.
3.Backflushthecorewithcleaner.
CaterpillarrecommendstheuseofHydrosolvliquidcleaner.Table1listsHydrosolvliquid cleanersthatareavailablefromyourCaterpillardealer.
PartNumberDescriptionSize
1U-5490Hydrosolv416519L(5USgallon)
174-6854Hydrosolv10019L(5USgallon)
(1)Useatwotofivepercentconcentrationofthecleanerattemperaturesupto93°C(200°F).Referto ApplicationGuide,NEHS0526orconsultyourCaterpillardealerformoreinformation.
4.Steamcleanthecoreinordertoremoveanyresidue.Flushthefinsoftheaftercoolercore. Removeanyothertrappeddebris.
5.Washthecorewithhot,soapywater.Rinsethecorethoroughlywithcleanwater.
Personalinjurycanresultfromairpressure.
Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.
Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.
6.Drythecorewithcompressedair.Directtheairinthereversedirectionofthenormalflow.
7.Inspectthecoreinordertoensurecleanliness.Pressuretestthecore.Manyshopsthat serviceradiatorsareequippedtoperformpressuretests.Ifnecessary,repairthecore.
8.Installthecore.RefertotheServiceManualfortheprocedure. Formoreinformationoncleaningthecore,consultyourCaterpillardealer.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:08:09UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
AftermarketOilAdditives
SMCS-1300;1348;7581
Caterpillardoesnotrecommendtheuseofaftermarketadditivesinoil.Itisnotnecessarytouse aftermarketadditivesinordertoachievetheengine'smaximumservicelifeorratedperformance. Fullyformulated,finishedoilsconsistofbaseoilsandofcommercialadditivepackages.These additivepackagesareblendedintothebaseoilsatprecisepercentagesinordertohelpprovide finishedoilswithperformancecharacteristicsthatmeetindustrystandards.
Therearenoindustrystandardteststhatevaluatetheperformanceorthecompatibilityof aftermarketadditivesinfinishedoil.Aftermarketadditivesmaynotbecompatiblewiththe finishedoil'sadditivepackage,whichcouldlowertheperformanceofthefinishedoil.The aftermarketadditivecouldfailtomixwiththefinishedoil.Thiscouldproducesludgeinthe crankcase.Caterpillardiscouragestheuseofaftermarketadditivesinfinishedoils.
ToachievethebestperformancefromaCaterpillarengine,conformtothefollowingguidelines:
•SelecttheproperCaterpillaroiloracommercialoilthatmeetstheCaterpillar recommendations.
•Seetheappropriate"LubricantViscosities"tableinordertofindthecorrectoilviscosity gradeforyourengine.
•Atthespecifiedinterval,servicetheenginecompartment.Usenewoilandinstallanewoil filter.
•PerformmaintenanceattheintervalsthatarespecifiedintheOperationandMaintenance Manual,"MaintenanceIntervalSchedule".
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:04:20UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001 i02113479
AirCompressor-Inspect
SMCS-1803-040
Donotdisconnecttheairlinefromtheaircompressorgovernorwithout purgingtheairbrakeandtheauxiliaryairsystems.Failuretopurgethe airbrakeandtheauxiliaryairsystemsbeforeremovingtheair compressorand/ortheairlinescouldcausepersonalinjury.

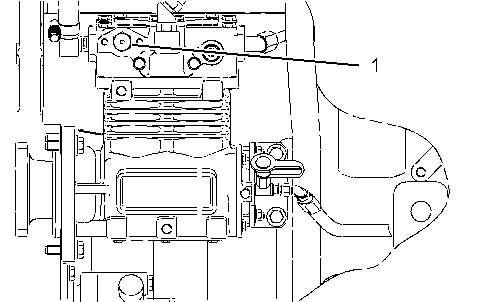

(1)Pressurereliefvalve
Iftheaircompressorpressurereliefvalvethatismountedintheair compressorcylinderheadisbypassingcompressedair,thereisa malfunctionintheairsystem,possiblyiceblockage.Underthese conditions,yourenginemayhaveinsufficientairfornormalbrake operation.
Donotoperatetheengineuntilthereasonfortheairbypassisidentified andcorrected.Failuretoheedthiswarningcouldleadtoproperty damage,personalinjury,ordeathtotheoperatororbystanders.
Thefunctionofthepressurereliefvalveistobypassairwhenthereisamalfunctionintheair compressorsystem.
Thepressurereliefvalvereleasesairat1723kPa(250psi).Donotstandnearthepressurerelief valve.Compressedairmaybereleasedwithoutwarning.Allpersonnelshouldalsostayclearof theaircompressorwhentheengineisoperatingandtheaircompressorisexposed.
RefertotheServiceManualorrefertotheOEMspecificationsinordertofindinformation concerningtheaircompressor.ConsultyourCaterpillardealerforassistance.
Copyright1993-2025CaterpillarInc.
AllRightsReserved.
PrivateNetworkForSISLicensees.
WedJan804:08:23UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
AirCompressorFilter-Clean/Replace
SMCS-1803-070;1803-510
i01491325
Oneofthesinglemostimportantaspectsofpreventivemaintenancefortheaircompressoristhe inductionofcleanair.Thetypeofmaintenancethatisrequiredfortheaircompressorandthe maintenanceintervaldependsonthetypeofairinductionsystemthatisused.Operating conditions(dust,dirtanddebris)mayrequiremorefrequentservice.
RefertotheServiceManualforthetypeofaircompressorthatisinstalledontheengine.Follow themaintenancerecommendationsthatareprovidedbytheOEMoftheaircompressor.Some enginesuseboostairpressuresotheengineaircleanerwillrequireservicing.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:08:36UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
AirStartingMotorLubricatorOilLevel-Check-If Equipped
SMCS-1451-535
NOTICE
Neverallowthelubricatorbowltobecomeempty.Theairstarting motorwillbedamagedbyalackoflubrication.Ensurethatsufficient oilisinthelubricatorbowl.

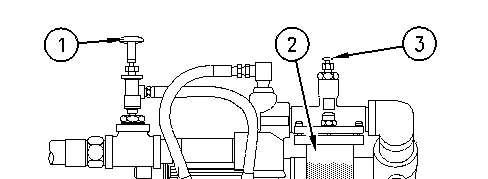

(1)Airvalve
(2)Lubricatorbowl
(3)Adjustmentknob
1.Thevanesoftheairstartingmotorarelubricatedwithafinemistofoilfromtheairstarting motorlubricator.Checkthelevelofoilinlubricatorbowl(2).Iftheoillevelislessthan1/2, addoiltothelubricatorbowl.
2.EnsurethattheairsupplytothelubricatorisOFF.
3.Removetheplug.Pouroilintolubricatorbowl(2).Use"10W"oilfortemperaturesthatare greaterthan0°C(32°F).Useairtooloilfortemperaturesthatarebelow0°C(32°F).
4.Installtheplug.
OilerFeedAdjustment
Ifnecessary,adjustthelubricatorinordertoreleaseapproximatelytwodropsoffluidper30 secondsintothestartingmotorairstream.
1.EnsurethatthefuelsupplytotheengineisOFF.
2.Turnadjustmentknob(3)clockwiseuntiltheadjustmentknoblocks.
3.Turnadjustmentknob(3)counterclockwisefor1/4turns.
NOTICE
Donotcranktheenginecontinuouslyformorethan30seconds.Allow thestartingmotortocoolfortwominutesbeforecrankingtheengine again.
4.Crankthestartingmotorfortensecondsandobservetheexhaustairfromthemufflersof thestartingmotor.Lookforoilmist.Aslightoilmistshouldbebarelyvisible.
Ifnomistisobserved,orifthemistisexcessive,rotateadjustmentknob(3)inincrementsof1/16 inordertoincreaseordecreasetheoilmist.Repeatthestartingmotorcrankingandobserveuntil themistissatisfactory.
Note:Dripratesshouldonlybemadeunderanaveragesteadyflowcondition.Onceasteadyflow conditionisestablished,thelubricatorwillautomaticallyadjustthedriprateinproportiontothe variationsinairflow.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:08:46UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
AirTankMoistureandSediment-Drain-IfEquipped
SMCS-1466-543-M&S
Moistureandsedimentintheairstartingsystemcancausethefollowingconditions:
•Freezing
•Corrosionofinternalparts
•Malfunctionoftheairstartingsystem
Whenopeningthedrainvalve,wearprotectivegloves,aprotectiveface shield,protectiveclothing,andprotectiveshoes.Pressurizedaircould causedebristobeblownandresultinpersonalinjury.
1.Openthedrainvalvethatisonthebottomoftheairtank.Allowthemoistureandsediment todrain.
2.Closethedrainvalve.
3.Checktheairsupplypressure.Theairstartingmotorrequiresaminimumof620kPa (90psi)ofairpressuretooperateproperly.Themaximumairpressuremustnotexceed 1550kPa(225psi).Thenormalairpressurewillbe758to965kPa(110to140psi). Copyright1993-2025CaterpillarInc.
WedJan804:08:57UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
Alternator-Inspect
SMCS-1405-040
i02676048
Caterpillarrecommendsascheduledinspectionofthealternator.Inspectthealternatorforloose connectionsandproperbatterycharging.Inspecttheammeter(ifequipped)duringengine operationinordertoensureproperbatteryperformanceand/orproperperformanceofthe electricalsystem.Makerepairs,asrequired.
Checkthealternatorandthebatterychargerforproperoperation.Ifthebatteriesareproperly charged,theammeterreadingshouldbeverynearzero.Allbatteriesshouldbekeptcharged.The batteriesshouldbekeptwarmbecausetemperatureaffectsthecrankingpower.Ifthebatteryistoo cold,thebatterywillnotcranktheengine.Thebatterywillnotcranktheengine,evenifthe engineiswarm.Whentheengineisnotrunforlongperiodsoftimeoriftheengineisrunfor shortperiods,thebatteriesmaynotfullycharge.Abatterywithalowchargewillfreezemore easilythanabatterywithafullcharge.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:09:07UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
Battery-Replace
SMCS-1401-510
Batteriesgiveoffcombustiblegaseswhichcanexplode.Asparkcan causethecombustiblegasestoignite.Thiscanresultinseverepersonal injuryordeath.
Ensureproperventilationforbatteriesthatareinanenclosure.Follow theproperproceduresinordertohelppreventelectricalarcsand/or sparksnearbatteries.Donotsmokewhenbatteriesareserviced.
Thebatterycablesorthebatteriesshouldnotberemovedwiththe batterycoverinplace.Thebatterycovershouldberemovedbeforeany servicingisattempted.
Removingthebatterycablesorthebatterieswiththecoverinplacemay causeabatteryexplosionresultinginpersonalinjury.
Note:Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestoanappropriate recyclingfacility.
1.TurnthekeystartswitchtotheOFFposition.Removethekeyandallelectricalloads.
2.TurnOFFthebatterycharger.Disconnectthecharger.
3.TurnbatteryisolatorswitchtoOFFposition.
4.TheNEGATIVE"-"cableconnectstheNEGATIVE"-"batteryterminaltotheground plane.DisconnectthecablefromtheNEGATIVE"-"batteryterminal.
5.ThePOSITIVE"+"cableconnectsthePOSITIVE"+"batteryterminaltothestartingmotor. DisconnectthecablefromthePOSITIVE"+"batteryterminal.
Note:Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestoan appropriaterecyclingfacility.
6.Removetheusedbattery.
7.Installthenewbattery.
Note:Beforethecablesareconnected,ensurethatthekeystartswitchisOFF.
8.ConnectthecablefromthestartingmotortothePOSITIVE"+"batteryterminal.
9.ConnectthecablefromthegroundplanetotheNEGATIVE"-"batteryterminal.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:09:25UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001
BatteryElectrolyteLevel-Check
SMCS-1401-535
Whentheenginehasnotrunforlongorshortperiodsoftime,thebatteriesmaynotfullyrecharge. Ensureafullchargetohelppreventthebatteryfromfreezing.
Inwarmerclimates,checktheelectrolytelevelmorefrequently.
Ensurethattheelectrolytelevelis13mm(0.5inch)abovethetopoftheseparators.
Alllead-acidbatteriescontainsulfuricacidwhichcanburntheskinand clothing.Alwayswearafaceshieldandprotectiveclothingwhen workingonornearbatteries.
1.Removethefillercaps.Maintaintheelectrolyteleveltothe"FULL"markonthebattery.
Iftheadditionofwaterisnecessary,usedistilledwater.Ifdistilledwaterisnotavailable, usecleanwaterthatislowinminerals.Donotuseartificiallysoftenedwater.
2.Checktheconditionoftheelectrolytewiththe245-5829CoolantBatteryTester Refractometer.
3.Keepthebatteriesclean.
Cleanthebatterycasewithoneofthefollowingcleaningsolutions:
Amixtureof0.1kg(0.2lb)ofbakingsodaand1L(1qt)ofcleanwater
Amixtureof0.1L(0.11qt)ofammoniaand1L(1qt)ofcleanwater
Thoroughlyrinsethebatterycasewithcleanwater.
Usethe1U-9921BatteryServiceTooltocleanthebatteryterminals.Useawirebrushto cleanthecableclamps.Cleantheitemsuntilthesurfacesarebrightorshiny.DONOT removematerialexcessively.Excessiveremovalofmaterialcancausetheclampstofit improperly.Coattheclampsandtheterminalswith5N-5561SiliconeLubricant,petroleum jellyorMPGM.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:09:41UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001 i06738663
BatteryorBatteryCable-Disconnect
SMCS-1402-029
Thebatterycablesorthebatteriesshouldnotberemovedwiththe batterycoverinplace.Thebatterycovershouldberemovedbeforeany servicingisattempted.
Removingthebatterycablesorthebatterieswiththecoverinplacemay causeabatteryexplosionresultinginpersonalinjury.
1.TurnthestartswitchtotheOFFposition.Turntheignitionswitch(ifequipped)totheOFF positionandremovethekeyandallelectricalloads.
2.Disconnectthenegativebatteryterminalatthebatterythatgoestothestartswitch.Ensure thatthecablecannotcontacttheterminal.Whenfour12voltbatteriesareinvolved,the negativesideoftwobatteriesmustbedisconnected.
3.Tapetheleadsinordertohelppreventaccidentalstarting.
4.Proceedwithnecessarysystemrepairs.Reversethestepsinordertoreconnectallofthe cables.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan804:10:03UTC+05302025
Product:INDUSTRIALENGINE
Model:C-16INDUSTRIALENGINEBFM
Configuration:C-16IndustrialEngineBFM00001-UP
OperationandMaintenanceManual
C-15andC-16IndustrialEngines
MediaNumber-SEBU7517-01PublicationDate-01/08/2001DateUpdated-09/10/2001 i02126625
Belt-Inspect
SMCS-1357-040;1357;1397-040;1397
Inspection
Belttensionshouldbecheckedinitiallybetweenthefirst20to40hoursofengineoperation.
Aftertheinitialcheck,thebelttensionshouldbecheckedatEveryPMLevel1orThreeMonths.
Tomaximizetheengineperformance,inspectthebeltsforwearandforcracking.Replacebelts thatarewornordamaged.
Forapplicationsthatrequiremultipledrivebelts,replacethebeltsinmatchedsets.Replacingonly onebeltofamatchedsetwillcausethenewbelttocarrymoreloadbecausetheolderbeltis stretched.Theadditionalloadonthenewbeltcouldcausethenewbelttobreak.
Ifthebeltsaretooloose,vibrationcausesunnecessarywearonthebeltsandpulleys.Loosebelts mayslipenoughtocauseoverheating.
Ifthebeltsaretootight,unnecessarystressesareplacedonthepulleybearingsandonthebelts. Thismayshortentheservicelifeofthecomponents.
Removethebeltguard.Inspecttheconditionandadjustmentofthealternatorbeltsandaccessory drivebelts(ifequipped).
Tocheckthebelttension,apply110N(25lbft)offorcemidwaybetweenthepulleys.Acorrectly adjustedbeltwilldeflect9mm(0.35inch)to15mm(0.59inch).
Ifthebeltdoesnotrequirereplacementoradjustment,installthebeltguard.Ifthebeltrequires adjustmentorreplacement,performthefollowingproceduretoadjustthebelttension.

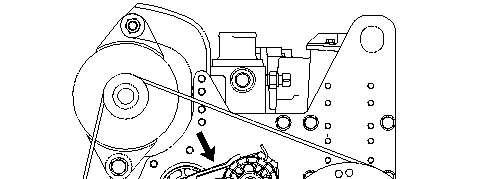

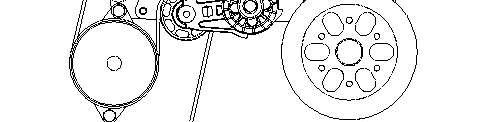

•Iftheengineisequippedwitharefrigerantcompressor(airconditioner),thebeltforthefan drive,thealternator,andtheaccessorieswillhaveanautomaticbelttensioner.

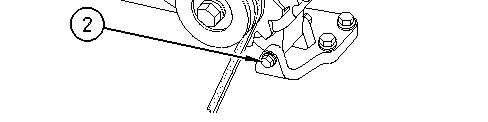

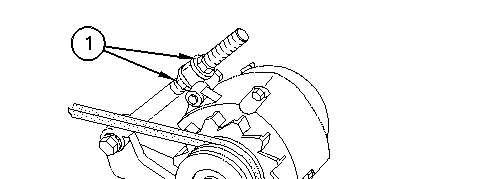

•Iftheengineisnotequippedwitharefrigerantcompressor,thealternatorisusedtoadjust thebelttension.
