Disassembly and Assembly
C-10 and C-12 On-Highway Engines
Accessory Drive - Assemble
SMCS - 1207-016
Assembly Procedure Table 1 Required Tools
1P-1858 Retaining Ring Pliers 1
Illustration 1 g01062840

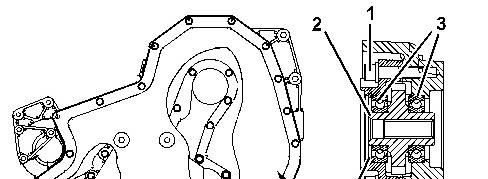

1. Lower the temperature of gear and shaft (2).
i02076489
Always wear protective gloves when handling parts that have been heated.
2. Raise the temperature of bearings (3).
3. Place bearings (3) in the original location on gear and shaft (2).
4. Use Tooling (B) in order to install retaining ring (4) into accessory drive housing (5).
5. Install gear and shaft (2) with bearings (3) into accessory drive housing (5).
6. Install bolts (1).
End By:
a. Install the accessory drive. Refer to Disassembly and Assembly, "Accessory Drive - Install".
Product: TRUCK ENGINE
Model: C-12 TRUCK ENGINE CPD
Configuration: C-12 Truck Engine CPD00001-UP
Disassembly and Assembly
C-10 and C-12 On-Highway Engines
Accessory Drive - Disassemble
SMCS - 1207-015
Disassembly Procedure Table 1 Required Tools
Start By:
a. Remove the accessory drive. Refer to Disassembly and Assembly, "Accessory DriveRemove".
i02079708

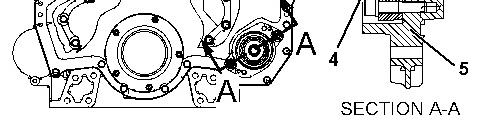

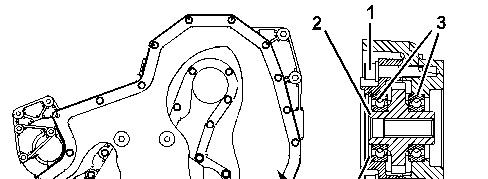

Illustration 1 g01062840
1. Remove bolts (1).
2. Remove gear and shaft (2) with bearings (3) from accessory drive housing (5).
Note: One end of the gear shaft is longer than the opposite end. Prior to assembly, ensure that the gear shaft is in the correct position.
3. Use Tooling (A) in order to remove bearings (3) from gear and shaft (2).
4. Use Tooling (B) in order to remove retaining ring (4) from accessory drive housing (5).
Product: TRUCK ENGINE
Model: C-12 TRUCK ENGINE CPD
Configuration: C-12 Truck Engine CPD00001-UP
Disassembly and Assembly
C-10 and C-12 On-Highway Engines
Media Number -RENR2236-14
Accessory Drive - Install
SMCS - 1207-012
Installation Procedure

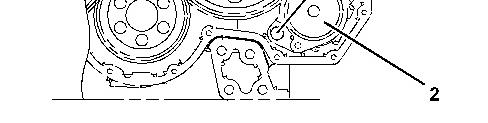

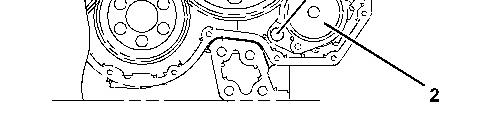

Illustration 1 g01021789
Typical example
1. Install accessory drive (2).
2. Install bolts (1) and the washers. Tighten the bolts to a torque of 100 ± 20 N·m (74 ± 15 lb ft).
End By:
-25/01/2019
a. Install the front cover. Refer to Disassembly and Assembly, "Front Cover - Install".
i01967971
b. Install the belt tensioner. Refer to Disassembly and Assembly, "Belt Tensioner - Remove and Install".
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Mon May 13 01:04:20 UTC+0530 2024
Product: TRUCK ENGINE
Model: C-12 TRUCK ENGINE CPD
Configuration: C-12 Truck Engine CPD00001-UP
Disassembly and Assembly
C-10 and C-12 On-Highway Engines
Accessory Drive - Remove
SMCS - 1207-011
Removal Procedure
Start By:
a. Remove the belt tensioner. Refer to Disassembly and Assembly, "Belt Tensioner - Remove and Install".
b. Remove the front cover. Refer to Disassembly and Assembly, "Front Cover - Remove".

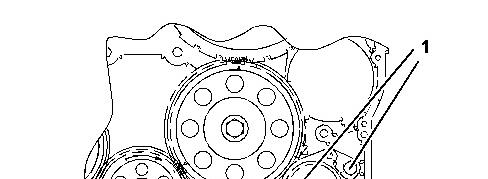

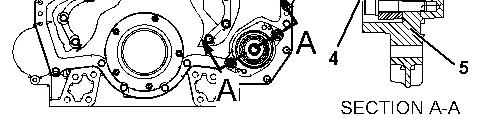

Illustration 1 g01021789 Typical example
1. Remove bolts (1) and the washers.
2. Remove accessory drive (2). Copyright 1993 - 2024 Caterpillar Inc.
Rights Reserved.
Network For SIS Licensees. Mon May 13 01:03:23 UTC+0530 2024
Product: TRUCK ENGINE
Model: C-12 TRUCK ENGINE CPD
Configuration: C-12 Truck Engine CPD00001-UP
Disassembly and Assembly
C-10 and C-12 On-Highway Engines
Air Compressor - Assemble
SMCS - 1803-016
Assembly Procedure Table 1
Tools
Illustration 1

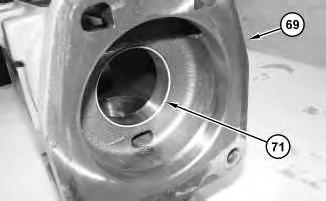

1. Install bearing (71) into compressor housing (69).
i04828134
Illustration 2
g02961417

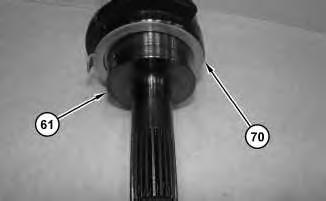

2. Install thrust washer (70) onto crankshaft (61).
Illustration 3
g02961398
3. Install crankshaft (61) into compressor housing (69).
Illustration 4
g02961381

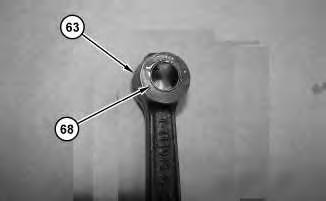

4. Install bearing (68) into connecting rod (63). Repeat this step for the remaining connecting rod assembly
5

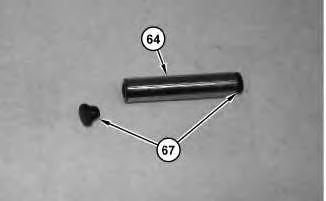

5. Install caps (67) onto wrist pin (64).
Illustration 6
6. Install piston rings (65). Install piston (66) onto connecting rod (63). Install wrist pin (64). Repeat this step for the remaining piston and connecting rod assembly.
Illustration 7
g02961340

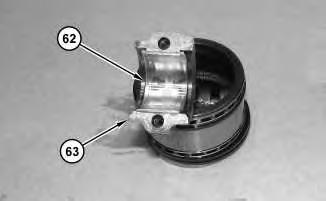

7. Install bearing (62) onto connecting rod (63). Repeat this step for the remaining connecting rod.
Illustration
g02961378
g02961357
Illustration 8
Illustration 9
g02961337

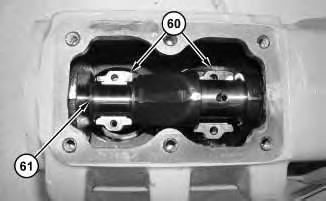

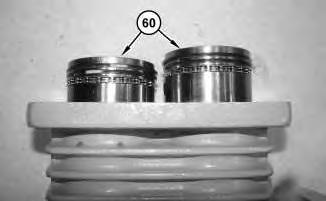

8. Install piston and connecting rod assemblies (60). Push piston and connecting rod assemblies (60) into the block and onto crankshaft (61).
Illustration 10
g02961321

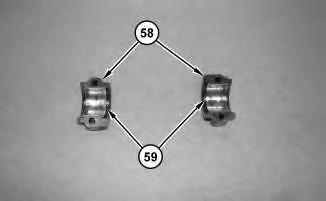

9. Install bearings (59) onto bearing caps (58).
g02961326
11

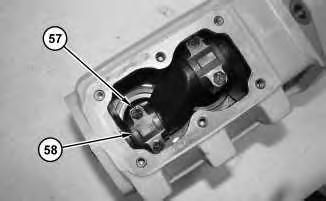

10. Install bearing cap (58). Install bolts (57). Repeat this step for the remaining bearing cap.
Illustration 12

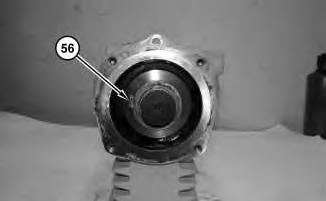

11. Install thrust washer (56).
Illustration 13

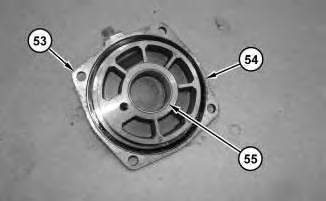

12. Install bearing (55) and O-ring seal (54) onto cover (53).
Illustration
g02961316
g02961278
g02961237
Illustration 14

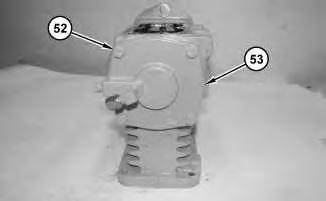

13. Install cover (53). Install bolts (52).
g02961216
Illustration 15
g02961198
14. Install cover (51). Install bolts (50). Install fitting (49).
Illustration 16

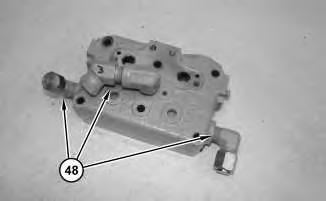

15. Install fittings (48).
g02960987
17

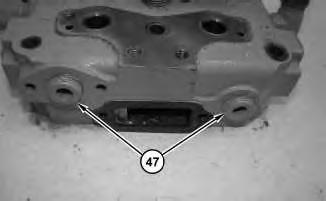

16. Apply Tooling (B) onto plugs (47). Install plugs (47).
Illustration 18

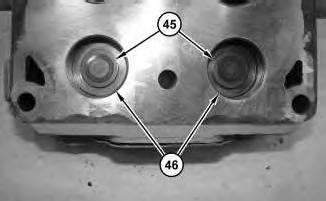

17. Install valve seats (46). Install inlet valves (45).
Illustration 19

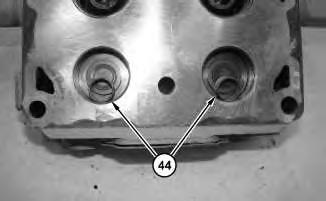

18. Install inlet valve springs (44).
Illustration
g02960980
g02960958
g02960920
20
Improper assembly of parts that are spring loaded can cause bodily injury.
To prevent possible injury, follow the established assembly procedure and wear protective equipment.

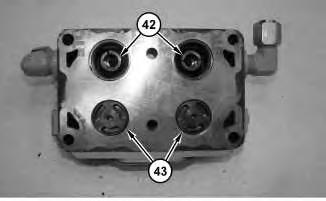

19. Use Tooling (A) to install inlet valves (43). Install valves (42).
Illustration 21

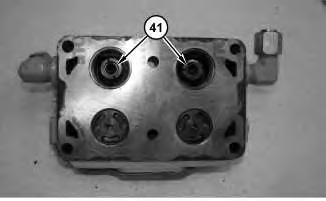

20. Install springs (41).
g02960818
Illustration
g02960896
Improper assembly of parts that are spring loaded can cause bodily injury.
To prevent possible injury, follow the established assembly procedure and wear protective equipment.

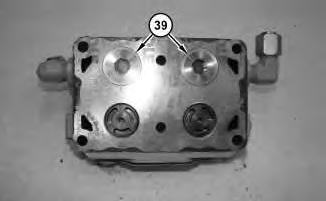

Install valve seats (39).
Illustration 22
g02960816

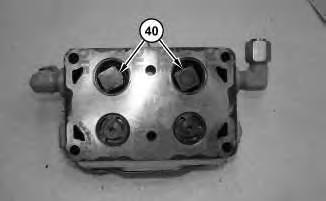

21. Install valves (40).
Illustration 23
g02960800
22.

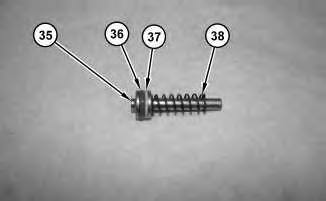

23. Install spring (38), backup ring (37), and O-ring seal (36) onto unloader valve (35). Repeat this step for the remaining unloader valve (35).

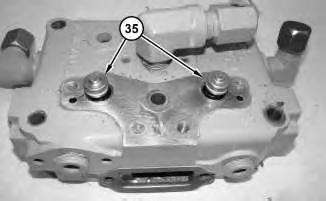

24. Install unloader valves (35).

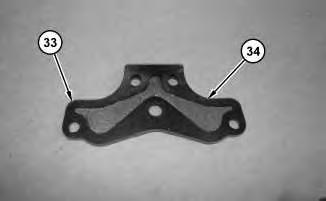

25. Install gasket (34) onto unloader cover (33).
Illustration 24
g02960776
Illustration 25
g02960759
Illustration 26
g02960756
27
Improper assembly of parts that are spring loaded can cause bodily injury.
To prevent possible injury, follow the established assembly procedure and wear protective equipment.

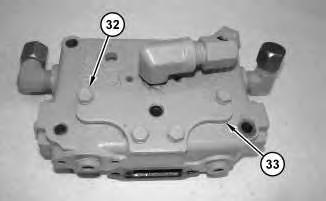

26. Install unloader cover (33) and bolts (32). T
Illustration 28

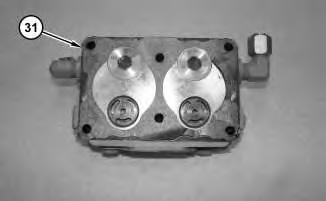

27. Install gasket (31).
g02960722
Illustration
g02960736
Illustration 29
g02960696
Illustration 30
g02962830

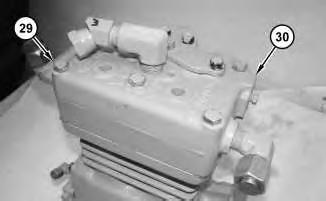

28. Install head (30) and bolts (29). Tighten bolts (29) to a torque of 23 N·m (200 lb in) in a crisscross pattern in the order indicated. Tighten bolts (29) again to a torque of 45 to 57 N·m (400 to 500 lb in) in a crisscross pattern in the order indicated.
Illustration 31
g02960676

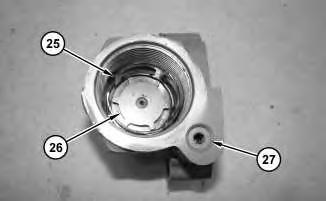

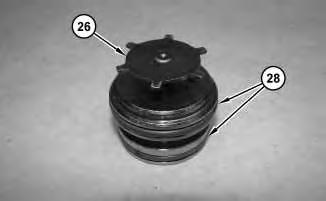

29. Install O-ring seals (28) onto valve assembly (26).
32
30. Install check valve (27), valve assembly (26), and spacer (25).
Illustration 33

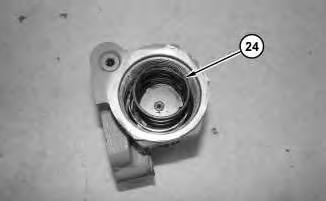

31. Install spring (24).
Illustration 34
32. Install O-ring seals (23) onto locking nut (22).
Illustration
g02960636
g02959776
g02959759
35
Improper assembly of parts that are spring loaded can cause bodily injury.
To prevent possible injury, follow the established assembly procedure and wear protective equipment.

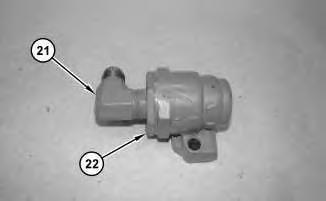

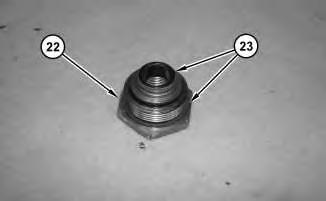

33. Install locking nut (22). Apply Tooling (B) onto fitting (21). Install fitting (21).
36
Illustration
g02959698
Illustration
g02959676
34. Install gasket (20). Install manifold (19). Install bolts (18).

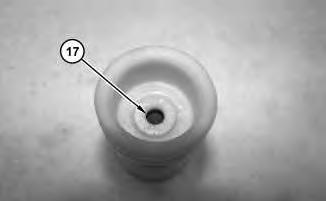

35. Install O-ring seal (17).

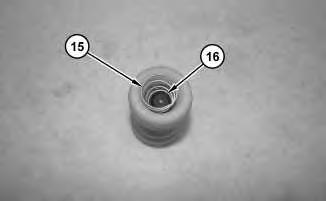

36. Install valve (16). Install spring (15).
Illustration 37
g02959683
Illustration 38
g02959656
Illustration 39
g02959642
