Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
s00037320
For some reason if link does not work download this pdf and then click
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 7251; 7263; 7273-572; 7273-573
Date Updated -18/08/2009

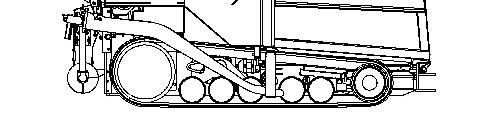

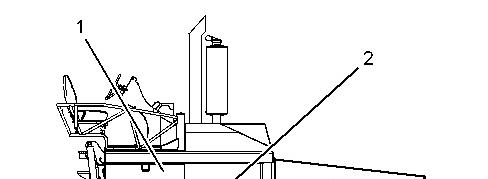

Illustration 1 g01127291
Right Side View
(1) Machine access door for the conveyor motor
(2) Machine access door for the radiator, the aftercooler, and the hydraulic oil cooler

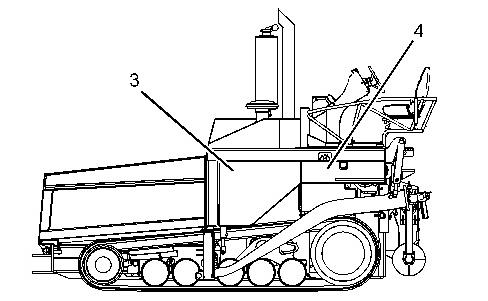

Illustration 2 g01127292
Left Side View
(3) Machine access door for the hydraulic pumps and the hydraulic pump drives
(4) Machine access door for the fuel tank, the battery disconnect switch, and the conveyor motor.

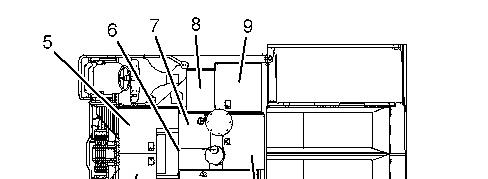

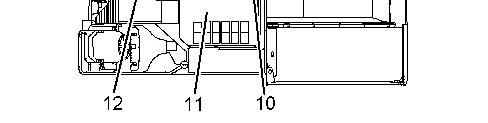

Illustration 3 g01127293
Top View
(5) Machine access door for the hydraulic tank
(6) Center access door for the circuit breakers
(7) Battery compartment access door
(8) Machine access door for the top of the pump drives
(9) Machine access door for the top of the pump drives
(10) Engine access door for the top of the engine
(11) Radiator access door for the radiator, the aftercooler, and the hydraulic oil cooler
(12) Machine access door

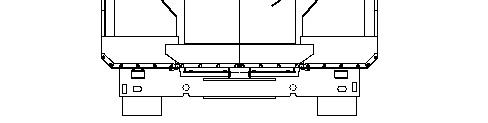

Illustration 4
Front View
(13) Right side engine access door that is located in the hopper
(14) Left engine access door that is located in the hopper
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
g01127294
Wed Mar 19 01:42:50 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 1405-040
Date Updated -18/08/2009
i01664049
Caterpillar recommends a scheduled inspection of the alternator. Inspect the alternator for loose connections and proper battery charging. Inspect the ammeter (if equipped) during engine operation in order to ensure proper battery performance and/or proper performance of the electrical system. Make repairs, as required. Refer to the Service Manual.
Check the alternator and the battery charger for proper operation. If the batteries are properly charged, the ammeter reading should be very near zero. All batteries should be kept charged. The batteries should be kept warm because temperature affects the cranking power. If the battery is too cold, the battery will not crank the engine. The battery will not crank the engine, even if the engine is warm. When the engine is not run for long periods of time or if the engine is run for short periods, the batteries may not fully charge. A battery with a low charge will freeze more easily than a battery with a full charge.
Copyright 1993 - 2025 Caterpillar Inc.
All Rights Reserved. Private Network For SIS Licensees.
Wed Mar 19 01:44:24 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009 Date Updated -18/08/2009
SMCS - 6631-086
NOTICE

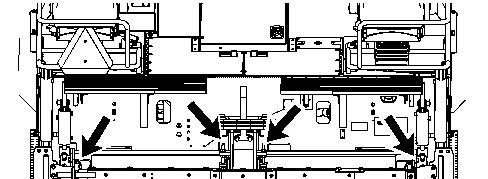

All daily grease lubricant should be applied at the end of each machine operation while the machine is still warm and the asphalt is still soft or not set up. Failure to do so may allow asphalt to harden around the seals and risk damaging a seal and lead to premature bearing failure.
Illustration 1
Lubricate the two fittings for the outside bearings.
Note: Add lubricant only until excess lubricant is observed at each of the bearings.
Lubricate the two fittings for the inside bearings.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Mar 19 01:45:35 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 7406-081
Date Updated -18/08/2009
i02249956

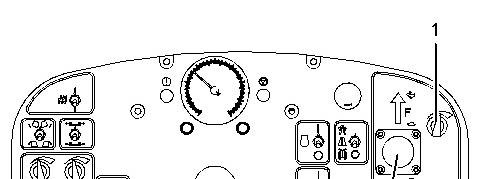

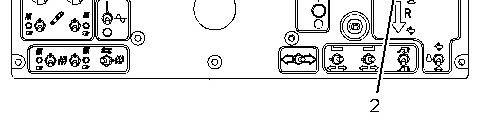

Illustration 1 g01132553
Start the engine, and run the engine at low idle. Turn speed potentiometer (1) to the lowest setting
Make sure that the area behind the machine is clear of personnel and clear of obstacles.
Slightly, move propel lever (2) to the REVERSE position.
The backup alarm should sound immediately. The backup alarm should continue to sound until propel control lever (2) is moved to the NEUTRAL position or to the FORWARD position.
2 g01117860

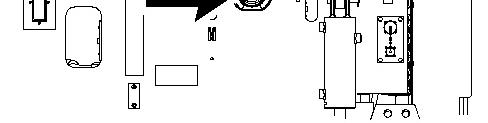

The backup alarm is on the rear of the machine.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Mar 19 22:19:16 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 1401-561
Always recycle a battery. Never discard a battery.
Always return used batteries to one of the following locations:
• A battery supplier
• An authorized battery collection facility
• Recycling facility
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Date Updated -18/08/2009
i06543763
Wed Mar 19 22:19:26 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05 Publication Date -01/08/2009 Date Updated -18/08/2009
SMCS - 1401-040; 1401-510; 1402-040; 1402-510
i01851175
1. Turn the engine start switch to the OFF position. Turn all switches to the OFF position.
2. Turn the battery disconnect switch to the OFF position. Remove the key.
3. At the battery disconnect switch, disconnect the negative battery cable that is connected to the frame.
Note: Do not allow the disconnected battery cable to contact the disconnect switch.
4. Disconnect the negative battery cable from the terminals of the battery.
5. Perform the necessary repairs. Replace the cable or the battery, as needed.
6. Connect the negative battery cable to the terminals of the battery.
7. Connect the negative battery cable at the battery disconnect switch.
8. Install the key for the battery disconnect switch. Turn the key to the ON position.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees. Wed Mar 19 22:19:37 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009 Date Updated -18/08/2009
SMCS - 1397-510; 1397-025; 1397-040

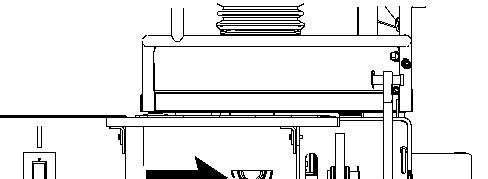

Note: This engine is equipped with a belt tightener that automatically adjusts the belt to the correct tension.
1. Inspect the belt for wear and for cracking.
2. If the belt requires replacement, perform Step 2.a through Step 2.c.

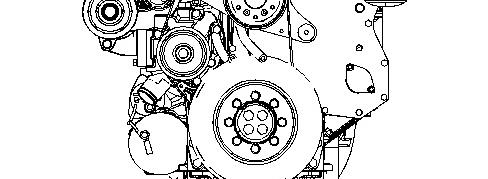

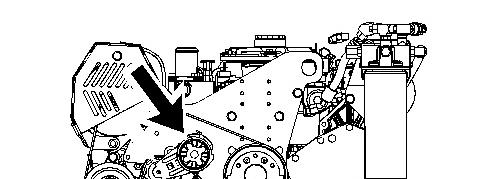

Illustration 1 g01116243
a. Turn the belt tensioner in order to release the tension from the belt.
b. Remove the belt.
c. Install a new belt.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Mar 19 22:20:27 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 4198-535
Date Updated -18/08/2009

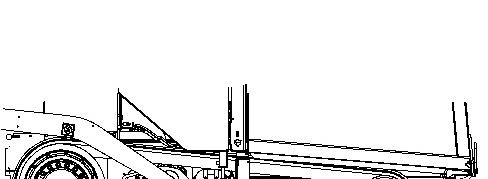

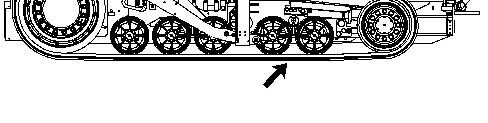

Illustration 1 g01116255
Visually inspect the Mobil-Trac System for wear or damage. Check the track pads and the guide blocks for wear. There are two belts.
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Mar 19 22:20:38 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
SMCS - 7000; 7560
APPROXIMATE REFILL CAPACITIES
Table 1
Refer to Operation and Maintenance Manual, "Lubricant Viscosities".
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009
SMCS - 1420-529
Date Updated -18/08/2009
If a circuit breaker requires frequent resetting, contact your dealer.
When you reset a circuit breaker, use the following references for the circuit breakers in order to find the correct breaker.
Circuit Breaker Reset - Push in the button in order to reset each circuit breaker. The button will remain depressed if the circuit is working properly. Check the appropriate electrical circuit if the button does not stay reset.
The circuit breakers are located on the back of the main console in the center of the machine.

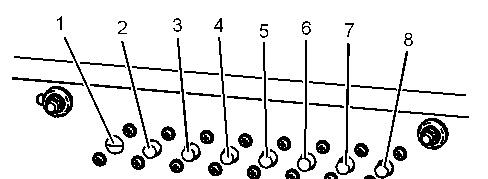

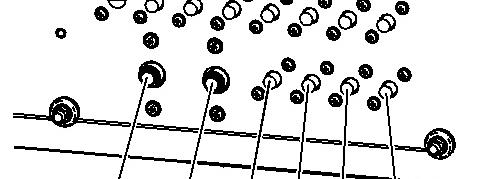

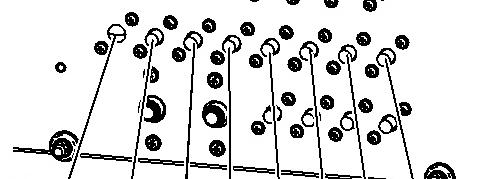

Illustration 1 g01118227
(1) Spare
(2) Work Lights
(3) Generator
(4) Pump for the Spray System
(5) Blower Motors
(6) Screed
(7) Right Screed
(8) Left Screed
(9) Spare
(10) Horn
(11) FDR Sensor
(12) Grade
(13) Implement
(14) Display
(15) Propel
(16) Vibrator

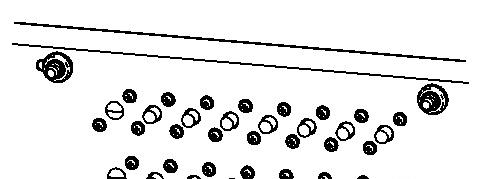

Illustration 2 g01118250 (17) Alternator (18) Main Breaker (19) Start (20) Controller (21) Engine (22) Autoburner
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Mar 19 22:20:49 UTC+0530 2025
Product: ASPHALT PAVER
Model: AP-1055D ASPHALT PAVER A6P
Configuration: AP-1055D, BG-2455D Steel Track Asphalt Paver A6P00001-UP (MACHINE) POWERED BY C7 Engine
Operation and Maintenance Manual
AP-1055D and BG-2455D Asphalt Pavers
Media Number -KEBU7525-05
Publication Date -01/08/2009 Date Updated -18/08/2009
SMCS - 5620-025-CX
Personal injury can result from rotating and moving parts. Stay clear of all rotating and moving parts.
Never attempt adjustments while the machine is moving or the engine is running unless otherwise specified.
The machine must be parked on a level surface and the engine stopped.
Attach a "Do Not Operate" or similar warning tag to the start switch and controls before servicing, repairing, or making adjustments to the machine.

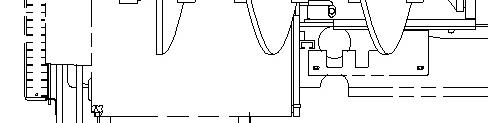

Illustration 1 g00934165

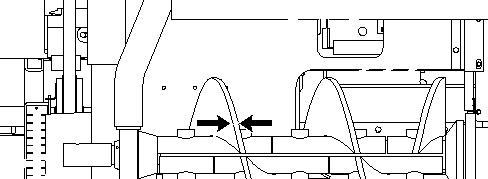

To check the tension of the auger conveyor drive chain, grab the auger with both hands. Rotate the auger back and forth. If the auger rotates more than 19 mm ± 5 mm (0.75 inch), the drive chain needs to be adjusted.
Illustration 2
g01127792

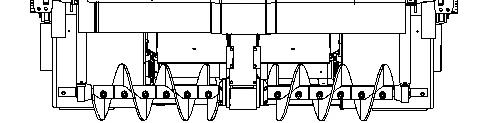

Note: The adjustment procedure is used for both of the drive chains for the auger conveyor.
1. Loosen four mounting bolts (1) .
2. Loosen jam nut (2) .
3. Turn adjusting nut (3) until the auger can be rotated 13 mm (0.50 inch) to 19 mm (0.75 inch).
4. Tighten mounting bolts (1) and jam nut (2) .
Wed Mar 19 22:20:59 UTC+0530 2025
