Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
CatProductIdentificationNumber
This is the sample of the manual if you need complete manual Click Here to download
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
AccessDoorsandCovers
SMCS-7251;7263;7273-572;7273-573

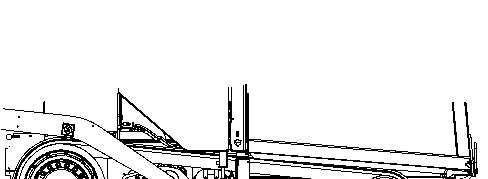

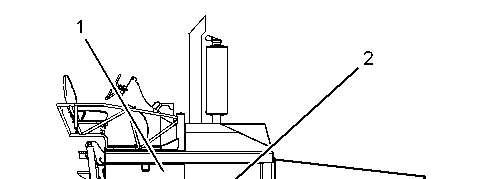

Illustration1g01127291
RightSideView
(1)Machineaccessdoorfortheconveyormotor
(2)Machineaccessdoorfortheradiator,theaftercooler,andthehydraulicoilcooler
i02207644

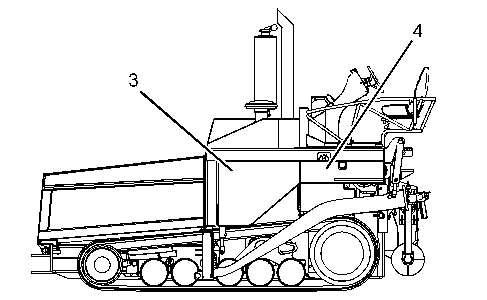

Illustration2g01127292
LeftSideView
(3)Machineaccessdoorforthehydraulicpumpsandthehydraulicpumpdrives
(4)Machineaccessdoorforthefueltank,thebatterydisconnectswitch,andtheconveyormotor.

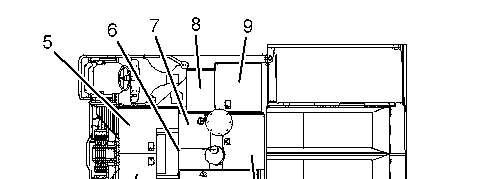

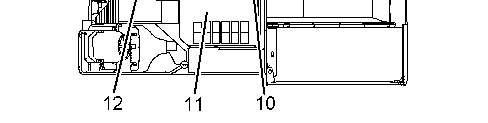

Illustration3g01127293
TopView
(5)Machineaccessdoorforthehydraulictank
(6)Centeraccessdoorforthecircuitbreakers
(7)Batterycompartmentaccessdoor
(8)Machineaccessdoorforthetopofthepumpdrives
(9)Machineaccessdoorforthetopofthepumpdrives
(10)Engineaccessdoorforthetopoftheengine
(11)Radiatoraccessdoorfortheradiator,theaftercooler,andthehydraulicoilcooler
(12)Machineaccessdoor

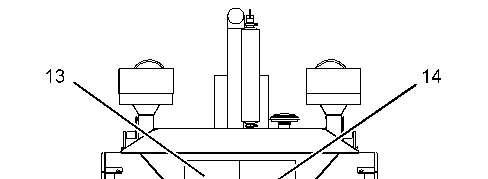

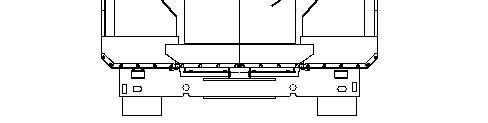

Illustration4g01127294
FrontView
(13)Rightsideengineaccessdoorthatislocatedinthehopper
(14)Leftengineaccessdoorthatislocatedinthehopper
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1901:42:50UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009 i01664049
Alternator-Inspect
SMCS-1405-040
Caterpillarrecommendsascheduledinspectionofthealternator.Inspectthealternatorforloose connectionsandproperbatterycharging.Inspecttheammeter(ifequipped)duringengine operationinordertoensureproperbatteryperformanceand/orproperperformanceofthe electricalsystem.Makerepairs,asrequired.RefertotheServiceManual.
Checkthealternatorandthebatterychargerforproperoperation.Ifthebatteriesareproperly charged,theammeterreadingshouldbeverynearzero.Allbatteriesshouldbekeptcharged.The batteriesshouldbekeptwarmbecausetemperatureaffectsthecrankingpower.Ifthebatteryistoo cold,thebatterywillnotcranktheengine.Thebatterywillnotcranktheengine,evenifthe engineiswarm.Whentheengineisnotrunforlongperiodsoftimeoriftheengineisrunfor shortperiods,thebatteriesmaynotfullycharge.Abatterywithalowchargewillfreezemore easilythanabatterywithafullcharge.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1901:44:24UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009

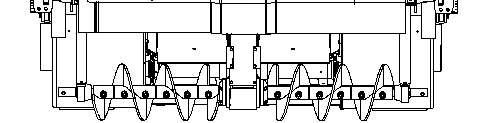

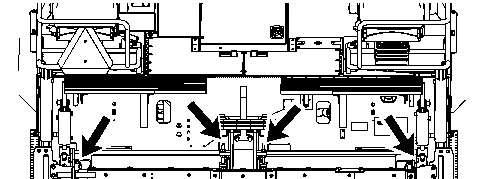

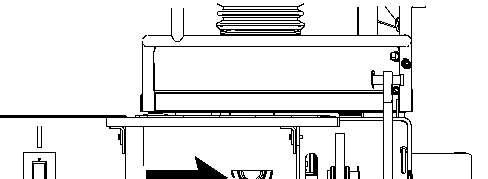

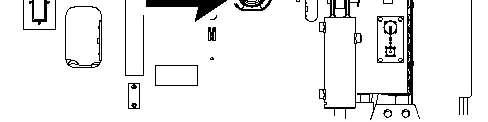

AugerConveyors-Lubricate
SMCS-6631-086
NOTICE
Alldailygreaselubricantshouldbeappliedattheendofeachmachine operationwhilethemachineisstillwarmandtheasphaltisstillsoftor notsetup.Failuretodosomayallowasphalttohardenaroundthe sealsandriskdamagingasealandleadtoprematurebearingfailure.
Lubricatethetwofittingsfortheoutsidebearings.
Note:Addlubricantonlyuntilexcesslubricantisobservedateachofthebearings.
Lubricatethetwofittingsfortheinsidebearings.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1901:45:35UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
BackupAlarm-Test
SMCS-7406-081

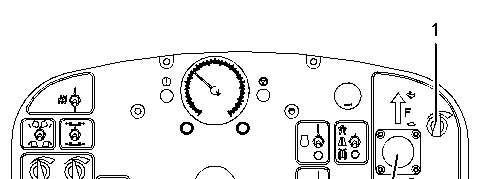

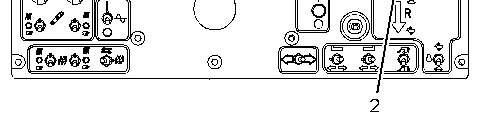

Illustration1g01132553
Starttheengine,andruntheengineatlowidle.Turnspeedpotentiometer(1)tothelowestsetting. Makesurethattheareabehindthemachineisclearofpersonnelandclearofobstacles. Slightly,movepropellever(2)totheREVERSEposition.
Thebackupalarmshouldsoundimmediately.Thebackupalarmshouldcontinuetosounduntil propelcontrollever(2)ismovedtotheNEUTRALpositionortotheFORWARDposition.
i02249956
Illustration2g01117860
Thebackupalarmisontherearofthemachine.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1922:19:16UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
Battery-Recycle
SMCS-1401-561
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved.
PrivateNetworkForSISLicensees.
i06543763
WedMar1922:19:26UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009 i01851175
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-040;1401-510;1402-040;1402-510
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.TurnthebatterydisconnectswitchtotheOFFposition.Removethekey.
3.Atthebatterydisconnectswitch,disconnectthenegativebatterycablethatisconnectedto theframe.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
4.Disconnectthenegativebatterycablefromtheterminalsofthebattery.
5.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.
6.Connectthenegativebatterycabletotheterminalsofthebattery.
7.Connectthenegativebatterycableatthebatterydisconnectswitch.
8.Installthekeyforthebatterydisconnectswitch.TurnthekeytotheONposition.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1922:19:37UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
Belt-Inspect/Adjust/Replace
SMCS-1397-510;1397-025;1397-040
Note:Thisengineisequippedwithabelttightenerthatautomaticallyadjuststhebelttothe correcttension.
1.Inspectthebeltforwearandforcracking.
2.Ifthebeltrequiresreplacement,performStep2.athroughStep2.c.
i02210838

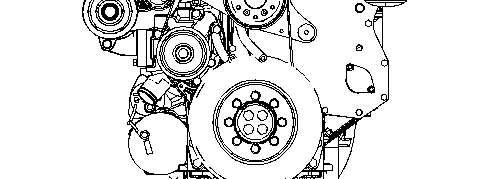

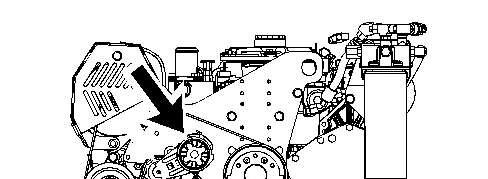

Illustration1g01116243
a.Turnthebelttensionerinordertoreleasethetensionfromthebelt.
b.Removethebelt.
c.Installanewbelt.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1922:20:27UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009

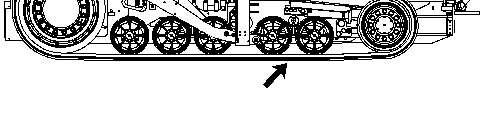

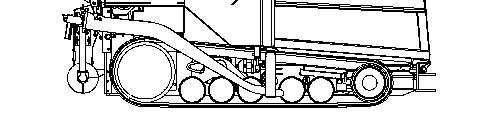

Belt(Mobil-tracSystem)-Check
SMCS-4198-535
VisuallyinspecttheMobil-TracSystemforwearordamage.Checkthetrackpadsandtheguide blocksforwear.Therearetwobelts.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. WedMar1922:20:38UTC+05302025
i02210898
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009 i02405880 Capacities(Refill)
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009
CircuitBreakers-Reset
SMCS-1420-529 NOTICE
Ifacircuitbreakerrequiresfrequentresetting,contactyourdealer.
Whenyouresetacircuitbreaker,usethefollowingreferencesforthecircuitbreakersinorderto findthecorrectbreaker.
CircuitBreakerReset-Pushinthe buttoninordertoreseteachcircuit breaker.Thebuttonwillremain depressedifthecircuitisworking properly.Checktheappropriate electricalcircuitifthebuttondoesnot stayreset.
Thecircuitbreakersarelocatedonthebackofthemainconsoleinthecenterofthemachine.
i02215785

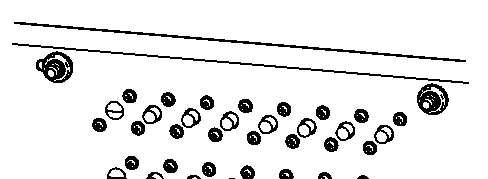

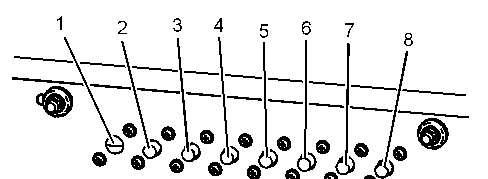

Illustration1g01118227
(1)Spare
(2)WorkLights
(3)Generator
(4)PumpfortheSpraySystem
(5)BlowerMotors
(6)Screed
(7)RightScreed
(8)LeftScreed
(9)Spare
(10)Horn (11)FDRSensor
(12)Grade
(13)Implement
(14)Display
(15)Propel
(16)Vibrator
Illustration2g01118250
(17)Alternator (18)MainBreaker (19)Start (20)Controller (21)Engine (22)Autoburner
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedMar1922:20:49UTC+05302025
Product:ASPHALTPAVER
Model:AP-1055DASPHALTPAVERA6P
Configuration:AP-1055D,BG-2455DSteelTrackAsphaltPaverA6P00001-UP(MACHINE)POWEREDBYC7Engine
OperationandMaintenanceManual
AP-1055DandBG-2455DAsphaltPavers
MediaNumber-KEBU7525-05PublicationDate-01/08/2009DateUpdated-18/08/2009 i02236273

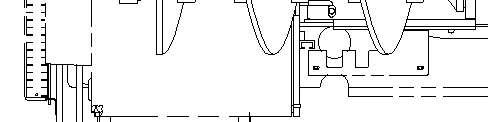

ConveyorDriveChains(Auger)-Adjust
SMCS-5620-025-CX
Personalinjurycanresultfromrotatingandmovingparts.Stayclearof allrotatingandmovingparts.
Neverattemptadjustmentswhilethemachineismovingortheengineis runningunlessotherwisespecified.
Themachinemustbeparkedonalevelsurfaceandtheenginestopped.
Attacha"DoNotOperate"orsimilarwarningtagtothestartswitch andcontrolsbeforeservicing,repairing,ormakingadjustmentstothe machine.

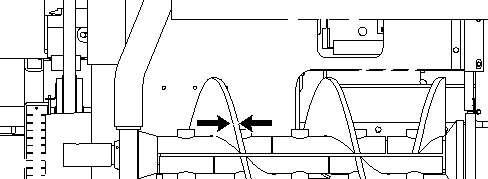

Illustration1g00934165
Tocheckthetensionoftheaugerconveyordrivechain,grabtheaugerwithbothhands.Rotatethe augerbackandforth.Iftheaugerrotatesmorethan19mm±5mm(0.75inch),thedrivechain needstobeadjusted.

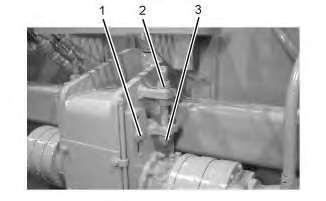

Illustration2g01127792
Note:Theadjustmentprocedureisusedforbothofthedrivechainsfortheaugerconveyor.
1.Loosenfourmountingbolts(1).
2.Loosenjamnut(2).
3.Turnadjustingnut(3)untiltheaugercanberotated13mm(0.50inch)to19mm(0.75 inch).
4.Tightenmountingbolts(1)andjamnut(2).
WedMar1922:20:59UTC+05302025
