Illustration 1
g02586257
1. Use Tooling (C) and a suitable lifting device in order to lower the engine, torque converter, transmission and output transfer gears (41) into place. The weight of the engine and transmission is approximately 3389 kg (7472 lb).
Illustration 2
g02590258

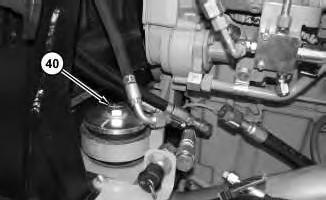

2. With Tooling (C) and the suitable lifting device still supporting the engine and transmission install bolt (40). Tighten bolt (40 ) to a torque of 900 ±100 N·m (664 ± 74 lb ft). Repeat for the opposite side.
3

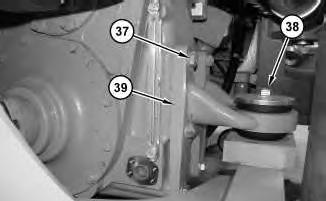

3. Use two people in order to install mount assembly (39). The weight of mount assembly (39) is approximately 25 kg (55 lb). Install bolts(37) and (38). Tighten bolt (38) to a torque of 900 ± 100 N·m (664 ± 74 lb ft). Repeat for the opposite side.
4
Illustration
g02586180
Illustration
g02585840
Illustration 5 g02586181
Illustration 6 g02586197
Illustration 7 g02586257

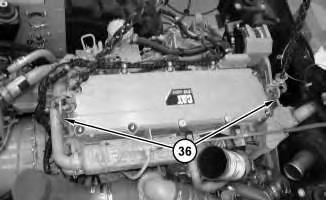

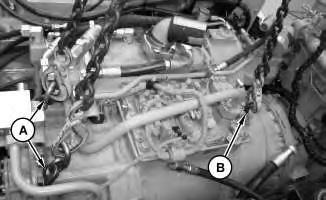

4. Remove Tooling (C). Disconnect the suitable lifting device from lift points (36). Disconnect the suitable lifting device from Tooling (B) and Tooling (A). Remove Tooling (B) and Tooling (A) .
Illustration 8
g02590380

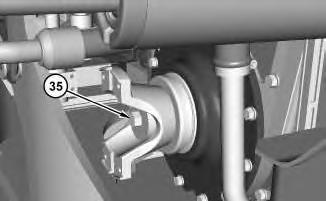

5. Install the yoke and bolt (35). Install bolt (35) to the following torque 475 ± 60 N·m (350 ±44 lb ft).
Illustration 9
g02585578
Illustration 10
g02585403
6. Install transmission oil fill tube assembly (34). Connect transmission oil fill tube assembly (34) .
Illustration 11
7. Connect hose assembly (33) to the steering pump.
Illustration 12
8. Connect cable assemblies (32) to the electronic starter motor.
g02585397
g02585336
13
14
Illustration
g02585116

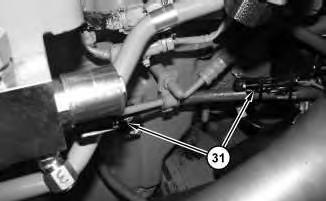

9. Connect harness assemblies(31) .
Illustration
g02584176

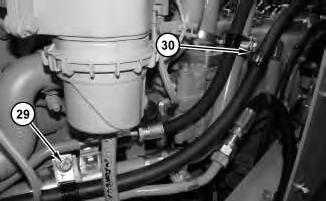

10. Install clips (29) and (30) .
Illustration 15 g02584116
11. Connect clamp (28) .
Illustration 16
12. Connect tube assemblies (27) .
13. Connect harness assembly (26) .

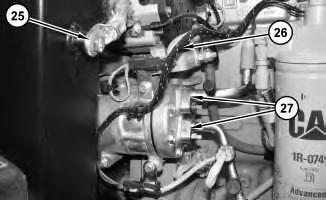

14. Connect ground strap (25) .
Illustration 17
15. Connect harness assembly (23) .

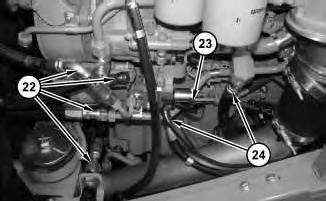

16. Connect hose assemblies(22) and (24) .
g02583197
g02583917
18

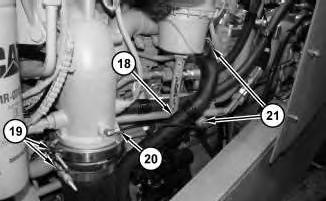

17. Connect hose (18). Connect clamps(21). Connect hose assembly (20). Connect clamps (19) .
19
Illustration 20
Illustration
g02595296
Illustration
g02581222
g02581197

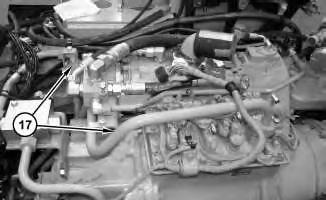

18. Install tube assemblies (17). Connect tube assemblies (17) to hose assemblies (16) .
Illustration 21
g02580959
19. Use a suitable lifting device in order to install secondary steering pump (9). The weight of secondary steering pump (9) is approximately 38 kg (84 lb). Install nuts(15) .
Illustration 22
g02580898
20. Install secondary steering valve (12) and bolts (13). Connect hose assemblies (14) .

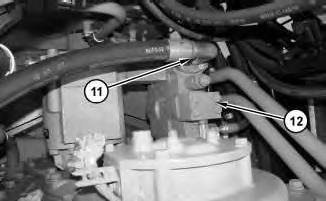

21. Connect hose assembly (11) to secondary steering valve (11) .
22. Connect hose assembly (10) to secondary steering pump (9) .
Illustration 23
g02580877
Illustration 24
g02580740
Illustration 25
23. Reposition hose assembly (7) and install clamps (8) .
26

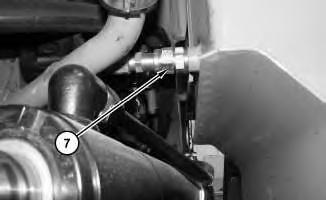

24. Connect hose assembly (7) to the fuel tank.
Illustration 27
25. Reposition harness assemblies(6) and connect harness assemblies (6) .
g02580657
Illustration
g02580638
g02580576
28

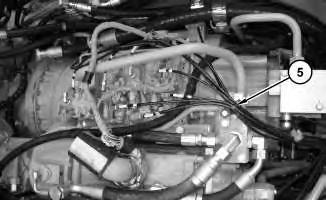

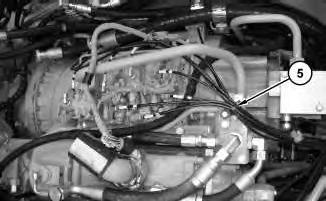

26. Connect all ten hose assemblies (5) and the cable strap assemblies.
29
27. Reposition hoses (4) through the sound barrier (3).
Illustration
g02580317
Illustration
g02580259
Illustration 30

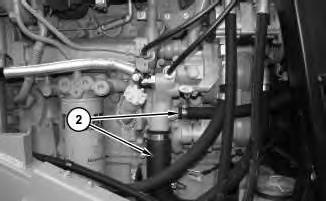

28. Connect hoses (2) .
31
29. Connect hose (1) to the transmission oil cooler.
30. Fill the power train oil. Refer to Operation and Maintenance Manual, "Power Train Oil - Change" for the correct filling procedures.
End By:
a. Install the steering valve.
b. Install the center drive shaft.
c. Install the rear drive shaft.
d. Install the power train guard.
e. Install the crankcase guard.
f. Install the clean emissions module.
g. Install the hydraulic tank.
Product: WHEEL LOADER
Model: 980K HLG WHEEL LOADER NEP
Configuration: 980K Wheel Loader High Lift Grapple NEP00001-UP (MACHINE) POWERED BY C13 Engine
Disassembly and Assembly
980K Wheel Loader C13 Engine Supplement Media Number -KENR6443-02
i04397916
Engine, Torque Converter, Transmission and Output Transfer
Gears - Remove
SMCS - 1006-011
Removal Procedure
Table 1
Required Tools
Start By:
A. Remove the hydraulic tank.
B. Remove the clean emissions module.
C. Remove the crankcase guard.
D. Remove the power train guard.
E. Remove the rear drive shaft.
F. Remove the center drive shaft.
G. Remove the steering valve.
1. Drain the power train oil. Refer to Operation and Maintenance Manual, "Power Train Oil - Change" for the correct draining and filling procedures.
2. Turn the battery disconnect switch into the OFF position.
1

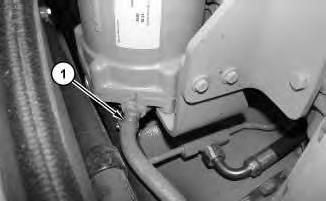

3. Disconnect hose (1) from the transmission oil cooler.
Illustration 2
4. Disconnect hoses (2) .
Illustration
g02580056
g02580102
Illustration 3

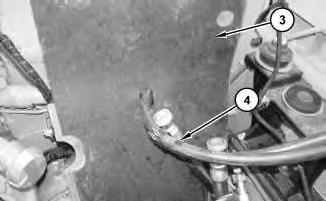

5. Pull hoses (4) through sound barrier (3). Remove sound barrier (3) .
Illustration 4
6. Disconnect all ten hose assemblies (5) and the cable strap assemblies from the transmission.
g02580259
g02580317
Illustration 5
g02580576

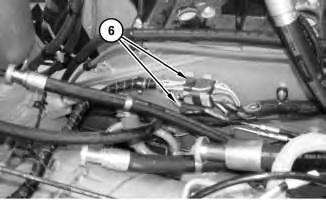

7. Disconnect harnessassemblies(6) and reposition out of the way.
Illustration 6
g02580638
8. Disconnect hose assembly (7) from the fuel tank.
Illustration 7
g02580657

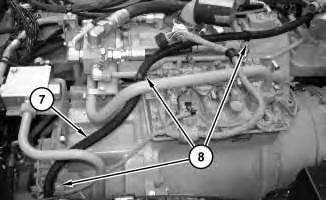

9. Disconnect clamps (8) and reposition hose assembly (7) .
8

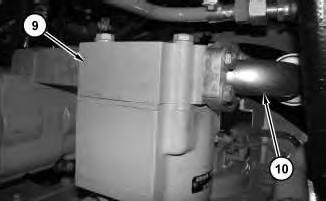

10. Disconnect hose assembly (10) from secondary steering pump (9) .
9
11. Disconnect hose assembly (11) from secondary steering valve (12) .
Illustration
g02580740
Illustration
g02580877
Illustration 10
g02580898

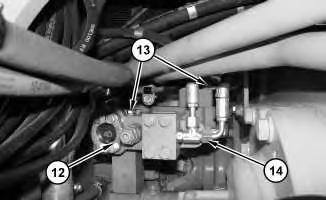

12. Disconnect hose assemblies(14) from secondary steering valve (12). Remove bolts (13) and secondary steering valve (12) .
Illustration 11
g02580959

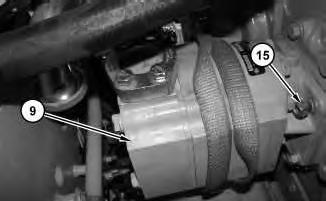

13. Attach a suitable lifting device to secondary steering pump (9). The weight of secondary steering pump (9) is approximately 38 kg (84 lb). Remove nuts (15) and secondary steering pump (9) .
12
Illustration
g02581197
13
14. Disconnect hose assemblies(16) from tube assemblies(17). Remove tube assemblies (17) .
14
15. Disconnect clamps (19). Disconnect hose assembly (20). Disconnect clamps (21) and hose (18) .
Illustration
g02581222
Illustration
g02595296
Illustration 15
16. Disconnect hose assemblies(22) and (24). Disconnect harness assembly (23) .
Illustration 16
17. Disconnect ground strap (25).
18. Disconnect harnessassembly (26) .
19. Disconnect tube assemblies (27) .
Illustration 17 g02584116

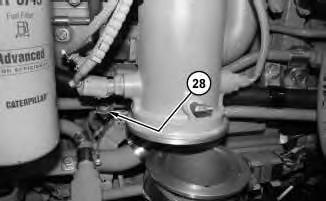

20. Disconnect clamp (28) .
18
21. Remove clips (29) and (30) .
19
22. Disconnect harnessassemblies(31) .
Illustration
g02584176
Illustration
g02585116
Illustration 20 g02585336

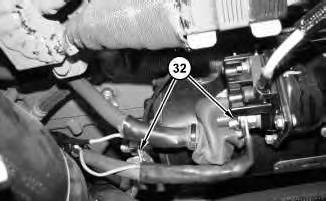

23. Disconnect cable assemblies (32) from the electronic starter motor.
Illustration 21
g02585397

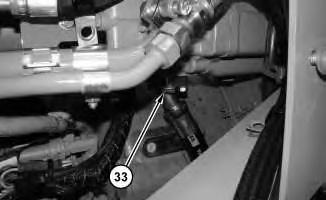

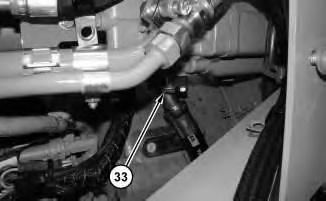

24. Disconnect hose assembly (33) from the steering pump.
Illustration 22
g02585403
23

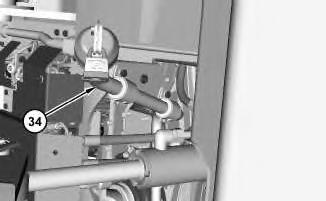

25. Disconnect transmission oil fill tube assembly (34). Remove transmission oil fill tube assembly (34)
24

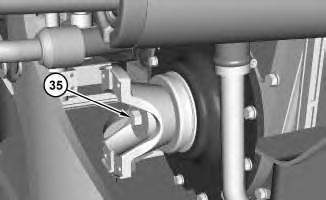

26. Remove bolt (35) and the yoke.
Illustration
g02585578
Illustration
g02590380
