PARTS MANUAL
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c202929
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1P3322 AIR CONDITIONER GROUP Part 2 of 3
Part of 1V7892 Air Conditioner Group listed on Page 160G
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1P-3322 AIR CONDITIONER GP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c157375
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1P3322 AIR CONDITIONER GROUP Part 3 of 3
Part of 1V7892 Air Conditioner Group listed on Page 160G
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1P-3322 AIR CONDITIONER GP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c217104
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1P3322 AIR CONDITIONER GROUP Part 1 of 3
Part of 1V7892 Air Conditioner Group listed on Page 160G
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1P-3322 AIR CONDITIONER GP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
This is the sample of the manual click on the download link for complete manual
For some reason if link does not work download this pdf and then click
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1
955L TRAXCAVATOR Media Number - UEG0700S-00 | Publication Date - 01/06/1983 |
Updated - 08/10/2001
1P3323 CONTROL CONSOLE GROUP Part of 1V7892 Air Conditioner Group
ENTIRE GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name

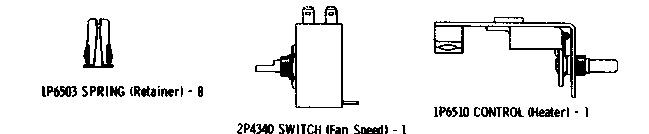

1P-6503 8 SPRING (Retainer)

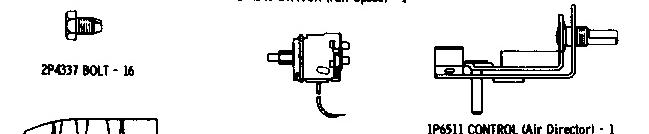

2P-4337 16 BOLT

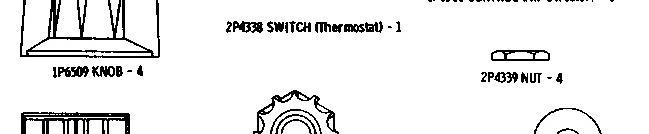

1P-6509 4 KNOB

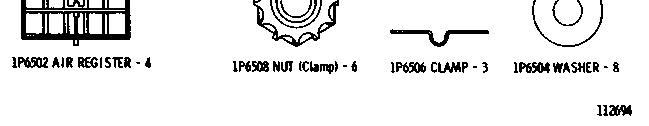

1P-6502 4 AIR REGISTER
2P-4340 1 SWITCH (Fan Speed)
2P-4338 1 SWITCH (Thermostat)
1P-6508 6 NUT (Clamp)
1P-6510 1 CONTROL (Heater)
1P-6511 1 CONTROL (Air Director)
2P-4339 4 NUT
1P-6506 3 CLAMP
1P-6504 8 WASHER
SMCS Codes
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 13 09:58:12 UTC+0700 2025
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c209039
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001 1P3324 RETURN AIR CONSOLE GROUP
Part of 1V7892 Air Conditioner Group listed on Page 160G
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1P-3324 RETURN AIR CONSOLE GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c208034
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V635 SOUND SUPPRESSION GROUP Part 2 of 3
Part of 9K1561 Sound Suppression Arrangement listed on Page 156B
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1V-0635 SOUND SUPPRESSION GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c203666
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V635 SOUND SUPPRESSION GROUP Part 3 of 3
Part of 9K1561 Sound Suppression Arrangement listed on Page 156B
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1V-0635 SOUND SUPPRESSION GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c151678
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V635 SOUND SUPPRESSION GROUP Part 1 of 3
Part of 9K1561 Sound Suppression Arrangement listed on Page 156B
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1V-0635 SOUND SUPPRESSION GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V737 AIR CONDITIONER AND HEATER ARRANGEMENT
Serial No. 85J7634-Up. FOR USE WITH 9K9521 CAB ARRANGEMENT & 9K7365 ROLL-OVER PROTECTIVE STRUCTURE GROUP SHOWN ON PAGES 156A & 157
AN ATTACHMENT
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name
Grp NPR 1V-0737 AIR CONDITIONER AND HEATER ARRANGEMENT
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
NPR Y 6N-0240 1 REFRIGERANT COMPRESSOR ARRANGEMENT
NPR Y 1V-6687 1 AIR CONDITIONER WIRING GROUP
NPR Y 1V-6689 1 AIR CONDITIONER LINES GROUP
NPR Y 1V-6981 1 CAB HEADLINER GROUP
NPR Y 1V-7892 1 AIR CONDITIONER GROUP
NPR 2H-3855 2 BOLT
NPR 5P-1076 2 WASHER
NPR 1V-6622 1 GROUND STRAP ASSEMBLY
Key: Y - SEPARATE ILLUSTRATION
SMCS Codes
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 13 09:53:52 UTC+0700 2025
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c148323
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
GAUGES AND DASH (1V943 N/S)
Serial No. 85J7634-Up
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 1V-0943 GAUGES AND DASH
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c147505
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V2348 BASIC SEAT GROUP
Serial No. 85J7235-Up
Part of Seat Cushions shown on Page 150D
ENTIRE GROUP
INDIVIDUAL PARTS Ref. Qty. NPR Note
SMCS Codes
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Thu Mar 13 01:53:43 UTC+0700 2025
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c228599
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001
1V3079 BASIC WIPER GROUP 24 Volt Replaced by 1V4358 shown on Page 150C
Part of 1V4452 Windshield Wiper Group shown on Page 150B 9K682 Shaft and Link parts are shown on Page 150C
ENTIRE GROUP
INDIVIDUAL PARTS Req.
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c155819
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001

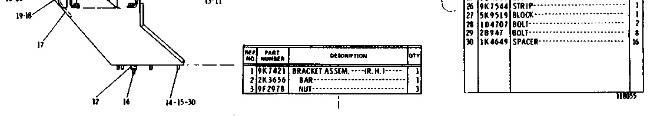

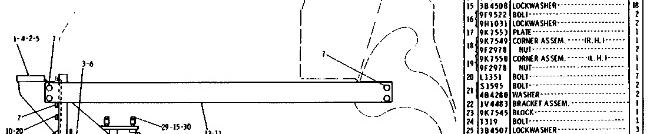

1V3334 ROLL-OVER PROTECTIVE STRUCTURE MOUNTING GROUP Factory Installation--Type 2
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name
Grp NPR 1V-3334 ROLL-OVER PROTECTIVE STRUCTURE MOUNTING GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Mar 13 09:51:44 UTC+0700 2025
Previous Screen
Product: TRACK LOADER
Model: 955K TRACK LOADER 85J
Configuration: 955L TRAXCAVATOR 85J06247-09509 (MACHINE)
GRAPHIC #1 c118055
955L TRAXCAVATOR
Media Number - UEG0700S-00 | Publication Date - 01/06/1983 | Date Updated - 08/10/2001

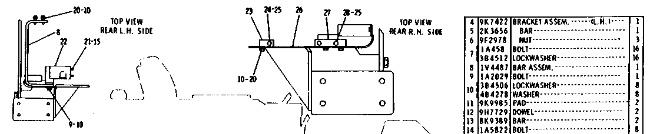

1V3334 ROLL-OVER PROTECTIVE STRUCTURE MOUNTING GROUP--Factory Installation--Type 1
ENTIRE GROUP
INDIVIDUAL PARTS
This is the sample of the manual click on the download link for complete manual
For some reason if link does not work download this pdf and then click
