Product: WHEEL LOADER

Model: 950G WHEEL LOADER 5MW

Configuration: 950G WHEEL LOADER 5MW00701-UP (MACHINE) POWERED BY 3126 ENGINE

Disassembly and Assembly

950G and 962G Wheel Loaders and IT62G Integrated Toolcarrier Machine Systems

i01640919

Ride Control Accumulator - Remove and Install

SMCS - 5077-010

Removal Procedure

Start By:

A. Connect the steering frame lock. Refer to Disassembly and Assembly, "Steering Frame LockSeparate and Connect".

B. Release the pressure in the hydraulic system. Refer to Disassembly and Assembly, "System Pressure - Release".

NOTICE

Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, "Caterpillar Tools and Shop Products Guide" for tools and supplies suitable to collect and contain fluids on Caterpillar products.

Dispose of all fluids according to local regulations and mandates.

Personal injury can result from hydraulic oil pressure and hot oil.

Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system.

Make sure all of the attachments have been lowered, oil is cool before removing any components or lines. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.

Personal injury can result from the sudden release of high pressure oil.

Be sure the engine has been shut off for a minimum of five minutes to be sure that the accumulator pressure is zero.

The accumulator is filled with dry nitrogen. Do not loosen or remove the valve or cap from the top of the accumulator. A purge screw at the bottom of the accumulator can be used to release the pressure that is left in the system.

Note: Put identification marks on the hose assembly and plug the hose assembly. This helps to prevent fluid loss and this helps to keep contaminants from entering the system.

Note: The ride control accumulator is located inside the front loader frame.

Illustration 1

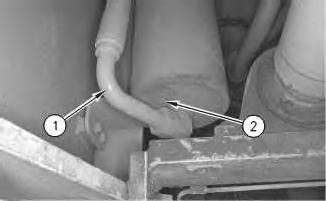

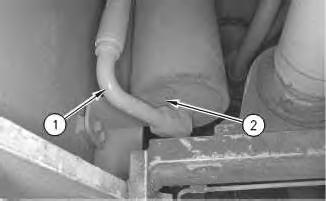

1. Disconnect hose assembly (1) .

2. Remove two bolts (2) .

Illustration 2

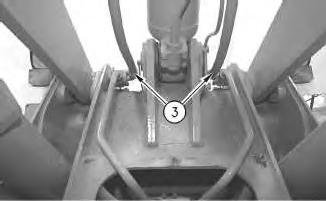

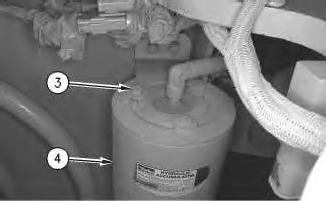

3. Remove bolts (3) .

4. Use two persons in order to remove ride control accumulator (4). The weight of the ride control accumulator is 34 kg (75 lb).

Installation Procedure

Illustration 3

1. Use two persons in order to install ride control accumulator (4). The weight of the ride control accumulator is 34 kg (75 lb).

2. Install bolts (3) .

Illustration 4

3. Install two bolts (2) .

g00354935

4. Connect hose assembly (1) . End By: Separate the steering frame lock. Refer to Disassembly and Assembly, "Steering Frame Lock - Separate and Connect".

Product: WHEEL LOADER

Model: 950G WHEEL LOADER 5MW

Configuration: 950G WHEEL LOADER 5MW00701-UP (MACHINE) POWERED BY 3126 ENGINE

Disassembly and Assembly 950G and 962G Wheel Loaders and IT62G Integrated Toolcarrier Machine Systems

Main Control Valve and Mounting Plate - Install

SMCS - 5051-012

S/N - BDP1-UP

Installation Procedure

Table 1

B 8S-9906 Ratchet Puller 1

C 8S-9906 Ratchet Puller 1

Note: The main control valve and mounting that is used in machines with Pilot Hydraulic systems and machines with Electro-Hydraulic controls are similar. Therefore, both assemblies can be installed in the same manner.

Illustration 1

Typical Example

g00352846

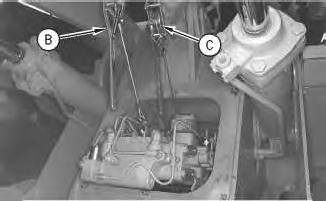

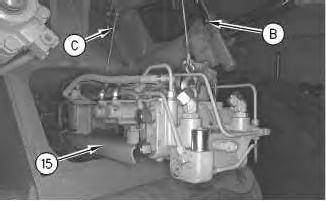

1. Install Tooling (B) and Tooling (C) on the main control valve, as shown. The combined weight of the main control valve and of mounting plate (15) is 170 kg (375 lb).

Note: Use Tooling (B) in order to control the rearward movement.

Note: Use Tooling (C) in order to control the upward movement.

Illustration 2

Typical Example

2. Install the plate assembly so that the mounting plate rests on the front loader frame, as shown.

Illustration 3

Typical Example

g00352844

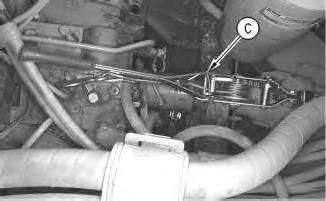

3. Reposition Tooling (C) in order to support the rear of the mounting plate, as shown.

Illustration 4

Typical Example

g00352843

4. Use Tooling (B) and Tooling (C) to install the main control valve and mounting plate (15) in the original position.

Illustration 5

Typical Example

Rear Mounting Bolts

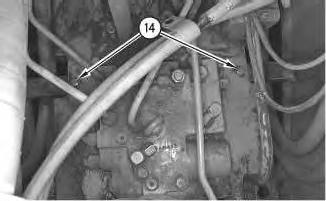

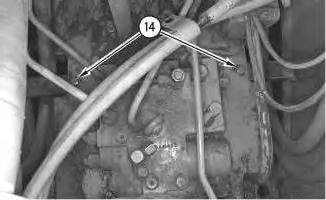

5. Install four mounting bolts (14) .

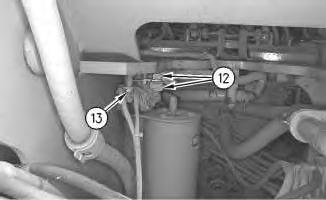

Illustration 6

Typical Example

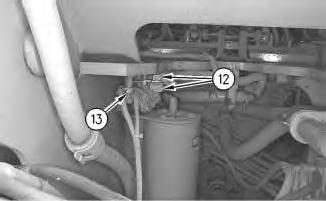

6. Install the wiring clip and bolt (13) .

7. Connect two electrical connectors (12) .

Illustration 7 g00755814

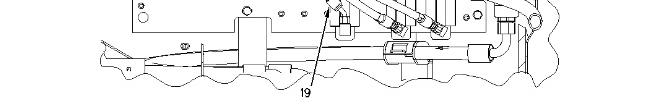

8. Connect pilot hoses (18) and (19) .

Illustration 8 g00352839

Typical Example

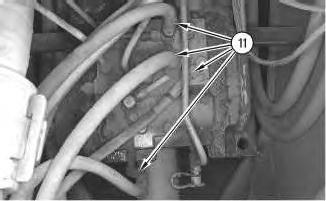

9. Connect four pilot hoses (11) to the pilot valve.

Illustration 9

Typical Example

Rear View

g00352837

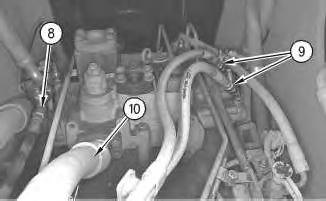

10. Connect hydraulic hose assembly (10), pilot hose (8), and pilot hoses (9) .

Illustration 10

Typical Example

g00757382

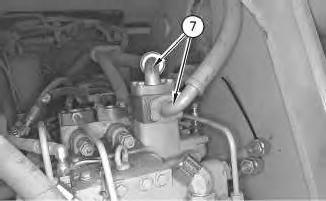

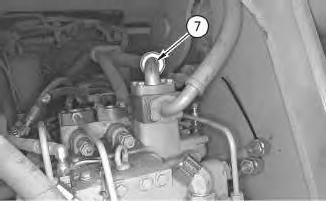

11. Connect two hose assemblies (7) to the main control valve assembly.

Illustration 11

Typical Example

g00352835

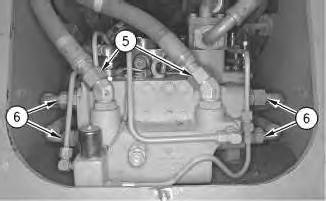

12. Connect two hydraulic hose assemblies (5) to the diverter valve.

13. Install four hydraulic hose assemblies (6) .

Illustration 12

Typical Example

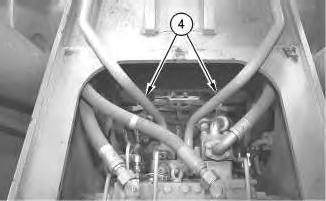

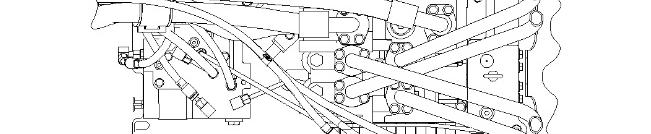

14. Install hydraulic tube assemblies (4) .

g00352834

Illustration 13 g00756999

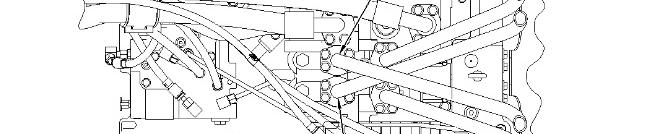

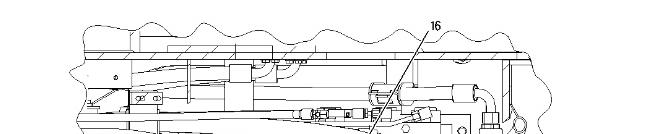

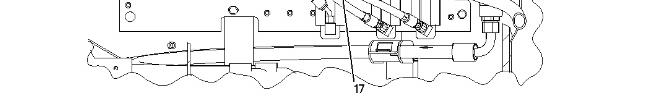

15. Install hydraulic tube assemblies (16) and (17) .

Illustration 14 g00352832

Typical Example

16. Install two hydraulic hose assemblies (3) .

Illustration 15

Typical Example

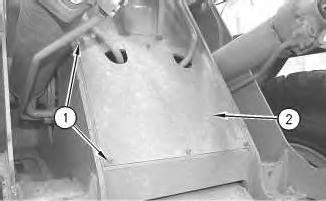

17. Install front guard (2) and six nuts (1) .

Illustration 16

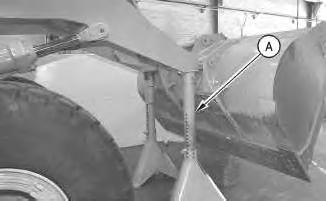

18. Use the hydraulics to raise the loader arms. Remove Tooling (A) .

End By: Separate the steering frame lock. Refer to Disassembly and Assembly, "Steering Frame LockSeparate and Connect".

Copyright 1993 - 2022 Caterpillar Inc. All Rights Reserved.

Network For SIS Licensees. Mon Sep 12 11:00:24 UTC+0530 2022

Product: WHEEL LOADER

Model: 950G WHEEL LOADER 5MW

Configuration: 950G WHEEL LOADER 5MW00701-UP (MACHINE) POWERED BY 3126 ENGINE

Disassembly and Assembly

950G and 962G Wheel Loaders and IT62G Integrated Toolcarrier Machine Systems

Main Control Valve and Mounting Plate - Install

SMCS - 5051-012

S/N - 2JS1-UP

S/N - 3BS1-UP

S/N - 3JW1-UP

S/N - 4BS1-UP

S/N - 4PW1-UP

S/N - 5AS1-UP

S/N - 5FW1-UP

S/N - 5MW1-UP

S/N - 5RS1-UP

S/N - 6EW1-UP

S/N - 6HW1-UP

S/N - 6NS1-UP

S/N - 7BW1-UP

S/N - 8JW1-UP

i01758445

Installation Procedure

Table 1 Required Tools

B 8S-9906 Ratchet Puller 1

C 8S-9906 Ratchet Puller 1

Note: The main control valve and mounting that is used in machines with Pilot Hydraulic systems and machines with Electro-Hydraulic controls are similar. Therefore, both assemblies can be installed in the same manner.

1

1. Install Tooling (B) and Tooling (C) on the main control valve, as shown. The combined weight of the main control valve and of mounting plate (15) is approximately 170 kg (375 lb).

Note: Use Tooling (B) in order to control the rearward movement.

Note: Use Tooling (C) in order to control the upward movement.

2

2. Install the plate assembly so that the mounting plate rests on the front loader frame, as shown.

3

3. Reposition Tooling (C) in order to support the rear of the mounting plate, as shown.

Illustration 4 g00352843

4. Use Tooling (B) and Tooling (C) to install the main control valve and mounting plate (15) in the original position.

Illustration 5

Rear mounting bolts

5. Install mounting bolts (14) .

g00352842

Illustration 6

6. Install the wiring clip and bolt (13) .

7. Connect electrical connectors (12) .

g00352841

7

8. Connect pilot hose assemblies (11) to the pilot valve.

8

Rear View

Illustration 9

g00352836

10. Connect hose assemblies (7) to the main control valve assembly.

Illustration 10

g00352835

11. Connect hydraulic hose assemblies (5) to the diverter valve.

12. Install hydraulic hose assemblies (6) .

11

13. Install hydraulic tube assemblies (4) .

12

14. Install hydraulic hose assemblies (3) .

Illustration 13

15. Install front guard (2) and nuts (1) .

Illustration 14

16. Use the hydraulics to raise the loader arms. Remove Tooling (A) .

End By: Separate the steering frame lock. Refer to Disassembly and Assembly, "Steering Frame Lock - Separate and Connect".

Copyright 1993 - 2022 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.

Mon Sep 12 11:00:00 UTC+0530 2022

Product: WHEEL LOADER

Model: 950G WHEEL LOADER 5MW

Configuration: 950G WHEEL LOADER 5MW00701-UP (MACHINE) POWERED BY 3126 ENGINE

Disassembly and Assembly

950G and 962G Wheel Loaders and IT62G Integrated Toolcarrier Machine Systems

Diverter Valve (Ride Control) - Assemble

SMCS - 5066-016

Assembly Procedure

1. Check the condition of all O-ring seals. If any O-ring seals are worn or damaged, use new parts for replacement. Install any plugs or any fittings that were removed.

Illustration 1 g00339567

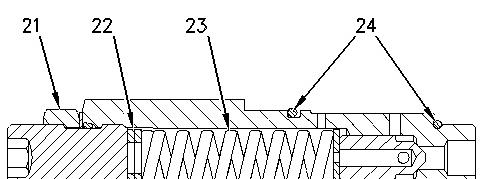

2. Assemble relief valve (18) .

a. Install valve (28), plate (27), spring (23) and shim (22) in the valve body.

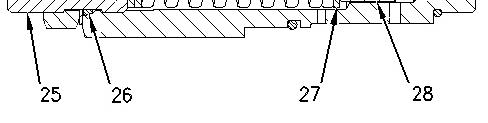

b. Install O-ring seal (26) on retainer assembly (25). Install retainer assembly (25) and tighten locknut (21) to a torque of 50 ± 7 N·m (37 ± 5 lb ft).

c. Install O-ring seals (24) on the valve body.

Illustration 2

g00339566

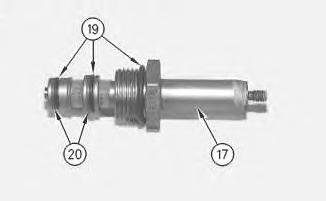

3. Install O-ring seals (19) and backup rings (20) on cartridge assembly (17) .

Illustration 3

g00339565

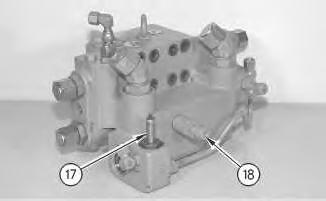

4. Install cartridge assembly (17). The installation torque for cartridge assembly (17) is 108 ± 7 N·m (80 ± 5 lb ft).

5. Install relief valve (18). The installation torque for relief valve (18) is 65 ± 5 N·m (48 ± 4 lb ft).

4

6. Install coil assembly (16), the washer and locknut (15). Tighten the locknut to a torque of 2.85 ± 0.05 N·m (25.22 ± 0.44 lb in).

7. Install electrical connector (14) in the bracket.

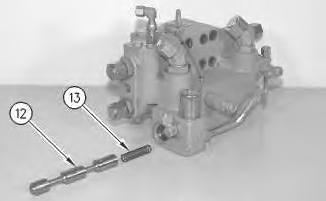

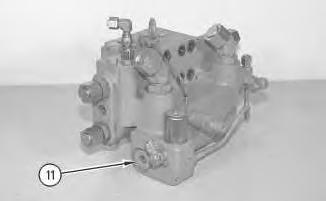

Illustration 5
