Product: ARTICULATED TRUCK
Model: 745 ARTICULATED TRUCK 3F6
Configuration: 745 Articulated Truck 3F600001-UP (MACHINE) POWERED BY C18 Engine
Disassembly and Assembly
740 EJ and 745 Articulated Truck Machine System
Media
i06258935
Accelerator - Remove and Install
SMCS - 1265-010-P9
Removal Procedure Table 1 Required Tools
Illustration 1
g03731950

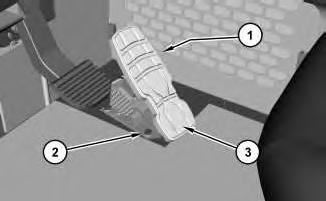

1. Disconnect harness assembly (1). Remove bolts (2) and remove accelerator assembly (3).

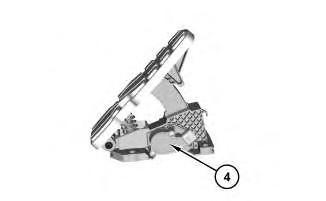

2. Remove position sensor (4).
Installation Procedure
1. Install accelerator assembly (3) in the reverse order of removal.
a. Apply Tooling (A) to the threads of bolts (2).
Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Jul 28 09:21:12 UTC+0530 2023
Product: ARTICULATED TRUCK
Model: 745 ARTICULATED TRUCK 3F6
Configuration: 745 Articulated Truck 3F600001-UP (MACHINE) POWERED BY C18 Engine
Disassembly and Assembly
740 EJ and 745 Articulated Truck Machine System Media
Air Conditioner and Heater - Remove and Install
SMCS - 7309-010
Removal Procedure
Personal injury can result from contact with refrigerant.
Contact with refrigerant can cause frost bite. Keep face and hands away to help prevent injury.
Protective goggles must always be worn when refrigerant lines are opened, even if the gauges indicate the system is empty of refrigerant.
Always use precaution when a fitting is removed. Slowly loosen the fitting. If the system is still under pressure, release it slowly in a well ventilated area.
Personal injury or death can result from inhaling refrigerant through a lit cigarette.
Inhaling air conditioner refrigerant gas through a lit cigarette or other smoking method or inhaling fumes released from a flame contacting air conditioner refrigerant gas, can cause bodily harm or death.
Do not smoke when servicing air conditioners or wherever refrigerant gas may be present.
Use a certified recovery and recycling cart to properly remove the refrigerant from the air conditioning system.
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
Personal injury can result from hot coolant, steam and alkali.
At operating temperature, engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot coolant or steam. Any contact can cause severe burns.
Remove cooling system pressure cap slowly to relieve pressure only when engine is stopped and cooling system pressure cap is cool enough to touch with your bare hand.
Do not attempt to tighten hose connections when the coolant is hot, the hose can come off causing burns.
Cooling System Coolant Additive contains alkali. Avoid contact with skin and eyes.
1. Turn the battery disconnect switch to the off position.
2. Recover the refrigerant. Refer to Service Manual, SENR5664, "All Products Air Conditioning and Heating Systems with R134a for All Caterpillar Machines" for the recovery and charging procedures. Refer to Special Publication, NENG2500, "Air Conditioning Tools" for the correct tools.
3. Drain the Coolant. Refer to Operation and Maintenance Manual, "Cooling System Coolant (ELC) - Change" for the correct draining procedures.
Illustration 1
g06198206

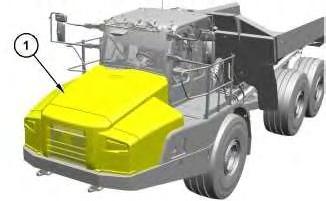

4. Raise hood group (1). Refer to Operation and Maintenance Manual, "Hood Control" for the correct procedure.
Illustration 2

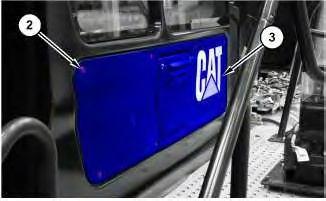

5. Remove bolts (2) and panel (3).
g06227367
Illustration 3

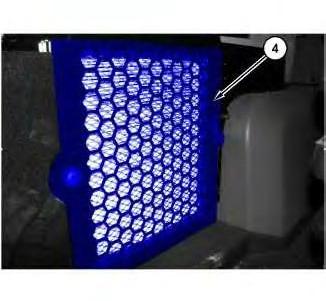

6. Remove cab inner filter (4).
g06227428
4

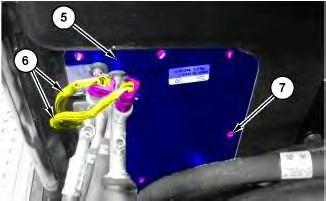

7. Disconnect harness assemblies (6). Remove bolts (7) and cover (5).
5

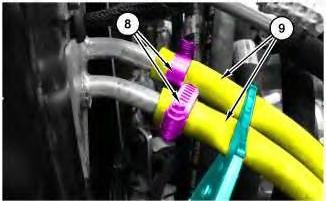

8. Use a suitable Tooling to clamp hoses (9). Loosen clamps (8) and disconnect hoses (9).
6

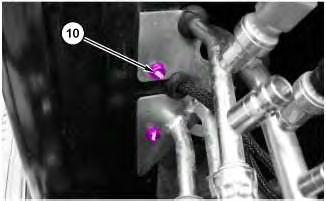

9. Remove bolts (10).
10. Remove nut (11) and disconnect hose assembly (12).
8

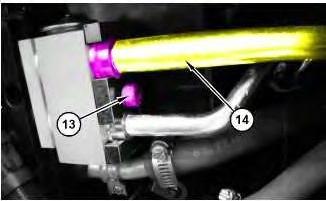

11. Remove bolt (13) and disconnect tube assemblies (14).
9

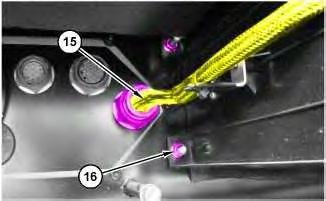

12. Disconnect harness assembly (15).
13. Remove nuts (16).
Illustration 10
Illustration 11

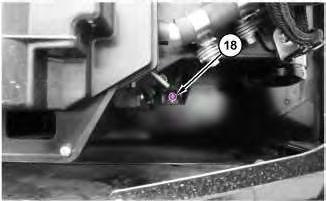

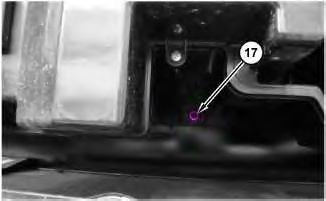

14. Remove nut (17) and nut (18).
Illustration 12

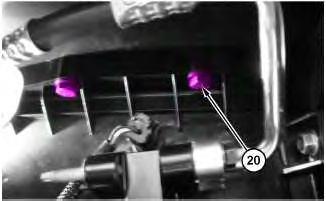

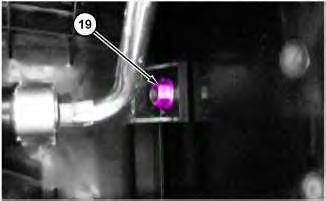

Remove nut (19). Remove bolts (20).

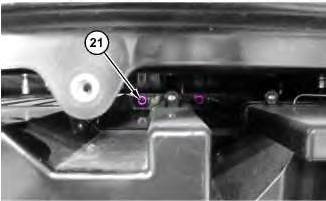

14
15

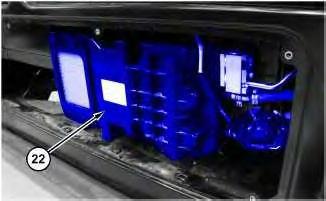

17. Use two people to remove air conditioner and heater assembly (22). The weight of air conditioner and heater assembly (22) is approximately 22 kg (48 lb).
