Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-06PublicationDate-01/06/2015DateUpdated-09/01/2017
Foreword
LiteratureInformation
s00037320

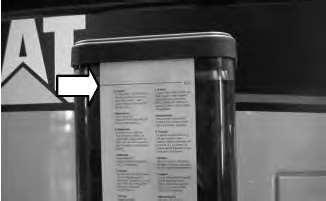

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified inthemaintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.
CertifiedEngineMaintenance
Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
CatProductIdentificationNumber
EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:
This is the sample of the manual if you need complete manual Click Here to download
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1102:09:36UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
AftercoolerCore-Inspect/Clean
SMCS-1064-571
Personalinjurycanresultfromairpressure.
Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.
Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.
i05592910

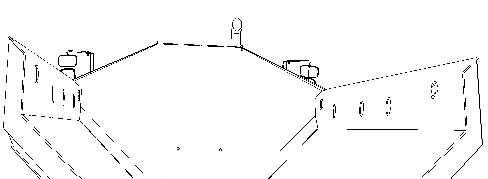

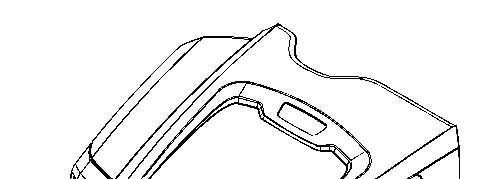

Illustration1g03486517 Raisethehood.RefertoOperationandMaintenanceManual,"HoodControl".

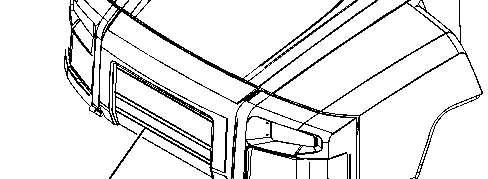

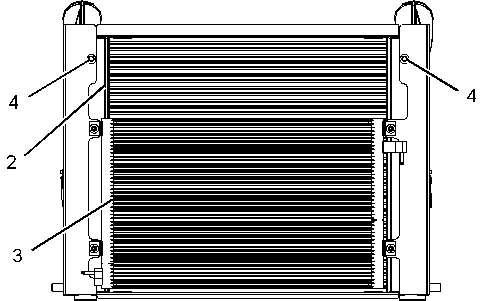

Illustration2g03550936 1.Removefourboltsfromgrill(1).
2.Removegrillinordertoaccesstheaftercoolercore(2).
3.Theairconditionercondenser(3)ishingedandcanbeloweredbyremovingthetwobolts (4)toprovidebetteraccess.
Inspecttheaftercoolercoreandcleantheaftercoolercore.Youcanusecompressedair,high -pressurewater,orsteamtoremovedustandotherdebrisfromtheaftercoolercore. However,theuseofcompressedairispreferred.
4.Raiseairconditionercondenser(3)andinstalltowbolts(4).
5.Installgrillandtightenfourbolts.Lowerthehood.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:48:40UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
i06891205 AutomaticLubricationFillerFilter-Clean-Autolube-If Equipped
SMCS-7540-070-HR

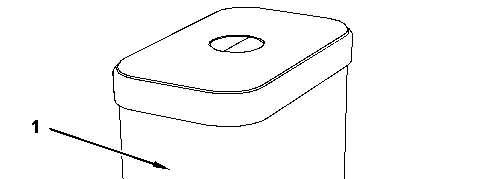

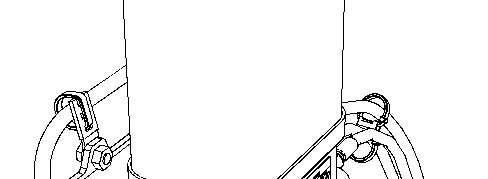

Illustration1g02494037
(1)Reservoir (2)DustCap (3)FillerTubeAssembly
1.Removedustcap(2)fromreservoir(1).
2.Cleanfillertubeassembly(3)andthecouplingonthefillertubeassembly.
3.Removefillertubeassembly(3)andthecoupling.
4.Removethegreasefittingfromthefilterandcleanthefilter.
5.Cleanthefilterwithsolventandcompressedair.Checkthefilterforcracks.Ifanycracks exist,replacethefilter.
6.Replacethegreasefittinginthefilter.
7.Fillthefilterwithgrease.
8.Installthefilter.
9.Installthefilterassemblyontofillertubeassembly(3).
10.Installfillertubeassembly(3)anddustcap(2).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:48:53UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
AutomaticLubricationGreaseTank-Fill-IfEquipped
SMCS-7540-544-TNK
i02695981
IftheyellowLEDonthesignallampisilluminated,theminimumgreaselevelinthereservoirhas beenreached.
•Ensurethatthefillerhoseisprimedwithgreaseinordertopreventairfrombeing introducedinthegreasereservoir.

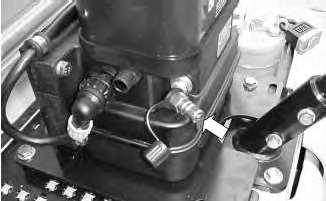

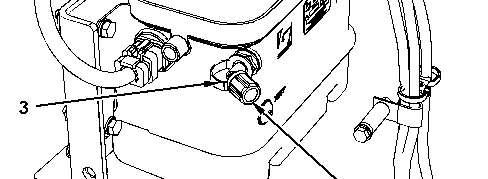

Illustration1g01074471
Locationofthecouplingonthelubricationpump
•Removethedustcapfromthecouplingforthefiller.
•Carefullycleanthecouplingforthefillerandthecouplingonthefillerhose.Thecoupler forthefillerhoseissuppliedwitheachAutolubesystem.
•Fixthefillerhoseonthecouplingforthefiller.
Illustration2g01076025
Themaximumlevelmarkonthelubricationpump
•Fillthereservoiruptothemaximumlevelthatisindicatedonthereservoir.
•Removethefillerhoseandfitthedustcap.
•Placethefillerhosebackinthehose'sproperplaceinordertoensurethatthecouplingof thefillerhoseremainsclean.
Note:Every500servicehoursreplacethefilterorevery500servicehourscleanthefilterforthe filleronthelubricationpump.Thefilterisbehindtheconnectoronthereservoir.
Note:Ifthepumpingactionseemstogoheavy,checkthefilterbehindthecouplingforthefiller onthelubricationpump.Gentlycleanthefilterorreplacethefilter.Ifthefilterisdamaged,the filtermustbereplaced.
Note:Iftoomuchgreaseispumpedintothereservoir,thesurplusgreasewillexittheventatthe sideofthelubricationpump.Anyairthatisintroducedduringthefillingprocedurewillalso escapeviathisroute.
Note:Duetotheslowcapabilityofahandheldgreasegun,theuseofagreasegunisnot recommendedinordertofillthereservoir.
PeriodicChecks
•Checkthegreaselevelinthereservoir.Refillthereservoirontime.
•Checkthatthesignallampisfunctioning.
•Checkthatthedutycyclethatisindicatedonthesignallampiscorrectfortheoperating conditions.
•Checkthelubricationpumpfordamageandcheckthelubricationpumpforleakage.
•Checkthegreaselinesfordamageandcheckthegreaselinesforleakage.
•Checktheconditionsofthegreasepointsthatareservedbythesystem.Sufficientfresh greaseshouldbepresent.
•Checktheoperationofthesystem.Performacycletest.RefertoSystemOperation,Testing andAdjusting,RENR6739formoreinformation.
•Cleanthelubricationpumpandcleanthesurroundingsofthelubricationpump.
•Every500hoursreplacethefilterorevery500hourscleanthefilter.
Note:Whenyouusehighpressurewaterorhighpressureairtocleanthemachine,donotspray directlyontothelubricationpump.Waterordirtmayenterthelubricationpumpthroughthedearatingopenings.
Note:Theautomaticlubricationsystemreducesthetimeandeffortthatistakeninordertogrease themachinesignificantly.However,donotneglectgreasepointsthatarenotservedbythe automaticlubricationsystem.
GreaseRecommendations
GreaseshouldnotcontaingraphiteorPTFE.Usethecorrectgreaseintheautomaticlubrication system.
Theuseofapartiallyfluidgreasethatisabovethemaximumtemperaturethatisindicatedin Table1isnotpermitted.Useofapartiallyfluidgreasethatisabovethemaximumindicated temperaturecanleadtothefollowing.
•Excessivecomponentwear
•Areductionintheefficiencyofthesystem
Table1
Minimumoperating temperatureofthesystem
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
Maximumoperating temperatureofthesystem
PrescribedNLGI Grade
80°C(176°F) 2
0°C(32°F) 0/1
80°C(176°F) SYNTHETIC2
0°C(32°F) SYNTHETIC0/1
SatJan1101:49:13UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
AxleBreathers-Clean/Replace
SMCS-3278-070-BRE;3278-510-BRE
1.Parkthemachineonalevelsurface.MovetheparkingbrakecontroltotheENGAGED positionandshutofftheengine.
2.InstalltheSteeringFrameLock.RefertoOperationandMaintenanceManual,"Steering FrameLock".

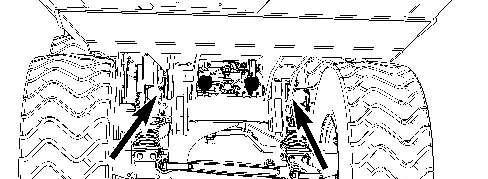

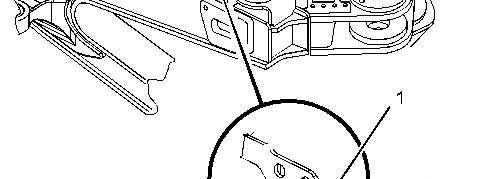

Illustration2g03490579
3.Removebreather(1)foreachaxle.
4.Washeachbreatherinclean,nonflammablesolvent.
5.Shakeeachbreatherandalloweachbreathertodry.
6.Installeachbreather.
Ifanyoftheaxlebreathersaredamaged,replacethedamagedbreather.
RemovetheSteeringFrameLockafteralltheaxlebreathersareinstalled.RefertoOperationand MaintenanceManual,"SteeringFrameLock".
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:49:30UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
BackupAlarm-Test
SMCS-7406-081
Thebackupalarmisontherearofthemachine.
TurntheenginestartswitchtotheONpositioninordertoperformthetest. Applytheservicebrakes.MovethetransmissioncontrollevertotheREVERSEposition.
i02305428
Thebackupalarmshouldstarttosoundimmediately.Thebackupalarmwillcontinuetosound untilthetransmissioncontrolleverismovedtotheNEUTRALpositionortotheFORWARD position.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. SatJan1101:49:45UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
Battery-Recycle
SMCS-1401-561
i08232552
Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestooneofthefollowing locations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Arecyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:49:57UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-510;1402-510
i01951790
Inspecttheconditionofthecablestothebatteriesandinspecttheconditionofthebatteries.
Note:Whenyoureplacethebatteries,alwaysusethesametypeofbattery. Usethefollowingprocedureinordertoisolatethebatteriesifanyrepairsarenecessary.
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.TurnthebatterydisconnectswitchtotheOFFposition.Removethekey.
3.Atthebatterydisconnectswitch,disconnectthenegativebatterycablethatisconnectedto theframe.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
4.Disconnectthenegativebatterycablefromtheterminalsofthebatteries.
5.Performthenecessaryrepairs.Replacethecablesorthebatteries,asneeded.
6.Connectthenegativebatterycabletotheterminalsofthebattery.
7.Connectthenegativebatterycableatthebatterydisconnectswitch.
8.Installthekeyforthebatterydisconnectswitch.TurnthekeytotheONposition.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:50:15UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
Belt-Inspect/Replace
SMCS-1357-040;1357-510;1397-040;1397-510
i06844307
Theengineisequippedwithaserpentinebeltthatdrivesthealternatorandtheairconditioner.
Note:Theengineisequippedwithabelttensionerthatautomaticallyadjuststhebelttothecorrect tension.
1.Parkthemachineonalevelsurface.Engagetheparkingbrake.Shutofftheengine.
2.Raisethehood.RefertoOperationandMaintenanceManual,"HoodControl".

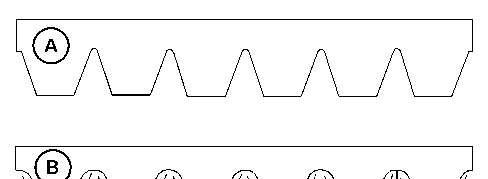

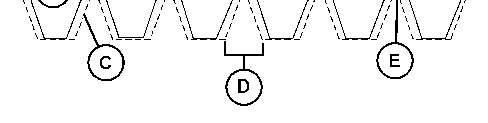

Illustration1g06114636 (A)Newbelt (B)Wornbelt
3.Inspecttheconditionoftheserpentinebelt.Overtimethebeltribswilllosematerial(C). Thespacebetweentheribswillincrease(D).Thelossofmaterialwillcausethepulley sheavetocontactthebeltvalley.Thelossofmaterialwillleadtobeltslippageand acceleratedwear(E).Replacethebeltifthebeltiswornorfrayed.

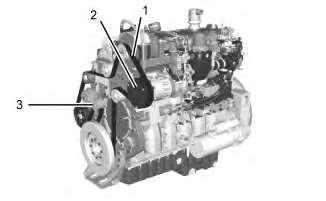

Illustration2g02925498
4.Ifbelt(1)requiresreplacement,performthefollowing:
a.Loosenfastenersforbeltguard,andremovebeltguard(2).
b.Insertasquaredriveontothebelttensioner(3).Turnclockwisetoreleasethetension fromthebeltandremovetheoldbelt.
c.Insertasquaredriveontothebelttensioner(3)andturnclockwise.Installthenew beltinthefollowingorder:drivepulley,airconditioningcompressorpulley, alternatorpulley,andbelttensioner.
d.Installbeltguardandtightenfasteners.
5.Lowerthehood.RefertoOperationandMaintenanceManual,"HoodControl".
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:50:27UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
BodyPivotBearings-Lubricate
SMCS-7258-086-BD;7424-086
i04837616
Parkthemachineonalevelsurface.Ensurethattheparkingbrakeisfullyengaged.Lowerthe dumpbodyandstoptheengine.
Removethecapsandwipethegreasefittingsbeforelubricantisapplied.Installthecapsafter lubricanthasbeenapplied.

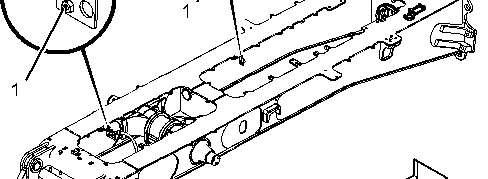

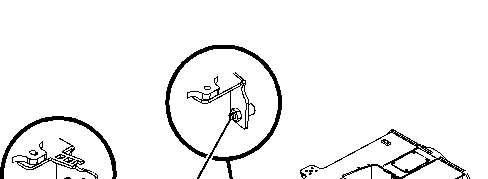

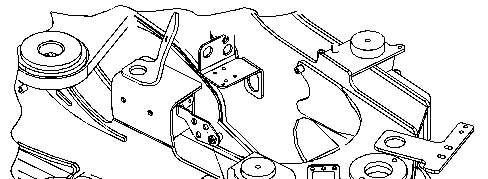

Thereisatotaloftwogreasefittings.Onegreasefittingontheendofeachpivotpin.Thefittings arelocatedattherearofthemachine.
Lubricatethepivotbearingsthroughthegreasefittings.Oneortwoshotswillberequiredateach fittingiflubricationiscarriedoutattherecommendedinterval.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJan1101:50:39UTC+05302025
Product:ARTICULATEDTRUCK
Model:730CARTICULATEDTRUCKLFF
Configuration:730CArticulatedTruckLFF00001-UP(MACHINE)POWEREDBYC13Engine
OperationandMaintenanceManual
730CArticulatedTruck
MediaNumber-SEBU8785-10PublicationDate-01/06/2015DateUpdated-24/09/2020
