CAT + Caterpillar 730C2 Articulated Truck Operation & Maintenance Manual by Heavy Equipment Manual

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-05PublicationDate-01/06/2015DateUpdated-18/12/2017

Foreword

LiteratureInformation

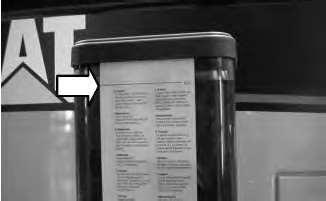

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.

Safety

Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.

Operation

Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportationandtowinginformation.

s00037320

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedinthemaintenanceintervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.

CaliforniaProposition65Warning

DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhands afterhandling.

CertifiedEngineMaintenance

Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformance oftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.

Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththe regulations(40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaust system,fuelsystem,electricalsystem,intakeairsystemandcoolingsystemmaybeemission relatedandshouldnotbealteredunlessapprovedbyCaterpillar.

MachineCapacity

Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.

CatProductIdentificationNumber

EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to 17characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandother constructionequipmentmanufacturersaremovingtocomplywiththelatestversionoftheproduct identificationnumberingstandard.Non-roadmachinePINsaredefinedbyISO10261.Thenew PINformatwillapplytoallCatmachinesandgeneratorsets.ThePINplatesandframemarking willdisplaythe17characterPIN.Thenewformatwilllooklikethefollowing:

1.Caterpillar'sWorldManufacturingCode(characters1-3)

2.MachineDescriptor(characters4-8)

3.CheckCharacter(character9)

4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.

MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.

This is the sample of the manual if you need complete manual Click Here to download

Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).

TueDec1921:23:31UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

AftercoolerCore-Inspect/Clean

SMCS-1064-571

Personalinjurycanresultfromairpressure.

Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.

Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.

i06576298

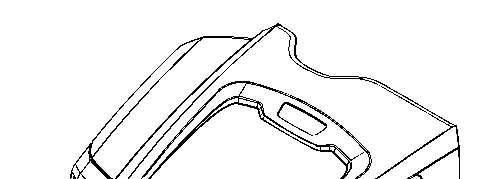

Illustration1g03486517 Raisethehood.RefertoOperationandMaintenanceManual,"HoodControl".

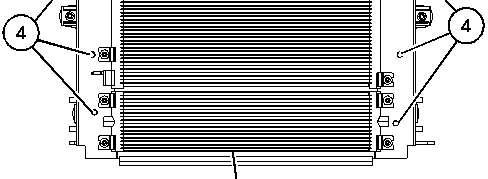

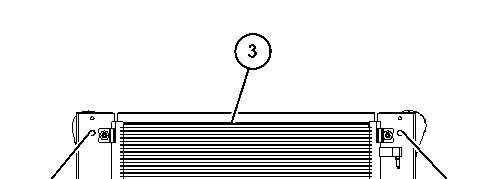

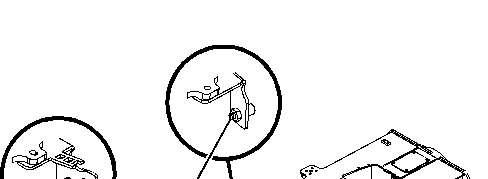

Illustration2g06029423

1.Removeboltsfromgrill(1).

2.Removegrilltoaccesstheairconditionercondenser(3)andthefuelcooler(2).

3.Toaccesstheaftercoolercore,removetheairconditionercondenser(3)andthefuelcooler (2)byremovingthesixbolts(4).

4.Inspecttheaftercoolercoreandcleantheaftercoolercore.Youcanusecompressedair,high -pressurewater,orsteamtoremovedustandotherdebrisfromtheaftercoolercore. However,theuseofcompressedairispreferred.

5.Installthesixbolts(4)toattachtheairconditionercondenser(2)andthefuelcooler(3) backon.

6.Installgrillandtightenthebolts.Lowerthehood.

TueDec1921:26:58UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

AirFilterElements-Clean/Replace

SMCS-1054-070;1054-510

PrimaryElement

NOTICE

Servicetheaircleaneronlywiththeenginestopped.Enginedamage couldresult.

Servicetheprimaryairfilterelementunderthefollowingconditions:

•Theindicatorfortheairfilterisilluminated.RefertoOperationandMaintenanceManual, "MonitoringSystem".

•Theprimaryairfilterelementhasbeeninservicefor1000hours.

Parkthemachineonalevelsurface.Ensurethattheparkingbrakeisengagedandshutoffthe engine.

1.Raisethehood.RefertotheOperationandMaintenanceManual,"HoodControl".

i07044044

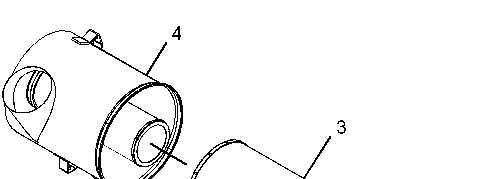

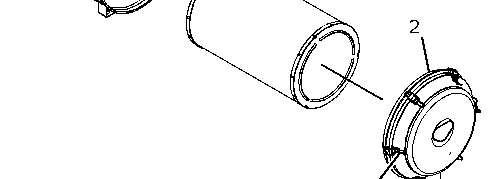

Illustration1g03490859

2.Releasethesixlatches(1)andremovetheaircleanercover(2).

3.Removeprimaryfilterelement(3)fromtheairfilterhousing(4).

4.Cleantheinsideoftheairfilterhousing.

5.Cleanthedustvalvesonthebottomfortheairfilterhousing.

6.Cleantheprimaryairfilterelementandinspecttheprimaryairfilterelement.

7.Installthecleanprimaryairfilterelement.Installthecoverfortheairfilterhousing.

8.Lowerthehood.

9.Starttheengine.Iftheindicatorfortheairfilterisilluminated,replacethesecondaryair filterelement.

Caterpillarrecommendscertifiedairfiltercleaningservicesavailable atparticipatingCaterpillardealers.TheCaterpillarcleaningprocess

usesprovenprocedurestoassureconsistentqualityandsufficientfilter life.

Observethefollowingguidelinesifyouattempttocleanthefilter element:

Donottaporstrikethefilterelementinordertoremovedust.

Donotwashthefilterelement.

Uselowpressurecompressedairinordertoremovethedustfromthe filterelement.Airpressuremustnotexceed207kPa(30psi).Directthe airflowupthepleatsanddownthepleatsfromtheinsideofthefilter element.Takeextremecareinordertoavoiddamagetothepleats.

Donotuseairfilterswithdamagedpleats,gaskets,orseals.Dirt enteringtheenginewillcausedamagetoenginecomponents.

Aprimaryairfilterelementcanbeuseduptosixtimesiftheelementisproperlycleanedandthe elementisproperlyinspected.Whenaprimaryairfilterelementiscleaned,checkforripsortears inthefiltermaterial.Theprimaryairfilterelementshouldbereplacedatleastonetimeperyear. Thisreplacementshouldbeperformedregardlessofthenumberofcleanings.

Visuallyinspecttheprimaryairfilterelementbeforecleaning.Inspecttheairfilterelementfor damagetotheseal,thegaskets,andtheoutercover.

Therearetwocommonmethodsthatareusedtocleantheprimaryairfilterelement:

•Pressurizedair

•Vacuumcleaning

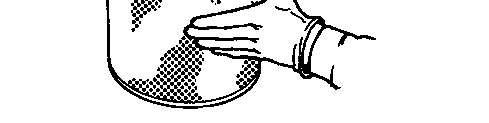

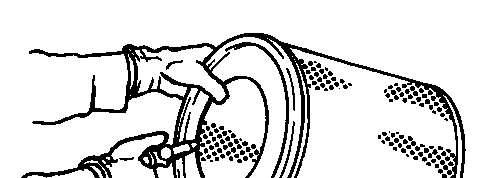

PressurizedAir

Weartheproperpersonalprotectionequipmentwhenpressurizedairisused.

Pressurizedaircanbeusedtocleanaprimaryairfilterelementthathasnotbeencleanedmore thantwotimes.Pressurizedairwillnotremovedepositsofcarbonandoil.Usefiltered,dryair withamaximumpressureof207kPa(30psi).

Note:Whentheprimaryairfilterelementiscleaned,alwaysbeginwiththecleanside(inside)in ordertoforcedirtparticlestowardthedirtyside(outside).

Aimthehosesothattheairflowsinsidetheelementalongthelengthofthefilterinordertohelp preventdamagetothepaperpleats.Donotaimthestreamofairdirectlyattheprimaryairfilter element.Dirtcouldbeforcedfurtherintothepleats.

VacuumCleaning

Vacuumcleaningisanothermethodforcleaningtheprimaryairfilterelementwhichrequires dailycleaningbecauseofadry,dustyenvironment.Cleaningwithpressurizedairisrecommended priortovacuumcleaning.Vacuumcleaningwillnotremovedepositsofcarbonandoil.

InspectingthePrimaryAirFilterElement

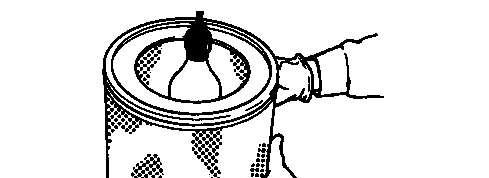

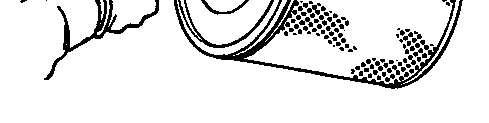

Illustration3g00281693

Inspecttheclean,dryprimaryairfilterelement.Usea60Wbluelightinadarkroomorina similarfacility.Placethebluelightintheprimaryairfilterelement.Rotatetheprimaryairfilter element.Inspecttheprimaryairfilterelementfortearsand/orholes.Inspecttheprimaryairfilter elementforlightthatmayshowthroughthefiltermaterial.Ifitisnecessarytoconfirmtheresult, comparetheprimaryairfilterelementtoanewprimaryairfilterelementthathasthesamepart number.

Donotuseaprimaryairfilterelementthathasanytearsand/orholesinthefiltermaterial.Donot useaprimaryairfilterelementwithdamagedpleats,gaskets,orseals.Discardadamagedprimary airfilterelement.

SecondaryElement

NOTICE

Alwaysreplacethesecondaryelement.Donotattempttoreuseitby cleaning.Enginedamagecouldresult.

NOTICE

Servicetheaircleaneronlywiththeenginestopped.Enginedamage couldresult.

Replacethesecondaryairfilterelementunderthefollowingconditions.

•Theprimaryairfilterelementisservicedforthethirdtime.

•Theindicatorfortheairfilterisilluminatedaftertheprimaryairfilterelementhasbeen serviced.RefertoOperationandMaintenanceManual,"MonitoringSystem".

1.Parkthemachineonalevelsurface.Ensurethattheparkingbrakeisfullyengagedandshut offtheengine.

2.Raisethehood.RefertoOperationandMaintenanceManual,"HoodControl".

3.Removetheairfiltercoverandremovetheprimaryfilterelementfromtheairfilterhousing.

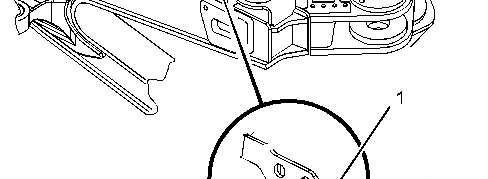

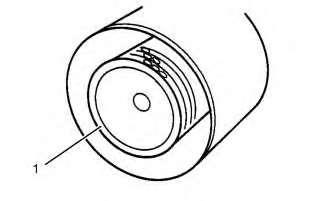

Illustration4g01903515 (1)Secondaryfilterelement

4.Removesecondaryfilterelement(1)andproperlydiscardthesecondaryelement.

5.Covertheairinletopening.Cleantheinsideoftheaircleanerhousing.

6.Uncovertheairinletopening.Installthenewsecondaryfilterelement.

7.Installtheprimaryfilterelementandinstalltheairfiltercover.

8.Lowerthehood.

TueDec1921:26:38UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

i07416314

ARDSparkPlug-Clean-EmissionRelatedComponent

SMCS-1555-070

S/N-2T41-UP

NOTICE

IftheengineisrunningorthekeyisintheONpositiontheARDplug willcontinuetofire.TurnthekeytotheOFFpositionbeforeservicing theARDplug.

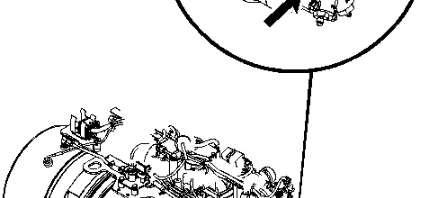

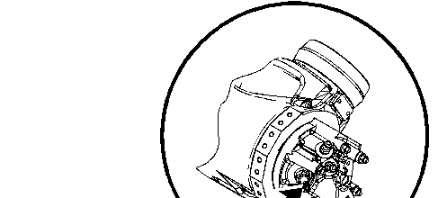

Illustration1g03486537

LocationoftheARDsparkplug

1.Preparethemachineformaintenance.RefertoOperationandMaintenanceManual, "PreparetheMachineformaintenance".

2.Stoptheengine.

3.Allowtheexhaustsystemtocoolbeforeperformingthisprocedure.

4.Raisethehood.RefertoOperationandMaintenanceManual,"HoodControl".

5.RemoveanydirtordebrisfromtheareaaroundARDsparkplug.

6.RemovesparkplugwirefromtheARDsparkplug.

7.UseadeepwellsocketandabreakerbartoloosentheARDsparkplug.Ifnecessary,see yourCatdealerforthepartnumberofthesocket.Afterthesparkplughasbeenloosened, usethesockettoremovethesparkplugbyhandinordertodetectproblemswiththe threads.

8.Afterremovingsparkplug,cleanthegroundprobeinsidetheARDcombustionheadby runningaplugborebrushthroughtheholeintheARDcombustionhead.Runthebrush throughtheholeseveraltimes.

9.Carefullycleanthesparkplugusinganonmetalliccleaningpad.Iftheprobeappearstobe bent,replacethesparkplug.Otherwise,installtheoriginalsparkplug.

Note:Thesparkplugmaybedamagedifthesparkplugisdropped.Donotinstallaspark plugthathasbeendropped.

NOTICE

Donotovertightenthesparkplug.Theshellcanbecrackedandthe gasketcanbedeformed.Themetalcandeformandthegasketcanbe damaged.Theshellcanbestretched.Thiswillloosenthesealthatis betweentheshellandtheinsulator,allowingcombustionpressureto blowpasttheseal.Seriousdamagetotheenginecanoccur.

Usethepropertorque.

10.InstallthesparkplugbyhanduntilthesparkplugcontactstheARD.Tightenthesparkplug to43.4N·m(32lbft)to51.5N·m(38lbft).

11.Connectthesparkplugwire.

12.Lowerthehood.

TueDec1921:27:25UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

i06863630 AutomaticLubricationFillerFilter-Clean-Autolube-If Equipped

SMCS-7540-070-HR

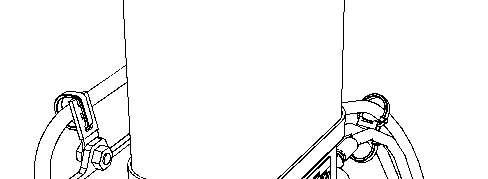

Illustration1g02494037

(1)Reservoir (2)DustCap (3)FillerTubeAssembly

1.Removedustcap(2)fromreservoir(1).

2.Cleanfillertubeassembly(3)andthecouplingonthefillertubeassembly.

3.Removefillertubeassembly(3)andthecoupling.

4.Removethegreasefittingfromthefilterandcleanthefilter.

5.Cleanthefilterwithsolventandcompressedair.Checkthefilterforcracks.Ifanycracks exist,replacethefilter.

6.Replacethegreasefittinginthefilter.

7.Fillthefilterwithgrease.

8.Installthefilter.

9.Installthefilterassemblyontofillertubeassembly(3).

10.Installfillertubeassembly(3)anddustcap(2).

TueDec1921:27:38UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

AutomaticLubricationGreaseTank-Fill-IfEquipped

SMCS-7540-544-TNK

IftheyellowLEDonthesignallampisilluminated,theminimumgreaselevelinthereservoirhas beenreached.

•Ensurethatthefillerhoseisprimedwithgreaseinordertopreventairfrombeing introducedinthegreasereservoir.

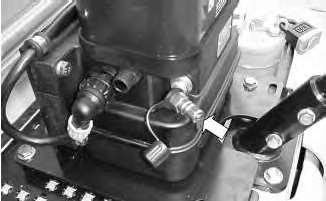

Illustration1g01074471

Locationofthecouplingonthelubricationpump

•Removethedustcapfromthecouplingforthefiller.

•Carefullycleanthecouplingforthefillerandthecouplingonthefillerhose.Thecoupler forthefillerhoseissuppliedwitheachAutolubesystem.

•Fixthefillerhoseonthecouplingforthefiller.

i02695981

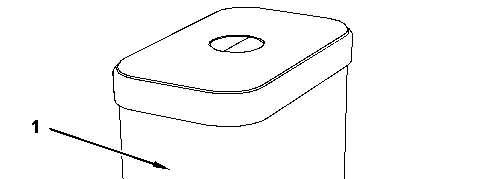

Illustration2g01076025

Themaximumlevelmarkonthelubricationpump

•Fillthereservoiruptothemaximumlevelthatisindicatedonthereservoir.

•Removethefillerhoseandfitthedustcap.

•Placethefillerhosebackinthehose'sproperplaceinordertoensurethatthecouplingof thefillerhoseremainsclean.

Note:Every500servicehoursreplacethefilterorevery500servicehourscleanthefilterforthe filleronthelubricationpump.Thefilterisbehindtheconnectoronthereservoir.

Note:Ifthepumpingactionseemstogoheavy,checkthefilterbehindthecouplingforthefiller onthelubricationpump.Gentlycleanthefilterorreplacethefilter.Ifthefilterisdamaged,the filtermustbereplaced.

Note:Iftoomuchgreaseispumpedintothereservoir,thesurplusgreasewillexittheventatthe sideofthelubricationpump.Anyairthatisintroducedduringthefillingprocedurewillalso escapeviathisroute.

Note:Duetotheslowcapabilityofahandheldgreasegun,theuseofagreasegunisnot recommendedinordertofillthereservoir.

PeriodicChecks

•Checkthegreaselevelinthereservoir.Refillthereservoirontime.

•Checkthatthesignallampisfunctioning.

•Checkthatthedutycyclethatisindicatedonthesignallampiscorrectfortheoperating conditions.

•Checkthelubricationpumpfordamageandcheckthelubricationpumpforleakage.

•Checkthegreaselinesfordamageandcheckthegreaselinesforleakage.

•Checktheconditionsofthegreasepointsthatareservedbythesystem.Sufficientfresh greaseshouldbepresent.

•Checktheoperationofthesystem.Performacycletest.RefertoSystemOperation,Testing andAdjusting,RENR6739formoreinformation.

•Cleanthelubricationpumpandcleanthesurroundingsofthelubricationpump.

•Every500hoursreplacethefilterorevery500hourscleanthefilter.

Note:Whenyouusehighpressurewaterorhighpressureairtocleanthemachine,donotspray directlyontothelubricationpump.Waterordirtmayenterthelubricationpumpthroughthedearatingopenings.

Note:Theautomaticlubricationsystemreducesthetimeandeffortthatistakeninordertogrease themachinesignificantly.However,donotneglectgreasepointsthatarenotservedbythe automaticlubricationsystem.

GreaseRecommendations

GreaseshouldnotcontaingraphiteorPTFE.Usethecorrectgreaseintheautomaticlubrication system.

Theuseofapartiallyfluidgreasethatisabovethemaximumtemperaturethatisindicatedin Table1isnotpermitted.Useofapartiallyfluidgreasethatisabovethemaximumindicated temperaturecanleadtothefollowing.

•Excessivecomponentwear

•Areductionintheefficiencyofthesystem

Table1

Minimumoperating temperatureofthesystem

Maximumoperating temperatureofthesystem

PrescribedNLGI Grade

80°C(176°F) 2

0°C(32°F) 0/1

80°C(176°F) SYNTHETIC2

0°C(32°F) SYNTHETIC0/1

TueDec1921:27:50UTC+05302023

Product:ARTICULATEDTRUCK

Model:730C2ARTICULATEDTRUCK2T4

Configuration:730C2ArticulatedTruck2T400001-UP(MACHINE)POWEREDBYC13Engine

OperationandMaintenanceManual

730C2ArticulatedTruck

MediaNumber-M0064766-09PublicationDate-01/06/2015DateUpdated-30/10/2019

AxleBreathers-Clean/Replace

SMCS-3278-070-BRE;3278-510-BRE

1.Parkthemachineonalevelsurface.MovetheparkingbrakecontroltotheENGAGED positionandshutofftheengine.

2.InstalltheSteeringFrameLock.RefertoOperationandMaintenanceManual,"Steering FrameLock".

i05516435

Illustration2g03490579

3.Removebreather(1)foreachaxle.

4.Washeachbreatherinclean,nonflammablesolvent.

5.Shakeeachbreatherandalloweachbreathertodry.

6.Installeachbreather.

Ifanyoftheaxlebreathersaredamaged,replacethedamagedbreather.

RemovetheSteeringFrameLockafteralltheaxlebreathersareinstalled.RefertoOperationand MaintenanceManual,"SteeringFrameLock".

TueDec1921:28:02UTC+05302023

This is the sample of the manual if you need complete manual Click Here to download
